Amana SR25F1L (BOM: P7700002W L)

Model: SR25F1L (BOM: P7700002W L)

Save Part Not Listed?
product name

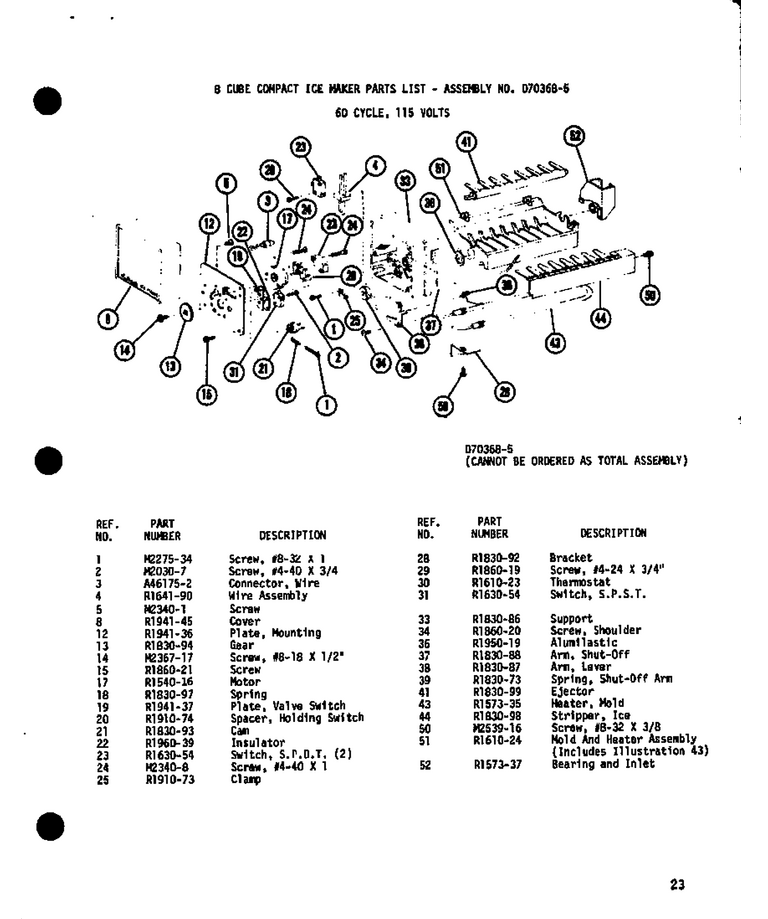

01 - 8 Cube Compact Ice Maker

...
...
1
Screw WPL-M0227534
...
2
Screw WPL-M0203007
...
3
Wire Nut K WPL-A4617502
...
4
Wire Assy WPL-R0164190
...
5
Screw WPL-W11084238
...
8
Cover WPL-R0194145
...
12
Mounting Plate WPL-R0194136
...
13
Gear WPL-WP628210
...
14
Screw WPL-WP489464
...
15
Screw WPL-R0186021
...
17
Motor WPL-R0154016
...
18
Spring WPL-R0183097
...
19
Plate WPL-R0194137
...
20
Spacer WPL-R0191074
...
21
Cam WPL-625913
...
22
Insulator WPL-R0196039
...
23
Switch, S.p.s.t. WPL-R0163054
...
24
Screw WPL-M0234008
...
25
Clamp WPL-R0191073
...
28
Bracket WPL-R0183092
...
29
Screw WPL-R0186019
...
30
Thermostat WPL-R0161023
...
31
Switch, S.p.s.t. WPL-R0163054
...
33
Support WPL-R0183086
...
34
Screw WPL-R0186020
...
36
Alumalastic WPL-R0195019
...
37
Arm, Shut-Off WPL-R0183088
...
38
Lever Arm WPL-R0183087
...
39
Spring WPL-R0183073
...
41
Ejector WPL-R0183099
...
43
Kit WPL-R0157335
...
44
Stripper WPL-R0183098
...
50
Screw WPL-M0253916
...
51
Mold & Heater Assy WPL-YR0161024
...
52
Inlet Kit WPL-R0157337

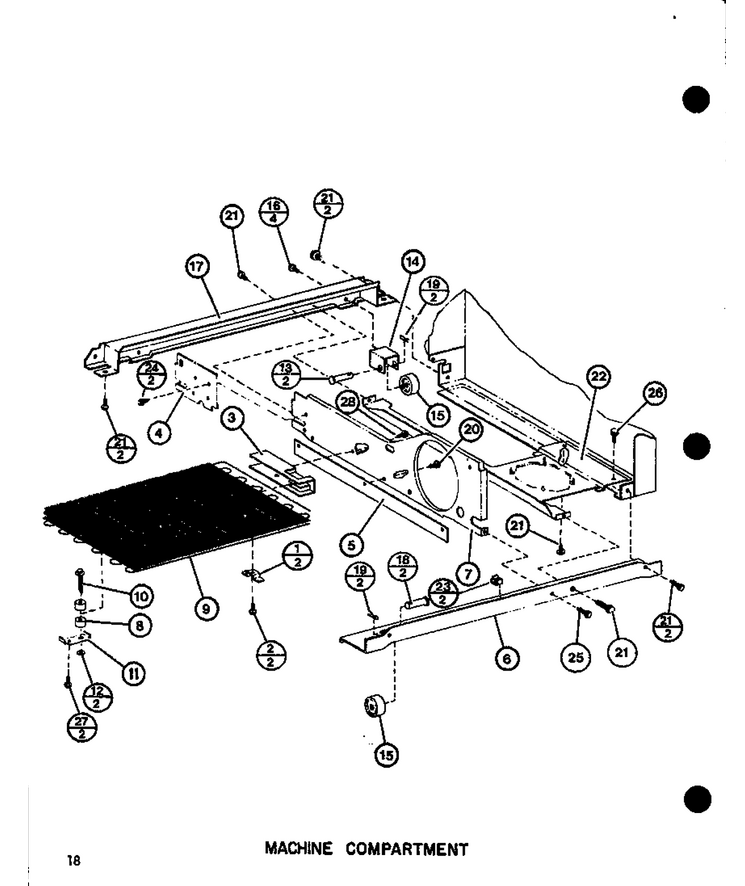

05 - Machine Compartment

...
...
1
Clip-Cond WPL-A3054502
...
2
Kit, Screw WPL-R9800670
...
3
Spacer WPL-B0544101
...
4
Extension WPL-B5619802
...
5
Seal-Fan Shroud Q WPL-B8314101
...
6
Rail-Rear Pnt. WPL-C3611308
...
7
Fan Shroud WPL-D7641702
...
8
Spacer Cond A WPL-B8346302
...
9
Condenser Assy Pnt WPL-D7455102
...
10
Screw A WPL-M0257025
...
11
Support Bracket WPL-A3085402
...
12
Nut A WPL-M0286003
...
13
Rivet WPL-M1205302
...
14
Bracket, Roller WPL-C8836305
...
15
Roller WPL-M0520102
...
16
Screw K WPL-M0236230
...
17
Rail WPL-D7003306
...
18
Pivot Pin K WPL-M1210001
...
19
Cotter Pin K WPL-M1200001
...
20
Screw WPL-WP98165
...
21
Screw WPL-M0294459
...
22
Weld Comp Supt Pntd WPL-C8820402
...
23
Clip-Cable WPL-M0110505
...
24
Screw WPL-WP90767
...
25
Screw WPL-WP90767
...
26
Screw WPL-WP67006715
...
27
Screw WPL-M0241132
...
28
Screw WPL-M0237032

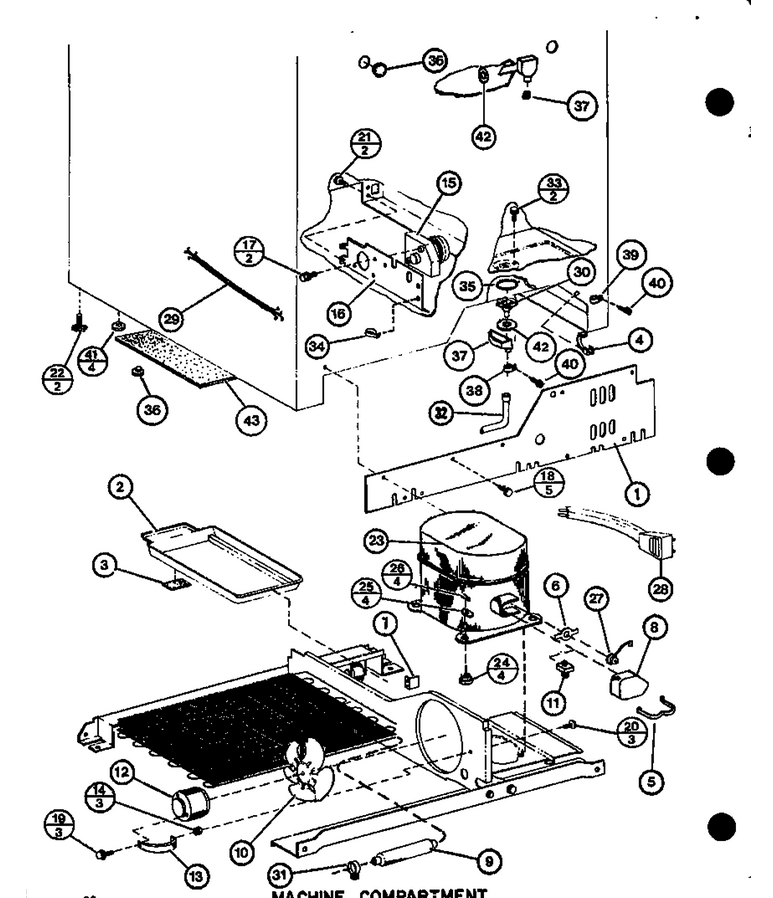

06 - Machine Compartment

...
...
1
Mc Back Assy WPL-C3655004
...
2
Pan, Drain WPL-D7001001
...
3
Pad A WPL-B5691701
...
4
Grommet, Cord WPL-211881
...
5
Strap K WPL-A3041801
...
6
Spring K WPL-C8916701
...
7
Stop,drain Pan WPL-A3125701
...
8
Terminal Cover WPL-B0551801
...
9
Drier WPL-WPB2150504
...
10
Blade, Fan WPL-B5742603
...
11
Relay K WPL-C3689202
...
12
Motor-Cond WPL-833697
...
13
Bracket, Cond Motor WPL-C8938501
...
14
Grommet K WPL-M0500107
...
15
Timer-Def WPL-W10822278
...
16
Timer Bracket WPL-C3647902
...
17
Screw,tc WPL-M0230017
...
18
Screw-Sm WPL-M0241118
...
19
Screw WPL-WPM0223816
...
20
Screw Shoulder WPL-M0238833
...
21
Screw WPL-M0211530
...
22
Glider Bolt WPL-M0266510
...
23
Compressor Aea1410axa WPL-D7672301
...
24
Grommet K WPL-A3026101
...
25
Washer, Nylon K WPL-M0590101
...
26
Clip K WPL-A3140801
...
27
Overload WPL-C3689105
...
28
Power Cord WPL-R0157154
...
29
Harness M.c WPL-D7655401
...
30
Drain Cup WPL-C8820601
...
31
Clamp-Drier WPL-M0104002
...
32
Drain Tube WPL-D7384701
...
33
Screw WPL-WP489464
...
34
Tie WPL-M0321401
...
35
Sealer, Gum (4 Feet) WPL-212643
...
36
Plug, Button WPL-A3076901
...
37
Plug Button WPL-M0310319
...
38
Clamp WPL-M0102303
...
41
Plug, Button (blk) WPL-A3080001
...
42
Grommet WPL-B5766402
...
43
Insulation M.c. A-K WPL-D7525101

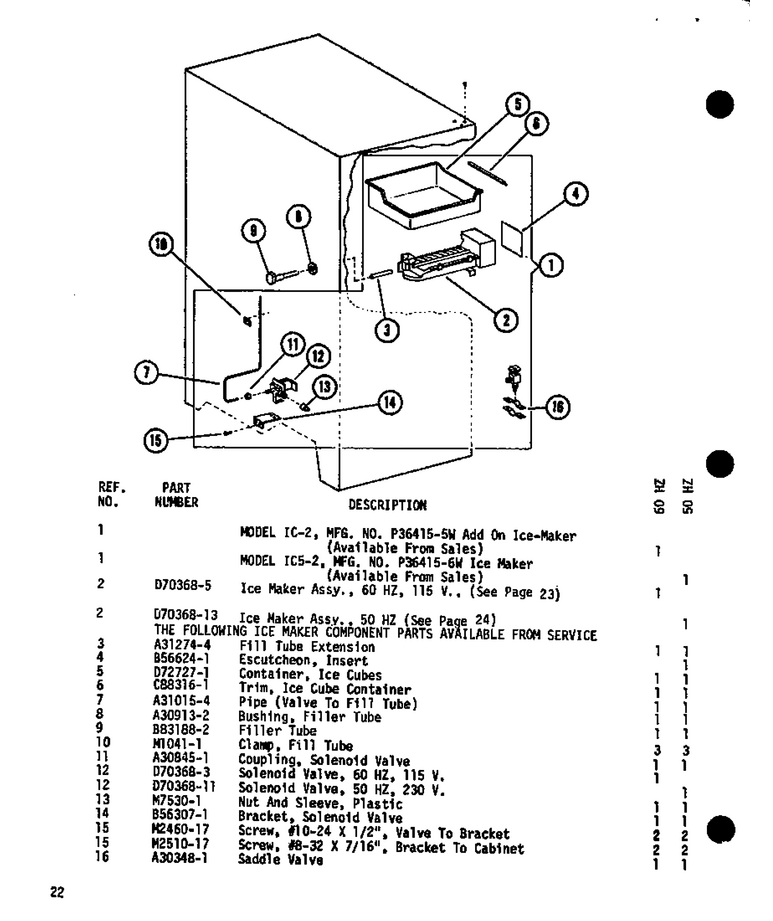

07 - Page 10

...
...
1
See Note Model Ic-2, Mfg. No. P36415-5w Add On Ice-Maker -- (available From Sales) WPL-Y00000000
...
2
Ic2-(ice Maker) WPL-D7036805
...
3
Tube WPL-A3127404
...
5
Ice Container WPL-D7272701
...
6
Trim-Ice Container WPL-C8831601
...
7
Pipe WPL-A3101504
...
8
Plug Button WPL-A3091302
...
9
Fill Tube WPL-R0182123
...
10
Clip WPL-WPM0104106
...
11
Coupling, Solenoid Valve And H WPL-A3084501
...
12
Valve-Inlt WPL-4318047
...
13
Nut WPL-WP627018
...
14
Bracket WPL-B5630701
...
15
Screw WPL-M0251017
...
16
Saddle Valve WPL-A3034801

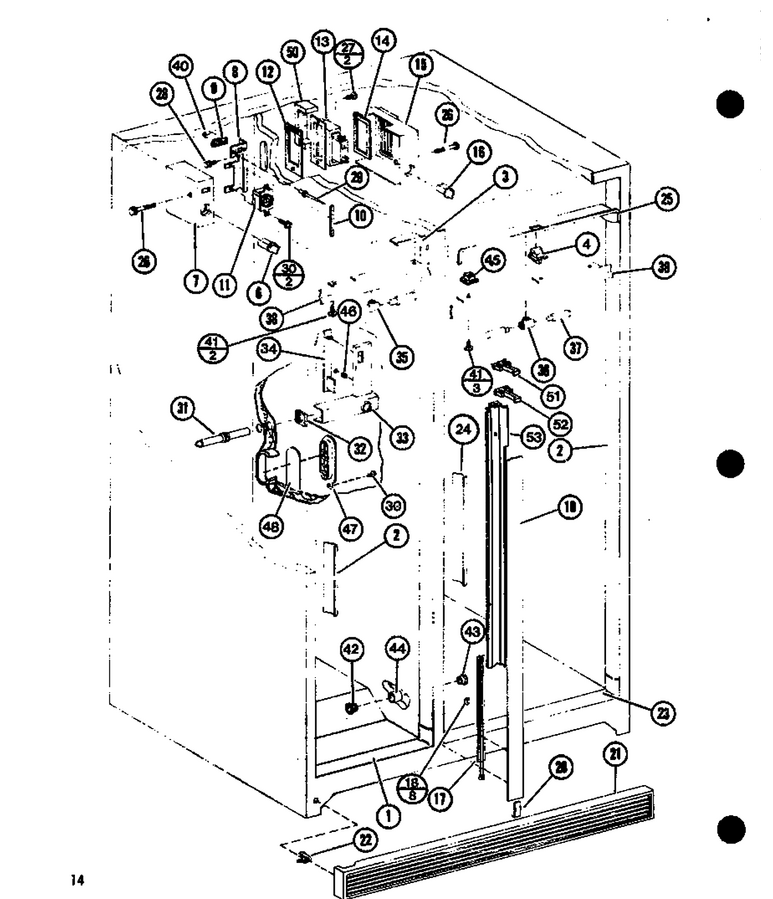

10 - Ref Fz Functional

...
...
NI
Return Air Assembly WPL-B8344901
...
1
Breaker Frame WPL-D3952402
...
2
Breaker WPL-D7510802
...
3
Br Frame WPL-D3953105
...
4
Switch WPL-W11384469
...
6
Knob WPL-D7009801
...
7
Escutcheon WPL-D7345503
...
8
Bracket WPL-C8850501
...
9
Switch WPL-M0341202
...
10
Gasket-Per Ft WPL-A30303-35
...
11
Control WPL-C3615018
...
12
Gasket-Damper WPL-B8315901
...
13
Control, Ref WPL-C3643115
...
14
Gasket Control WPL-A3113601
...
15
Escutcheon WPL-D7417301
...
16
Knob WPL-D7009802
...
17
Mullion Heater, 115v WPL-C8867001
...
18
Clip WPL-M0113401
...
19
Mullion Vert.white) WPL-C8810401
...
20
Key WPL-A3120801
...
21
Grille WPL-D7415414
...
22
Clip WPL-WPM0117303
...
23
Breaker Frame WPL-D3952603
...
24
Breaker Frame WPL-D7510902
...
25
Breaker Frame WPL-D3952505
...
26
Screw WPL-M0230926
...
27
Screw (3) WPL-67006425
...
28
Screw WPL-WP489464
...
29
Rivet A WPL-M0010202
...
31
Air Tube WPL-C8785301
...
32
Gasket WPL-A3116601
...
33
Esc Meatkeeper WPL-B5656709
...
34
Slide-Control WPL-B5622804
...
35
Socket WPL-B5637601
...
36
Socket-Light WPL-12096901
...
37
Bulb-Light WPL-WPA3073101
...
38
Light Shield WPL-D3954208
...
39
Light Shield WPL-D3954210
...
40
Diode WPL-M0305301
...
41
Screw WPL-M0226960
...
42
Air Tunnel WPL-A3187701
...
43
Retainer WPL-A3187801
...
44
Sleeve-Air Tunnel WPL-A3189501
...
45
Grommet WPL-M0580009
...
46
Clip WPL-M0113004
...
47
Grille A WPL-C3588305
...
48
Damper Assy WPL-B8344402
...
50
Insulation-Damp Cnt WPL-C8860701
...
51
Support Mullion WPL-B0594201
...
52
Support Mullion WPL-B5608001
...
53
Mullion WPL-B5626901

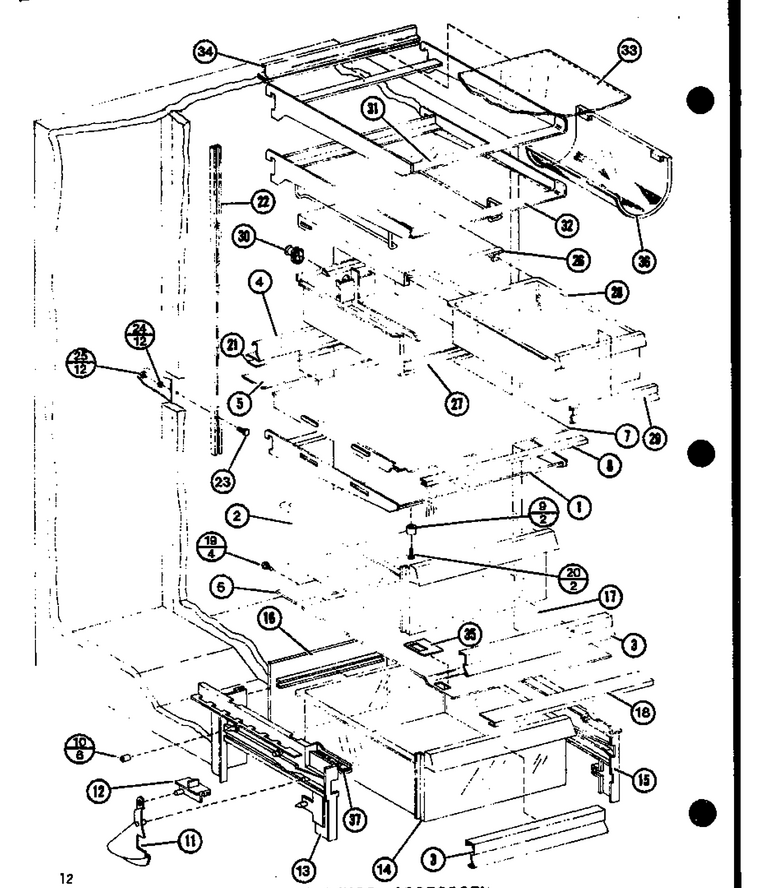

08 - Ref Accessory

...
...
NI
Glass Shelf Assy WPL-C8823411
...
1
Frame WPL-D7599701
...
2
Fruit Pan A WPL-D7298812
...
3
Trim, Handle WPL-C8831713
...
4
Trim-Rear WPL-C8831803
...
5
Ext-Crisper Top WPL-C3613005
...
6
Ext-Top WPL-C3622306
...
7
Top Fruit Pan WPL-D3951406
...
8
Trim ,crisper Top A WPL-B0570902
...
9
Glide Pan WPL-A3213402
...
10
Clip,tubular WPL-M0117901
...
11
Air Damper Cont K WPL-C8705401
...
12
Slide WPL-B5632101
...
13
Rail Lh WPL-D7201204
...
14
Net-Pan,high Humidity WPL-D7426802
...
15
Rail-Rh Rhc WPL-D7201305
...
16
Back Rac WPL-C8705504
...
17
Top-Humid Comp WPL-D7022202
...
18
Trim WPL-B0596603
...
19
Screw WPL-WP1163839
...
20
Screw WPL-M0230727
...
21
Tape- Roll WPL-M0275160
...
22
Ladder WPL-D7103701
...
23
Stud WPL-M0258801
...
24
Washer WPL-M0270519
...
25
Nut WPL-WP486255
...
26
Top-Mt Kpr WPL-D7343603
...
27
Sleeve M.k. WPL-D7001305
...
28
Meat Pan WPL-D7427401
...
29
Trim-Handle A WPL-C8831704
...
30
Grommet WPL-C3614902
...
31
Frame Asy WPL-R0179058
...
32
Frame Asy WPL-R0179060
...
33
Glass Shelf A WPL-B8303603
...
34
Trim-Rear WPL-C8831803
...
35
Escutcheon WPL-C3623501
...
36
Rack, Bottle WPL-D7547602
...
37
Insulation-Damp Cnt WPL-C8860701

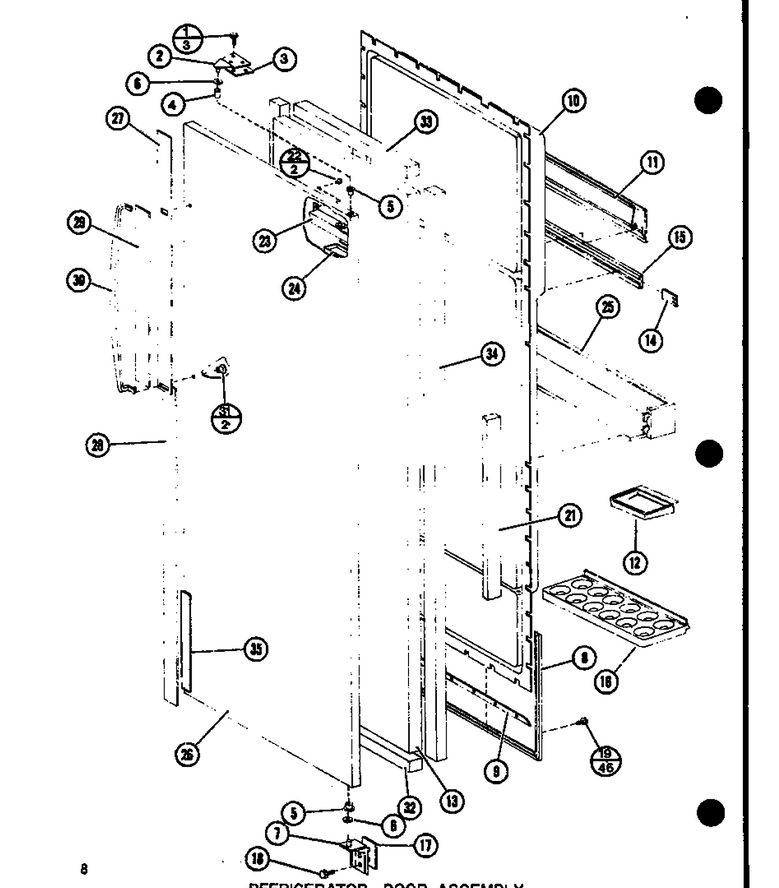

09 - Ref Door Assy

...
...
1
Kit, Screw WPL-R9800670
...
2
Hinge-Right WPL-C8816602
...
3
Shim Kit WPL-A3270303
...
4
Bushing WPL-A3132401
...
5
Bearing-Hinge WPL-C8852201
...
6
Washer K WPL-M0274013
...
7
Hinge WPL-D7250103
...
8
Gasket, Door WPL-D7092608
...
9
Retainer WPL-D7025101
...
10
Inner Dr Panel-Ref WPL-D7698601
...
11
Door Dairy WPL-D7511302
...
12
Buttertray WPL-67004412A
...
13
Insulation WPL-B5612005
...
14
Support K WPL-B0530006
...
15
Retainer, Egg Tray WPL-B8302616
...
16
Egg Tray WPL-D7466605
...
17
Shim WPL-A3143601
...
18
Screw WPL-WP67006715
...
19
Screw WPL-WPM0219730
...
21
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
22
Screw WPL-M1252001
...
23
Door Closure WPL-D7022901
...
24
Cover WPL-B5644001
...
25
Shelf, Door WPL-D7511402
...
26
Door Ref G-T-Sr22f WPL-D7624211
...
27
Pad Handle K WPL-D7557702
...
28
Pad, Handle WPL-D7557802
...
29
Nameplate WPL-C8864801
...
30
Handle WPL-D7096001
...
31
Nut WPL-M0289801
...
32
Insulation WPL-B5629008
...
33
Insulation WPL-B0534409
...
34
Insulation WPL-B5629002
...
35
Tape Kit WPL-R0195021

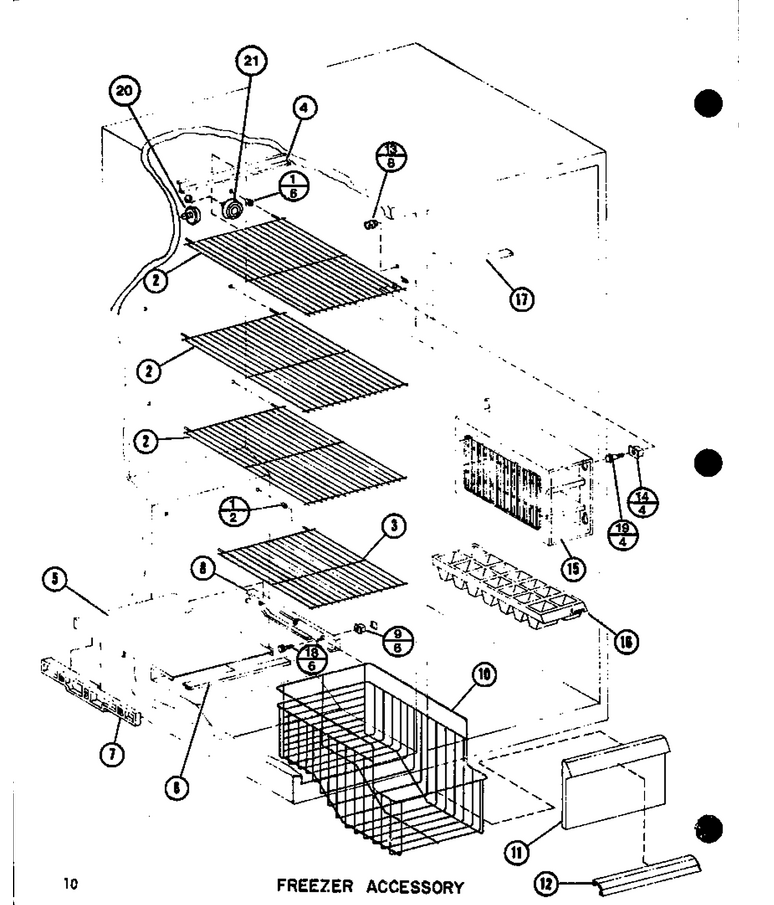

02 - Fz Accessory

...
...
NI
See Note Model Ic-2, Mfg. No. P36415-5w Add On Ice-Maker -- (available From Sales) WPL-Y00000000
...
1
Plug WPL-A0387302
...
2
Shelf WPL-D7549802
...
3
Shelf, Fz, Bottom WPL-D7540801
...
4
Trim WPL-D7415103
...
5
Shelf-Fr WPL-B8303802
...
6
Shelf Trim WPL-B0596601
...
7
Glide Basket-L K WPL-D7442901
...
8
Glide Basket-R K WPL-D7442902
...
9
Grommet K WPL-M0500107
...
10
Basket WPL-D7363602
...
11
Front-Fr Basket WPL-D7419601
...
12
Trim-Handle WPL-C8834901
...
13
Support WPL-B0595101
...
14
Grommet WPL-A0384901
...
15
Rack, Ice Tray WPL-B7465401
...
16
Tray WPL-WP841180A
...
17
Trim Shelf K WPL-C8795201
...
18
Screw WPL-WP98165
...
19
Screw-Ice Tray Shelf WPL-M0219547
...
20
Cap WPL-B5636301
...
21
Cap Fill Tube WPL-B5631801

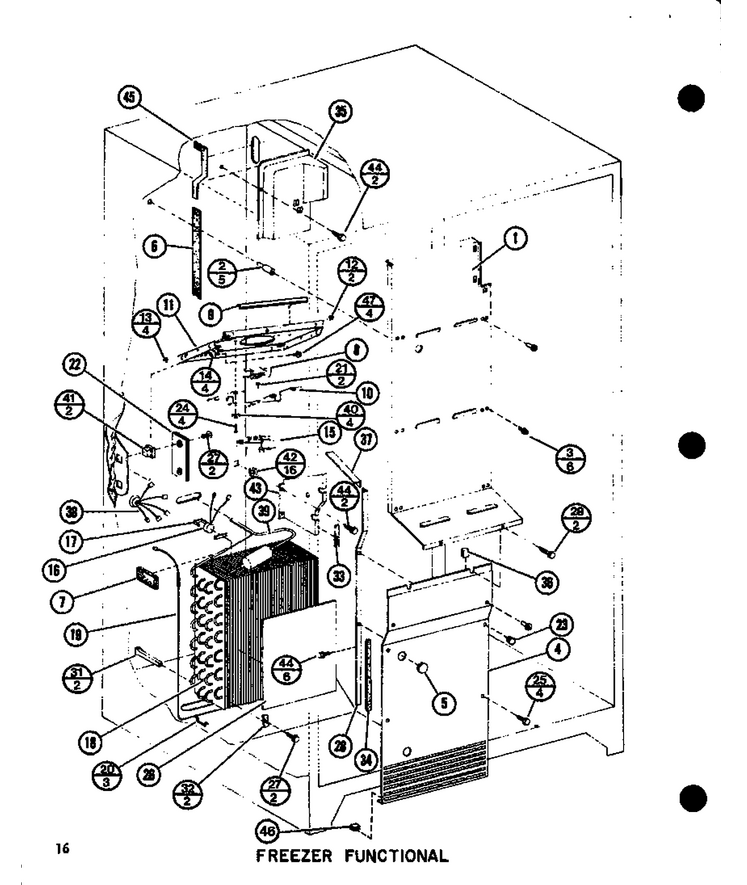

04 - Fz Functional

...
...
1
Baffle Fr Back WPL-D7482201
...
2
Spacer WPL-A3044202
...
3
Screw-Sm WPL-M0238636
...
4
Cover/gasket Assy WPL-D7484702
...
5
Plug WPL-A3069103
...
6
Gasket Baffle WPL-B8328101
...
7
Air Block WPL-B8314701
...
8
Fan-Evap WPL-C8795501
...
9
Gasket WPL-B5757702
...
10
Bracket-Evap Motor WPL-C8829701
...
11
Fan Plate Assy WPL-D7371502
...
12
Nut-Well WPL-M0292002
...
13
Clip, Waterline WPL-12454802
...
14
Eyelet K WPL-A0381401
...
15
Motor WPL-D7241412
...
16
Thermostat K WPL-C8871201
...
17
Clip Thermostat K WPL-B8325201
...
18
Evaporator Assy WPL-R0170012
...
19
Heater-Evap WPL-D7479703
...
20
Clip-Heater WPL-B8324701
...
21
Screw WPL-WP3400094
...
22
Term Board WPL-B8326801
...
23
Plug Button WPL-M0310316
...
24
Screw WPL-M0211020
...
25
Screw (3) WPL-67006425
...
26
Gasket, Evap. WPL-B8327901
...
27
Screw WPL-WP98165
...
28
Angle-Evap Cover WPL-D7393502
...
29
Screw WPL-M0226960
...
31
Grommet WPL-C8830701
...
32
Clip-Heater WPL-B5784101
...
33
Gasket WPL-B5759609
...
34
Gasket WPL-B5759608
...
35
Air Tunnel WPL-D7484901
...
36
Clip Ground WPL-B8324801
...
37
Angle-Fr Baffle WPL-B5795201
...
38
Wiring Harness Liner WPL-D7565502
...
39
Heat Exchanger WPL-D7646501
...
40
Grommet WPL-A4573802
...
41
Grommet A WPL-M0580002
...
42
Grommet WPL-M0580009
...
43
Block Air Coil WPL-C8868301
...
44
Screw WPL-WP90767
...
45
Gasket Air Tunnel WPL-B8320501
...
46
Clip WPL-M0117802
...
47
Screw (3) WPL-67006425

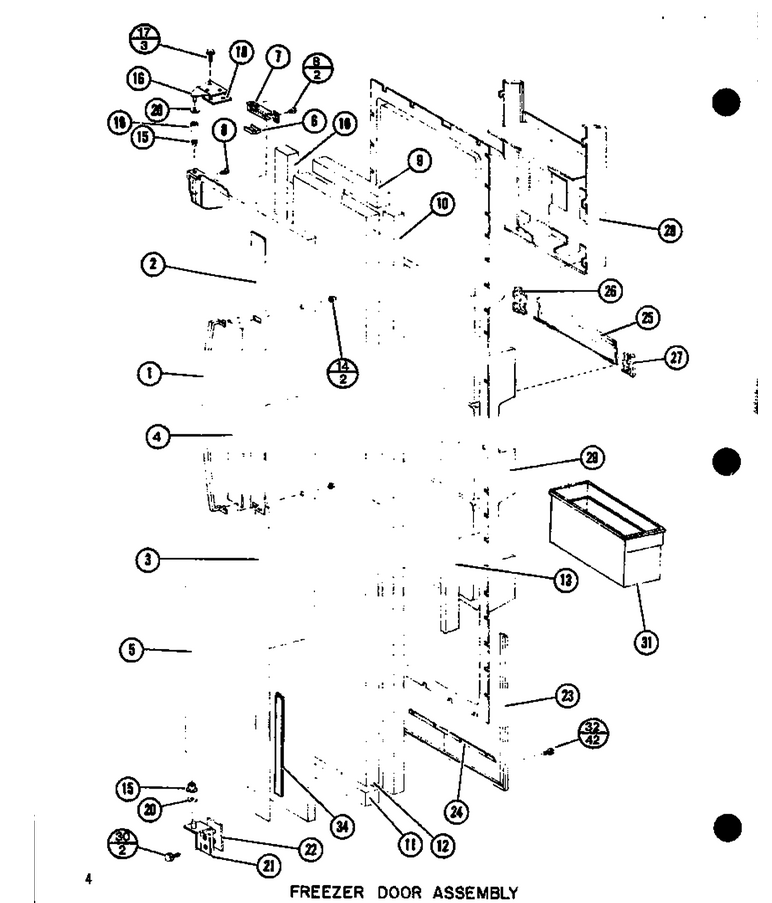

03 - Fz Door Assy

...
...
1
Handle WPL-D7096001
...
2
Pad Handle K WPL-D7557701
...
3
Pad Handle K WPL-D7557801
...
4
Nameplate WPL-C8867103
...
5
Fz Door, Almond WPL-D7624218
...
6
Cover WPL-B5644001
...
7
Door Closure WPL-D7022901
...
8
Screw WPL-M1252001
...
9
Insulation WPL-B5629006
...
10
Insulation WPL-B5629002
...
11
Insulation WPL-B5629003
...
12
Insulation WPL-B5612004
...
13
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
14
Nut WPL-M0289801
...
15
Bearing, Hinge WPL-C8852202
...
16
Hinge-Left WPL-C8816601
...
17
Kit, Screw WPL-R9800670
...
18
Shim Kit WPL-A3270303
...
19
Bushing WPL-A3132401
...
20
Washer K WPL-M0274013
...
21
Hinge WPL-D7250104
...
22
Shim WPL-A3143601
...
23
Gasket WPL-D7251020
...
24
Retainer WPL-D7025101
...
25
Retainer WPL-D7415703
...
26
Support, Package Retainer, R.h WPL-B5621705
...
27
Support- -Cream Rh WPL-B5631706
...
28
Juice Rack WPL-D7466202
...
29
Inner Dr Panel WPL-D7020604
...
30
Screw WPL-WP67006715
...
31
Ice Container WPL-D7442301
...
32
Screw WPL-WPM0219730
...
34
Tape Kit WPL-R0195021
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
