Amana SR19E (BOM: P7410001W)

Model: SR19E (BOM: P7410001W)

Save Part Not Listed?
product name

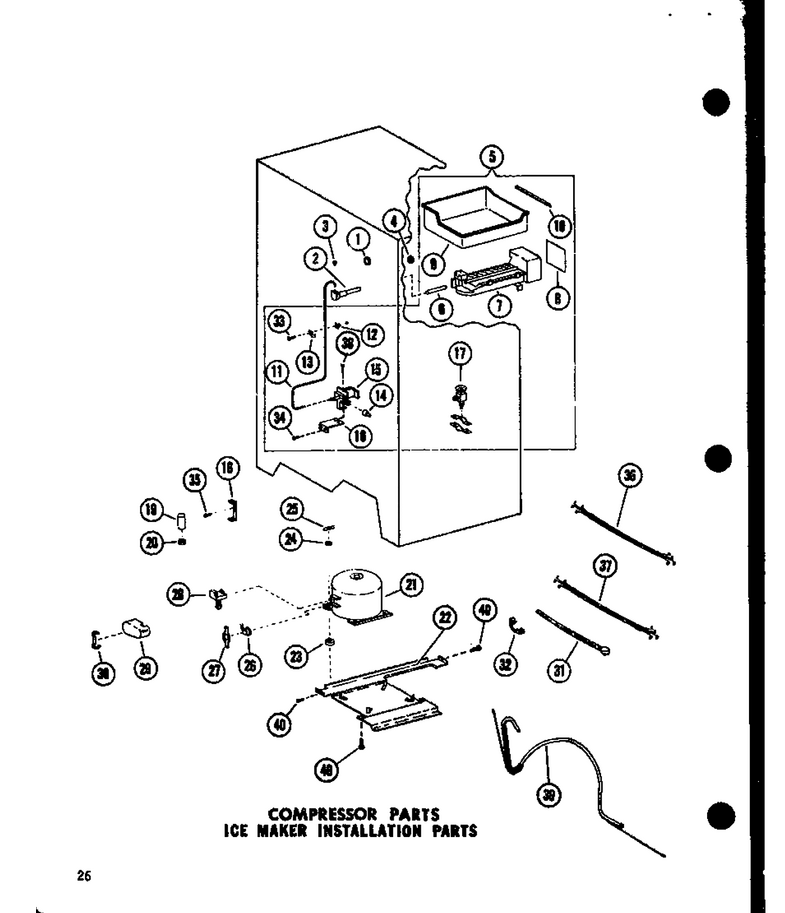

01 - Comp Parts Ice Maker Installation Parts

...
...
NI
Cap WPL-B5636301
...
1
Plug, Button (wht) WPL-A3080002
...
2
Fill Tube WPL-R0182123
...
3
Plug WPL-M0310309
...
4
Cap Fill Tube WPL-B5631801
...
5
See Note Model Ic-2 Mfg. No. P36415-6w Ice Maker -- (available Fromsales) WPL-Y00000000
...
12
Grommet, Screw WPL-M0580007
...
21
Compressor WPL-C3667102H
...
22
Weld Comp Supt Pnt WPL-C8820412
...
23
Grommet K WPL-A3026101
...
24
Washer, Nylon K WPL-M0590101
...
25
Clip K WPL-A3140801
...
26
Overload WPL-C3689105
...
27
Spring K WPL-A3043601
...
28
Relay K WPL-C3689202
...
29
Terminal Cover WPL-B0551801
...
30
Strap K WPL-A3041801
...
31
Power Cord WPL-R0157154
...
32
Strain Relief WPL-A3245101
...
33
Screw WPL-WP90767
...
35
Screw WPL-M0233104
...
36
Wire Harness-Mc WPL-D7451502
...
37
Wire Harness-Liner WPL-D7453501
...
39
Heat Exchange WPL-D7427901
...
40
Screw WPL-M0294459

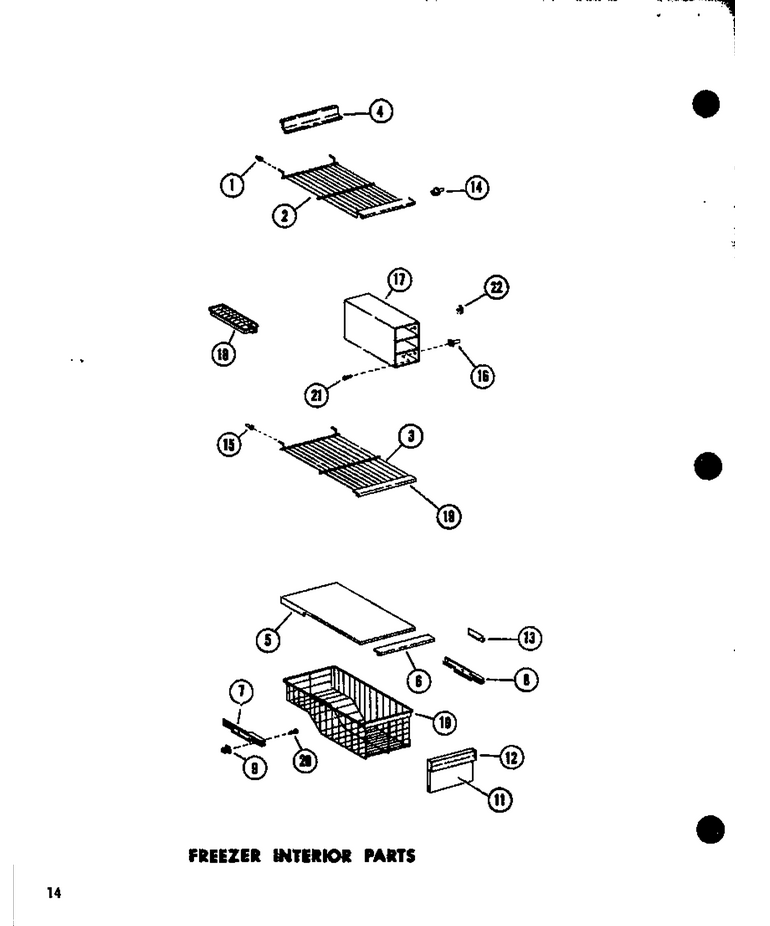

06 - Fz Interior Parts

...
...
1
Plug WPL-A0387302
...
2
Shelf WPL-D7419402
...
3
Shelf WPL-D7419407
...
4
Trim WPL-D7415103
...
5
Shelf-Fr WPL-B8303801
...
6
Shelf Trim WPL-B0596601
...
7
Glide Basket-L K WPL-D7442901
...
8
Glide Basket-R K WPL-D7442902
...
9
Grommet K WPL-M0500107
...
10
Basket WPL-D7363601
...
11
Front-Fr Basket WPL-D7419601
...
12
Trim-Handle WPL-C8834901
...
14
Support WPL-B0595101
...
15
Grommet WPL-A3066301
...
16
Grommet WPL-A0384901
...
17
Ice Rack WPL-D7465401
...
18
Tray WPL-WP841180A
...
19
Trim Shelf K WPL-C8795201
...
20
Screw WPL-WP98165
...
21
Screw-Ice Tray Shelf WPL-M0219547

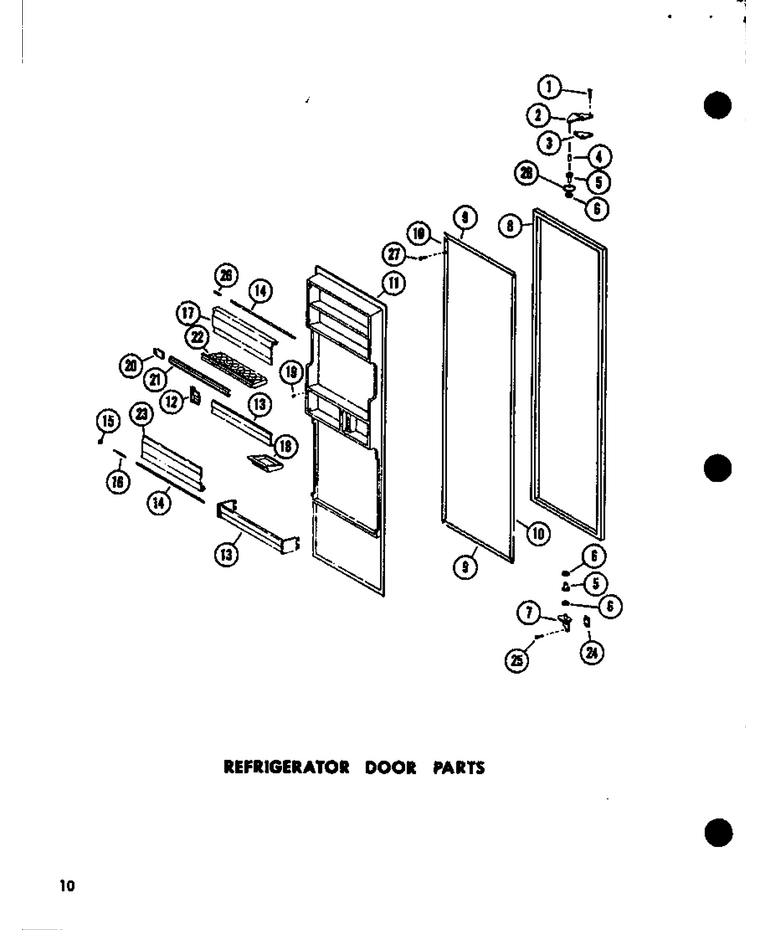

09 - Ref Door Parts

...
...
1
Kit, Screw WPL-R9800670
...
2
Hinge-Right WPL-C8816602
...
3
Shim-Top Hinge K WPL-A3270302
...
4
Bushing WPL-A3132401
...
5
Bearing, Hinge WPL-C8852202
...
6
Washer K WPL-M0274013
...
7
Hinge WPL-D7250103
...
8
Gasket WPL-D7092603
...
9
Retainer Gasket WPL-D7025105
...
10
Retainer WPL-D7025101
...
11
Inner Door Panel Ref. WPL-D7443501
...
12
Support- -Cream Rh WPL-B5631706
...
13
Retainer WPL-D7415705
...
14
Rod WPL-A3056206
...
15
Spacer K WPL-A3057004
...
16
Spring A/k WPL-A3065201
...
17
Butter Door WPL-C8832802
...
18
Buttertray WPL-67004412A
...
19
Bumper WPL-A3059003
...
20
Support K WPL-B0530006
...
21
Package Ret WPL-B8302602
...
22
Egg Tray-Assy WPL-D7429602
...
23
Utility Door WPL-C8833502
...
24
Shim WPL-A3143601
...
25
Screw WPL-WP67006715
...
26
Spring K WPL-A3067001
...
27
Screw WPL-WP98165
...
28
O Ring WPL-M0500902

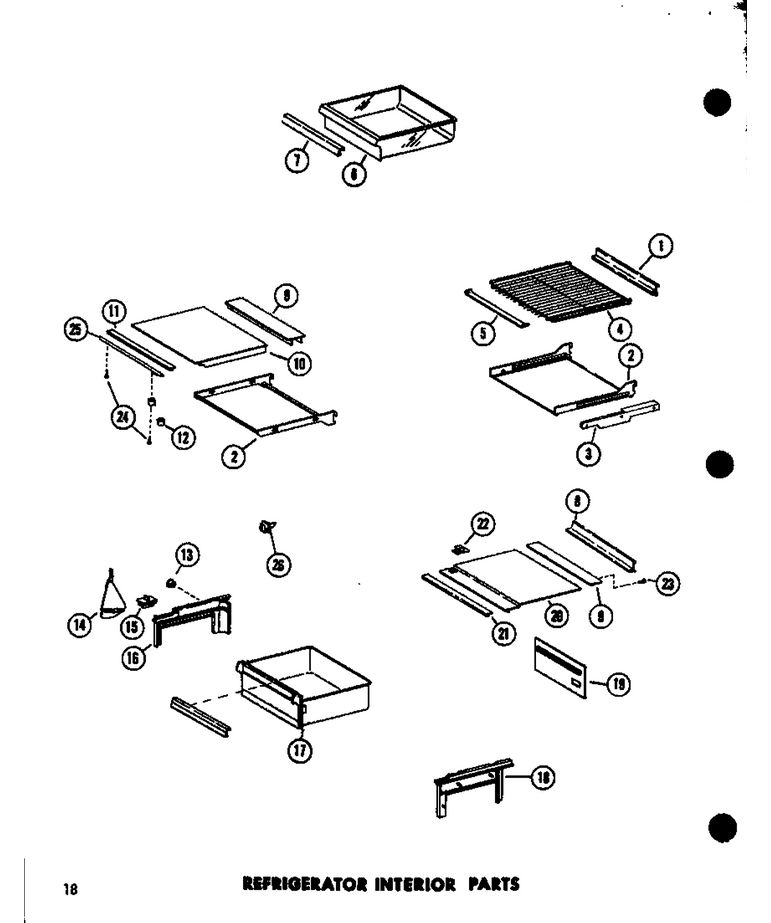

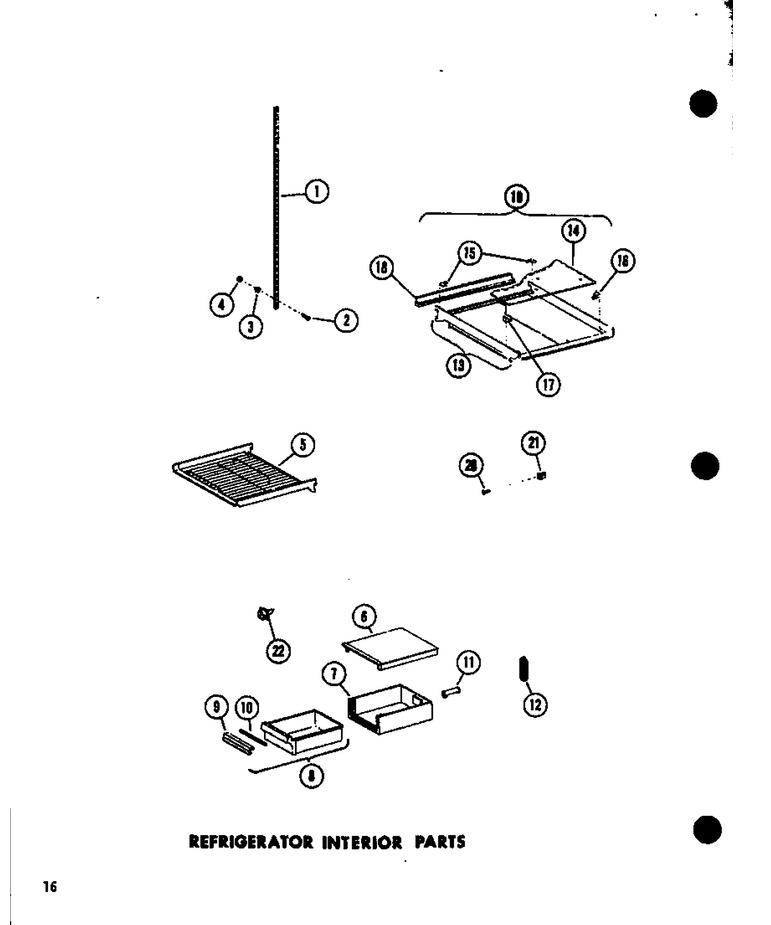

10 - Ref Interior Parts

...
...
1
Ladder WPL-D7103701
...
2
Screw WPL-M0207632
...
3
Washer WPL-M0270519
...
4
Nut WPL-WP486255
...
6
Top-Mt Kpr WPL-D7343603
...
7
Sleeve, Meat Keeper WPL-D7343702
...
8
Pan, Meat Keeper WPL-D7425301
...
9
Trim-Handle A WPL-C8831704
...
10
Gasket (per Foot) WPL-A3030313
...
11
Air Tube WPL-C8785301
...
12
Air Grille WPL-C3588302
...
13
Frame Asy WPL-R0179056
...
14
Glass Shelf A WPL-B8303601
...
15
Spacer Shelf A WPL-A3232201
...
16
Spacer Shelf A WPL-A3233901
...
17
Spacer Shelf A WPL-A3233902
...
18
Trim A WPL-C8831502
...
19
Glass Shelf Asy WPL-C8823407
...
20
Screw (3) WPL-67006425
...
21
Grommet K WPL-M0500107

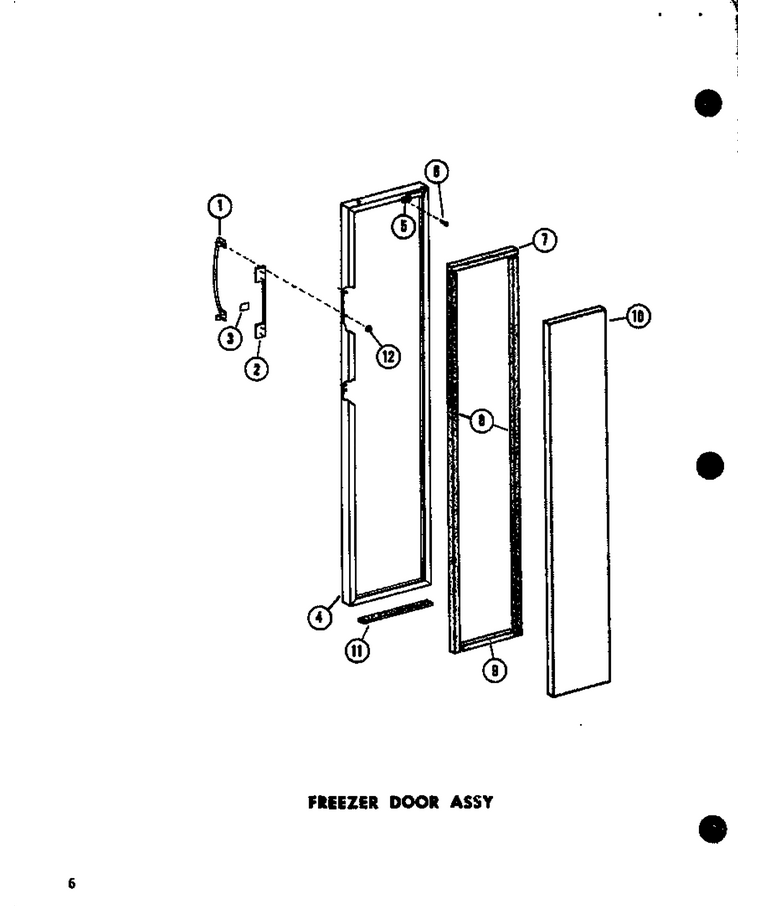

04 - Fz Door Assy

...
...
1
Handle WPL-D7096001
...
2
Pad, Door Handle WPL-D7454002
...
3
Nameplate WPL-C8832101
...
4
Door Fr A-T Sr25e WPL-D7409433
...
5
Door Closure WPL-D7022901
...
6
Screw WPL-M1252001
...
7
Insulation WPL-B5629006
...
8
Insulation WPL-B5629002
...
9
Insulation WPL-B5629003
...
10
Insulation WPL-B5612004
...
11
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
12
Nut WPL-M0289801

11 - Ref Interior Parts

...
...
2
Frame, Crisper Top WPL-D7000802
...
6
Fruit Pan WPL-D7425503
...
7
Trim Crisper A WPL-C8831701
...
8
Trim-Rear WPL-C8831804
...
10
Top, Crisper And Top, Fruit Bi WPL-D3966704
...
11
Trim A WPL-B0570903
...
12
Glide WPL-A3213401
...
17
Pan, Crisper Assembly WPL-D7219727

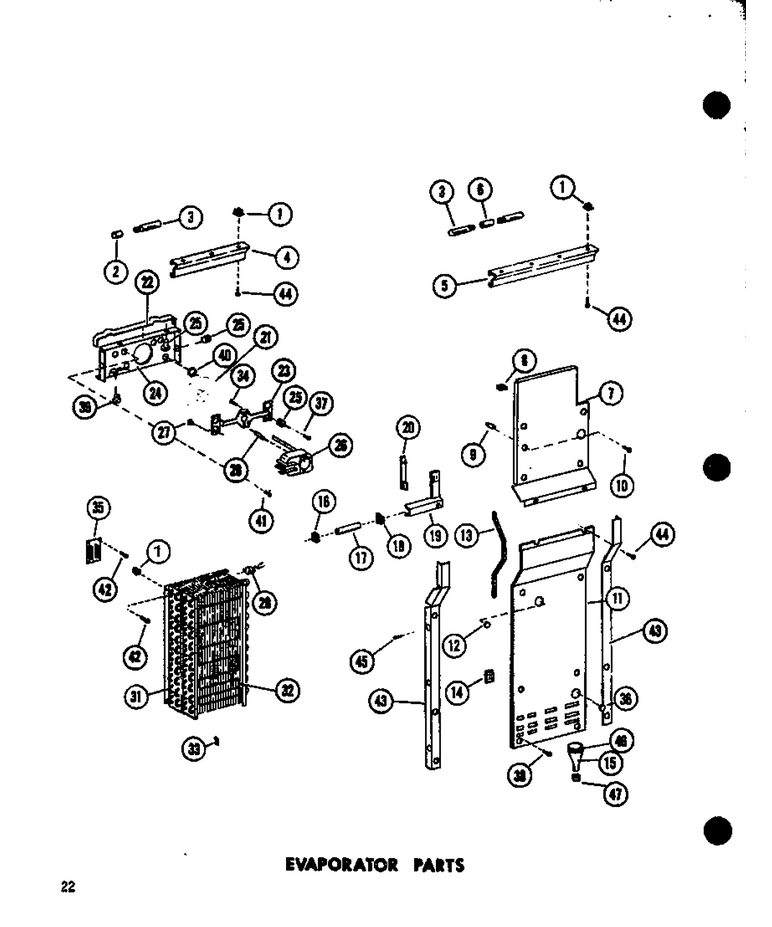

03 - Evap Parts

...
...
1
Grommet A WPL-M0580002
...
2
Socket WPL-B5637601
...
3
Bulb-Light WPL-WPA3073101
...
4
Light Shield WPL-D3954208
...
5
Light Shield WPL-C3597606
...
6
Socket-Light WPL-12096901
...
7
Baffle-Fr Back WPL-D7382301
...
8
Gasket WPL-A4591108
...
9
Spacer WPL-A3044202
...
10
Screw-Sm WPL-M0238636
...
11
Evap Cover WPL-D7348301
...
12
Plug WPL-A3069103
...
13
Gasket WPL-A3030302
...
14
Air Block WPL-C8806301
...
15
Tube Drain WPL-B5796101
...
16
Gasket WPL-A3116401
...
17
Tunnel, Air WPL-D7429501
...
18
Gasket WPL-A3116601
...
19
Escutcheon, Meat Keeper WPL-B5656707
...
20
Slide-Control WPL-B5622804
...
21
Fan-Evap WPL-C8795501
...
22
Gasket WPL-B5757702
...
23
Bracket-Evap Motor WPL-C8829701
...
24
Fan Plate Assy WPL-D7371501
...
25
Eyelet K WPL-A0381401
...
26
Motor WPL-D7241412
...
27
Grommet WPL-A0288701
...
28
Spacer WPL-A3044202
...
29
Thermostat Kit WPL-C8765002
...
31
Evaporator Coil WPL-D7428301
...
32
Heater-Evap WPL-D7479703
...
33
Clip-Heater WPL-B5784101
...
34
Screw WPL-WP3400094
...
35
Term Board WPL-B8303401
...
36
Plug WPL-M0310309
...
37
Screw WPL-M0232908
...
38
Screw (3) WPL-67006425
...
39
Nut-Well WPL-M0292002
...
40
Washer WPL-M0270301
...
41
Screw WPL-M0233104
...
42
Screw WPL-WP98165
...
43
Angle-Evap Cover WPL-D7393502
...
44
Screw WPL-M0226960
...
45
Kit, Screw WPL-R9800670
...
46
Gasket WPL-A3292301
...
47
Grommet WPL-B5796401

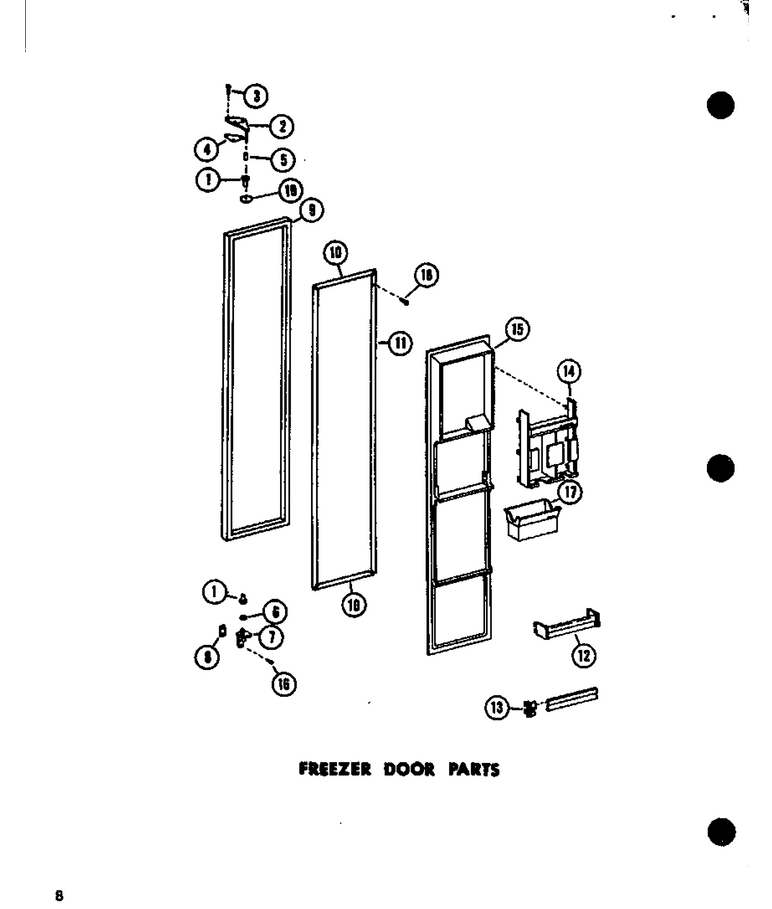

05 - Fz Door Parts

...
...
1
Bearing-Hinge WPL-C8852201
...
2
Hinge-Left WPL-C8816601
...
3
Kit, Screw WPL-R9800670
...
4
Shim-Top Hinge K WPL-A3270302
...
5
Bushing WPL-A3132401
...
6
Washer K WPL-M0274014
...
7
Hinge WPL-D7250104
...
8
Shim WPL-A3143603
...
9
Gasket WPL-D7251002
...
10
Retainer Gasket WPL-D7025103
...
11
Retainer WPL-D7025101
...
12
Retainer WPL-D7415703
...
13
Support- -Cream Rh WPL-B5631706
...
14
Juice Rack WPL-D7466201
...
15
Inner Dr Panel WPL-D7020604
...
16
Screw WPL-WP67006715
...
17
Ice Container WPL-D7442301
...
18
Screw WPL-M0241132
...
19
O Ring WPL-M0500902

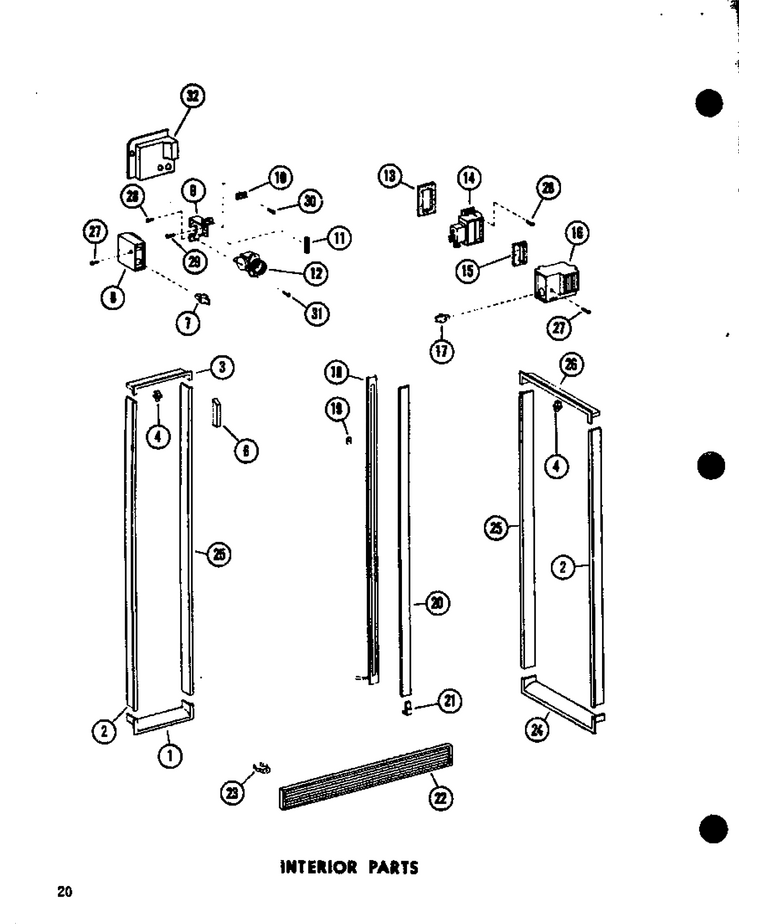

07 - Interior Parts

...
...
1
Breaker Frame WPL-D3952402
...
2
Breaker Frame WPL-D7424101
...
3
Breaker Frame WPL-D3953104
...
4
Switch WPL-W11384469
...
6
Cover-Switch WPL-B5743601
...
7
Knob WPL-D7009801
...
8
Escutcheon WPL-D7345503
...
9
Bracket WPL-C8850501
...
10
Switch WPL-M0341202
...
11
Gasket WPL-10839712
...
12
Control WPL-C3615018
...
13
Gasket-Damper WPL-B8315901
...
14
Damper Control Kit WPL-C3643114
...
15
Gasket Control WPL-A3113601
...
16
Escutcheon WPL-D7417301
...
17
Knob WPL-D7009802
...
18
Heater, Vertical Mullion WPL-C3628301
...
19
Clip WPL-M0113401
...
20
Mullion Vert.white) WPL-C8810401
...
21
Key WPL-A3120801
...
22
Grille-Toe WPL-D7415405
...
23
Clip WPL-WPM0117303
...
24
Breaker Frame WPL-D3952604
...
25
Breaker Frame WPL-D7424001
...
26
Breaker Frame WPL-D3952506
...
27
Screw WPL-M0230926
...
28
Screw WPL-WP489464
...
29
Screw WPL-M0233104
...
30
Rivet A WPL-M0010202
...
31
Screw WPL-WP90767
...
32
Tunnel, Air WPL-D7429501

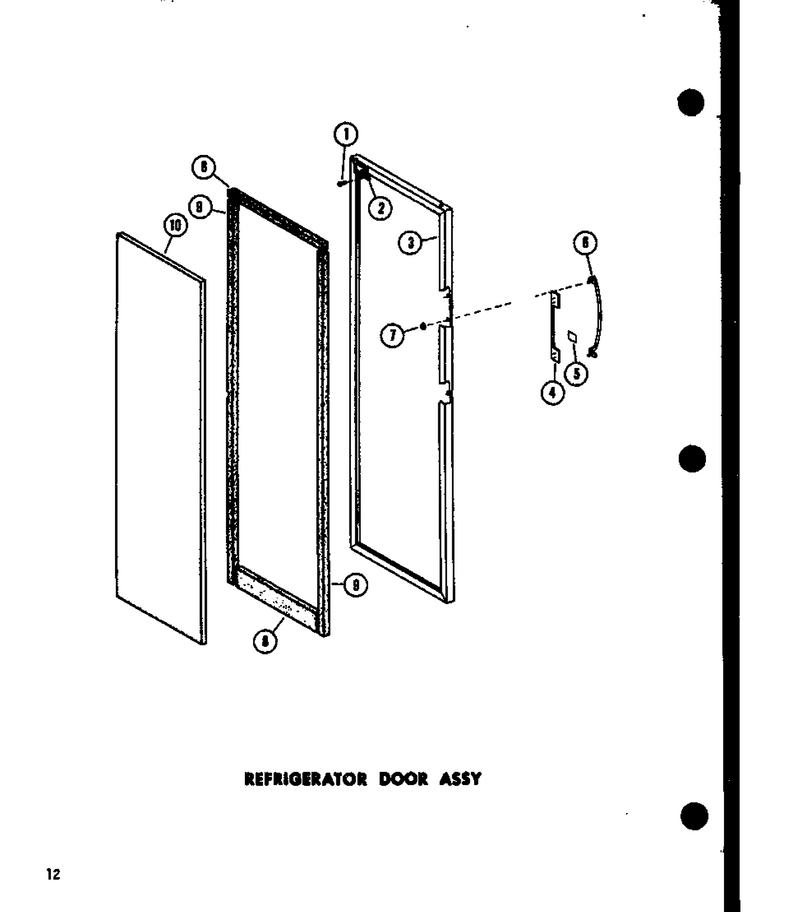

08 - Ref Door Assy

...
...
1
Screw WPL-M1252001
...
2
Cover WPL-B5644001
...
3
Door Ref L-T-Sr19e WPL-D7409340
...
4
Pad, Door Handle WPL-D7454001
...
5
Nameplate WPL-C8832001
...
6
Handle WPL-D7096001
...
7
Nut WPL-M0289801
...
8
Insulation WPL-B0534410
...
9
Insulation WPL-B5629002
...
10
Insulation WPL-B5612011

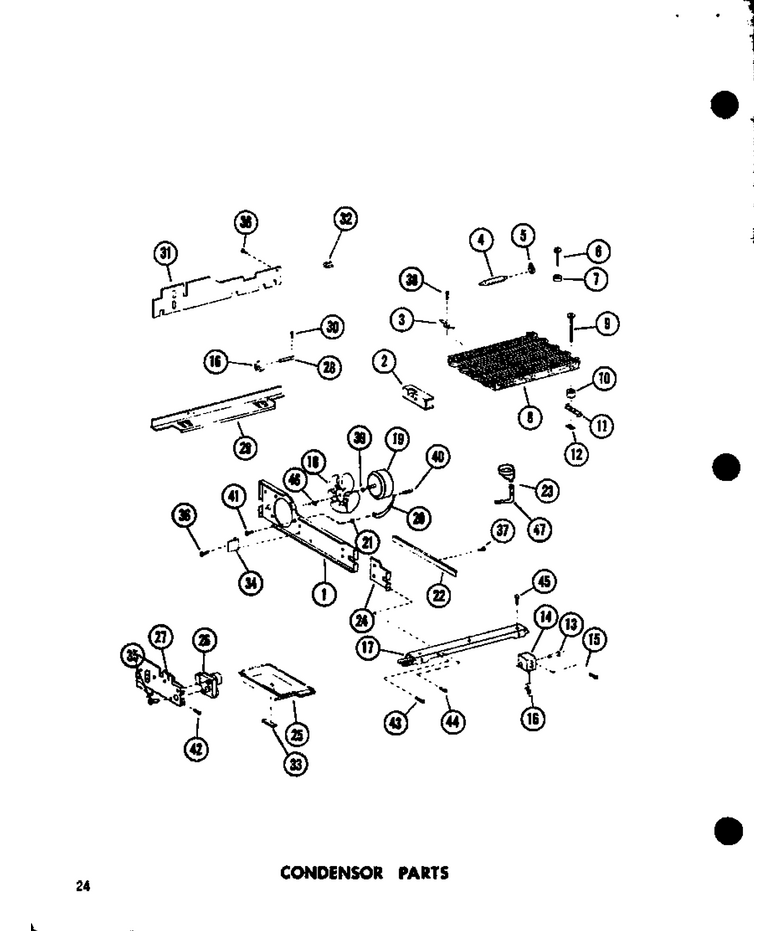

02 - Condensor Parts

...
...
1
Shroud, Fan WPL-D7446701
...
2
Spacer WPL-B0544101
...
3
Clip-Cond WPL-A3054502
...
4
Drier WPL-WPB2150504
...
5
Clamp-Drier WPL-M0104002
...
6
Sems Fastner WPL-M0257037
...
7
Spacer WPL-A3013906
...
8
Condenser Assy Pnt WPL-D7010701
...
9
Sems Fastner WPL-M0257039
...
10
Spacer WPL-B0544101
...
11
Bracket, Support WPL-A3085401
...
12
Nut A WPL-M0286003
...
13
Rivet WPL-M1205302
...
14
Roller Kit WPL-C8836302
...
15
Screw K WPL-M0236230
...
16
Roller WPL-M0520102
...
17
Front Rail WPL-C8820503
...
18
Blade, Fan WPL-B5742603
...
19
Motor-Cond WPL-833697
...
20
Bracket, Cond Motor WPL-B0598701
...
21
Grommet K WPL-M0500107
...
22
Seal-Fan Shroud Q WPL-B8314102
...
23
Drain Cup WPL-C8820601
...
25
Pan, Drain WPL-D7001001
...
26
Timer-Def WPL-W10822278
...
27
Timer Bracket WPL-C3647902
...
28
Pivot Pin K WPL-M1210001
...
29
Rail, Rear WPL-C3611301
...
30
Cotter Pin K WPL-M1200001
...
31
Back, Mach Compt K WPL-C3655001
...
32
Clip-Cable WPL-M0110505
...
33
Pad A WPL-B5691701
...
34
Stop,drain Pan WPL-A3125701
...
35
Screw WPL-M0213815
...
36
Screw-Sm WPL-M0241118
...
37
Screw WPL-WP98165
...
38
Kit, Screw WPL-R9800670
...
39
Washer K WPL-M0274015
...
40
Screw WPL-WPM0223816
...
41
Screw Shoulder WPL-M0238833
...
42
Screw WPL-M0211530
...
43
Screw WPL-M0294459
...
44
Screw WPL-WP98165
...
45
Screw WPL-M0267101
...
46
Nut WPL-WP486692
...
47
Drain Tube WPL-D7384701
