product name

Amana SR19A (BOM: P6035005W)

Model: SR19A (BOM: P6035005W)

Save Part Not Listed?
product name

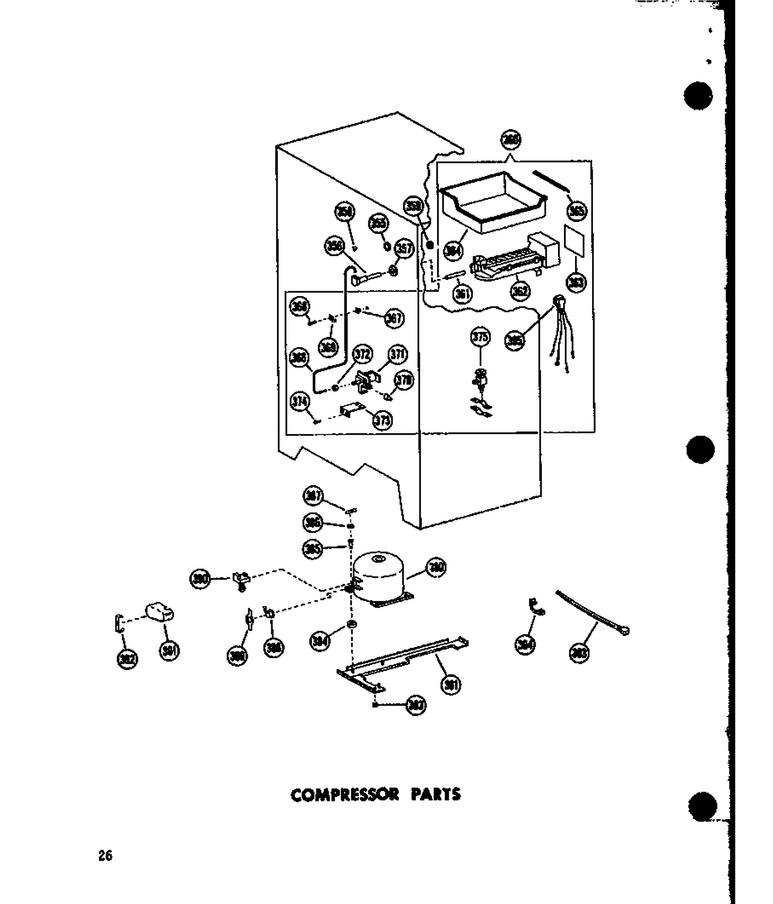

02 - Compressor Parts

...
...
355
Plug, Button (wht) WPL-A3080002
...
356
Fill Tube WPL-R0182123
...
357
Plug Button WPL-A3091301
...
358
Plug WPL-M0310309
...
359
Cap Fill Tube WPL-B5631801
...
360
See Note Model Ic-2, Mfg. No. P36415-5w Ice Maker -- (available Fromsales) WPL-Y00000000
...
361
Tube WPL-A3127404
...
362
Ic2-(ice Maker) WPL-D7036805
...
363
Insert-Im WPL-B5662401
...
364
Pan-Ice WPL-WP67001255
...
365
Trim K WPL-C3637901
...
366
Pipe WPL-A3101504
...
367
Grommet, Screw WPL-M0580007
...
368
Screw WPL-WP90767
...
369
Clamp WPL-M0102804
...
370
Coupling, Solenoid Valve And H WPL-A3084501
...
371
Valve-Inlt WPL-4318047
...
372
Nut WPL-WP627018
...
373
Bracket WPL-B5630701
...
374
Screw WPL-M0246017
...
375
Saddle Valve WPL-A3034801
...
380
Compressor Ae1413a WPL-C3667002
...
381
Weld Comp Supt Pnt WPL-C8820412
...
383
Washer WPL-M0274038
...
384
Grommet K WPL-A3026101
...
385
Sleeve WPL-A3141201
...
386
Washer, Nylon K WPL-M0590101
...
387
Clip K WPL-A3140801
...
388
Overload K WPL-C3689101
...
389
Spring K WPL-A3043601
...
390
Relay WPL-C3689201
...
391
Terminal Cover WPL-B0551801
...
392
Strap K WPL-A3041801
...
393
Power Cord WPL-R0157154
...
394
Strain Relief WPL-A3245101
...
395
Harness WPL-C3629202

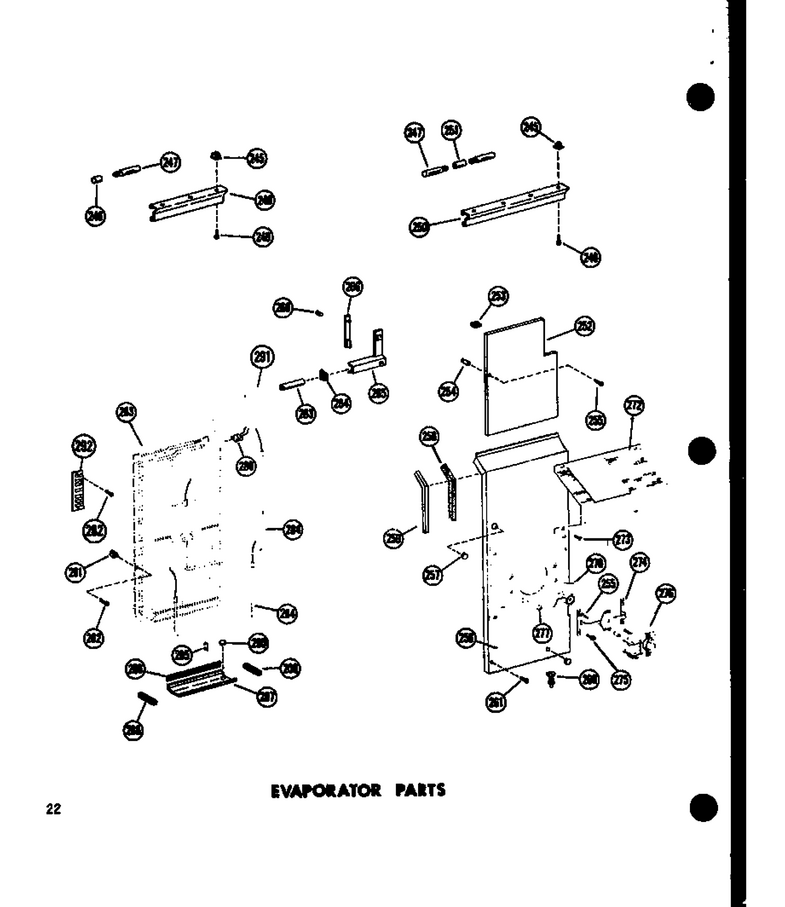

04 - Evap Parts

...
...
NI
Gasket WPL-A3116401
...
245
Grommet A WPL-M0580002
...
246
Socket WPL-B5637601
...
247
Bulb-Light WPL-WPA3073101
...
248
Light Shield WPL-D3954208
...
249
Screw WPL-WP90767
...
250
Light Shield WPL-C3597604
...
251
Socket-Light WPL-12096901
...
252
Baffle WPL-C8767201
...
253
Gasket WPL-A4591108
...
254
Spacer WPL-A3044202
...
255
Screw-Sm WPL-M0238636
...
256
Cover-Evap WPL-D7232901
...
257
Plug WPL-A3069101
...
258
Gasket K WPL-A3189308
...
259
Gasket 1 WPL-10839714
...
260
Drain Tube WPL-C3607401
...
261
Screw (3) WPL-67006425
...
263
Tube-Meat Keeper WPL-C3615302
...
264
Gasket WPL-A3116601
...
265
Escutcheon WPL-B5656701
...
266
Slide-Mt Kpr WPL-B5622802
...
269
Clip WPL-M0113004
...
270
Fan Blade WPL-B5739301
...
274
Motor Mount WPL-C8722501
...
275
Screw WPL-M0211020
...
276
Motor WPL-D7241403
...
277
Grommet WPL-A0374201
...
280
Thermostat WPL-B5752501
...
281
Grommet WPL-M0580003
...
282
Screw WPL-WP98165
...
283
Evaporator WPL-D7240701
...
284
Heater WPL-C8725001
...
285
Clip WPL-M0110301
...
286
Gasket A-K WPL-A3077901
...
287
Drip Tray A-K WPL-C3597801
...
288
Gasket Drip Tray K WPL-A3098301
...
290
Drain Screen WPL-A3113701
...
291
Heat Exchanger WPL-D7003903
...
292
Terminal Board WPL-B5752601

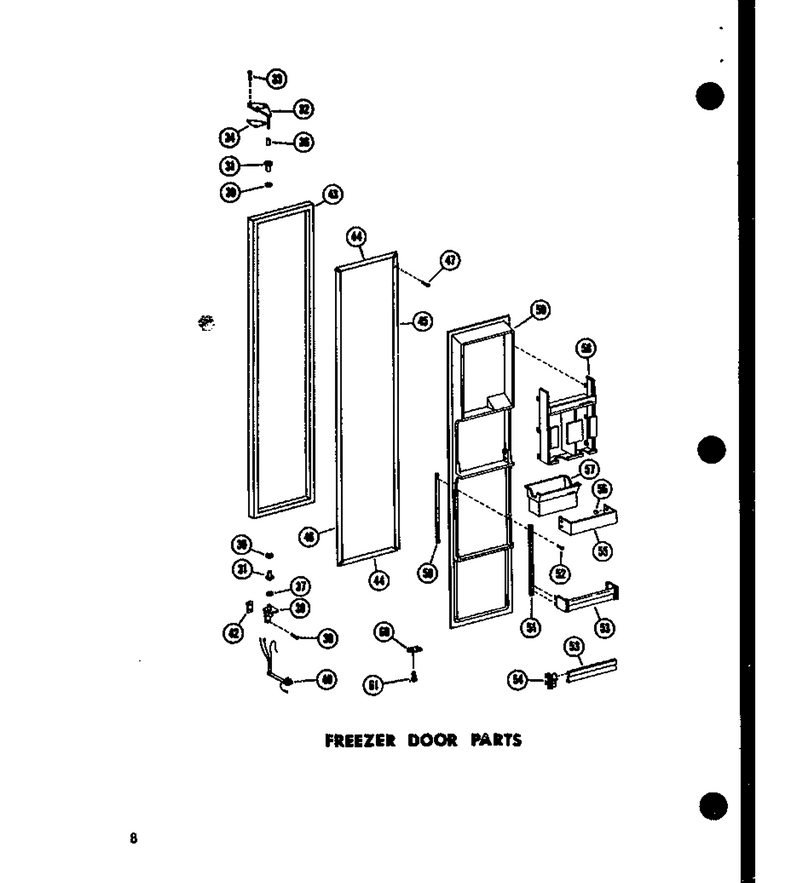

06 - Fz Door Parts

...
...
30
Washer WPL-M0274027
...
31
Flat Bearing (bottom Hinge) WPL-B0539807
...
32
Hinge WPL-C3622602
...
33
Screw WPL-M0254331
...
34
Hinge Shim WPL-A3076401
...
36
Bushing WPL-A3132401
...
37
Washer K WPL-M0274014
...
38
Hinge WPL-D7250104
...
39
Screw WPL-WP67006715
...
40
Wire WPL-C8726001
...
42
Shim WPL-A3061901
...
43
Gasket WPL-D7092601
...
44
Retainer Gasket WPL-D7025103
...
45
Retainer WPL-D7025101
...
47
Screw-Sm WPL-M0241118
...
53
Pkg Retainer K WPL-D3976713
...
54
Support- -Cream Rh WPL-B5631706
...
55
Retainer WPL-C3621801
...
56
Fastener, Retainer WPL-A3082601
...
57
Ice Container WPL-D3959403
...
58
Rack, Juice WPL-D7022401
...
59
Panel, Fz Door, Abs Plastic WPL-D7020602

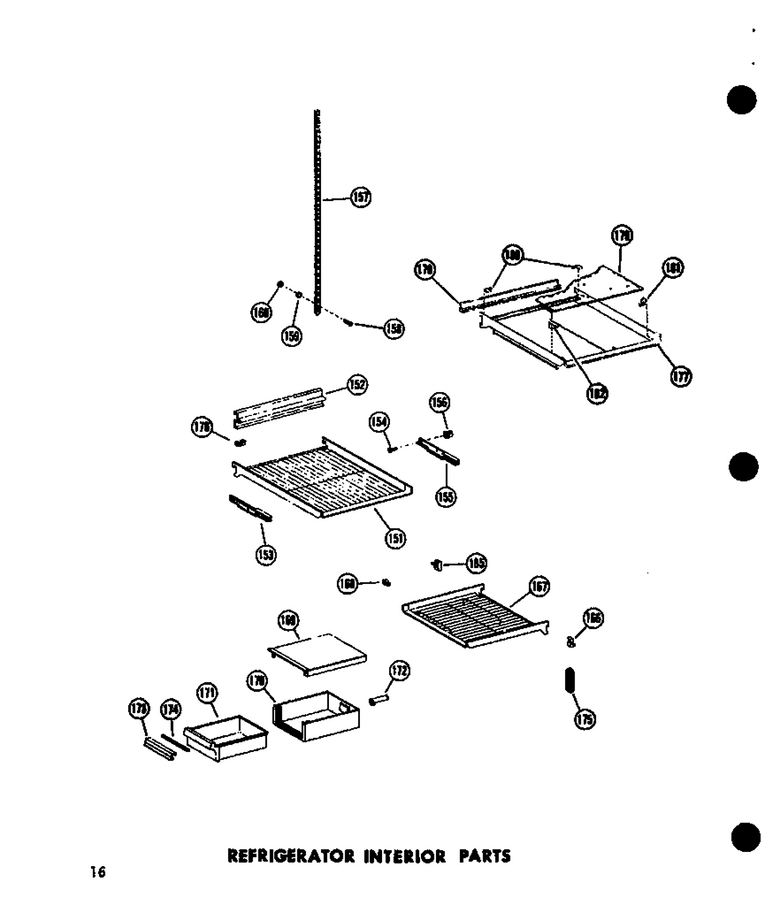

11 - Ref Interior Parts

...
...
157
Ladder WPL-D7103701
...
158
Screw WPL-M0207632
...
159
Washer WPL-M0270519
...
160
Nut WPL-WP486255
...
168
Support WPL-B0595101
...
169
Top, Meat Keeper WPL-D7001104
...
170
Sleeve, Meat Keeper WPL-D7252301
...
171
Pan, Meat Keeper WPL-D3975703
...
172
Grommet WPL-C3614901
...
173
Trim, Handle WPL-C3623002
...
174
Gasket (per Foot) WPL-A3030313
...
175
Return Air Grille WPL-C3588301
...
176
Clip A WPL-A3083401
...
177
Frame Cantilever, Meat Keeper WPL-D7215403
...
178
Trim-Shelf A WPL-C8716102
...
179
Glass Shelf A WPL-B5724103
...
180
Spacer Shelf A WPL-A3232201
...
181
Spacer Shelf A WPL-A3233901
...
182
Spacer Shelf A WPL-A3233902

12 - Ref Interior Parts

...
...
177
Frame, Cantilever, Fruit Bin WPL-D7102401
...
180
Basket WPL-D7102701
...
181
Front WPL-C3650401
...
182
Trim,basket WPL-B5657001
...
188
Top WPL-D3966702
...
189
Trim A WPL-B0570903
...
192
Frame, Crisper Top WPL-D7000802
...
193
Pan, Crisper WPL-D7184201
...
201
Trim-Handle WPL-C3696501
...
206
Glide WPL-A3213401
...
207
Screw,tc WPL-M0230017

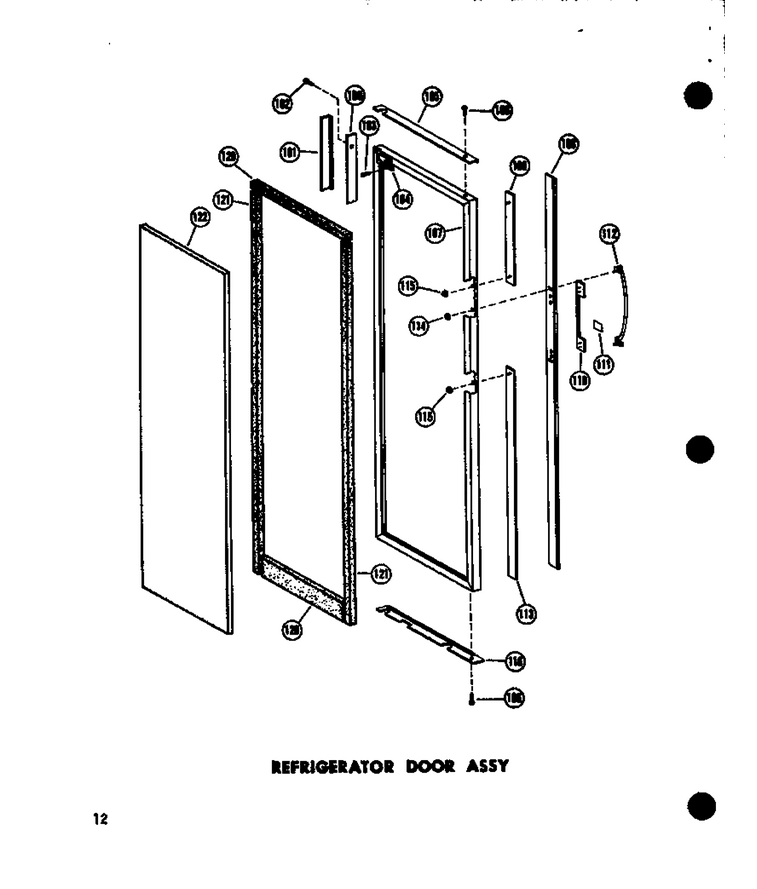

09 - Ref Door Assy

...
...
103
Screw WPL-M1252004
...
104
Cover WPL-B5644001
...
107
Door Ref-A-P-Sr22n-1 WPL-D7228307
...
108
Trim WPL-D7121001
...
109
Retainer WPL-B5653002
...
110
Pad,handle WPL-D7121101
...
111
Nameplate WPL-C3646304
...
112
Handle WPL-D7096001
...
113
Retainer WPL-B5653001
...
114
Nut WPL-M0289801
...
115
Nut WPL-M0289802
...
120
Insulation WPL-B0534410
...
121
Insulation WPL-B5629002
...
122
Insulation WPL-B5612011

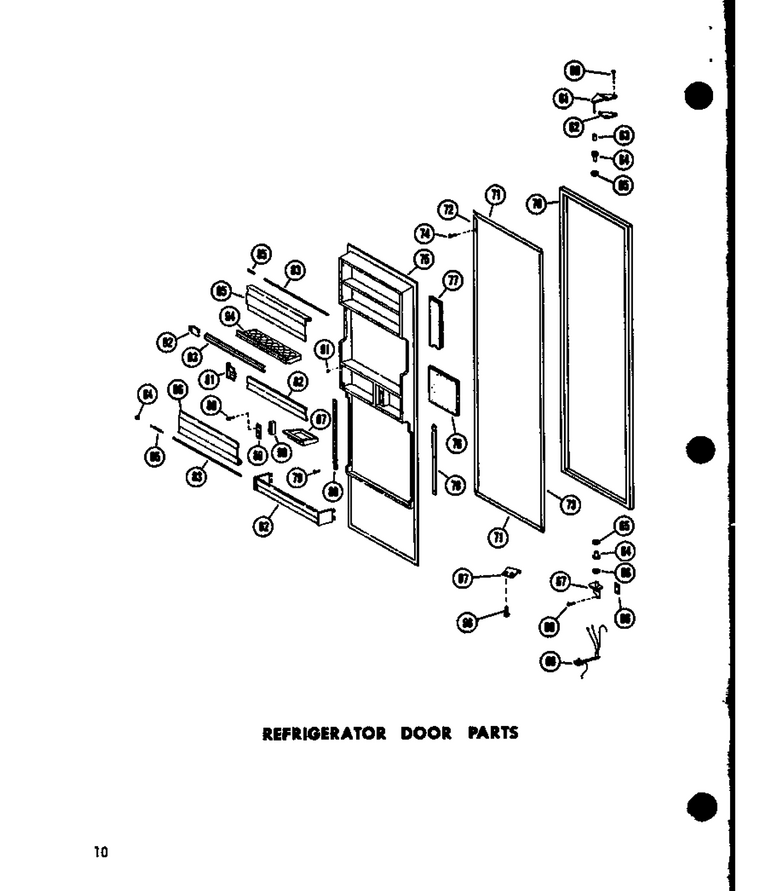

10 - Ref Door Parts

...
...
60
Screw WPL-M0254331
...
61
Hinge WPL-C3622601
...
62
Shim WPL-A3076402
...
63
Bushing WPL-A3132401
...
64
Flat Bearing (bottom Hinge) WPL-B0539807
...
65
Washer WPL-M0274027
...
66
Washer K WPL-M0274013
...
67
Hinge WPL-D7250101
...
68
Screw WPL-WP67006715
...
69
Wire WPL-C8726001
...
70
Gasket WPL-D7092603
...
71
Retainer Gasket WPL-D7025105
...
72
Retainer WPL-D7025101
...
74
Screw WPL-WP98165
...
75
Inner Dr Panel WPL-D7022703
...
76
Insulation, 1 X 3 WPL-B0523565
...
77
Insul., Batt WPL-B0523567
...
81
Support - Cream Lh WPL-B5631705
...
82
Package Ret WPL-D3976717
...
83
Rod WPL-A3056206
...
84
Spacer Butter Door WPL-A3057003
...
85
Spring A/k WPL-A3065201
...
86
Door, Butter WPL-C8720402
...
87
Buttertray WPL-67004412A
...
88
Screw K WPL-M0207403
...
89
Escutcheon K WPL-B5633701
...
90
Butter Heater WPL-C3643501
...
91
Rubber Bumper WPL-A3059002
...
92
Support K WPL-B0530004
...
93
Retainer WPL-B5632002
...
94
Egg Tray-Assy WPL-D7025801
...
95
Door-Utility WPL-C8720302
...
96
Shim WPL-A3061901

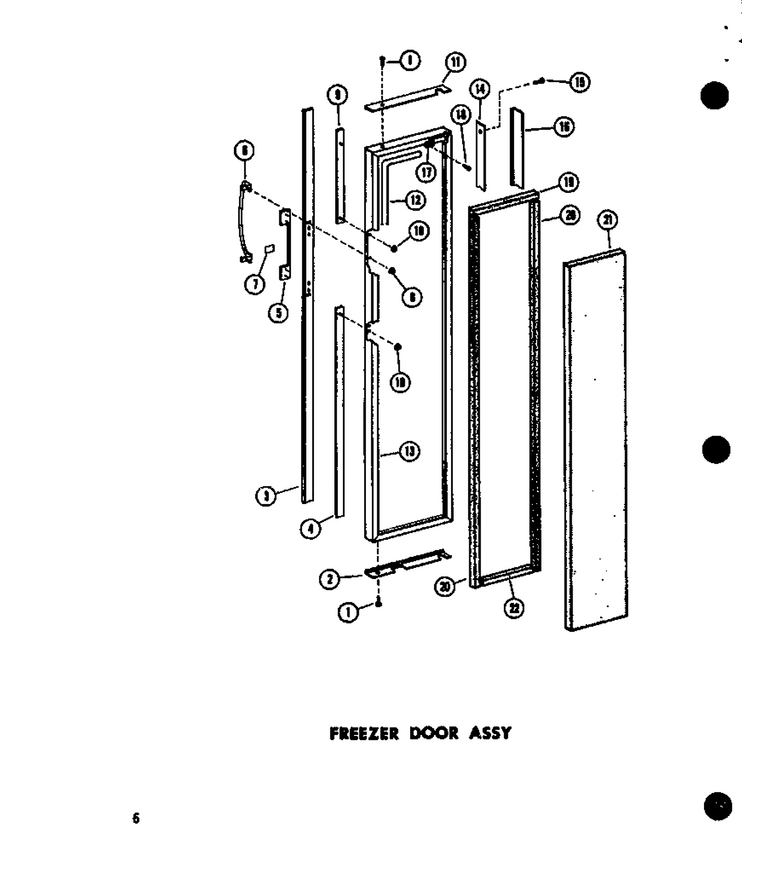

05 - Fz Door Assy

...
...
3
Trim WPL-D7121003
...
4
Retainer WPL-B5653001
...
5
Pad,handle WPL-D7121101
...
6
Handle WPL-D7096001
...
7
Nameplate WPL-C3646301
...
8
Nut WPL-M0289801
...
9
Retainer WPL-B5653002
...
10
Nut WPL-M0289802
...
12
Heater WPL-B5600302
...
13
Door Fr-G-Sr25g-1 WPL-D7118340
...
17
Door Closure WPL-D7022901
...
18
Screw WPL-M1252001
...
19
Insulation WPL-B5629006
...
20
Insulation WPL-B5629002
...
21
Foam Slab WPL-B5162004
...
22
Insulation WPL-B5629003

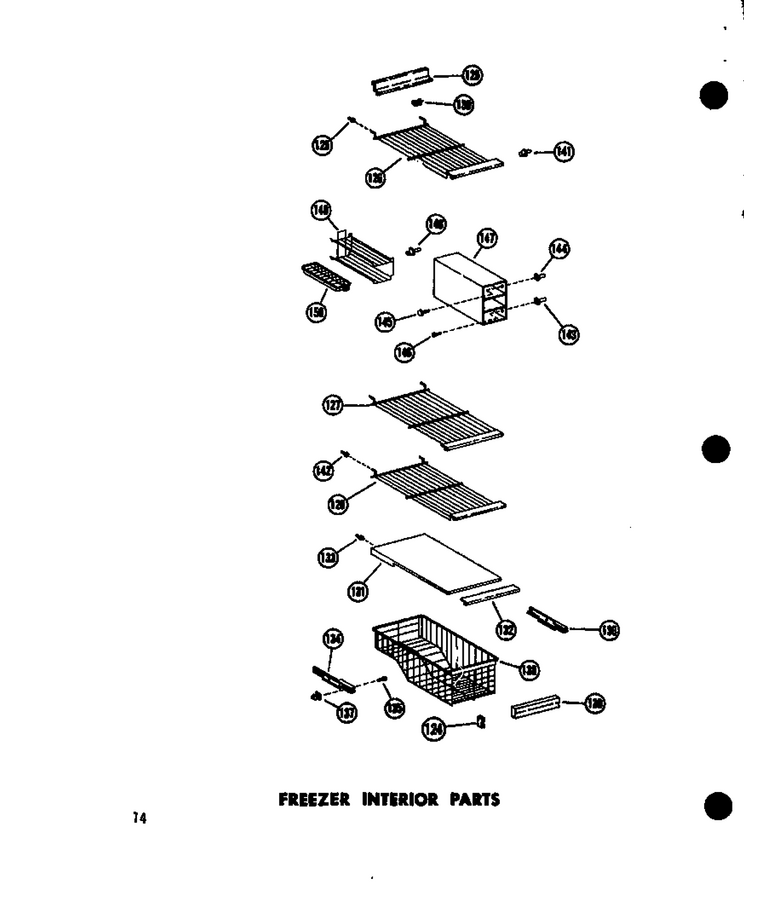

07 - Fz Interior Parts

...
...
124
End Cap WPL-B0590703
...
125
Plug WPL-A0387302
...
126
Shelf-Fr Top WPL-D7024217
...
127
Shelf WPL-D7024203
...
128
Shelf-Fr Bottom WPL-D7024213
...
129
Trim Shelf WPL-C3622201
...
130
Clip A WPL-A3083401
...
131
Shelf WPL-C3616401
...
132
Shelf Trim WPL-B0596601
...
133
Support, Shelf Front WPL-B0560002
...
134
Shim K WPL-B5622201
...
135
Screw WPL-WP98165
...
136
Shim K WPL-B5622201
...
137
Grommet, Screw WPL-M0580007
...
138
Basket WPL-D7011801
...
139
Trim WPL-C3623702
...
141
Support WPL-B0595101
...
142
Grommet WPL-A3066301
...
143
Grommet WPL-A0384901
...
144
Screw, Grommet, Ice Tray, Shel WPL-A0384902
...
145
Screw, Thumb WPL-M0234529
...
146
Screw WPL-M0219532
...
147
Tray WPL-WP841180A
...
150
Tray WPL-WP841180A

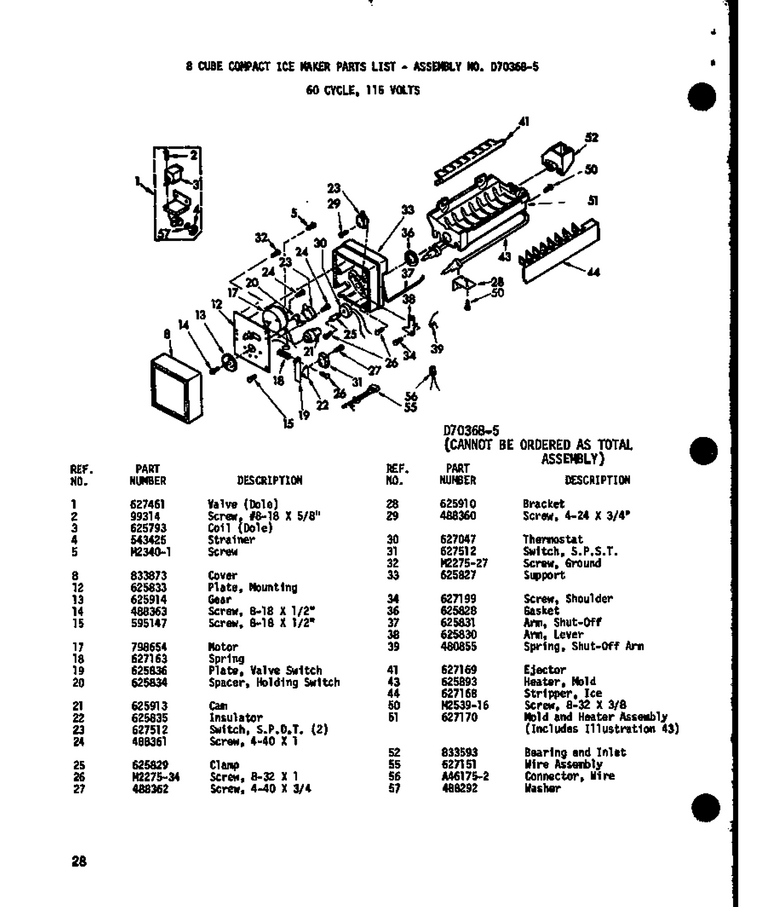

01 - 8 Cube Compact Ice Maker

...
...
1
Valve-Inlt WPL-4318047
...
2
Screw WPL-W11693756
...
3
Valve-Inlt WPL-4318047
...
4
Screen WPL-WP96160
...
5
Screw WPL-W11084238
...
8
No Longer Available WPL-833873
...
12
Plate, Mounting WPL-627782
...
13
Gear WPL-WP628210
...
14
Screw, 8-18 X 1/2 WPL-488363
...
15
Screw WPL-WP488787
...
17
Motor WPL-R0154016
...
18
Spring WPL-627163
...
19
Plate, Valve Switch WPL-625836
...
20
Spacer WPL-WP625834
...
21
Cam WPL-625913
...
22
Insulator, Switch (2) WPL-984683
...
23
Switch, S.p.s.t. WPL-Y627512
...
24
Screw WPL-488361
...
25
Clamp WPL-625829
...
26
Screw WPL-M0227534
...
27
Screw, 4-40 X 3/4 WPL-488362
...
28
Bracket WPL-WP2256087
...
29
Screw WPL-488360
...
30
Thermostat WPL-627047
...
31
Switch, S.p.s.t. WPL-Y627512
...
32
Screw WPL-M0227527
...
33
Support WPL-625827
...
34
Screw, Shoulder WPL-627199
...
36
Gasket WPL-625828
...
37
Arm, Shut-Off WPL-627003
...
38
Lever Arm WPL-625830
...
39
Spring-Arm WPL-480855
...
41
Arm-Ejectr WPL-WP627843
...
43
Kit WPL-R0157335
...
44
Stripper, Ice WPL-627753
...
50
Screw WPL-M0253916
...
51
Mold & Heater Assy WPL-YR0161024
...
52
Inlet Kit WPL-833593
...
55
Harns-Wire WPL-627612
...
56
Wire Nut K WPL-A4617502
...
57
Washer WPL-WP16123

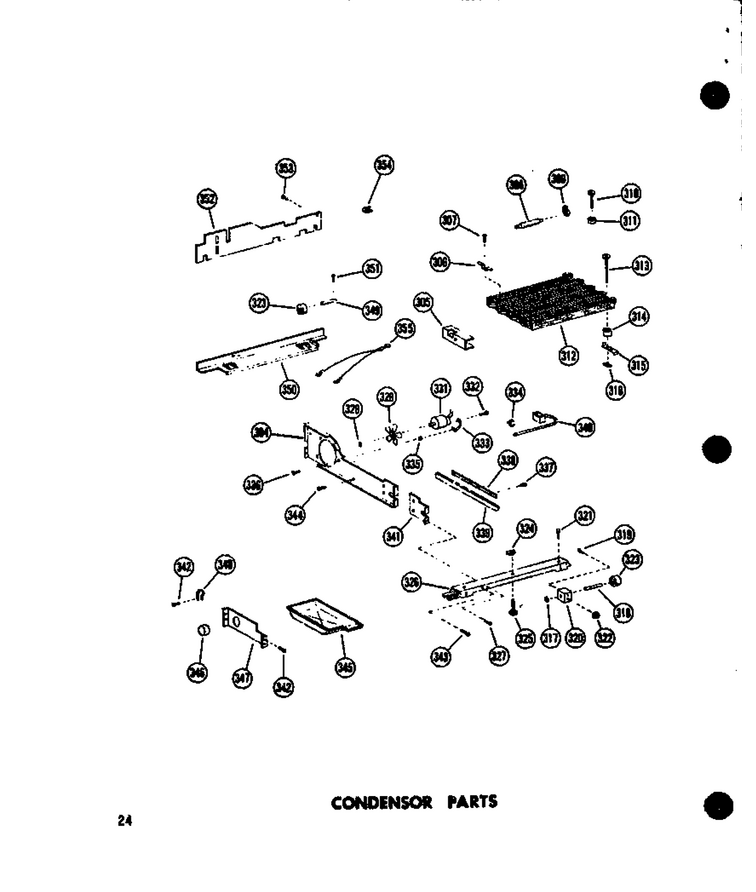

03 - Condensor Parts

...
...
NI
Pad A WPL-B5691701
...
304
Fan Shroud WPL-C3617602
...
305
Spacer WPL-B0544101
...
306
Clip-Cond WPL-A3054502
...
307
Kit, Screw WPL-R9800670
...
308
Drier WPL-WPB2150504
...
309
Clamp-Drier WPL-M0104002
...
310
Sems Fastner WPL-M0257037
...
311
Spacer WPL-A3013906
...
312
Condenser Assy Pnt WPL-D7010701
...
313
Sems Fastner WPL-M0257039
...
314
Spacer WPL-A3013907
...
315
Bracket, Support WPL-A3085401
...
316
Nut A WPL-M0286003
...
317
Fastener WPL-M0289401
...
318
Rivet WPL-M1205302
...
319
Roller Bracket Kit WPL-M0222240
...
320
Bracket K WPL-A3125201
...
321
Screw WPL-M0267101
...
322
Nut, Self Thread WPL-M0283801
...
323
Roller WPL-M0520102
...
324
Wing Nut WPL-A3122601
...
325
Foot-Levelling WPL-B1601601
...
326
Front Rail WPL-B5627601
...
327
Screw WPL-M0294459
...
328
Nut WPL-WP486692
...
329
Blade, Fan WPL-B5742603
...
331
Motor-Cond WPL-833697
...
332
Screw WPL-WPM0223816
...
333
Bracket, Cond Motor WPL-B0598701
...
334
Clip WPL-M0116401
...
335
Grommet K WPL-M0500107
...
336
Screw Shoulder WPL-M0238833
...
337
Screw WPL-WP98165
...
338
Retainer WPL-B0599701
...
339
Seal WPL-B0599603
...
340
Drain Tube Assy WPL-C3607201
...
342
Screw WPL-WP489464
...
343
Screw WPL-WP67006715
...
344
Screw-Sm WPL-M0241118
...
345
Pan, Drain WPL-D7001001
...
346
Timer, Defrost WPL-D7004106
...
347
Timer Bracket WPL-C3647902
...
349
Pivot Pin K WPL-M1210001
...
350
Rail, Rear WPL-C3611301
...
351
Cotter Pin K WPL-M1200001
...
352
Back, Mach Compt K WPL-C3655001
...
353
Screw-Sm WPL-M0241118
...
354
Clip-Cable WPL-M0110505
...
355
Jumper Wire WPL-A3147402

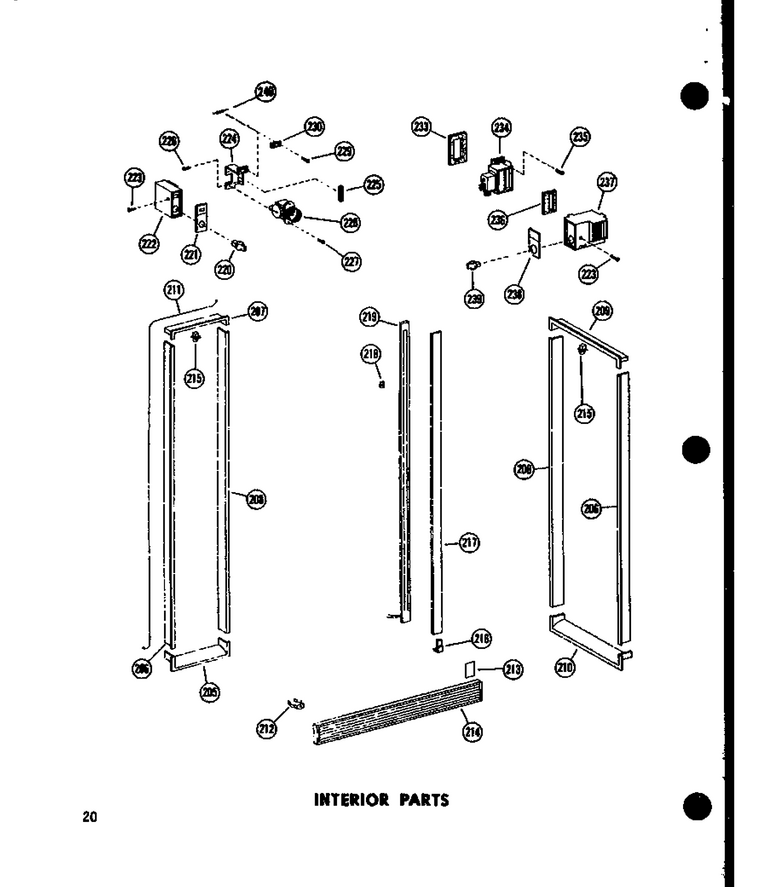

08 - Interior Parts

...
...
205
Breaker Frame WPL-D3952401
...
206
Breaker Frame WPL-D3951709
...
207
Breaker Frame WPL-D3953101
...
208
Breaker Frame WPL-D3952303
...
209
Breaker Frame, Ref Top WPL-D3952504
...
210
Breaker Frame WPL-D3952604
...
211
Heater WPL-C8733701
...
212
Clip WPL-WPM0117303
...
213
Barrier WPL-B5645801
...
214
Grille-Toe WPL-D7070202
...
215
Switch, Light WPL-C3680305
...
216
Key WPL-A3120801
...
217
Mullion Cap-Copper WPL-B0594613
...
218
Clip WPL-M0115501
...
219
Heater, Vertical Mullion WPL-C3628301
...
220
Knob WPL-D7009801
...
221
Thin Plate-Escut WPL-C8716301
...
222
Escutcheon WPL-D7204302
...
223
Screw WPL-M0230926
...
224
Bracket, Control WPL-C8702602
...
225
Gasket-Per Ft WPL-A30303-35
...
226
Screw WPL-WP98165
...
227
Screw WPL-WP90767
...
228
Cold Control K WPL-C3615002
...
230
Switch WPL-M0341202
...
233
Gasket-Damper WPL-B8315901
...
234
Damper Control WPL-C8735201
...
235
Screw WPL-WP489464
...
236
Gasket Control WPL-A3113601
...
237
Escutcheon WPL-D7126703
...
238
Thin Plate WPL-C3624901
...
239
Knob WPL-D7009801
...
240
Diode WPL-M0305301
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
