Amana SQD20NW (BOM: P1162507W W)

Model: SQD20NW (BOM: P1162507W W)

Save Part Not Listed?
product name

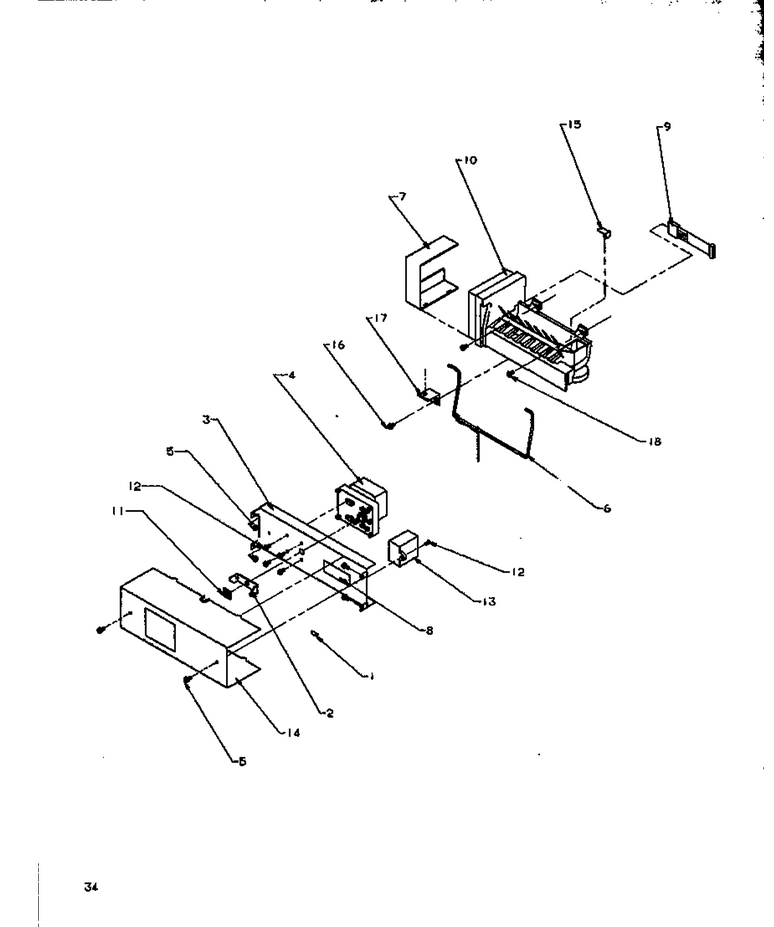

10 - Ice Maker

...
...
1
Lock, Purse WPL-74007369
...
2
Coupling WPL-WP10114901
...
3
Support,auger Motor WPL-D7749207
...
4
Kit, Auger Motor WPL-10114803
...
5
Screw (3) WPL-67006425
...
6
Arm,ice Maker Shut Off WPL-D7877001
...
7
Cover Im WPL-D7820401
...
8
Gasket-Per Ft WPL-A3030305
...
9
Harness WPL-D7824601
...
10
Ice Maker Assy. WPL-D7824706Q
...
11
Nut WPL-WPM0223101
...
12
Screw WPL-WPW10139210
...
13
Start-Dev WPL-W10613606
...
14
Cover, Auger Mtr WPL-D7788820
...
15
Clip WPL-B5720301
...
16
Screw WPL-WP90767
...
17
Bracket, I/m WPL-B8391802
...
18
Screw WPL-WP98165

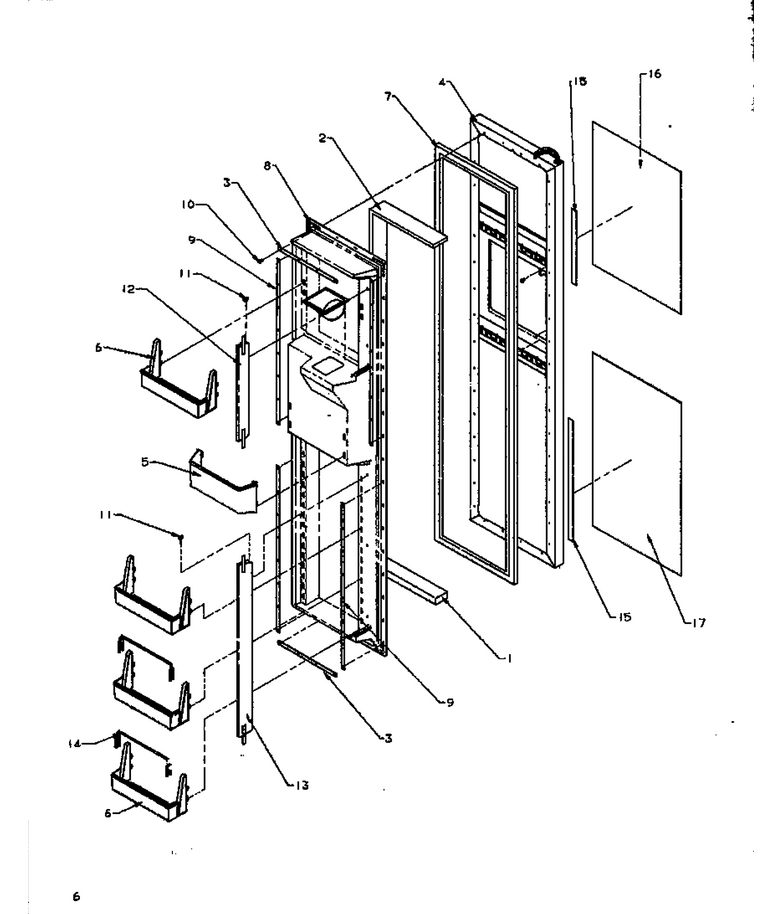

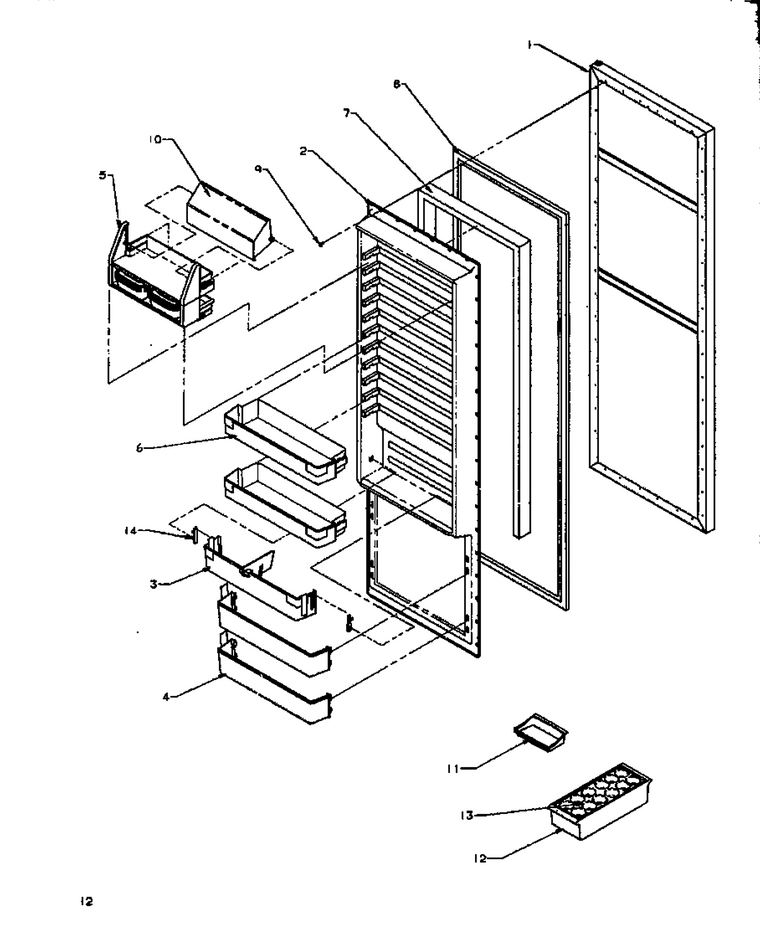

12 - Ref Door

...
...
1
Assy Ref Dr Sxs WPL-10547502W
...
2
Liner, Ref. Door WPL-10521601
...
3
Bin-Cntlvr WPL-WP10520405
...
4
Shelf, Referig.door WPL-10521803
...
5
Shelf, Dairy WPL-12083301
...
6
Bucket-Ref WPL-12083408
...
7
Insulation Ft. K WPL-B0523563
...
8
Gasket-Dr WPL-WP10359708Q
...
9
Screw WPL-WPM0219730
...
10
Door, Dairy WPL-10527307
...
11
Tray, Butter WPL-10310901
...
12
Container WPL-WP10423131
...
13
Tray, Egg WPL-10436504
...
14
Clip, Retainer WPL-10202001

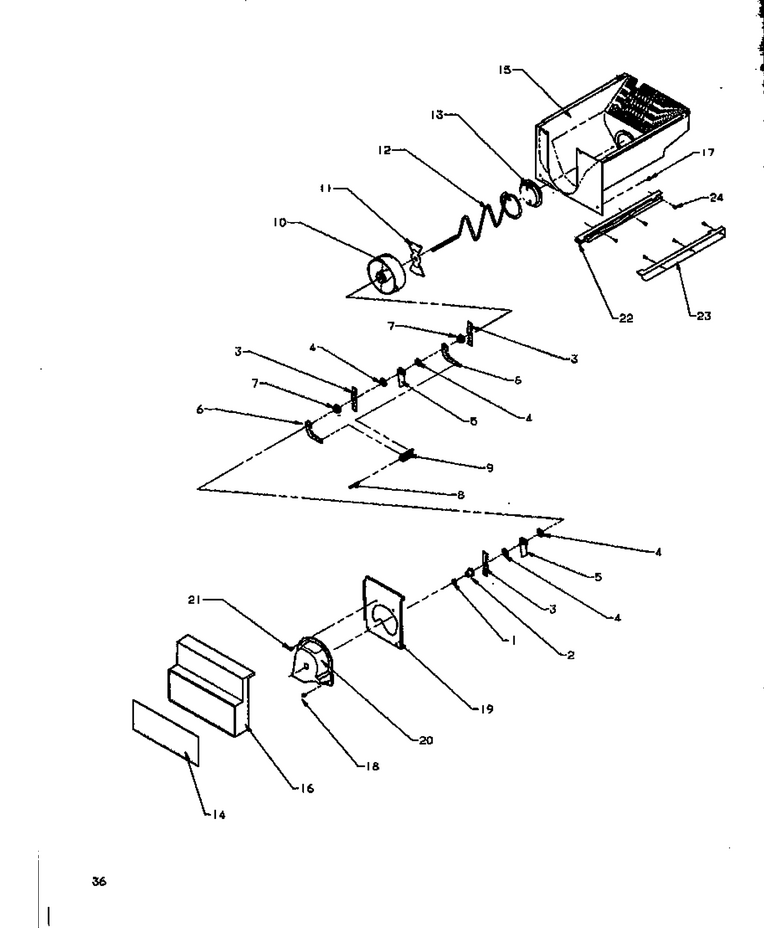

03 - Drain And Rollers

...
...
NI
Assy, Roller Bracket WPL-12452602Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Tube-Drain WPL-10393001
...
10
Tank, Coil Water WPL-D7787804
...
11
Clamp WPL-M0102303
...
12
Screw WPL-WP489069
...
13
Insulation, Tube WPL-10851302
...
14
Clip, Tube WPL-10527501
...
15
Screw, Mach WPL-M0206313
...
16
Assy, Fill Tube WPL-12023401Q
...
17
Tunnel, Heat Ex. WPL-C8971902
...
18
Tunnel Wire WPL-10187501
...
19
Tunnel Wire WPL-10187601
...
20
Shield Elect Box WPL-10248101
...
21
Holder Tube WPL-10161301

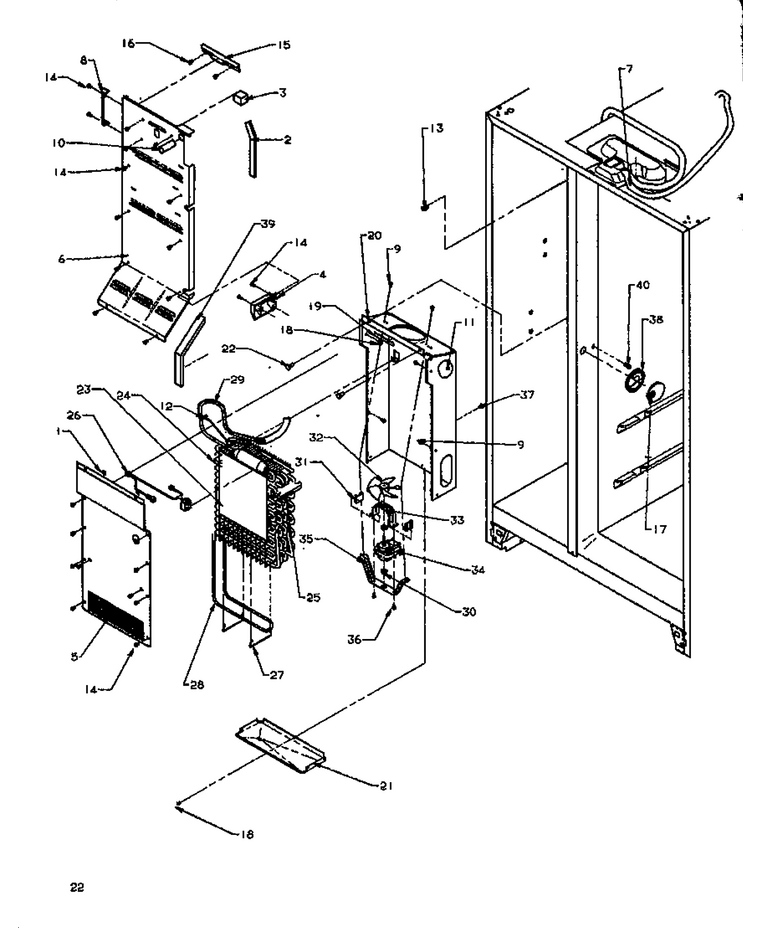

04 - Evap And Air Handling

...
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Cover, M.k Air WPL-D7786901
...
5
Cover, Evaporator WPL-D7865907
...
6
Inner Fz Back Pnt WPL-D7821125
...
7
Harness, Ref.liner WPL-10555601
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP12990527
...
10
Ext. Fill Tube WPL-A3127412
...
11
Screw WPL-WP489399
...
12
Tie-Wire WPL-WPW10339879
...
13
Tie Wire WPL-WPM0322202
...
14
Screw (3) WPL-67006425
...
15
Clamp WPL-C8976201
...
16
Screw WPL-WP98165
...
18
Rivet WPL-10098801
...
19
Gasket, Foam WPL-B5757707
...
20
Evap. Shield WPL-D7865806
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Grommet WPL-M0580003
...
23
Gasket, Evap. WPL-B8327901
...
24
Block-Lh Air Coil WPL-B8385502
...
25
Block P M Air Coil WPL-B8385601
...
26
Kit, Thermostat WPL-R0161087
...
27
Clip, Evap. Heater WPL-C8983101
...
28
Heater, Defrost WPL-D7872801
...
29
Assy,low Side-Thin Wall Evap WPL-R0170048
...
30
Grommet WPL-WP2264462
...
31
Shim WPL-A1047901
...
32
Fan-Evap WPL-C8795501
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WPC8891605
...
35
Bracket-Motor/shroud WPL-D7767703
...
36
Screw WPL-WP12990527
...
37
Grommet A WPL-M0580002
...
39
Gasket Foam WPL-A3189335

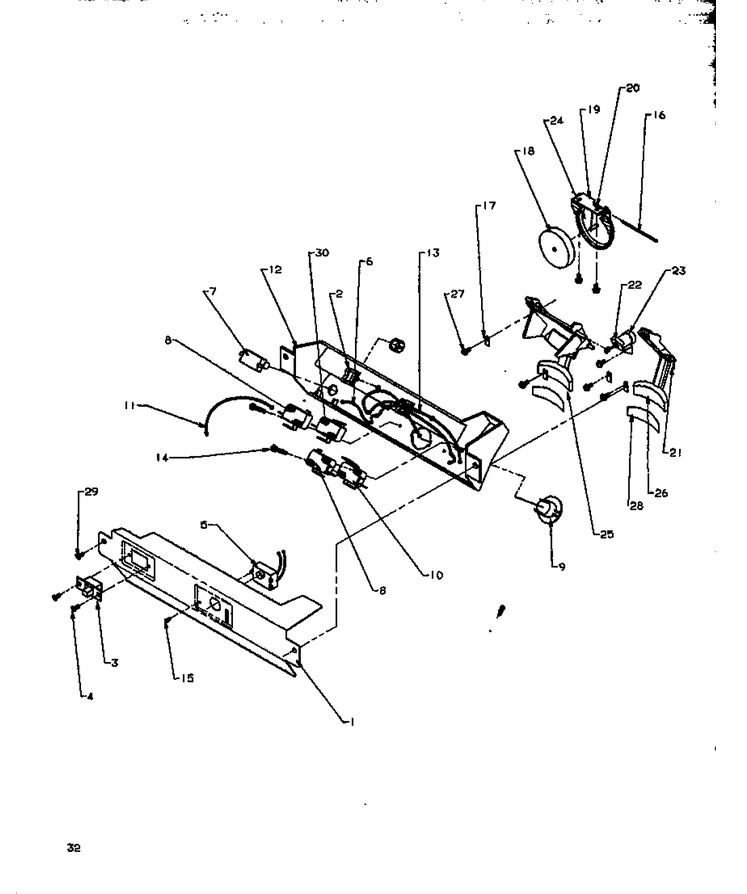

09 - Ice And Water Cavity

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Cover, Electric Brkt WPL-10131808
...
2
Wire Clip WPL-B5667304
...
3
Switch-Crushed/cube WPL-10166002
...
4
Screw WPL-M0234003
...
6
Wire-Jumper WPL-D7726590
...
7
Switch-Light Cavity WPL-10166101
...
8
Switch- Li WPL-WP10533003
...
9
Socket, Light WPL-10131701
...
10
Switch, Limit (water Disp) WPL-10533002
...
11
Wire-Jumper WPL-D7726592
...
12
Bracket, Elec Mtg WPL-10323305
...
13
Wire, Jumper WPL-D7726597
...
14
Screw, T.f. WPL-M0237809
...
16
Pin, Chute Door WPL-A1061501
...
17
Retainer, Ice Arm WPL-A1061601
...
18
Insulation, Chute Door WPL-B8380701
...
19
Brkt-Chute Door WPL-B8380801
...
20
Spring,chute Door WPL-B8380901
...
21
Spring, Return WPL-B8385401
...
22
Delay, Door WPL-C8973601
...
23
Delay, Door WPL-C8973601
...
24
Kit,chute Dr No.3 WPL-10246601
...
25
Arm-Dispsr WPL-12002642
...
26
Arm-Dispsr WPL-12002642
...
27
Scrw-Sm. WPL-M021116
...
28
Pad, Actuating WPL-B8390201
...
29
Screw-Sm/hex WPL-12990523
...
30
Switch, Limit WPL-10533001

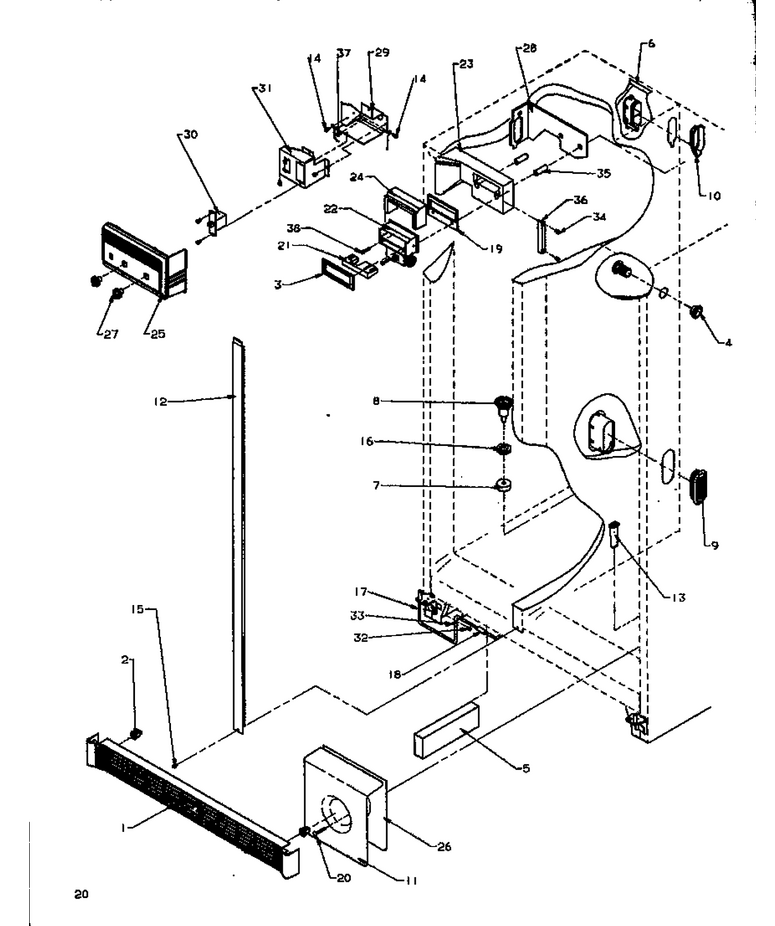

16 - Ref/fz Controls And Cabinet Parts

...
...
1
Kit, Toe Grille (blk) WPL-10470301
...
2
Clip WPL-WPM0117303
...
3
Gasket, Damper WPL-10383201
...
4
Retainer WPL-A3187801
...
5
Insulation WPL-B5629045
...
6
Tube-Plastic WPL-B8372601
...
7
Gasket- Dr WPL-WPB8381501
...
8
Funnel WPL-W10815413
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel Air Supply WPL-10178001
...
11
Cover, Tank Insul. WPL-D7879302
...
12
See Note Vertical Mullion, White, Not Replaceable WPL-Y00000000
...
13
Grommet WPL-D7793501
...
14
Screw WPL-WP489399
...
15
Screw, Handle (black) WPL-12991101
...
16
Seal- O Ri WPL-WPM0500703
...
17
Tube WPL-WPB5705307
...
18
Fitting WPL-WP4373559
...
19
Gasket, Damper WPL-B8345401
...
20
Clip K WPL-C6457701
...
21
Insert, Control WPL-C8902601
...
22
Control, Damper WPL-D7547408
...
23
Air Duct, Waxed WPL-10176602
...
24
Insulation WPL-D7788201
...
25
Cover, Cont. WPL-D7790332
...
26
Insulation Cut Tank WPL-D7793403
...
27
Knob-Control WPL-D7795816
...
28
Gasket, Air Duct WPL-10177901
...
29
Box, Bottom Control WPL-D7822404
...
30
Assy, Control-Fz WPL-R0161092
...
31
Box, Control Top WPL-D7868603
...
32
Screw WPL-WP90767
...
33
Clamp WPL-M0102301
...
34
Screw WPL-WP489474
...
35
Spacer Damper WPL-A3044208
...
36
Clamp WPL-C8977301
...
37
Screw WPL-WP489464
...
38
Screw WPL-M0216539

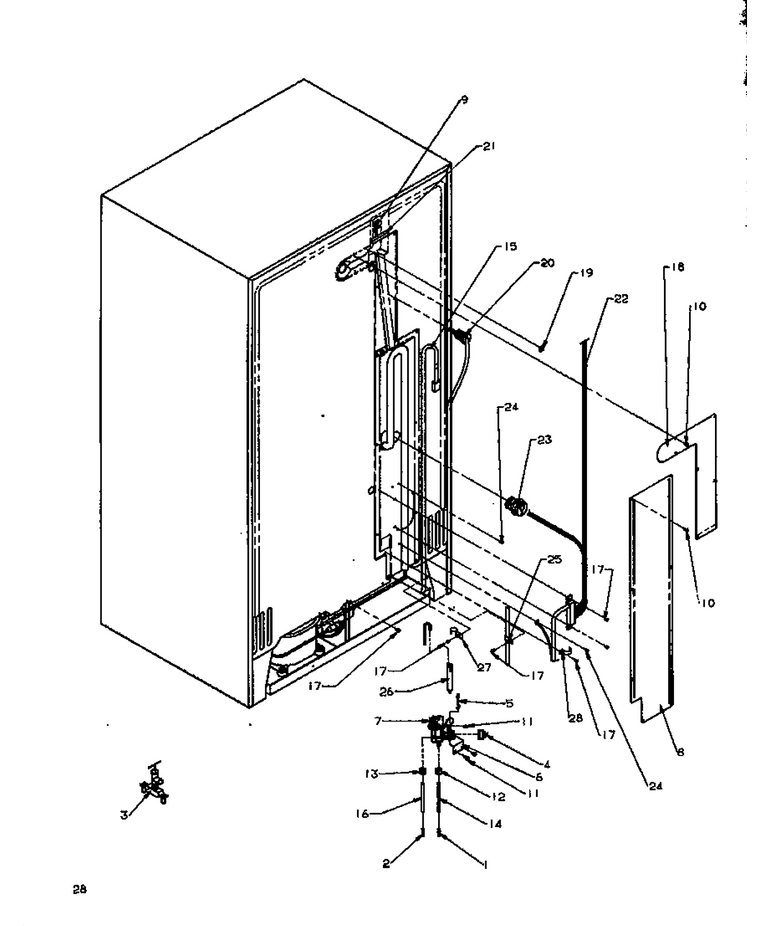

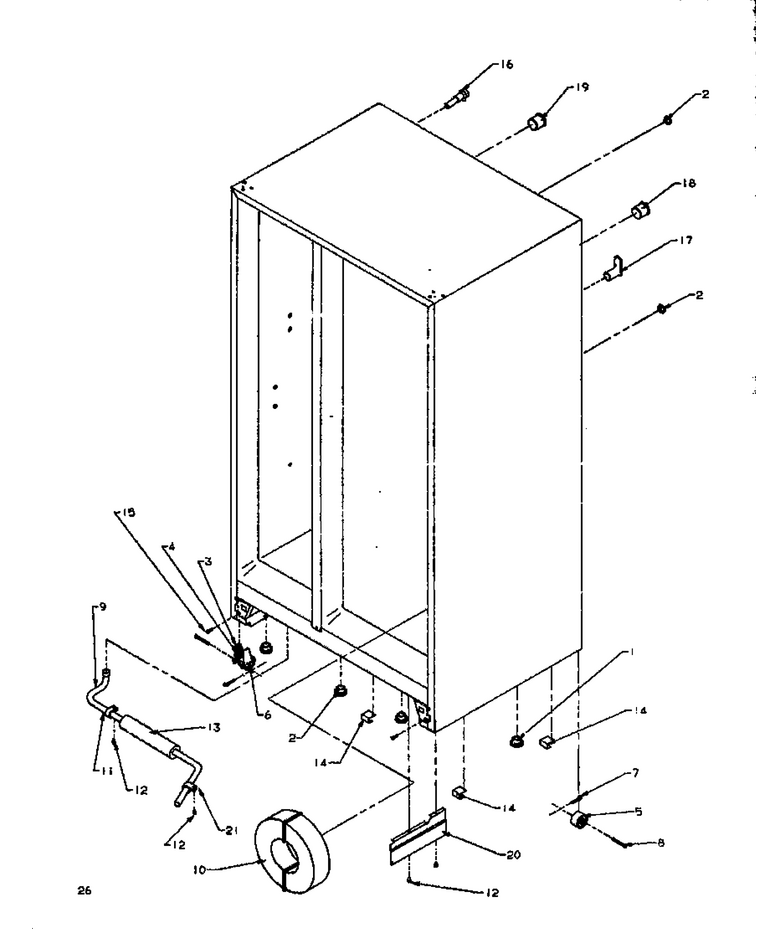

01 - Cabinet Back

...
...
NI
Insert- Pl WPL-WPA3223101
...
1
Spring WPL-WPA1055105
...
2
Spring K WPL-A1055102
...
3
Saddle Valve WPL-A3034801
...
4
Coupling WPL-10244901
...
5
Clip, Water Valve WPL-10798001
...
6
Bracket WPL-WPD7701602
...
7
Valve-Inlt WPL-WPW10245167
...
8
Cover, O.c.back WPL-10178406
...
9
Clip- Spee WPL-WPM0114003
...
10
Screw WPL-WP489069
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Nut WPL-WP627018
...
13
Nut WPL-8201513
...
14
Tube WPL-WPB5705307
...
15
Cord, Power WPL-10678503
...
16
Tank, Coil Water WPL-D7787804
...
17
Screw WPL-WP489069
...
18
Cover - Wire WPL-10178505
...
19
Clip WPL-WPM0104106
...
20
Grommet Wire WPL-10178801
...
21
Gasket (ft.) WPL-10839803
...
22
Harness, Cabinet WPL-10535501
...
23
Grommet Wire WPL-10178701
...
24
Screw, Spextite WPL-M0232330
...
25
Clamp, Speed WPL-M0103904
...
26
Drier WPL-WPB2150504
...
27
Clip, Drier WPL-10547001
...
28
Clamp WPL-B5794201

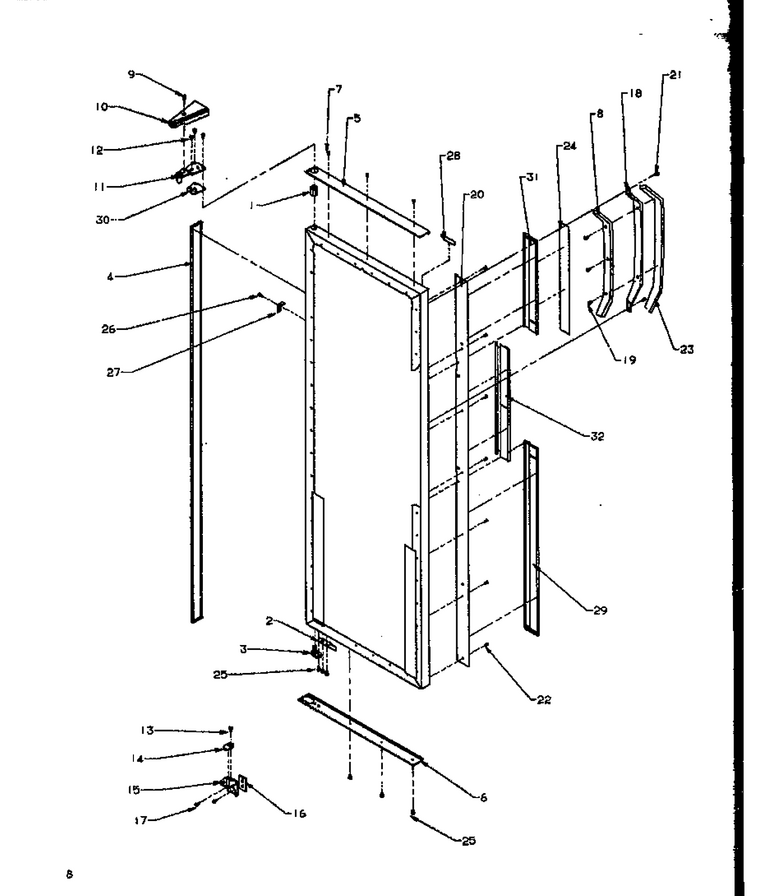

06 - Fz Door Hinge And Trim Parts

...
...
1
Bushing- D WPL-WP67004977
...
2
Tube WPL-WPB5705307
...
3
Stop, Door (blk) WPL-12636401B
...
4
Kit,dr Closure WPL-R0181181
...
9
Shim, Door Closure WPL-B8387701
...
10
Screw WPL-WP489349
...
11
Inner Pad K WPL-D7863001
...
12
Hinge, Top (e-Ct) WPL-10495803
...
13
Cover, Hinge (almond) WPL-10504008
...
14
Screw WPL-WP8281196
...
15
Kit, Screw WPL-R9800670
...
17
Screw WPL-W11214483
...
18
Harness Fz Door WPL-10164203
...
19
Kit,btm Hinge Shim WPL-10399501
...
20
Kit,dr Closure WPL-R0181181
...
21
Kit,hinge Lh Btm(b) WPL-10496104
...
22
Screw WPL-WP489128
...
23
Screw WPL-WP67006715
...
24
Screw WPL-WP489399
...
25
Handle WPL-D7826603
...
26
Screw-Sm/hex WPL-12990523
...
27
Screw WPL-WP489349
...
28
Kit, Screw WPL-R9800670
...
29
Retainer, Trim WPL-D7793002
...
30
Screw WPL-M0215116
...
31
Retainer, Trim WPL-D7793102
...
33
Screw WPL-WP98165
...
36
Insul, Hinge Cover WPL-10126503
...
37
Shim, Top Hinge WPL-B8389007
...
38
Foil, Hinge Cover WPL-10126603
...
39
Lower Trim Frz Door (b) WPL-D7792702
...
40
Trim Upper Frz Door (b) WPL-D7852102
...
41
Trim Center Frz (b) WPL-D7854002
...
42
Tubing Plastic WPL-A3012532

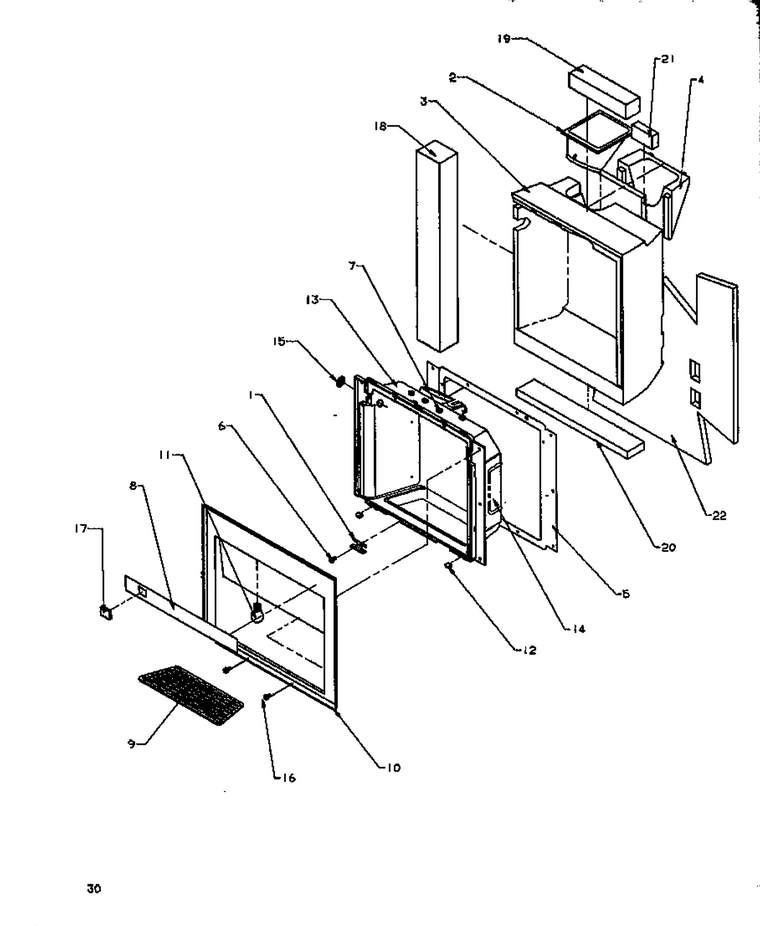

08 - Ice And Water Cavity

...
...
1
Clip WPL-C8992901
...
2
Chute- Ice WPL-10504103
...
3
Insul., I/w Cavity WPL-10506501
...
4
Insul., Ice Chute WPL-10504601
...
5
Gasket-Cav WPL-D7791004
...
6
Screw-Sm/hex WPL-12990523
...
7
Retainer, Ring WPL-M0274701
...
8
Membrane L Facade WPL-D7842234
...
9
Grille Sump (black) WPL-D7750602
...
10
Facade-Dispenser, Black WPL-D7877526
...
11
Bulb-Light WPL-W10857122
...
12
Clip WPL-W10819546
...
13
Cavity-Dis WPL-10876038
...
14
Heater-Cavity WPL-10176101
...
15
Plug Button WPL-M0311401
...
16
Screw WPL-M0219601
...
17
Cap-Grey Switch WPL-12043805
...
18
Insul, Batt WPL-10270907
...
19
Insul., Batt WPL-B5629061
...
20
Insulation Per Ft. WPL-B0523584
...
21
Insulation Batt WPL-B5629058
...
22
Insulation Batt WPL-10220201

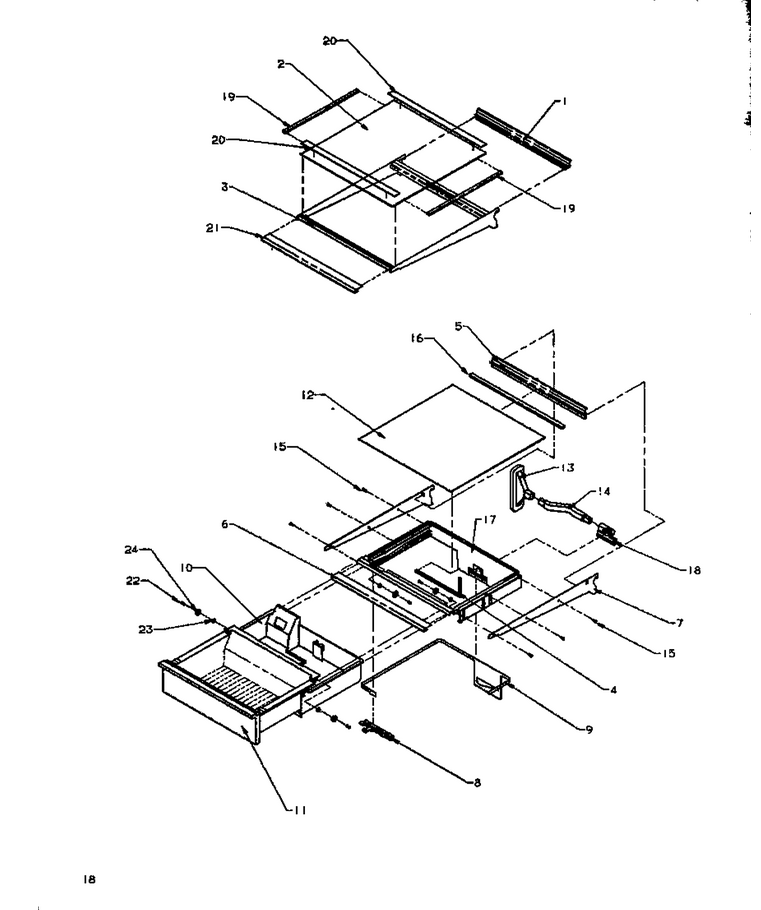

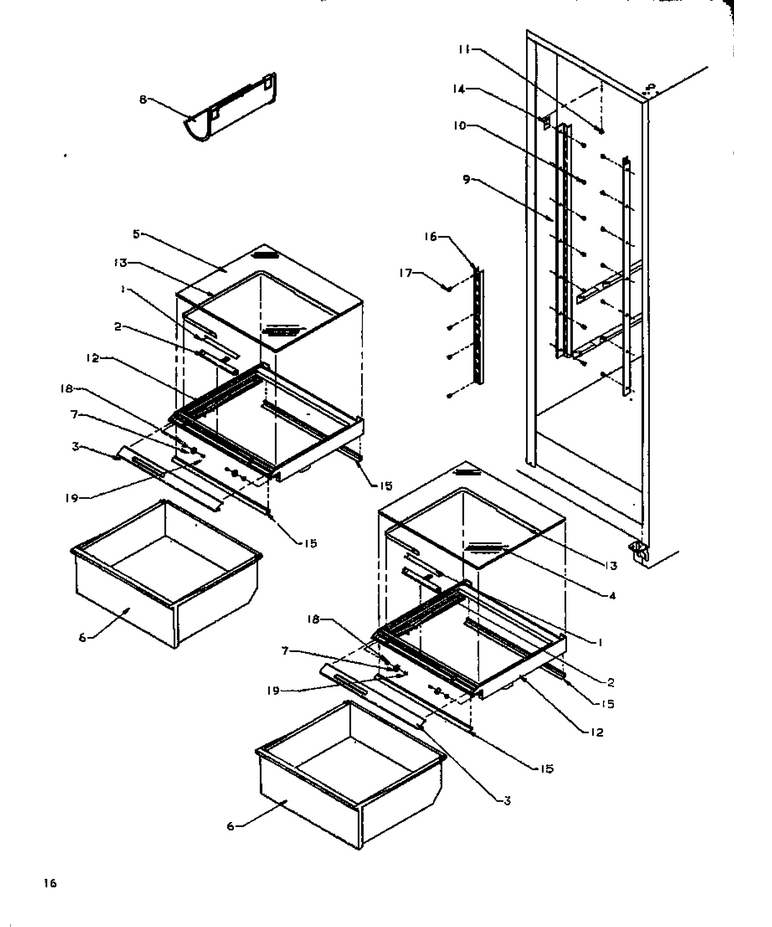

15 - Ref Shelving And Drawers

...
...
NI
Assy, Shelf (split) WPL-10279130
...
1
Trim WPL-C8913608
...
2
Shelf, Glass WPL-10370018
...
3
Frame, Cant. Shelf (sqd) WPL-D7871022
...
4
Gasket WPL-A3030353
...
5
Trim, Rear WPL-C8990405
...
6
Trim, Shelf Frt WPL-10049941
...
7
Rail, Blank Side WPL-D7862986
...
8
Slide-Mk C WPL-D7859404
...
9
Band, Mk WPL-10518401
...
10
Sleeve, Mk WPL-10469905
...
11
Pan, Meat Keeper WPL-10469812
...
12
Glass, Mtkpr Shelf WPL-10370094
...
13
Grommet, Mk WPL-D7873602
...
14
Duct, Mk Air WPL-10518201
...
15
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
16
Ext. Rear Glass WPL-10043102
...
17
Frame, Mk WPL-10469701
...
18
Ext. Air Duct WPL-D7869101
...
21
Trim, Front Shelf WPL-C8913513

02 - Crushed Ice Bucket

...
...
NI
Crushr-Mec WPL-WP12740302
...
2
Spacer, Cover WPL-10113901
...
3
Blade, Rotating WPL-10114501
...
4
Washer, Waved WPL-10275101
...
5
Damper, Ice WPL-10275201
...
6
Blade, Static WPL-10114601
...
7
Washer Stepped WPL-10114301
...
8
Pin, Roll WPL-M1200108
...
9
Anchor, Blade WPL-10114101
...
10
Wheel- Crs WPL-WP67002052
...
11
Bar, Crsh Ice Bucket WPL-10113801
...
12
Agitator, Ice WPL-10114401
...
13
Cap- Helix WPL-WPD7749401
...
14
Insert, Bucket Frz. WPL-C8975327
...
15
Bucket- Cr WPL-WP10111905
...
16
Front-Crsh Ice Brkt WPL-10112001
...
17
Screw (3) WPL-67006425
...
18
Screw WPL-M0254706
...
19
Front, Ice Crusher WPL-10115001
...
20
Cover, Blade WPL-10114002
...
21
Screw, Tf WPL-M0231704
...
22
Glide, Container (left) WPL-67005375
...
23
Glide, Frz. (rt) WPL-67004323
...
24
Screw, Handle WPL-67006529

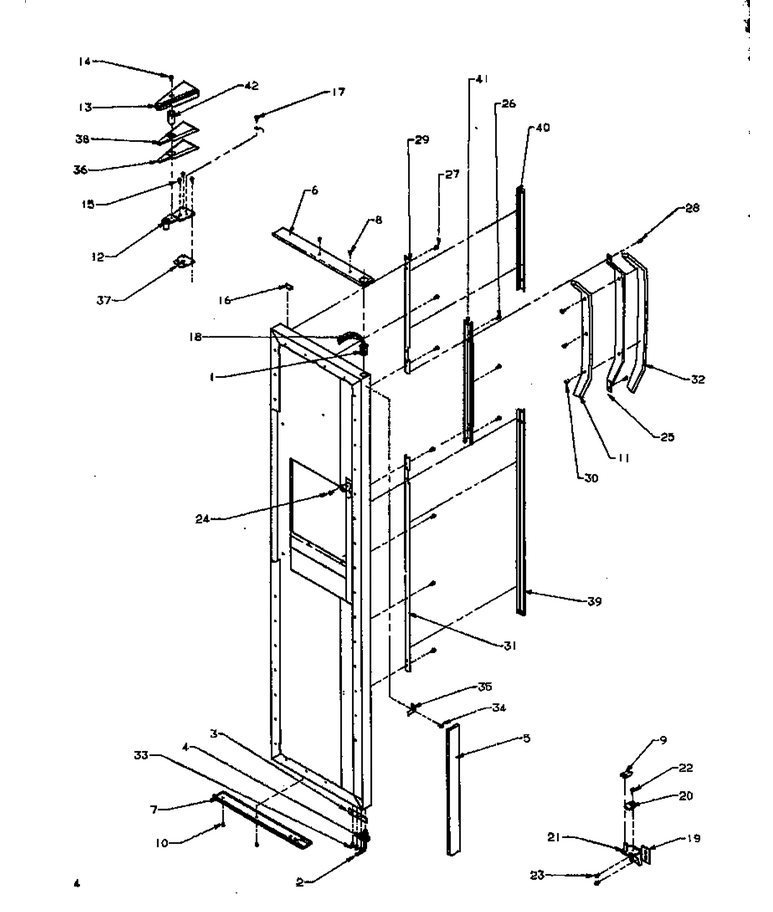

05 - Fz Door

...
...
1
Insulation Ft. K WPL-B0523563
...
2
Insul. By The Ft. WPL-B0523562
...
3
Retainer, Door Liner WPL-C8982801
...
4
Assy Frz Dr Fm Sxs WPL-10547601LQ
...
5
Shelf, Frz. Dr. Half WPL-10534703
...
6
Shelf, Frz Dr WPL-10525511
...
7
Gasket W WPL-WP10359709Q
...
8
Liner, Frz. Dr I/w WPL-10533601
...
9
Retainer, Door Liner WPL-D7828601
...
10
Screw WPL-WPM0219730
...
11
Clip, Door Dike WPL-10063102
...
12
Rem Dike I & W Upper WPL-10063202
...
13
Removable Dike I & W WPL-10063204

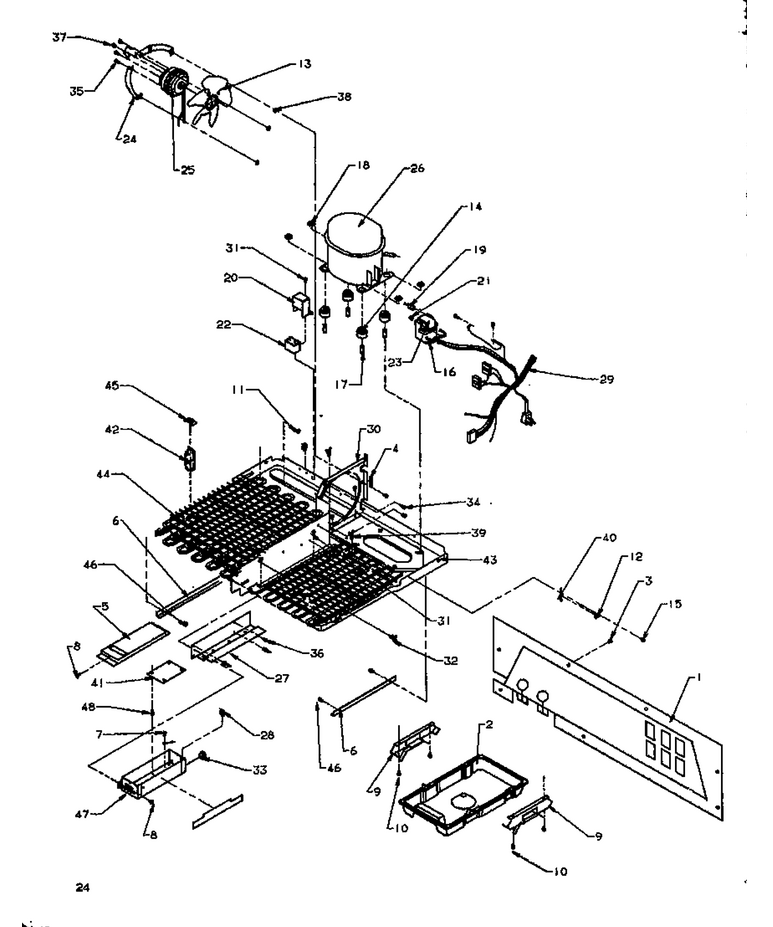

11 - Machine Compartment

...
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Top, Hv Box WPL-10276906
...
6
Support, Mc WPL-C8913701
...
7
Screw WPL-12992301
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-D7790501
...
10
Screw WPL-WP489069
...
11
Screw, Sm WPL-M0211357
...
12
Tab, Wire Tie WPL-M0585601
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
15
Screw, Handle WPL-67006529
...
16
Bale Strap WPL-YB8358601
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-10377003
...
20
Shield, Capacitor WPL-10266402
...
21
Relay WPL-2154436
...
22
Capacitor WPL-WPW10662129
...
23
Term Cover WPL-C8960801
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-W10439652
...
27
Bracket H.v Box WPL-10277101
...
28
Clamp, Wire WPL-M0585701
...
29
Harness, M.c. WPL-10598301
...
30
Shroud-Condenser Fan WPL-D7844112
...
31
Screw WPL-WP489464
...
32
Clamp, Purse Lock Standoff WPL-74006883
...
33
Bushing, Snap WPL-A3293504
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-M0223803
...
36
Rivet-Pop WPL-59002054
...
37
Screw WPL-M0253916
...
38
Grommet K WPL-M0500107
...
39
Tie, Wire WPL-M0585401
...
40
Tie-Wire WPL-WPW10339879
...
41
Cont, Adap. Defrost WPL-12050506
...
42
Spacer Cond. WPL-B8346301
...
43
Pan, Base WPL-D7748610
...
44
Condenser WPL-D7824504
...
45
Speednut WPL-M0293703
...
46
Screw WPL-M0217224
...
47
Box, H.v. WPL-10277008
...
48
Support WPL-M0585504

13 - Ref Door Hinge And Trim Parts

...
...
1
Bushing, Door (wht) WPL-10393802
...
2
Stop, Door (blk) WPL-12636401B
...
3
Kit,dr Closure WPL-R0181181
...
8
Inner Pad K WPL-D7863001
...
9
Screw WPL-WP8281196
...
10
Cover, Hinge (white) WPL-10504007
...
11
Hinge, Top (e-Ct) WPL-10495803
...
12
Kit, Screw WPL-R9800670
...
13
Screw WPL-WP489128
...
14
Kit,dr Closure WPL-R0181181
...
15
Kit,hinge Rh Btm(b) WPL-10496105
...
16
Kit,btm Hinge Shim WPL-10399501
...
17
Screw WPL-WP67006715
...
18
Handle WPL-D7826603
...
19
Screw WPL-M0215116
...
20
Ref. Trim, Retainer WPL-D7793202
...
21
Kit, Screw WPL-R9800670
...
22
Screw WPL-WP489349
...
23
Outer Pad K WPL-D7863101
...
24
Thinplate WPL-C8984307
...
25
Screw WPL-WP98165
...
29
Lower Trim Ref Door K WPL-D7792802
...
30
Shim, Top Hinge WPL-B8389007
...
31
Trim Ref Door Up WPL-D7852002
...
32
Trim Center Refr K WPL-D7853802

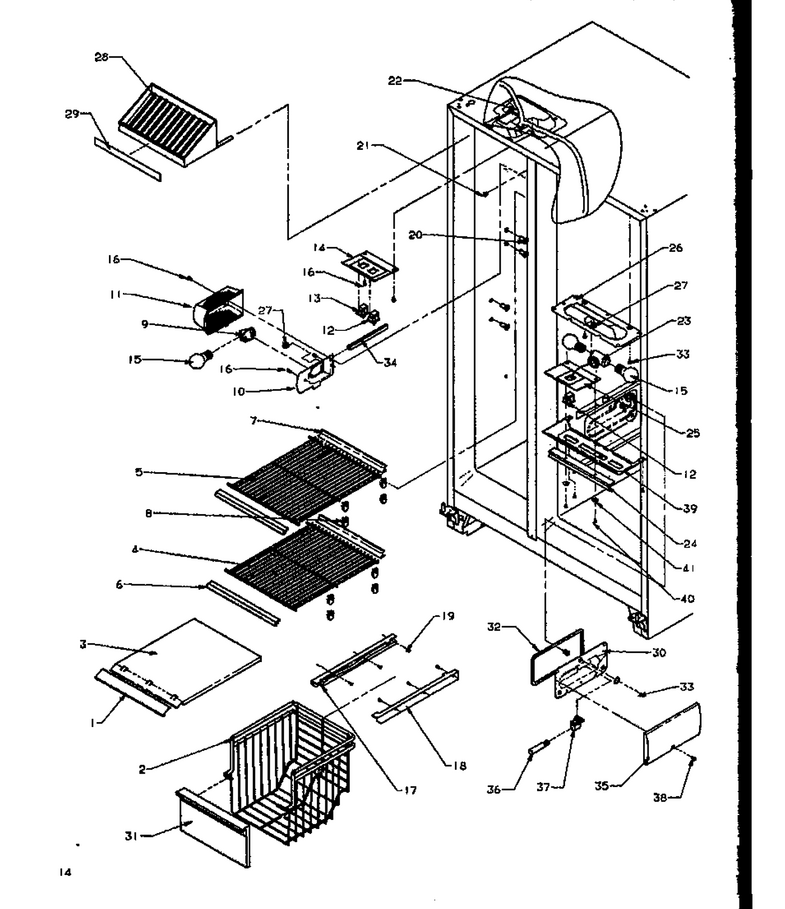

07 - Fz Shelving And Ref Light

...
...
1
Trim-Fz Shelf WPL-D7616690
...
2
Basket, Frz WPL-D7820802
...
3
Freezer Shelf Pnt WPL-D7781506
...
4
Shelf, Frz WPL-D7788310
...
5
Shelf, Freezer WPL-D7788311
...
6
Trim, Front Shelf WPL-10049921
...
7
Trim WPL-C8913609
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-D7714407
...
10
Plate-Light Socket WPL-D7753503
...
11
Shield, Light WPL-D7786603
...
12
Switch WPL-W11384469
...
13
Switch WPL-C3680306
...
14
Cover Light WPL-D7749002
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
Glide-Fz, L.h. WPL-10282301
...
18
Glide-Fz, R.h. WPL-10282302
...
19
Screw, Handle WPL-67006529
...
20
Plug, Frz Shelf Support WPL-C8973701
...
21
Grommet, Screw WPL-M0580007
...
22
Harness-Fz Liner WPL-10535601
...
23
Socket, Dual Lamp WPL-D7808602
...
24
Shield, Light WPL-10014716
...
25
Cover, Light Sw WPL-D7297604
...
26
Housing-Ref Light WPL-D7716409
...
27
Clip, Ground WPL-B5733302
...
28
Rack, Juice V WPL-D7839701
...
29
Insert, Juice Rack WPL-C8986121
...
30
Housing, Light WPL-10270203
...
31
Front,basket WPL-D7820712
...
32
Gasket WPL-A3189337
...
33
Screw (3) WPL-67006425
...
34
Cover Wiring WPL-10250001
...
39
Cover, Ref. Light WPL-10493201
...
40
Screw WPL-M0219545
...
41
Washer WPL-M0270519

14 - Ref Shelving And Drawers

...
...
NI
Ass`y, Crisper Frame WPL-10543728
...
1
Insert Crisper Slide WPL-10199906
...
2
Slide Crisper Control WPL-10289908
...
3
Trim, Crisper Top Frt WPL-10524303
...
4
Glass, Shelf WPL-10370028
...
5
Glass, Shelf WPL-10370025
...
6
Pan, Crisper WPL-10469012
...
9
Ladder Cantilever WPL-D7789805
...
10
Screw WPL-WP90767
...
11
Grommet, Screw WPL-M0580007
...
12
Frame, Crisper WPL-10470201
...
13
Band, Crisper WPL-10519304
...
14
Brkt, Cont Cover WPL-12414701
...
15
Seal, Crisper Front WPL-10523401
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
