Amana SP19E-L (BOM: P7410002W L)

Model: SP19E-L (BOM: P7410002W L)

Save Part Not Listed?
product name

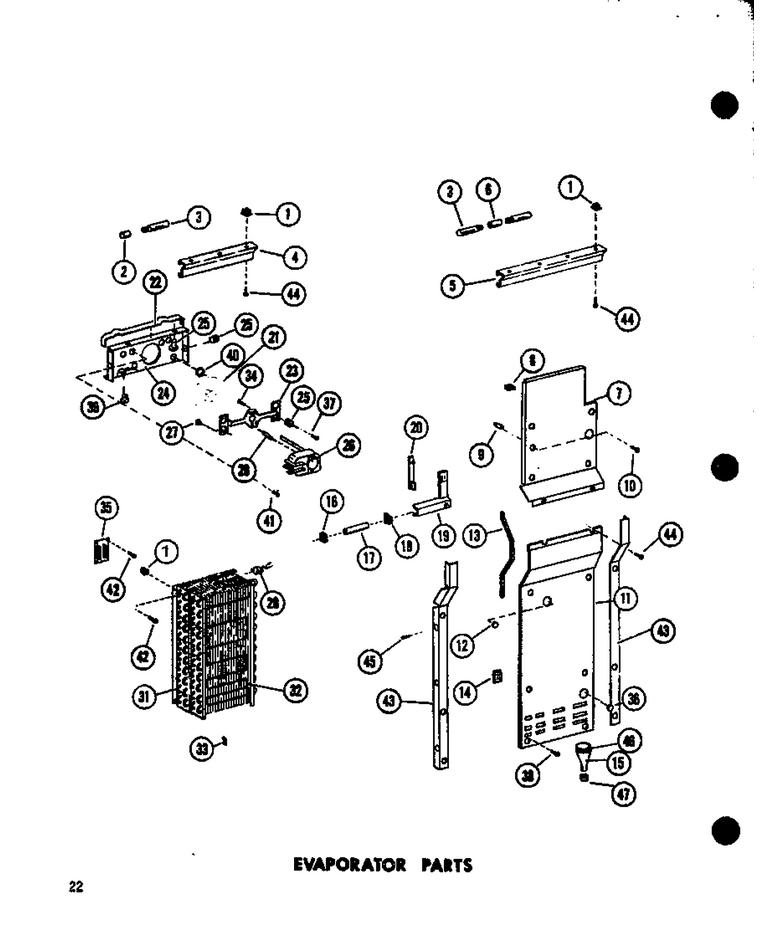

05 - Evap Parts

...
...
1
Grommet A WPL-M0580002
...
2
Socket WPL-B5637601
...
3
Bulb-Light WPL-WPA3073101
...
4
Light Shield WPL-D3954208
...
5
Light Shield WPL-C3597606
...
6
Socket-Light WPL-12096901
...
7
Angle-Fr Baffle WPL-B5795201
...
8
Gasket WPL-A4591108
...
9
Spacer WPL-A3044202
...
10
Screw-Sm WPL-M0238636
...
11
Evap Cover WPL-D7348301
...
12
Plug WPL-A3069103
...
13
Gasket WPL-A3030302
...
14
Air Block WPL-C8806301
...
15
Tube Drain WPL-B5796101
...
17
Tunnel, Air WPL-D7429501
...
21
Fan-Evap WPL-C8795501
...
22
Gasket WPL-B5757702
...
23
Bracket-Evap Motor WPL-C8829701
...
24
Fan Plate Assy WPL-D7371501
...
25
Eyelet K WPL-A0381401
...
26
Motor WPL-D7241412
...
27
Grommet WPL-A0288701
...
28
Spacer WPL-A3044202
...
29
Thermostat Kit WPL-C8765002
...
31
Evaporator Coil WPL-D7428301
...
32
Heater-Evap WPL-D7479703
...
33
Clip-Heater WPL-B5784101
...
34
Screw WPL-WP3400094
...
35
Term Board WPL-B8303401
...
37
Screw WPL-M0232908
...
38
Screw (3) WPL-67006425
...
39
Nut-Well WPL-M0292002
...
40
Washer WPL-M0270301
...
41
Screw WPL-M0233104
...
42
Screw WPL-WP98165
...
43
Angle-Evap Cover WPL-D7393502
...
44
Screw WPL-M0226960
...
45
Kit, Screw WPL-R9800670
...
46
Gasket WPL-A3292301
...
47
Grommet WPL-B5796401

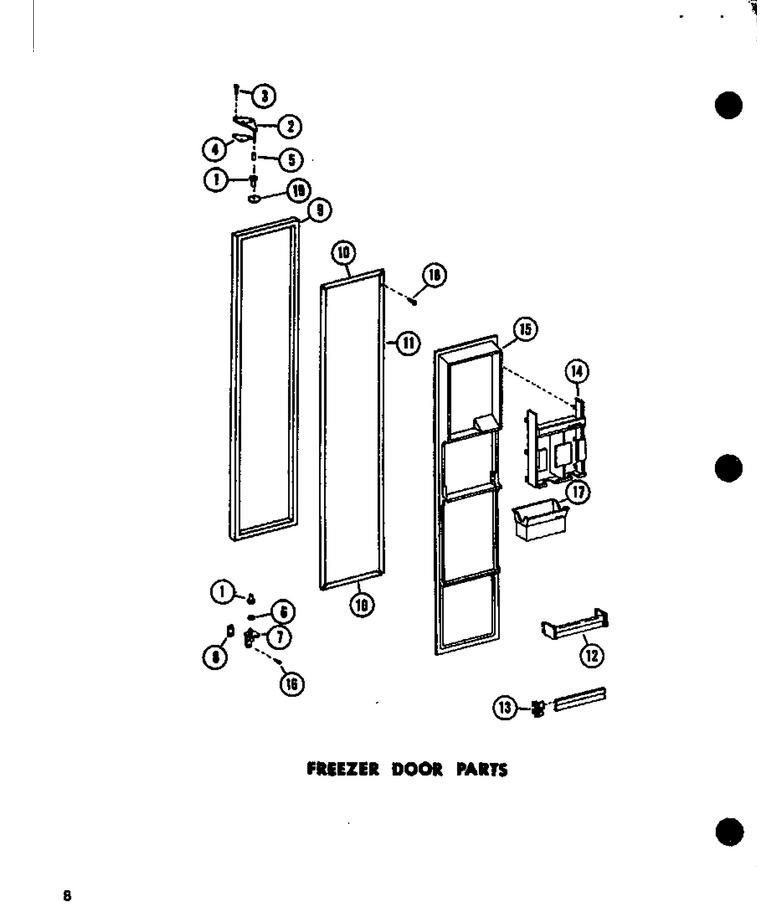

07 - Fz Door Parts

...
...
1
Bearing, Hinge WPL-C8852202
...
2
Hinge-Left WPL-C8816601
...
3
Kit, Screw WPL-R9800670
...
4
Shim-Top Hinge K WPL-A3270302
...
5
Bushing WPL-A3132401
...
6
Washer K WPL-M0274014
...
7
Hinge WPL-D7250104
...
8
Shim WPL-A3143603
...
9
Gasket WPL-D7251002
...
10
Retainer Gasket WPL-D7025103
...
11
Retainer WPL-D7025101
...
12
Retainer WPL-D7415703
...
13
Support- -Cream Rh WPL-B5631706
...
14
Juice Rack WPL-D7466201
...
15
Inner Dr Panel WPL-D7020604
...
16
Screw WPL-WP67006715
...
18
Screw WPL-M0241132
...
19
O Ring WPL-M0500902

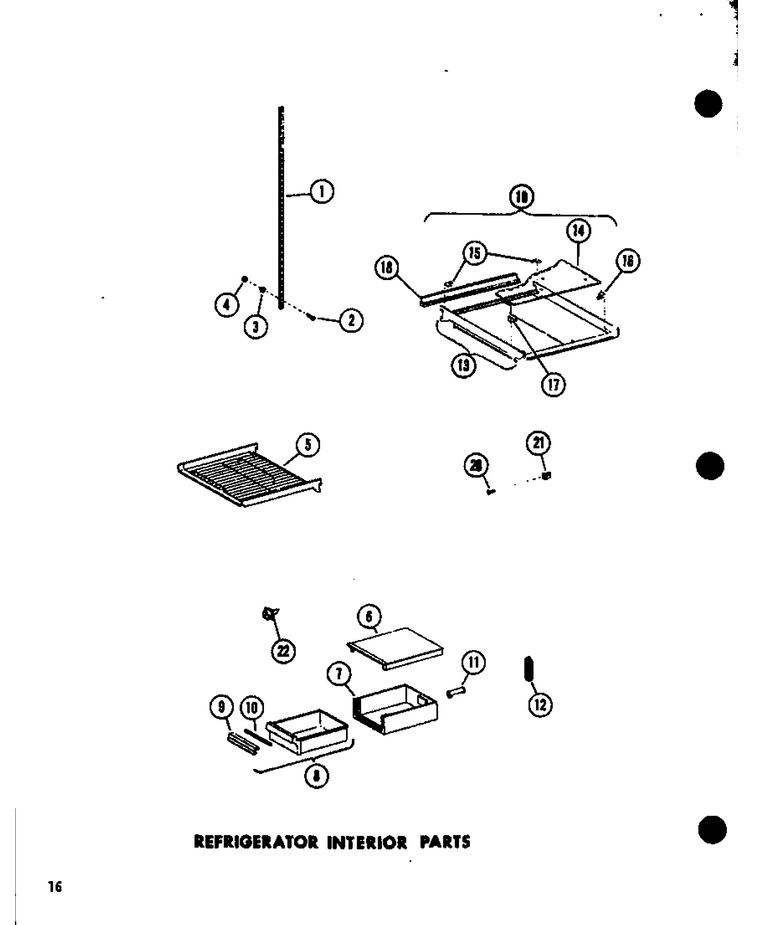

13 - Ref Interior Parts

...
...
5
Shelf-Mt Kpr WPL-D7099903
...
6
Top-Mt Kpr WPL-D7343603
...
8
Pan, Meat Keeper WPL-D7425301
...
9
Trim-Handle A WPL-C8831704
...
10
Gasket (per Foot) WPL-A3030313
...
12
Air Grille WPL-C3588302
...
20
Screw (3) WPL-67006425
...
21
Grommet K WPL-M0500107
...
22
Support WPL-B5633002

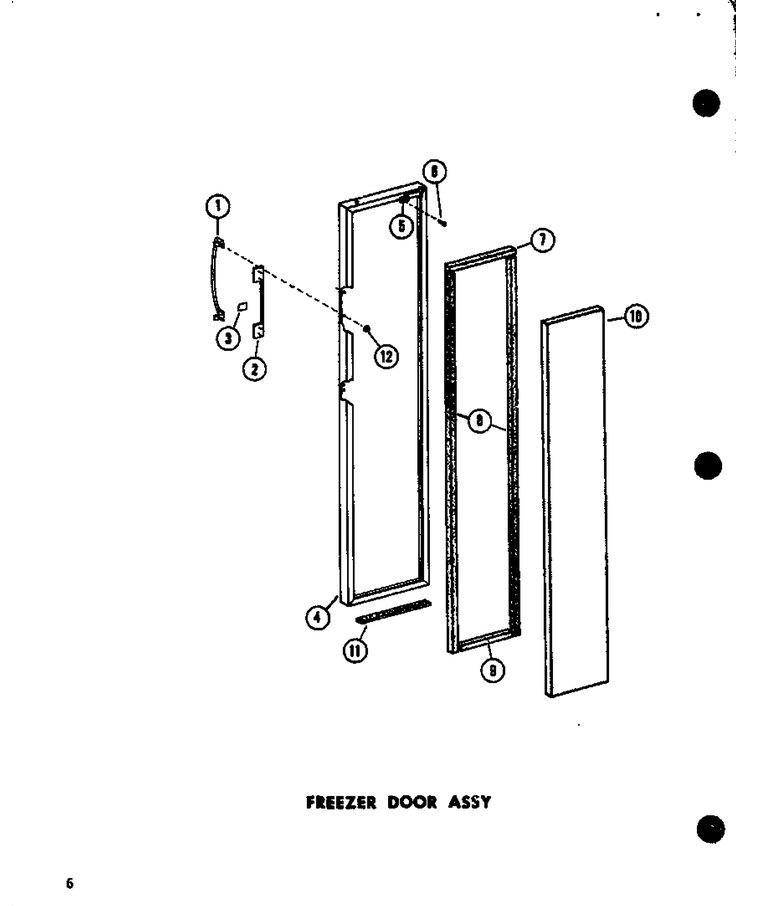

06 - Fz Door Assy

...
...
1
Handle WPL-D7096001
...
2
Pad, Door Handle WPL-D7454002
...
3
Nameplate WPL-C8832101
...
4
Door Fr L-T-Sp19 WPL-D7409440
...
5
Cover WPL-B5644001
...
6
Screw WPL-M1252001
...
7
Insulation WPL-B5629006
...
8
Insulation WPL-B5629002
...
9
Insulation WPL-B5629003
...
10
Insulation WPL-B5612004
...
11
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
12
Nut WPL-M0289801

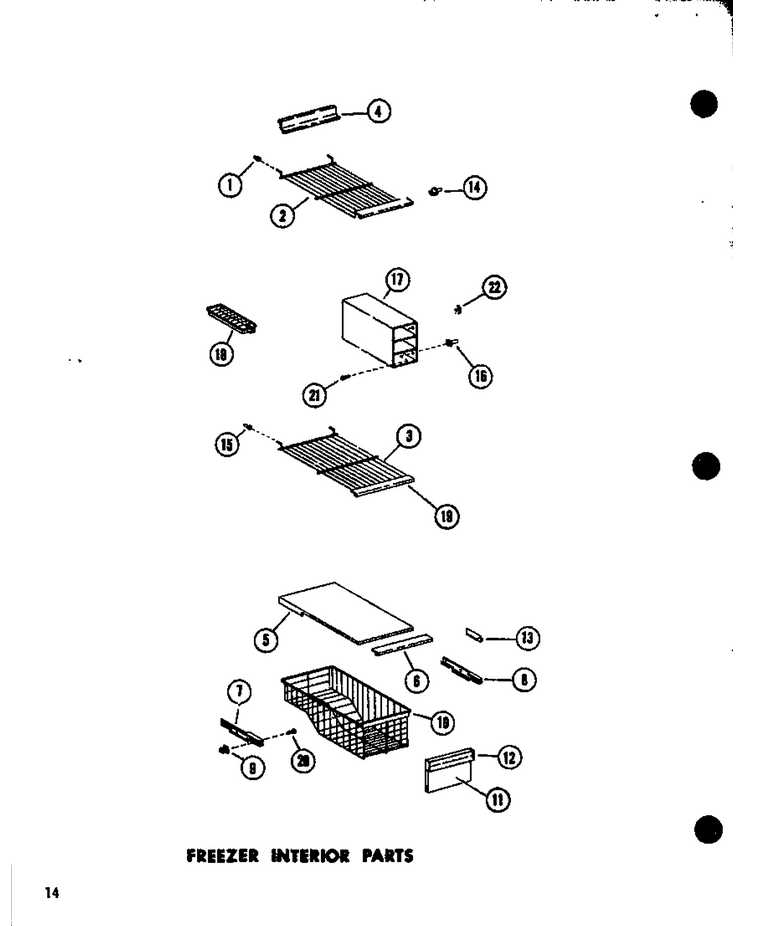

08 - Fz Interior Parts

...
...
1
Plug WPL-A0387302
...
2
Shelf WPL-D7419402
...
3
Shelf WPL-D7419407
...
4
Trim WPL-D7415103
...
5
Shelf-Fr WPL-B8303801
...
6
Shelf Trim WPL-B0596601
...
7
Glide Basket-L K WPL-D7442901
...
8
Glide Basket-R K WPL-D7442902
...
9
Grommet K WPL-M0500107
...
10
Basket WPL-D7363601
...
11
Front-Fr Basket WPL-D7419601
...
12
Trim-Handle WPL-C8834901
...
14
Support WPL-B0595101
...
15
Grommet WPL-A3066301
...
19
Trim Shelf K WPL-C8795201
...
20
Screw WPL-WP98165

10 - Page 12

...
...
1

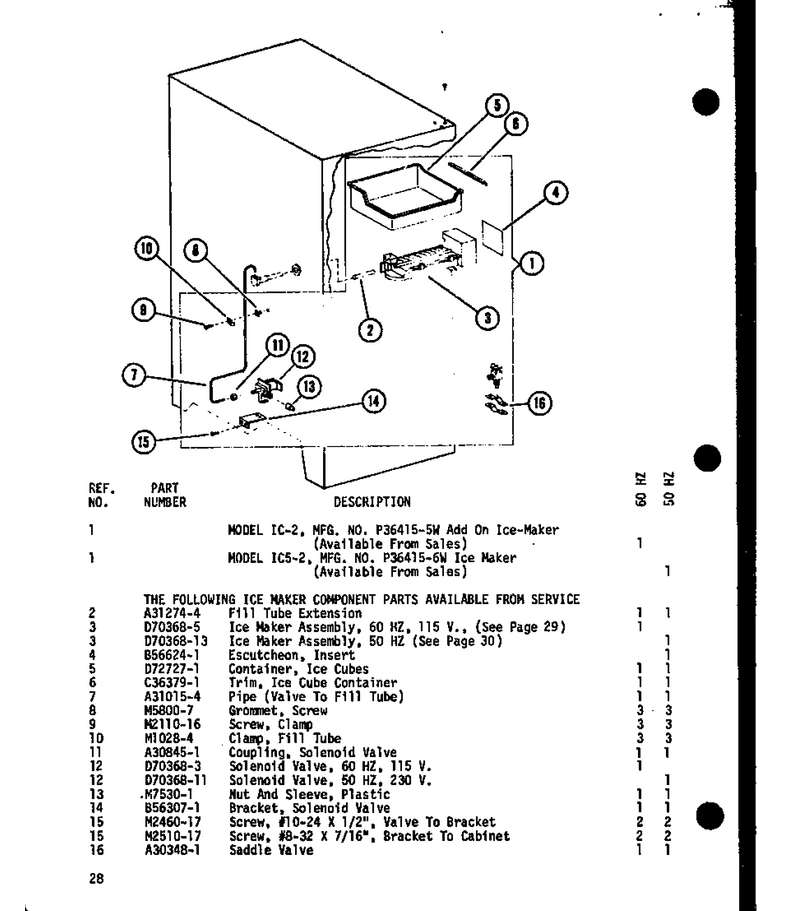

See Note Model Ic-2, Mfg. No. P36415-5w Add On Ice-Maker -- (available From Sales) WPL-Y00000000
...
2
Tube WPL-A3127404
...
3
Ic2-(ice Maker) WPL-D7036805
...
4
Insert-Im WPL-B5662401
...
5
Ice Container WPL-D7272701
...
6
Trim K WPL-C3637901
...
7
Pipe WPL-A3101504
...
8
Grommet, Screw WPL-M0580007
...
9
Screw WPL-WP90767
...
10
Clamp WPL-M0102804
...
11
Coupling, Solenoid Valve And H WPL-A3084501
...
12
Solenoid Valve WPL-D7036811
...
13
Nut WPL-WP627018
...
14
Bracket WPL-B5630701
...
15
Screw WPL-M0251017
...
16
Saddle Valve WPL-A3034801

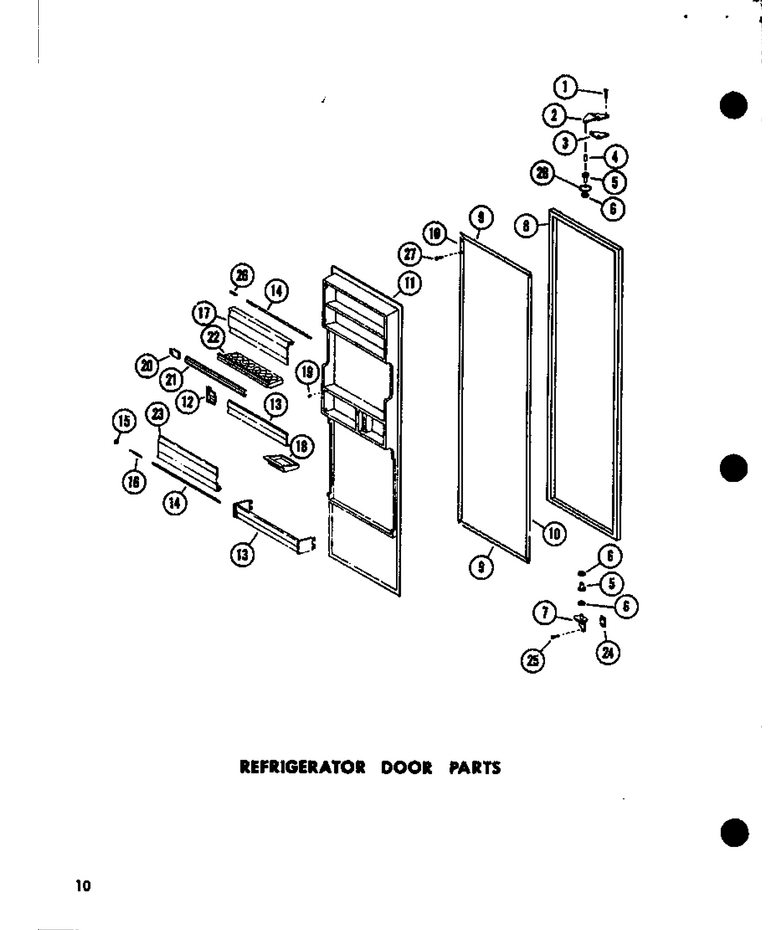

12 - Ref Door Parts

...
...
1
Kit, Screw WPL-R9800670
...
2
Hinge-Right WPL-C8816602
...
3
Shim Kit WPL-A3270303
...
4
Bushing WPL-A3132401
...
5
Bearing-Hinge WPL-C8852201
...
6
Washer K WPL-M0274014
...
7
Hinge WPL-D7250103
...
8
Gasket WPL-D7092603
...
9
Retainer Gasket WPL-D7025105
...
10
Retainer WPL-D7025101
...
11
Inner Door Panel Ref. WPL-D7443501
...
12
Support- -Cream Rh WPL-B5631706
...
13
Retainer WPL-D7415705
...
14
Rod WPL-A3056206
...
15
Spacer Butter Door WPL-A3057003
...
16
Spring A/k WPL-A3065201
...
17
Butter Door WPL-C8832802
...
18
Buttertray WPL-67004412A
...
19
Bumper WPL-A3059003
...
20
Support K WPL-B0530006
...
21
Package Ret WPL-B8302602
...
22
Egg Tray-Assy WPL-D7429602
...
23
Utility Door WPL-C8833502
...
24
Shim WPL-A3143601
...
25
Screw WPL-WP67006715
...
26
Spring K WPL-A3067001
...
27
Screw WPL-WP98165
...
28
O Ring WPL-M0500902

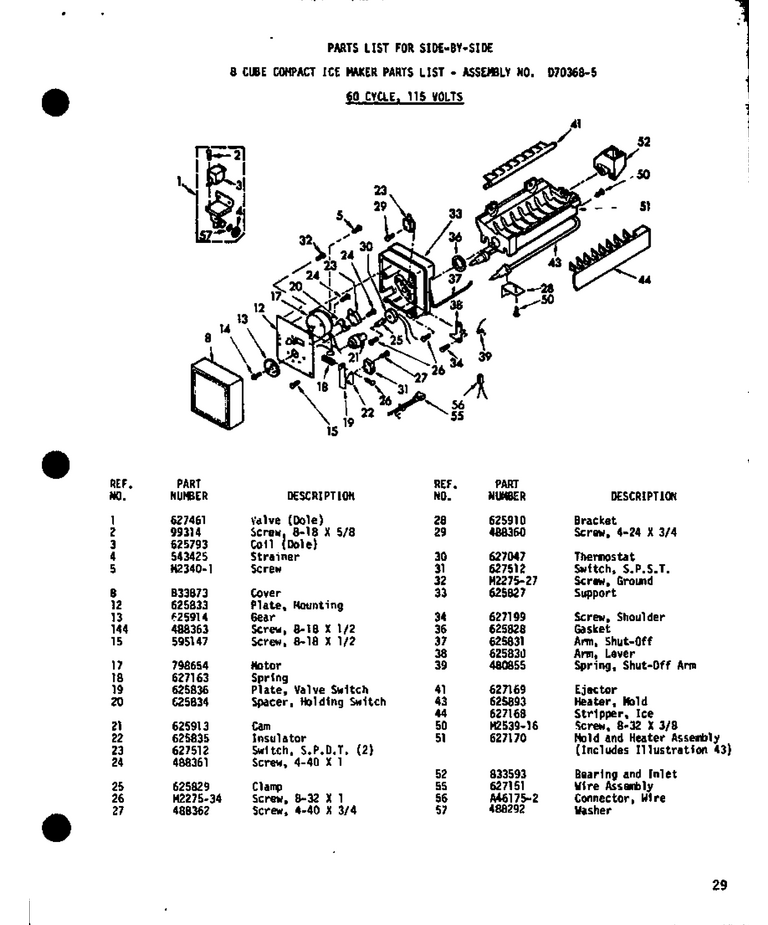

01 - 50 Cycle 8 Cube Compact Ice Maker

...
...
1
Valve-Inlt WPL-4210531
...
2
Screw WPL-W11693756
...
3
Valve-Inlt WPL-4318047
...
4
Screen WPL-WP96160
...
8
No Longer Available WPL-833873
...
12
Plate, Mounting WPL-627782
...
13
Gear WPL-WP628210
...
14
Screw, 8-18 X 1/2 WPL-488363
...
15
Screw WPL-WP488787
...
17
Motor WPL-626073
...
18
Spring WPL-627163
...
19
Plate, Valve Switch WPL-625836
...
20
Spacer WPL-WP625834
...
21
Cam WPL-625913
...
22
Insulator, Switch (2) WPL-984683
...
23
Switch, S.p.s.t. WPL-Y627512
...
24
Screw WPL-488361
...
26
Screw WPL-M0227534
...
27
Screw, 4-40 X 3/4 WPL-488362
...
28
Bracket WPL-WP2256087
...
29
Screw WPL-488360
...
30
Thermostat WPL-627047
...
31
Switch, S.p.s.t. WPL-Y627512
...
32
Screw WPL-M0227527
...
33
Support WPL-625827
...
34
Screw, Shoulder WPL-627199
...
36
Gasket WPL-625828
...
37
Arm, Shut-Off WPL-627003
...
38
Lever Arm WPL-625830
...
39
Spring-Arm WPL-480855
...
41
Arm-Ejectr WPL-WP627843
...
43
Heater, Mold WPL-833535
...
44
Stripper, Ice WPL-627753
...
50
Screw WPL-M0253916
...
51
Mold And Heater Assembly WPL-627212
...
52
Inlet Kit WPL-833593
...
55
Harns-Wire WPL-627612
...
56
Wire Nut K WPL-A4617502
...
57
Washer WPL-WP16123

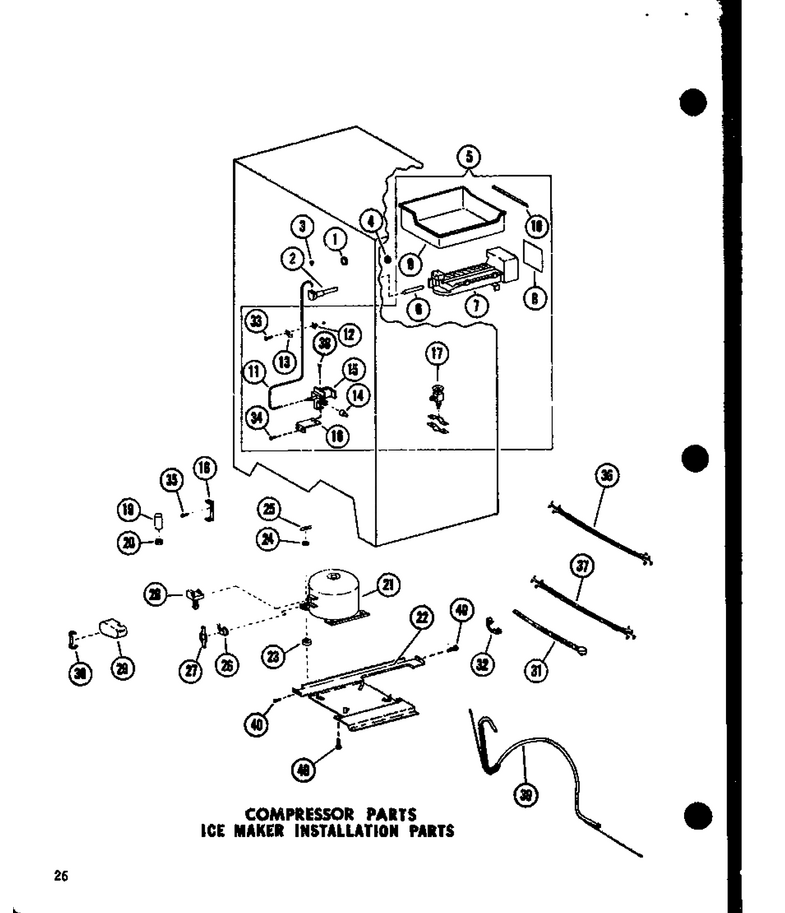

03 - Comp Parts Ice Maker Installation Parts

...
...
NI
Clip WPL-B5720301
...
1
Plug, Button (wht) WPL-A3080002
...
2
Fill Tube WPL-R0182123
...
6
Tube WPL-A3127404
...
7
Ic2-(ice Maker) WPL-D7036805
...
8
Insert-Im WPL-B5662401
...
9
Pan-Ice WPL-WP67001255
...
10
Trim-Ice Container WPL-C8831601
...
11
Pipe WPL-A3101504
...
12
Grommet, Screw WPL-M0580007
...
13
Clamp WPL-M0102804
...
14
Coupling, Solenoid Valve And H WPL-A3084501
...
15
Ic2-(ice Maker) WPL-D7036805
...
16
Bracket WPL-B5630701
...
17
Saddle Valve WPL-A3034801
...
21
Compressor WPL-C3667102H
...
22
Weld Comp Supt Pnt WPL-C8820412
...
23
Grommet K WPL-A3026101
...
24
Washer, Nylon K WPL-M0590101
...
25
Clip K WPL-A3140801
...
26
Overload WPL-C3689105
...
27
Spring K WPL-A3043601
...
28
Relay K WPL-C3689202
...
29
Terminal Cover WPL-B0551801
...
30
Strap K WPL-A3041801
...
31
Power Cord WPL-R0157154
...
32
Strain Relief WPL-A3245101
...
33
Screw WPL-WP90767
...
34
Screw WPL-WP489399
...
35
Screw WPL-M0233104
...
36
Wire Harness-Mc WPL-D7451502
...
37
Wire Harness-Liner WPL-D7453501
...
39
Heat Exchange WPL-D7427901
...
40
Screw WPL-M0294459

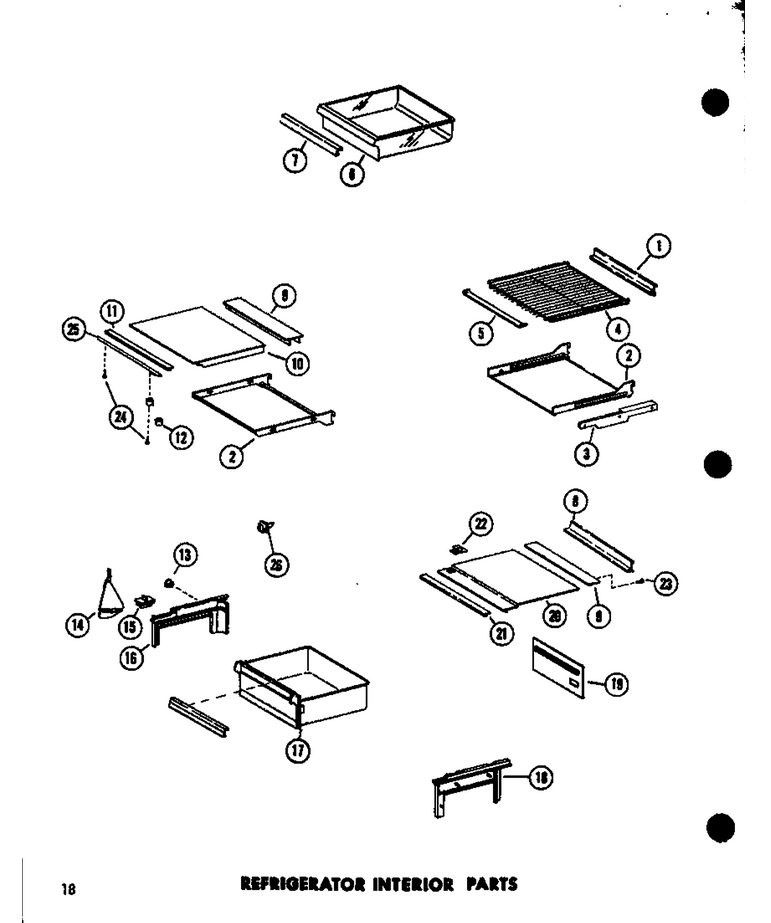

14 - Ref Interior Parts

...
...
1
Trim WPL-C3622808
...
3
Frame-Glide Out WPL-D3917304
...
4
Shelf WPL-D7100401
...
5
Trim-Shelf WPL-C8795202
...
10
Top, Crisper And Top, Fruit Bi WPL-D3966704
...
11
Trim A WPL-B0570903
...
12
Glide WPL-A3213401
...
17
Pan, Crisper Assembly WPL-D7219727
...
24
Screw WPL-M0230727
...
25
Angle-Crisper Top WPL-C3697201
...
26
Support WPL-B0595901

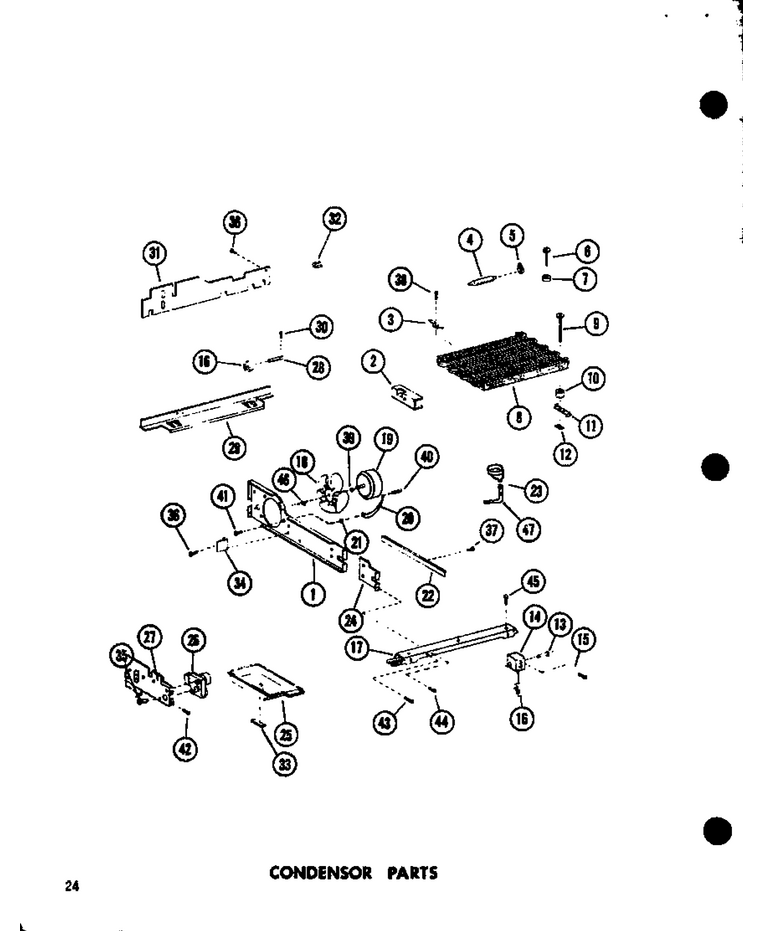

04 - Condensor Parts

...
...
1
Shroud, Fan WPL-D7446701
...
2
Spacer WPL-B0544101
...
3
Clip-Cond WPL-A3054502
...
4
Drier WPL-WPB2150504
...
5
Clamp-Drier WPL-M0104002
...
6
Sems Fastner WPL-M0257037
...
7
Spacer WPL-A3013906
...
8
Condenser Assy Pnt WPL-D7010701
...
9
Sems Fastner WPL-M0257039
...
10
Spacer WPL-B0544101
...
11
Bracket, Support WPL-A3085401
...
12
Nut A WPL-M0286003
...
13
Rivet WPL-M1205302
...
14
Roller Kit WPL-C8836302
...
15
Screw K WPL-M0236230
...
16
Roller WPL-M0520102
...
17
Front Rail WPL-C8820503
...
18
Blade, Fan WPL-B5742603
...
19
Motor-Cond WPL-833697
...
20
Bracket, Cond Motor WPL-B0598701
...
21
Grommet K WPL-M0500107
...
22
Seal-Fan Shroud Q WPL-B8314102
...
23
Drain Cup WPL-C8820601
...
25
Pan, Drain WPL-D7001001
...
26
Timer-Def WPL-W10822278
...
27
Timer Bracket WPL-C3647902
...
28
Pivot Pin K WPL-M1210001
...
29
Rail, Rear WPL-C3611301
...
30
Cotter Pin K WPL-M1200001
...
31
Back, Mach Compt K WPL-C3655001
...
32
Clip-Cable WPL-M0110505
...
33
Pad A WPL-B5691701
...
34
Stop,drain Pan WPL-A3125701
...
35
Screw WPL-M0213815
...
36
Screw-Sm WPL-M0241118
...
37
Screw WPL-WP98165
...
38
Kit, Screw WPL-R9800670
...
39
Washer K WPL-M0274015
...
40
Screw WPL-WPM0223816
...
41
Screw Shoulder WPL-M0238833
...
42
Screw WPL-M0211530
...
43
Screw WPL-M0294459
...
44
Screw WPL-WP98165
...
45
Screw WPL-M0267101
...
46
Nut WPL-WP486692
...
47
Drain Tube WPL-D7384701

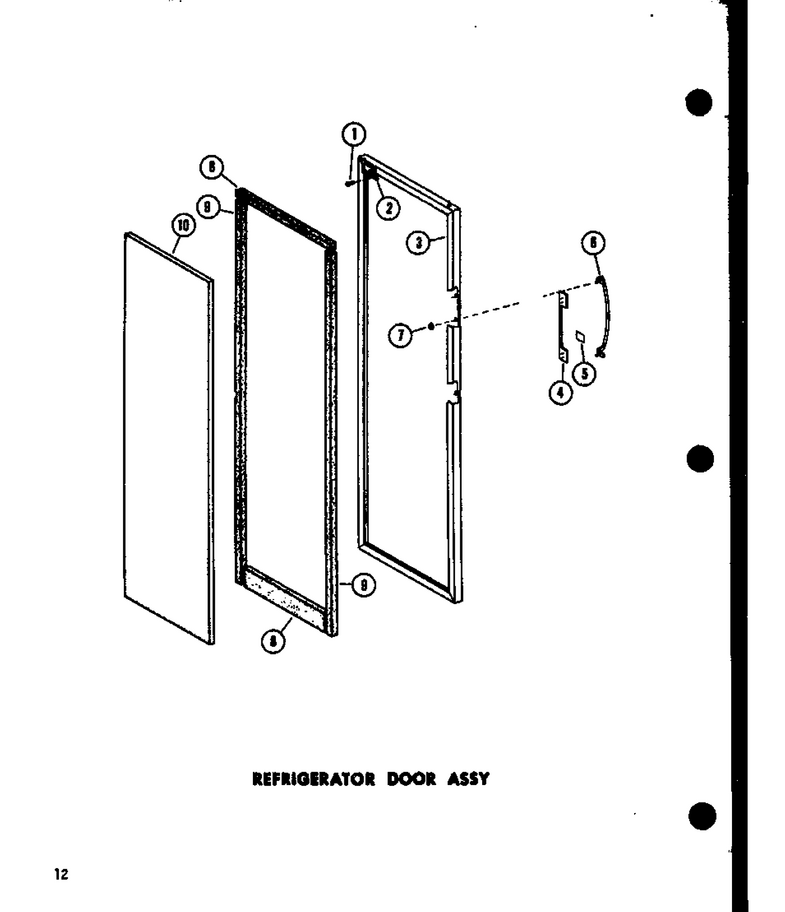

11 - Ref Door Assy

...
...
1
Screw WPL-M1252001
...
2
Door Closure WPL-D7022901
...
3
Door Ref C-T Sp19 WPL-D7409332
...
4
Pad, Door Handle WPL-D7454001
...
5
Nameplate WPL-C8832001
...
6
Handle WPL-D7096001
...
7
Nut WPL-M0289801
...
8
Insulation WPL-B0534410
...
9
Insulation WPL-B5629002
...
10
Insulation WPL-B5612011

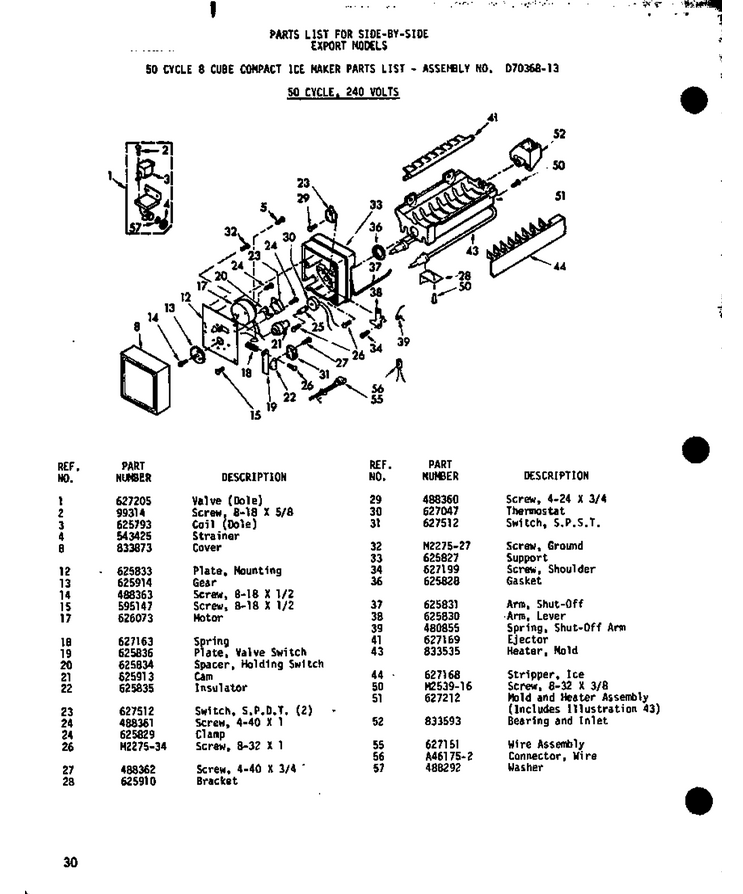

02 - 8 Cube Compact Ice Maker

...
...
1
Valve-Inlt WPL-4318047
...
2
Screw WPL-W11693756
...
3
Valve-Inlt WPL-4318047
...
4
Screen WPL-WP96160
...
5
Screw WPL-W11084238
...
8
No Longer Available WPL-833873
...
12
Plate, Mounting WPL-627782
...
13
Gear WPL-WP628210
...
14
Screw, 8-18 X 1/2 WPL-488363
...
15
Screw WPL-WP488787
...
17
Motor WPL-R0154016
...
18
Spring WPL-627163
...
19
Plate, Valve Switch WPL-625836
...
20
Spacer WPL-WP625834
...
21
Cam WPL-625913
...
22
Insulator, Switch (2) WPL-984683
...
23
Switch, S.p.s.t. WPL-Y627512
...
24
Screw WPL-488361
...
25
Clamp WPL-625829
...
26
Screw WPL-M0227534
...
27
Screw, 4-40 X 3/4 WPL-488362
...
28
Bracket WPL-WP2256087
...
29
Screw WPL-488360
...
30
Thermostat WPL-627047
...
31
Switch, S.p.s.t. WPL-Y627512
...
32
Screw WPL-M0227527
...
33
Support WPL-625827
...
34
Screw, Shoulder WPL-627199
...
36
Gasket WPL-625828
...
37
Arm, Shut-Off WPL-627003
...
38
Lever Arm WPL-625830
...
39
Spring-Arm WPL-480855
...
41
Arm-Ejectr WPL-WP627843
...
43
Kit WPL-R0157335
...
44
Stripper, Ice WPL-627753
...
50
Screw WPL-M0253916
...
51
Mold & Heater Assy WPL-YR0161024
...
52
Inlet Kit WPL-833593
...
55
Harns-Wire WPL-627612
...
56
Wire Nut K WPL-A4617502
...
57
Washer WPL-WP16123

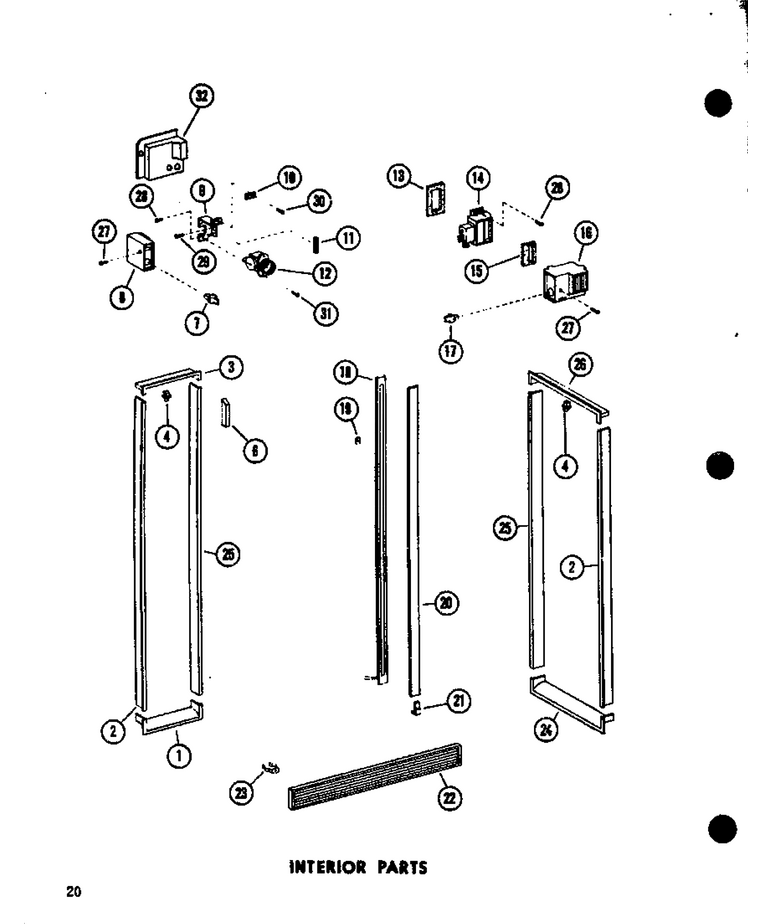

09 - Interior Parts

...
...
1
Breaker Frame WPL-D3952402
...
2
Breaker Frame WPL-D7424101
...
3
Breaker Frame WPL-D3953104
...
4
Switch WPL-W11384469
...
6
Cover-Switch WPL-B5743601
...
7
Knob WPL-D7009801
...
8
Escutcheon WPL-D7345503
...
9
Bracket WPL-C8850501
...
10
Switch WPL-M0341202
...
11
Gasket WPL-10839712
...
12
Control WPL-C3615018
...
13
Gasket-Damper WPL-B8315901
...
14
Control, Refriferator WPL-C3643113
...
15
Gasket Control WPL-A3113601
...
16
Escutcheon WPL-D7417301
...
17
Knob WPL-D7009802
...
18
Heater, Vertical Mullion WPL-C3628301
...
19
Clip WPL-M0113401
...
20
Mullion Vert.white) WPL-C8810401
...
21
Key WPL-A3120801
...
22
Grille-Toe WPL-D7415405
...
23
Clip WPL-WPM0117303
...
24
Breaker Frame WPL-D3952604
...
25
Breaker Frame WPL-D7424001
...
26
Breaker Frame WPL-D3952506
...
27
Screw WPL-M0230926
...
28
Screw WPL-WP489464
...
29
Screw WPL-M0233104
...
30
Rivet A WPL-M0010202
...
31
Screw WPL-WP90767
...
32
Tunnel, Air WPL-D7429501
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
