Amana SNP26ZZ0 (BOM: P1143189N W)

Model: SNP26ZZ0 (BOM: P1143189N W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

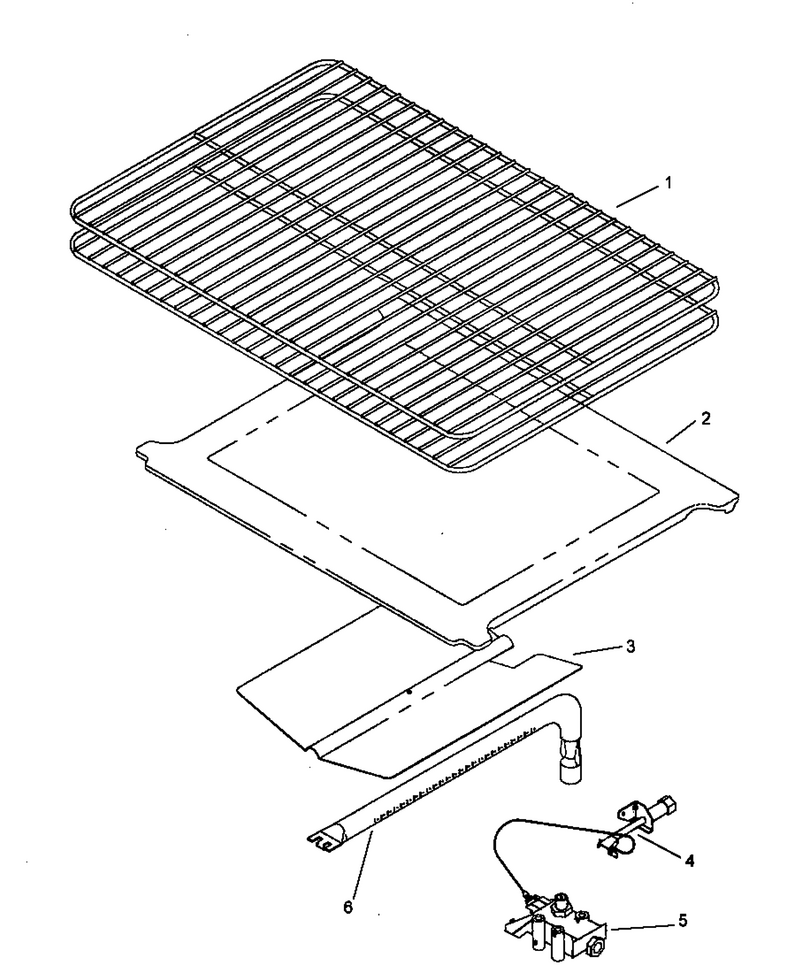

04 - Oven Components

...
...
NI
Screw, 10 X 1-1/2 WPL-Y01000300
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-06554403E
...
3
Spreader, Flame W/o Notch WPL-06497102
...
4
Pilot, Oven Burner WPL-Y07720400
...
5
Valve,safety (Oven) WPL-Y07720100
...
6
Burner, Oven WPL-Y07720500

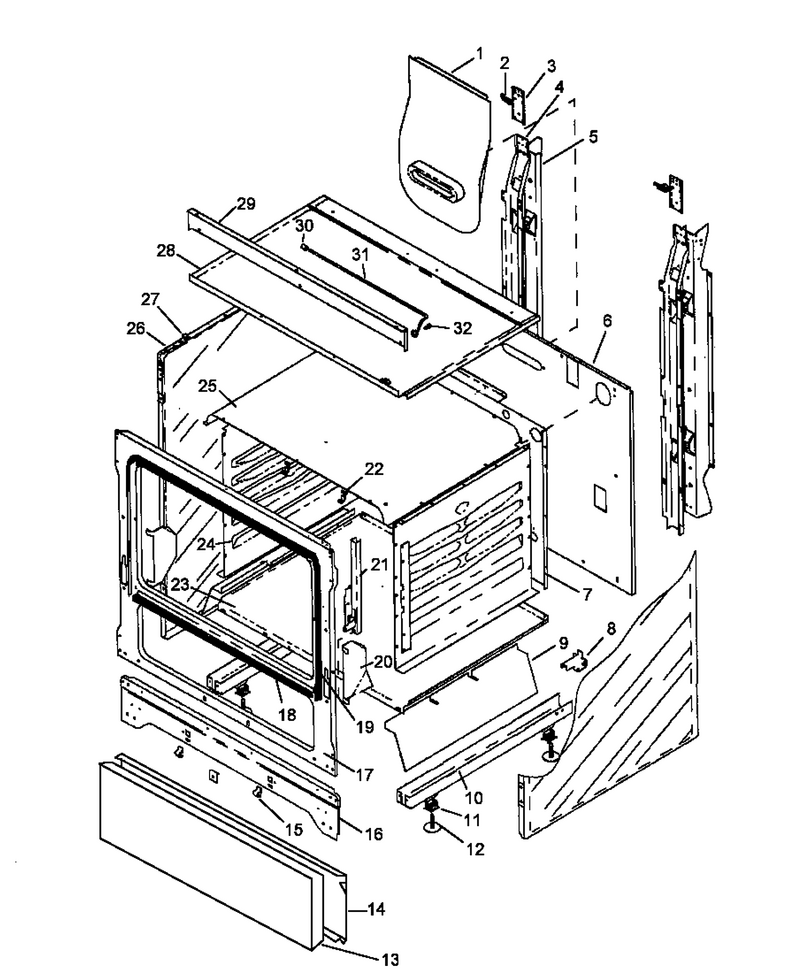

02 - Cabinet Assy

...
...
NI
Clip, Bracket WPL-Y06538700
...
1
Flue, Oven WPL-Y06564900
...
2
Wire, Hinge (Right) WPL-07730600
...
4
Supt. Main Back (Vert) WPL-Y06565600
...
5
Support, Rear, Vertical {j} WPL-0056477
...
6
Main Back {j} WPL-0088656
...
7
Backliner, Oven (Enamel) WPL-Y03382001E
...
8
Kit, Anti-Tip WPL-07687600
...
9
Radiation Shield, Broiler WPL-0310816
...
10
Rail, Base WPL-06554900
...
11
Snap-In Tee Nut WPL-Y0088571
...
12
Leveler WPL-W11117769
...
13
Panel, Fixed (White) WPL-Y06539000W
...
14
Shield, Broiler WPL-Y06554000
...
15
Spring Clip WPL-Y0088664
...
16
Panel, Toe 30`` (Galv) WPL-Y06451603
...
17
Frame, Front (Enamel) WPL-06567101E
...
19
Seal- Oven WPL-31958801
...
20
Shield, Insulation (J) WPL-0310064
...
21
Hinge, Oven Door WPL-Y07489700
...
22
Clip, Capillary WPL-01052001
...
23
Baffle, Base (30``gas) WPL-Y06467101
...
24
Liner,oven Side WPL-0311807
...
25
Topliner, Oven 30``gas WPL-Y06470802E
...
26
Side, Body (White) WPL-06559000W
...
28
Burner Box, Gas 30`` WPL-Y06559505
...
29
Extension, Burner Box WPL-Y06559900

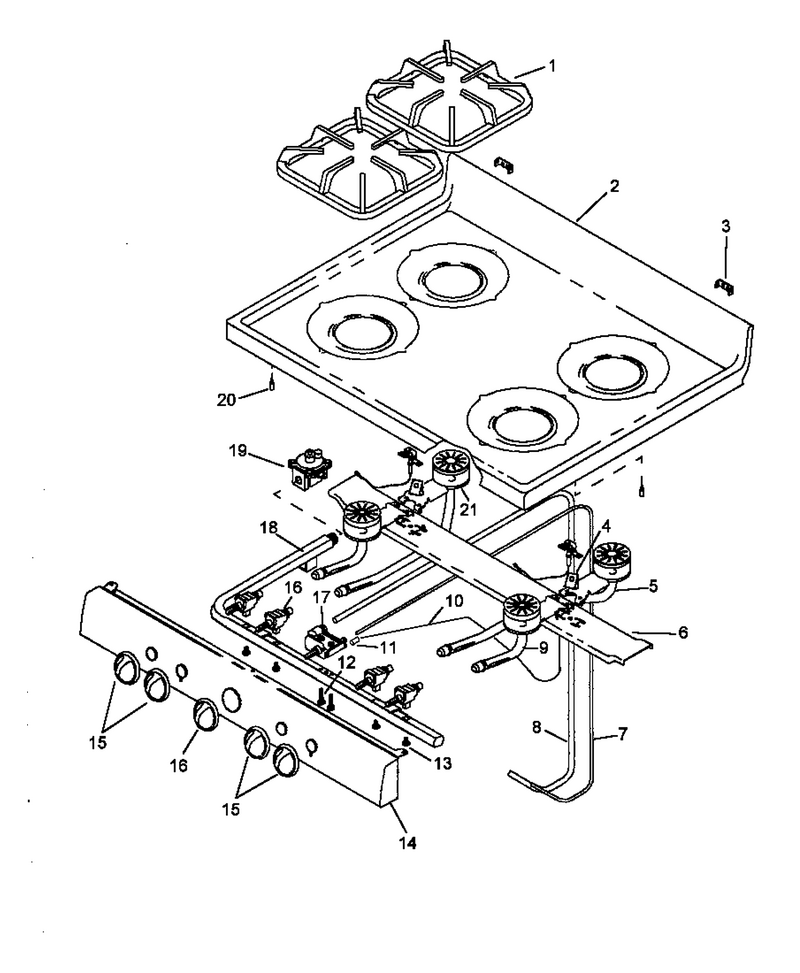

03 - Main Top Assy

...
...
NI
Square Nut {j} WPL-0088650
...
1
Grate, 7`` Round Burner WPL-Y07540300
...
2
Main Top 30`` (White) WPL-Y06582700W
...
3
Bushing, Hinge Wire WPL-Y07730700
...
4
Pilot Tip (J) WPL-0057313
...
5
Burner, Rear R.h. WPL-Y07707000
...
6
Supt-Top Brnr, 30 WPL-Y06561401
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
9
Burner, Front WPL-Y07706900
...
10
Tubing, Top Burner Pilot WPL-31827501
...
11
Pilot Filter WPL-0311054
...
12
Bolt, Mtg Therm/gasket WPL-Y07721600
...
13
Screw WPL-W10491986
...
14
Pnl-Mnfd 30`` Gas WPL-Y07710206
...
15
Knob, Gas Valve WPL-07708401
...
16
Knob, Gas Therm WPL-Y07723201
...
17
Kit- Pilot WPL-R0711505
...
18
Pipe-Manifold WPL-07706802F
...
19
Pressure Regulator WPL-77001246
...
20
Screw, Stud WPL-31750709
...
21
Burner, Rear L.h. WPL-Y07707100

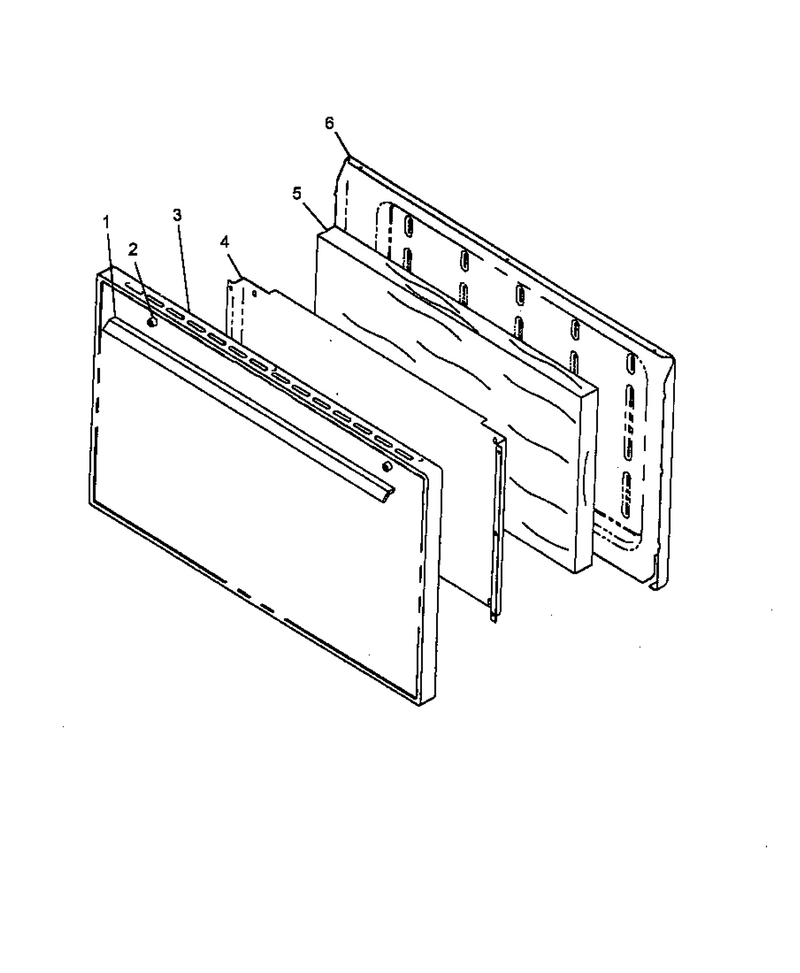

05 - Solid Oven Door Assy

...
...
1
Handle, Oven Door (J) WPL-Y0052776
...
3
Panel, Door (White) WPL-Y06561301W

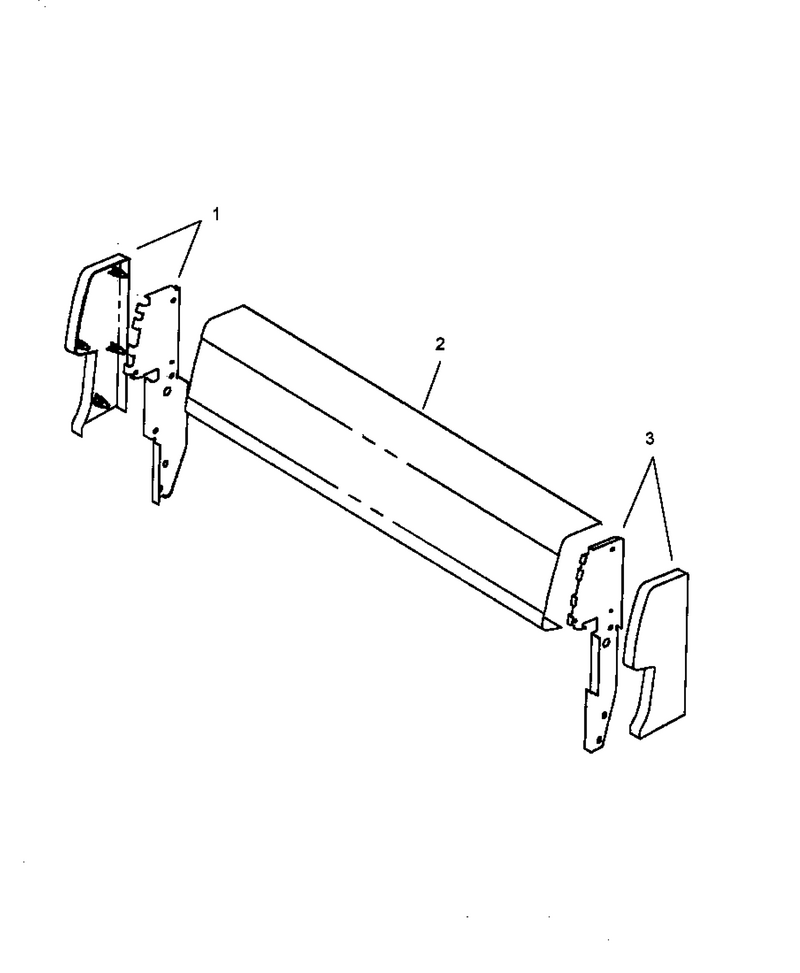

01 - Backguard Assy

...
...
NI
Screw WPL-WP7101P126-60
...
1
End Cap, Bkgd 4`` L.h. WPL-Y07712605
...
2
Pnl, Filler 4x30 WPL-Y06565715W
...
3
End Cap, Bkgd 4`` R.h. WPL-Y07712604
