product name

Amana SNK26AA (BOM: P1142397NW)

Model: SNK26AA (BOM: P1142397NW)

Save Part Not Listed?
product name

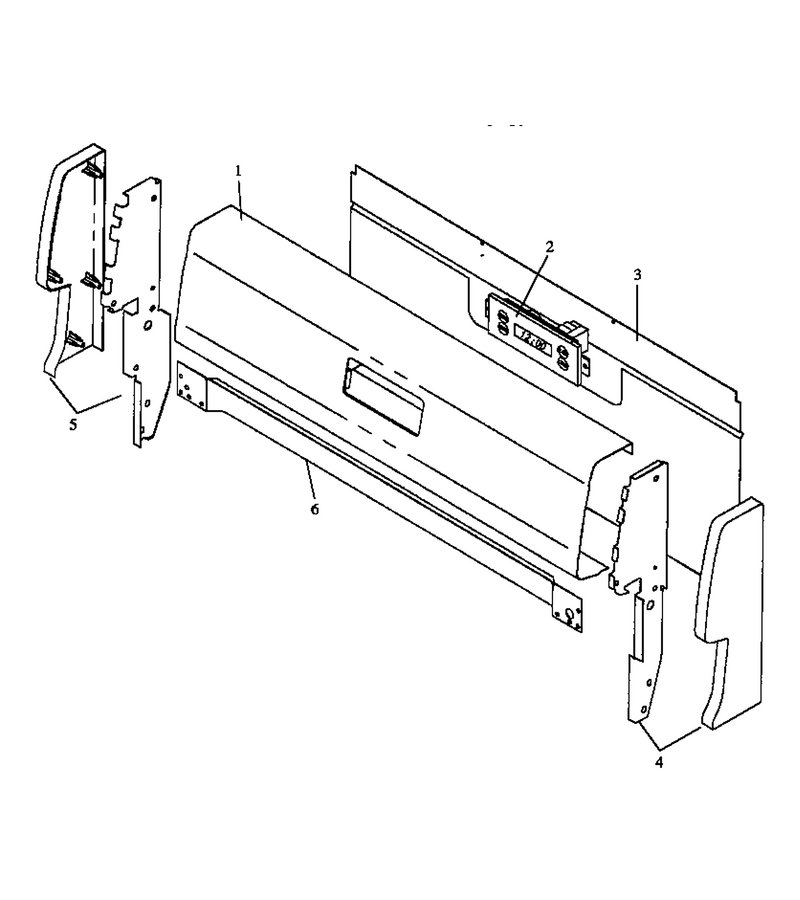

01 - Backguard Assy

...
...
NI
Screw, No.10 X3/8`` (Black) WPL-Y07712301
...
1
Panel, Bkgd (Black) WPL-06565700B
...
4
07712604 WPL-06566800
...
5
End Cap, Bkgd 4`` L.h. WPL-Y06566801
...
6
See Note Not Applicable WPL-Y00000000

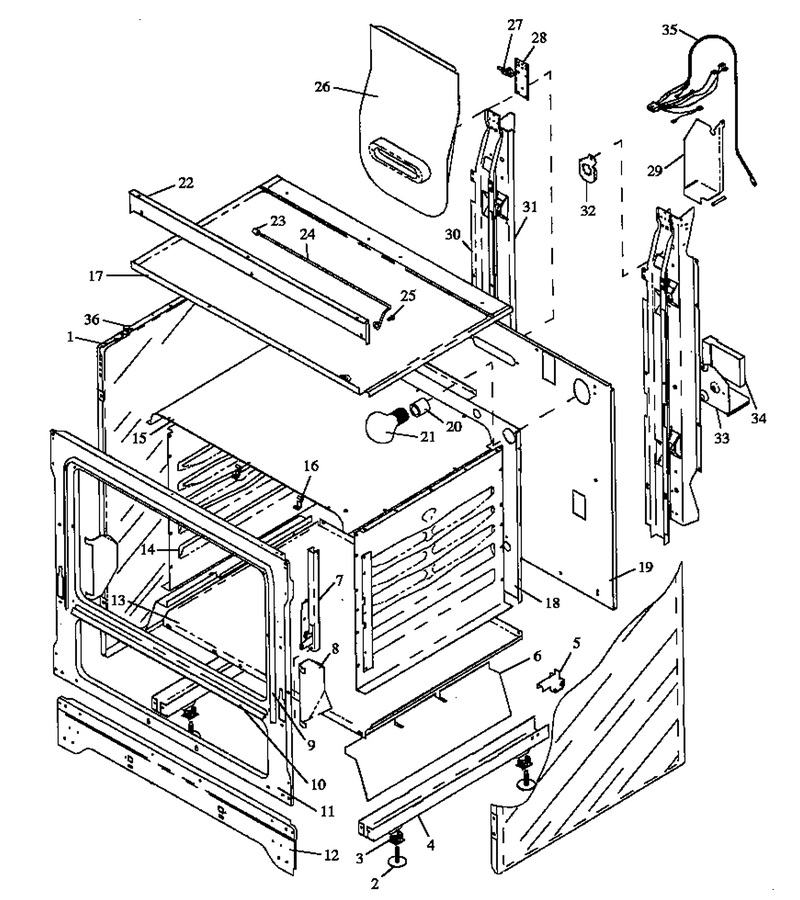

03 - Cabinet Section

...
...
NI
Clamp, Speed WPL-Y0310113
...
1
Side, Body (Almond) WPL-06559000L
...
2
Leg, Leveling WPL-Y0062362
...
3
Snap-In Tee Nut WPL-Y0088571
...
4
Rail, Base WPL-06554900
...
5
Kit, Anti-Tip WPL-07687600
...
6
Radiation Shield, Broiler WPL-0310816
...
7
Hinge, Oven Door WPL-Y07489700
...
9
Seal- Oven WPL-31958801
...
10
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
11
Frame, Front (Enamel) WPL-06567100E
...
12
Panel, Toe 30`` (Black) WPL-Y06451600
...
13
Baffle, Base (30``gas) WPL-Y0311051
...
14
Liner,oven Side WPL-0311807
...
15
Liner, Oven Top - Porcelain WPL-88885CG
...
16
Clip, Capillary WPL-0310802
...
17
Box Burner WPL-06559501
...
18
Backliner, Oven (Enamel) WPL-Y03382001E
...
19
Main Back WPL-Y0088752
...
22
Extension, Burner Box WPL-Y06559901
...
26
Flue, Oven WPL-Y06564900
...
27
Hinge Arm, Left Hand WPL-07712801
...
28
Bracket, Hinge WPL-06565500
...
30
Supt. Main Back (Vert) WPL-Y06565600
...
31
Support, Rear, Vertical {j} WPL-0056477
...
32
Bracket WPL-0311551
...
33
Plate, Spark Module WPL-Y0087725
...
34
Module, Spark 2+1 WPL-31829401
...
35
Ass`y Power Cord WPL-0313772
...
36
Bumper, Oven Door WPL-Y0063661

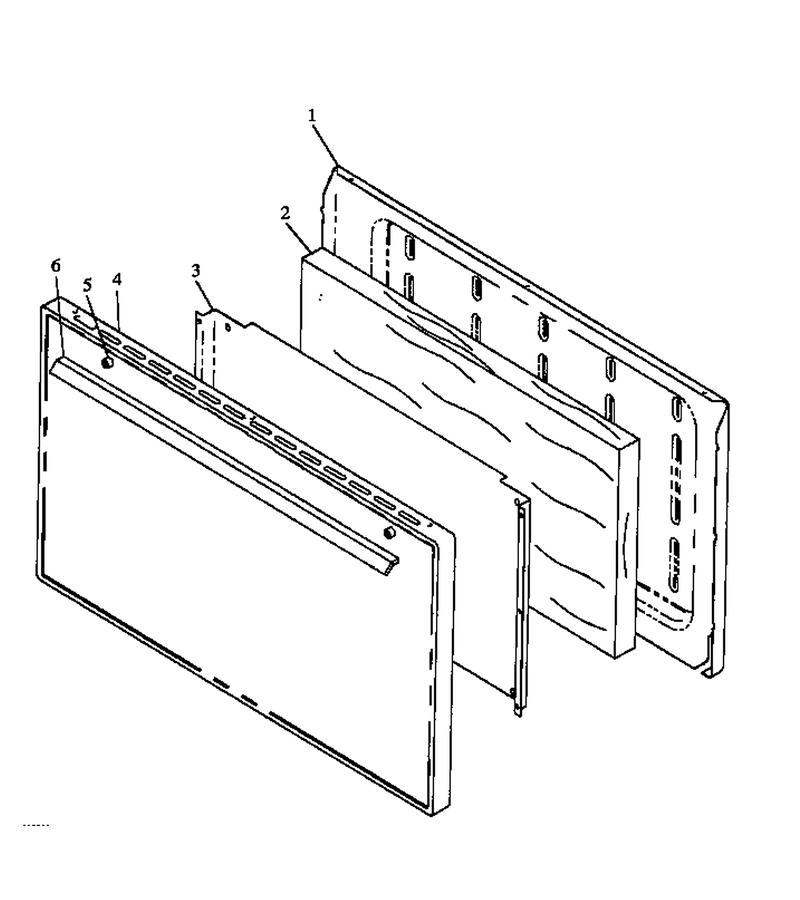

05 - Oven Door Assy

...
...
NI
Screw No.10 X 1/2`` WPL-Y0310804
...
1
Liner, Oven Door WPL-Y06565000E
...
2
Insulation, Wrapper WPL-31975801
...
3
Baffle, Oven Door WPL-06511801
...
4
Panel, Door (Almond) WPL-06561300L
...
5
Handle Spacer, Plastic (J) WPL-Y0310818
...
6
Oven Door Handle, 18`` WPL-Y0088812

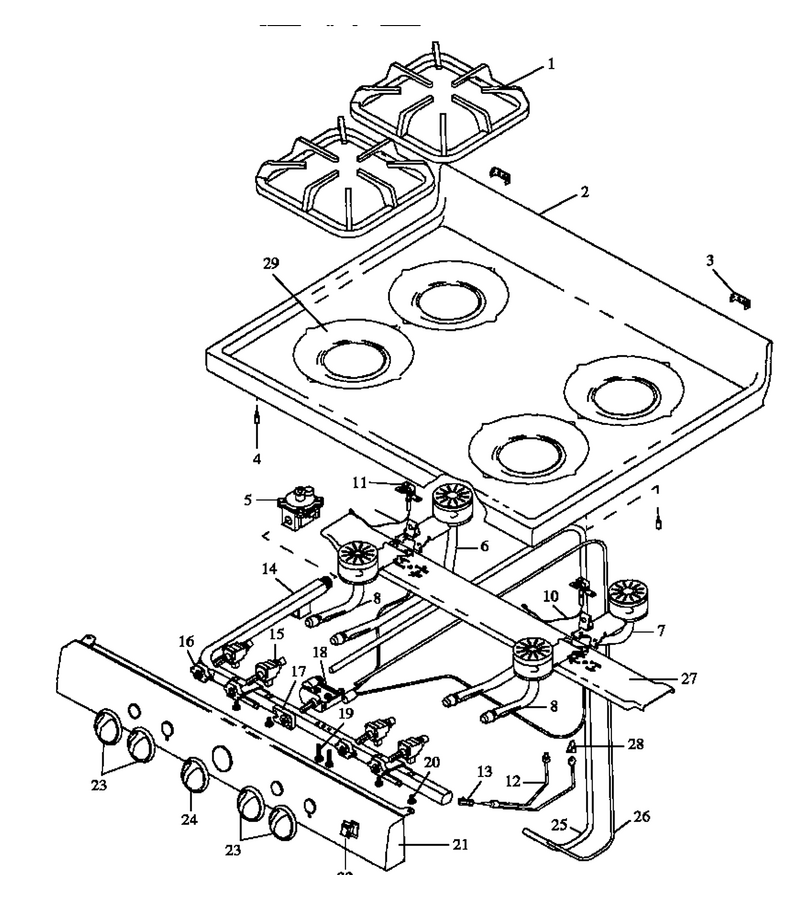

06 - Oven Top Burner Assy

...
...
NI
Clip, Speed (Doz) {j} WPL-0310033
...
1
Grate, Wire Round 9`` WPL-Y07708700
...
2
Main Top W/grate Kit WPL-06558200W
...
3
Brkt, Hinge Strap Mtg WPL-Y0306150
...
4
Screw, Stud WPL-31750709
...
5
Pressure Regulator WPL-77001246
...
6
Burner, Rear L.h. WPL-Y07707100
...
7
Burner, Rear R.h. WPL-Y07707000
...
8
Burner, Front WPL-Y07706900
...
10
Ignitor- G WPL-Y07491203
...
11
Bracket, Ignitor WPL-0310114
...
14
Pipe, Manifold WPL-07706800
...
15
Valve, Top Burner WPL-Y0057338
...
16
Swtch-Ignr WPL-WP4157180
...
17
Swtch-Ignr WPL-WP878009
...
18
Therm-Ov,spark WPL-Y0057349
...
19
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
20
Screw WPL-W10491986
...
21
Panel, Manifold WPL-Y07710204
...
22
See Note Not Applicable WPL-Y00000000
...
23
Knob, Top Burner WPL-Y07708301
...
24
Knob, Thermostat WPL-Y07708300
...
25
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
26
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022902
...
27
Support, Top Burner WPL-06561400

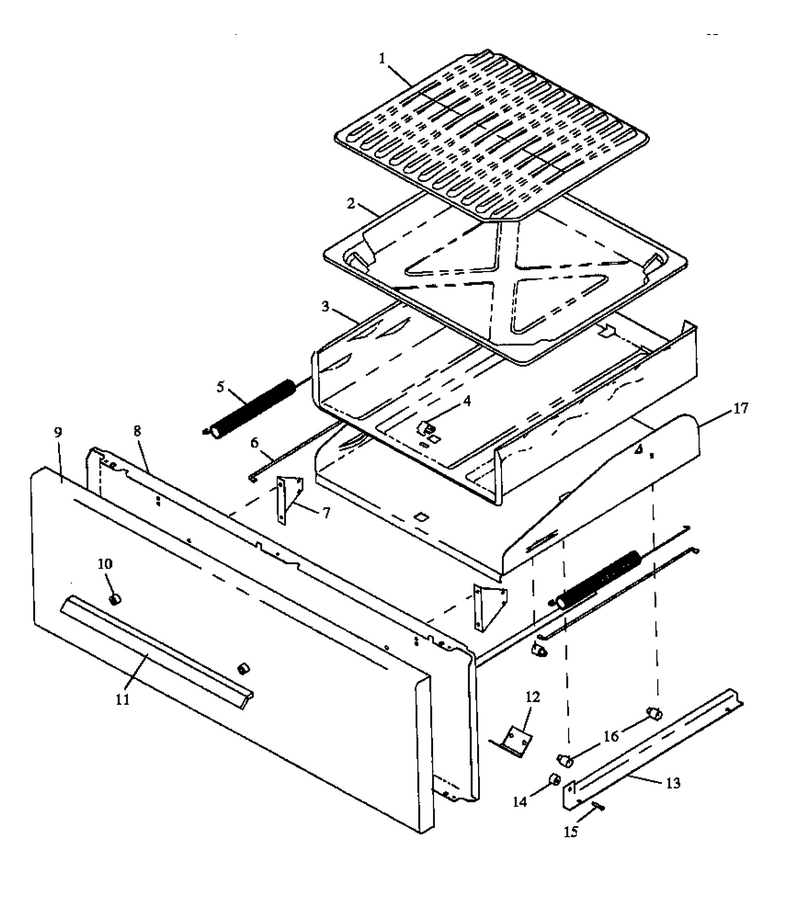

02 - Broiler Drawer Assy

...
...
NI
Screw WPL-0310240
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Pan, Broiler WPL-87722CG
...
3
Drawer, Broiler WPL-86908CG
...
4
Spring Clip WPL-Y0088664
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Rod, Push-Broiler WPL-Y07685300
...
7
Brkt, Spring & Rod WPL-Y06520700
...
8
Liner, Broil Door,30`` WPL-312246E
...
9
Panel, Broiler Door, Al. 30`` WPL-311812L
...
10
Handle Spacer, Plastic (J) WPL-Y0310818
...
11
Oven Door Handle, 18`` WPL-Y0088812
...
12
Hinge, Black WPL-Y0313773
...
13
Track, Lower L.h. WPL-Y0313760
...
14
See Note Roller -- (Included With Item 13) WPL-Y00000000
...
15
See Note Pin -- (Included With Item 13) WPL-Y00000000
...
16
Glide-Drwr WPL-W10709871
...
17
Support,body Carriage WPL-06522100

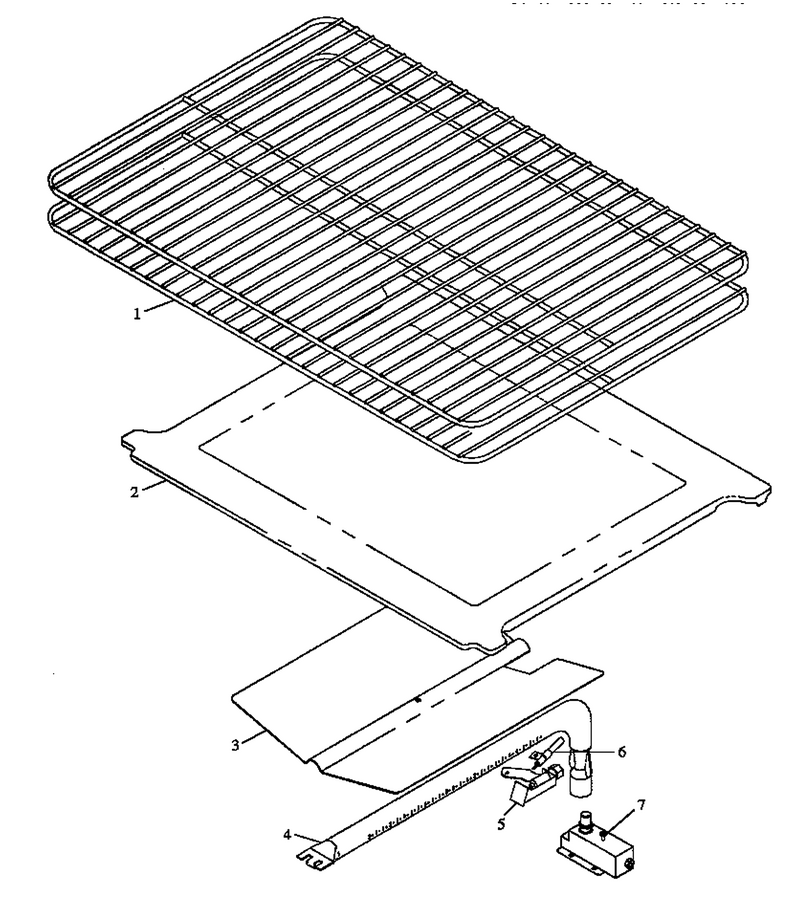

04 - Oven Components

...
...
NI
Screw WPL-0055047
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-06554403E
...
3
Spreader, Flame W/o Notch WPL-0311821
...
4
Oven Burner WPL-0311865
...
5
Pilot, Oven Burner (Spark) WPL-Y07697300
...
6
Igniter-Spark Oven WPL-Y0086776
...
7
Valve, Safety WPL-4157094
