Amana SNE26CB (BOM: P1142425NW)

Model: SNE26CB (BOM: P1142425NW)

Save Part Not Listed?
product name

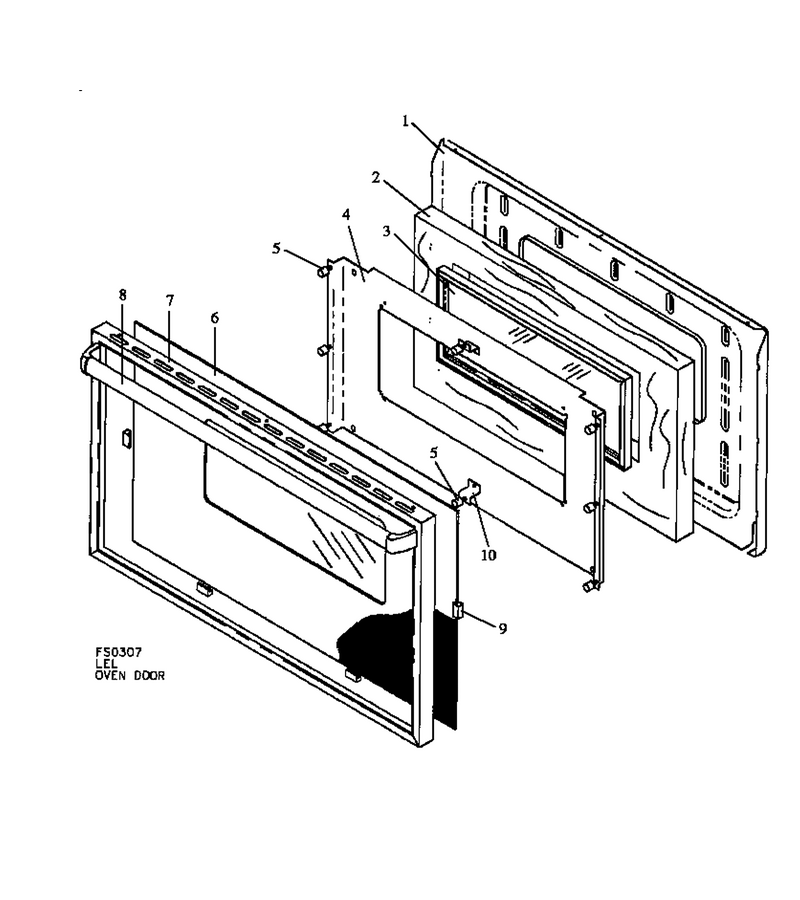

06 - Oven Door Assy

...
...
NI
Screw, No.10-12 X 50 WPL-Y0311900
...
1
Liner, Oven Door WPL-Y06565000E
...
2
Insulation, Wrapper WPL-31975801
...
4
Baffle, Oven Door WPL-06511801
...
5
Bumper-Rubber 1/4`` WPL-Y02068200
...
6
Glass, Door (Black) WPL-Y07707500
...
7
Frame, Door (Black) WPL-Y07707800
...
8
Handle, Oven Door WPL-07636809
...
9
Bumper ``l`` Shaped WPL-Y0312836
...
10
Bracket, Bumper Mount {j} WPL-Y0311752

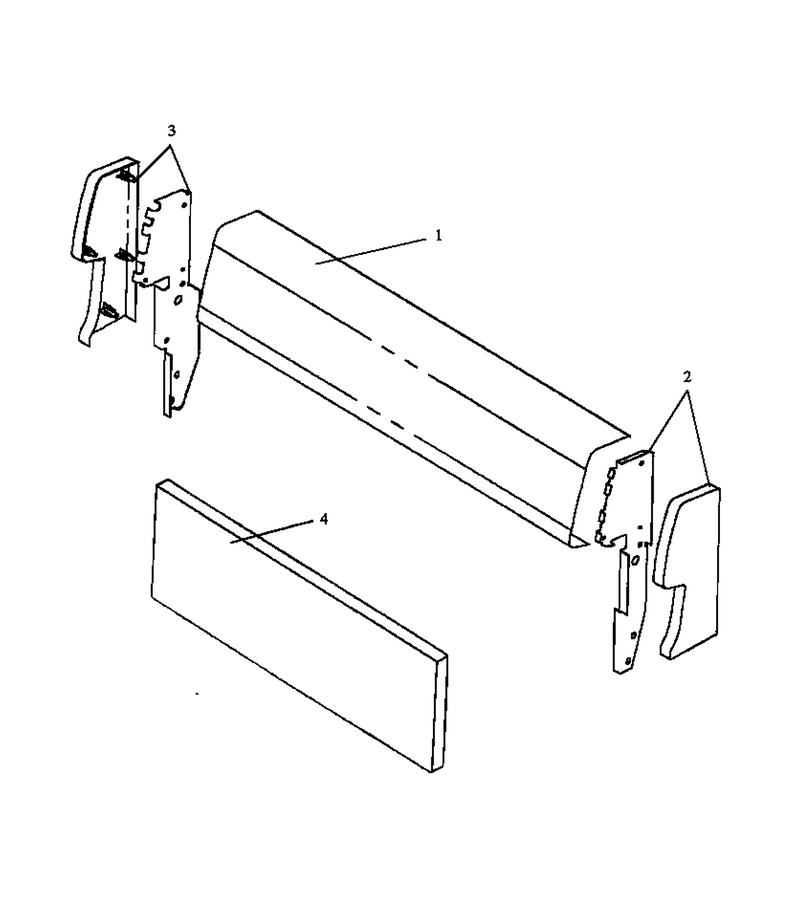

03 - Fixed Panel & Backguard Assy

...
...
NI
Nameplate, Sunray WPL-Y07709701
...
1
Panel, 7``bkgd (Black) WPL-Y06565800B
...
2
Endcap Bkgd, 7`` R.h. WPL-Y06566900
...
3
Endcap Bkgd 7`` L.h. WPL-Y06566901
...
4
Panel, Fixed (White) WPL-Y06539000W

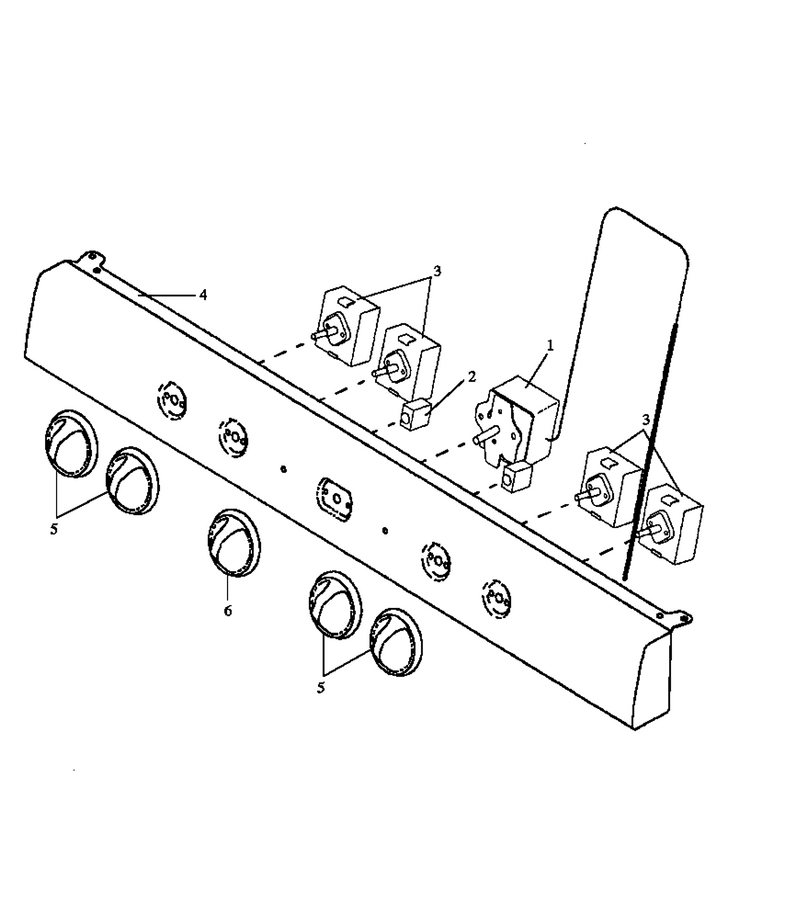

02 - Control Panel Assy

...
...
NI
Screw, No.10 X 3/8`` WPL-Y07712300
...
1
Thermo-Elect. WPL-0088758
...
2
Light, Indicator WPL-Y07606704
...
3
Switch, Infinite WPL-0057312
...
4
Panel, Manifold WPL-07710300
...
5
Knob, Infinite Switch WPL-07612602
...
6
Knob- Ther WPL-WPY0310527

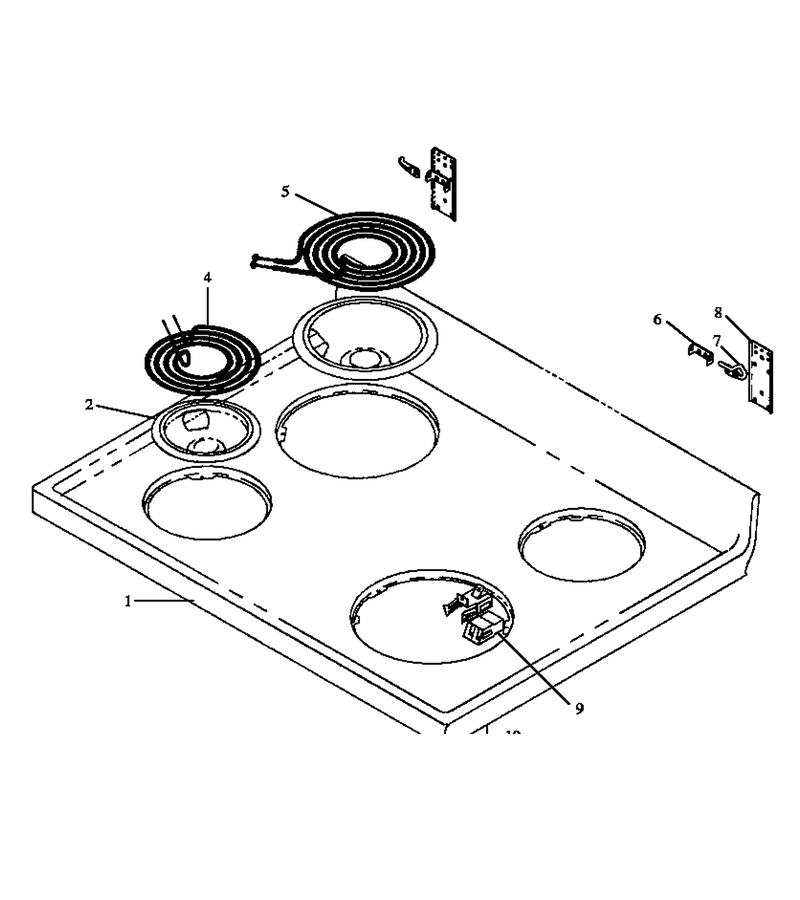

04 - Main Top Assy

...
...
NI
Screw No.10x1/2 Blunt WPL-Y0310363
...
1
Maintop (White) WPL-06558300W
...
2
Bowl-Drip WPL-WPW10196406
...
4
Elmnt-Surf WPL-WPY04000036
...
5
Elmnt-Surf WPL-WPY04000035
...
6
Brkt, Hinge Strap Mtg WPL-Y0306150
...
7
Hinge Arm, Left Hand WPL-07712801
...
8
Bracket Hinge WPL-Y0656550
...
9
Receptacle WPL-330031
...
10
Screw, Stud WPL-31750709

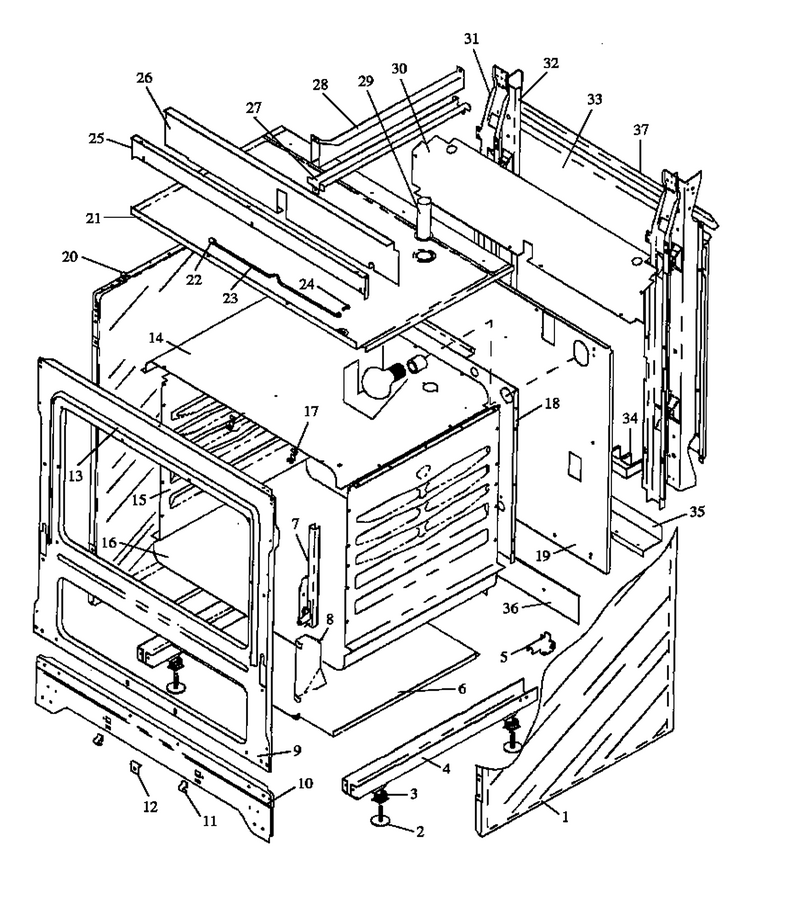

01 - Cabinet Section

...
...
NI
Screw (J) WPL-0310233
...
1
Side, Body (White) WPL-06559000W
...
2
Leg, Leveling WPL-Y0062362
...
3
Snap-In Tee Nut WPL-Y0088571
...
4
Rail, Base WPL-06554900
...
5
Kit, Anti-Tip WPL-07687600
...
6
Support, Oven Bottom Insul. WPL-Y0088820
...
7
Hinge, Oven Door WPL-Y07489700
...
8
Shield, Insulation {j} WPL-0310053
...
9
Frame, Front (Enamel) WPL-06567100E
...
10
Toe Panel (J) WPL-0052744
...
11
Spring Clip WPL-Y0088664
...
12
Clip, Bracket WPL-Y06538700
...
13
Seal- Oven WPL-31958801
...
14
Top, Oven Liner WPL-Y06470002E
...
15
Liner,oven Side WPL-0311807
...
16
Liner, Oven Bottom WPL-88898CG
...
17
Clip, Capillary WPL-0310802
...
18
Liner, Oven Back WPL-88893CG
...
19
Back, Main Electric 30`` WPL-Y06478202
...
20
Bumper, Oven Door WPL-Y0063661
...
21
Box, Burner Elec WPL-06559700
...
22
Support Rod WPL-07712200
...
23
Support Rod WPL-07712100
...
24
Shoulder Screw WPL-0088779
...
25
Extension, Burner Box WPL-Y06559901
...
26
Cover, Switch WPL-Y06560200
...
27
Support Wire WPL-Y06565900
...
28
Channel Wire WPL-Y06566000
...
29
Tube, Oven Vent WPL-Y0056015
...
30
Cover, Rear WPL-Y06560000
...
31
Supt. Main Back (Vert) WPL-Y06565600
...
32
Support, Rear, Vertical {j} WPL-0056477
...
33
Cover, Wire WPL-Y06434908
...
34
Block-Term WPL-WP8203546
...
35
Support, Bottom Wire WPL-0312153
...
36
Support Glass WPL-Y0310407
...
37
Extension, Rear Cover WPL-06568600

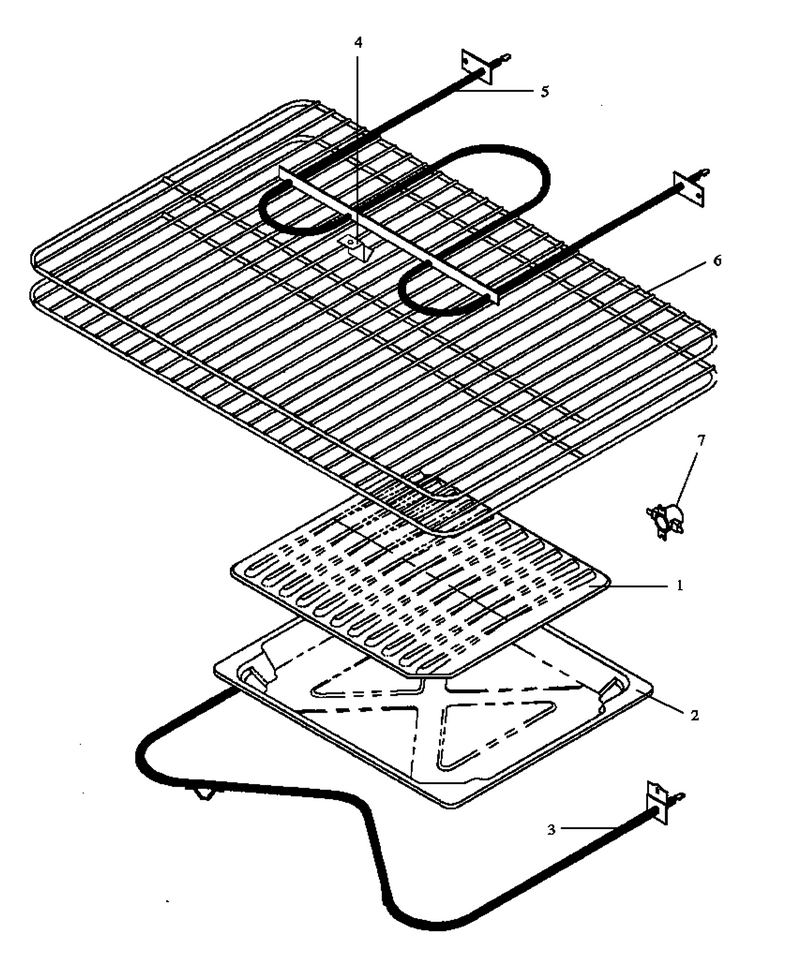

05 - Oven Components

...
...
NI
Screw WPL-WP7101P126-60
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Pan, Broiler WPL-87722CG
...
3
Element- B WPL-WPY07409600
...
4
Clip- T-St WPL-R0000343
...
5
Broil Elem WPL-WPY07431100
...
6
Rack, Oven, 30`` WPL-Y07671200
...
7
Disc, Thermo WPL-0053357
