Amana SNAC8LW (BOM: P1301001M)

Model: SNAC8LW (BOM: P1301001M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

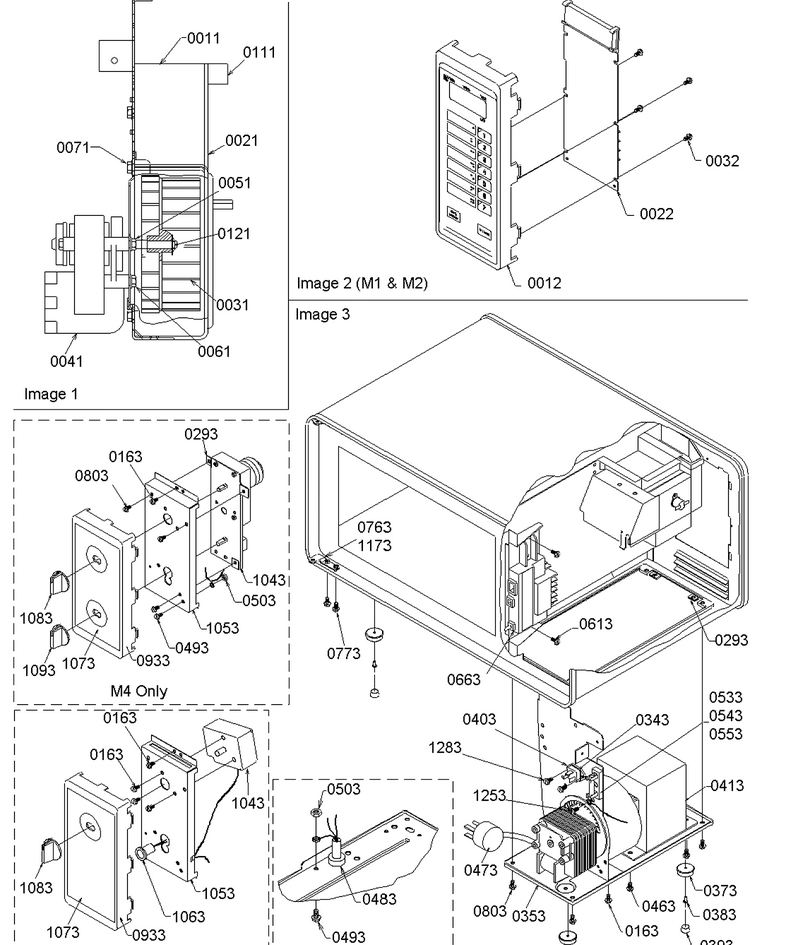

01 - Blower/control Panel

...
...
NI
Harness-Control WPL-12156701
...
11
Blower Bracket Kit WPL-M20D324
...
12
Mem Swi Asy M7x84 WPL-4002008501
...
21
Blower Housing Kit WPL-M65D330
...
22
Board, P.c. WPL-10987108
...
31
Wheel Blwr W/clip Insert X WPL-45278P01
...
32
Screw-Tf WPL-5064-CC
...
41
Blower Motor Kit WPL-M12D100
...
51
Nut WPL-WP488130
...
61
Screw WPL-5078-CC
...
71
Screw WPL-WP90767
...
111
Gasket WPL-A3030302
...
121
Nut WPL-WP3195558
...
163
Screw WPL-WP90767
...
293
U-Clip WPL-42365P01
...
343
Kit, Triac Assy WPL-R0157373
...
353
Panel-Access WPL-10825106
...
373
Foot O.c. Wrapper WPL-B5732506
...
383
Pop Rivet WPL-A4539625
...
393
Plug,foot WPL-C8965405
...
403
Gasket, Neoprene WPL-10966602
...
413
Transformer, H.v. WPL-10426604
...
463
No.10 T X 3/8`` Screw WPL-5018-JJ
...
473
Cord-Power WPL-1731300206
...
483
Bushing, Cord WPL-5149-M
...
493
Screw, No.8 Mach WPL-5146-FF
...
503
Nut WPL-WP488130
...
533
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
543
Rivet-Pop WPL-59002054
...
553
Fuse WPL-WPM0805102
...
613
Screw WPL-WP98165
...
663
Switch, Interlock WPL-R0163285
...
763
Hinge Asy WPL-45179P01
...
773
No.8-32 Pan Hd Mach Scr (25) WPL-5149-C
...
803
Screw (3) WPL-67006425
...
1173
Shim-Hinge WPL-45540P01
...
1253
Screw WPL-WP90767
...
1283
Screw WPL-12992301

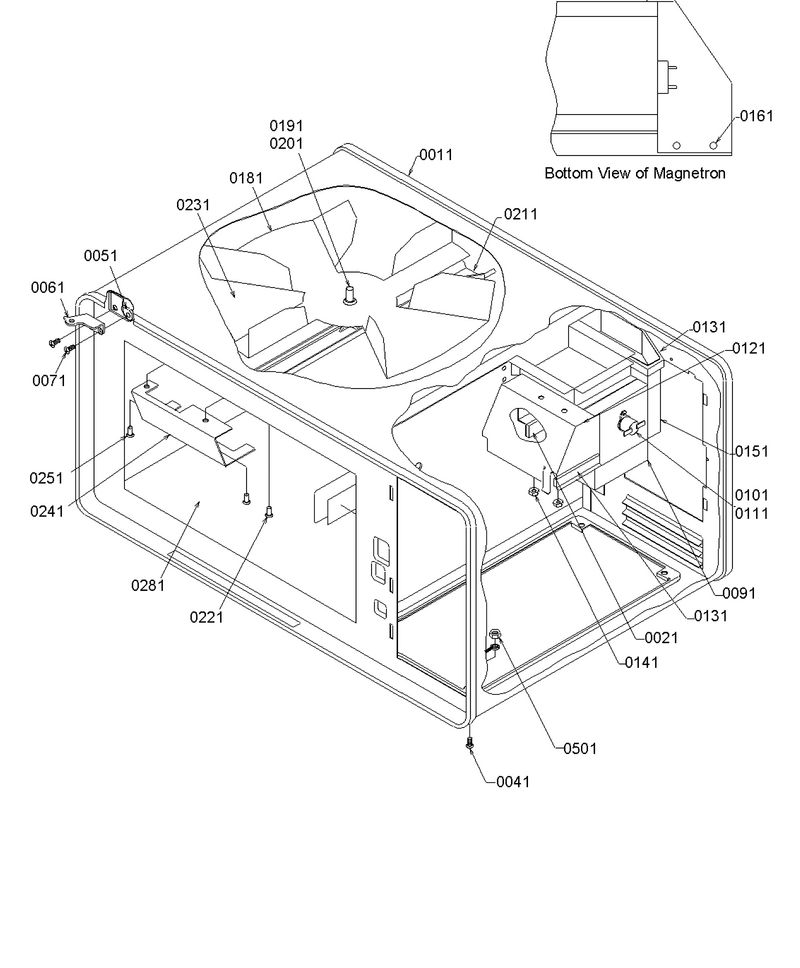

02 - Cavity

...
...
11
Assy, Cavity M77d180 WPL-4002004601
...
21
Gasket (Per Foot) WPL-A3030303
...
41
Rivet-Plastcx WPL-42192P01
...
51
Plate Nut WPL-45010P01
...
61
Brkt Top WPL-45009P01
...
71
No.6 Flat Hd Machine Screw WPL-5147-AA
...
91
Magnetron WPL-10794401
...
101
Protector,thermal 180c 25 Amp WPL-1751802501
...
111
Screw WPL-M0251717
...
121
Front Air Duct WPL-3000004301
...
131
Gasket WPL-A3030302
...
141
Ia 5mm Flange Whiz-Lk Nut (25) WPL-5014-J
...
151
Rear Air Duct 1400utc WPL-45766P01
...
161
Screw WPL-WP90767
...
181
Kit-Insert & Blade Stirrer WPL-R0130737
...
191
Insert Stir WPL-43406P01
...
201
Ball WPL-38321P01
...
211
Kit, Stirrer Bar WPL-M20D319
...
221
Plastic Fastener WPL-5524122001
...
231
Stirrer Cover M45d50 WPL-3010017901
...
241
Splash Shield WPL-3010017601
...
251
.20 Dia Push Rivet Polypropyle WPL-5850613001
...
281
Shelf Kit WPL-M50D45
...
501
Nut WPL-WP488130

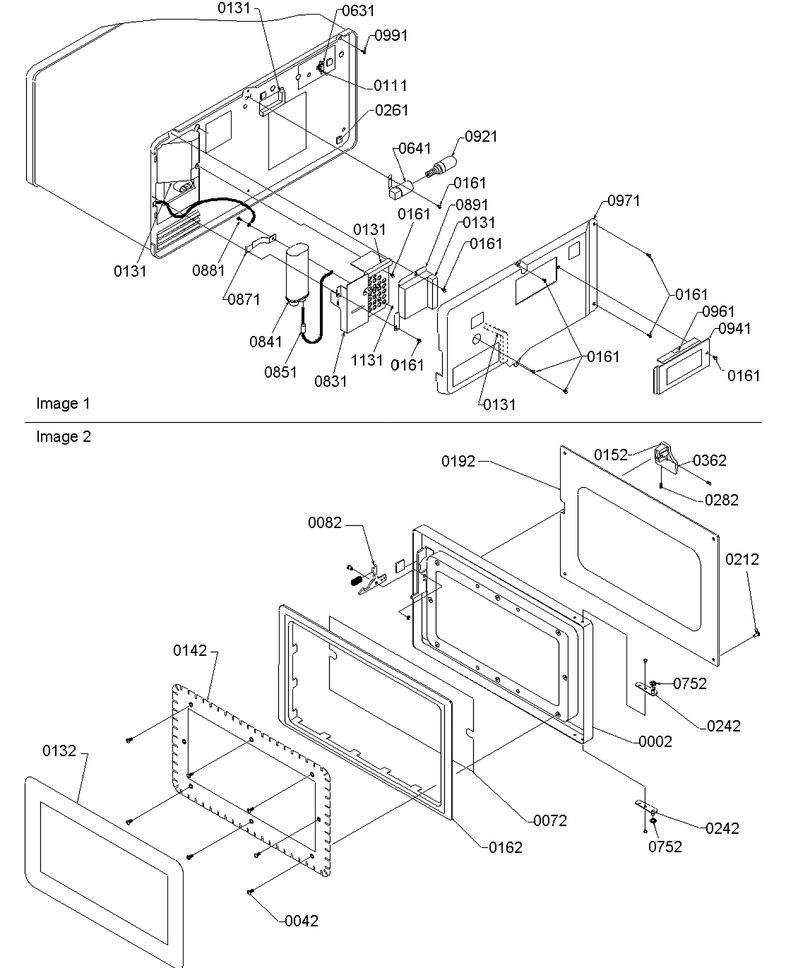

03 - Electrical Components/door

...
...
2
Door Back WPL-R0163248
...
42
Screw WPL-WP8281236
...
72
Outer Window Kit WPL-M51D64
...
82
Door Hook Kit WPL-R0163249
...
111
Screw WPL-M0251717
...
131
Gasket WPL-A3030302
...
132
Kit, Middle Window WPL-R0163294
...
142
Door Plate,inner WPL-R0163246
...
152
Handle, Door Kit WPL-M11D108
...
161
Screw WPL-WP90767
...
162
Filler, Door WPL-R0163247
...
192
Window Menumstr Asy Utc WPL-4180028602
...
212
.187 Dia Push Rivet Blk WPL-5144-UU
...
242
Hinge Assy Kit WPL-R0163250
...
261
Shelf Support WPL-M2D793
...
282
Screw WPL-WP8533976
...
362
Insert-Handle WPL-10805825
...
631
Fuse, Thermal WPL-B5795305
...
641
Lamp Holder 1435utc WPL-45954P01
...
752
Nylon Flat Washer WPL-40370P01
...
831
Cover-Capacitor WPL-10824903
...
841
Capacitor-.69 WPL-59001160
...
851
Rectifier WPL-WP13091701
...
871
Strap, Capacitor WPL-10822101
...
881
Screw WPL-M0253504
...
891
Cover Lead 1435.001 WPL-44756P02
...
921
Light Bulb WPL-44865P01
...
941
Door, Lamp Access WPL-3010012808
...
961
Clip-Dr M2d610 (25) WPL-38886P01
...
971
Cover, Rear (Grey) WPL-3010010111
...
991
Speed-Clinch WPL-5013-JJ
...
1131
Nut K WPL-M0282005
