Amana SNAC700.C

Model: SNAC700.C

Save Part Not Listed?
product name

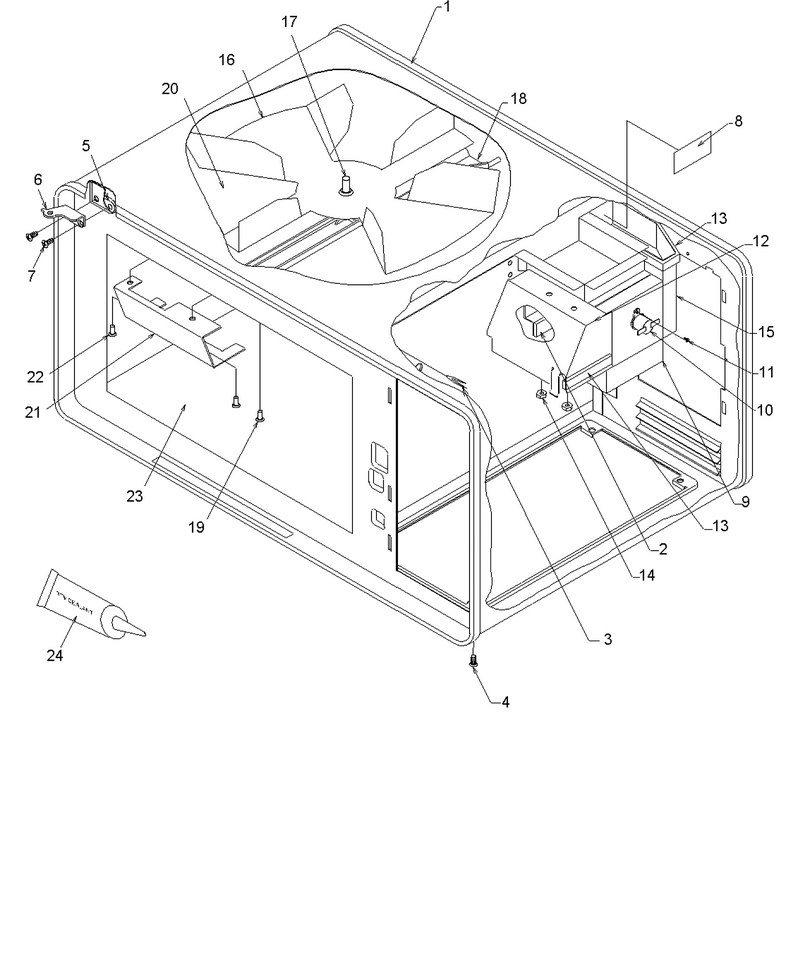

02 - Cavity Assembly

...
...
1
Assy, Cavity M77d180 WPL-4002004601
...
2
Foamx(Bl) 1 Pc.= 1 Ft. WPL-24642P01
...
3
Cable Clamp WPL-B5662304
...
4
Rivet-Plastcx WPL-42192P01
...
5
Plate Nut WPL-45010P01
...
6
Brkt Top WPL-45009P01
...
7
No.6 Flat Hd Machine Screw WPL-5147-AA
...
8
Cover-Mylar WPL-10744601
...
9
Magnetron WPL-10794401
...
10
Protector,thermal 180c 25 Amp WPL-1751802501
...
11
Screw Thrm WPL-35785P01
...
12
Front Air Duct WPL-3000004301
...
13
Gasket (1=1ft.) WPL-10839705
...
14
Ia 5mm Flange Whiz-Lk Nut (25) WPL-5014-J
...
15
Rear Air Duct 1400utc WPL-45766P01
...
16
Kit-Insert & Blade Stirrer WPL-R0130737
...
17
Kit, Stirrer Insert WPL-M2D678
...
18
Kit, Stirrer Bar WPL-M20D319
...
19
Plastic Fastener WPL-5524122001
...
20
Stirrer Cover M45d50 WPL-3010017901
...
21
Splash Shield WPL-3010017601
...
22
.20 Dia Push Rivet Polypropyle WPL-5850613001
...
23
Shelf Kit WPL-M50D45
...
24
Adhesive WPL-W10841140

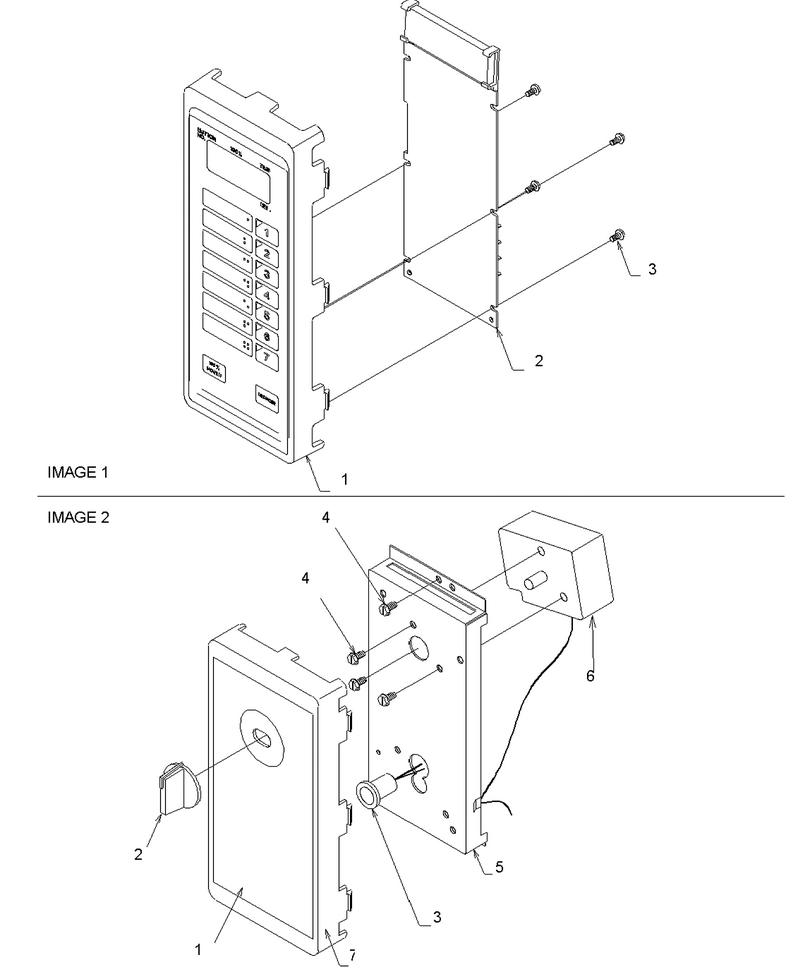

03 - Control Panel Assembly

...
...
1
Mem Swi Asy M7x84 WPL-4002008501
...
2
Kit, Controller +$50.00 Core WPL-M31R60
...
3
Screw WPL-0071798

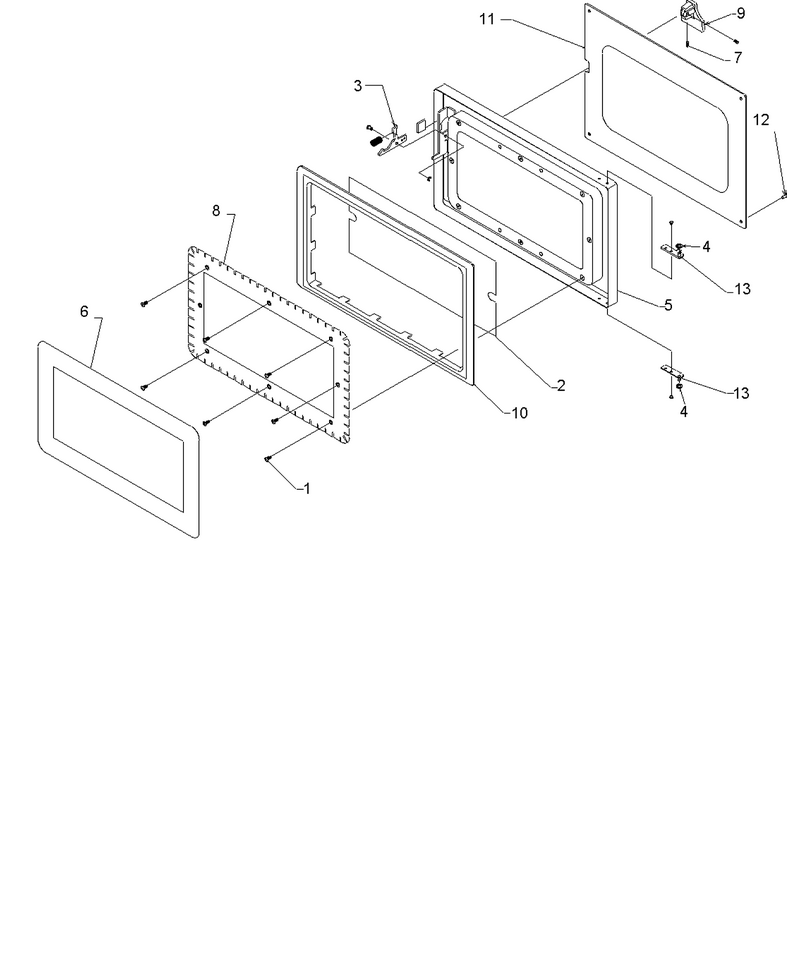

04 - Door Assembly

...
...
1
Screw WPL-WP8281236
...
2
Kit, Middle Window WPL-R0163294
...
3
Door Hook Kit WPL-R0163249
...
4
Nylon Flat Washer WPL-40370P01
...
5
Door Back WPL-R0163248
...
6
Window, Inner WPL-10785101
...
7
Screw WPL-WP8533976
...
8
Door Plate,inner WPL-R0163246
...
9
Door Handle-E Ct WPL-12066802
...
10
Filler, Door WPL-R0163247
...
11
Window Menumstr Asy Utc WPL-4180028602
...
12
.187 Dia Push Rivet Blk WPL-5144-UU
...
13
Hinge Assy Kit WPL-R0163250

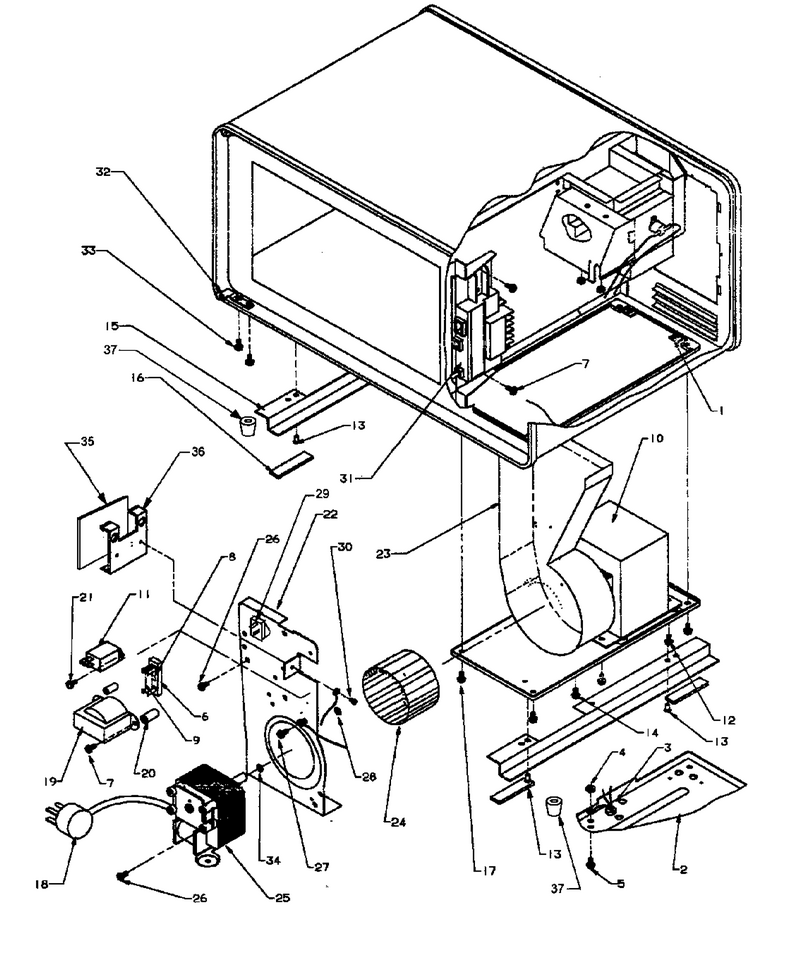

05 - Interior Components

...
...
1
U-Clip WPL-42365P01
...
2
Panel, Bottom Access WPL-R0163292
...
3
Bushing, Cord WPL-5149-M
...
4
Nut WPL-WP488130
...
5
Screw, No.8 Mach WPL-5146-FF
...
6
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
7
Screw, Sm WPL-5015-X
...
8
Rivet-Pop WPL-59002054
...
9
Fuse WPL-WPM0805102
...
10
Transformer, Hv WPL-45296P01
...
11
Relay WPL-38806P04
...
12
No.10 T X 3/8`` Screw WPL-5018-JJ
...
13
Rivet-Pop WPL-A4539638
...
14
Screw WPL-WP90767
...
15
Rail, Support WPL-10751404
...
16
Gasket WPL-C8870701
...
17
Screw WPL-WP489464
...
18
Cord, Power WPL-1731300208
...
19
Lv Xfmr Fs10 117v60hz 8`` WPL-45507P01
...
20
Standoff WPL-5019-TT
...
21
Screw WPL-WP12990527
...
22
Blower Bracket Kit WPL-M20D324
...
23
Blower Housing Kit WPL-M65D330
...
24
Kit, Blower Wheel WPL-R0163293
...
25
Blower Motor Kit WPL-M12D100
...
26
No.8 Hi-Lo X 3/8`` Screw WPL-5145-W
...
27
Screw WPL-5078-CC
...
28
Nut WPL-WP488130
...
29
Triac WPL-4070001201
...
30
No.6 F X 1/4`` Screw (25) WPL-5043-W
...
31
Svc Interlock Switch Asy WPL-4002006801
...
32
Hinge Asy WPL-45179P01
...
33
No.8-32 Pan Hd Mach Scr (25) WPL-5149-C
...
34
Nut WPL-WP3195558
...
37
Kit, Foot WPL-R0156901

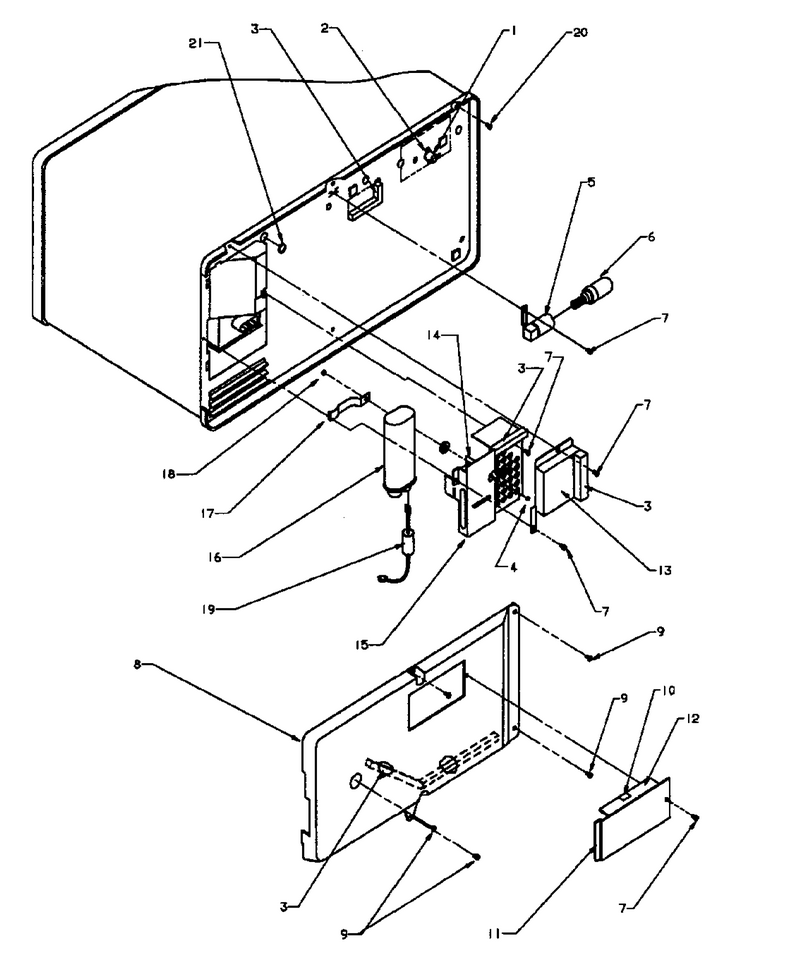

01 - Back Side Electrical Components

...
...
1
Protector Thermal 25amp Cavity WPL-1751172501
...
2
Screw Thrm WPL-35785P01
...
3
Gasket (1=1ft.) WPL-10839705
...
4
No.6 Hex Hd Machine Screw(25) WPL-5043-K
...
5
Lamp Holder 1435utc WPL-45954P01
...
6
Light Bulb WPL-44865P01
...
7
Screw WPL-WP90767
...
8
Cover, Rear (Grey) WPL-3010010111
...
9
Screw WPL-WP489464
...
10
Clip-Dr M2d610 (25) WPL-38886P01
...
11
Door-Lamp Access WPL-M20D377
...
12
Tape Alum WPL-5150-S
...
13
Cover Lead 1435.001 WPL-44756P02
...
14
Cover-Mylar WPL-10744601
...
15
Capacitor Cover WPL-M20D258
...
16
Capacitor-.69 WPL-59001160
...
17
Strap, Capacitor WPL-10822101
...
18
Nut K WPL-5043-M
...
19
Rectifier WPL-WP13091701
...
20
Speed-Clinch WPL-5013-JJ
...
21
Tie-Elect. WPL-5140-FF
