Amana SNAC-700.B (BOM: SNAC-700. B)

Model: SNAC-700.B (BOM: SNAC-700. B)

Save Part Not Listed?
product name

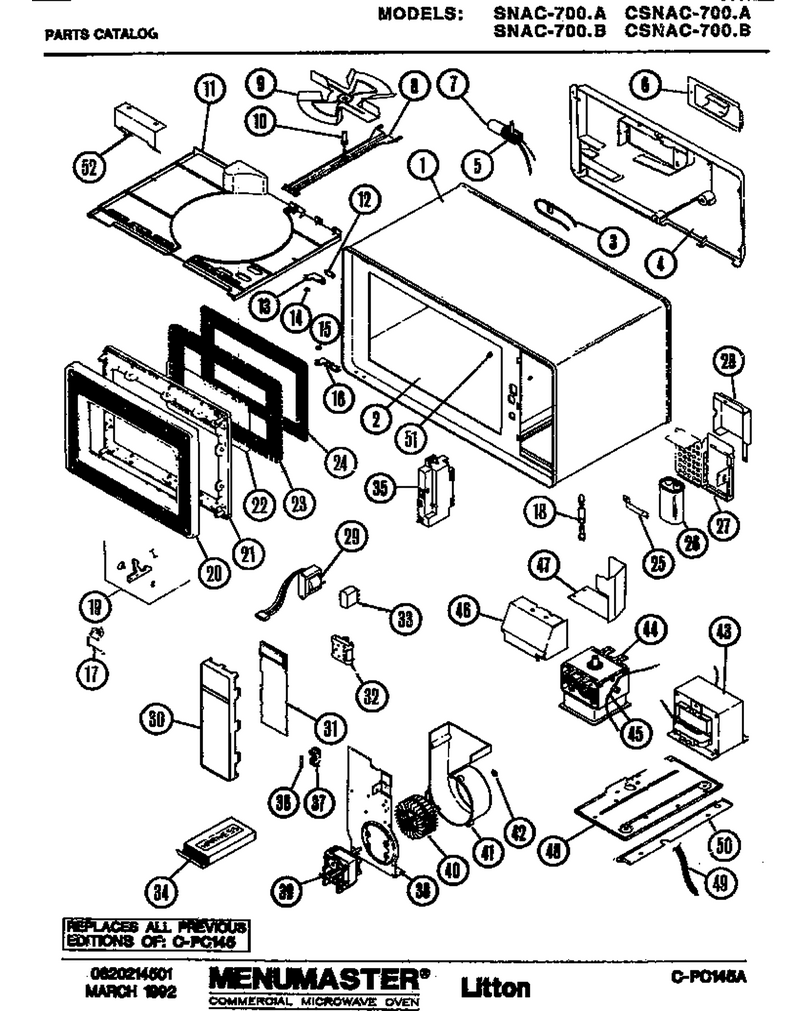

01 - Page 1

...
...
NI
Bowl, Power Test Kit WPL-M95D5
...
1
Assy, Cavity M77d180 WPL-4002004601
...
2
Adhesive WPL-W10841140
...
3
Sensor, Cavity Kit WPL-M4D131
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP90767
...
7
Light Bulb WPL-44865P01
...
8
Plastic Fastener WPL-5524122001
...
9
Kit-Insert & Blade Stirrer WPL-R0130737
...
10
Ball WPL-38321P01
...
11
Stirrer Cover M45d50 WPL-3010017901
...
12
Plate Nut WPL-45010P01
...
13
No.6 Flat Hd Machine Screw WPL-M1D60
...
14
Nylon Flat Washer WPL-40370P01
...
15
Nylon Flat Washer WPL-40370P01
...
16
Hinge Asy WPL-45179P01
...
17
Screw WPL-WP8533976
...
18
Kit, Diode WPL-M3D71
...
19
Door Hook Kit WPL-R0163249
...
20
Outer Door Assy Kit WPL-M70D244
...
21
Door Filler Kit WPL-M55D29
...
22
Outer Window Kit WPL-M51D107
...
23
Door Plate,inner WPL-R0163246
...
24
Window, Inner WPL-10785101
...
25
Screw WPL-WP90767
...
26
Capacitor Kit WPL-M10D113
...
27
Capacitor Cover WPL-M20D258
...
28
Screw WPL-WP90767
...
29
Screw WPL-WP90767
...
30
Touch Panel Kit WPL-M7X76
...
31
Control WPL-M31R57
...
32
Triac WPL-M16D93
...
33
Screw WPL-M0202325
...
34
H.v. Lead Kit WPL-M5D350
...
35
Interlock Switch Module WPL-M14D305
...
36
Fuse WPL-WPM0805102
...
37
Ia Screw WPL-M1D329
...
38
Blower Bracket Kit WPL-M20D324
...
39
Screw WPL-WPW10001160
...
40
Blower Whe WPL-3010008801
...
41
Blower Housing Kit WPL-M65D330
...
42
Retainer WPL-M1D892
...
43
Kit, Transformer WPL-M60D181
...
44
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
45
Sensor Magnetron Kit WPL-M4D101
...
46
Front Air Duct WPL-3000004301
...
47
Screw WPL-WP90767
...
48
Nut-Speed WPL-M0287001
...
49
5149-M WPL-M2D789
...
50
Rivet-Pop WPL-A4539638
...
51
Cavity Plug (10) WPL-M1D755
...
52
Splash Shield WPL-3010017601
