Amana SMCD-2W (BOM: P1801114T)

Model: SMCD-2W (BOM: P1801114T)

Save Part Not Listed?
product name

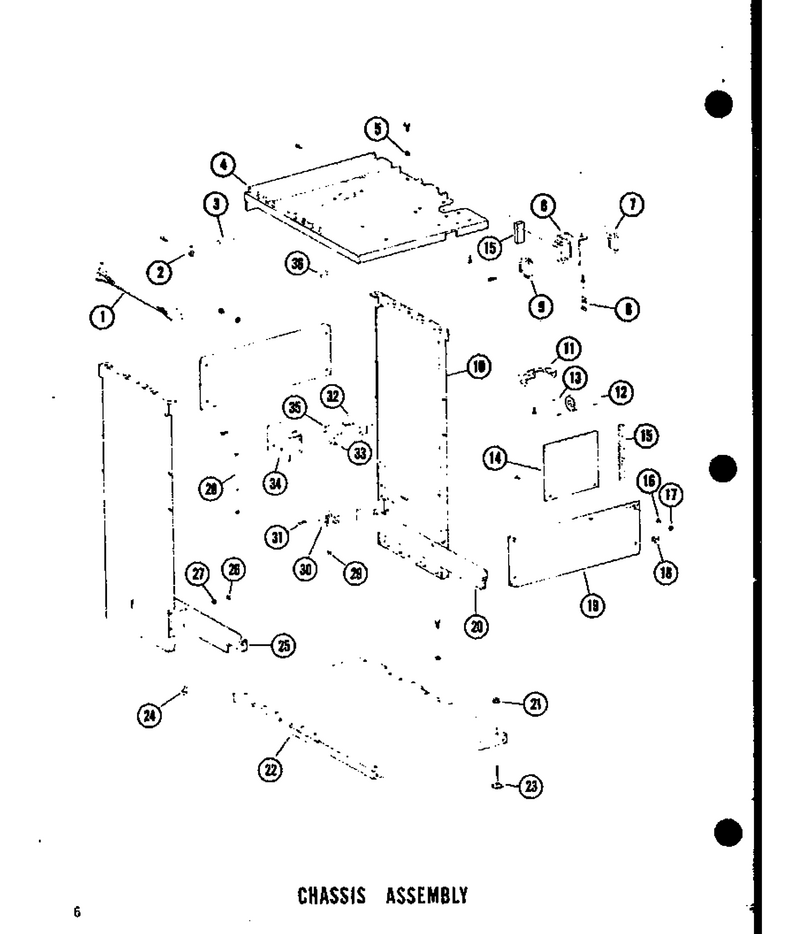

02 - Chassis Assy

...
...
1
Wiring Harness WPL-D1801802
...
2
Clamp WPL-M0102319
...
3
Connector WPL-WP75614
...
4
Wldmt-Top Chassis WPL-C1701501
...
5
Washer-Lock WPL-M0272807
...
6
Bracket-Switch WPL-B1603101
...
7
Switch-Top Limit WPL-B1601802
...
8
Speed Nut WPL-M0289502
...
9
Switch-Directional WPL-B1601901
...
10
Channel Guide WPL-B1609804
...
11
Bracket-Capacitor WPL-M0370803
...
12
Capacitor WPL-M0300603
...
13
Cap, Capacitor WPL-C6450304
...
14
Spacer WPL-B1606203
...
15
Gasket WPL-A3030302
...
16
Lockwasher WPL-M0272608
...
17
Hex Nut, 5/16``-18, Track WPL-M0281011
...
18
Clip WPL-M0110502
...
19
Brace-Chassis WPL-B1600701
...
20
Track-Rh WPL-C1703902
...
21
Nut WPL-M0283610
...
22
Base Pan Wld WPL-C1701403
...
23
Foot-Levelling WPL-B1601601
...
24
Speed Nut WPL-M0288411
...
25
Track-Lh WPL-C1703901
...
26
Hex Nut, 5/16``-18, Track WPL-M0281011
...
27
Lockwasher WPL-M0272608
...
28
Rod Hinge K WPL-A1506403
...
29
Rivet K WPL-M0560101
...
30
Spring, Hinge K WPL-B1608102
...
31
Pop Rivet WPL-A4539611
...
32
Back Sw Cover K WPL-B1609101
...
33
Act. Switch K WPL-A1504302
...
34
Cover Switch K WPL-B1608201
...
35
Switch K WPL-B1606602
...
36
Clip K WPL-M0110501

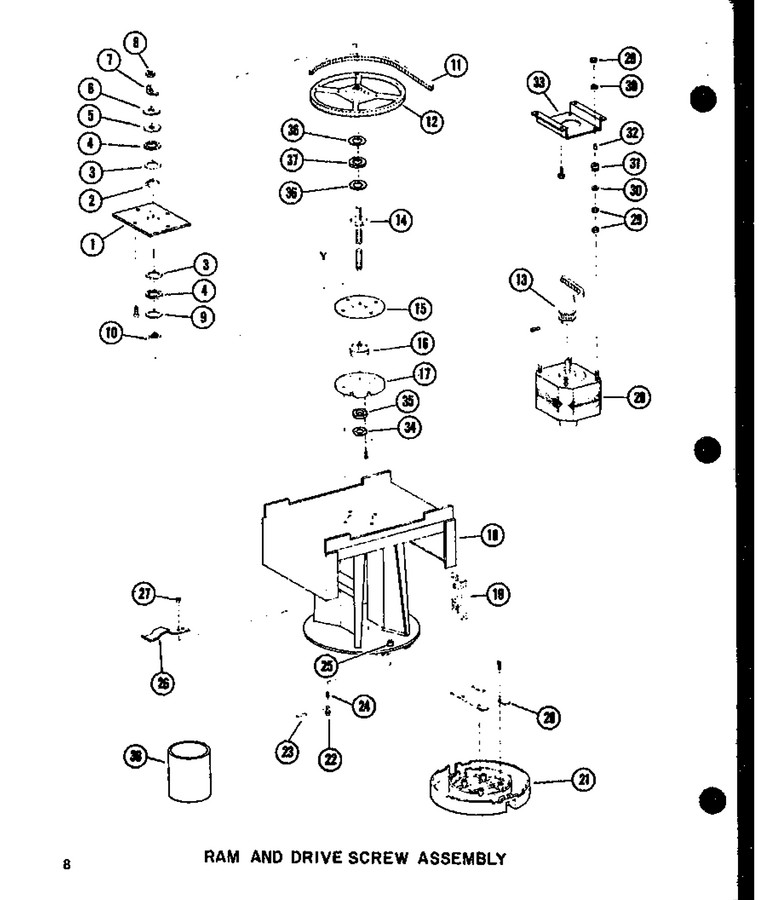

04 - Ram And Drive Screw Assy

...
...
1
Top Plate WPL-B1616201
...
2
Washer-Spring WPL-M0273525
...
3
Race-Bearing 030 WPL-B1602603
...
4
Bearing-Thrust WPL-B1602801
...
5
Washer-Top Bearing WPL-A1501602
...
6
Washer WPL-M0270521
...
7
Lockwasher WPL-A1507001
...
8
Hex Nut WPL-A1506701
...
9
Race-Bearing 093 WPL-B1602602
...
10
Sleeve-Bearing WPL-B1602702
...
11
Gear, Belt WPL-A1500801
...
12
Gear-84 Tooth WPL-C1700401
...
13
Gear-13 Tooth WPL-B1602901
...
14
Acme Screw Weld K WPL-B1606902
...
15
Retainer-Top Plate WPL-B1604101
...
16
Pivot Nut K WPL-B1608601
...
17
Retainer WPL-B1605502
...
18
Ram Guide Assy WPL-R0157084
...
19
Guide-Corner WPL-C1702201
...
20
Slide-Ram Head WPL-B1604501
...
21
Head-Ram WPL-D1800501
...
22
Pin WPL-A1502112
...
23
Pin WPL-A1502111
...
24
Spring WPL-A1502113
...
25
Stand-Off WPL-A1502114
...
26
Brake-Ram WPL-A1502801
...
27
Pop Rivet WPL-A4539611
...
28
Motor WPL-D1801001
...
29
Nut WPL-M0281104
...
30
Washer WPL-M0270512
...
31
Grommet-Motor WPL-M0500108
...
32
Sleeve WPL-A1502201
...
33
Bracket-Motor WPL-C1701301
...
34
Retainer WPL-B1611201
...
35
Wiper Wool WPL-B1611101
...
36
Washer WPL-M0270514
...
37
Washer, Polyurethane WPL-A1511301
...
38
Compactor Lube WPL-R0197001

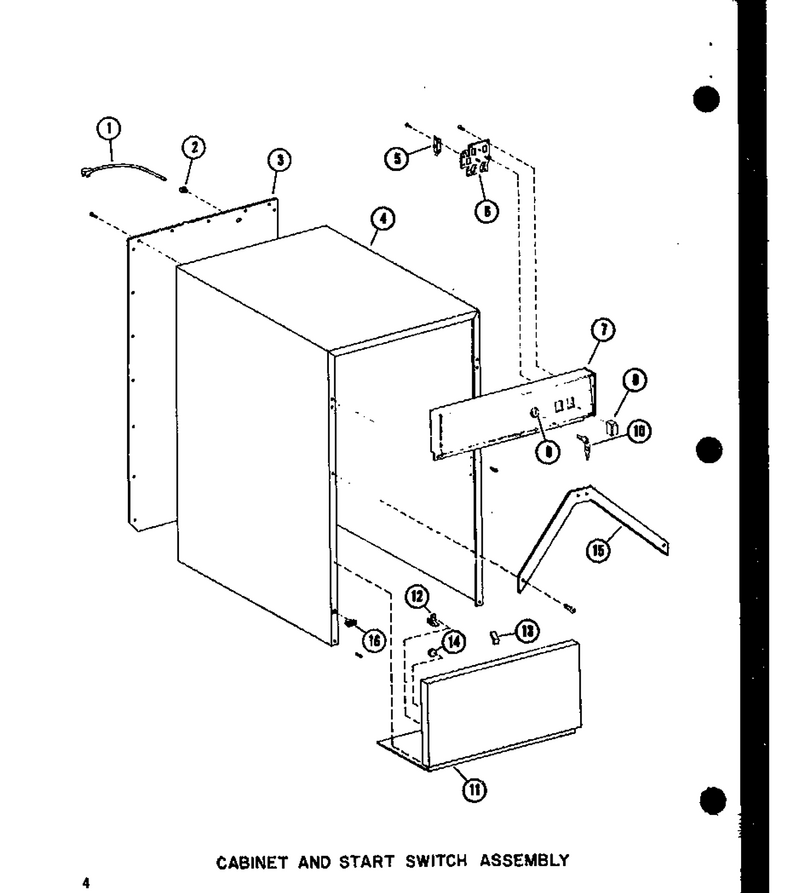

01 - Cabinet And Start Switch Assy

...
...
1
Cord Set WPL-B1604801
...
2
Grommet, Cord WPL-211881
...
3
Cabinet Back, Avocado WPL-D1806611
...
4
Wrapper-C WPL-C1705722
...
5
Switch-Lock WPL-B1602101
...
6
Assembly, Start-Stop Switch & WPL-C1707001
...
7
Control Panel WPL-B1605207
...
8
Button WPL-C1707201
...
9
Lock Assy WPL-B1602507
...
10
Key-Hudson WPL-B1602509
...
11
Panel-Front-Ag WPL-C1709612
...
12
Spring WPL-A1512101
...
13
Terminal WPL-M0320550
...
14
Bumper WPL-A1511501
...
15
Brace WPL-C1709501
...
16
Catch, Door Strike WPL-M0100702

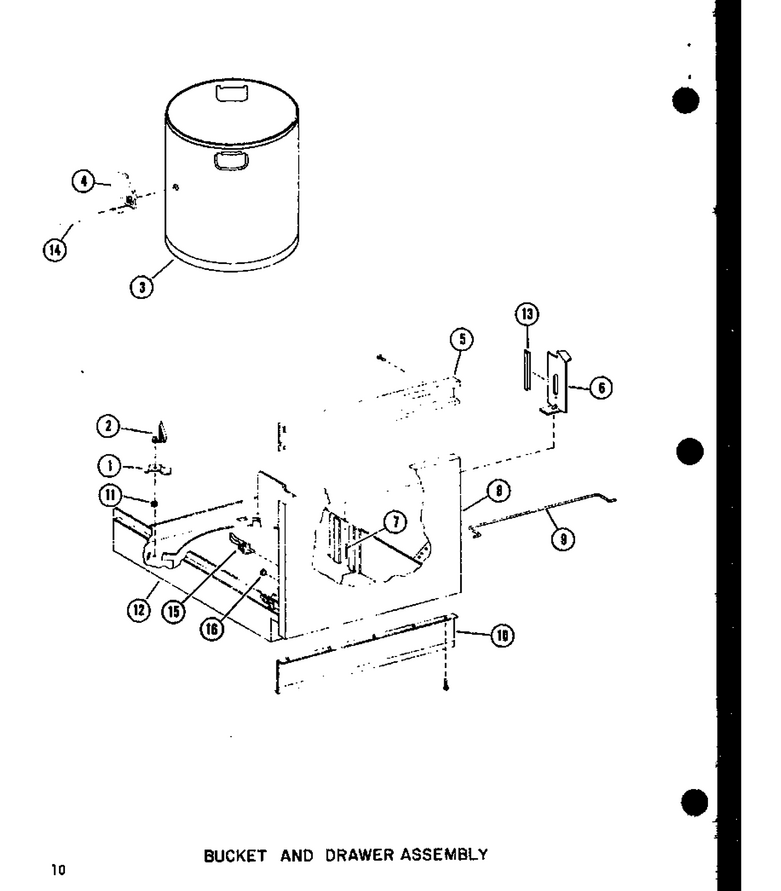

03 - Page 4

...
...
1
Spring-Trash Bucket WPL-C1700701
...
2
Locator-Bucket WPL-A1503301
...
3
Bucket Assy WPL-D1805303
...
4
Bucket Latch K WPL-B1614601
...
5
Handle WPL-C1700902
...
6
Safety Latch WPL-C1706001
...
7
Spring-Latch WPL-A1506501
...
8
Front, Drawer, White WPL-C1703531
...
9
Retainer WPL-B1606001
...
10
Kick Plate WPL-C1705101
...
11
Washer WPL-M0270501
...
12
Bucket Drawer Wld WPL-C1707502
...
13
Safety Latch WPL-B1607601
...
14
Rivet K WPL-M0207201
...
15
Strike WPL-M0101401
...
16
Bumper WPL-A1511501
