Amana SLE332RAW (BOM: PSLE332RAW)

Model: SLE332RAW (BOM: PSLE332RAW)

Save Part Not Listed?
product name

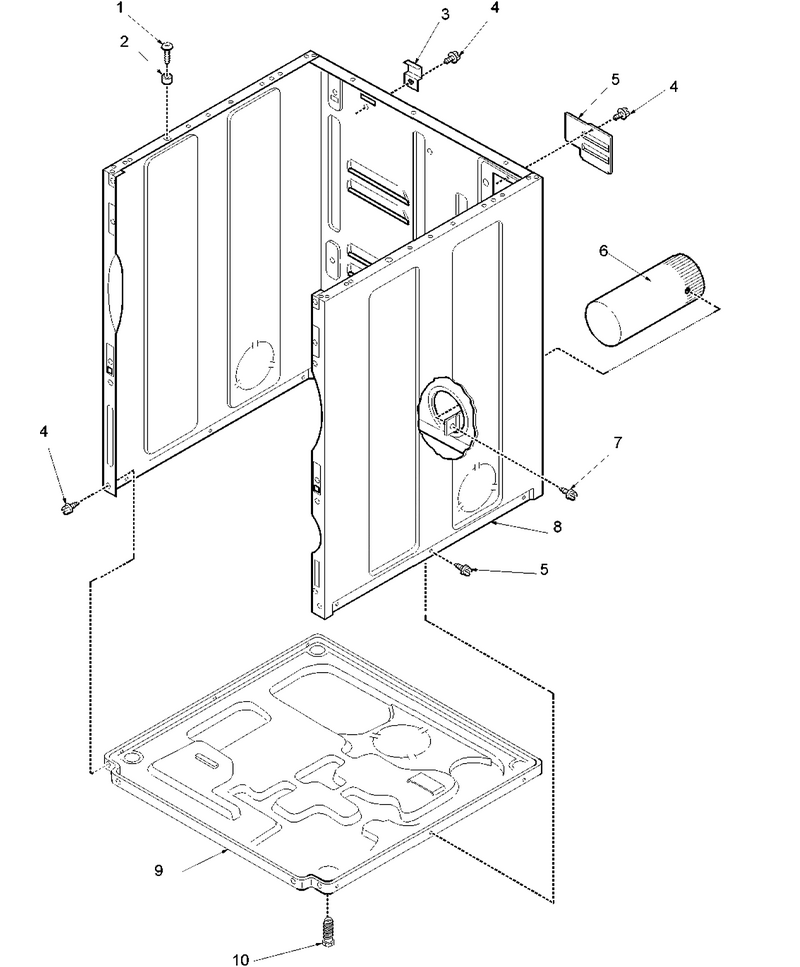

01 - Cabinet And Base

...
...
1
Screw WPL-WPY014874
...
2
Locator, Panel WPL-505187
...
3
Hinge, Top WPL-500003
...
4
Screw WPL-WP27001200
...
5
Contactor WPL-WFR500114
...
6
Duct, Exhaust WPL-505518
...
7
Screw WPL-WP3390631
...
8
Cabinet As Pack WPL-37001284
...
9
Base, Dryer WPL-500070
...
10
Leg, Leveling (Plastic) WPL-Y500101

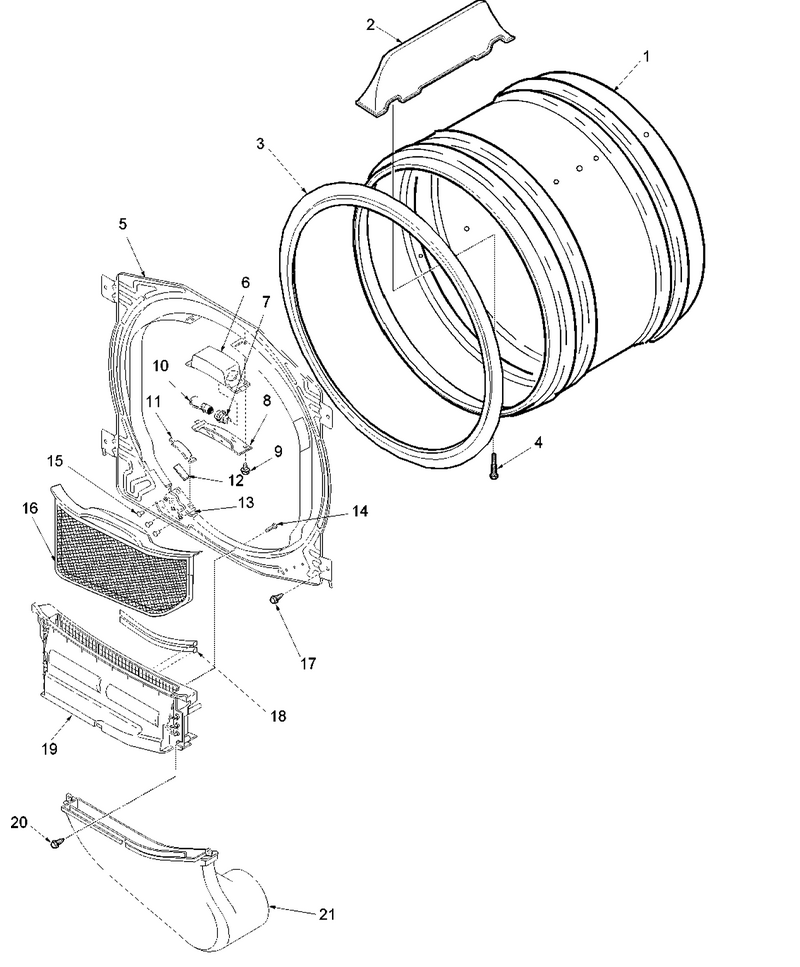

04 - Front Bulkhead, Air Duct & Cylinder

...
...
1
Assembly, Cylinder (Wht) WPL-503657W
...
2
Baffle, Cylinder (Wht) WPL-503703
...
3
Seal- Cyli WPL-WP37001132
...
4
Screw, 10bt-12 X 1 Tap WPL-Y62588
...
5
Bulkhead WPL-WP503616WP
...
6
Light Assembly WPL-Y504452
...
7
Light Assembly WPL-Y504452
...
8
Lens, Light WPL-40094301
...
9
Screw WPL-W10815455
...
10
Bulb-Light WPL-W10857122
...
11
Support WPL-WP37001298
...
12
Pad- Felt WPL-WP500092
...
13
Bracket WPL-12002090
...
14
Screw, 8b-16x5/8 Tap WPL-500226
...
15
Rivet, Pop 3/16 Steel WPL-504540
...
16
Filter- Li WPL-WP37001142
...
17
Screw WPL-WP3390631
...
19
Air Duct Assembly WPL-37001141
...
20
Screw, No.12 X 9/16 WPL-501285
...
21
Duct, Air Lower WPL-Y503626

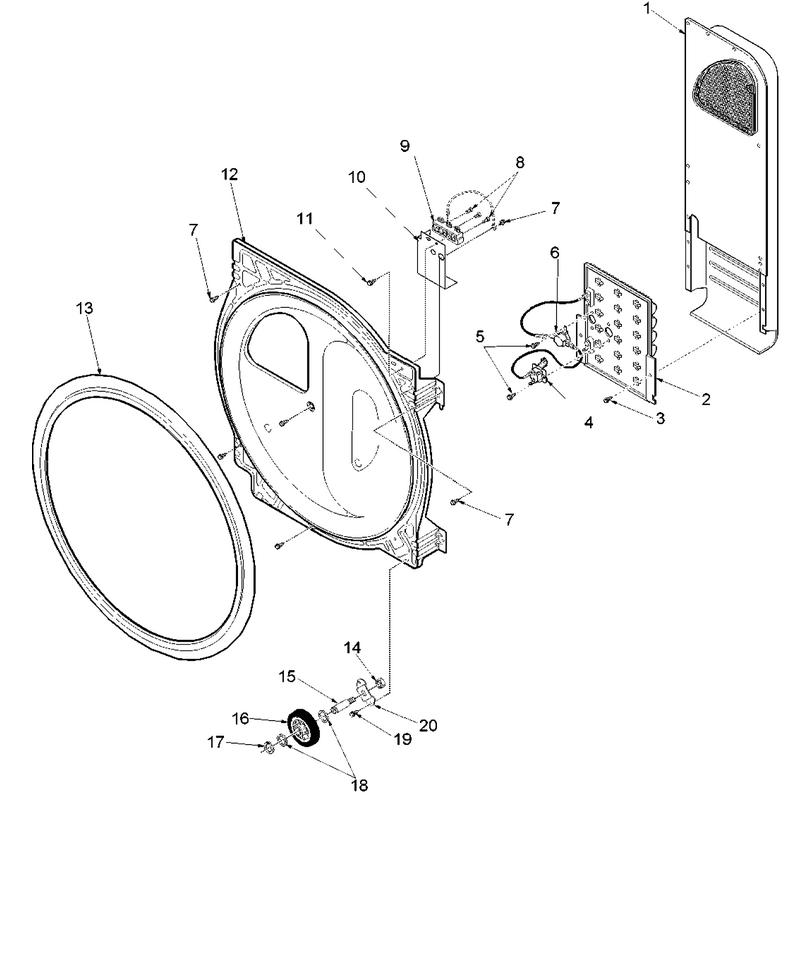

06 - Rear Bulkhead, Rollers & Air Duct

...
...
1
Assembly, Heater Duct WPL-503605
...
2
Heater Ele WPL-WPY503978
...
3
Screw WPL-WP3390631
...
4
Fuse-Thrml WPL-WP40113801
...
5
Screw WPL-WP3177991
...
6
Thrmst-Fix WPL-WPW10116735
...
7
Screw WPL-WP3351614
...
8
Screw WPL-WP3400094
...
9
Block- Ter WPL-WP61923
...
10
Shield, Terminal Block WPL-Y504185
...
11
Screw, No.12 X 9/16 WPL-501285
...
12
Bulkhead, Rear WPL-502614WP
...
13
Seal- Cyli WPL-WP37001132
...
14
Nut, 3/8-16 Serrated WPL-56156
...
15
Shaft WPL-WP56461
...
16
Support WPL-WP37001042
...
17
Ring- Reta WPL-WP23748
...
18
Washer, Wave WPL-Y504082
...
19
Screw WPL-WP3390631
...
20
Brakt-Roll WPL-WP40113601

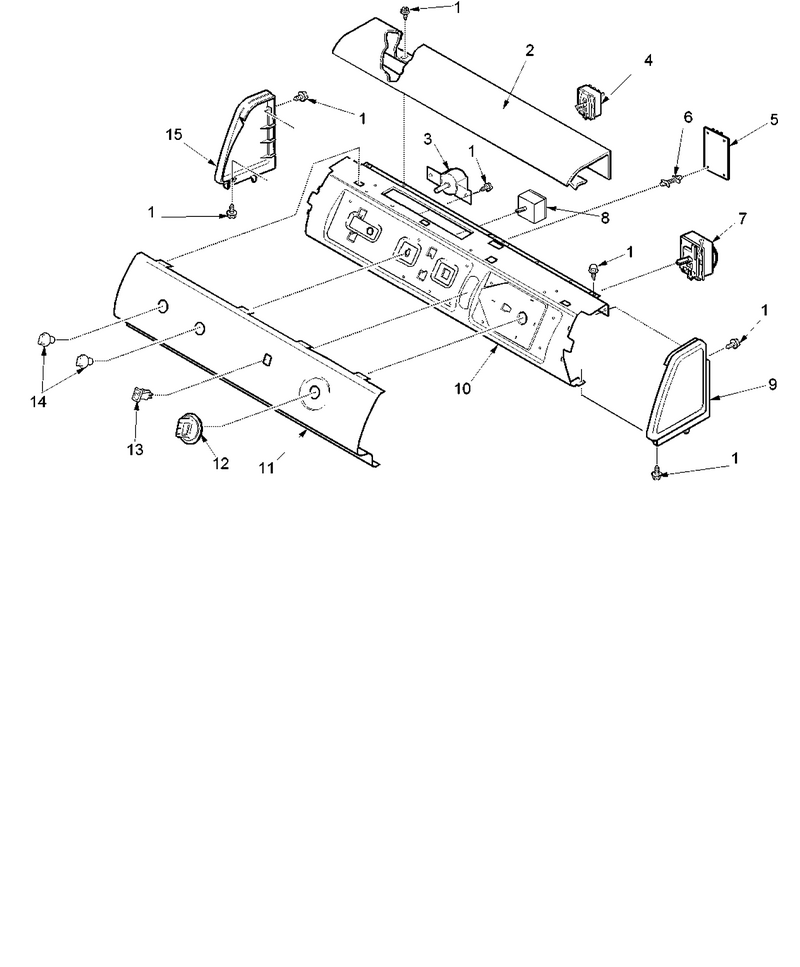

02 - Control Panel

...
...
1
Screw WPL-WP90767
...
2
Cover, Top (Wht) WPL-503674W
...
3
Switch,fab Sel-3 Position WPL-40084101
...
7
Timer WPL-40112601
...
8
Buzzer, Adjustable WPL-40070501
...
9
Endcap (Rt-Wht) WPL-40012701W
...
10
Panel, Support WPL-40039610
...
11
Panel,graphic(White) WPL-40071901W
...
14
Assy,knob Rotary(White) WPL-40088601W
...
15
Endcap (Lt-Wht) WPL-40012702W

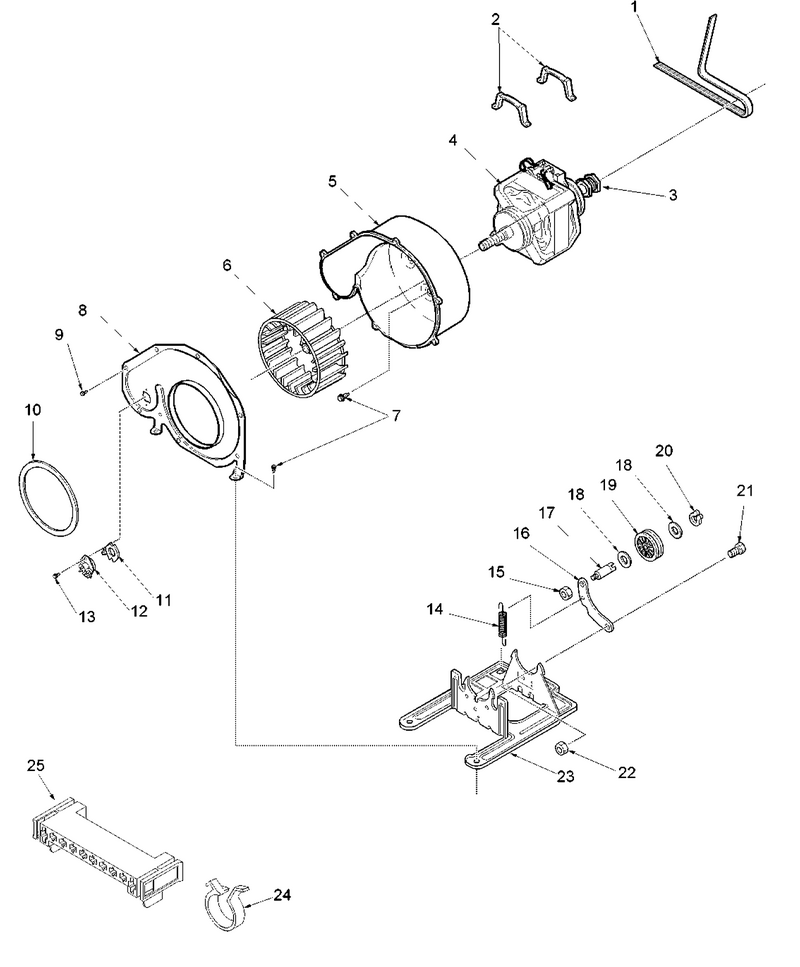

05 - Motor And Fan Assembly

...
...
NI
Bracket WPL-WP37001287
...
1
Belt WPL-WP40111201
...
2
Clamp WPL-WP660658
...
3
Motor-Drve WPL-WP2200376
...
4
Motor-Drve WPL-WP2200376
...
5
Housing, Blower WPL-56020
...
6
Assembly, Blower Fan WPL-56000
...
7
Screw WPL-WP27001200
...
8
Cover, Blower Housing WPL-500078
...
9
Screw, No.8 X 3/8 Ind H WPL-31260
...
10
Seal, Blower Housing WPL-37001119
...
11
Heatr-Stat WPL-WP61623
...
12
Thermostat WPL-WP503979
...
13
Screw WPL-WP489464
...
14
Spring- Id WPL-WP56076
...
15
Nut, 3/8-16 Serrated WPL-56156
...
16
Asy- Idler WPL-WP37001144
...
17
Shaft WPL-WP56461
...
18
Washer WPL-WP233520
...
19
Pulley-Idr WPL-WPY54414
...
20
Ring- Reta WPL-WP23748
...
21
Complete R WPL-WFR500824
...
22
Nut WPL-WPW10139757
...
23
Mount, Motor WPL-503613
...
24
Clip, Wire WPL-504034
...
25
Housing, 10 Position WPL-500338

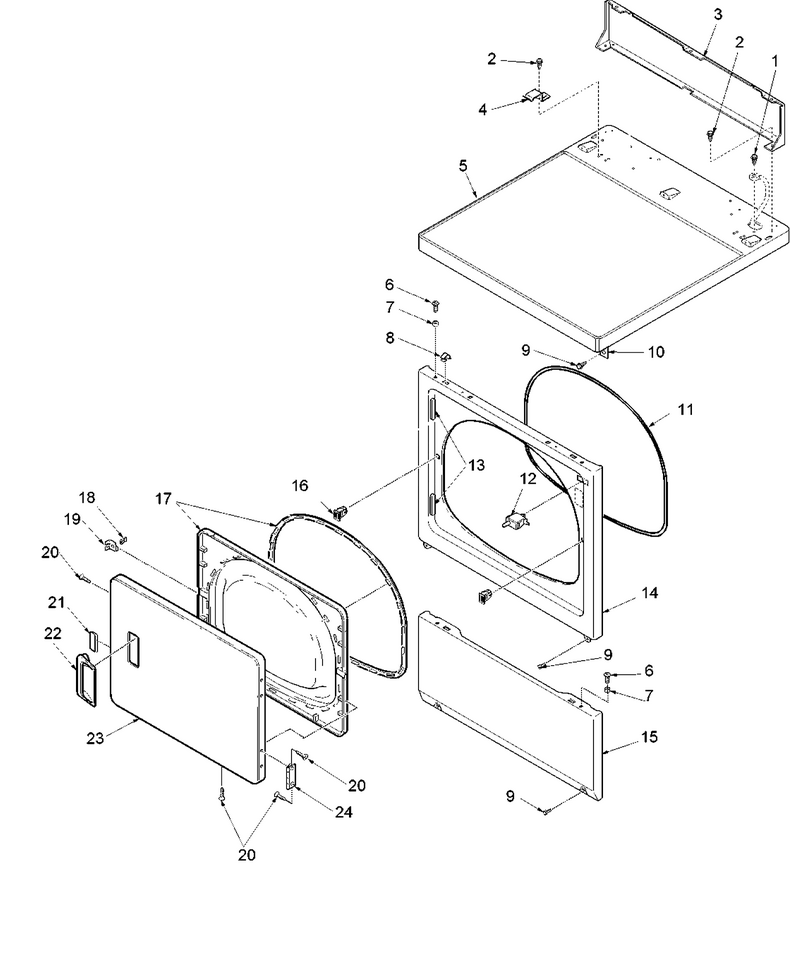

03 - Door And Front, Access, And Top Panel

...
...
1
Screw WPL-WP3390631
...
2
Screw WPL-WP90767
...
3
Panel,back(Home Hood) WPL-40051401P
...
4
Clip, Hold Down WPL-Y503876
...
5
Panel, Top (Wht) WPL-37001027
...
6
Screw WPL-WPY014874
...
7
Locator, Panel WPL-505187
...
8
Fastener- WPL-WP22001650
...
9
Screw WPL-WP27001200
...
10
Shock Susp WPL-WFR500084
...
11
Seal WPL-W10856845
...
12
Switch-Dor WPL-W10169313
...
13
Plug, Hinge Hole WPL-503126
...
14
Panel, Front (Wht) WPL-503656WP
...
15
Panel, Access (Wht) WPL-40045301WP
...
16
Door Catch La-1003 WPL-LA-1003
...
17
Seal & Liner, Assy(Inner Door) WPL-37001028
...
18
Strike WPL-WP500039
...
19
Bracke, Door Strike WPL-500223
...
20
Screw, 8b-16x5/8 Tap WPL-500226
...
21
Wedge, Door Handle WPL-505328
...
22
Pull, Door (Wht) WPL-R9800012
...
23
Door Handl WPL-12002136
...
24
Hinge, Door & Top WPL-Y503676
