Amana SLDI25F (BOM: P7642101W)

Model: SLDI25F (BOM: P7642101W)

Save Part Not Listed?
product name

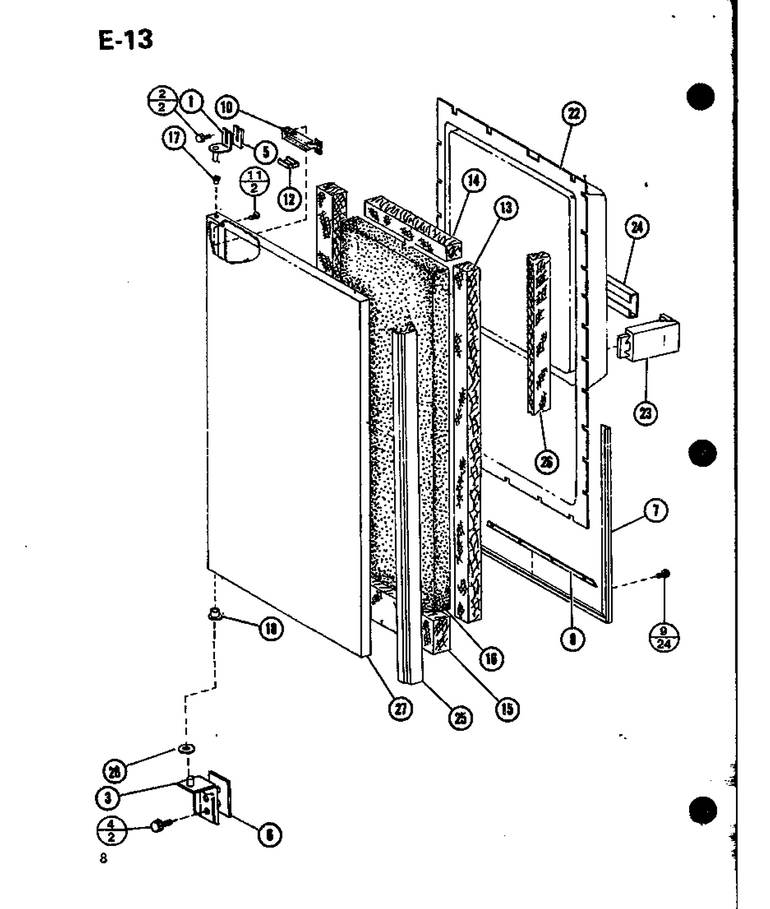

07 - Page 2

...
...
1

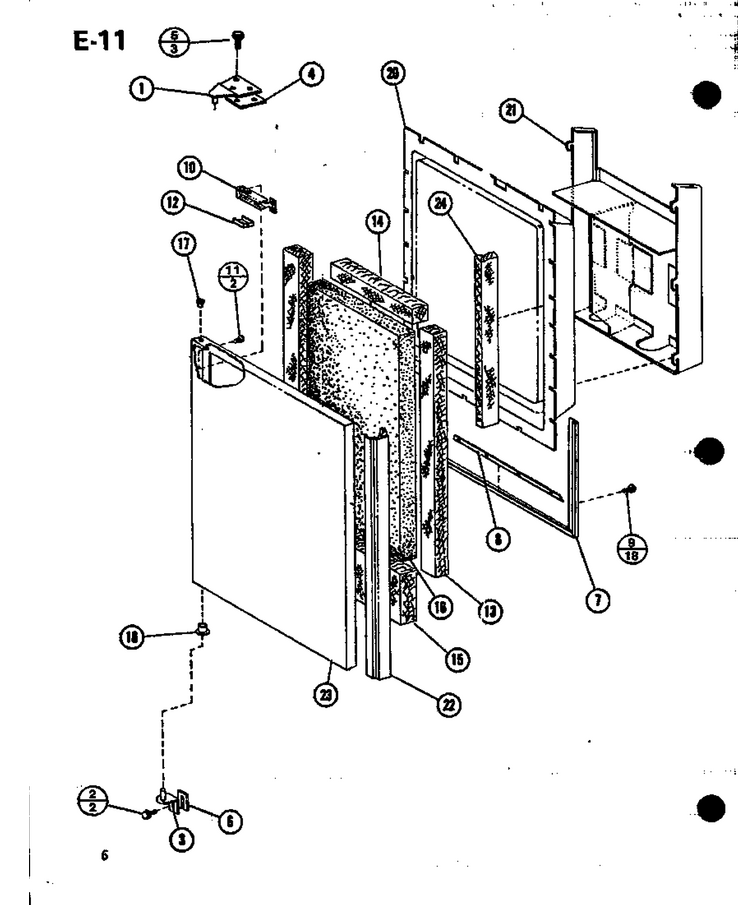

Hinge-Center WPL-C3694101
...
2
Screw WPL-M0254331
...
3
Hinge WPL-D7250104
...
4
Screw WPL-WP67006715
...
5
Shim Kit WPL-A3225602
...
6
Shim WPL-A3143603
...
7
Gasket,lower Fz WPL-D7251004
...
8
Retainer Gasket WPL-D7025109
...
9
Screw WPL-WPM0219730
...
10
Door Closure WPL-D7022901
...
11
Screw WPL-M1252001
...
12
Cover WPL-B5644001
...
13
Insulation WPL-B5629022
...
14
Insulation WPL-B5629006
...
15
Insulation WPL-B5629003
...
16
Insulation WPL-B5612010
...
17
Bearing-Hinge WPL-C8852201
...
18
Bearing, Hinge WPL-C8852202
...
22
Inner Dr. Panel Lr Frz WPL-D7521702
...
23
End Cap WPL-D7521602
...
24
Retainer WPL-B8302612
...
25
(+) Door Handle Gg WPL-D7512102
...
26
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
27
Door Lr Fr W-T-Sldi25f WPL-D7624714
...
28
Washer K WPL-M0274013

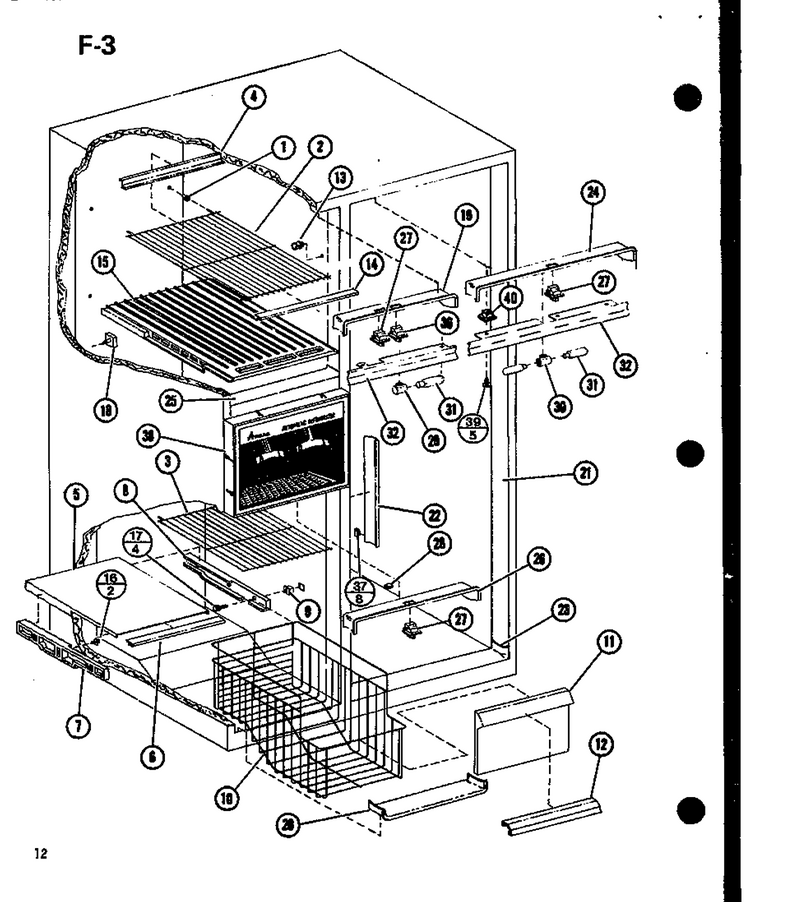

08 - Page 4

...
...
1
Plug WPL-A0387302
...
2
Shelf WPL-D7549805
...
3
Shelf WPL-D7549807
...
4
Trim WPL-D7567601
...
5
Frz Shelf Assy WPL-B8303805
...
6
Trim WPL-B0596602
...
7
Glide Basket-L K WPL-D7442901
...
8
Glide Basket-R K WPL-D7442902
...
9
Grommet K WPL-M0500107
...
10
Basket WPL-D7363602
...
11
Front-Fr Basket WPL-D7419601
...
12
Handle Basket WPL-C8834903
...
13
Support WPL-B0595101
...
14
Trim Shelf K WPL-C8795201
...
15

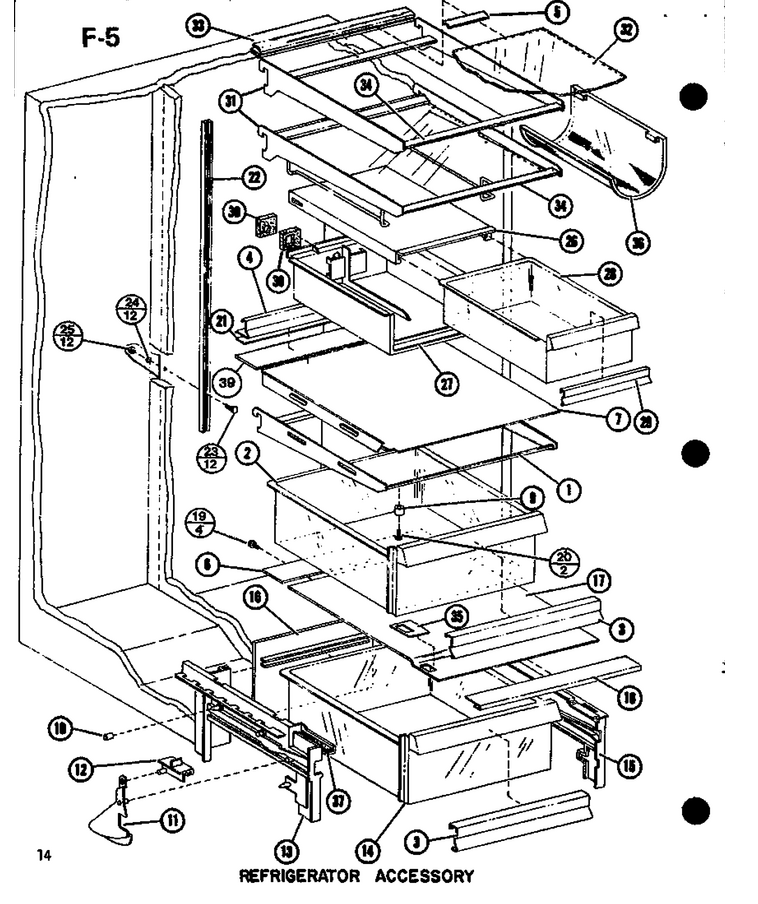

Shelf, Bottom, Upper Fz WPL-D7182702
...
16
Screw (3) WPL-67006425
...
17
Screw WPL-WP98165
...
18
Support WPL-B5689501
...
19
Breaker Frame, Fz Top WPL-D9353104
...
20
Breaker Frame WPL-D3952402
...
21
Breaker WPL-D7510802
...
22
Breaker Frame WPL-D7510902
...
23
Breaker Frame WPL-D3952603
...
24
Breaker Frame WPL-D3952505
...
25
Breaker Frame WPL-D7424401
...
26
Breaker Frame WPL-D7424402
...
27
Switch WPL-W11384469
...
28
Clip WPL-A3153701
...
29
Socket WPL-B5637601
...
30
Socket-Light WPL-12096901
...
31
Bulb-Light WPL-WPA3073101
...
32
Light Shield WPL-D3954208
...
36
Switch WPL-C3680306
...
37
Clip WPL-M0113402
...
38
Cavity, G K WPL-D7526804
...
39
Screw WPL-WP90767
...
40
Grommet WPL-M0580009

04 - Page 1

...
...
1
Hinge-Left WPL-C8816601
...
2
Screw WPL-M0254331
...
3
Hinge WPL-B5698003
...
4
Shim Kit WPL-A3270303
...
5
Kit, Screw WPL-R9800670
...
6
Shim WPL-A3225603
...
7
Gasket,upper Fz WPL-D7251001
...
8
Retainer Gasket WPL-D7025108
...
9
Screw WPL-WPM0219730
...
10
Door Closure WPL-D7022901
...
11
Screw WPL-M1252001
...
12
Cover WPL-B5644001
...
13
Insulation WPL-B5629016
...
14
Insulation WPL-B5629006
...
15
Insulation WPL-B5629003
...
16
Insulation WPL-B5612009
...
17
Bearing-Hinge WPL-C8852201
...
18
Bearing, Hinge WPL-C8852202
...
20
Inner Dr Panel WPL-D7180803
...
21
Assy, Juice Rack WPL-D7494201
...
22
Handle WPL-D7573706
...
23
Door Up Fr C-T-Sldi25f WPL-D7624709
...
24
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370

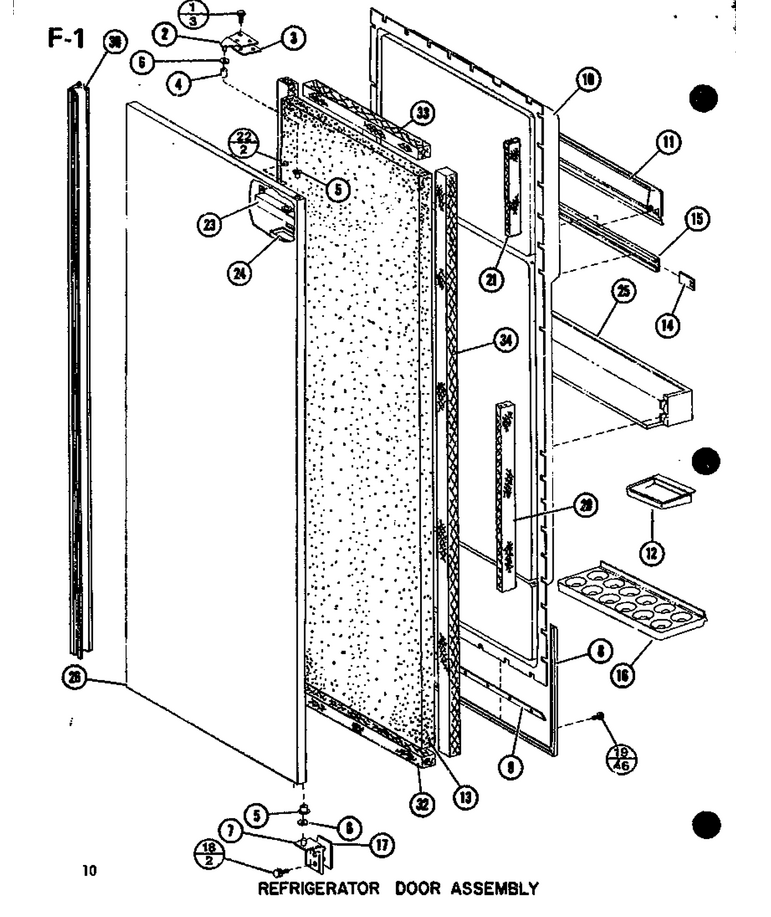

11 - Ref Door Assy

...
...
1
Kit, Screw WPL-R9800670
...
2
Hinge-Right WPL-C8816602
...
3
Shim Kit WPL-A3270303
...
4
Bushing WPL-A3132401
...
5
Bearing-Hinge WPL-C8852201
...
6
Washer K WPL-M0274013
...
7
Hinge WPL-D7250103
...
8
D7092602q WPL-D7092602
...
9
Retainer WPL-D7025101
...
10
Panel, Ref Door, Abs Plastic WPL-D7516602
...
11
Door Dairy WPL-D7511305
...
12
Butter Tray WPL-D3799802
...
13
Insulation WPL-B5612005
...
14
Support K WPL-B0530004
...
15
Retainer, Egg Tray WPL-B8302617
...
16
Egg Tray WPL-D7466605
...
17
Shim WPL-A3143601
...
18
Screw WPL-WP67006715
...
19
Screw WPL-WPM0219730
...
21
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
22
Screw WPL-M1252001
...
23
Door Closure WPL-D7022901
...
24
Cover WPL-B5644001
...
25
Shelf, Door WPL-D7511403
...
26
Door Ref A-T-Sldi25f WPL-D7624704
...
29
Insulation WPL-A3081001
...
30
Handle WPL-D7573704
...
32
Insulation WPL-B5629008
...
33
Insulation WPL-B0534409
...
34
Insulation WPL-B5629002

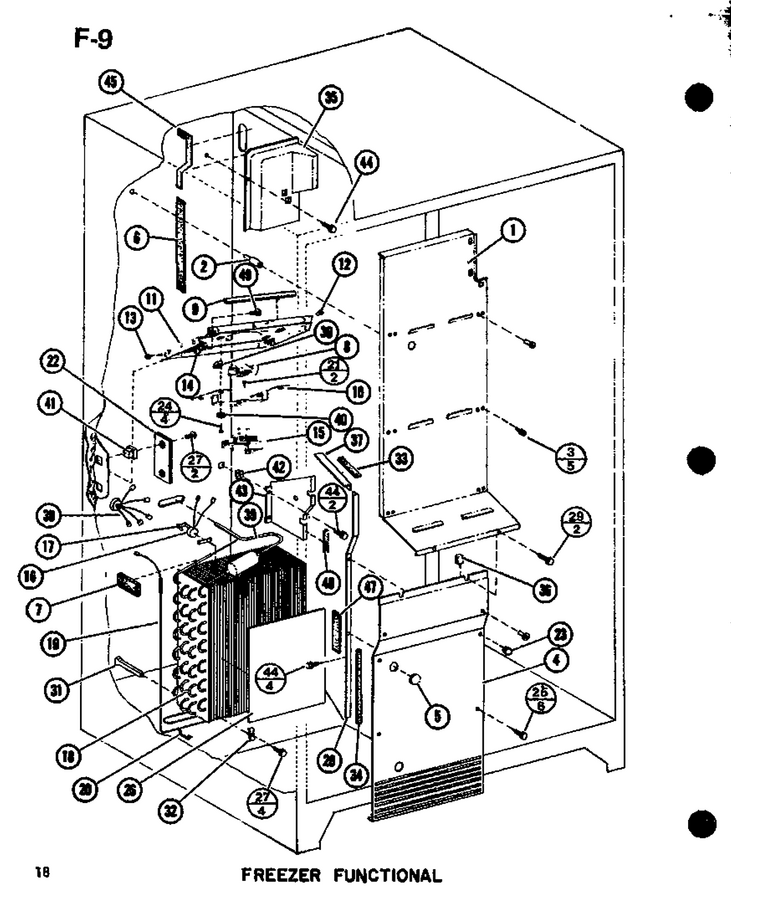

02 - Fz Functional

...
...
1
Baffle, Fz Back WPL-D7482203
...
2
Spacer WPL-A3044202
...
3
Screw-Sm WPL-M0238636
...
4
Cover/gasket Assy WPL-D7484702
...
5
Plug WPL-A3069103
...
6
Gasket Baffle WPL-B8328101
...
7
Air Block WPL-B8314701
...
8
Fan-Evap WPL-C8795501
...
9
Gasket WPL-B5757702
...
10
Bracket-Evap Motor WPL-C8829701
...
11
Fan Plate Assy WPL-D7371504
...
12
Nut-Well WPL-M0292002
...
13
Clip, Waterline WPL-12454802
...
14
Eyelet K WPL-A0381401
...
15
Motor WPL-D7241412
...
16
Thermostat K WPL-C8871201
...
17
Clip Thermostat K WPL-B8325201
...
18
Evaporator Assy WPL-R0170012
...
19
Heater-Evap WPL-D7479703
...
20
Clip-Heater WPL-B8324701
...
21
Screw WPL-WP3400094
...
22
Term Board WPL-B8326801
...
23
Plug Button WPL-M0310316
...
24
Screw WPL-M0211020
...
25
Screw (3) WPL-67006425
...
26
Gasket, Evap. WPL-B8327901
...
27
Screw WPL-WP98165
...
28
Angle-Evap Cover WPL-D7393502
...
29
Screw WPL-M0226960
...
30
Grommet, Screw WPL-M0580007
...
31
Grommet WPL-C8830701
...
32
Clip-Heater WPL-B5784101
...
33
Gasket WPL-B5759609
...
34
Gasket WPL-B5759608
...
35
Air Tunnel WPL-D7484901
...
36
Clip Ground WPL-B8324801
...
37
Angle-Fr Baffle WPL-B5795201
...
38
Wire Harness, Liner WPL-D7565601
...
39
Heat Exchanger WPL-D7501501
...
40
Grommet WPL-A4573802
...
41
Grommet A WPL-M0580002
...
42
Grommet WPL-M0580009
...
43
Block Air Coil WPL-C8868301
...
44
Screw WPL-WP90767
...
45
Gasket Air Tunnel WPL-B8320501
...
47
Gasket WPL-A3030302
...
48
Gasket, Air Block WPL-B5757703
...
49
Screw (3) WPL-67006425

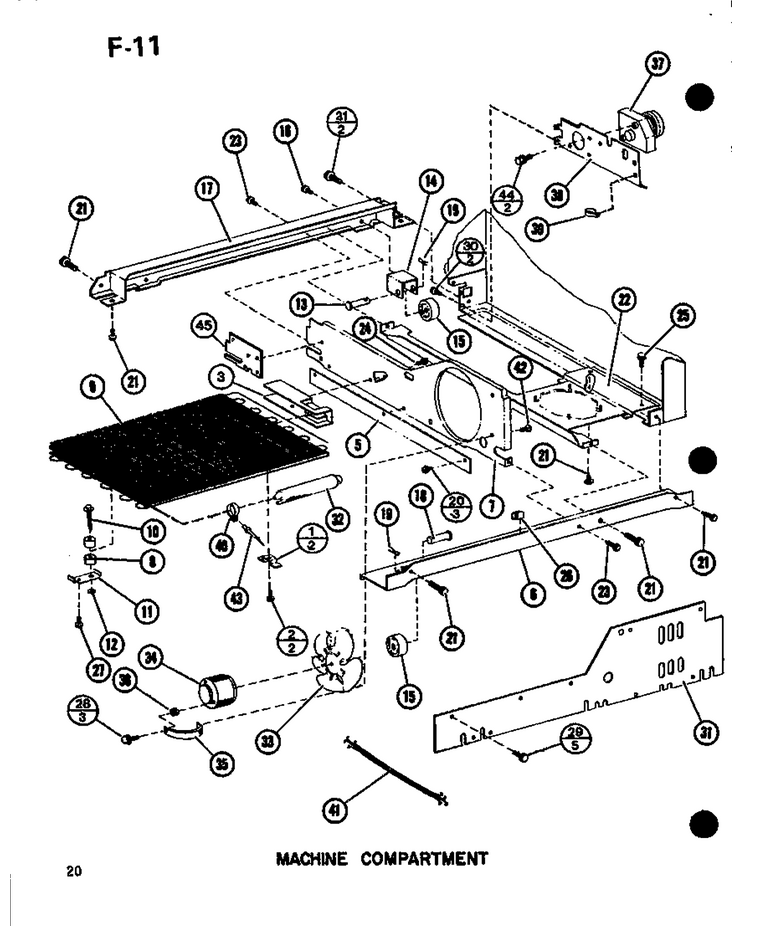

03 - Machine Compartment

...
...
1
Clip-Cond WPL-A3054502
...
2
Kit, Screw WPL-R9800670
...
3
Spacer WPL-B0544101
...
5
Seal-Fan Shroud Q WPL-B8314101
...
6
Rail Rear WPL-C8918602
...
7
Shroud, Fan WPL-D7446702
...
8
Spacer Cond A WPL-B8346302
...
9
Condenser Assy Pnt WPL-D7455101
...
10
Sems Fastner WPL-M0257039
...
11
Bracket, Support WPL-A3085401
...
12
Nut A WPL-M0286003
...
13
Rivet WPL-M1205302
...
14
Bracket, Roller WPL-C8836305
...
15
Roller WPL-M0520102
...
16
Screw K WPL-M0236230
...
17
Rail WPL-D7003306
...
18
Pivot Pin K WPL-M1210001
...
19
Cotter Pin K WPL-M1200001
...
20
Screw WPL-WP90767
...
21
Screw WPL-M0294459
...
22
Weld Comp Supt Pntd WPL-C8820402
...
23
Screw (3) WPL-67006425
...
24
Screw WPL-M0237032
...
25
Screw WPL-WP67006715
...
26
Clip-Cable WPL-M0110505
...
27
Screw WPL-M0241132
...
28
Screw WPL-WPM0223816
...
29
Screw-Sm WPL-M0241118
...
30
Screw WPL-WP489464
...
31
Mc Back Assy WPL-C3655003
...
32
Drier WPL-WPB2150504
...
33
Blade, Fan WPL-B5742603
...
34
Motor-Cond WPL-833697
...
35
Bracket, Cond Motor WPL-B0598701
...
36
Grommet K WPL-M0500107
...
37
Timer-Def WPL-W10822278
...
38
Timer Bracket WPL-C3647902
...
39
Tie WPL-M0321401
...
40
Clamp-Drier WPL-M0104002
...
41
Wire Harness K WPL-D7608801
...
42
Screw Shoulder WPL-M0238833
...
43
Pop Rivet WPL-A4539616
...
44
Screw,tc WPL-M0230017
...
45
Extension WPL-B5619802

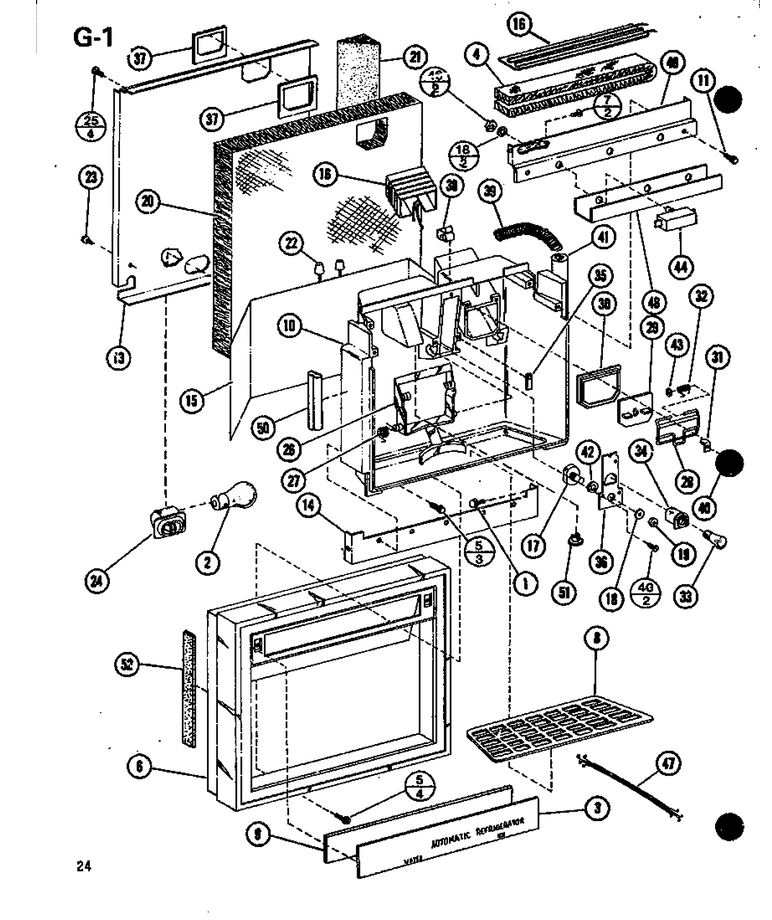

05 - Page 10

...
...
1
Screw WPL-M0216531
...
2
Light Bulb WPL-8009
...
3
Nameplate Facad WPL-D7574205
...
4
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
5
Screw WPL-M0234466
...
6
Facade Assy WPL-R0157401
...
7
Screw WPL-M0232908
...
8
Grille-Sump-Cav K WPL-D7531601
...
9
Mtg Pad Nameplate K WPL-C8902301
...
10
Cavity Dispenser WPL-D7526701
...
11
Screw WPL-WP98165
...
13
Chassis Front WPL-D7534202
...
14
Mullion, Lower, Coppertone WPL-C8886703
...
16
Heater Chute Upr A WPL-D7631101
...
17
Switch-Light A WPL-M0340107
...
18
Washer WPL-M0272511
...
19
Nut A WPL-M0281401
...
20
Insulation A WPL-C8701602
...
21
Insulation Block A WPL-A3219101
...
22
Sleeve WPL-B5778701
...
23
Screw WPL-M0253916
...
24
Socket Light A WPL-B5777701
...
25
Screw WPL-M0254020
...
26
Arm Activate- A WPL-D7422301
...
27
Spring Arm A WPL-B5700602
...
28
Wire Pivot WPL-B8346901
...
29
Door Chute A/ K WPL-B5695802
...
30
Gasket, Door WPL-B5697802
...
31
Holder Pivot Wire K / A WPL-A1039101
...
32
Spring Door Chute K A WPL-A3211001
...
33
Bulb-Light WPL-W10857122
...
34
Light Socket A WPL-B5708201
...
35
Holder-Arm A WPL-A3211601
...
36
Mtg Plate WPL-A3214403
...
38
Clip-Cable WPL-M0110505
...
39
Spring WPL-A3225902
...
40
Screw A K WPL-M0253704
...
41
Insulation, Tube WPL-10851302
...
42
Sealer, Gum (4 Feet) WPL-212643
...
43
Speed Nut A- K WPL-M0287901
...
44
Switch A WPL-M0340702
...
46
Hex Nut On Switch WPL-Y312706
...
47
Wiring Harness A WPL-C8867401
...
48
Shield A WPL-B8338901
...
49
Mullion G WPL-C8887805
...
50
Gasket WPL-B5757808
...
51
Grommet A WPL-M0580401
...
52
Facade Stiffener WPL-B8350201

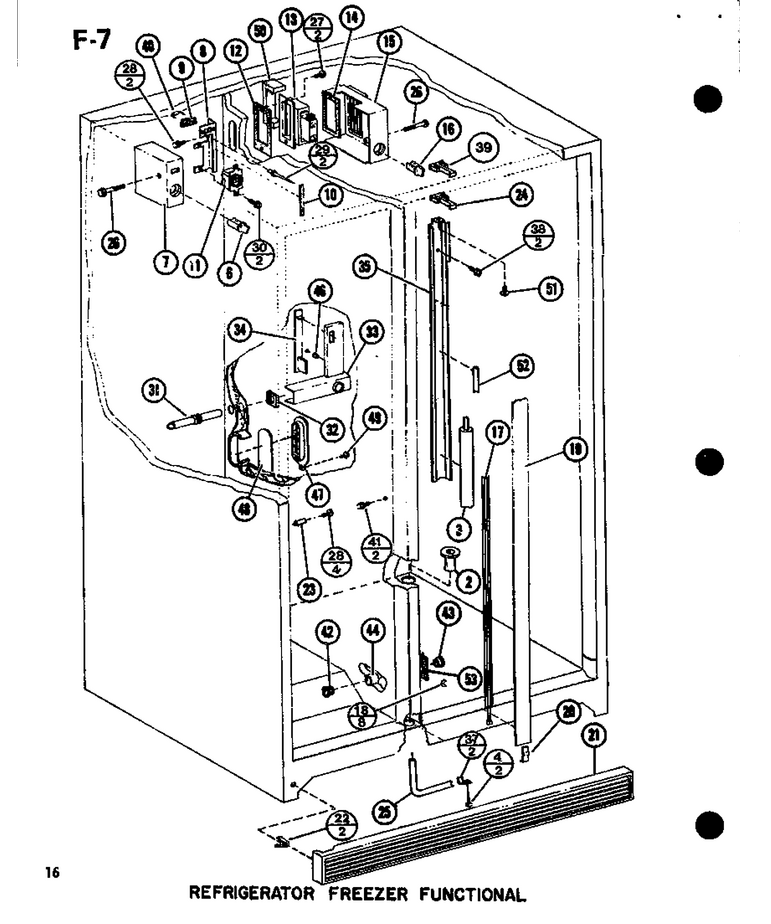

12 - Ref Fz Functional

...
...
NI
Return Air Assembly WPL-B8344901
...
2
Drain Tube WPL-A3224901
...
3
Insul Tubing 1=12`` WPL-A0329806
...
4
Screw WPL-M0233716
...
6
Knob WPL-D7009801
...
7
Escut Frz, Cont. WPL-D7345504
...
8
Bracket WPL-C8850502
...
9
Switch WPL-M0342001
...
10
Gasket-Per Ft WPL-A30303-35
...
11
Control WPL-C3615018
...
12
Gasket-Damper WPL-B8315901
...
13
Control, Ref WPL-C3643115
...
14
Gasket Control WPL-A3113601
...
15
Esc. Ref. Cont. WPL-D7417302
...
16
Knob WPL-D7009802
...
17
Mullion Heater, 115v WPL-C8867001
...
18
Clip WPL-M0113401
...
19
Mullion Vert.white) WPL-C8810401
...
20
Key WPL-A3120801
...
21
Grille WPL-D7415414
...
22
Clip WPL-WPM0117303
...
23
Spacer WPL-A3227501
...
24
Support Mullion WPL-B0594201
...
25
Tube WPL-WPB5705307
...
26
Screw WPL-M0230926
...
27
Screw (3) WPL-67006425
...
28
Screw WPL-WP489464
...
29
Rivet A WPL-M0010202
...
30
Screw WPL-WP98165
...
31
Air Tube WPL-C8785301
...
33
Esc Meatkeeper WPL-B5656709
...
34
Slide-Control WPL-B5622804
...
35
Mullion Weld WPL-B5716202
...
37
Clamp WPL-M0102804
...
38
Screw WPL-M0211530
...
39
Support Mullion WPL-B5608001
...
40
Diode WPL-M0305301
...
41
Screw WPL-M0216531
...
42
Air Tunnel WPL-A3187701
...
43
Retainer WPL-A3187801
...
44
Sleeve-Air Tunnel WPL-A3189501
...
46
Clip WPL-M0113004
...
47
Grille A WPL-C3588305
...
48
Damper Assy WPL-B8344402
...
49
Screw WPL-WP90767
...
50
Insulation-Damp Cnt WPL-C8860701
...
51
Screw WPL-M0233230
...
52
Gasket ( 1=1ft. ) WPL-M0275202
...
53
Gasket WPL-C8883101

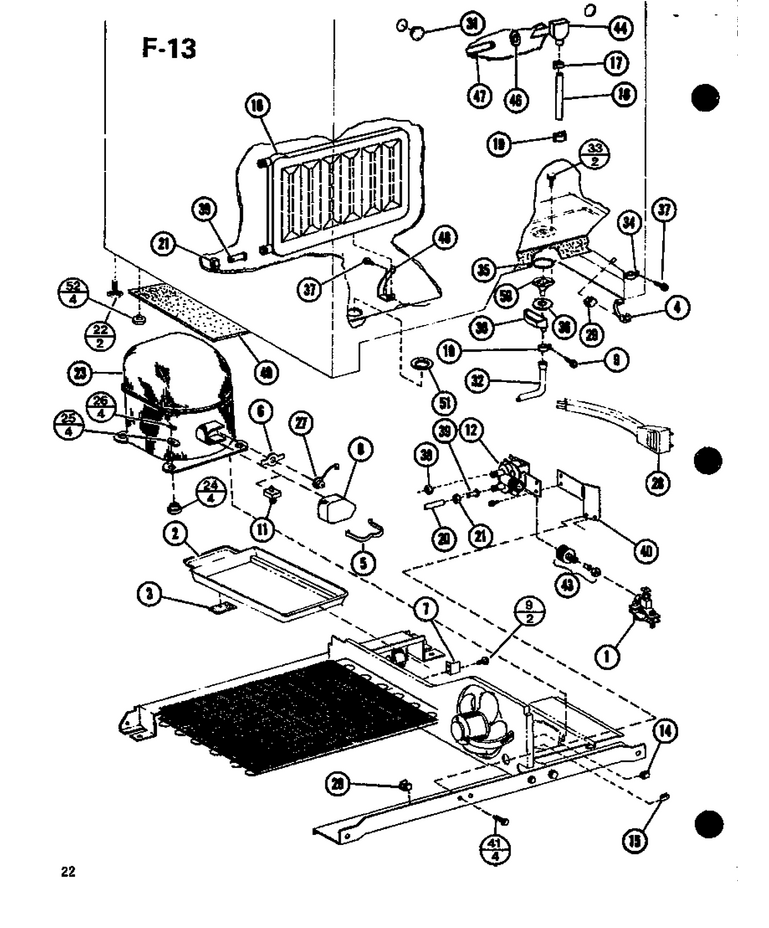

09 - Page 9

...
...
1
Saddle Valve WPL-A3034801
...
2
Pan, Drain WPL-D7001001
...
3
Pad A WPL-B5691701
...
4
Grommet, Cord WPL-211881
...
5
Strap K WPL-A3041801
...
6
Spring K WPL-A3043601
...
7
Stop,drain Pan WPL-A3125701
...
8
Terminal Cover WPL-B0551801
...
9
Screw WPL-WP90767
...
10
Clamp WPL-M0102303
...
11
Relay K WPL-C3689202
...
12
Water Valve Assy WPL-R0175009
...
14
Clip WPL-M0113402
...
15
Clip WPL-M0110801
...
16
Service Ta WPL-R0157487
...
17
Clip- Spee WPL-WPM0114003
...
18
Tube-Water WPL-W10823511
...
19
Clip WPL-WPM0104106
...
20
Tubing Plastic K WPL-B5705312
...
21
Nut, Compression WPL-M0282201
...
22
Glider Bolt WPL-M0266510
...
23
Compressor WPL-C3667102H
...
24
Grommet K WPL-A3026101
...
25
Washer, Nylon K WPL-M0590101
...
26
Clip K WPL-A3140801
...
27
Overload WPL-C3689105
...
28
Power Cord WPL-R0157154
...
29
Clip-Cable WPL-M0110505
...
30
Drain Cup WPL-C8820601
...
31
Plug, Button WPL-A3076901
...
32
Drain Tube WPL-D7384701
...
33
Screw WPL-WP489464
...
34
Clamp WPL-M0102301
...
35
Sealer WPL-M0275584
...
36
Grommet WPL-B5766402
...
37
Screw WPL-WP98165
...
38
Nut WPL-WP627018
...
39
Insert- Pl WPL-WPA3223101
...
40
Bracket-Solenoid WPL-B5701401
...
41
Screw WPL-M0251017
...
43
Coupling, Solenoid Valve And H WPL-A3084501
...
44
Fill Tube WPL-R0182123
...
46
Plug Button WPL-A3091302
...
47
Ext-Fill Tube WPL-A3127405
...
48
Spring Clip K WPL-B5725801
...
49
Insulation M.c. A-K WPL-D7525101
...
50
Drain Tube WPL-C8876801
...
51
Grommet WPL-A3138301
...
52
Plug, Button (blk) WPL-A3080001

10 - Ref Accessory

...
...
NI
Glass Shelf Assy WPL-C8823418
...
1
Frame WPL-D7599701
...
2
Bin, Fruit, Glide Out WPL-D7298810
...
3
Trim, Hi Humid Pan WPL-C8831710
...
4
Trim-Rear WPL-C8831803
...
5
Tape WPL-M0275111
...
6
Ext-Hc Top WPL-C3622303
...
7
Top Fruit Pan WPL-D3951403
...
9
Glide Pan WPL-A3213402
...
10
Clip,tubular WPL-M0117901
...
11
Air Damper Cont K WPL-C8705401
...
12
Slide WPL-B5632101
...
13
Rail Lh WPL-D7201204
...
14
Pan, Humidity Compartment WPL-D7425701
...
15
Rail-Rh Rhc WPL-D7201305
...
16
Back Humid Comp WPL-C8705505
...
17
Top Assy WPL-D7022201
...
18
Trim WPL-B0596603
...
19
Screw WPL-WP1163839
...
20
Screw WPL-M0230727
...
21
Tape- Roll WPL-M0275160
...
22
Ladder WPL-D7103701
...
23
Stud WPL-M0258801
...
24
Washer WPL-M0270519
...
25
Nut WPL-WP486255
...
26
Top-Meat Kpr WPL-D7343601
...
27
Sleeve M.k. WPL-D7001305
...
28
Pan, Meat Keeper WPL-D7425301
...
29
Trim Handle WPL-C8831711
...
30
Tunnel Ecu.m.k. WPL-B8345601
...
31
Frame WPL-D7599802
...
32
Glass Shelf WPL-B8303606
...
33
Trim, Shelf Rear WPL-C8803101
...
34
Trim A WPL-C8774503
...
35
Escutcheon WPL-C3623501
...
36
Rack, Bottle WPL-D7547602
...
37
Insulation-Damp Cnt WPL-C8860701
...
39
Ext-Crisper Top WPL-C3613001

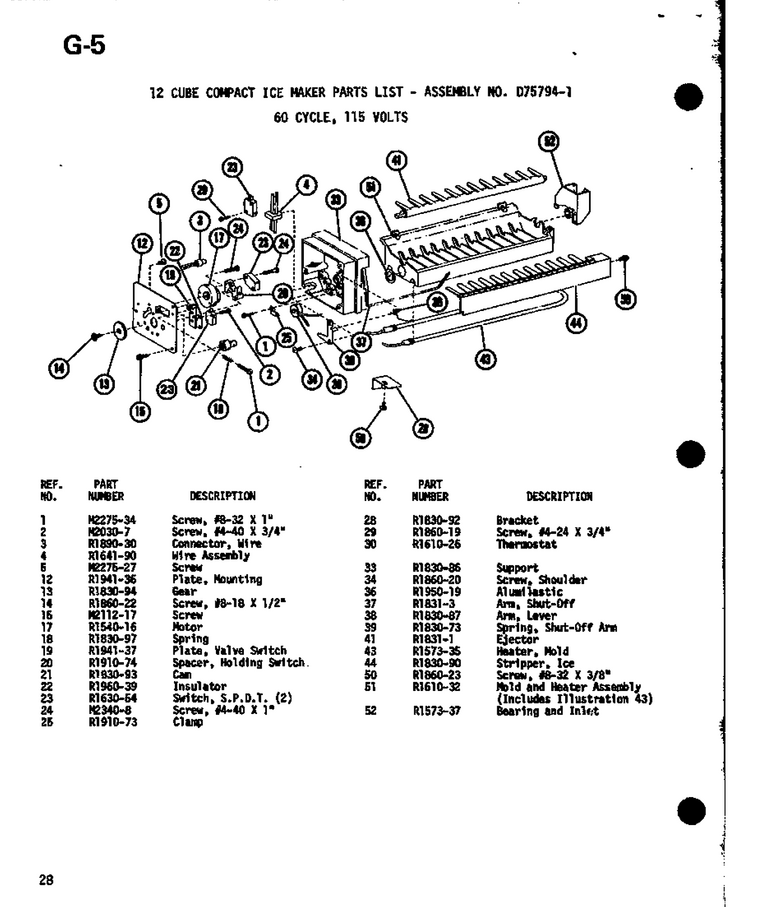

01 - 12 Cube Compact Ice Maker

...
...
NI
Screw (3) WPL-67006425
...
1
Screw WPL-M0227534
...
2
Screw WPL-M0203007
...
3
Nut, Wire WPL-R0189030
...
4
Wire Assy WPL-R0164190
...
5
Screw WPL-M0227527
...
12
Mounting Plate WPL-R0194136
...
13
Gear WPL-WP628210
...
14
Screw WPL-R0186022
...
15
Screw WPL-WP489464
...
17
Motor WPL-R0154016
...
18
Spring WPL-R0183097
...
19
Plate WPL-R0194137
...
20
Spacer WPL-R0191074
...
21
Cam WPL-625913
...
22
Insulator WPL-R0196039
...
23
Switch, S.p.s.t. WPL-R0163054
...
24
Screw WPL-M0234008
...
25
Clamp WPL-R0191073
...
28
Bracket WPL-R0183092
...
29
Screw WPL-R0186019
...
30
Thermostat WPL-R0161026
...
33
Support WPL-R0183086
...
34
Screw WPL-R0186020
...
36
Alumalastic WPL-R0195019
...
37
Shut Off Arm WPL-R0183103
...
38
Lever Arm WPL-R0183087
...
39
Spring WPL-R0183073
...
41
Ejector WPL-R0183101
...
43
Kit WPL-R0157335
...
44
Stripper WPL-R0183090
...
50
Screw WPL-R0186023
...
51
Assy, Mold & Heater WPL-R0161032
...
52
Inlet Kit WPL-R0157337

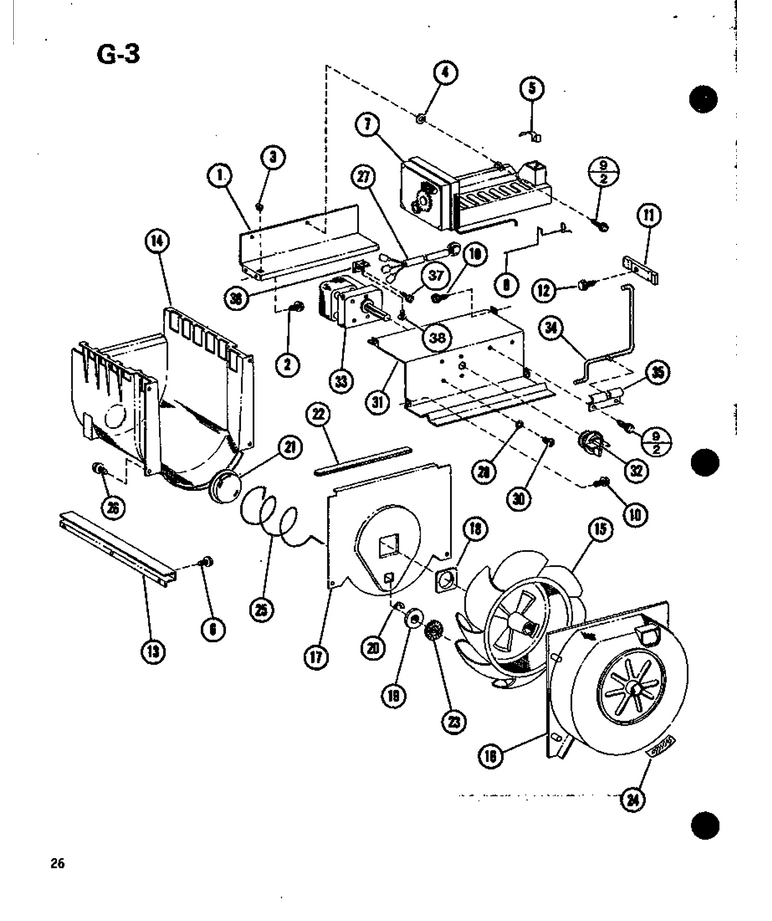

06 - Page 11

...
...
1
I M Bracket WPL-D7636002
...
2
Screw (3) WPL-67006425
...
3
Grommet WPL-M0580003
...
4
Spacer-Ice Maker WPL-A3228501
...
5
Clip WPL-B5720302
...
6
Screw WPL-WP90767
...
7
Kit, Icemaker WPL-D7261601
...
8
Wire,shut Off WPL-B8343101
...
9
Screw WPL-M0211020
...
10
Screw (3) WPL-67006425
...
11
Arm-Detent WPL-C8824401
...
12
Screw WPL-WP98165
...
13
Chassis, Rail WPL-C8808402
...
14
Ice Bucket A WPL-D7550301
...
15
Wheel-Lift A WPL-D7192701
...
16
Cover, Lift Wheel A WPL-D7192602
...
17
Partition Panel A WPL-D7182001
...
18
Bushing A WPL-B5698401
...
19
Bushing A WPL-B5700502
...
20
Ring-Retaining A WPL-M0274601
...
21
End Cap-Helix A WPL-C3692901
...
22
Strip A WPL-A3221801
...
23
Helix & Pin-Kit WPL-R0157470
...
24
Tape Alum WPL-M0275166
...
25
Helix & Pin-Kit WPL-R0157470
...
27
Harness, Auger Motor WPL-C8831302
...
28
Washer WPL-M0272504
...
30
Screw WPL-M0202528
...
31
Rear Chassis Painted WPL-D7393402
...
32
Drive Link WPL-C8810601
...
33
Motor WPL-C8831001
...
34
Shut Off Arm WPL-C8824301
...
35
Holder, Arm WPL-B5697603
...
36
Im Support K WPL-B8361801
...
37
Screw WPL-WP90767
...
38
Screw WPL-M0253916
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
