Amana SD25G-1-AG (BOM: P6020102W G)

Model: SD25G-1-AG (BOM: P6020102W G)

Save Part Not Listed?
product name

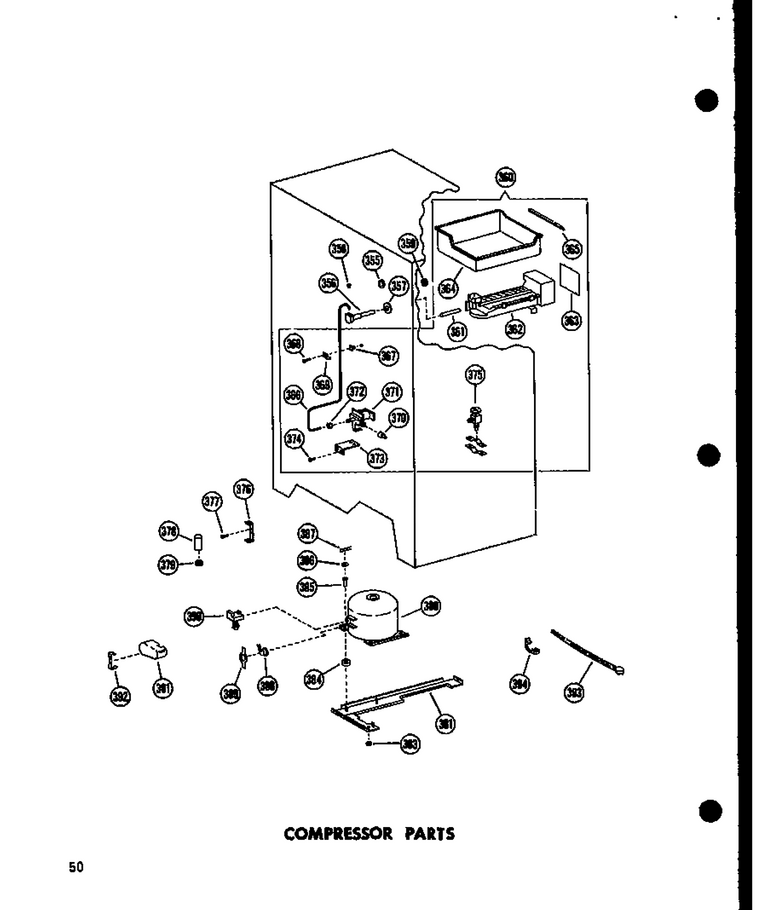

01 - Compressor Parts

...
...
355
Plug, Button (wht) WPL-A3080002
...
356
Fill Tube Assy WPL-B5630501
...
357
Plug Button WPL-A3091301
...
358
Plug WPL-M0310309
...
359
Cap Fill Tube WPL-B5631801
...
360
See Note Model Ic-1, Mfg. No. P60120-1w Add On Ice-Maker Completeassy -- (available From Sales) WPL-Y00000000
...
361
Tube WPL-A3127404
...
362
Ic2- Ice M WPL-C3641510
...
363
Insert-Im WPL-B5662401
...
364
Pan-Ice WPL-WP67001255
...
365
Trim K WPL-C3637901
...
366
Pipe WPL-A3101504
...
367
Grommet, Screw WPL-M0580007
...
368
Screw WPL-WP90767
...
369
Clamp WPL-M0102804
...
370
Coupling, Solenoid Valve And H WPL-A3084501
...
371
Valve-Inlt WPL-4318047
...
372
Nut WPL-WP627018
...
373
Bracket WPL-B5630701
...
374
Screw WPL-M0246017
...
375
Saddle Valve WPL-A3034801
...
376
Bracket K WPL-M0370802
...
377
Screw, Handle WPL-67006529
...
378
Capacitor K WPL-M0300601
...
379
End Cap K WPL-M0300602
...
380
Kit, Compressor WPL-D3858101
...
381
Weldment, Compressor Support WPL-C3617905
...
383
Washer WPL-A4094001
...
384
Grommet K WPL-A3026101
...
385
Sleeve K WPL-A3072001
...
386
Washer, Nylon K WPL-M0590101
...
387
Clip K WPL-A3140801
...
388
Overload WPL-C3533801
...
389
Spring K WPL-A3043601
...
390
Relay WPL-C3531801
...
391
Terminal Cover WPL-B0551801
...
392
Strap K WPL-A3041801
...
393
Wiring Harness WPL-D7101705
...
394
Grommet, Cord WPL-211881

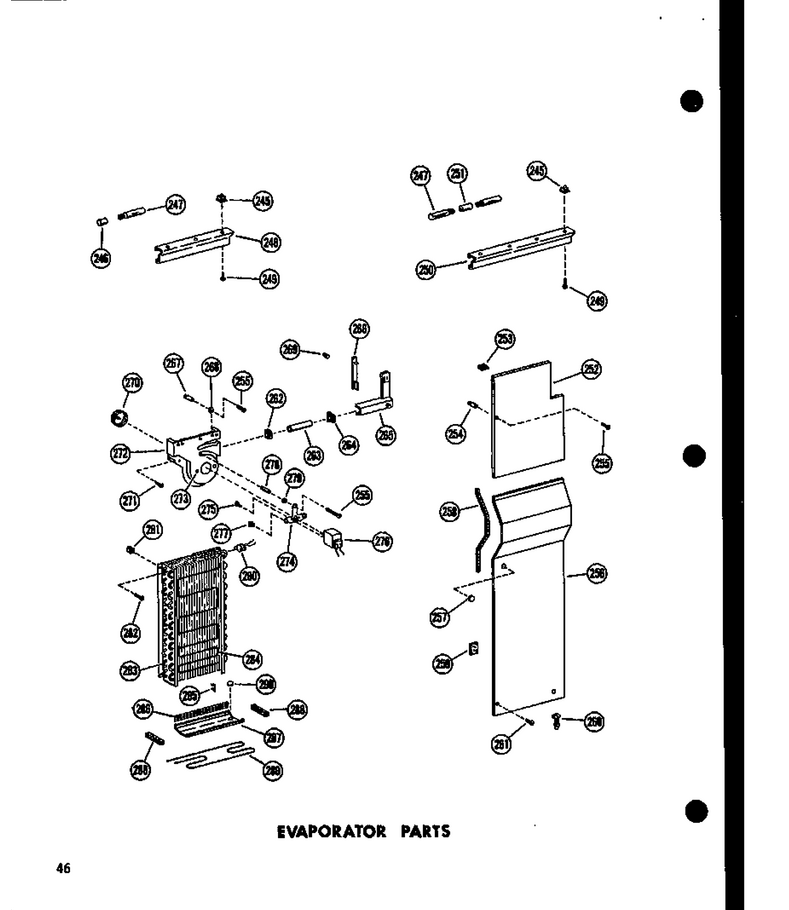

03 - Evap Parts

...
...
245
Grommet, Screw WPL-M0580007
...
246
Socket WPL-B5637601
...
247
Bulb-Light WPL-WPA3073101
...
248
Light Shield WPL-D3954208
...
249
Screw WPL-WP90767
...
285
Clip WPL-M0110301
...
286
Gasket A-K WPL-A3077901
...
287
Drip Tray A-K WPL-C3597801
...
288
Gasket Drip Tray K WPL-A3098301
...
289
Heater Drip Tr A-K WPL-C8723501
...
290
Drain Screen WPL-A3113701

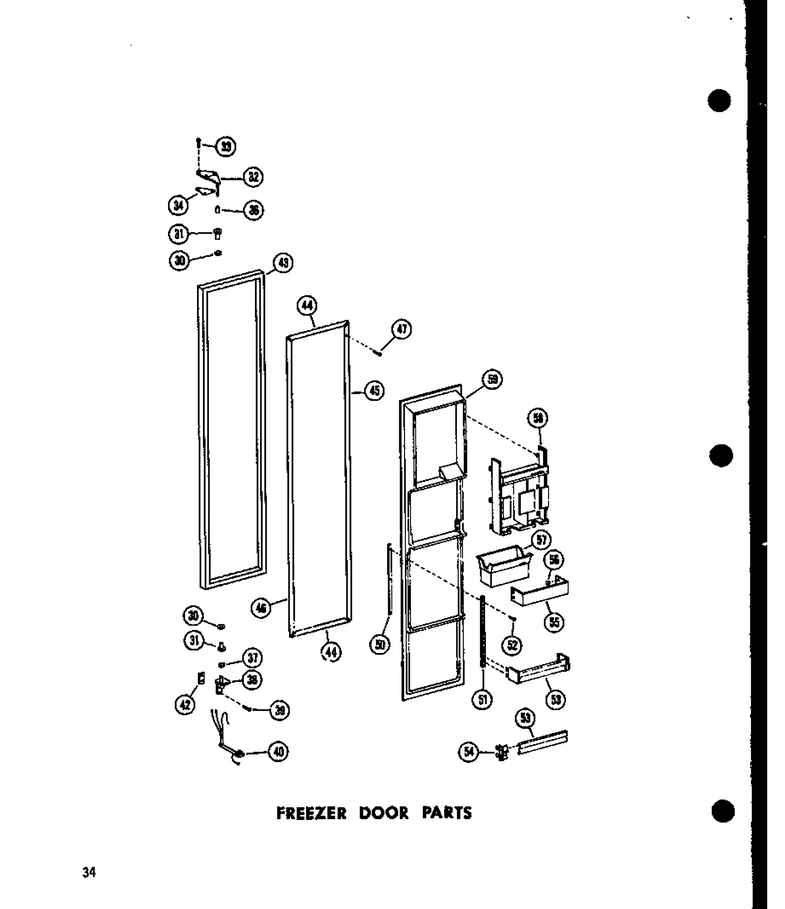

05 - Fz Door Parts

...
...
30
Washer WPL-M0274027
...
31
Flat Bearing (bottom Hinge) WPL-B0539807
...
32
Hinge WPL-C3622602
...
33
Screw WPL-M0244531
...
34
Hinge Shim WPL-A3076401
...
36
Bushing WPL-A3132401
...
37
Washer K WPL-M0274013
...
38
Hinge WPL-D7250104
...
39
Screw WPL-WP67006715
...
40
Wire, Bottom Hinge WPL-B5646005
...
42
Shim WPL-A3061901
...
43
Gasket WPL-D7092601
...
44
Retainer Gasket WPL-D7025103
...
45
Retainer WPL-D7025101
...
47
Screw WPL-WP98165
...
50
Tap Strip-Ladder WPL-A3133001
...
51
Ladder WPL-C3623101
...
52
Screw K WPL-M0213517
...
53
Retainer Assy WPL-A0066202
...
55
Retainer WPL-C3621801
...
56
Fastener, Retainer WPL-A3082601
...
57
Ice Container WPL-D3959403
...
58
Rack, Juice WPL-D7022401
...
59
Closure, Hinge WPL-D7022501

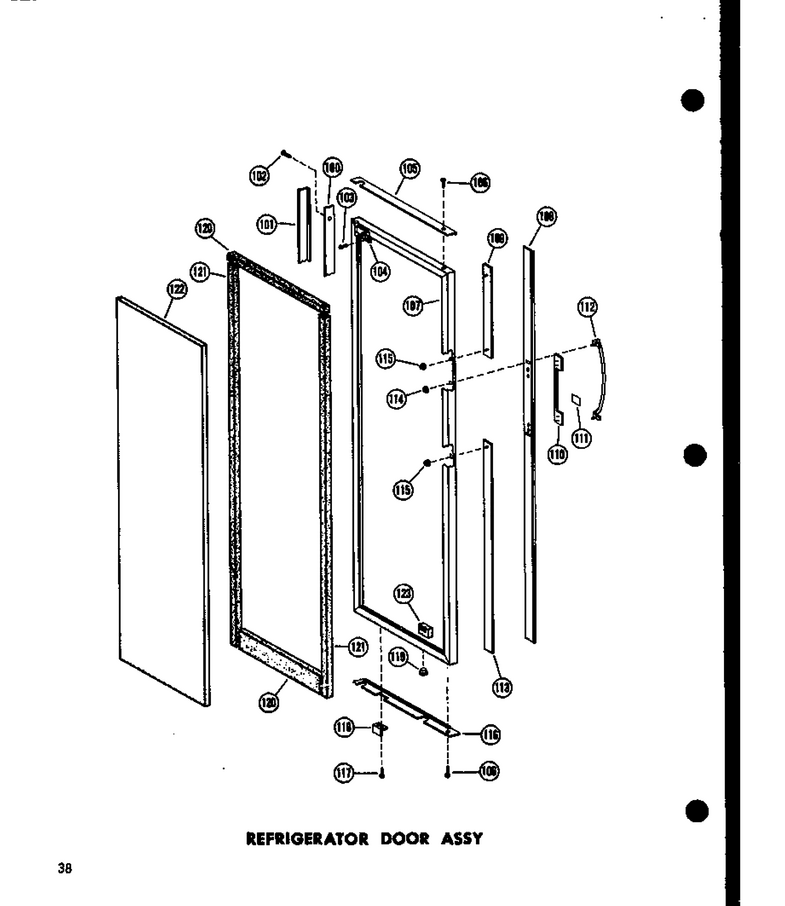

09 - Ref Door Assy

...
...
100
Retainer WPL-C3592901
...
101
Trim WPL-B0599001
...
102
Screw A K WPL-M0211516
...
103
Screw WPL-M1252004
...
104
Door Closure WPL-D7022901
...
105
Trim WPL-D7096101
...
106
Screw WPL-M0214028
...
107
Door Ref W-P-Sd25g WPL-D7118345
...
108
Trim WPL-D7121006
...
109
Retainer WPL-B5653002
...
110
Pad,handle WPL-D7121101
...
111
Nameplate WPL-C3646302
...
112
Handle WPL-D7096001
...
113
Retainer WPL-B5653001
...
114
Nut WPL-M0289801
...
115
Nut WPL-M0289802
...
116
Trim WPL-D7096103
...
117
Screw WPL-M0241205
...
118
Strike WPL-B5666401
...
119
Vent Assy WPL-A3101901
...
120
Insulation WPL-B0534407
...
121
Insulation WPL-B5629002
...
122
Insulation WPL-B5612005
...
123
Block Air Vent WPL-A3091901

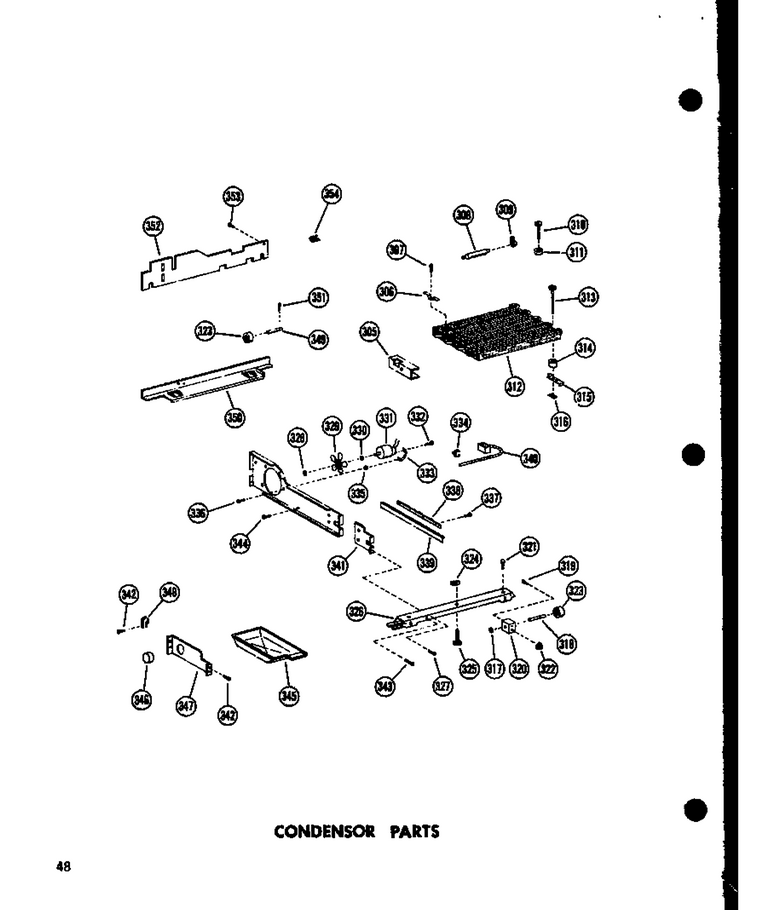

02 - Condensor Parts

...
...
305
Spacer WPL-B0544101
...
306
Clip-Cond WPL-A3054502
...
307
Kit, Screw WPL-R9800670
...
308
Drier WPL-WPB2150504
...
309
Clamp,drier WPL-M0104001
...
310
Sems Fastner WPL-M0257037
...
311
Spacer WPL-A3013906
...
312
Condenser Assy Pnt WPL-D7010901
...
313
Sems Fastner WPL-M0257039
...
314
Spacer WPL-A3013907
...
315
Bracket, Support WPL-A3085401
...
316
Nut A WPL-M0286003
...
317
Fastener WPL-M0289401
...
318
Rivet WPL-M1205302
...
319
Roller Bracket Kit WPL-M0222240
...
320
Bracket K WPL-A3125201
...
321
Screw WPL-M0267101
...
322
Nut, Self Thread WPL-M0283801
...
323
Roller WPL-M0520102
...
324
Wing Nut WPL-A3122601
...
325
Foot-Levelling WPL-B1601601
...
326
Front Rail WPL-B5627604
...
327
Screw WPL-M0294459
...
328
Nut WPL-WP486692
...
329
Blade, Fan WPL-B5742603
...
330
Washer WPL-M0274018
...
331
Motor-Cond WPL-833697
...
332
Screw WPL-WPM0223816
...
333
Bracket, Cond Motor WPL-B0598701
...
334
Clip WPL-M0116401
...
335
Grommet K WPL-M0500107
...
336
Screw Shoulder WPL-M0238833
...
337
Screw WPL-WP98165
...
338
Retainer WPL-B0599701
...
339
Seal WPL-B0599602
...
340
Drain Tube Assy WPL-C3607201
...
341
Extension WPL-B5619802
...
342
Screw WPL-WP98165
...
343
Screw WPL-M0233643
...
344
Screw-Sm WPL-M0241118
...
345
Pan, Drain WPL-D7001001
...
346
Timer, Defrost WPL-D7004106
...
347
Bracket, Timer WPL-C3647901
...
348
Clamp WPL-M0102406
...
349
Pivot Pin K WPL-M1210001
...
350
Rail Rear WPL-C8918602
...
351
Cotter Pin K WPL-M1200001
...
352
Mc Back Assy WPL-C3655002
...
353
Screw-Sm WPL-M0241118
...
354
Clip WPL-M0110502

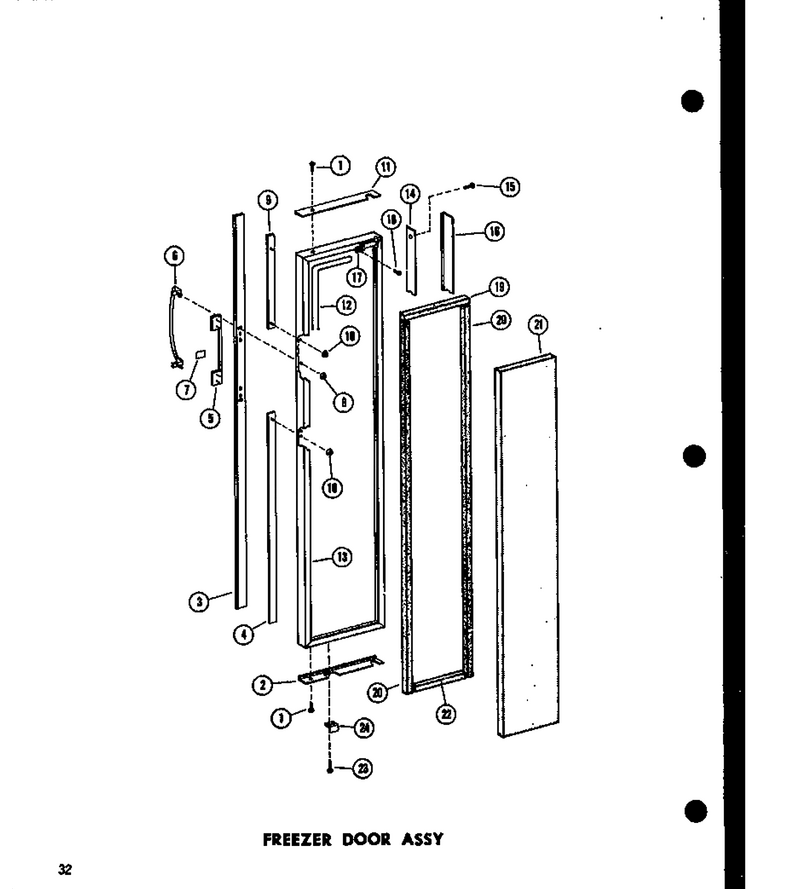

04 - Fz Door Assy

...
...
1
Screw WPL-M0214028
...
2
Trim WPL-D7096104
...
3
Trim WPL-D7121007
...
4
Retainer WPL-B5653001
...
5
Pad,handle WPL-D7121101
...
6
Handle WPL-D7096001
...
7
Nameplate WPL-C3646301
...
8
Nut WPL-M0289801
...
9
Retainer WPL-B5653002
...
10
Nut WPL-M0289802
...
11
Trim WPL-D7096102
...
12
Heater WPL-B5600302
...
13
Door Fr-W-Sd25g-1 WPL-D7118317
...
14
Retainer WPL-C3592901
...
15
Screw A K WPL-M0211516
...
16
Trim WPL-B0599001
...
17
Door Closure WPL-D7022901
...
18
Screw WPL-M1252004
...
19
Insulation WPL-B5629006
...
20
Insulation WPL-B5629002
...
21
Insulation WPL-B5612004
...
22
Insulation WPL-B5629003
...
23
Screw WPL-M0241205
...
24
Strike WPL-B5666401

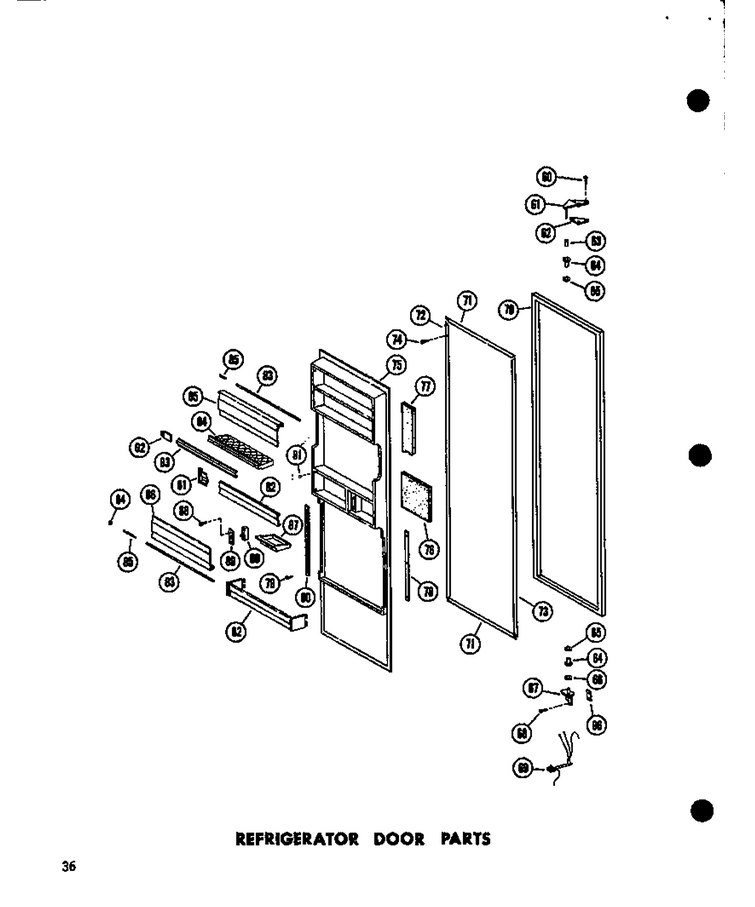

10 - Ref Door Parts

...
...
60
Screw WPL-M0244531
...
61
Hinge WPL-C3622601
...
62
Shim WPL-A3076402
...
63
Bushing WPL-A3132401
...
64
Flat Bearing (bottom Hinge) WPL-B0539807
...
65
Washer WPL-M0274027
...
66
Washer K WPL-M0274014
...
67
Hinge WPL-B5628903
...
68
Screw WPL-WP67006715
...
69
Wire, Bottom Hinge WPL-B5646005
...
70
D7092602q WPL-D7092602
...
71
Retainer Gasket WPL-D7025102
...
72
Retainer WPL-D7025101
...
74
Screw WPL-WP98165
...
75
Inner Door Panel WPL-D7022601
...
76
Insulation, 1 X 3 WPL-B0523565
...
77
Insul., Batt WPL-B0523567
...
78
Tap Strip-Ladder WPL-A3133001
...
79
Screw K WPL-M0213517
...
80
Ladder WPL-C3623101
...
81
Support- -Cream Rh WPL-B5631706
...
82
Package Retainer WPL-D3976715
...
83
Rod A WPL-A3056205
...
84
Spacer K WPL-A3057004
...
85
Spring A/k WPL-A3065201
...
86
Utility Door WPL-C3622101
...
87
Buttertray WPL-67004412A
...
88
Screw K WPL-M0207403
...
89
Escutcheon K WPL-B5633701
...
90
Butter Heater WPL-C3643501
...
91
Rubber Bumper WPL-A3059002
...
92
Support K WPL-B0530004
...
93
Retainer WPL-B5632001
...
94
Egg WPL-D7025701
...
95
Door WPL-C3621901
...
96
Shim WPL-A3061901

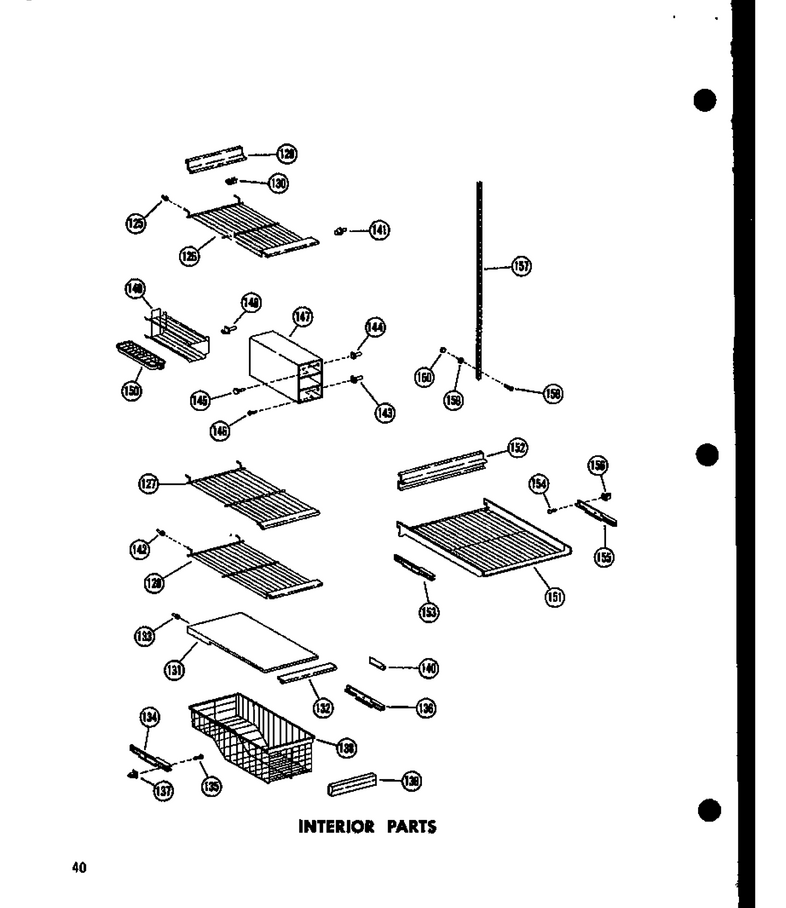

06 - Interior Parts

...
...
125
Plug WPL-A0387302
...
126
Shelf, Fz Top WPL-D7024204
...
128
Shelf, Fz WPL-D7024206
...
129
Trim Shelf WPL-C3622201
...
130
Clip A WPL-A3083401
...
131
Shelf, Fz WPL-C3623202
...
132
Trim WPL-B0596602
...
133
Support WPL-M0560002
...
134
Basket Guide Lh WPL-D3997601
...
135
Screw WPL-WP98165
...
136
Glide, Basket, R.h. WPL-D3997602
...
137
Grommet, Screw WPL-M0580007
...
138
Basket-Fr WPL-D7419801
...
139
Trim WPL-C3623702
...
140
Grille WPL-B5632401
...
141
Support WPL-B0595101
...
142
Grommet WPL-A3066301
...
143
Grommet WPL-A0384901
...
144
Screw, Grommet, Ice Tray, Shel WPL-A0384902
...
145
Screw, Thumb WPL-M0234529
...
146
Screw WPL-M0219532
...
147
Tray WPL-WP841180A
...
150
Tray WPL-WP841180A
...
151
Shelf, Cantilever, Ref WPL-D7023701
...
152
Trim Shelf A WPL-C3622802
...
157
Ladder WPL-D7103701
...
158
Screw WPL-M0207632
...
159
Washer WPL-M0270519
...
160
Nut WPL-WP486255

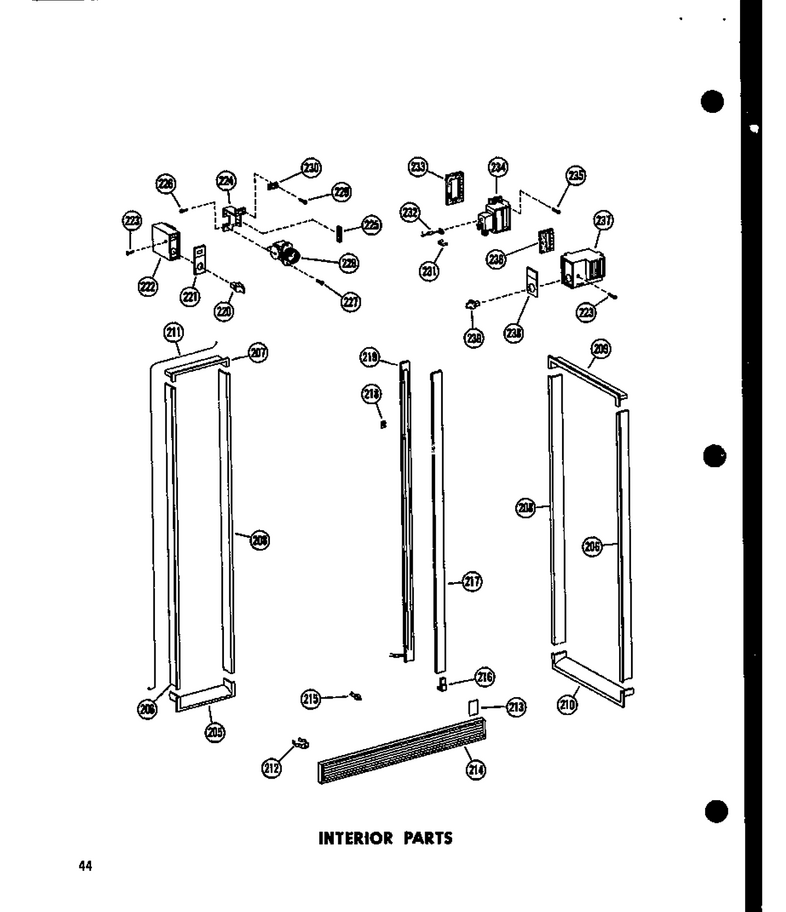

08 - Interior Parts

...
...
205
Breaker Frame WPL-D3952401
...
206
Breaker Frame WPL-D3951709
...
207
Breaker Frame WPL-D3953101
...
208
Breaker Frame WPL-D3952303
...
209
Breaker Frame WPL-D3952501
...
210
Breaker Frame WPL-D3952601
...
211
Heater WPL-C3628501
...
212
Clip WPL-WPM0117303
...
213
Barrier WPL-B5645801
...
214
Grille, Bottom WPL-D7070201
...
215
Switch, Light WPL-C3658601
...
216
Key WPL-A3120801
...
217
Mullion Copper WPL-B0594610
...
218
Clip WPL-M0113401
...
219
Heater, Vertical Mullion WPL-C3628301
...
220
Knob WPL-D7009801
...
221
Thin Plate WPL-C3624701
...
222
Escutheon WPL-D3998102
...
223
Screw WPL-M0230926
...
224
Bracket, Control WPL-B5623801
...
225
Gasket (1=1ft.) WPL-10839713
...
226
Screw WPL-WP98165
...
227
Screw WPL-WP90767
...
228
Cold Control K WPL-C3615002
...
229
Screw WPL-M0215004
...
230
Switch WPL-A3116201
...
231
Clip WPL-A3116101
...
232
Heater WPL-B5636901
...
233
Gasket-Damper WPL-B8315901
...
234
Control, Ref WPL-C3682901
...
235
Screw WPL-WP489464
...
236
Gasket Control WPL-A3113601
...
237
Escutcheon WPL-D3998202
...
238
Thin Plate WPL-C3624901
...
239
Knob WPL-D7009802
...
250
Light Shield WPL-D3954209
...
251
Socket-Light WPL-12096901
...
252
Baffle WPL-C3634303
...
253
Gasket WPL-A4591108
...
254
Spacer WPL-A3044202
...
255
Screw WPL-M0230926
...
256
Cover Assy-Evap WPL-D7147201
...
257
Plug WPL-A3069101
...
258
Gasket, Bottom WPL-A3189394
...
259
Air Block WPL-A3095503
...
260
Drain Tube WPL-C3607401
...
261
Screw (3) WPL-67006425
...
262
Gasket WPL-A3116401
...
263
Tube WPL-C3615301
...
264
Gasket WPL-A3116601
...
265
Escutcheon WPL-B5656701
...
266
Slide-Mt Kpr WPL-B5622802
...
267
Spacer WPL-A3044201
...
268
Clip WPL-M0118001
...
269
Clip WPL-M0113004
...
270
Blower Wheel WPL-C3587301
...
271
Screw WPL-WP90767
...
272
Housing, Blower WPL-D7093401
...
273
Eyelet K WPL-A0381401
...
274
Mounting Bracket WPL-B5651801
...
275
Screw WPL-M0211020
...
276
Motor WPL-M0307601
...
277
Grommet WPL-A0288701
...
278
Spacer,bl Housing WPL-A3044204
...
279
Washer WPL-M0270519
...
280
Thermostat K WPL-B5645401
...
281
Grommet A WPL-M0580002
...
282
Screw WPL-WP98165
...
283
Coil Evaporator A WPL-D7136801
...
284
Heater WPL-C3628603

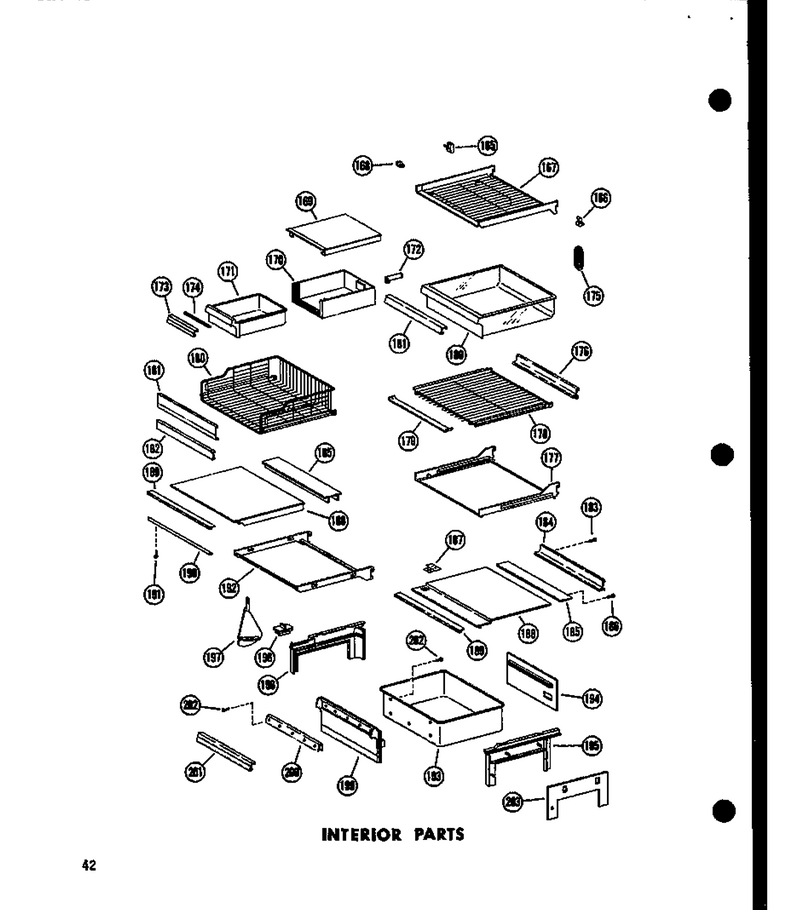

07 - Interior Parts

...
...
167
Shelf, Cantilever, Meat Keeper WPL-D7023801
...
169
Top, Meat Keeper WPL-D7001102
...
170
Sleeve, Meat Keeper WPL-D7001302
...
171
Pan, Meat WPL-D3975702
...
172
Grommet WPL-C3614902
...
173
Trim, Handle WPL-C3623002
...
174
Gasket (per Foot) WPL-A3030313
...
176
Trim WPL-C3622804
...
177
Frame Cantilever Glide Shelf WPL-D7102403
...
178
Shelf, Fruit Bin WPL-D7102803
...
179
Trim K WPL-C3677301
...
180
Bin, Fruit WPL-D7102901
...
181
Trim WPL-C3623003
...
183
Screw WPL-M0211530
...
184
Trim Humidity Compartment WPL-C3622701
...
185
Extension WPL-C3622301
...
186
Screw WPL-WP1163839
...
187
Escutcheon WPL-C3623501
...
188
Top Assy WPL-D7022201
...
189
Trim WPL-B0596603
...
193
Crisper Pan WPL-D3951111
...
194
Back Rac WPL-C3653301
...
195
Side Hc Rh WPL-D7105201
...
196
Side Hc Lh WPL-D7105301
...
197
Air Damper Cont K WPL-C8705401
...
198
Slide WPL-B5632101
...
199
Front WPL-D7022801
...
200
Handle WPL-B5632601
...
201
Trim WPL-C3623001
...
202
Screw WPL-M0212703
...
203
Shim WPL-C3623402
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
