product name

Amana SD22G-1 (BOM: P6010204W)

Model: SD22G-1 (BOM: P6010204W)

Save Part Not Listed?
product name

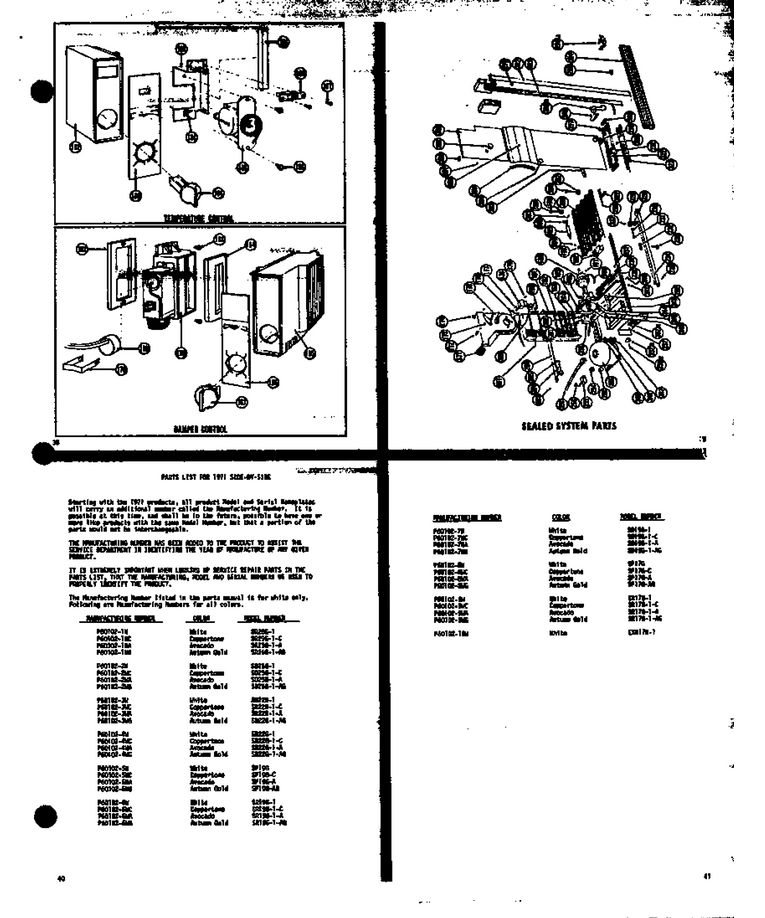

02 - Temperature Control/damper Control

...
...
NI
Screw-Sm WPL-M0241118
...
152
Escutheon WPL-D3998102
...
153
Thin Plate WPL-C3624701
...
154
Knob WPL-D7009801
...
155
Cold Control K WPL-C3615002
...
156
Screw WPL-WP90767
...
157
Screw WPL-M0215004
...
158
Switch WPL-A3116201
...
159
Gasket (1=1ft.) WPL-10839713
...
160
Bracket, Control WPL-B5623801
...
161
Screw WPL-WP98165
...
162
Gasket-Damper WPL-B8315901
...
163
Screw WPL-WP98165
...
164
Gasket Control WPL-A3113601
...
165
Escutcheon WPL-D3998202
...
166
Thin Plate WPL-C3624901
...
167
Knob WPL-D7009802
...
168
Damper Control WPL-C3653801
...
169
Thermostat K WPL-B5645401
...
170
Clip WPL-A3116101
...
171
Blower Wheel WPL-C3587301
...
172
Spacer,bl Housing WPL-A3044204
...
173
Screw WPL-WP90767
...
174
Speed Nut WPL-M0288107
...
175
Housing, Blower WPL-D7093401
...
176
Mounting Bracket WPL-B5651801
...
177
Screw WPL-M0211020
...
178
Motor WPL-C3680602
...
179
Screw WPL-WP3400094
...
180
Air Block WPL-A3095503
...
181
Heater WPL-C3628603
...
182
Evaporator Coil WPL-D7001601
...
183
Clip WPL-M0110301
...
184
Fan Shroud WPL-C3617601
...
185
Drain Tube Assy WPL-C3607201
...
186
Blade, Fan WPL-B5742603
...
188
Motor-Cond WPL-833697
...
190
Bracket, Cond Motor WPL-B0598701
...
191
Screw WPL-WPM0223816
...
192
Spacer WPL-B0544101
...
193
Clip-Cond WPL-A3054502
...
194
Kit, Screw WPL-R9800670
...
195
Drier WPL-WPB2150504
...
196
Clamp,drier WPL-M0104001
...
197
Screw WPL-WP98165
...
198
Sems Fastner WPL-M0257037
...
199
Spacer WPL-A3013906
...
200
Condenser Assy Pnt WPL-D7010901
...
201
Sems Fastner WPL-M0257039
...
202
Spacer WPL-A3013907
...
203
Heat Conductor WPL-B5604601
...
204
Plug WPL-A3069101
...
205
Gasket-Per Ft WPL-A3030329
...
206
Cover WPL-D7061701
...
207
Spacer WPL-A3044202
...
208
Gasket WPL-A4591108
...
209
Cap Fill Tube WPL-B5631801
...
210
Baffle WPL-C3634303
...
211
Clip WPL-M0115501
...
212
Vertical Mullion Cap WPL-B0594603
...
213
Heater, Vertical Mullion WPL-C3628301
...
214
Clip WPL-WPM0117303
...
215
Bracket, Light Switch WPL-B5654201
...
216
Air Duct WPL-D7023001
...
217
Drain Screen WPL-A3113701
...
218
Gasket K WPL-A3098302
...
219
Drain Tube WPL-C3607401
...
220
Screw (3) WPL-67006425
...
221
Cover A-K WPL-A3102501
...
222
Drip Tray A-K WPL-C3597801
...
223
Heater Drip Tr A-K WPL-C8723501
...
225
Nut A WPL-M0286003
...
226
Bracket, Support WPL-A3085401
...
227
Screw WPL-M0267101
...
228
Bracket K WPL-A3125201
...
229
Roller WPL-M0520101
...
230
Rivet WPL-M1205302
...
231
Fastener WPL-M0289401
...
232
Wing Nut WPL-A3122601
...
233
Foot-Levelling WPL-M0266712
...
234
Front Rail WPL-B5627604
...
235
Screw WPL-M0233643
...
237
Screw WPL-WP98165
...
238
Retainer WPL-B0599701
...
239
Seal WPL-B0599603
...
240
Screw WPL-WP98165
...
241
Screw WPL-M0233643
...
242
Screw-Sm WPL-M0241118
...
243
Pan, Drain WPL-D7001001
...
244
Clip, Waterline WPL-12454802
...
245
Screw WPL-M0221132
...
246
Clip WPL-M0113402
...
247
Grommet K WPL-A3026101
...
248
Vinyl Sleeve WPL-A3164301
...
249
Bracket WPL-B0590101
...
251
Kit, Compressor WPL-D3858101
...
252
Screw WPL-M0211532
...
253
Xoverload WPL-C3558601
...
254
Relay WPL-C3531801
...
255
Terminal Cover WPL-B0551801
...
256
Strap K WPL-A3041801
...
257
Wiring Harness WPL-D7089405
...
258
Capacitor K WPL-M0300601
...
259
Thermostat K WPL-B5645401
...
261
Screw, Handle WPL-67006529
...
262
Bracket K WPL-M0370802
...
263
Screw WPL-M0233643
...
264
Pivot Pin K WPL-M1210001
...
265
Cotter Pin K WPL-M1200001
...
266
Rail Rear WPL-C8918602
...
267
Screw WPL-WP489464

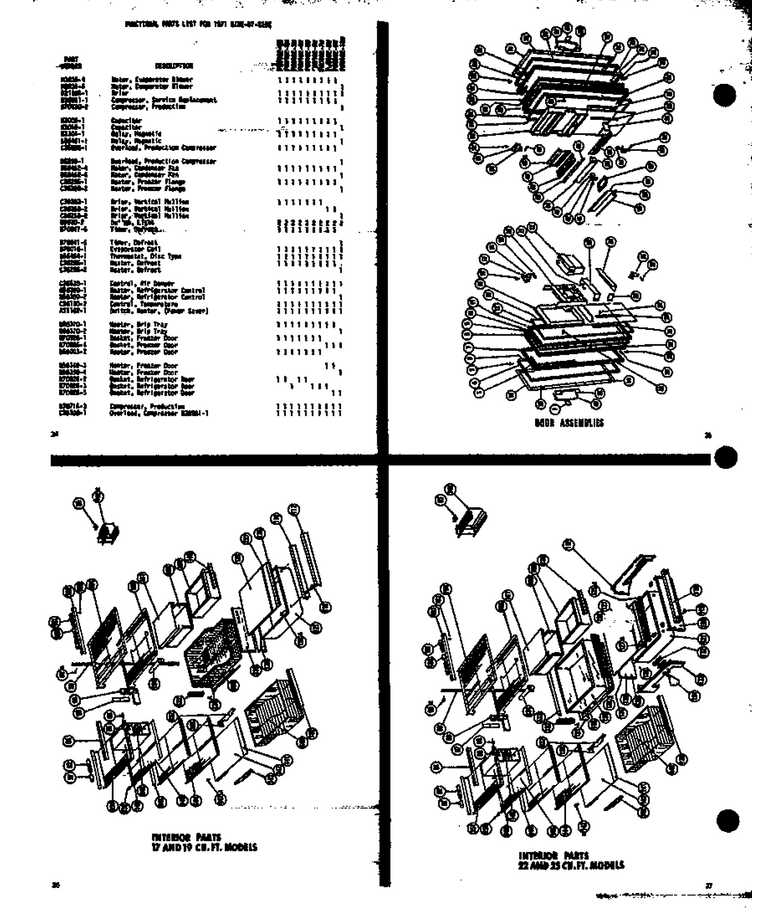

01 - Door Assemblies

...
...
NI
Rubber Bumper WPL-A3059002
...
1
Nameplate WPL-C3646301
...
3
Heater WPL-B5600302
...
4
Trim WPL-D7096102
...
5
Screw WPL-M0214028
...
6
Trim WPL-B0599001
...
7
Weldment, Fz Door WPL-D7096913
...
8
Insulation WPL-A3073006
...
9
Insulation Ft. K WPL-B0572822
...
11
Gasket WPL-D7092601
...
12
Retainer Gasket WPL-D7025103
...
13
Retainer WPL-D7025101
...
14
Breaker Frame WPL-D3953101
...
15
Closure, Hinge WPL-D7022501
...
16
Screw WPL-M0244531
...
17
Hinge WPL-C3622602
...
18
Hinge Shim WPL-A3076401
...
19
Shim WPL-A3092101
...
20
Rack, Juice WPL-D7022401
...
21
Fastener, Retainer WPL-A3082601
...
22
Ice Container WPL-D3959403
...
23
Retainer WPL-C3621801
...
24
Retainer Assy WPL-A0066202
...
25
Retainer Assy WPL-A0066202
...
26
Hinge WPL-D7250104
...
27
Screw WPL-WP67006715
...
28
Screw K WPL-M0213517
...
29
Ladder WPL-C3623101
...
30
Breaker Frame WPL-D3952303
...
31
Tap Strip-Ladder WPL-A3133001
...
33
Screw A K WPL-M0211516
...
34
Strike WPL-A3079203
...
36
Screw WPL-WP98165
...
39
Pad,handle WPL-D7121101
...
40
Handle WPL-D7096001
...
41
Screw K WPL-M0207403
...
42
Escutcheon K WPL-B5633701
...
43
Butter Heater WPL-C3643501
...
45
Retainer WPL-B5632001
...
46
Support K WPL-B0530004
...
47
Egg WPL-D7025701
...
48
Door WPL-C3621901
...
49
Shim WPL-A3092101
...
50
Shim WPL-A3076402
...
51
Hinge WPL-C3622601
...
52
Screw WPL-M0244531
...
53
Inner Door Panel WPL-D7022601
...
54
Retainer WPL-D7025101
...
55
Retainer Gasket WPL-D7025102
...
56
D7092602q WPL-D7092602
...
57
Screw WPL-WP98165
...
58
Insulation WPL-B5639603
...
61
Door Closure WPL-D7022901
...
62
Screw WPL-M0214028
...
63
Door Ref W-P-Sd25g WPL-D7118345
...
64
Trim WPL-D7096101
...
66
Nameplate WPL-C3646303
...
67
Trim WPL-B0599001
...
68
Handle WPL-D7096001
...
69
Pad,handle WPL-D7121101
...
73
Trim WPL-D7096103
...
74
Vent Assy WPL-A3101901
...
75
Strike WPL-A3079203
...
76
Screw A K WPL-M0211516
...
79
Tap Strip-Ladder WPL-A3133001
...
80
Ladder WPL-C3623101
...
83
Hinge WPL-B5628903
...
84
Flat Bearing (bottom Hinge) WPL-B0539807
...
85
Retainer Assy WPL-A0066102
...
86
Support- -Cream Rh WPL-B5631706
...
87
Buttertray WPL-67004412A
...
88
Utility Door WPL-C3622101
...
89
Spring A/k WPL-A3065201
...
90
Rod A WPL-A3056205
...
91
Socket WPL-B5637601
...
92
Bulb-Light WPL-WPA3073101
...
94
Light Shield WPL-D3954208
...
95
Screw, Grommet, Ice Tray, Shel WPL-A0384902
...
96
Grommet WPL-A3066301
...
97
Slide-Mt Kpr WPL-B5622802
...
98
Escutcheon WPL-B5656701
...
99
Ladder WPL-D7103701
...
100
Socket-Light WPL-12096901
...
101
Bulb-Light WPL-WPA3073101
...
102
Light Shield WPL-D3954207
...
103
Screw WPL-WP90767
...
104
Shelf, Cantilever, Ref WPL-D7023901
...
106
Shelf, Cantilever, Meat Keeper WPL-D7024001
...
107
Top, Meat Keeper WPL-D7001102
...
108
Sleeve, Meat Keeper WPL-D7001302
...
109
Pan, Meat WPL-D3975702
...
110
Trim, Handle WPL-C3623002
...
111
Side Hc Rh WPL-D7105201
...
116
Screw, Thumb WPL-M0234529
...
118
Trim WPL-C3623001
...
120
Screw K WPL-M0228029
...
121
Crisper Pan WPL-D3951111
...
122
Gasket (per Foot) WPL-A3030313
...
123
Side Hc Lh WPL-D7105301
...
124
Air Damper Cont K WPL-C8705401
...
125
Top Assy WPL-D7022201
...
127
Escutcheon WPL-C3623501
...
131
Back Rac WPL-C3653301
...
133
Trim WPL-C3622804
...
134
Tube WPL-C3615301
...
135
Shelf Assy Kit WPL-D7102802
...
136
Trim WPL-C3623003
...
137
Glide, Basket, R.h. WPL-D3997602
...
138
Screw WPL-WP98165
...
139
Trim WPL-C3623702
...
140
Basket-Fr WPL-D7419801
...
142
Fr Shelf Cr WPL-C3623203
...
143
Basket Guide Lh WPL-D3997601
...
144
Shelf, Fz WPL-D7024202
...
145
Shelf WPL-D7024203
...
146
Trim Shelf WPL-C3622201
...
147
Screw WPL-M0219532
...
148
Rack,icetray WPL-D7035501
...
149
Tray WPL-WP841180A
...
150
Plug WPL-A0387302
...
151
Shelf, Fz Top WPL-D7024201
