Amana SCD25TL (BOM: P1190422W L)

Model: SCD25TL (BOM: P1190422W L)

Save Part Not Listed?
product name

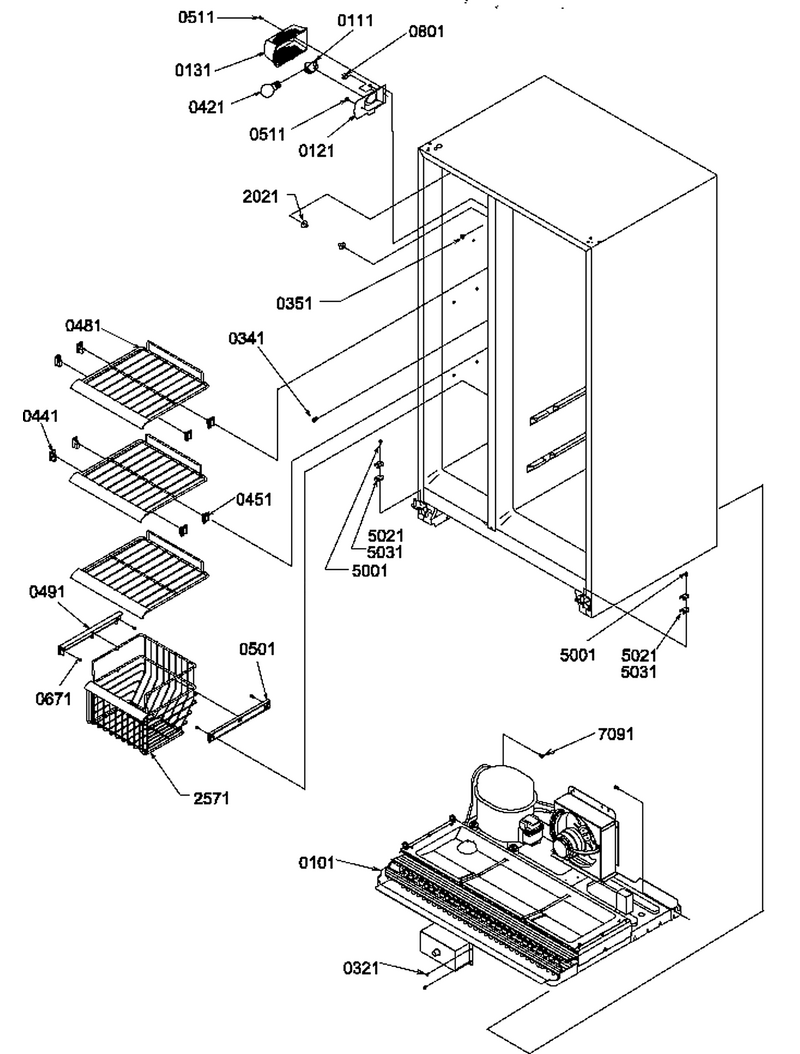

05 - Fz Shelves And Light

...
...
101
See Note Mc Assy -- (see Pages 22 & 23 For Assy Breakdown) WPL-Y00000000
...
111
Socket-Light WPL-D7714407
...
121
Plate-Light Socket WPL-D7753503
...
131
Shield, Light WPL-D7786603
...
321
Screw (3) WPL-67006425
...
341
Tie Wire WPL-WPM0322202
...
351
Grommet, Screw WPL-M0580007
...
421
Light Bulb WPL-8009
...
441
Support, Shelf (lt) WPL-12015002
...
451
Support- S WPL-WP10941102
...
481
Shelf, Stat,freezer WPL-12012604
...
491
Rail, Shelf (lt) WPL-12015102
...
501
Rail, Shelf (rt) WPL-10972802
...
511
Screw (3) WPL-67006425
...
671
Screw WPL-WP98165
...
801
Clip, Ground WPL-B5733302
...
2021
Support WPL-M0560005
...
2571
Basket, Freezer WPL-12012002
...
5001
Screw, Lock Brake Mounting WPL-M0220418
...
5021
Kit- E Bot WPL-R9800056
...
5031
Shim- Clos WPL-WP67005716
...
7091
Screw, Sm WPL-M0211357

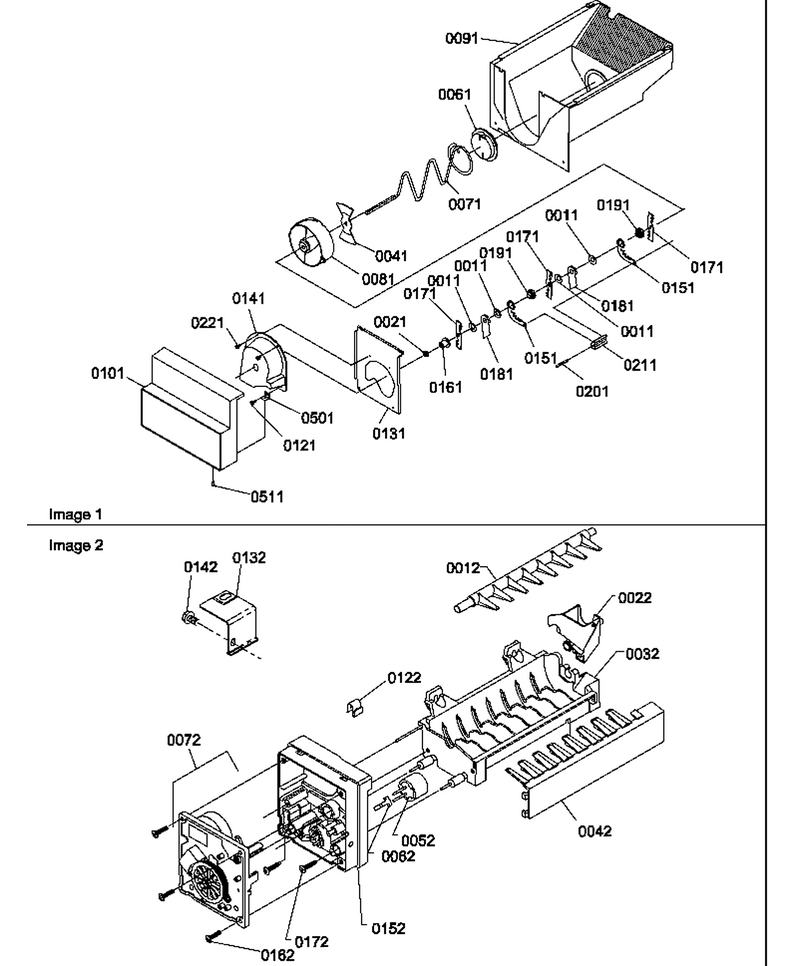

07 - Ice Bucket Auger And Ice Maker Parts

...
...
1
Crushr-Mec WPL-WP12740302
...
2
Label, Im WPL-10834701
...
11
Washer, Waved WPL-10275101
...
12
Arm-Ejectr WPL-WP627843
...
21
Nut WPL-WPM0223101
...
22
Cup-Fill WPL-WP628356
...
32
Ice Maker Assy. WPL-D7824706Q
...
41
Bar, Crsh Ice Bucket WPL-10113801
...
42
Arm-Stripr WPL-WP2182124
...
52
Bimetl-Def WPL-WP627985
...
61
Cap- Helix WPL-WPD7749401
...
62
Clip WPL-WP2315522
...
71
Agitator, Ice WPL-10114401
...
72
Motor-Modl WPL-W10190935
...
81
Wheel- Crs WPL-WP67002052
...
91
Bucket- Cr WPL-WP10111905
...
101
Front-Ci Bucket WPL-10870904
...
121
Screw WPL-M0254706
...
122
Clip WPL-WP628379
...
131
Front, Ice Crusher WPL-10115001
...
132
Bracket, I/m WPL-B8391802
...
141
Cover, Blade WPL-10114002
...
142
Screw (3) WPL-67006425
...
151
Blade, Static WPL-10114601
...
152
Housing-Im WPL-WP2195914
...
161
Spacer, Cover WPL-10113901
...
162
Screw WPL-R0186041
...
171
Blade, Rotating WPL-10114501
...
172
Screw WPL-R0186040
...
181
Damper, Ice WPL-10275201
...
191
Washer Stepped WPL-10114301
...
201
Pin, Roll WPL-M1200108
...
211
Anchor, Blade WPL-10114101
...
221
Screw, Tf WPL-M0231704
...
501
Brkt, Cover Mtg. WPL-10894901
...
511
Screw WPL-W11233072

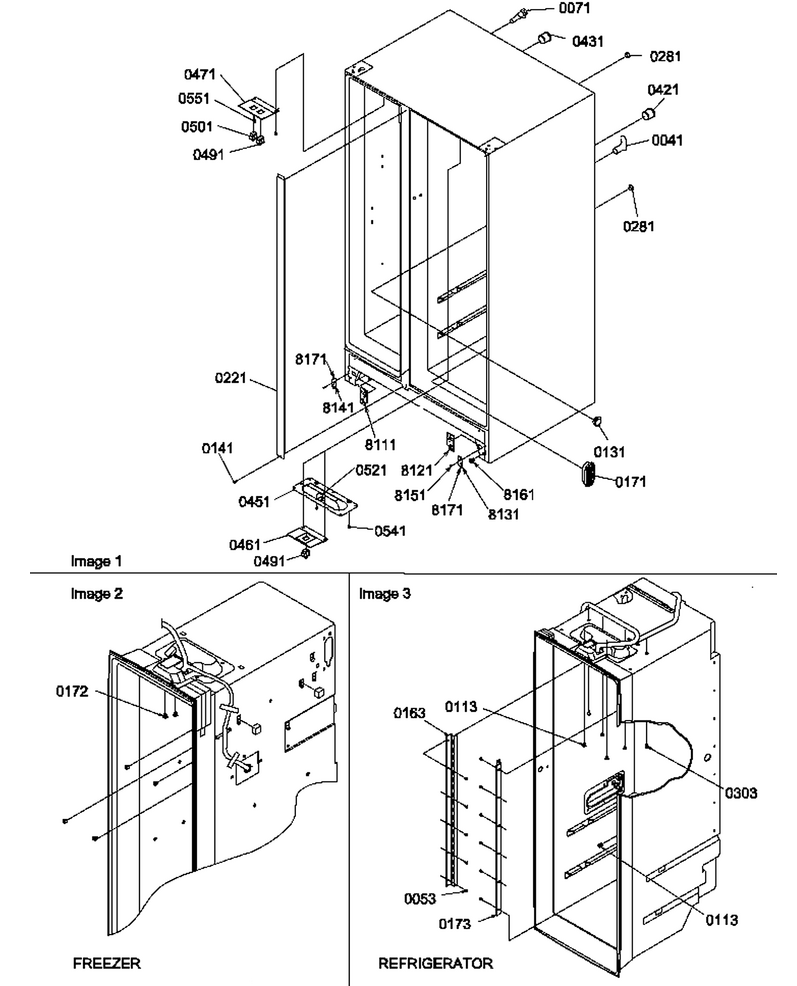

02 - Cabinet Parts

...
...
41
Tunnel, Heat Ex. WPL-C8971902
...
53
Screw WPL-WP90767
...
71
Assy, Fill Tube WPL-12023401Q
...
113
Grommet, Screw WPL-M0580007
...
131
Tunnel, Retainer WPL-10923101
...
141
Screw, Handle (black) WPL-12991101
...
163
Ladder, Cantilever WPL-D7789808
...
171
Grille-Rtn Air WPL-D7785401
...
172
Grommet, Screw WPL-M0580007
...
173
Ladder, Cantilever WPL-D7789809
...
221
See Note L Vt Mull-Pnt WPL-Y00000000
...
281
Plug, Button (blk) WPL-A3080001
...
303
Grommet, Screw WPL-M0581001
...
421
Tunnel Wire WPL-10187501
...
431
Tunnel Wire WPL-10187601
...
451
Housing-Ref Light WPL-D7716409
...
461
Cover, Light Sw WPL-D7297604
...
471
Cover Light WPL-D7749002
...
491
Switch WPL-W11384469
...
501
Switch WPL-C3680306
...
521
Clip, Ground WPL-B5733302
...
541
Screw WPL-WP90767
...
551
Screw (3) WPL-67006425
...
8111
Strip-Lh Bot Hinge WPL-12146602
...
8121
Strip-Rh Bot Hinge WPL-12146601
...
8131
Spacer, Btm Hinge WPL-12146801
...
8141
Shim-Lh Bot Hinge WPL-12146802
...
8151
Rivet, Pop (wht) WPL-B5642901
...
8161
Cam-Hinge Adj WPL-12147602
...
8171
Kit, Bot.hinge Shim WPL-10860201

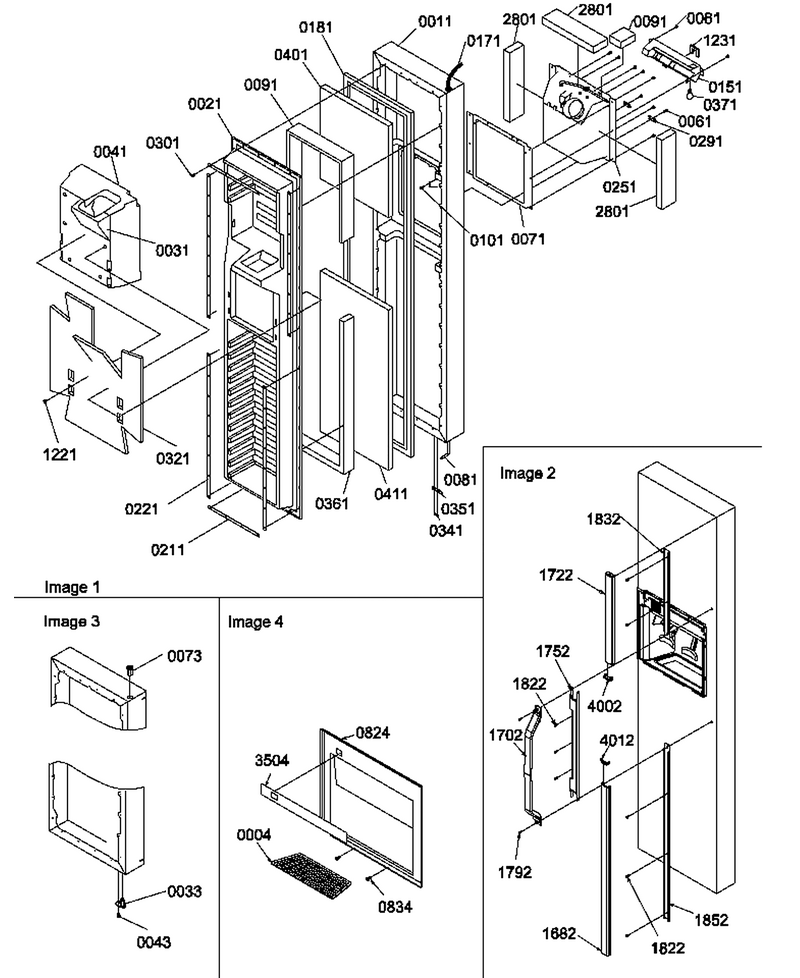

04 - Fz Door

...
...
4
Grille, Sump (satin) WPL-D7750608
...
11
Assy Frz Door Fm WPL-10881401L
...
21
Liner-I&w Fz Dr WPL-10860901
...
31
Insul, Ice Chute WPL-10895501
...
33
Kit,dr Closure WPL-R0181181
...
41
Insul., I/w Cavity WPL-10895401
...
43
Screw WPL-WP98165
...
61
Screw-Sm/hex WPL-12990523
...
71
Gasket Cavity WPL-D7791003
...
73
Bushing- D WPL-WP67004977
...
81
Tube WPL-WPB5705307
...
91
Insul. By The Ft. WPL-B0523562
...
101
Screw WPL-WP489399
...
151
Ass`y, Elec Brkt WPL-10058406
...
171
Harness-Fz Door WPL-10952104
...
181
Gasket W WPL-WP10359709Q
...
211
Retainer, Door Liner WPL-C8982801
...
221
Retainer, Door Liner WPL-D7828601
...
251
L Cavity Assy WPL-10882004Q
...
291
Clip-Facade Mtg WPL-C8973902
...
301
Screw WPL-WPM0219730
...
321
Insul, Batt WPL-10941501
...
341
Screw WPL-WP98165
...
351
Stop, L Door WPL-C8972406
...
361
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
371
Bulb-Light WPL-W10857122
...
401
Insul, Batt (ref. Door) WPL-12016901
...
411
Insul, Batt (ref. Door) WPL-12016902
...
824
Facade-L Disp. WPL-10810802
...
834
Cap-Grey Switch WPL-12043805
...
1221
Plug, Button (wht) WPL-M0311605
...
1231
Gasket, Switch WPL-10582801
...
1682
Trim, Bottom Door WPL-10810509
...
1702
Kit, Sxs Hndl (l) WPL-R0150188
...
1722
Trim-L Top Fz Dr WPL-10810309
...
1752
Trim, L Ctr I & W Dr WPL-10810602
...
1792
Kit, Screw WPL-R9800670
...
1822
Screw WPL-WP489349
...
1832
Ret-Up Fz Trim WPL-10852212
...
1852
Ret-Lw Fz Trim WPL-10852215
...
2801
Insul. By The Ft. WPL-B0523596
...
3504
Insert, Facade WPL-12188105
...
4002
Insert, Door Trim WPL-10953113
...
4012
Insert, Trim (almond) WPL-10953114

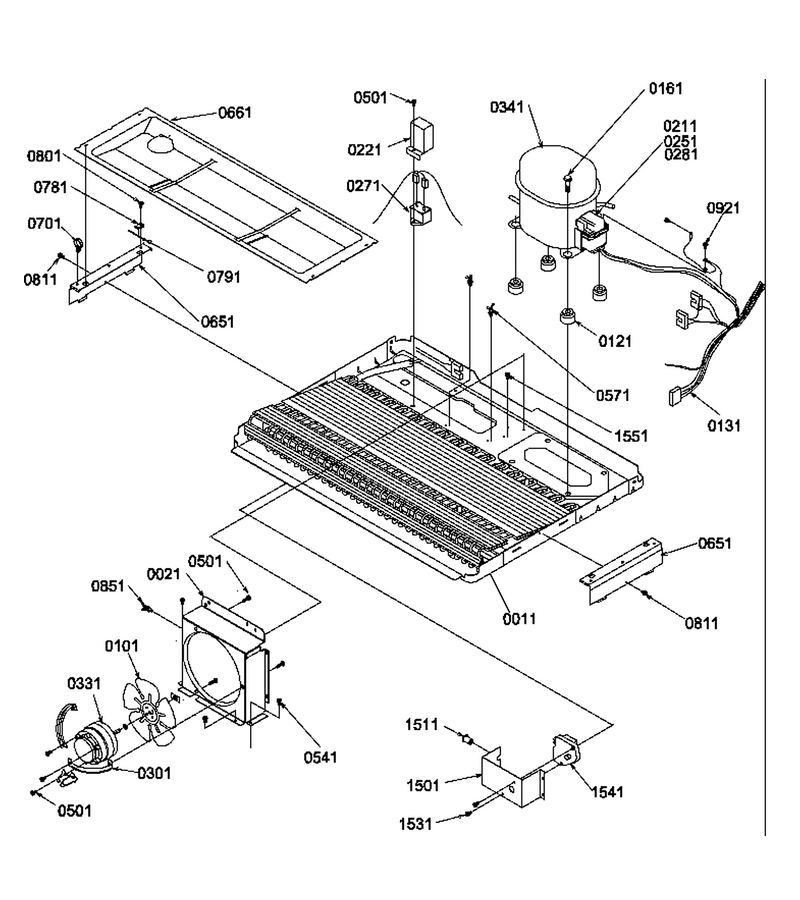

09 - Machine Compartment

...
...
11
Assy,cond/pan-E Ct WPL-10544108
...
21
Kit-Shroud WPL-R0130014
...
101
Blade, Fan WPL-10518702
...
121
Grommet, Compressor WPL-67003493
...
131
Harness, M.c. WPL-10967601
...
161
Screw, Shldr WPL-M0221523
...
211
Overload WPL-10377015
...
221
Shield, Capacitor WPL-10266402
...
251
Start-Dev WPL-WP10097202
...
271
Capacitor WPL-WP65889-4
...
281
Cover-Term WPL-4344043
...
301
Kit-Shroud WPL-R0130014
...
331
Motor-Cond WPL-833697
...
341
Compressor Kit (contains Items 12, 17, 27, & 29) WPL-W10160407
...
501
Screw WPL-M0223803
...
541
Screw WPL-WP90767
...
571
Tie, Wire WPL-M0585401
...
651
Brkt, Drain Pan Mtg. WPL-10495702
...
661
Pan, Drain WPL-10507903
...
701
Clip, Guide WPL-M0118703
...
781
Tab, Wire Tie WPL-M0585601
...
791
Tie-Wire WPL-WPW10339879
...
801
Screw, Handle WPL-67006529
...
811
Rivet-Pop WPL-59002054
...
851
Tie Wire WPL-M0585403
...
921
Screw WPL-12992301
...
1501
Bracket, Timer WPL-12534801
...
1511
Bushing-Snap WPL-A3293505
...
1531
Screw WPL-M0218118
...
1541
Timer-Def WPL-R0131577
...
1551
Screw WPL-WP489399

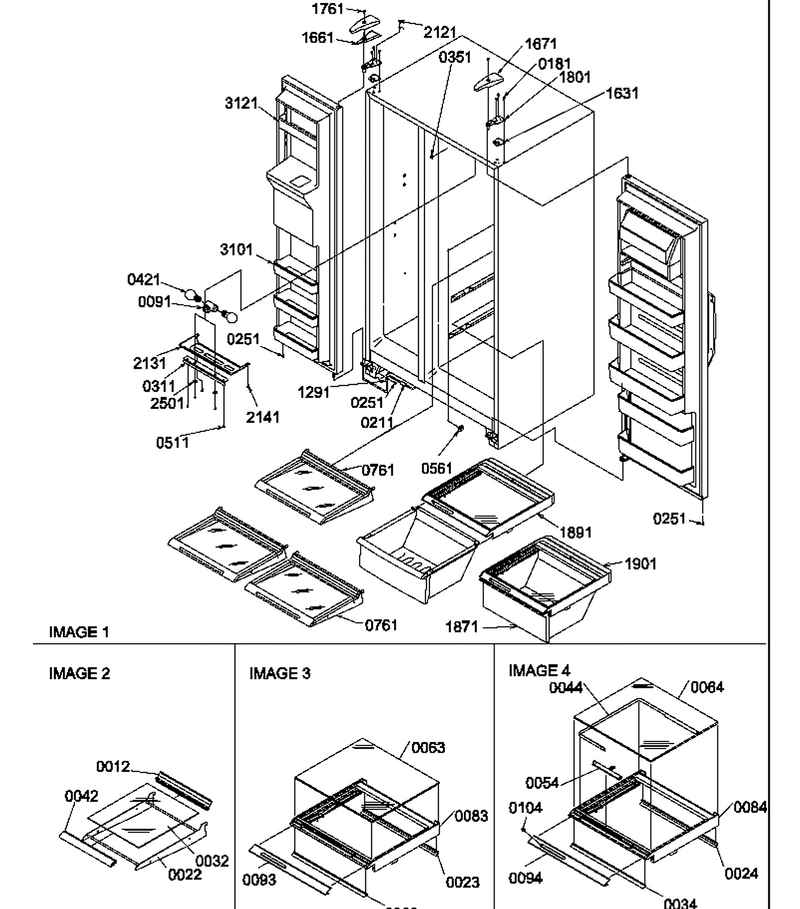

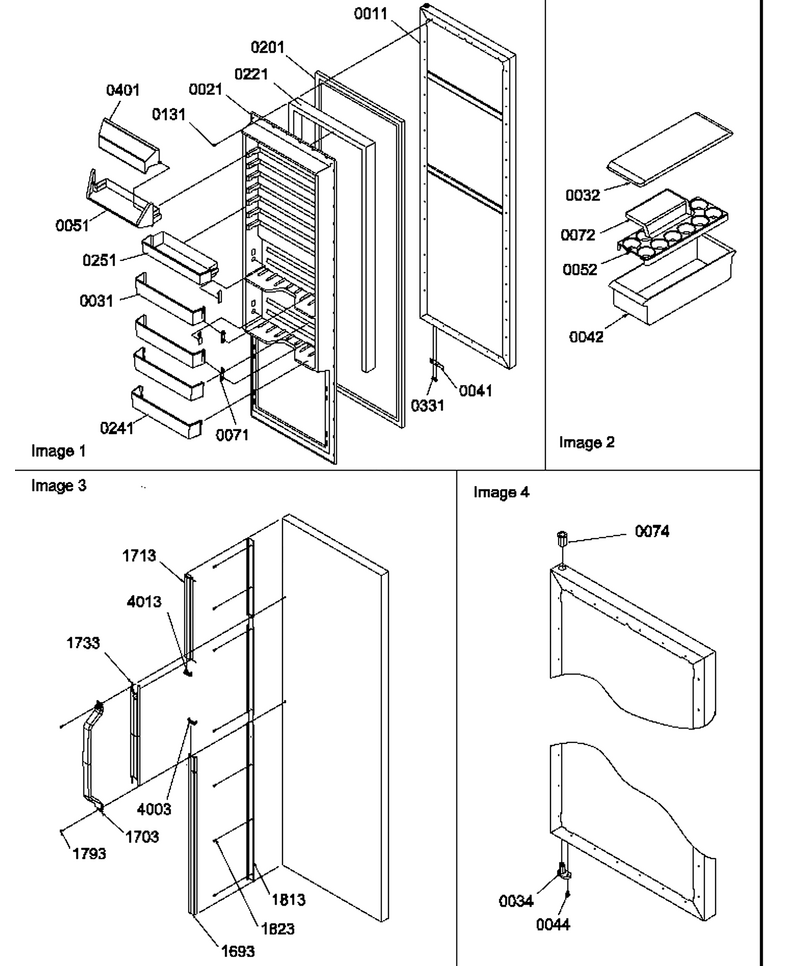

11 - Ref/fz Shelves, Lights, And Hinges

...
...
12
Extr-Rear Shelf WPL-10946006
...
22
Frame, Glass Shelf WPL-10875306
...
23
Seal, Meat Pan WPL-D7718406
...
24
Seal, Meat Pan WPL-D7718406
...
32
Glass-Shelf WPL-10370064
...
33
Seal, Crisper Front WPL-10523401
...
34
Seal, Crisper Front WPL-10523401
...
42
Extr., Shelf Frt WPL-10459910
...
44
Band, Crisper WPL-10882901
...
54
Slide WPL-D7860603
...
63
Glass Shelf WPL-10370030
...
64
Glass Shelf WPL-10370030
...
83
Frame, Crisper WPL-10469608
...
84
Frame, Crisper WPL-10469609
...
91
Socket, Dual Lamp WPL-12156201
...
93
Trim-Crisp Front WPL-10873909
...
94
Trim-Crisp Fr WPL-10873914
...
104
Knob - Crisper WPL-10038402
...
181
Screw WPL-WP489349
...
211
Fitting WPL-WP4373559
...
251
Screw WPL-WP90767
...
311
Shield, Light WPL-10014716
...
351
Grommet, Screw WPL-M0580007
...
421
Light Bulb WPL-8009
...
511
Screw (3) WPL-67006425
...
561
Deflector, Air WPL-10033201
...
761
Assy, Glass Shelf WPL-10880704Q
...
1291
Clamp, Tube WPL-M0108001
...
1631
Shim, Top Hinge WPL-B8389007
...
1661
Foil, Hinge Cover WPL-10126603
...
1671
Cover, L Hinge WPL-10504011
...
1761
Screw WPL-WP8281196
...
1801
Hinge, Top (e-Ct) WPL-12077306
...
1871
Pan, Crisper WPL-10471816
...
1891
Assy, Up Crisp Frame WPL-10883017
...
1901
Assy, Lwr Crisp Frame WPL-10883008
...
2121
Screw WPL-W11214483
...
2131
Cover, Ref. Light WPL-10493202
...
2141
Screw-Sm WPL-M0238846
...
2501
Washer WPL-M0270519
...
3101
Bucket, Frz Dr WPL-10521710
...
3121
Shelf, Frz Dr WPL-10525511

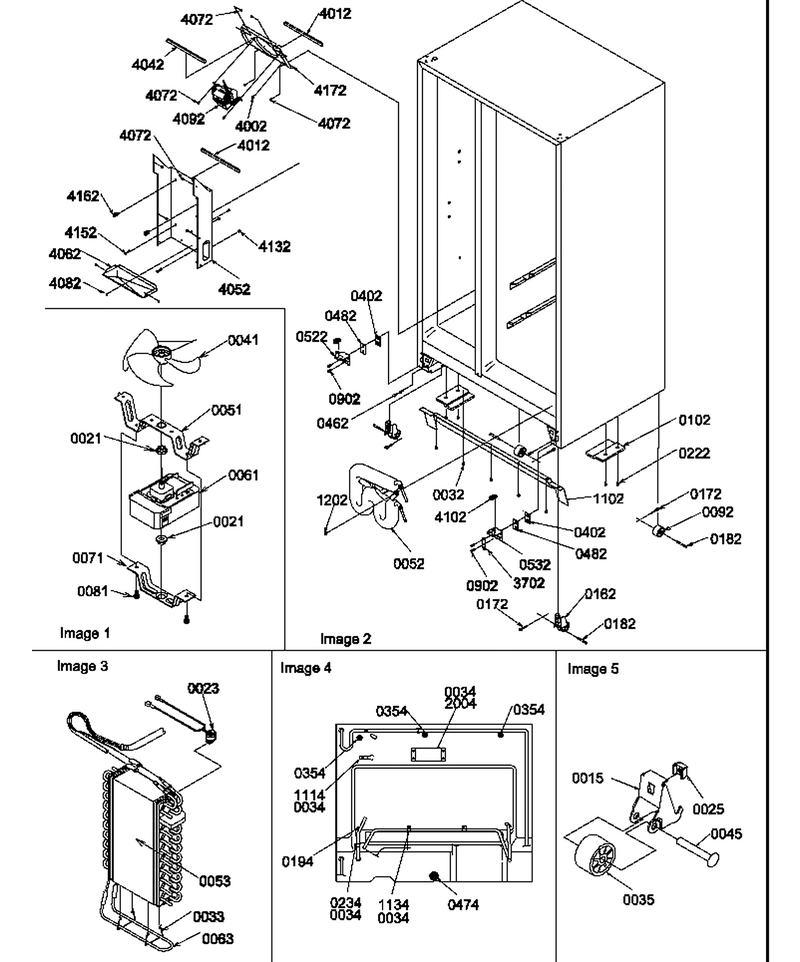

01 - Cabinet Back

...
...
202

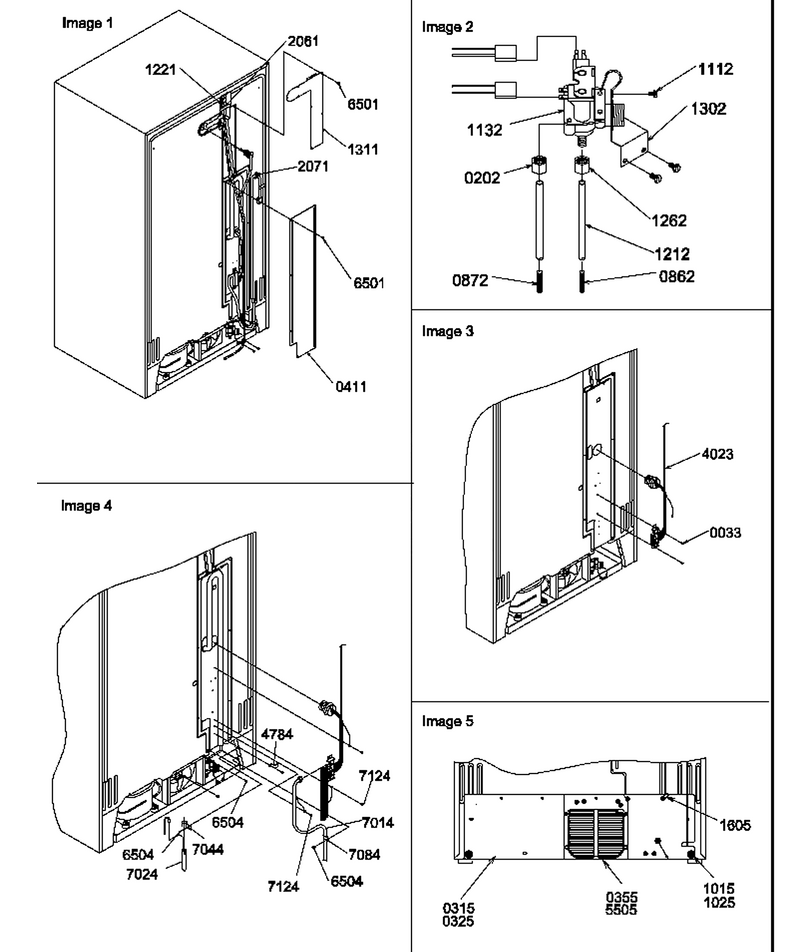

Nut, Sleeve WPL-M0753003
...
315
Assy, Mc Back WPL-12041617
...
325
Screw WPL-WP489464
...
355
Back, M.c. WPL-12039903
...
411
Cover, O.c.back WPL-10178406
...
862
Spring WPL-WPA1055105
...
872
Spring WPL-WPA1055105
...
1015
Screw WPL-WP489474
...
1025
Foot, Outer Case WPL-C8960601
...
1112
Screw, 8-32 X 3/8 WPL-681390
...
1132
Valve-Inlt WPL-WPW10245167
...
1212
Tube WPL-WPB5705307
...
1221
Clip- Spee WPL-WPM0114003
...
1262
Nut WPL-WP627018
...
1302
Brkt, Water Valve WPL-10496302
...
1311
Cover - Wire WPL-10178505
...
1605
Clamp, Tube WPL-M0108001
...
2061
Gasket (ft.) WPL-10839803
...
2071
Clip WPL-WPM0104106
...
4023
Harness, Cabinet WPL-12072601
...
4784
Clamp WPL-B5794201
...
5505
Screw, Sm WPL-M0227217
...
6501
Screw WPL-WP489069
...
6504
Screw WPL-WP489069
...
7014
Cord-Power WPL-10916505
...
7024
Drier WPL-WPB2150504
...
7044
Clip, Drier WPL-10547001
...
7084
Clamp, Speed WPL-M0103904
...
7124
Screw, Spextite WPL-M0232330

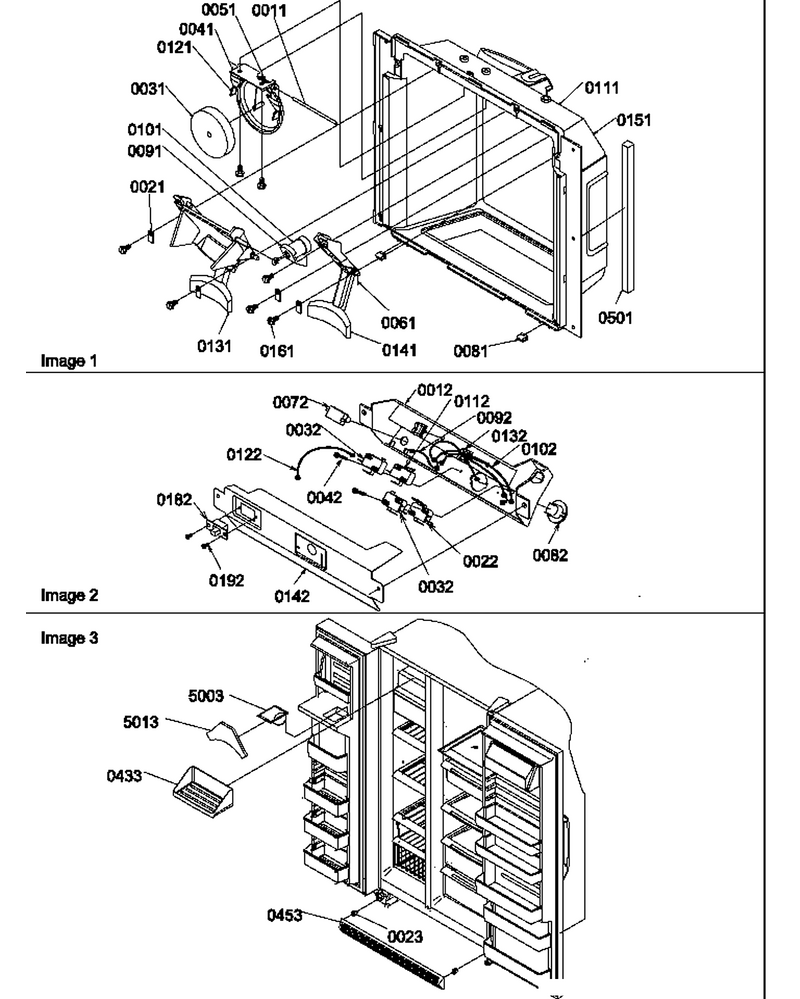

06 - Ice & Water Cav/elec Brkt/& Toe Grille

...
...
1
Kit,chute Dr No.3 WPL-R0156692
...
11
Pin, Chute Door WPL-A1061501
...
12
Bracket, Elec Mtg WPL-10323305
...
21
Retainer, Ice Arm WPL-A1061601
...
22
Switch, Limit (water Disp) WPL-10533002
...
23
Clip WPL-WPM0117303
...
31
Insulation, Chute Door WPL-B8380701
...
32
Switch- Li WPL-WP10533003
...
41
Brkt-Chute Door WPL-B8380801
...
42
Screw, T.f. WPL-M0237809
...
51
Spring,chute Door WPL-B8380901
...
61
Spring, Return WPL-B8385401
...
72
Switch-Light Cavity WPL-10166101
...
81
Clip WPL-W10819546
...
82
Socket, Light WPL-10131701
...
91
Retainer Door Delay WPL-C8972501
...
92
Wire-Jumper WPL-D7726590
...
101
Delay, Door WPL-C8973602
...
102
Wire, Jumper WPL-D7726597
...
111
Cavity, Disp (almond) WPL-10876015
...
112
Switch, Limit WPL-10533001
...
121
Kit,chute Dr No.3 WPL-10246601
...
122
Wire-Jumper WPL-D7726592
...
131
Arm-Dispsr WPL-12002642
...
132
Wire Clip WPL-B5667304
...
141
Arm, Water Actuator (stn) WPL-10164905
...
142
Cover, Electric Brkt WPL-10131808
...
151
Heater-Cavity WPL-10882105
...
161
Screw WPL-WP90767
...
182
Switch, Slide WPL-10166003
...
192
Screw WPL-M0234003
...
433
Shelf, Ice Cream WPL-10870802
...
453
Grille WPL-R0131554
...
501
Gasket WPL-A3030357
...
5003
Chute- Ice WPL-10504103
...
5013
Gasket-Ice Chute WPL-12044501

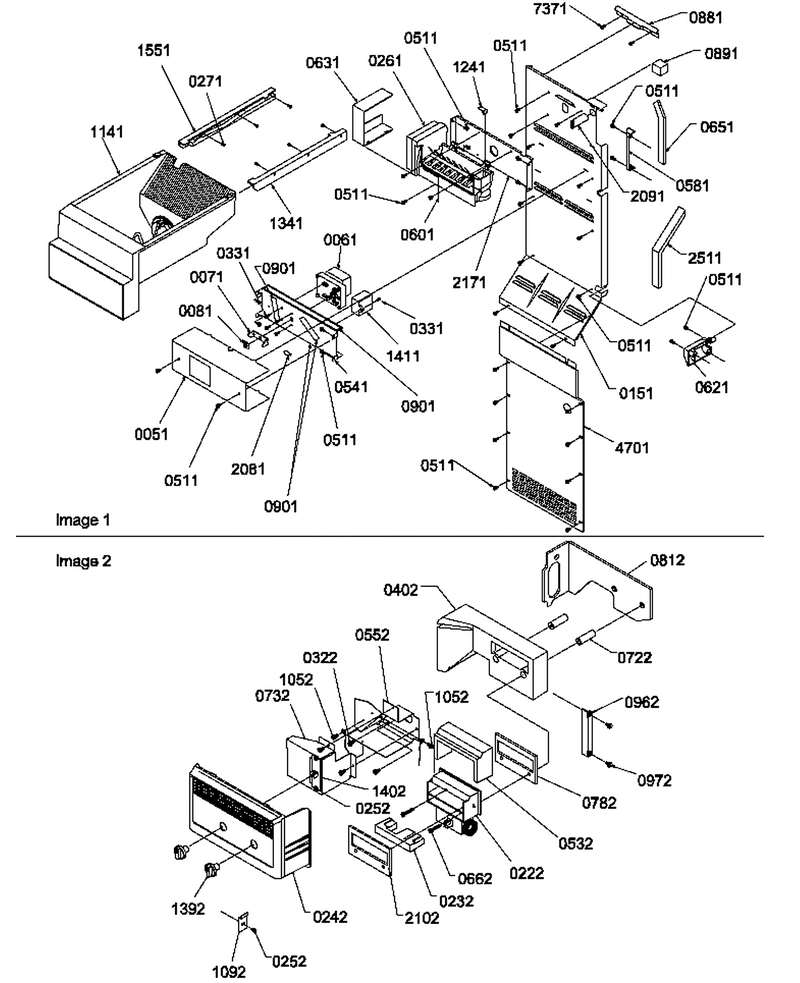

08 - Ice Maker/control Assy

...
...
51
Cover, Auger Motor WPL-D7788836
...
61
Kit, Auger Motor WPL-10114804
...
71
Coupling WPL-WP10114901
...
81
Nut WPL-WPM0223101
...
151
Back, Inner Frz WPL-D7821172
...
222
Control-Damper WPL-D7547412
...
232
Insert, Control WPL-C8902601
...
242
Cover, Control WPL-10862703
...
252
Screw WPL-WP90767
...
261
Ice Maker Assy. WPL-D7824706Q
...
271
Screw, Handle WPL-67006529
...
322
Screw (3) WPL-67006425
...
331
Screw WPL-WPW10139210
...
402
Air Duct, Waxed WPL-10176602
...
511
Screw (3) WPL-67006425
...
532
Insulation WPL-D7788201
...
541
Support,auger Motor WPL-D7749207
...
552
Box, Bottom Control WPL-D7822404
...
581
Cover, Supply Air WPL-D7838302
...
601
Arm,ice Maker Shut Off WPL-D7877001
...
621
Cover, M.k. Air WPL-D7786902
...
631
Cover Im WPL-D7820401
...
651
Gasket WPL-B8386602
...
662
Screw WPL-M0216539
...
722
Spacer Damper WPL-A3044208
...
732
Box, Control Top WPL-D7868606
...
782
Gasket, Damper WPL-B8345401
...
812
Gasket, Air Duct WPL-10177901
...
881
Clamp WPL-C8976201
...
891
Gasket, Air Block WPL-C8976102
...
901
Gasket-Per Ft WPL-A3030305
...
962
Clamp WPL-C8977301
...
972
Screw WPL-WP489474
...
1052
Screw WPL-WP489399
...
1092
Brkt, Cont Cover WPL-12414701
...
1141
See Note Crsh Ice Bkt Assy -- (see Pages 26 & 27 For Assy Breakdown) WPL-Y00000000
...
1241
Clip WPL-B5720301
...
1341
Glide, Frz. (rt) WPL-67004323
...
1392
Knob, Control (wht) WPL-D7795826
...
1402
Assy, Control-Fz WPL-R0161092
...
1411
Start-Dev WPL-W10613606
...
1551
Glide, Container (left) WPL-67005375
...
2081
Lock, Purse WPL-74007369
...
2091
Ext. Fill Tube WPL-A3127414
...
2102
Gasket, Damper WPL-10383201
...
2171
Support-Im WPL-D7821004
...
2511
Gasket Foam WPL-A3189335
...
4701
Evap Cover- E Ct WPL-10655902
...
7371
Screw (3) WPL-67006425

03 - Drain System, Rollers, & Evaporater Assy

...
...
15
Assy, Roller Bracket WPL-12452602Q
...
21
Grommet WPL-WP2264462
...
23
Thermostat WPL-R0161088
...
25
Nut, Speed WPL-M0286708
...
32
Screw WPL-WP489069
...
33
Clip WPL-W11673433
...
34
Screw WPL-WP489069
...
35
Roller WPL-WP10450603
...
41
Blade-Fan WPL-R0000199
...
45
Rivet WPL-M1205302
...
51
Brkt-Mtr Mt/up WPL-10656102
...
52
Reservoir WPL-R0181175
...
53
Assy,low Side(sxs 22) WPL-R0170055
...
61
Motor-Evap WPL-WP10513803
...
63
Heater- Ev WPL-WP12049801
...
71
Bracket WPL-WP10909401
...
81
Screw WPL-WP90767
...
92
Roller WPL-WP10450603
...
102
Support, Mach Comp. WPL-10508001
...
162
Assy, Roller Bracket WPL-12452602Q
...
172
Cotter Pin K WPL-M1200004
...
182
Pin K WPL-M1200202
...
194
Tube, Drain WPL-10505101
...
222
Screw WPL-WP3400094
...
234
Clamp WPL-M0102303
...
354
Plug, Button (blk) WPL-A3080001
...
402
Kit,btm Hinge Shim WPL-10399501
...
462
Screw, Mach WPL-M0206313
...
474
Plug, Button WPL-A3076901
...
482
Kit,btm Hinge Shim WPL-10399502
...
522
Kit,hinge Lh Btm(b) WPL-10496104
...
532
Kit,hinge Rh Btm(b) WPL-10496105
...
902
Screw WPL-WP67006715
...
1102
Baffle, M.c. Air WPL-10508107
...
1114
Clip, Wire WPL-M0585206
...
1134
Clamp, Tube WPL-M0108001
...
1202
Screw WPL-WP98165
...
2004
Brkt, Defrost Timer WPL-10876901
...
3702
Brkt-Adj Hinge WPL-12146901
...
4002
Screw WPL-WP489399
...
4012
Gasket WPL-B8386608
...
4042
Gasket (1=1ft.) WPL-10839713
...
4052
Shield, Evap WPL-10893803
...
4062
Drip Tray Pnt. WPL-D7850202
...
4072
Screw WPL-WP90767
...
4082
Rivet WPL-10098801
...
4092
See Note Evap Fn Mtr Assy -- (see Image 1 For Assy Breakdown) WPL-Y00000000
...
4102
Kit,dr Closure WPL-R0181181
...
4132
Grommet A WPL-M0580002
...
4152
Clip, Evap WPL-10527401
...
4162
Clip, Evaporator WPL-10623003
...
4172
Evap Fan Shroud WPL-10890202

10 - Ref Door And Accessories

...
...
11
Ass`y, Ref Door(almond) Btm WPL-10881301L
...
21
Liner-Ref Dr WPL-10866101
...
31
Bin-Cntlvr WPL-WP10520405
...
32
Lid, Utility WPL-10436404
...
34
Kit,dr Closure WPL-R0181181
...
41
Stop, L Door WPL-C8972406
...
42
Container WPL-WP10423131
...
44
Screw WPL-WP98165
...
51
Shelf, Dairy WPL-12083301
...
52
Tray, Egg WPL-10436505
...
71
Clip, Retainer WPL-10202001
...
72
Tray, Butter WPL-10310901
...
74
Bushing, Door (wht) WPL-10393802
...
131
Screw WPL-WPM0219730
...
201
Gasket-Dr WPL-WP10359708Q
...
221
Insulation Ft. K WPL-B0523563
...
241
Shelf- Doo WPL-67003701
...
251
Bucket-Ref WPL-12083408
...
331
Screw WPL-WP98165
...
401
Door, Dairy WPL-10527307
...
1693
Trim, Bot Ref Dr L WPL-10810510
...
1703
Kit, Sxs Hndl (l) WPL-R0150188
...
1713
Trim-L Top Ref Dr WPL-10810310
...
1733
Trim, L Ctr Door WPL-10810402
...
1793
Kit, Screw WPL-R9800670
...
1813
Retainer-Ref Trim WPL-10852214
...
1823
Screw WPL-WP489349
...
4003
Insert, Door Trim WPL-10953113
...
4013
Insert, Trim (almond) WPL-10953114
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
