Amana SBP26ZZW (BOM: P1142376N W)

Model: SBP26ZZW (BOM: P1142376N W)

Save Part Not Listed?
product name

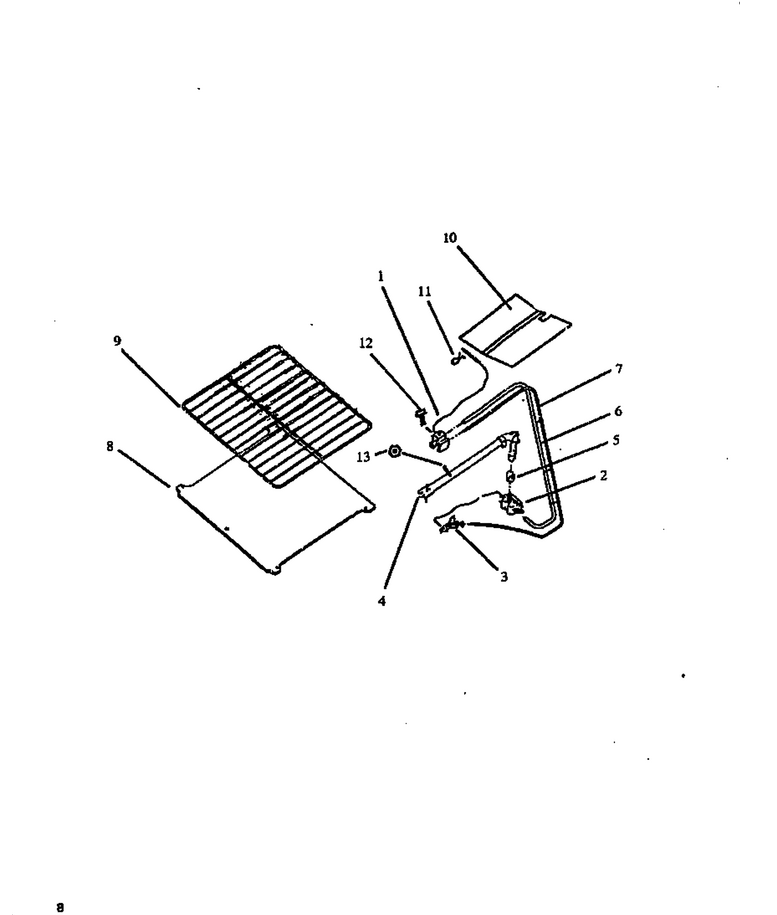

03 - Page 3

...
...
1
Thermostat WPL-R0711030
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Standing) WPL-Y07697200
...
4
Oven Burner WPL-0311865
...
5
See Note Air Shutter -- (Part Of Oven Burner) WPL-Y00000000
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Bottom, Oven (Enamel) WPL-311822E
...
9
Rack, Oven, 30`` WPL-Y07671200
...
10
Spreader, Flame W/o Notch WPL-0311821
...
11
Clip, Capillary WPL-0310802
...
12
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
13
Nut WPL-M0282009

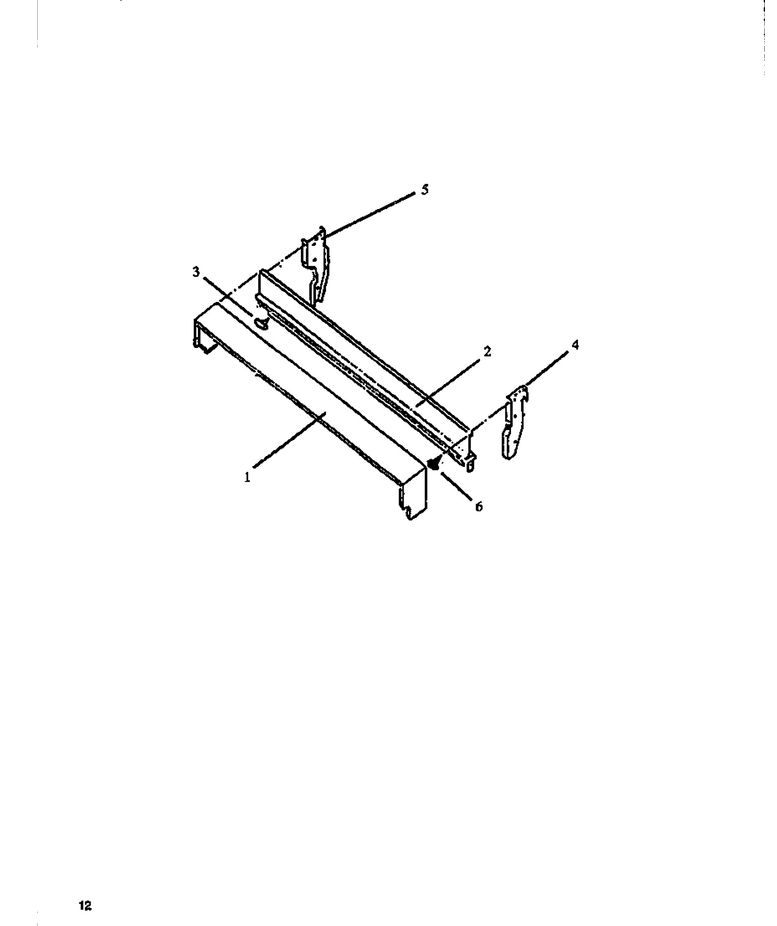

05 - Page 5

...
...
1
Wrapper, Backguard Vinyl WPL-0312061
...
2
Backguard Metal Panel WPL-R0708232
...
3
Screw WPL-0310240
...
4
Support, Bkgd. (Low, Rh) {j} WPL-0310812
...
5
Support, Bkgd. (Low, Lh) {j} WPL-0310811
...
6
Screw No.10 X 5/16 WPL-0310234

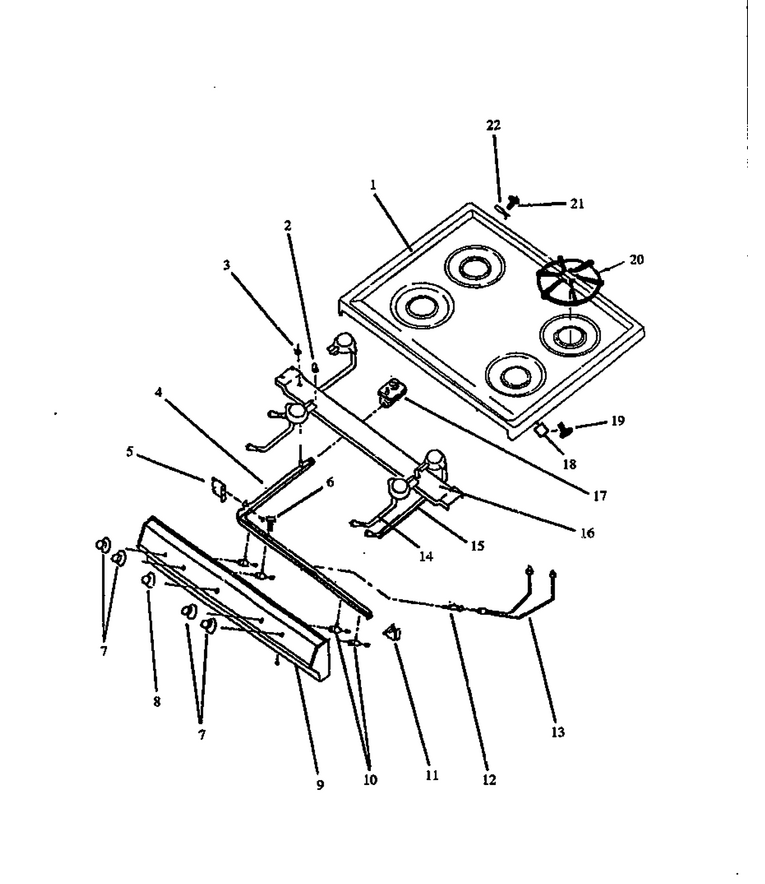

02 - Page 2

...
...
1
Main Top, White WPL-057241W
...
2
Pilot Tip (J) WPL-0057313
...
3
Square Nut {j} WPL-0088650
...
4
Manifold Pipe WPL-0057336
...
5
Support, Manifold, L.h. {j} WPL-0086725
...
6
Screw WPL-W10491986
...
7
Knob, Gas Valve WPL-0057333
...
8
Knob, Thermostat W/o Broil WPL-07612502
...
9
Panel, Manifold WPL-07700902
...
10
Valve, Top Burner WPL-Y0057338
...
11
Support Bracket, Rh Manifold { WPL-0057340
...
12
Filter WPL-0088789
...
13
Tubing, Top Burner Pilot WPL-31827501
...
14
Burner - Top Frt (Glwd) WPL-Y07698800
...
15
Burner - Top Rear (Glwd) WPL-Y07698900
...
16
Burner Support WPL-Y0312239
...
17
Pressure Regulator WPL-77001246
...
18
Stud, Locating - Nylon WPL-0311086
...
19
Screw WPL-Y0312844
...
20
Grate, 7`` Round Burner WPL-Y07540300
...
21
Screw, Stud WPL-31750709
...
22
Nut, Speed, Flat WPL-Y0310032

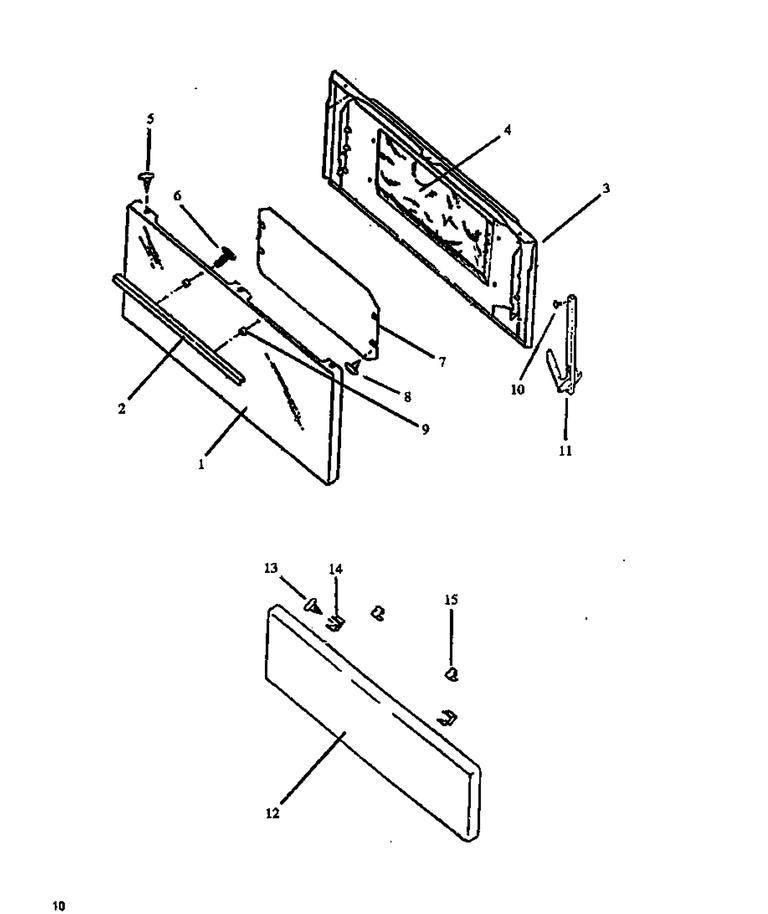

04 - Page 4

...
...
1
Panel, Oven Door WPL-Y06480503L
...
2
Handle, Oven Door WPL-Y07498610W
...
3
Backer, Oven Door WPL-06540900
...
4
Insulation, Wrapper WPL-31975801
...
5
Screw No.10 X 1/2`` WPL-Y0310804
...
6
Screw, Door Handle WPL-Y0311884
...
7
Baffle, Oven Door WPL-06511801
...
8
Screw No.10 WPL-07596600
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
10
Screw (J) WPL-0310233
...
11
Hinge, Oven Door WPL-Y07489700
...
12
Panel, Fixed (White) WPL-Y06539000W
...
13
Screw WPL-WP7101P126-60
...
14
Clip, Bracket WPL-Y06538700
...
15
Spring Clip WPL-Y0088664

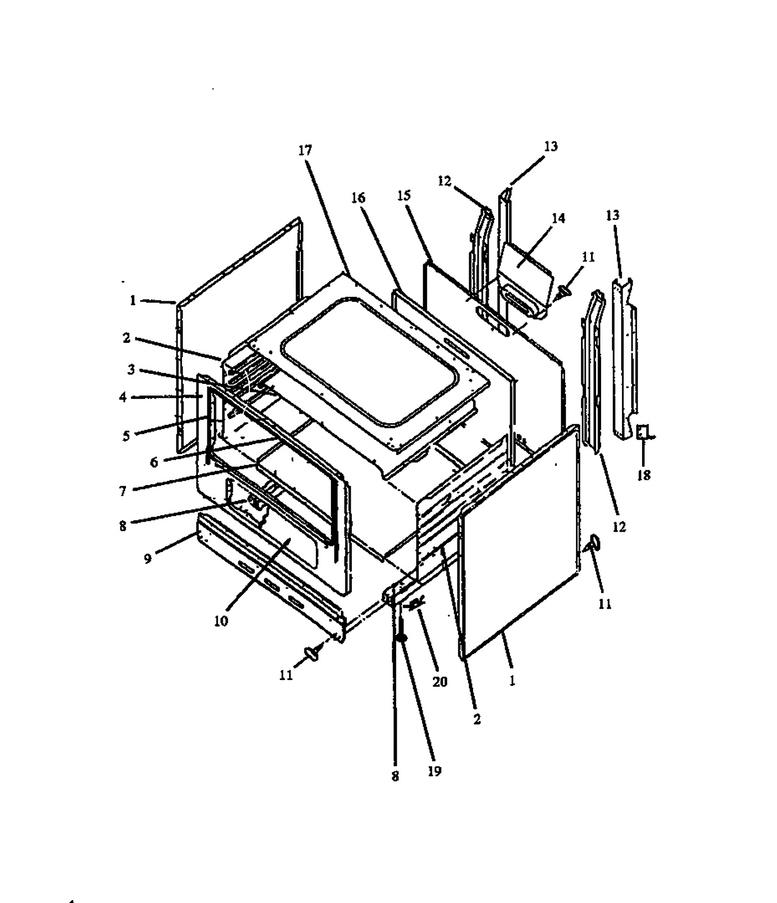

01 - Page 1

...
...
1
Panel,body Side (Al) WPL-313762L
...
2
Liner,oven Side WPL-0311807
...
3
Liner, Oven Top - Porcelain WPL-88885CG
...
4
Main Front WPL-88018CG
...
5
Seal, Oven-Sides WPL-Y0056090
...
6
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
7
Baffle, Base (30``gas) WPL-Y0311051
...
8
Rail, Base WPL-06554900
...
9
Panel, Toe 30`` (Galv) WPL-Y06451603
...
10
Shield, Broiler WPL-Y06554000
...
11
Screw WPL-W10856125
...
12
Vertical Sup. (J) WPL-0052742
...
13
Support, Rear, Vertical {j} WPL-0056477
...
14
Flue Box WPL-0310821
...
15
Pnl, Main Back Gas 30`` WPL-Y01392002
...
16
Liner, Oven Back WPL-88889CG
...
17
Box, Burner WPL-Y06547100
...
18
Kit, Anti-Tip WPL-07687600
...
19
Leg, Leveling WPL-Y0062362
...
20
Snap-In Tee Nut WPL-Y0088571
