Amana SBP22AA0PU (BOM: SBP22AA0P U)

Model: SBP22AA0PU (BOM: SBP22AA0P U)

Save Part Not Listed?
product name

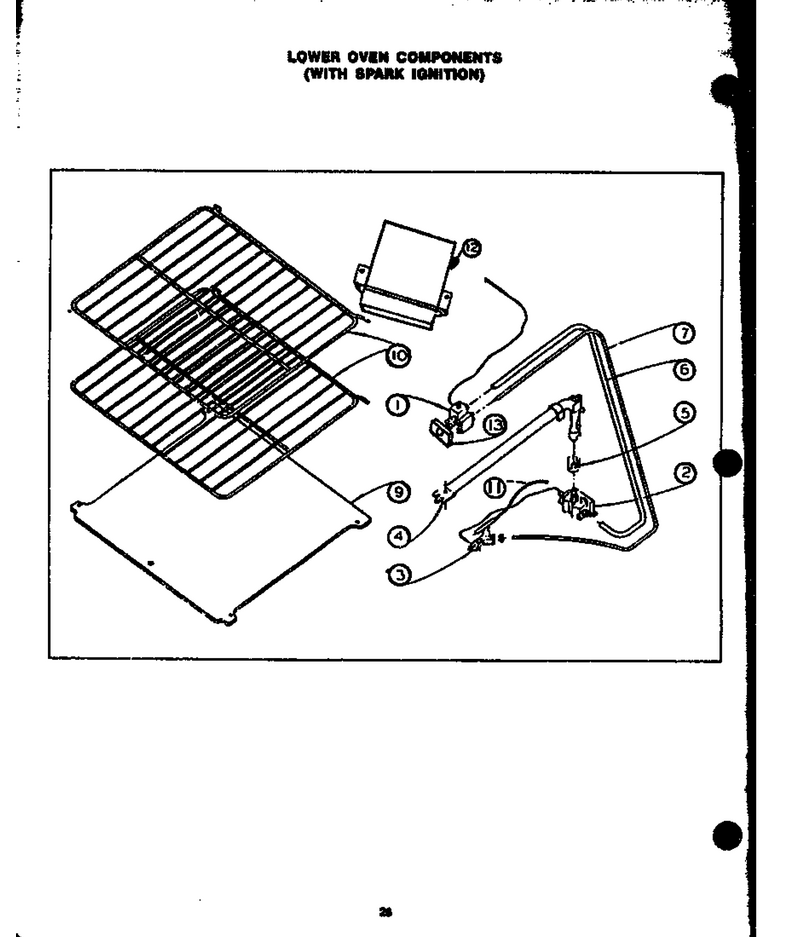

04 - Lower Oven Components

...
...
5
See Note Air Shutter -- (Part Of Burner) WPL-Y00000000
...
11
Igniter-Spark Oven WPL-Y0086776

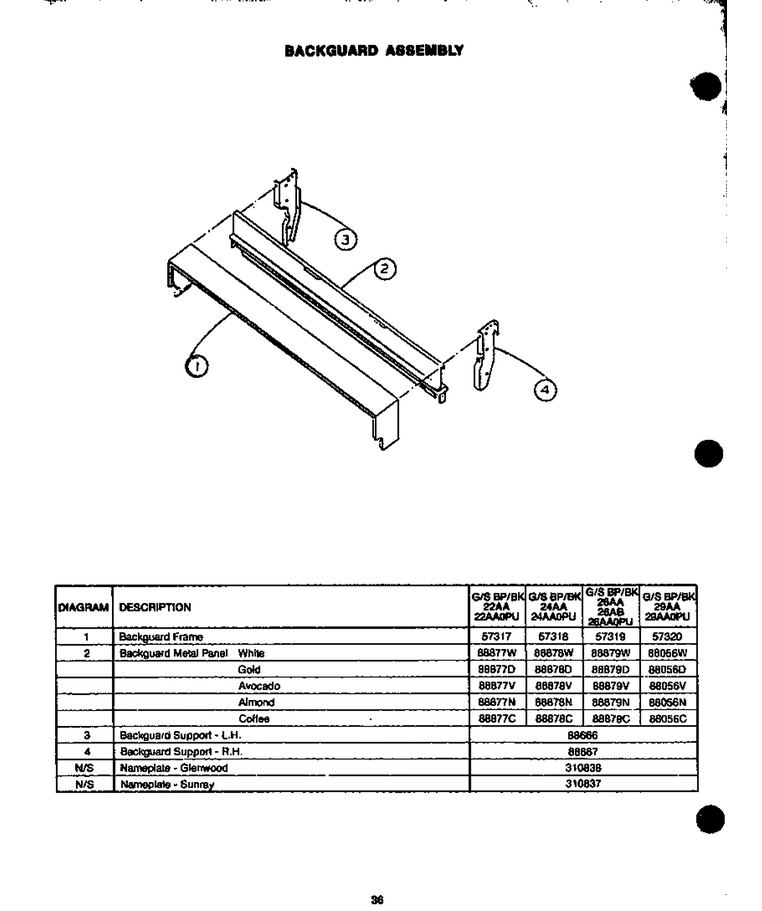

01 - Backguard Assy

...
...
NI
Nameplate, Glenwood WPL-0310838
...
1
Backguard Frame WPL-0057317
...
2
Background Metal Panel Almond WPL-88877N
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667

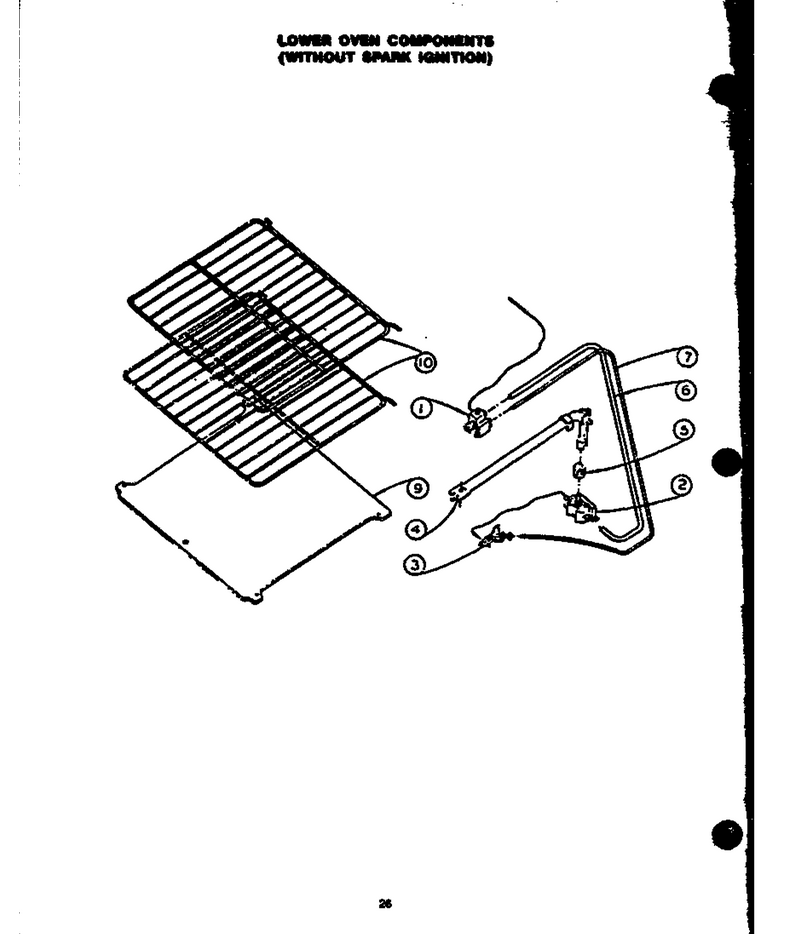

03 - Lower Oven Components

...
...
1
Thermostat WPL-R0711030
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Standing) WPL-Y07697200
...
4
Oven Burner WPL-0056137
...
5
See Note Air Shutler -- (Part Of Burner) WPL-Y00000000
...
6
Sub 90761, Tubing WPL-0088801
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
9
Kit, Oven Bottom-20`` WPL-88544CG
...
10
Oven Rack WPL-55840

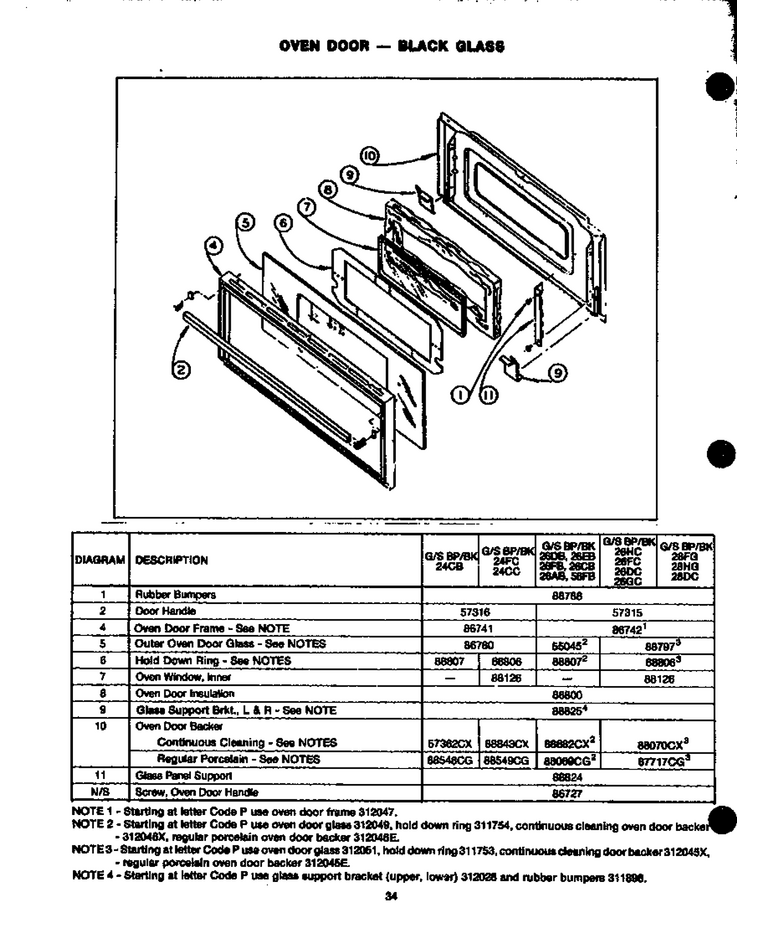

05 - Oven Door - Blackglass

...
...
4
Oven Door Frame WPL-86742

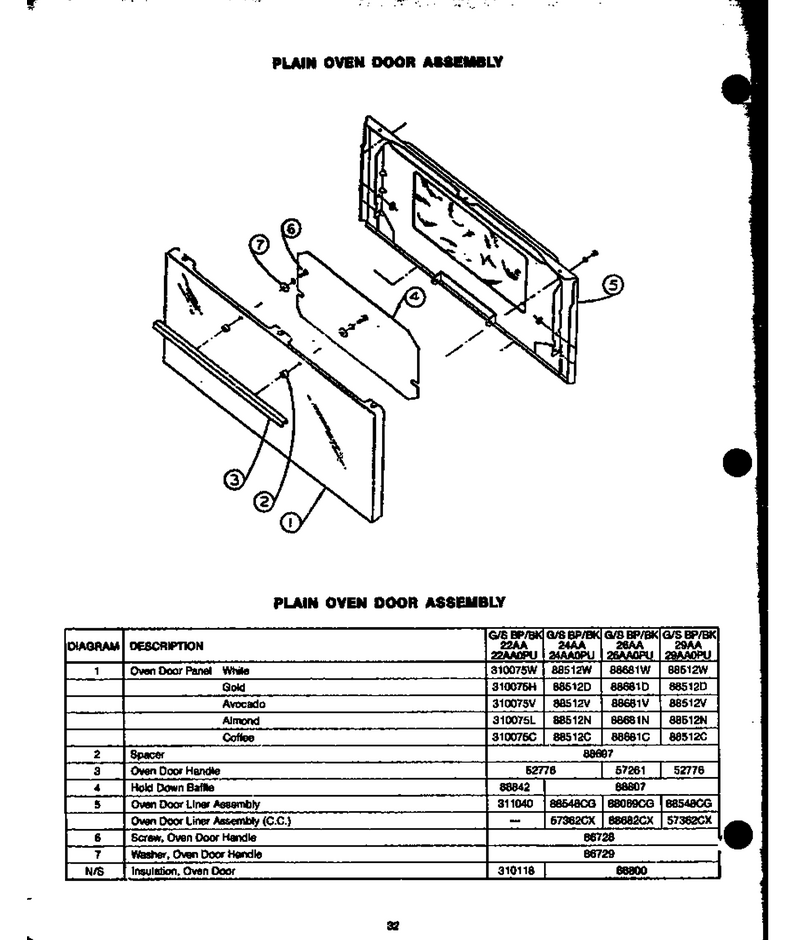

07 - Plain Oven Door Assy

...
...
NI
Insulation (J) WPL-Y0310118
...
1
Door Panel WPL-310075L
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
4
Baffle, Hold Down WPL-0088842
...
5
Sub 54680cg, Oven Door Backer WPL-0311040
...
6
Screw WPL-707407
...
7
Washer, Steel (1/4 X 9/16) WPL-Y0086729

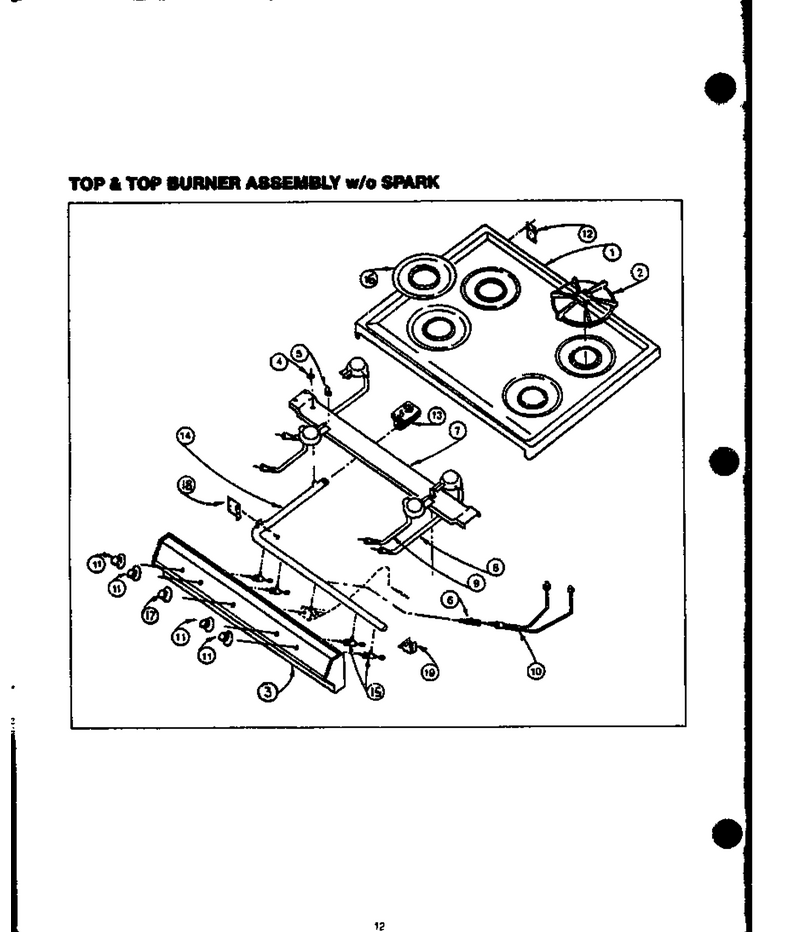

08 - Top & Top Burner Assy W/o Spark

...
...
NI
Spacer, Manifold WPL-0310219
...
1
Main Top Almond WPL-57239L
...
2
Assy,wiring Harness-Ho WPL-57311
...
3
Panel, Manifold (Gas 20) WPL-Y07622001A
...
4
Square Nut {j} WPL-0088650
...
5
Assy,wiring Harness-Ba WPL-57313
...
6
See Note Filter Part Of Pilot Harness WPL-Y00000000
...
7
Support, Top Burner WPL-311022E
...
8
Burner - Top Rear (Glwd) WPL-Y0057358
...
9
Assy,control Panel WPL-57343
...
10
Pilot Harness (J) WPL-0088578
...
11
Knob- Top WPL-Y07628200
...
12
Hinge, Main Top WPL-0088782
...
13
Pressure Regulator WPL-77001246
...
14
Manifold Pipe WPL-Y0057334
...
15
Valve- 180 WPL-Y07596200
...
17
Knob, T-Stat (Gasr WPL-Y0310525
...
18
Cover, Crisper WPL-0056991
...
19
Support Bracket, Rh Manifold { WPL-0057340

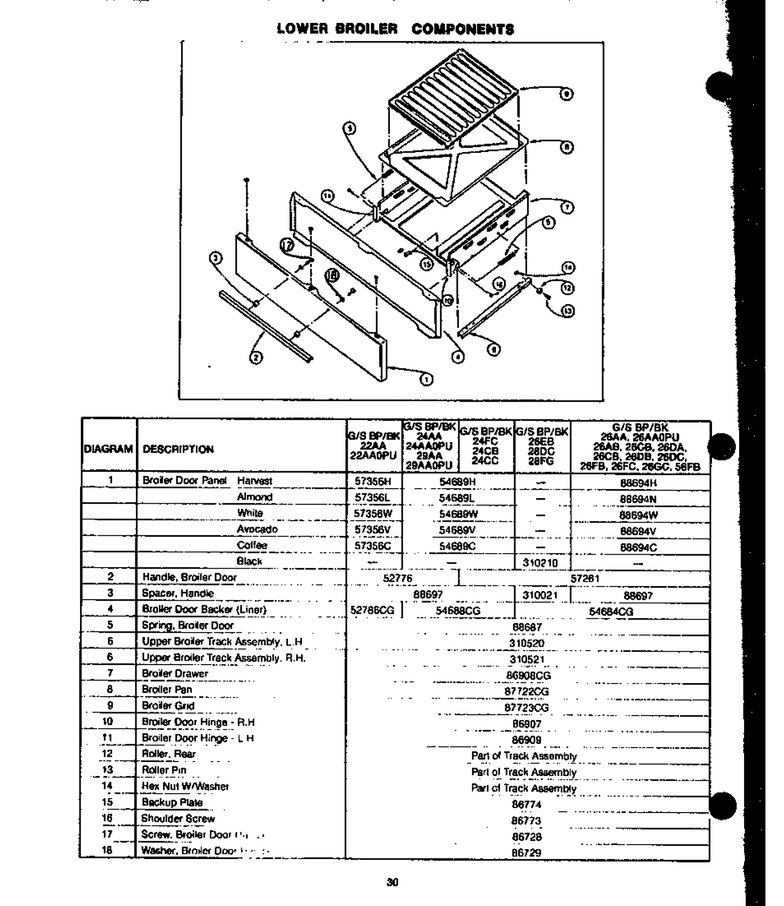

02 - Lower Broiler Components

...
...
1
Broiler Door Panel Harvest WPL-57356H
...
2
Handle, Oven Door (J) WPL-Y0052776
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Liner Broiler Door WPL-52786CG
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Track, Upper Rt (Gas) WPL-Y06478001
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Hinge, Broiler Door Rh (J) WPL-0086907
...
11
Hinge, Broiler Door Lh (J) WPL-Y0086909
...
12
See Note Roller, Rear -- (Part Of Track Assembly) WPL-Y00000000
...
13
See Note Roller Pin -- (Part Of Track Assembly) WPL-Y00000000
...
14
See Note Hex Nut W/washer -- (Part Of Track Assembly) WPL-Y00000000
...
15
Plate, Broiler Hinge {j} WPL-Y0086774
...
16
Screw, Shoulder (J) WPL-Y0086773
...
17
Screw WPL-707407
...
18
Washer, Steel (1/4 X 9/16) WPL-Y0086729

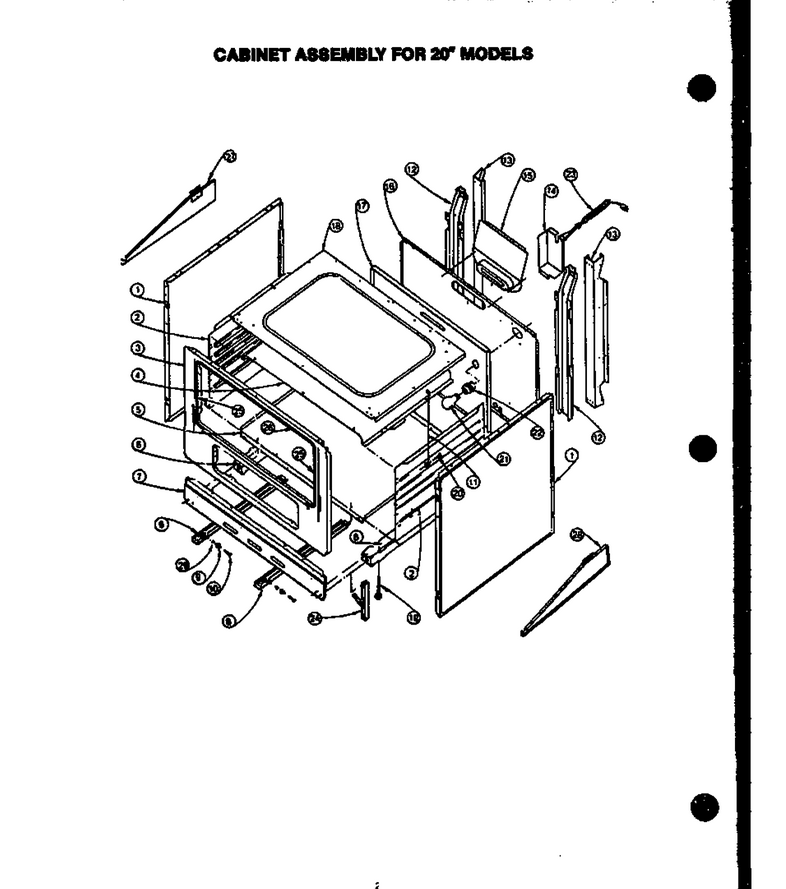

06 - Page 1

...
...
NI
Snap-In Tee Nut WPL-Y0088571
...
1
Panel,body Side (Al) WPL-311003N
...
2
Oven Side Lnrsreg Porcln Start WPL-312028L
...
4
Oven Top Liner - Continuous Cl WPL-57206CX
...
5
Bottom Baffle WPL-Y0311049
...
6
Rail, Base WPL-0088654
...
7
Panel Base Toe WPL-Y0054694
...
8
Track, Lower L.h. WPL-0310522
...
9
See Note Roller -- (Part Of Track Assembly) WPL-Y00000000
...
10
See Note Roller Pin, Front, Part Of Track Assembly WPL-Y00000000
...
11
Support Rod WPL-0087023
...
12
Vertical Sup. (J) WPL-0052742
...
13
Support, Rear, Vertical {j} WPL-0056477
...
14
See Note Wire Cover WPL-Y00000000
...
15
Flue Box WPL-0088718
...
16
Main Back WPL-Y0311045
...
17
Oven Bank Liner - Regular Porc WPL-57208CG
...
18
Burner Box Bottom WPL-Y0086951
...
19
Assy,wiring Harness WPL-62362
...
20
Shoulder Screw WPL-0088779
...
21
See Note Oven Light Bulb WPL-Y00000000
...
22
See Note Oven Light Socket WPL-Y00000000
...
24
Gasket WPL-54679
...
25
Strap, Seal WPL-56090P
...
26
Seal, Oven Door-Top WPL-Y0056494
...
27
See Note Burner Box Side, L.h. WPL-Y00000000
...
28
See Note Burner Box Side, R.h. WPL-Y00000000
...
29
See Note Roller Retaining Ring -- (Part Track Assembly) WPL-Y00000000
