Amana SBK29FA0 (BOM: P1142789N W)

Model: SBK29FA0 (BOM: P1142789N W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

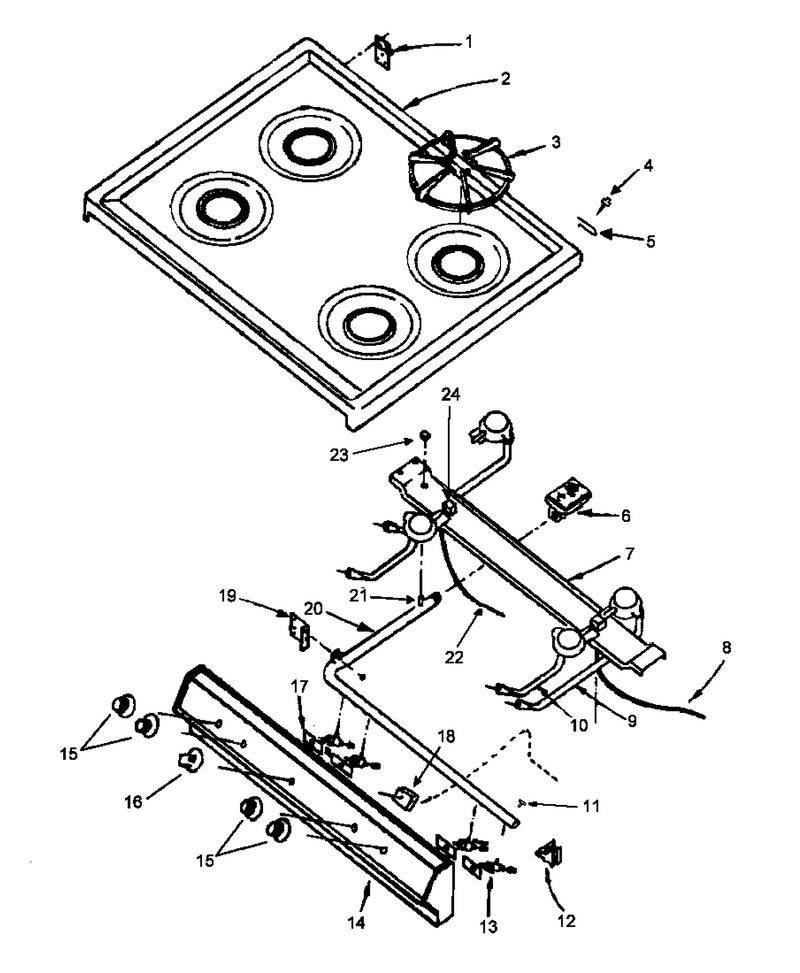

07 - Top Burner Assy

...
...
NI
Switch- Ov WPL-Y07625800
...
2
Main Top White WPL-06460905W
...
3
Grate, 7`` Round Burner WPL-Y07540300
...
4
Screw, Stud WPL-31750709
...
5
Nut, Speed, Flat WPL-Y0310032
...
6
Pressure Regulator WPL-77001246
...
8
Ignitor- G WPL-Y07491203
...
9
Burner - Top Rear (Glwd) WPL-Y07698900
...
10
Burner - Top Rear (Glwd) WPL-Y07698900
...
11
Screw WPL-W10491986
...
12
See Note Brkt-Mnfd Pipe,sq WPL-Y00000000
...
13
Valve, Top Burner WPL-Y0057338
...
14
Panel,manifold(Gas 36) WPL-07622004A
...
15
Knob, Top Burner WPL-Y0311080
...
16
Knob, T-Stat (Gasr WPL-Y0310525
...
17
Swtch-Ignr WPL-WP878009
...
18
Swtch-Ignr WPL-WP4157180
...
20
Pipe, Manifold (Gas 36) WPL-07594503F
...
21
Ignitor- G WPL-Y07491203
...
22
Square Nut {j} WPL-0088650
...
23
Ignitor, Ground Strap WPL-Y0312158

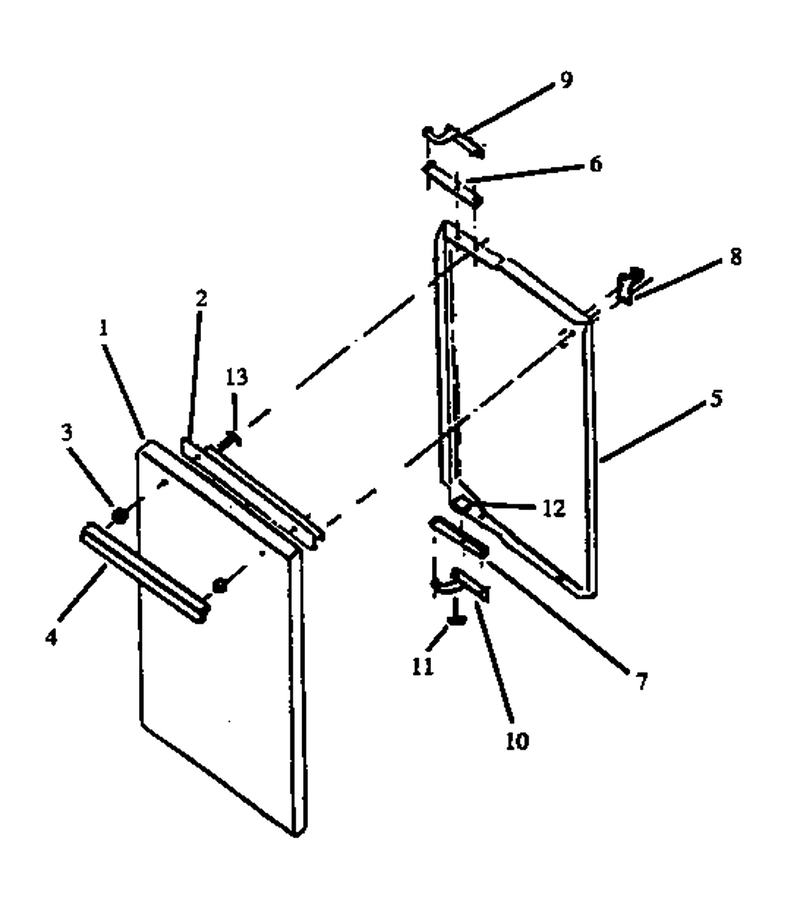

04 - Cabinet Door Assy

...
...
NI
Screw WPL-WP7101P126-60
...
1
Panel, Cabinet Door (White) WPL-313755W
...
2
Brkt, Support Dr Hndl WPL-Y05230001
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Handle, Oven Door (J) WPL-Y0052776
...
5
Liner, Door WPL-06546905
...
6
Hinge Arm, Top WPL-0088078
...
7
Hinge Arm, Bottom WPL-0088077
...
8
Catch WPL-0310014
...
9
Hinge, Top WPL-0088075
...
10
Hinge, Bottom WPL-0088074
...
11
Screw WPL-07496400
...
12
Nut-Sqr WPL-0310242
...
13
Screw WPL-WP7101P126-60

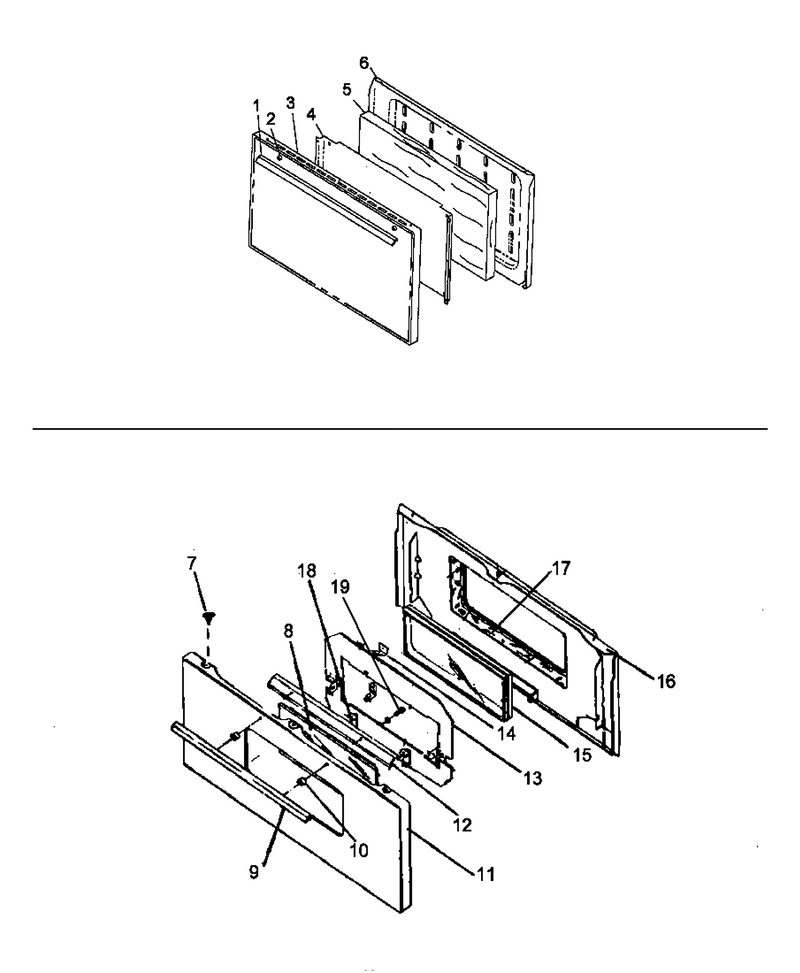

06 - Oven Door Assy

...
...
NI
Brkt, Support Dr Hndl WPL-Y05230001
...
7
Screw No.10 X 1/2`` WPL-Y0310804
...
8
Glass-Window,ov Dr WPL-Y03024402
...
9
Oven Door Handle, 18`` WPL-Y0088812
...
10
Handle Spacer, Plastic (J) WPL-Y0310818
...
11
Panel-Ov Dr,w/win,24`` WPL-Y06487211W
...
12
Shield, Heat WPL-Y06517500
...
13
Baffle Door Backer WPL-0312824
...
14
Bracket, Window Sup WPL-Y06512101
...
15
Window, Oven Door (2) Pane WPL-Y07729700
...
16
Screw, Door Handle WPL-Y0311884
...
17
Insulation Oven Door WPL-Y0312833
...
18
Bracket, Window Sup WPL-Y06546401
...
19
Backer, Oven Door WPL-06490300E

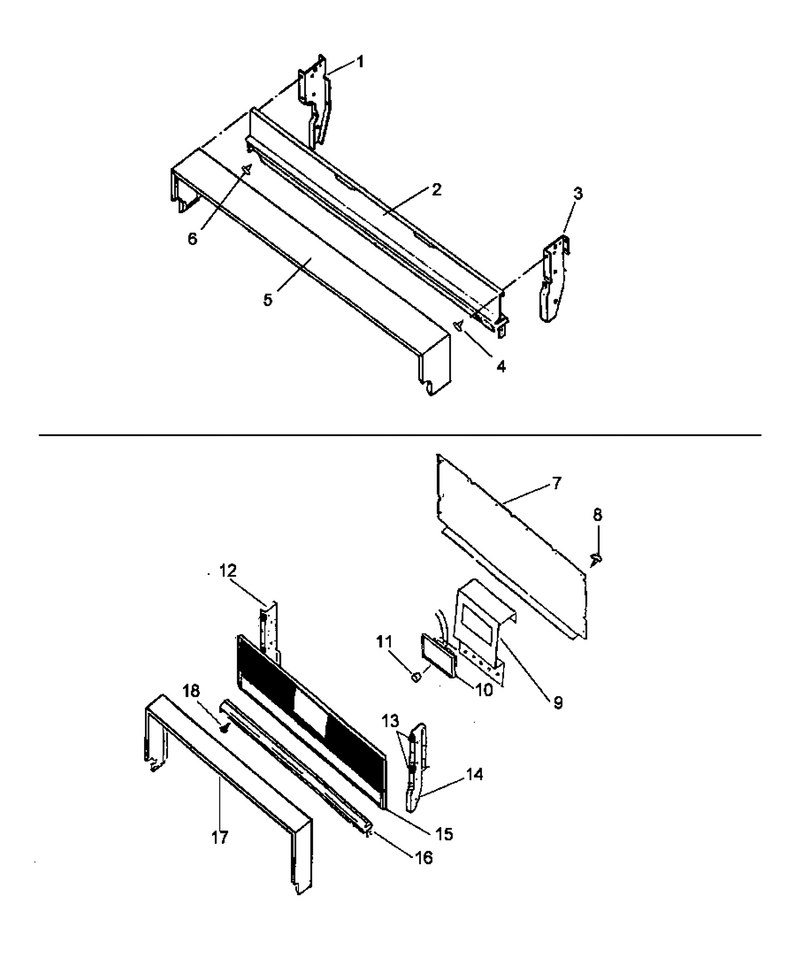

01 - Backguard Assy

...
...
NI
Screw No.10 X 5/16 WPL-0310234
...
6
Screw WPL-0310240
...
7
Wire Cover, 8`` WPL-Y0310450
...
8
Screw No.10 X 5/16 WPL-0310234
...
9
Clock Bracket WPL-Y0311034
...
10
X Clock WPL-0310441
...
11
Knob- Cloc WPL-Y07715600
...
12
Backguard Support-L.h. WPL-Y0311039
...
13
Bumper-Rubber 1/4`` WPL-Y02068200
...
14
Backguard Support-Rh WPL-Y0311038
...
15
Glass, Backguard, 8`` WPL-Y0310506
...
16
Base-Bkgd,36``w/holes WPL-Y02332026B
...
17
Frame, Backguard 8`` WPL-Y0310470
...
18
Screw-No.10x9/16 Decr,bl WPL-Y01001303

02 - Broiler Door Assy

...
...
NI
Screw No.10 X 1/2`` WPL-Y0310804
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Pan, Broiler WPL-87722CG
...
3
Drawer, Broiler WPL-86908CG
...
4
Support,body Carriage WPL-06522100
...
5
Glide-Drwr WPL-W10709871
...
6
Hinge, Black WPL-Y0313773
...
7
Track, Lower R.h. WPL-Y0313761
...
8
Oven Door Handle, 18`` WPL-Y0088812
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
10
Panel, Broiler Door, 24`` WPL-Y06487610W
...
11
Liner, Broiler Drawer WPL-54688CG
...
12
Brkt, Spring & Rod WPL-Y06520700
...
13
Rod, Push-Broiler WPL-Y07685300
...
14
Spring, Broiler Door WPL-Y07691101
...
15
Spring Clip WPL-Y0088664

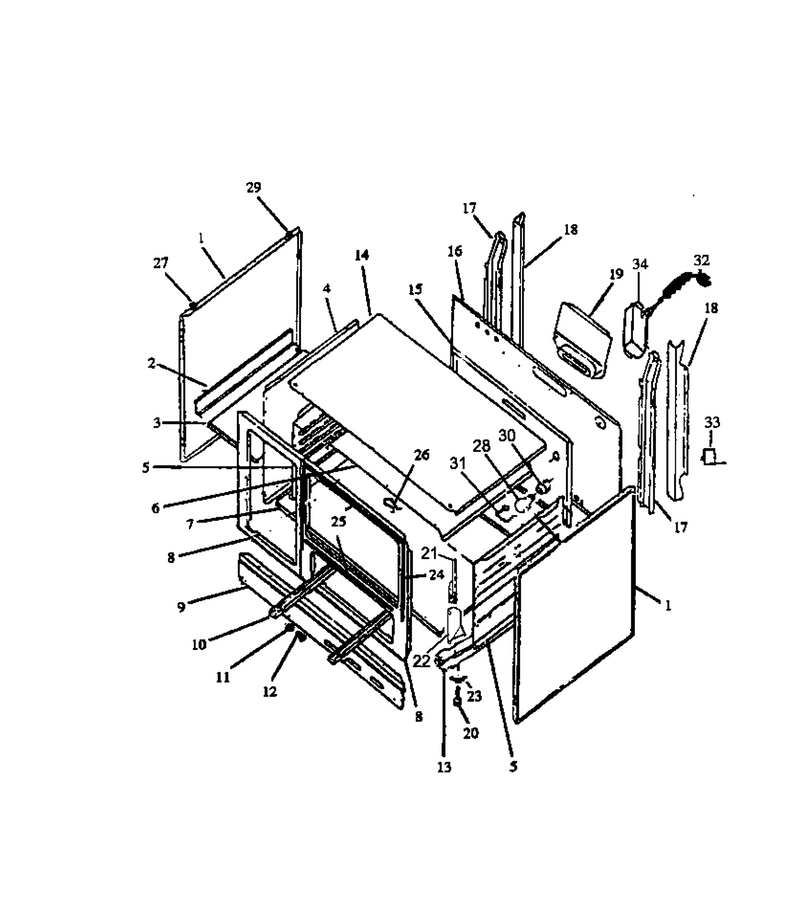

03 - Cabinet Assy

...
...
NI
Clamp, Speed WPL-Y0310113
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Support, Shelf WPL-Y0088076
...
3
Shelf, Cabinet 36`` WPL-Y05117001
...
4
Radiation Shield, Broiler WPL-0310816
...
5
Liner,oven Side WPL-0311807
...
6
Liner, Oven Top WPL-88546CG
...
7
Bfl, Base 36`` WPL-Y06467200
...
8
Frame, Main Front 24`` WPL-Y06473101E
...
9
Panel, Toe 36`` (Black) WPL-Y06451701
...
10
Track, Lower L.h. WPL-Y0313760
...
11
Roller WPL-Y0311545
...
12
Pin, Broiler Roller WPL-04007001
...
13
Rail, Base WPL-06555001
...
14
Burner Box, Bottom WPL-01693007
...
15
Back, Oven 24`` ( Cg) WPL-Y03381001E
...
16
Back, Main Gas WPL-Y01393004
...
17
Vertical Sup. (J) WPL-0052742
...
18
Support, Rear, Vertical {j} WPL-0056477
...
19
Flue Box WPL-0088718
...
20
Leveler WPL-W11117769
...
21
Hinge, Oven Door WPL-Y07489700
...
22
Shield, Insulation {j} WPL-0310053
...
23
Snap-In Tee Nut WPL-Y0088571
...
24
Seal, Oven-Sides WPL-Y0056090
...
25
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
26
Clip, Capillary WPL-0310802
...
27
Screw, Stud WPL-31750709
...
28
Light Bulb WPL-8009
...
29
Bumper, Oven Door WPL-Y0063661
...
30
Socket, Oven Light WPL-Y0316385
...
31
Cage-Light,ov WPL-Y008635
...
32
Cord Set (J) WPL-0088884
...
34
Wire Cover WPL-0088662

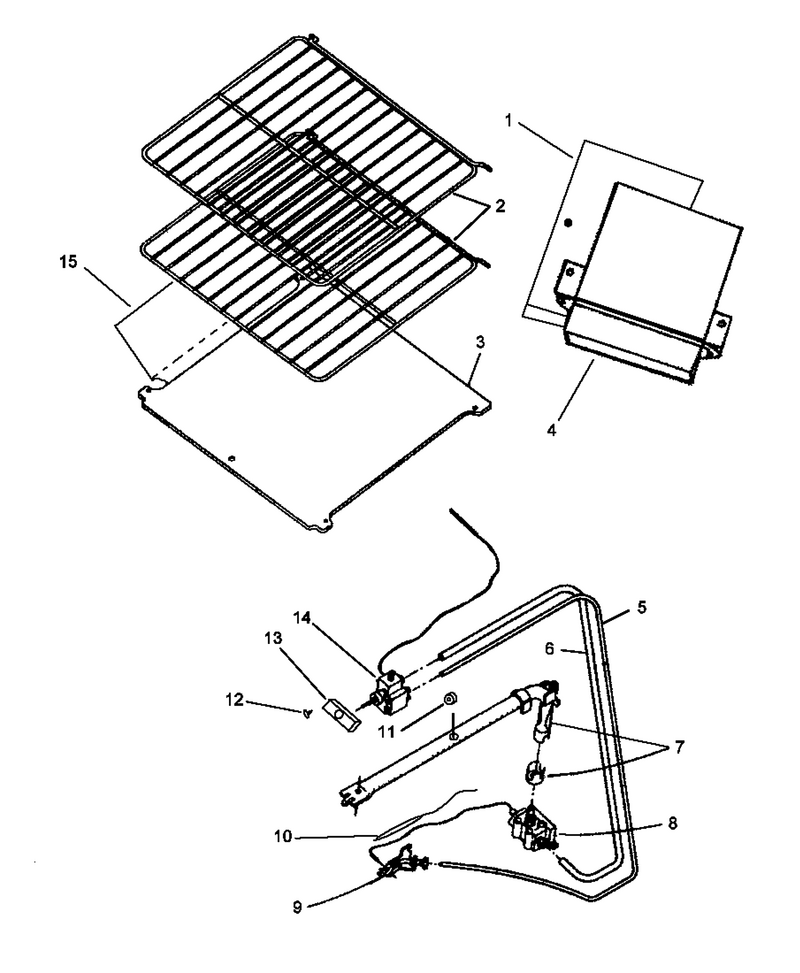

05 - Oven Componets

...
...
1
Plate, Spark Module WPL-Y0087725
...
2
Oven Rack, 24`` WPL-Y0312235
...
3
Bottom, Oven (Enamel) WPL-06554402E
...
4
Module, 2+1 Spark WPL-Y07725000
...
5
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
6
Tubing, Oven Brnr WPL-Y03014001
...
7
Oven Burner WPL-0311865
...
8
Valve, Safety WPL-4157094
...
9
Pilot, Oven Burner (Spark) WPL-Y07697300
...
10
Igniter-Spark Oven WPL-Y0086776
...
11
Nut WPL-M0282009
...
13
Swtch-Ignr WPL-WP878009
...
14
Therm-Ov,spark WPL-Y0057349
...
15
Spreader, Flame W/o Notch WPL-06497102
