Amana SBK26FX0 (BOM: P1143154N W)

Model: SBK26FX0 (BOM: P1143154N W)

Save Part Not Listed?
product name

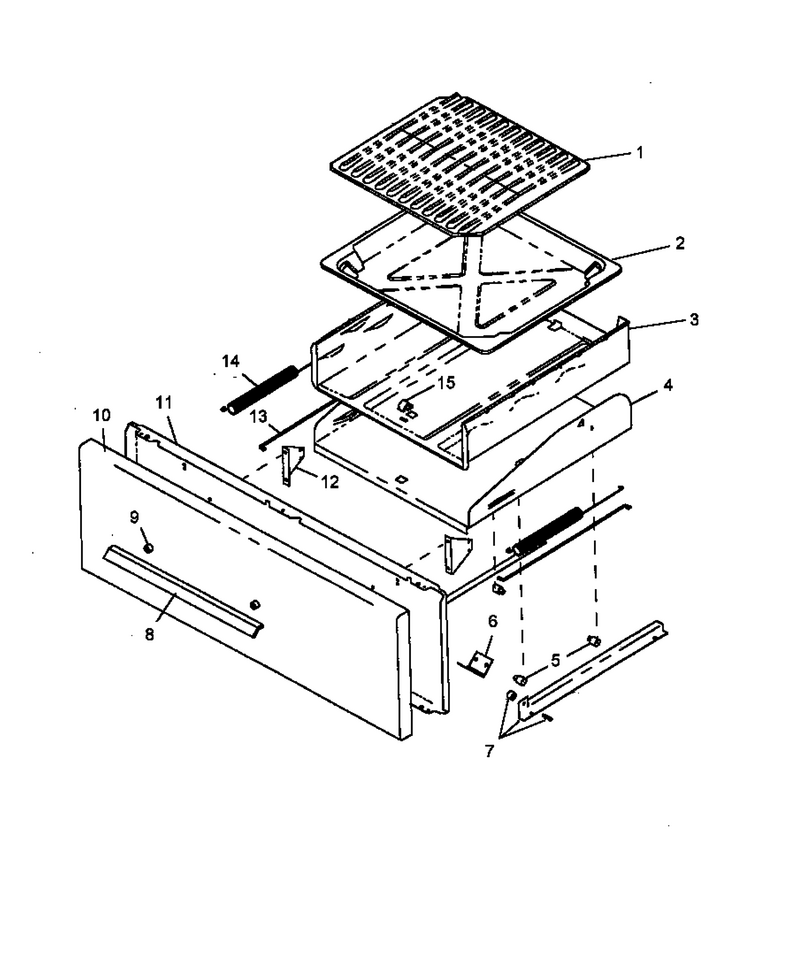

02 - Broiler Door Assy

...
...
NI
Screw, Door Handle WPL-Y0311884
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Pan, Broiler WPL-87722CG
...
3
Drawer, Broiler WPL-86908CG
...
4
Glide-Drwr WPL-W10709871
...
5
Support,body Carriage WPL-06522100
...
6
Hinge, Black WPL-Y0313773
...
7
Track, Lower R.h. WPL-Y0313761
...
8
Oven Door Handle, 18`` WPL-Y0088812
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
10
Panel, Broil Door,30``(Wht) WPL-Y06513100W
...
11
Liner, Broil Door,30`` WPL-312246E
...
12
Brkt, Spring & Rod WPL-Y06520700
...
13
Rod, Push-Broiler WPL-Y07685300
...
14
Spring, Broiler Door WPL-Y07691101
...
15
Spring Clip WPL-Y0088664

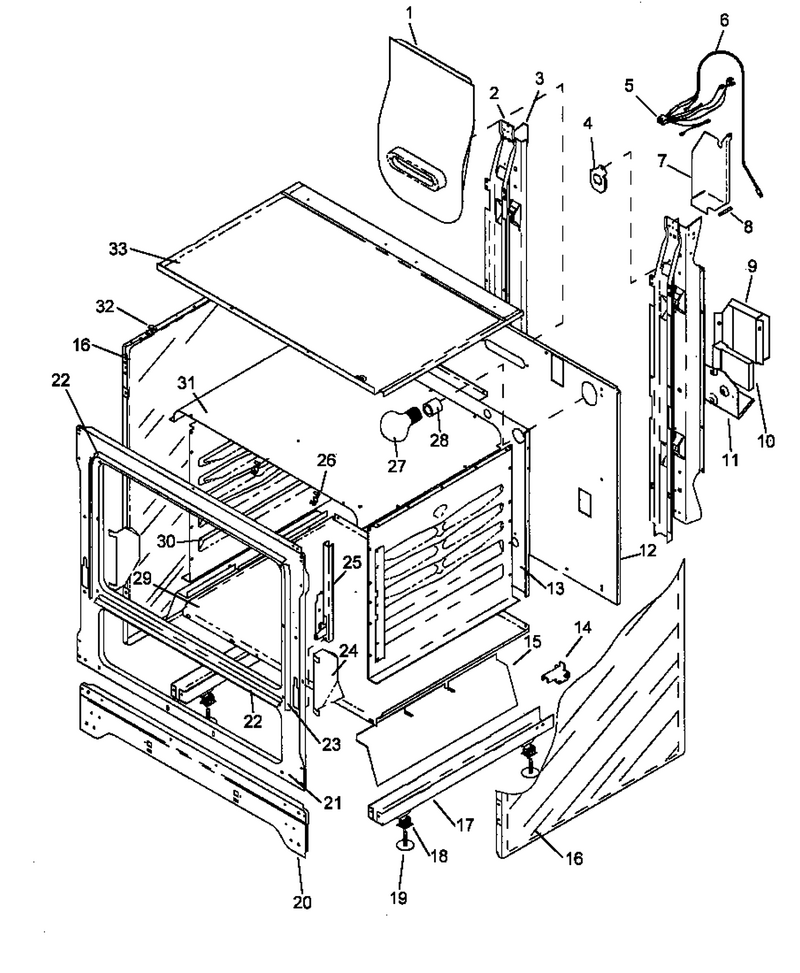

03 - Cabinet Assy

...
...
NI
Screw WPL-WP7101P126-60
...
1
Flue Box WPL-0088718
...
2
Vertical Sup. (J) WPL-0052742
...
3
Support, Rear, Vertical {j} WPL-0056477
...
4
Bracket WPL-0311551
...
5
Wire Harness WPL-0311093
...
6
Cord Set (J) WPL-0088884
...
7
Wire Cover WPL-0088662
...
8
U-Clip, Safe Edge WPL-31750803
...
9
Cover, Spark Module WPL-06462003
...
10
Module-Spk,2+1,apco WPL-Y07727100
...
12
Main Back {j} WPL-0088656
...
13
Backliner, Oven (Enamel) WPL-Y03382001E
...
15
Radiation Shield, Broiler WPL-0310816
...
16
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
17
Rail, Base WPL-06555001
...
18
Clip, Speed (Doz) {j} WPL-0310033
...
19
Leveler WPL-W11117769
...
20
Panel, Toe 30`` (Black) WPL-Y06451602
...
21
Main Front 30`` WPL-88751CG
...
22
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
23
Seal, Oven-Sides WPL-Y0056090
...
24
Shield, Insulation (J) WPL-0310064
...
25
Hinge, Oven Door WPL-Y07489700
...
26
Clip, Capillary WPL-0310802
...
27
Light Bulb WPL-8009
...
28
Socket, Oven Light WPL-Y0316385
...
29
Baffle, Base (30``gas) WPL-Y06467101
...
30
Liner,oven Side WPL-0311807
...
31
Topliner, Oven 30``gas WPL-Y06470802E
...
32
Bumper, Oven Door WPL-Y0063661
...
33
Box, Burner WPL-Y06469301E

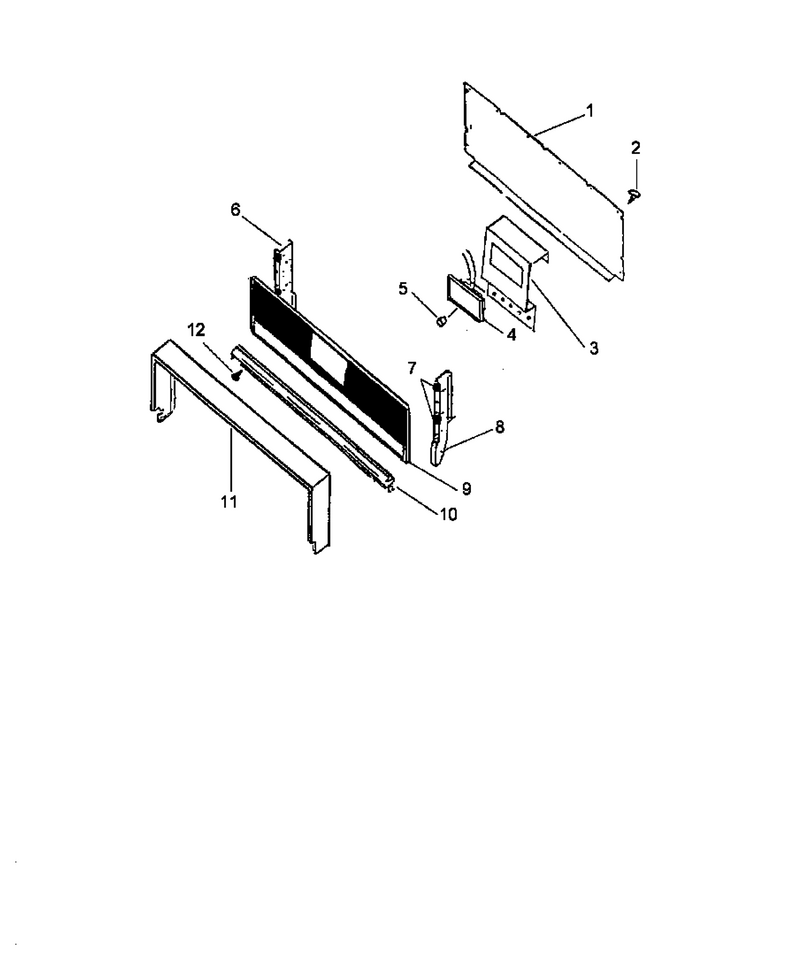

01 - Backguard Assy

...
...
NI
Scr- WPL-0310820
...
1
Cover, Rear Bkgd 8x30 WPL-06460809
...
2
Screw No.10 X 5/16 WPL-0310234
...
3
Clock Bracket WPL-Y0311034
...
4
X Clock WPL-0310441
...
5
Knob- Cloc WPL-Y07715600
...
6
Backguard Support-L.h. WPL-Y0311039
...
7
Bumper-Rubber 1/4`` WPL-Y02068200
...
8
Backguard Support-Rh WPL-Y0311038
...
9
Glass, Backguard, 8`` WPL-Y07624402
...
10
Base-Bkgd, 30`` W/holes WPL-Y02331026B
...
11
Backguard Frame 8`` X 30`` Fb WPL-Y0310654
...
12
Screw-No.10x9/16 Decr,bl WPL-Y01001303

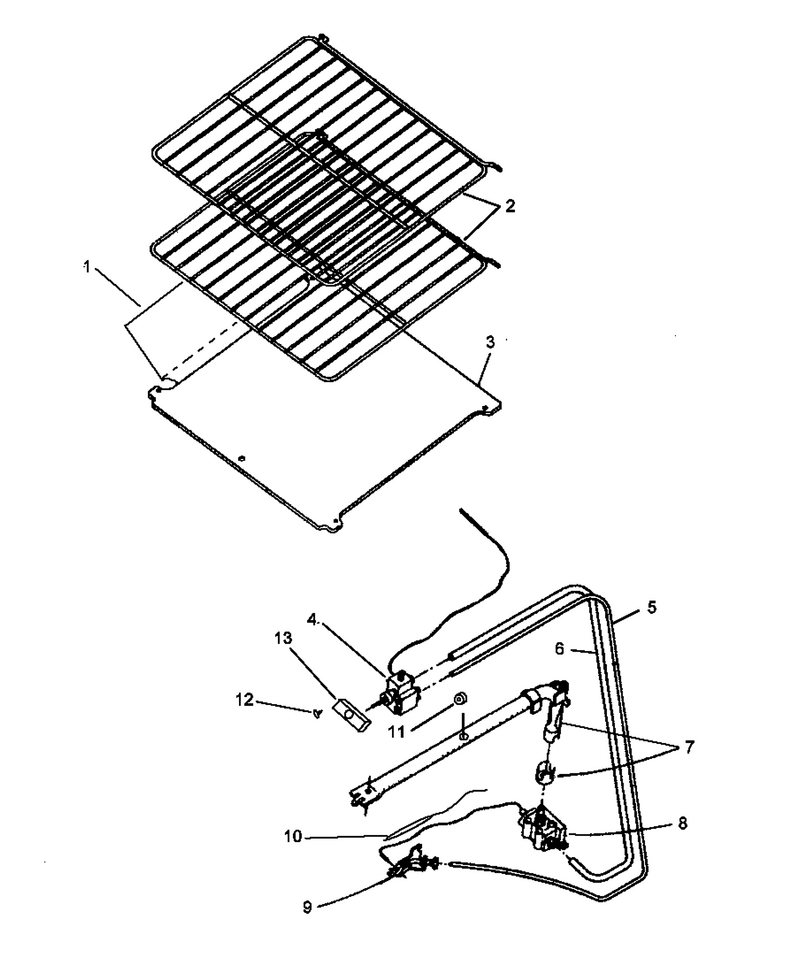

04 - Oven Components

...
...
1
Spreader, Flame W/o Notch WPL-06497102
...
2
Rack, Oven, 30`` WPL-Y07671200
...
3
Bottom, Oven (Enamel) WPL-06554403E
...
4
Therm-Ov,spark WPL-Y0057349
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
9
Pilot, Oven Burner (Spark) WPL-Y07697300
...
10
Igniter-Spark Oven WPL-Y0086776
...
11
Nut WPL-M0282009
...
12
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
13
Swtch-Ignr WPL-WP878009

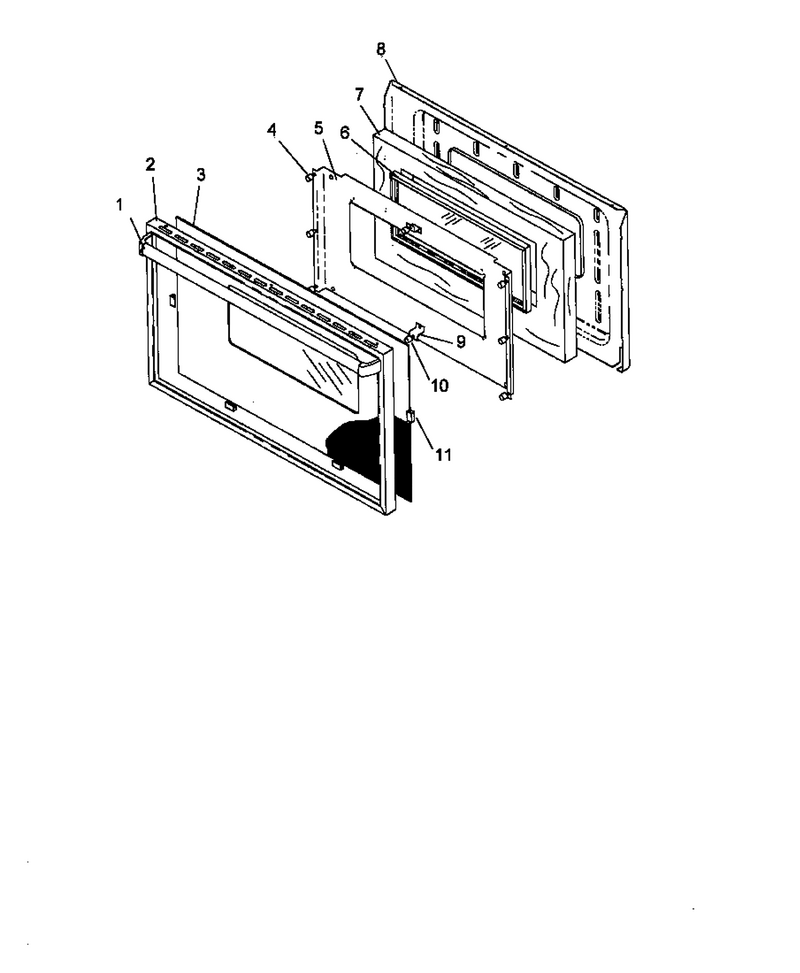

05 - Oven Door Assy

...
...
NI
Screw No.10 WPL-07596600
...
1
Handle, Door (J) WPL-Y0057315
...
2
Frame, Oven Door, 30`` {j} WPL-Y0312047
...
3
Glass, Oven Door 30`` WPL-Y07642602
...
4
Bumper-Rubber 1/4`` WPL-Y02068200
...
5
Baffle, Oven Door WPL-06511800
...
6
Window, Oven Door (2) Pane WPL-Y07729700
...
7
Insulation, Wrapper WPL-31975801
...
8
Weld, Door Liner WPL-06540800E
...
9
Bracket, Bumper Mount {j} WPL-Y0311752
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Bumper ``l`` Shaped WPL-Y0312836

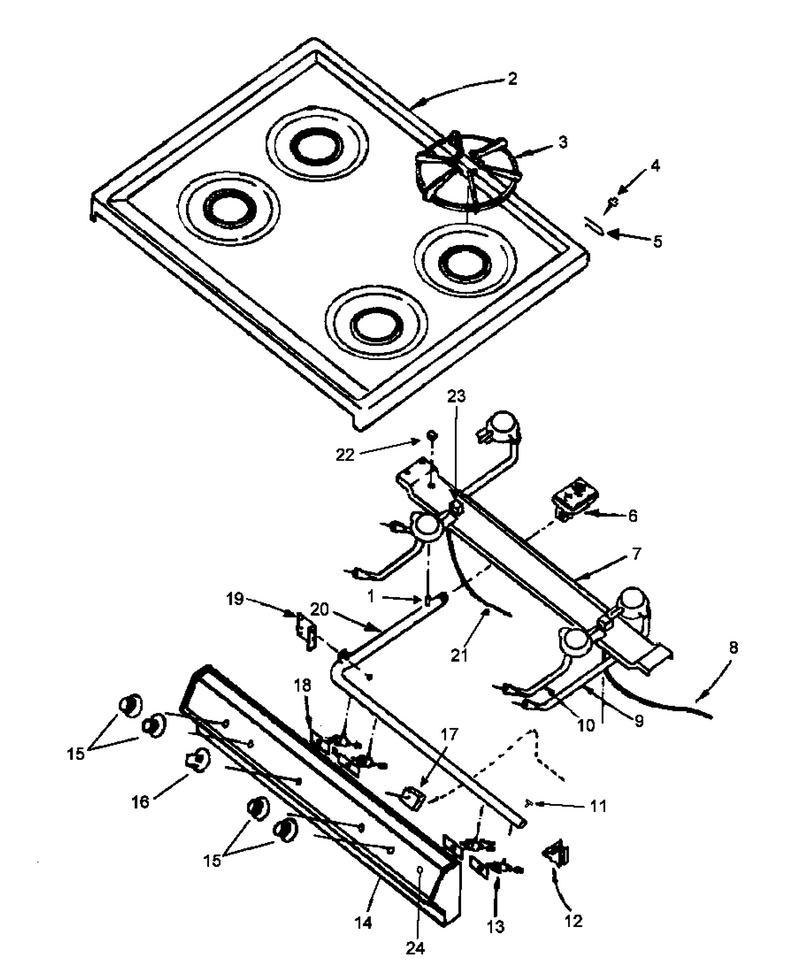

06 - Top Burner Assy

...
...
NI
Screw No.10 X 5/16 WPL-0310234
...
2
Main Top, White WPL-057241W
...
3
Grate, 7`` Round Burner WPL-Y07540300
...
4
Screw, Stud WPL-31750709
...
5
Nut, Speed, Flat WPL-Y0310032
...
6
Pressure Regulator WPL-77001246
...
7
Burner Support WPL-Y0312239
...
8
Harness, Spark Switch WPL-31830001
...
9
Burner - Top Rear (Glwd) WPL-Y07698900
...
10
Burner - Top Rear (Glwd) WPL-Y07698900
...
11
Screw WPL-W10491986
...
13
Valve, Top Burner WPL-Y0057338
...
14
Manifold Panel W/light Hole WPL-0311069
...
15
Knob- Ther WPL-WPY07506601
...
16
Knob- Ther WPL-WPY07506601
...
17
Swtch-Ignr WPL-WP878009
...
18
Swtch-Ignr WPL-WP4157180
...
20
Pipe, Manifold (Gas 30) WPL-Y07594502F
...
21
Ignitor- G WPL-Y07491203
...
22
Square Nut {j} WPL-0088650
...
23
Ignitor, Ground Strap WPL-Y0312158
...
24
Switch- Ov WPL-Y07625800
