Amana SBK24AA0PU (BOM: SBK24AA0P U)

Model: SBK24AA0PU (BOM: SBK24AA0P U)

Save Part Not Listed?
product name

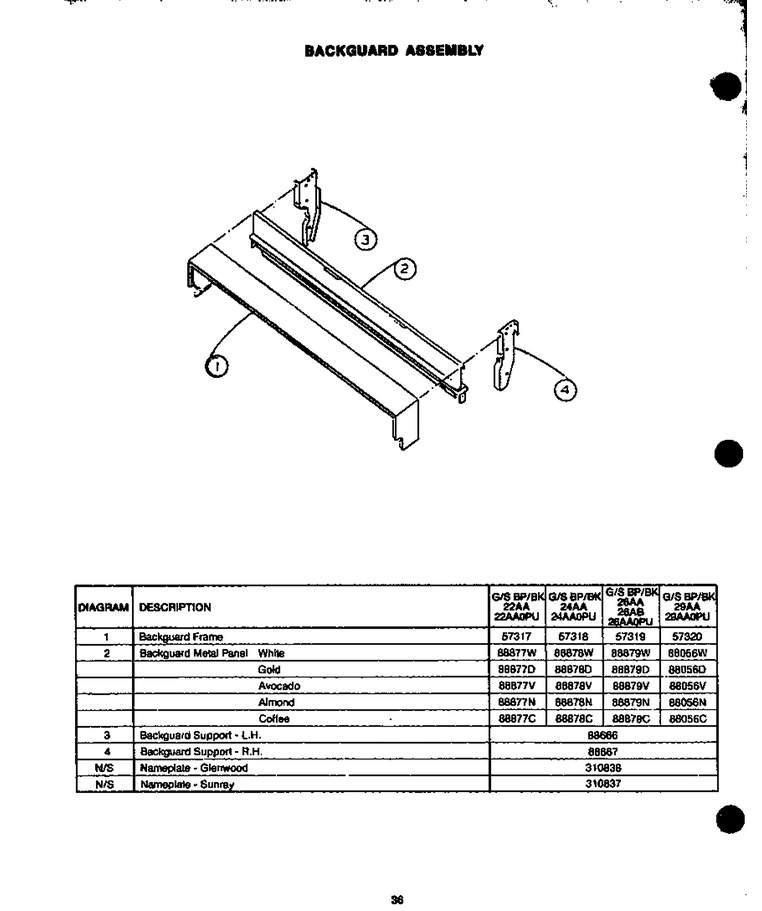

01 - Backguard Assy

...
...
NI
Nameplate, Glenwood WPL-0310838
...
1
Backguard Frame (J) WPL-Y0057318
...
2
Panel, Backguard, Gold WPL-Y088878D
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667

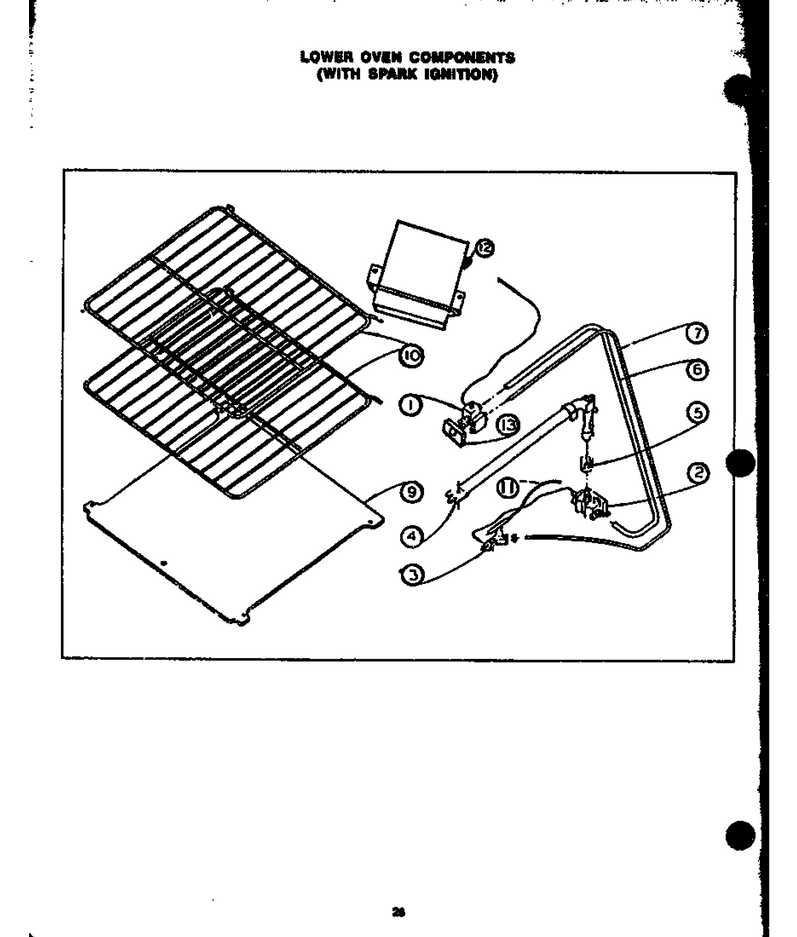

03 - Lower Oven Components

...
...
NI
Plate, Spark Module WPL-Y0087725
...
1
Push-To-Start WPL-57349
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Spark) WPL-Y07697300
...
4
Oven Burner WPL-0056137
...
5
See Note Air Shutter -- (Part Of Burner) WPL-Y00000000
...
6
Sub 90761, Tubing WPL-0088801
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
9
Sub 86709cg, Oven Bottom WPL-88545CG
...
10
Sub 56053, Oven Rack, 24`` WPL-Y0088539
...
11
Igniter-Spark Oven WPL-Y0086776
...
12
Module, 2+1 Spark WPL-Y0088870
...
13
Swtch-Ignr WPL-WP878009

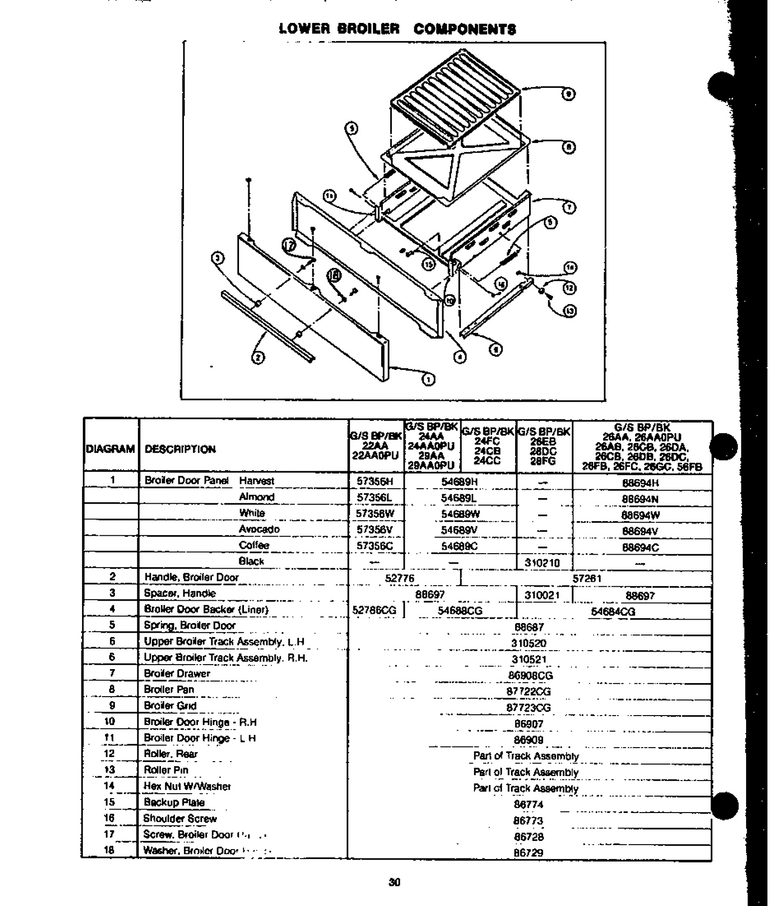

02 - Lower Broiler Components

...
...
1
Broiler Door Panel Avocado WPL-54689V
...
2
Handle, Oven Door (J) WPL-Y0052776
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Liner, Broiler Drawer WPL-54688CG
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Track, Upper Rt (Gas) WPL-Y06478001
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Hinge, Broiler Door Rh (J) WPL-0086907
...
11
Hinge, Broiler Door Lh (J) WPL-Y0086909
...
12
See Note Roller, Rear -- (Part Of Track Assembly) WPL-Y00000000
...
13
See Note Roller Pin -- (Part Of Track Assembly) WPL-Y00000000
...
14
See Note Hex Nut W/washer -- (Part Of Track Assembly) WPL-Y00000000
...
15
Plate, Broiler Hinge {j} WPL-Y0086774
...
16
Screw, Shoulder (J) WPL-Y0086773
...
17
Screw WPL-707407
...
18
Washer, Steel (1/4 X 9/16) WPL-Y0086729

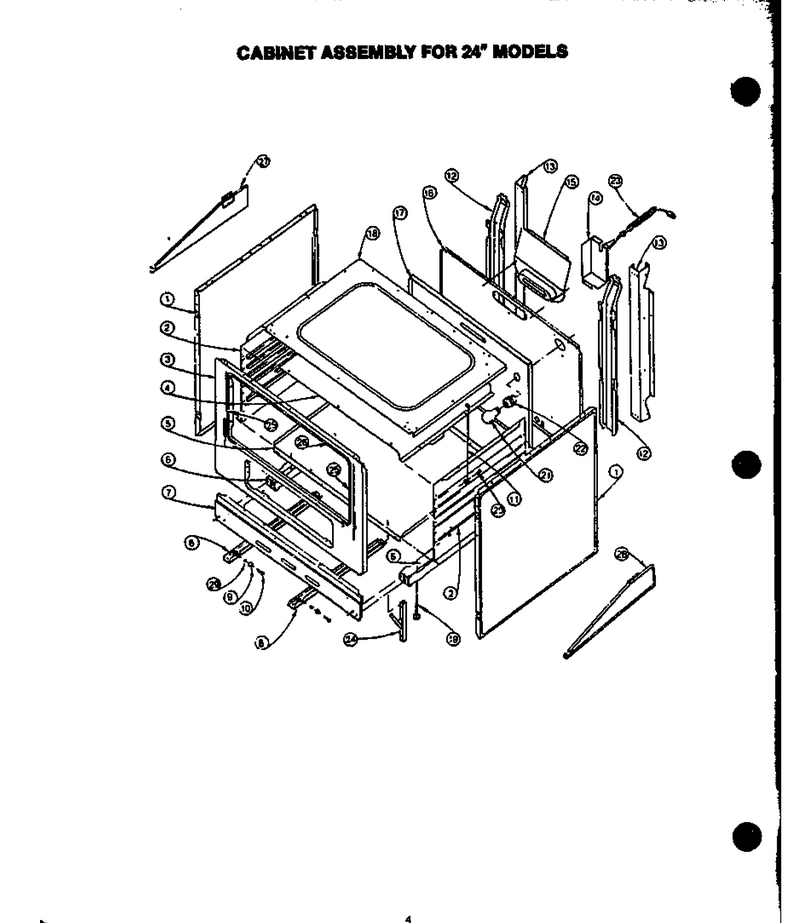

04 - Page 1

...
...
NI
Snap-In Tee Nut WPL-Y0088571
...
1
Body Side Avocado WPL-311003V
...
2
Oven Side Lines - Continuous C WPL-312028X
...
3
See Note Front Frame -- (Not Field Replaceable WPL-Y00000000
...
4
Oven Top Liner - Continuous Cl WPL-57207CX
...
8
Track, Lower R.h. WPL-Y0310523
...
9
See Note Roller -- (Part Of Track Assembly) WPL-Y00000000
...
10
See Note Roller Pin, Front, Part Of Track Assembly WPL-Y00000000
...
11
Support Rod WPL-0087023
...
12
Vertical Sup. (J) WPL-0052742
...
13
Support, Rear, Vertical {j} WPL-0056477
...
15
Flue Box WPL-0088718
...
16
Main Back (24`` Gas) {j} WPL-Y0310807
...
17
Back, Oven 24`` ( Cg) WPL-88550CG
...
18
Bottom, Burner Box (24``) WPL-311005E
...
19
Assy,wiring Harness WPL-62362
...
20
Shoulder Screw WPL-0088779
...
23
Cord Set (J) WPL-0088884
...
24
Hinge WPL-Y0052778
...
25
Assembly, Blower Fan WPL-56000
...
26
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
29
See Note Roller Retaining Ring Part Of Track Assembly WPL-Y00000000

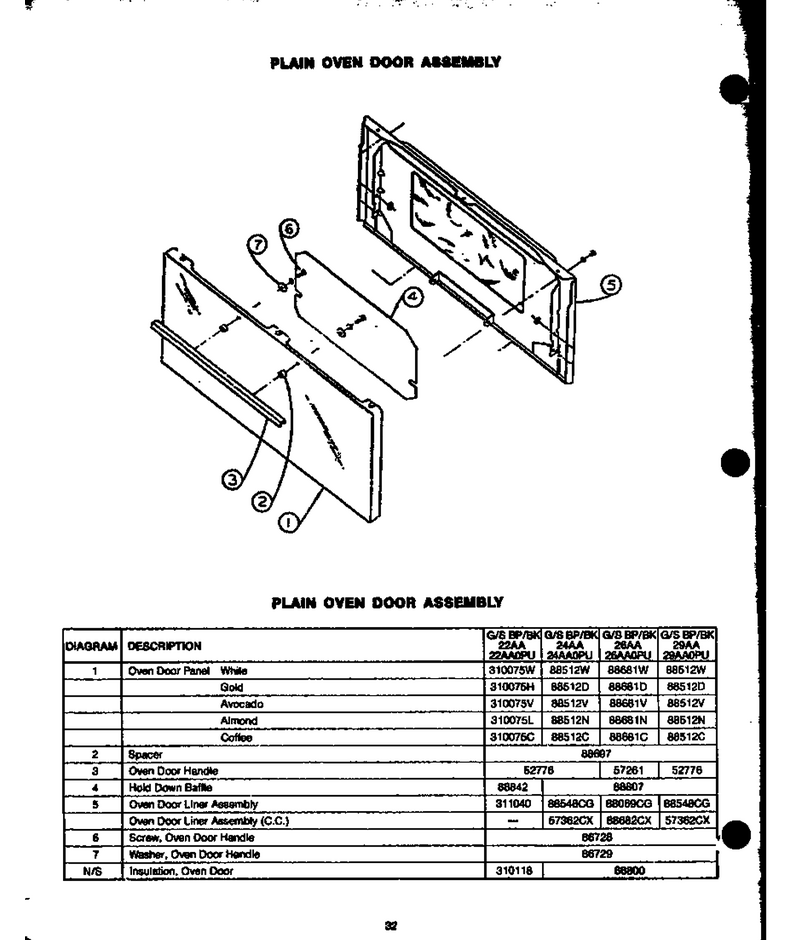

05 - Plain Over Door Assy

...
...
NI
Insulation, Oven Door WPL-888000
...
1
Panel, Oven Door, Dark Copper WPL-Y088512C
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
4
Ring, Insulation Hold Down WPL-0088807
...
5
Oven Door Backer, Continous Cl WPL-57362CX
...
6
Screw WPL-707407
...
7
Washer, Steel (1/4 X 9/16) WPL-Y0086729

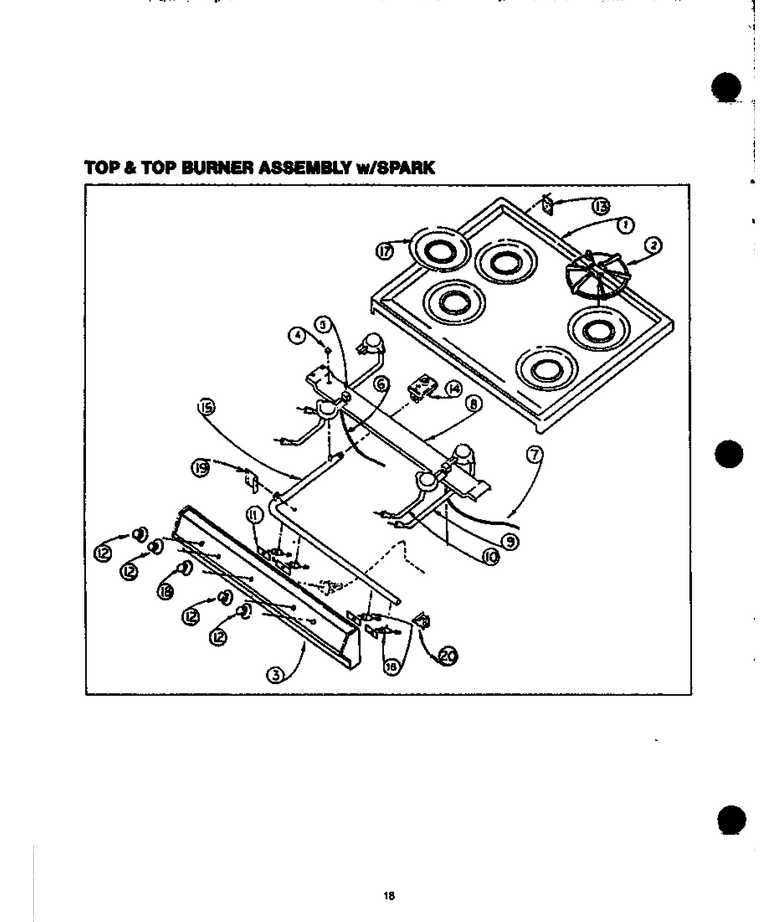

06 - Top And Burner Assy With Spark

...
...
NI
Spacer, Manifold WPL-0310219
...
1
Main Top White WPL-57240W
...
2
Assy,wiring Harness-Ho WPL-57311
...
3
Panel, Manifold (Gas 24) WPL-Y07622002A
...
4
Square Nut {j} WPL-0088650
...
5
See Note Bracker, Ignitor -- (Part Of Ignitor Assembly) WPL-Y00000000
...
6
Ignitor- G WPL-Y07491203
...
7
Thermostat WPL-56083
...
8
Support, Ctr Burner WPL-311023E
...
9
Burner - Top Rear (Glwd) WPL-Y0057358
...
10
Assy,control Panel WPL-57343
...
11
Swtch-Ignr WPL-WP4157180
...
12
Knob- Top WPL-Y07628200
...
13
Hinge, Main Top WPL-0088782
...
14
Pressure Regulator WPL-77001246
...
15
Manifold Pipe (J) WPL-0057335
...
16
Valve- 180 WPL-Y07596200
...
18
Knob, T-Stat (Gasr WPL-Y0310525
...
19
Support, Manifold, L.h. {j} WPL-0086725
...
20
Support Bracket, Rh Manifold { WPL-0057340
