Amana SBI20S2W (BOM: P1190701W W)

Model: SBI20S2W (BOM: P1190701W W)

Save Part Not Listed?
product name

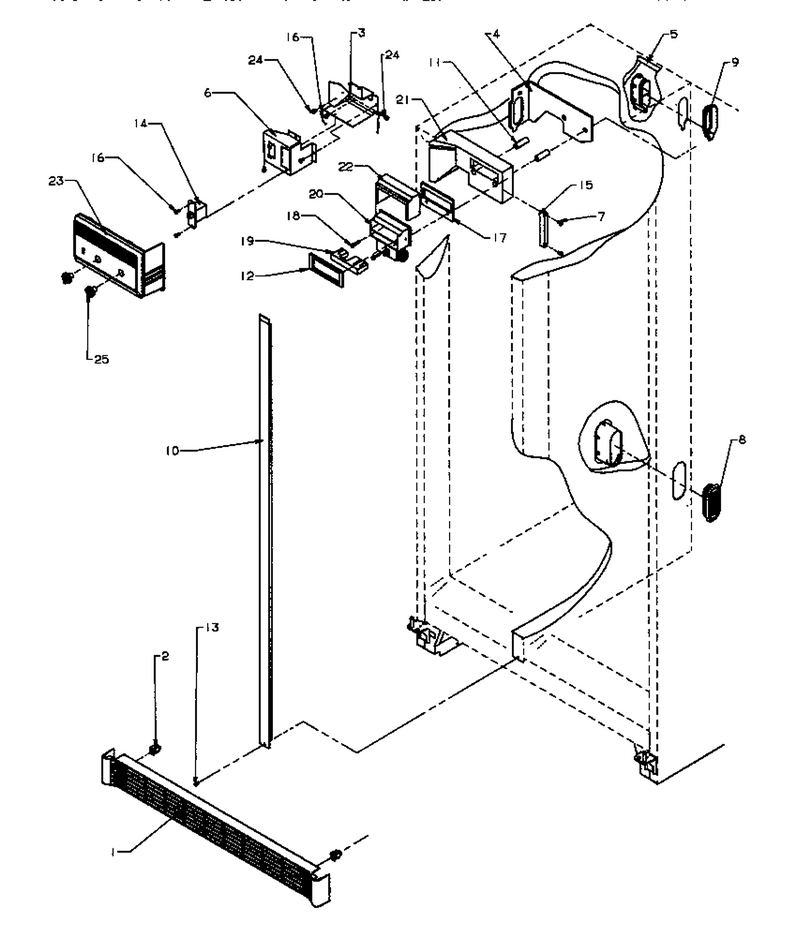

02 - Controls And Cabinet (ref/frz)

...
...
1
Assy, Toe Grille (white) WPL-12321807Q
...
2
Clip WPL-WPM0117303
...
3
Box, Bottom Control WPL-D7822404
...
4
Gasket, Air Duct WPL-10177901
...
5
Tube-Plastic WPL-B8372601
...
6
Box, Control Top WPL-D7868606
...
7
Screw WPL-WP489474
...
8
Grille-Rtn Air WPL-D7785401
...
9
Tunnel Air Supply WPL-10178001
...
10
See Note Mullion-Vertical, White -- (see Note) WPL-Y00000000
...
11
Spacer Damper WPL-A3044208
...
12
Gasket, Damper WPL-10383201
...
13
Screw, Handle (black) WPL-12991101
...
14
Assy, Control-Fz WPL-R0161092
...
15
Clamp WPL-C8977301
...
16
Screw WPL-WP489464
...
17
Gasket, Damper WPL-B8345401
...
18
Screw WPL-M0216539
...
19
Insert, Control WPL-C8902601
...
20
Control-Damper WPL-D7547411
...
21
Air Duct, Waxed WPL-10176602
...
22
Insulation WPL-D7788201
...
23
Cover, Control WPL-10862703
...
24
Screw WPL-WP489399
...
25
Knob, Control (wht) WPL-D7795826

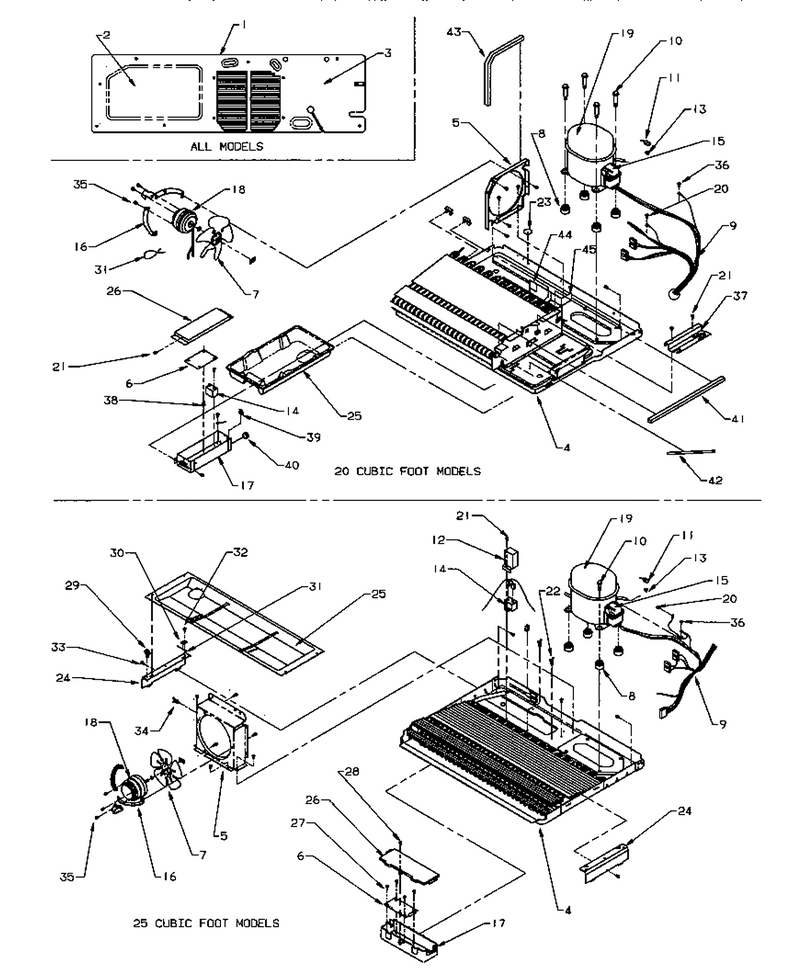

09 - Machine Compartment

...
...
1
Back-Mc(see Note Below) WPL-D7789007
...
2
Insulation-Mc Back WPL-D7789103
...
4
Assy, Cond/pan E-Ct WPL-10883408
...
5
Cond. Fn Shrd WPL-10845505
...
6
Cont, Adap. Defrost WPL-12050506
...
7
Blade, Fan WPL-B5742602
...
8
Grommet, Compressor WPL-67003493
...
9
Harness-Mach WPL-10949703
...
10
Screw, Shldr WPL-M0221523
...
11
Overload WPL-10377015
...
13
Start-Dev WPL-WP10097202
...
14
Capacitor WPL-WP65889-4
...
15
Cover-Term WPL-4344043
...
16
Brkt,cond. Mtr WPL-C8982102
...
17
H V Box-E Ct WPL-10277026
...
18
Motor-Cond WPL-833697
...
19
Compressor Kit (contains Items 12, 17, 27, & 29) WPL-W10160407
...
20
Screw WPL-M0253916
...
21
Screw WPL-WP90767
...
23
Clip-Cable WPL-M0110505
...
25
Pan, Drain WPL-10845601
...
26
Top, Hv Box WPL-10276906
...
27
Screw WPL-WP489349
...
31
Tie-Wire WPL-WPW10339879
...
35
Screw WPL-M0223803
...
36
Screw WPL-12992301
...
37
H.v. Box Shelf-E Ct WPL-10845302
...
38
Support WPL-M0585504
...
39
Clamp, Wire WPL-M0585703
...
40
Bushing, Snap WPL-A3293504
...
41
Gasket-Foam WPL-A3030358
...
42
Gasket, Sealing WPL-B5759645
...
43
Gasket WPL-A3030359
...
44
Insulation WPL-10906508
...
45
Insulation WPL-10906507

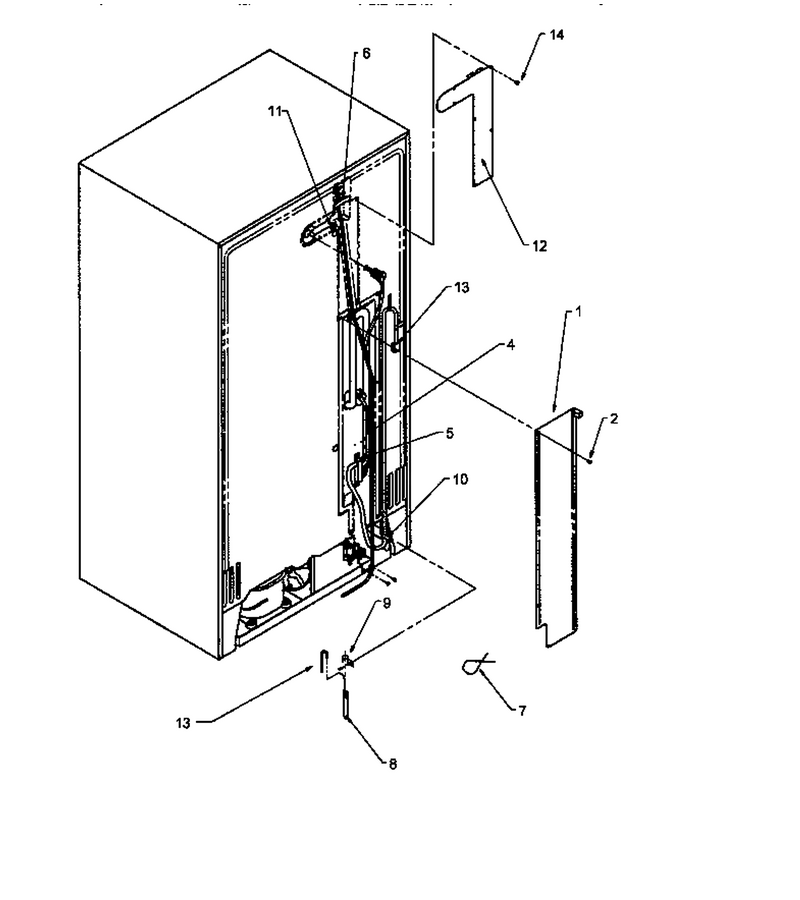

01 - Back Unit

...
...
1
Cover, O.c.back WPL-10178406
...
2
Screw WPL-WP489069
...
3
Cord, Power WPL-10678503
...
4
Harness, Cabinet WPL-10974001
...
5
Screw, Spextite WPL-M0232330
...
6
Gasket (ft.) WPL-10839803
...
7
Tie-Wire WPL-WPW10339879
...
8
Drier WPL-WPB2150504
...
9
Clip, Drier WPL-10547001
...
10
Clamp, Speed WPL-M0103904
...
11
Clip WPL-WPM0104106
...
12
Cover - Wire WPL-10178505
...
13
Insulation, Tube WPL-10851302
...
14
Screw WPL-WP489069

03 - Door Hinge And Trim (frz)

...
...
R134a Refrigerant System: This Refrigerant System Incorporates R134a Refrigerant And Approved Svc Techniques And Equipment Should Be Applied If Sealed System WPL-NOTE:
...
1
Kit, Bot.hinge Shim WPL-10860201
...
2
Screw WPL-WP8281196
...
3
Handle, Frz Dr (white) WPL-12106210
...
5
Kit, Screw WPL-R9800670
...
6
Bushing, Door (wht) WPL-10393802
...
7
Screw, Lock Brake Mounting WPL-M0220418
...
8
Stop-W Door WPL-C8972405
...
9
Kit,dr Closure WPL-R0181181
...
14
Screw WPL-WP67006715
...
16
Screw WPL-WP489349
...
17
Screw (3) WPL-67006425
...
18
Hinge, Top L (e-Ct) WPL-10495806
...
19
Kit, Screw WPL-R9800670
...
20
Shim, Top Hinge WPL-B8389007
...
21
Shim, Door Closure WPL-B8387701
...
22
Cover, Hinge WPL-10504216
...
23
Kit,dr Closure WPL-R0181181
...
24
Kit-Hinge WPL-R9900507
...
25
Kit,btm Hinge Shim WPL-10399502
...
26
Cap-W Fz Hndl Bot. WPL-10871202
...
27
Cap-W Fz Hndl Top WPL-10871102
...
28
Ext, Fz Dr (wht) WPL-10979201
...
30
Insert-W Handle WPL-10945933
...
31
Support, Fz Trim WPL-10494604
...
32
Trim, Vert WPL-10494524
...
33
Trim-W Fz Dr Top WPL-10494204
...
34
Trim, Frz Dr Bot W WPL-10602514

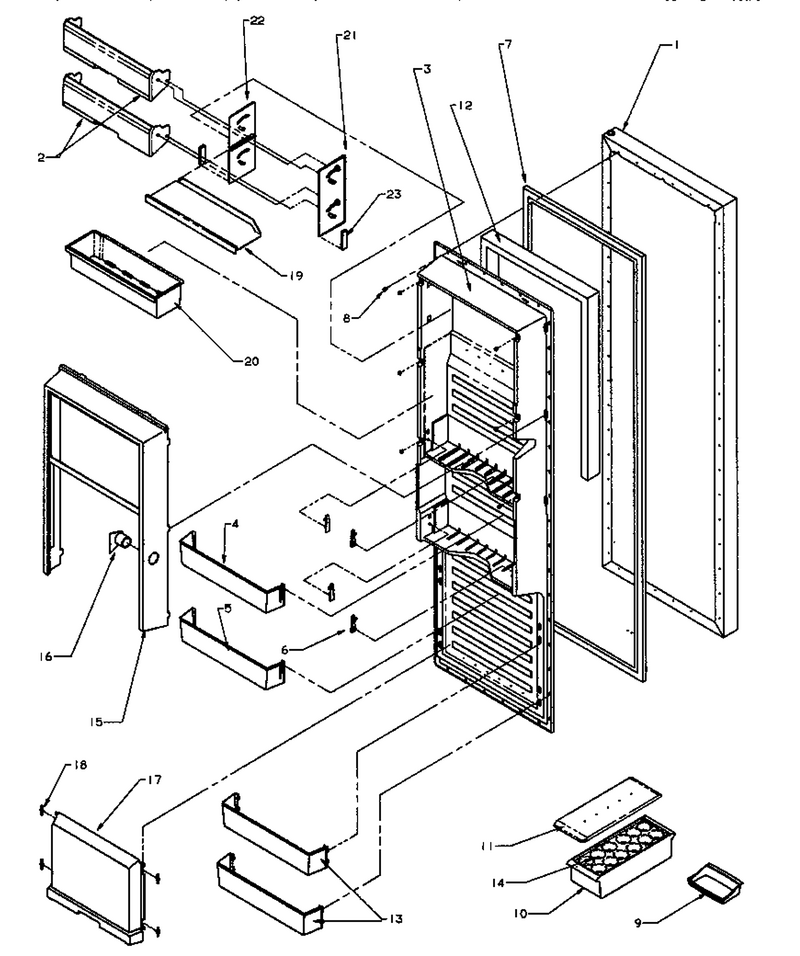

10 - Ref Door

...
...
1
Assy, Ref Dr Fm (white) WPL-10881001W
...
2
Door-Dairy WPL-10883701
...
3
Liner-Ref Dr WPL-10861502
...
4
Bin-Cntlvr WPL-WP10520405
...
5
Bin-Cntlvr WPL-WP10520405
...
6
Clip, Retainer WPL-10202001
...
7
Gasket-Dr WPL-WP10359708Q
...
8
Screw WPL-WPM0219730
...
9
Tray, Butter WPL-10310901
...
10
Container WPL-WP10423131
...
11
Lid, Utility WPL-10436404
...
12
Insul., Batt WPL-B0523590
...
13
Shelf- Doo WPL-67003701
...
14
Tray, Egg WPL-10436504
...
15
Frame-Chiller WPL-10519004
...
16
Tunnel-Air WPL-12033201
...
17
Door, Chiller WPL-10519208
...
18
Glide-Igloo Door WPL-10162101
...
19
Shelf, Dairy WPL-10883801
...
20
Bucket-Beverage WPL-10883901
...
21
Track, Dairy Dr WPL-10884001
...
22
Track, Dairy Dr WPL-10884002
...
23
Gasket, Sealing WPL-B5759646

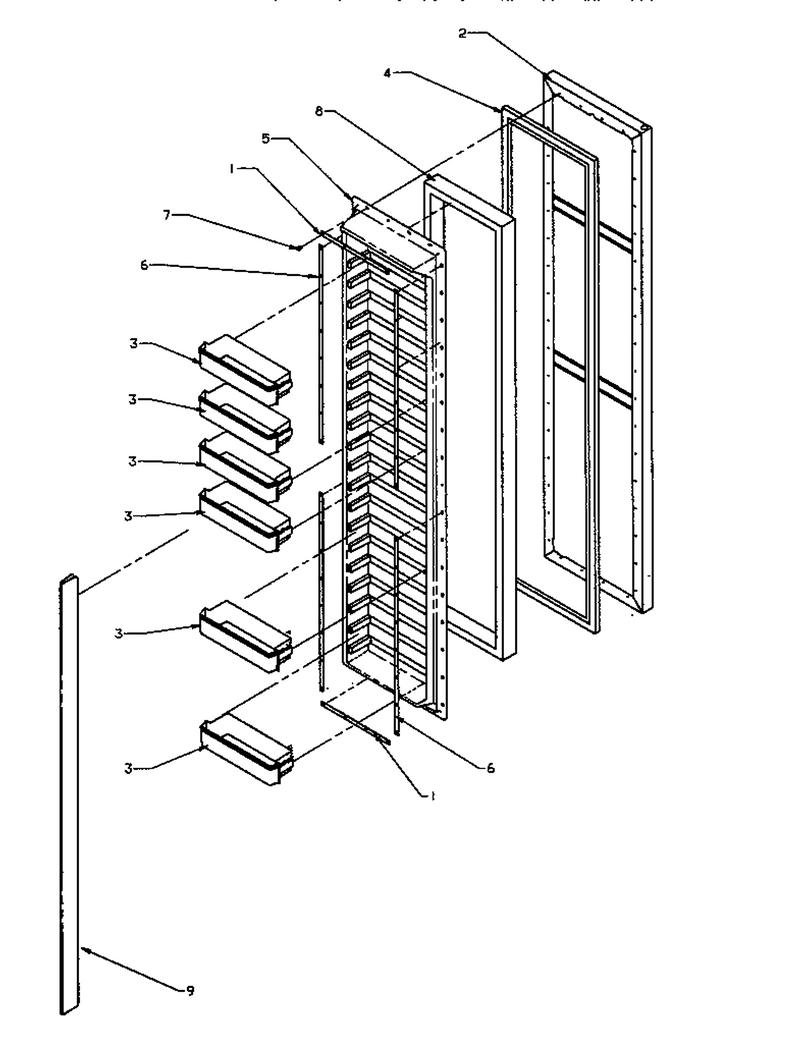

07 - Fz Door

...
...
1
Retainer, Door Liner WPL-C8982801
...
2
Ass`y, Frz Door(white) WPL-10881101W
...
3
Shelf, Frz Dr WPL-10525507
...
4
Gasket, Door (e Ref) WPL-10359703
...
5
Liner, Frz. Door WPL-10534901
...
6
Retainer, Door Liner WPL-D7828601
...
7
Screw WPL-WPM0219730
...
8
Insulation Ft. K WPL-B0523563
...
9
Rem Dike I & W Lower WPL-10063206

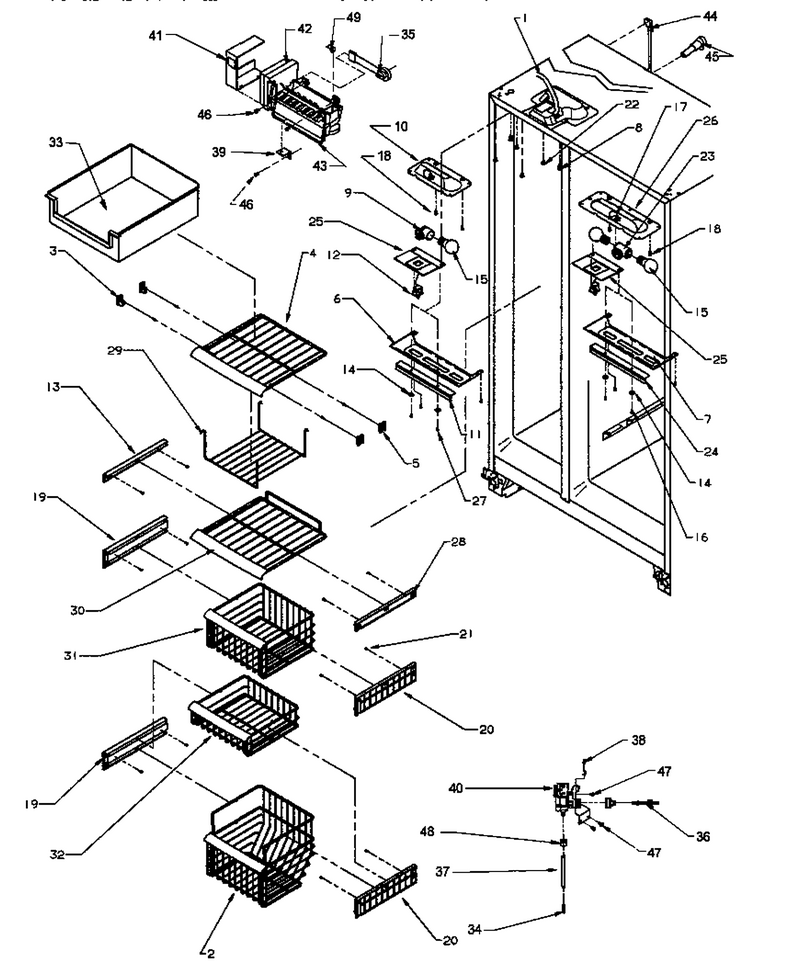

08 - Fz Shelving & Ref Light

...
...
1
Harness, Outer Liner WPL-10980901
...
2
Basket, 11`` Freezer WPL-12011901
...
3
Support-L Shelf WPL-12015001
...
4
Shelf, Stat. Freezer WPL-12013801
...
5
Support- S WPL-WP10941102
...
6
Cover, Frz Light WPL-10493301
...
7
Cover, Ref. Light WPL-10493201
...
8
Grommet, Screw WPL-M0581001
...
9
Socket-Light WPL-C8973404
...
10
Housing, Light WPL-D7760104
...
11
Shield, Light WPL-10014715
...
12
Switch WPL-W11384469
...
13
Rail, L. Shelf WPL-12012801
...
14
Washer WPL-M0270519
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
Clip, Ground WPL-B5733302
...
18
Screw WPL-WP90767
...
19
Rail, L. Dbl Shelf WPL-12012901
...
20
Rail- R Double WPL-10991601
...
21
Screw WPL-WP98165
...
22
Grommet, Screw WPL-M0580007
...
23
Socket, Dual Lamp WPL-10796001
...
24
Shield, Light WPL-10014716
...
25
Cover, Light Sw WPL-D7297604
...
26
Housing-Ref Light WPL-D7716409
...
27
Screw WPL-M0219546
...
28
Rail- R Shelf WPL-10991401
...
29
Rack, Freezer WPL-12013901
...
30
Shelf, Freezer Wire WPL-12012101
...
31
Basket, 3`` Freezer WPL-12011701
...
32
Basket, 7`` Freezer WPL-12011801
...
33
Pan, Ice WPL-D7806201

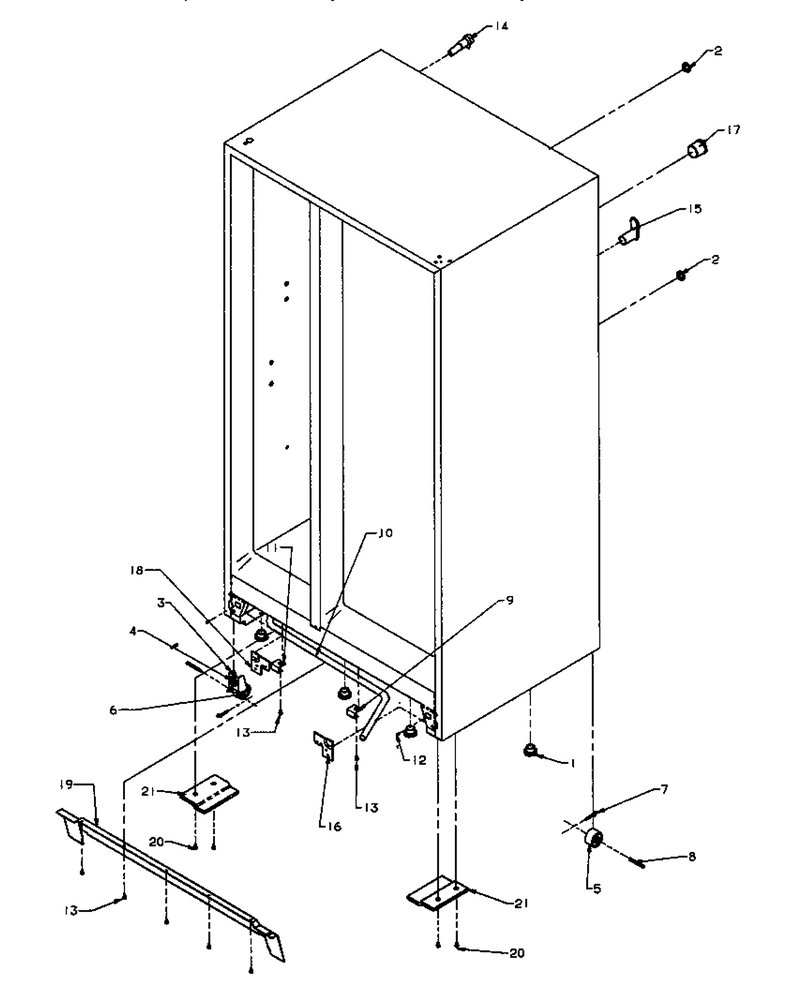

05 - Drain Tube, Rollers & Cabinet Back

...
...
NI
Assy, Roller Bracket WPL-12452602Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Clip, Wire WPL-M0585206
...
10
Tube-Drain WPL-12142001
...
11
Clamp WPL-M0102303
...
12
Screw, Mach WPL-M0206313
...
13
Screw WPL-WP489069
...
14
Assy, Fill Tube WPL-12023401Q
...
15
Tunnel, Heat Ex. WPL-C8971902
...
16
Strip-Rh Bot Hinge WPL-12146601
...
17
Tunnel Wire WPL-10187601
...
18
Strip, Bot Hinge Tap WPL-10860102

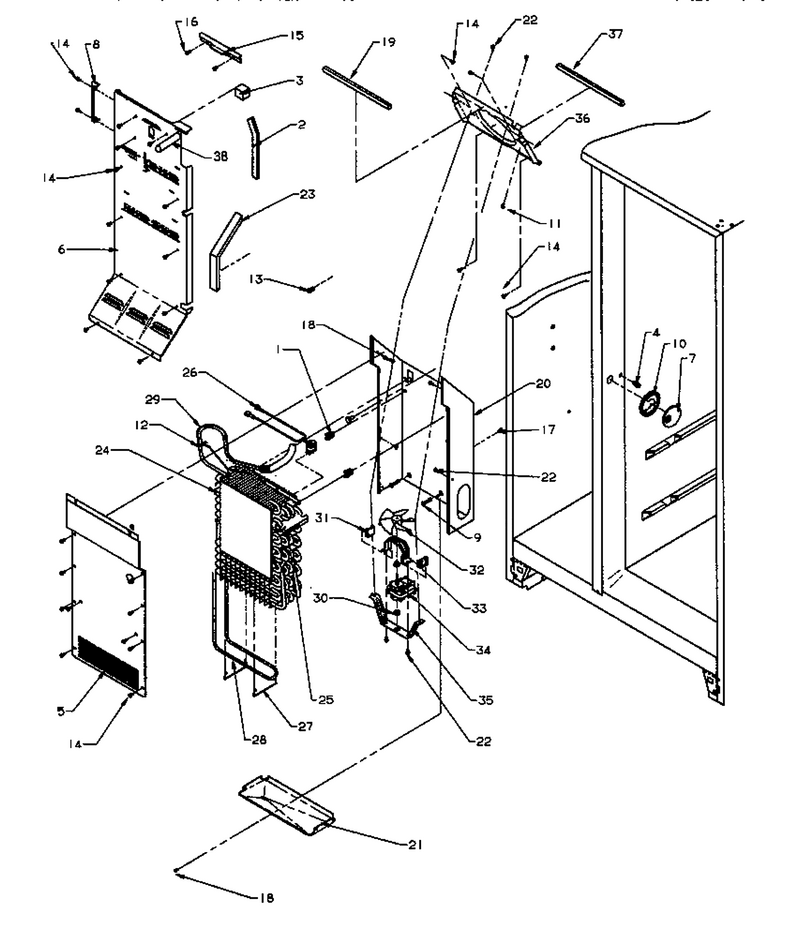

06 - Evap & Air Handling (frz)

...
...
1
Clip, Evaporator WPL-10623003
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Clip, Air Tunnel WPL-10426801
...
5
Evap Cover- E Ct WPL-10655902
...
6
Inner Fz Back-Pnt WPL-D7821166
...
7
Grille, Control WPL-10164808
...
8
Cover, Supply Air WPL-D7838302
...
9
Clip, Evap WPL-10527401
...
10
Control-Air WPL-10164702
...
11
Screw WPL-WP489399
...
12
Tie-Wire WPL-WPW10339879
...
13
Tie Wire WPL-WPM0322202
...
14
Screw (3) WPL-67006425
...
15
Clamp WPL-C8976201
...
16
Screw WPL-WP98165
...
17
Grommet A WPL-M0580002
...
18
Rivet WPL-10098801
...
19
Gasket (1=1ft.) WPL-10839713
...
20
Shield, Evap WPL-10893803
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Screw WPL-WP90767
...
23
Gasket Foam WPL-A3189335
...
24
Block, Air Coil (left) WPL-10629601
...
25
Block, Air Coil (right) WPL-10629001
...
26
Kit, Thermostat WPL-R0161087
...
27
Clip WPL-W11673433
...
28
Heater- Ev WPL-WP12049801
...
29
Assy,low Side WPL-R0170057
...
30
Grommet WPL-WP2264462
...
31
Shim WPL-A1047901
...
32
Blade-Fan WPL-R0000199
...
33
Brkt Mtr WPL-10656101
...
34
Motor, Evap Fan WPL-10654206
...
35
Brk`t-Mtr Mt/lw WPL-10656001
...
36
Evap Fan Shroud WPL-10890202
...
37
Gasket WPL-B8386608

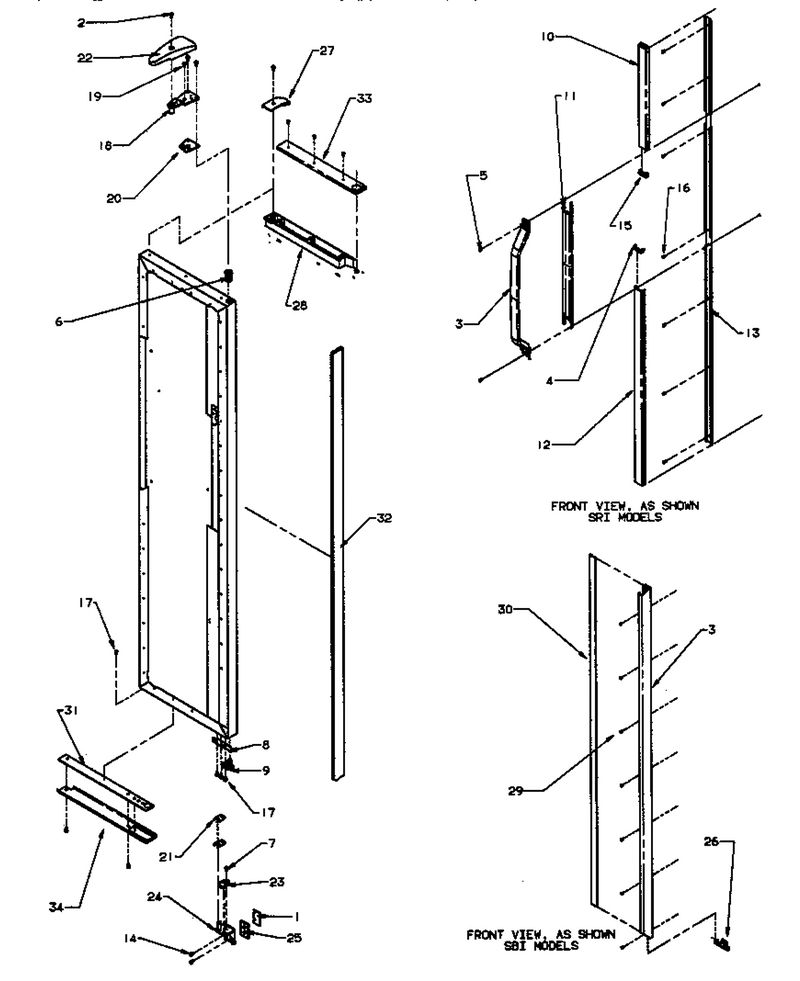

04 - Door Hinge And Trim (ref)

...
...
1
Bushing, Door (wht) WPL-10393802
...
2
Stop-W Door WPL-C8972405
...
3
Kit,dr Closure WPL-R0181181
...
9
Screw WPL-WP98165
...
10
Screw WPL-WP489349
...
11
Kit, Screw WPL-R9800670
...
12
Kit, Bot.hinge Shim WPL-10860201
...
16
Hinge, Top R (e-Ct) WPL-10495804
...
17
Kit, Screw WPL-R9800670
...
18
Shim, Top Hinge WPL-B8389007
...
19
Shim, Door Closure WPL-B8387701
...
20
Screw, Lock Brake Mounting WPL-M0220418
...
21
Kit,dr Closure WPL-R0181181
...
22
Kit-Hinge WPL-R9900509
...
23
Kit,btm Hinge Shim WPL-10399502
...
24
Screw WPL-WP67006715
...
26
Cover, Hinge WPL-10504215
...
28
Cap, Ref Handle Bot(white) WPL-10871201
...
29
Cap, W Ref Handle Top WPL-10871101
...
30
Exten. W Ref Door WPL-10979101
...
32
Insert-W Handle WPL-10945933
...
33
Support Ref Trim (btm) WPL-10494606
...
34
Trim, Vert WPL-10494523
...
35
Trim, Refr Dr Top WPL-10494404
...
36
Trim, Ref Dr Bot WPL-10602618
...
37
Handle, Ref Dr (white) WPL-12106209

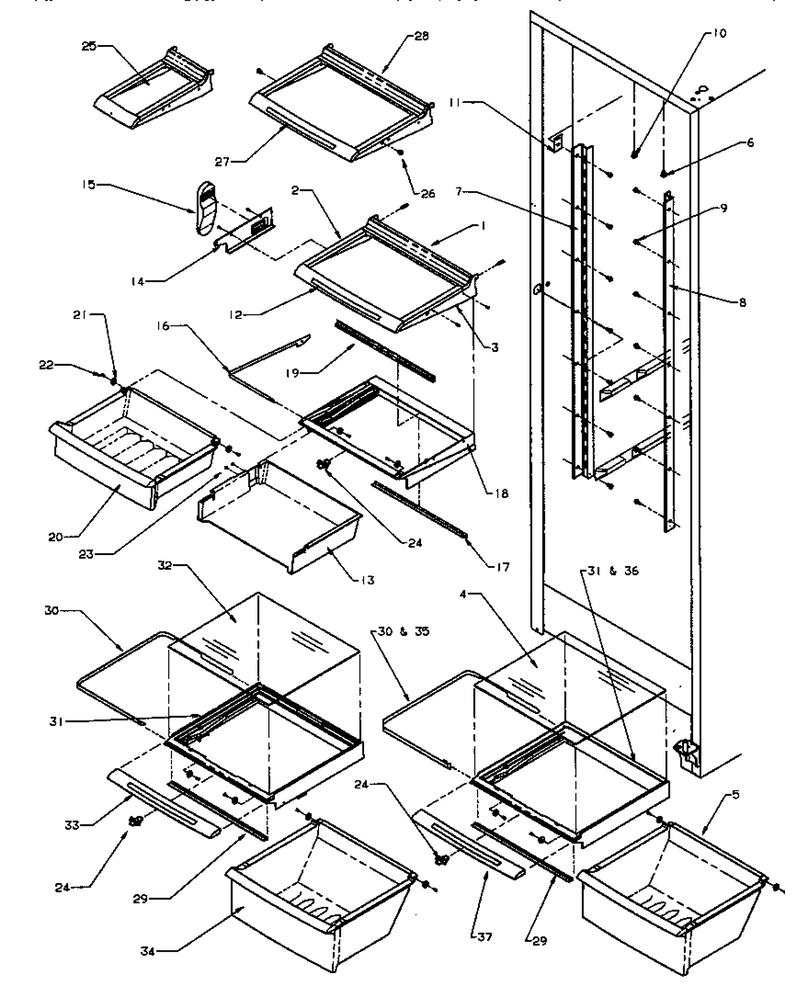

11 - Shelving And Drawers (ref)

...
...
NI
Ass`y, Deli Shelf WPL-10877201Q
...
1
Shelf-Full Gli Out WPL-10809505
...
2
Rail, L Blank Side WPL-10809907
...
3
Rail, R Blank Side WPL-10809908
...
4
Glass-Shelf WPL-Y10370065
...
5
Pan, Crisper WPL-10783301
...
6
Grommet, Screw WPL-M0581001
...
7
Ladder, Cantilever WPL-D7789808
...
8
Ladder, Cantilever WPL-D7789809
...
9
Screw WPL-WP90767
...
10
Grommet, Screw WPL-M0580007
...
11
Brkt, Cont Cover WPL-12414701
...
12
Insert, Shelf WPL-12085707
...
13
Sleeve,deli WPL-10783902
...
14
Manifold, Deli WPL-10872601
...
15
Gasket, Deli WPL-10872701
...
16
Band-Deli WPL-10986402
...
17
Extrn.-Rear Deli WPL-10873801
...
18
Frame, Deli WPL-10783702
...
20
Pan,deli WPL-10784101
...
21
Roller, Pan WPL-10481001
...
22
Screw WPL-67006692
...
23
Pad-Bumper WPL-M0051701
...
24
Slide, Crisper/deli WPL-10852501
...
25
Shelf, Split Guide WPL-10809711
...
26
Stop, Shelf WPL-10875101
...
27
Insert, Shelf WPL-10954001
...
28
Shelf Full Glide WPL-10809501
...
29
Seal-Crisp Front WPL-10968801
...
30
Band, Crisper WPL-10882701
...
31
Frame-Cris WPL-10782902
...
32
Shelf- Top Crisper WPL-10783101
...
33
Insert, Shelf WPL-10954010
...
34
Pan,crisper WPL-10783201
...
35
Band-Crisper WPL-10882702
...
36
Frame-Crisper WPL-10783001
...
37
Trim, Crisper Frt WPL-10872201
