Amana SBE56FXL (BOM: P1137959N L)

Model: SBE56FXL (BOM: P1137959N L)

Save Part Not Listed?
product name

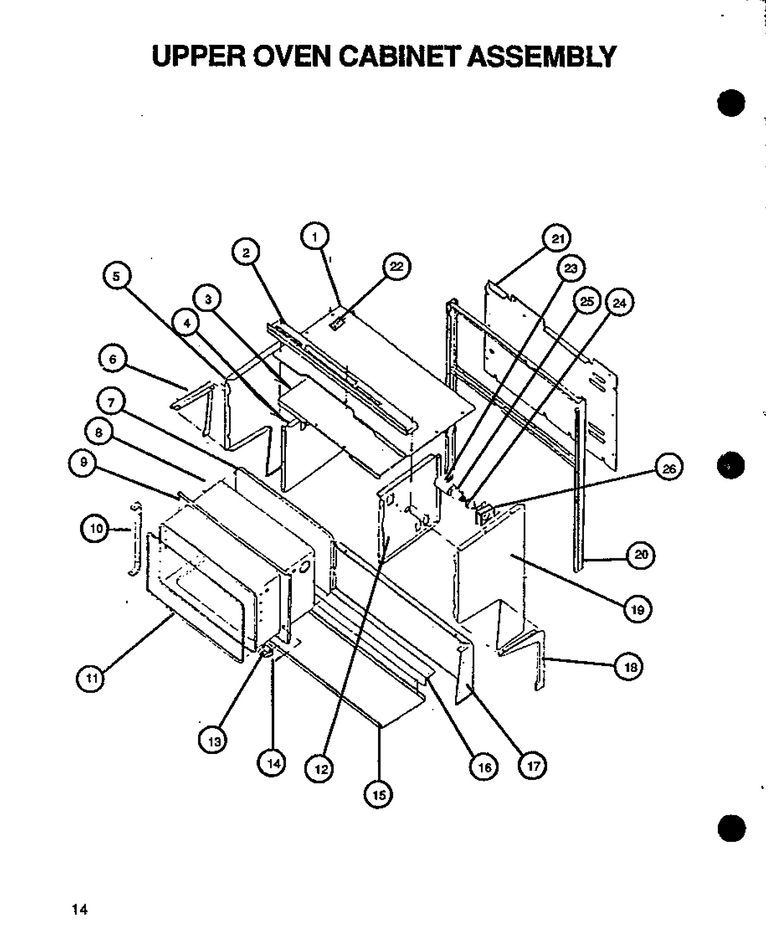

06 - Upper Oven Cabinet Assy

...
...
1
Top Panel WPL-Y086731W
...
2
Trim, Top WPL-Y0086770
...
3
Insulation, Top WPL-Y0086764
...
4
Insulation Retainer, Lh WPL-0086765
...
5
Side Panel, Up Ov, Lh, Amd WPL-086759L
...
6
Oven Support, R.h. WPL-Y0086746
...
7
Oven Backliner WPL-88895CG
...
8
Oven Liner WPL-88896CG
...
9
Front Frame WPL-57327CG
...
10
Oven Door Hinge WPL-0088740
...
11
Door Seal, Up. Ov. Black WPL-Y0310651
...
12
Burner Box Side, R.h. WPL-Y0088746
...
13
Door Support WPL-0088720
...
14
Door Strike WPL-0088809
...
15
Bottom, Wrapper WPL-88726CG
...
16
Light Deflector WPL-Y0088727
...
17
Backsplash Panel, White WPL-Y088725W
...
18
Oven Support, L.h. WPL-Y0086747
...
19
Side Panel, Up Ov, Rh, Amd WPL-Y086758L
...
20
Hi-Oven Bk S WPL-Y0088730
...
21
Cover, Upper Oven Rear WPL-0086734
...
22
Convenience Outlet WPL-0310112
...
23
Oven Light Reflector WPL-Y0088745
...
24
Light Bulb WPL-8009
...
25
Socket, Oven Light WPL-Y0316385
...
26
Oven Light Bracket WPL-Y0088744

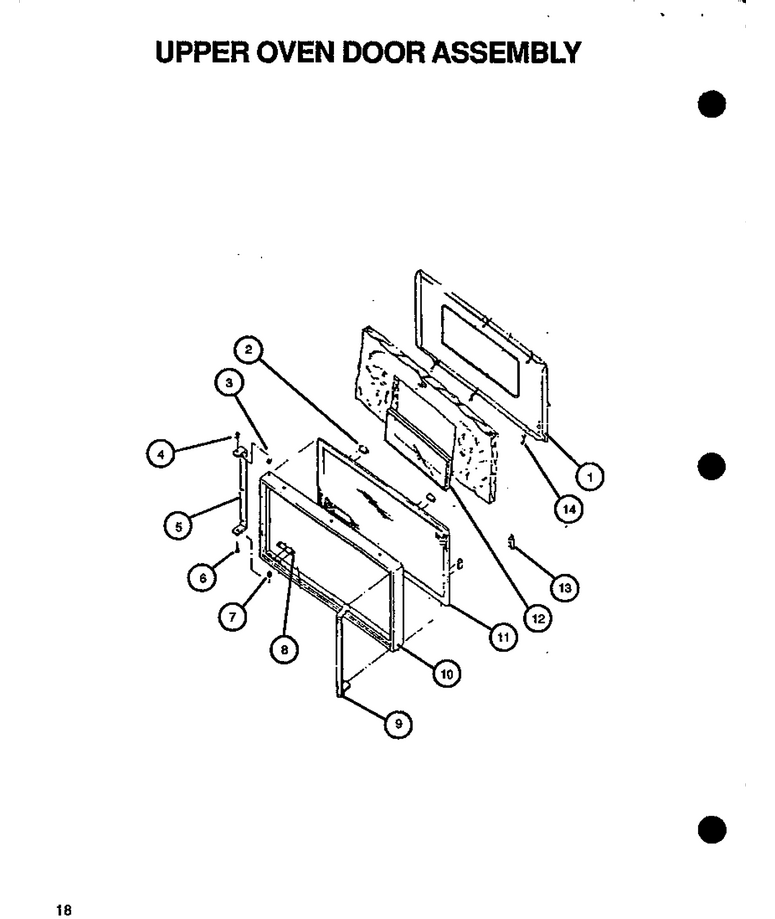

08 - Upper Oven Door Assy

...
...
NI
Screw, End Cap WPL-Y0087753
...
1
Grommet WPL-0310982
...
2
Bumper ``l`` Shaped WPL-Y0312836
...
3
Nylon Washer WPL-0088719
...
4
Hinge Stud WPL-0088722
...
5
Oven Door Hinge WPL-0088740
...
6
Hinge Stud WPL-0088722
...
7
Spacer WPL-0088723
...
8
Slide Bar WPL-0088742
...
9
Light Shield WPL-Y0088714
...
10
Frame, Upper Oven Door WPL-0088716
...
11
Outer Door Glass WPL-0088562
...
12
Inner Door Glass Assembly WPL-0088804
...
13
Door Catch WPL-0088808
...
14
Backer, Oven Door WPL-52745CG

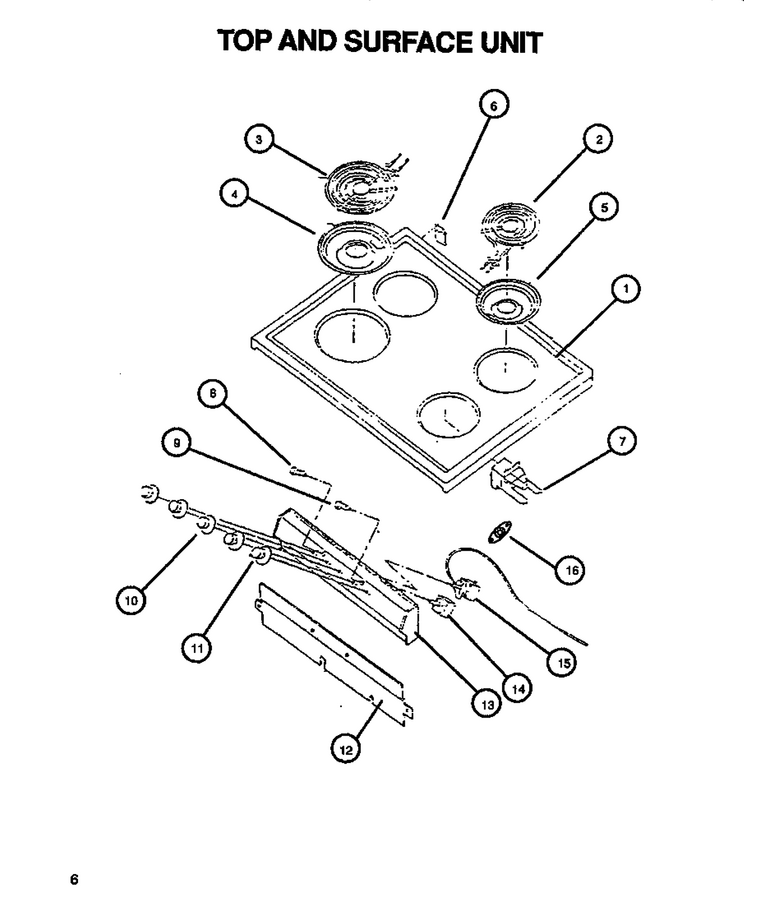

04 - Top And Surface Unit

...
...
NI
Harness, Lower Oven W/lt Sw WPL-0312092
...
1
Main Top, Almond WPL-Y086932L
...
2
Elmnt-Surf WPL-WPY04000036
...
3
Elmnt-Surf WPL-WPY04000035
...
4
Bowl-Drip WPL-WPW10196405
...
5
Bowl-Drip WPL-WPW10196406
...
6
Hinge, Main Top WPL-0088782
...
7
Receptacle WPL-330031
...
8
Light, Indicator WPL-Y0088777
...
9
Light, Pilot WPL-0088640
...
10
Knob, Thermostat WPL-0086943
...
11
Knob WPL-WP4179304
...
12
Shield, Switch Cover WPL-86935CG
...
13
Manifold Panel, 30`` WPL-Y0310481
...
14
Switch, Infinite WPL-0057312
...
15
Thermo-Elect. WPL-0088758
...
16
Disc, Thermo WPL-0053357

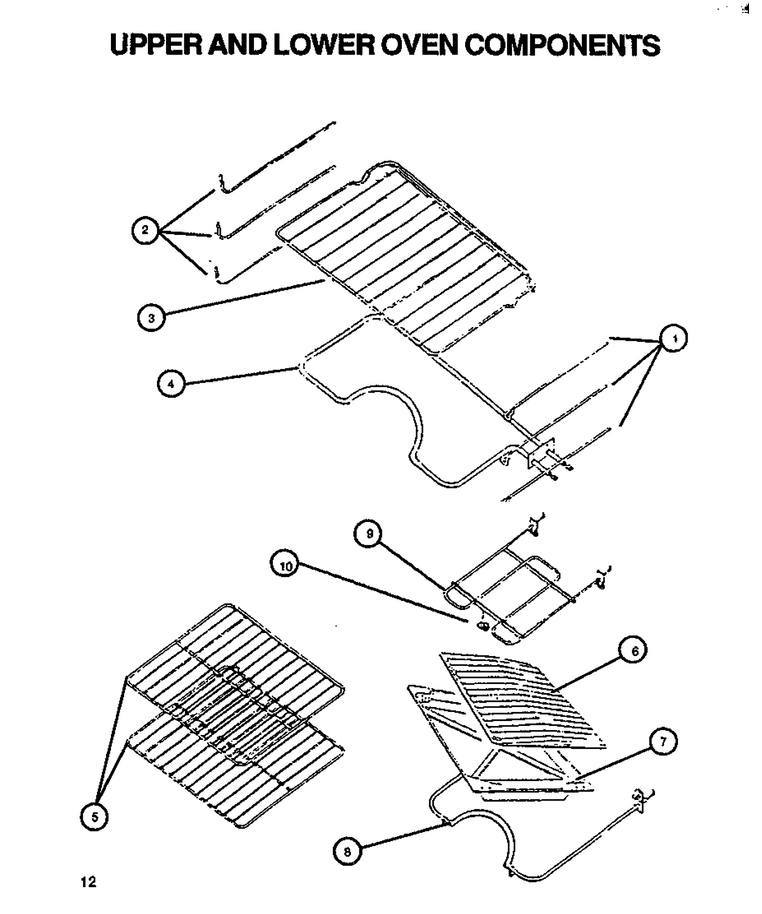

05 - Upper And Lower Oven Components

...
...
1
Oven Rack Support, R.h. WPL-0088708
...
2
Oven Rack Support, L.h. WPL-0088707
...
3
Oven Rack, Upper WPL-0088700
...
4
Bake Element, Upper Oven WPL-0088850
...
5
Rack, Oven, 30`` WPL-Y07671200
...
6
Procelain Broiler (Pan And Grid) WPL-4396923
...
7
Pan, Broiler WPL-87722CG
...
8
Element- B WPL-WPY07409600
...
9
Broil Elem WPL-WPY07431100
...
10
Clip- T-St WPL-R0000343

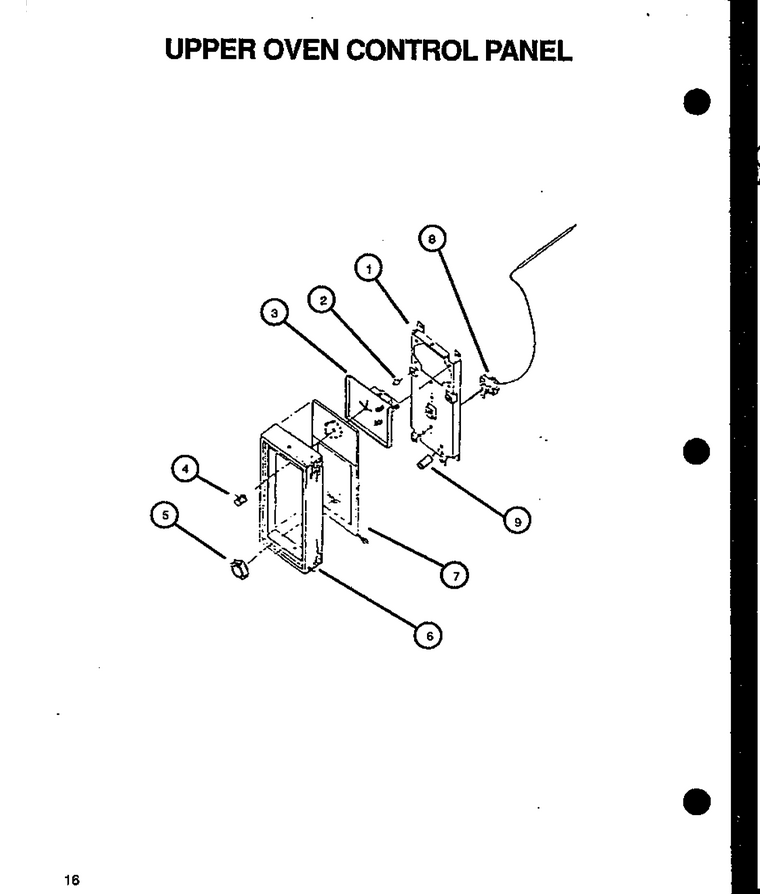

07 - Upper Oven Control Panel

...
...
1
Control Panel Bracket WPL-Y0088735
...
2
Bumper-Rubber 1/4`` WPL-Y02068200
...
3
Clock, Delay & Off WPL-Y0313777
...
4
Knob, Clock WPL-Y0055020
...
5
Knob WPL-0086730
...
6
Frame, Control Panel WPL-0088713
...
7
Glass, Control Panel WPL-Y0313776
...
8
Oven Thermostat WPL-Y0088359
...
9
Light, Indicator WPL-Y0088777

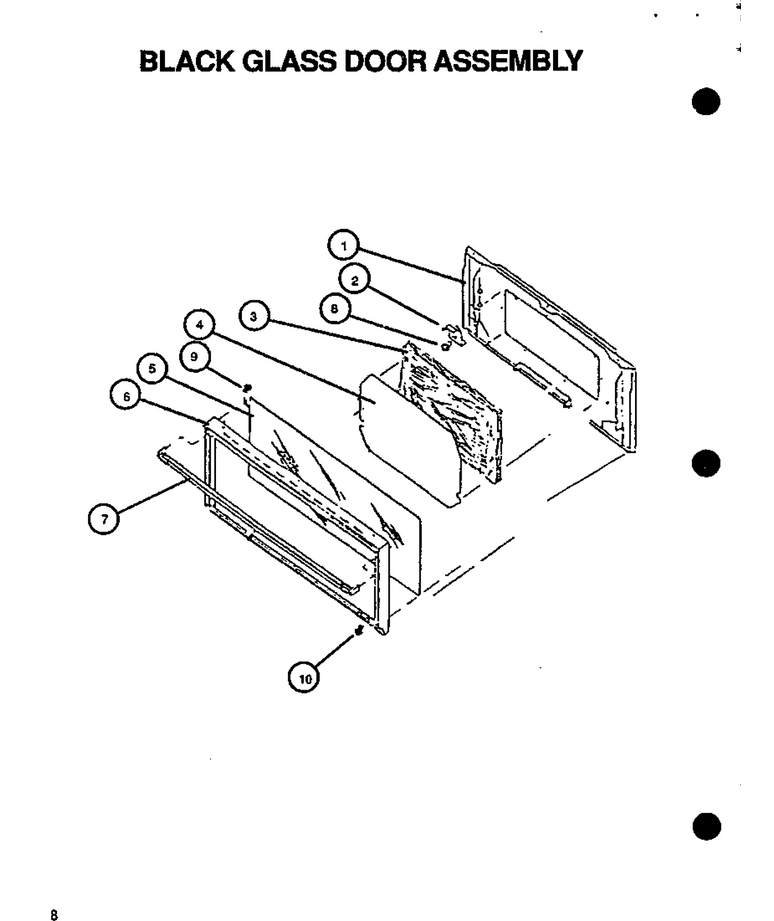

01 - Black Glass Door Assy

...
...
1
Backer, Oven Door WPL-312045E
...
2
Bracket, Bumper Mount {j} WPL-Y0311752
...
3
Insulation, Wrapper WPL-31975801
...
4
Ring, Insulation Hold Down WPL-0311753
...
5
Glass, Oven Door 30`` WPL-Y07642602
...
6
Frame, Oven Door, 30`` {j} WPL-Y0312047
...
7
Handle, Door (J) WPL-Y0057315
...
8
Bumper-Rubber 1/4`` WPL-Y02068200
...
9
Screw, Door Handle WPL-Y0311884
...
10
Screw WPL-WP7101P126-60

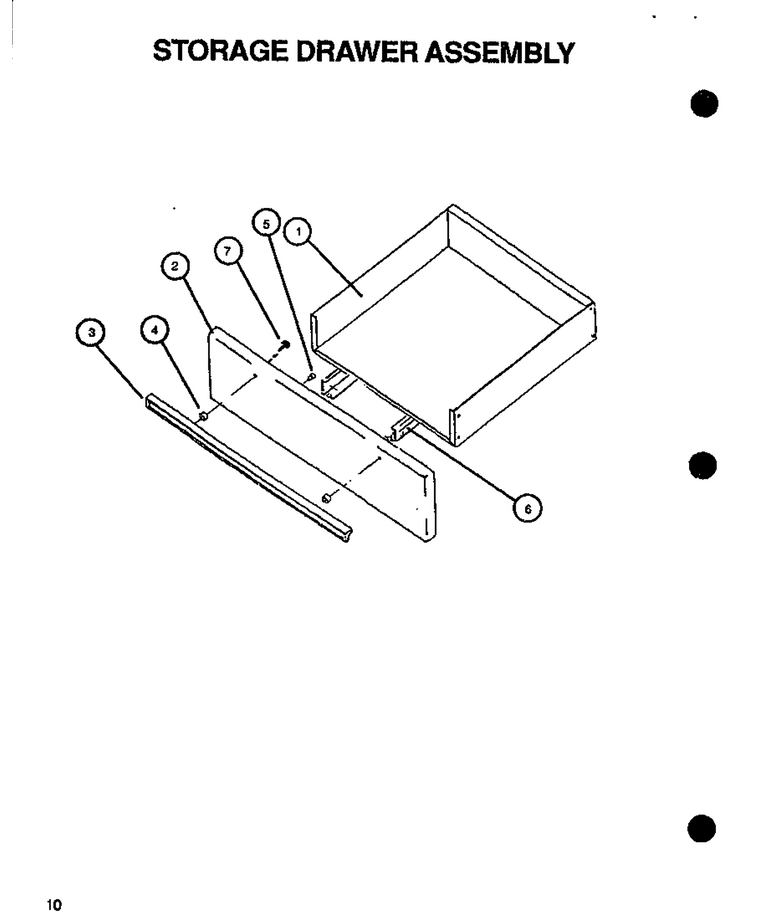

03 - Storage Drawer Assy

...
...
1
Storage Drawer WPL-Y0310537
...
2
Panel, Storage Drawer, Almond WPL-311750L
...
3
Oven Door Handle, 18`` WPL-Y0088812
...
4
Handle Spacer, Plastic (J) WPL-Y0310818
...
5
Bumper-Rubber 1/4`` WPL-Y02068200
...
6
Track, Upper R.h. (Elec) WPL-0310519

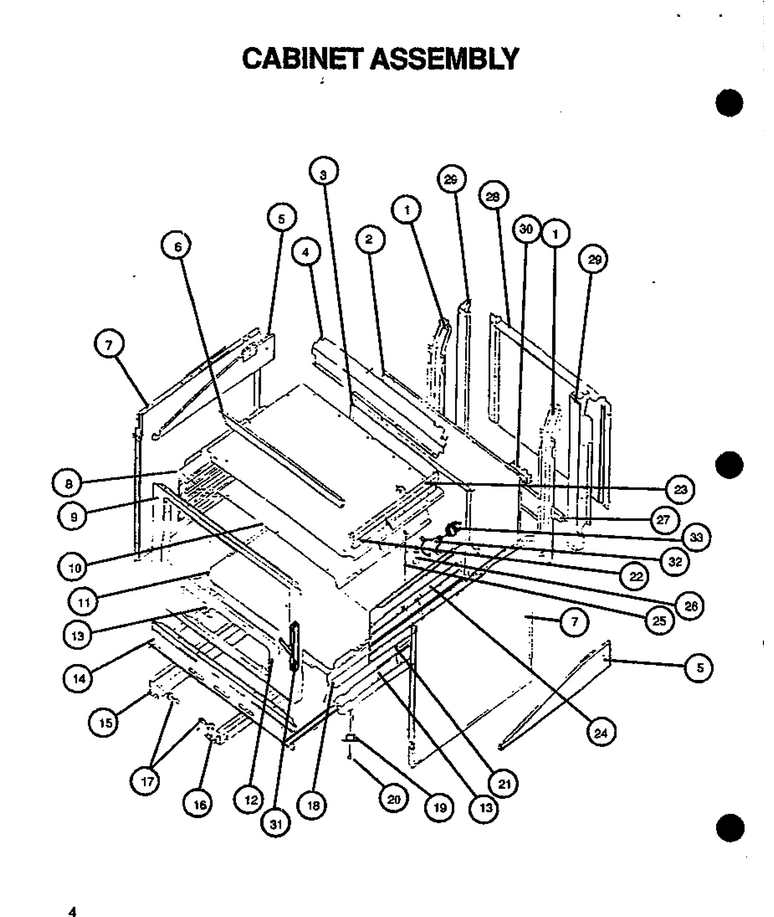

02 - Cabinet Assy

...
...
NI
Kit, Anti-Tip WPL-0312838
...
1
Vertical Sup. (J) WPL-0052742
...
2
Main Back WPL-Y0088752
...
4
Cover, Burner Box WPL-Y0313752
...
5
Burner Box Side, L.h. WPL-0088728
...
6
Shield, Switch Cover WPL-86935CG
...
7
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
12
Seal, Oven-Sides WPL-Y0056090
...
13
Rail, Base WPL-0310806
...
14
Toe Panel (J) WPL-0052744
...
15
Track, Lower L.h. WPL-0310522
...
16
Track, Lower R.h. WPL-Y0310523
...
18
Support, Oven Bottom Insul. WPL-Y0088820
...
19
Tee Nut, Leveling Legs WPL-0088751
...
20
Leg, Leveling WPL-Y0062362
...
22
Wire Channel Support WPL-Y0088817
...
23
Channel, Wire Route WPL-88816CG
...
24
Shoulder Screw WPL-0088779
...
25
Support Rod WPL-0087023
...
26
Tube, Oven Vent WPL-Y0056015
...
27
Bottom Wire Cover Support WPL-Y0088755
...
28
Wire Cover, Main Back WPL-Y0088754
...
29
Support, Rear Vertical WPL-Y0310066
...
30
Block-Term WPL-WP8203546
...
31
Hinge, Oven Door WPL-Y07489700
...
32
Light Bulb WPL-8009
...
33
Socket, Oven Light WPL-Y0316385
