Amana SBE24AAOPT (BOM: SBE24AAOP T)

Model: SBE24AAOPT (BOM: SBE24AAOP T)

Save Part Not Listed?
product name

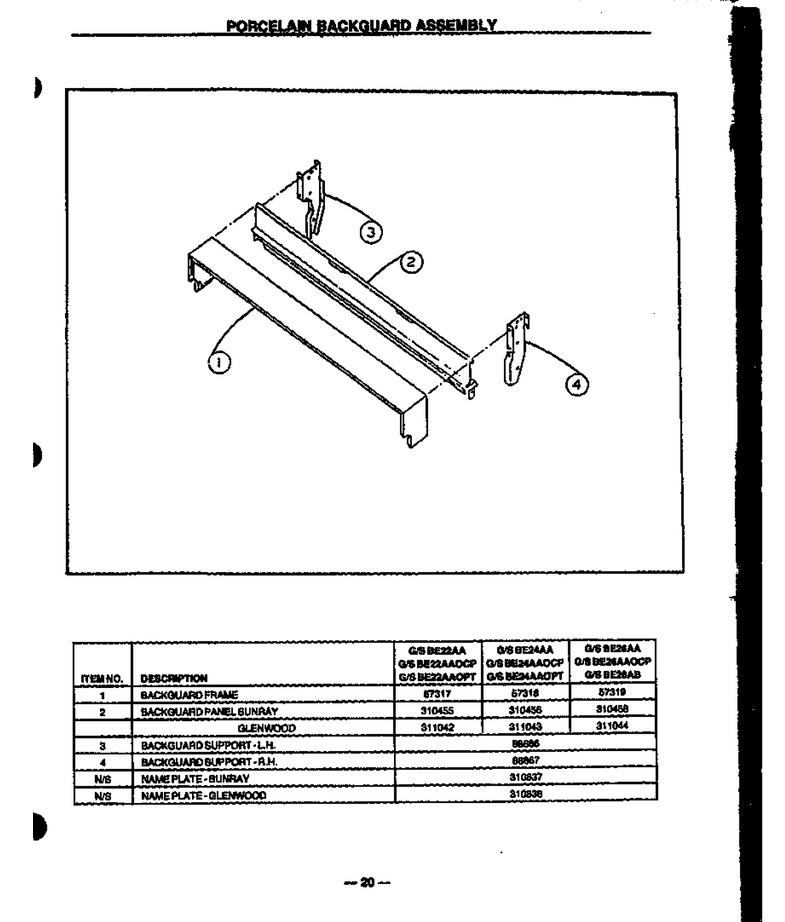

03 - Page 14

...
...
NI
Sunray Label WPL-0310837
...
1
Backguard Frame (J) WPL-Y0057318
...
2
Backguard Panel (Low 24``) WPL-Y0310456
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667

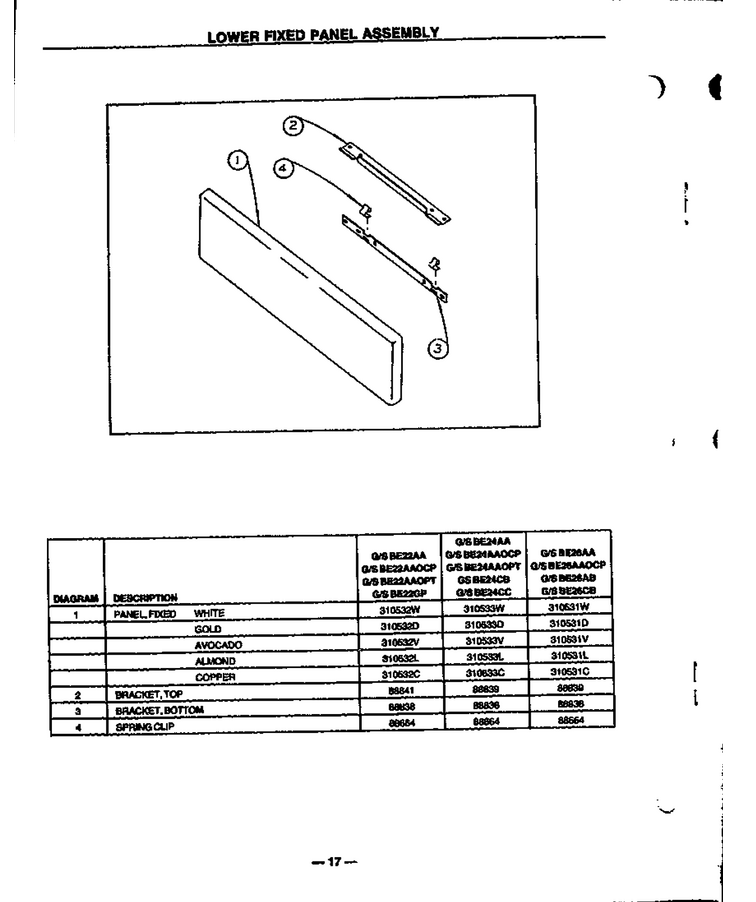

02 - Lower Fixed Panel Assy

...
...
1
Panel, Fixed (Almond) WPL-Y06538900L
...
2
Bracket, Top WPL-Y88839
...
3
Bracket, Bottom WPL-88838
...
4
Spring Clip WPL-Y0088664

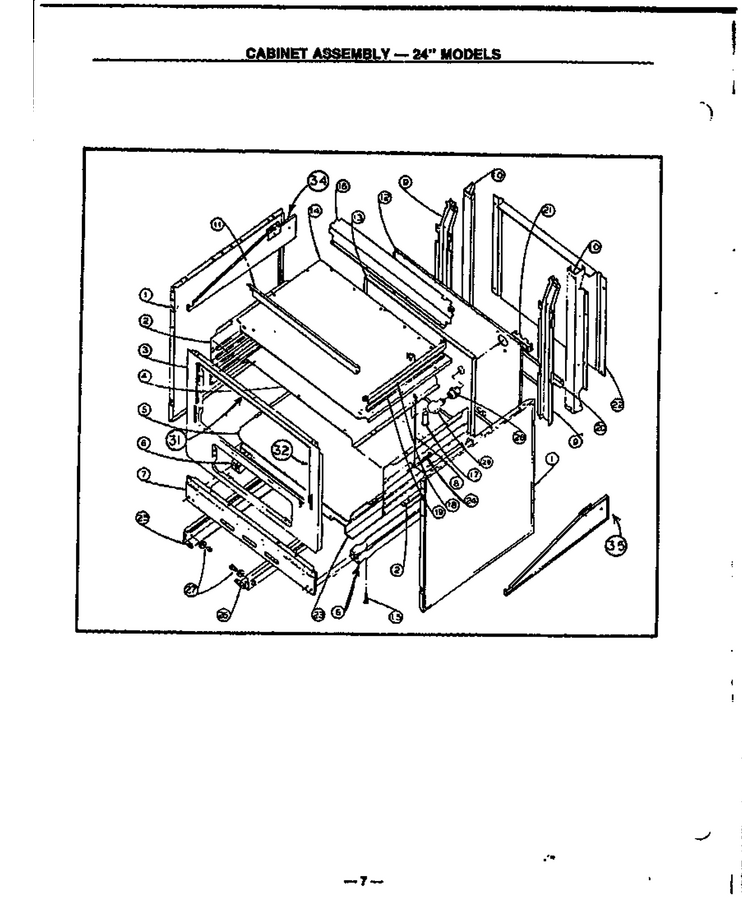

04 - Page 3

...
...
NI
Cage, Oven Light WPL-Y0088635
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner, Oven Side WPL-88897CG
...
3
Main Front WPL-57378CG
...
4
Liner, Oven Top (24` Range) WPL-Y06469800E
...
5
Oven Bottom Liner Porcelain WPL-88587CG
...
6
Rail, Base WPL-0088654
...
7
Panel, Base Toe 24`` WPL-Y0054693
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Shield, Switch Cover 24`` WPL-86934CG
...
12
Main Back (24`` Gas) {j} WPL-Y0086756
...
13
Oven Backliner WPL-311061X
...
14
Burner Box Bottom WPL-311001E
...
15
Leg, Leveling WPL-Y0062362
...
16
Burner Box Rear Cover WPL-Y0311033
...
17
Oven Vent WPL-0088761
...
18
Wire Channel WPL-311011E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire Cover WPL-Y0086753
...
21
Block-Term WPL-WP8203546
...
22
Wire Cover, Main Back WPL-Y0086751
...
23
Support WPL-Y0057214
...
27
See Note Roller WPL-Y00000000
...
28
Socket, Oven Light WPL-Y0316385
...
29
Light Bulb WPL-8009
...
31
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
32
Strap, Seal WPL-56090P

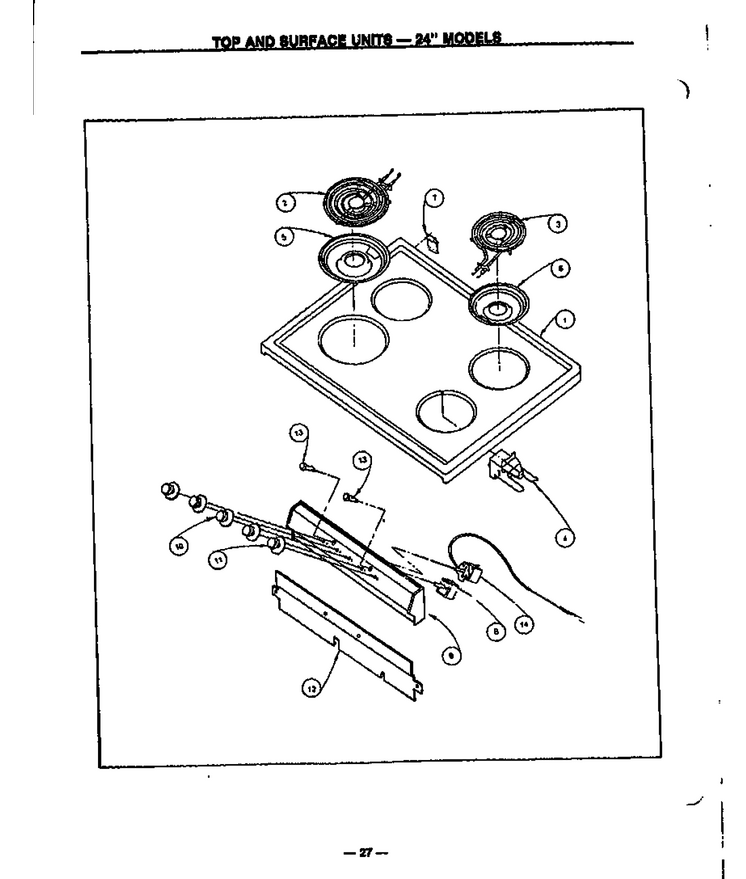

06 - Top And Surface Units-24`` Models

...
...
NI
Switch- Ov WPL-Y07625800
...
1
Top, 24`` Main Electric (White) WPL-310080W
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
X Manifold Panel 24`` WPL-Y0310483
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
12
Shield, Switch Cover 24`` WPL-86934CG
...
13
Light, Indicator WPL-Y0088777
...
14
Thermo-Elect. WPL-0088758

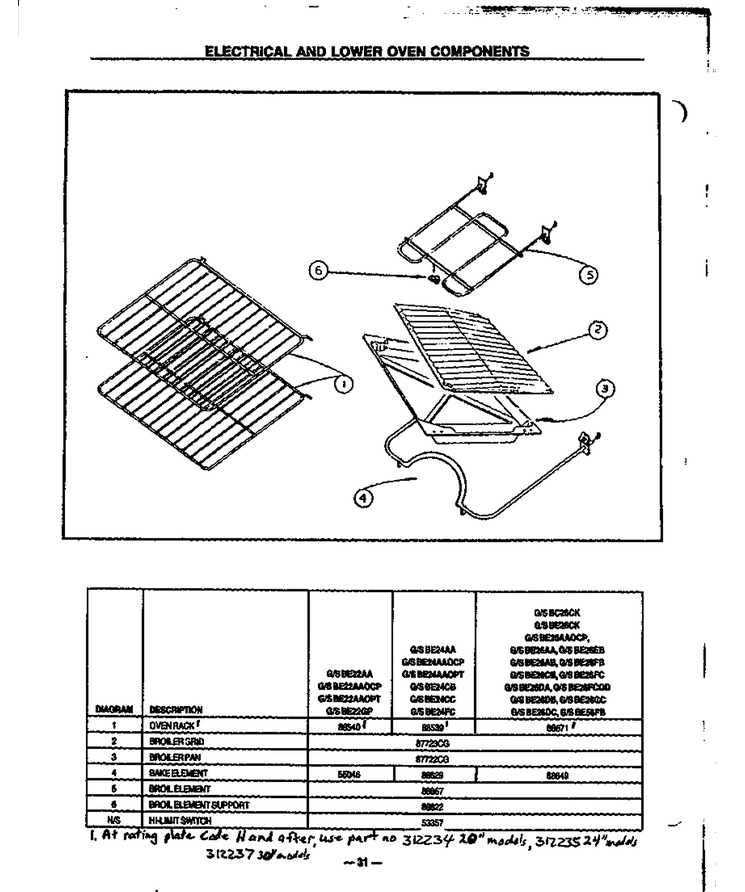

01 - Electrical And Lower Oven Components

...
...
1
Sub 56053, Oven Rack, 24`` WPL-Y0088539
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Bake Eleme WPL-WPY07409802

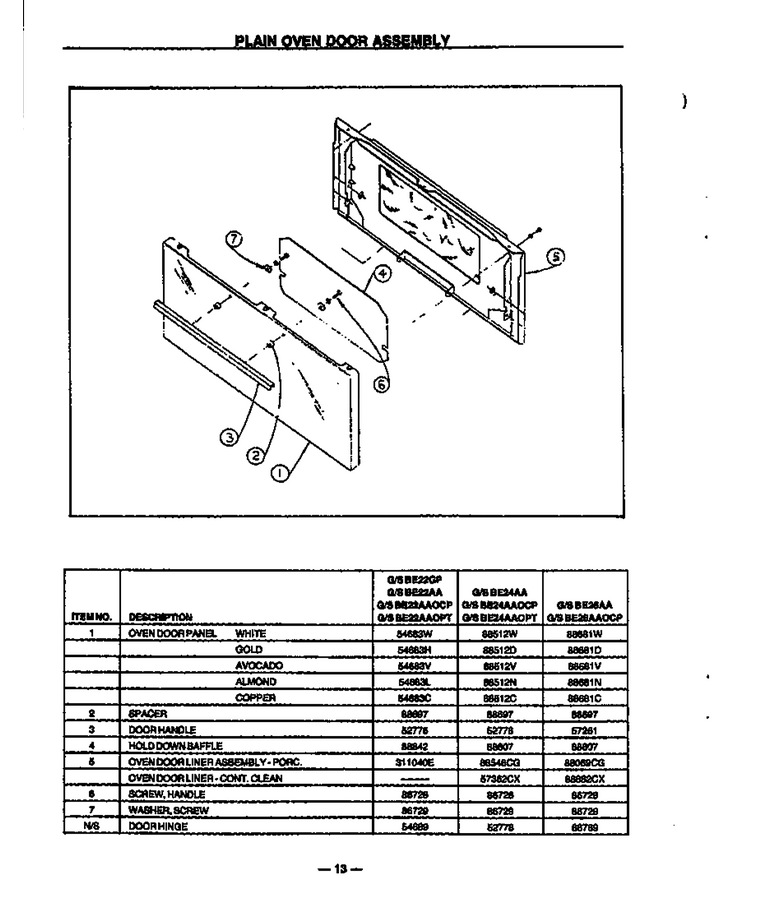

05 - Plain Door Assy

...
...
NI
Hinge WPL-Y0052778
...
1
Panel, Oven Door, Gold WPL-Y088512D
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
4
Ring, Insulation Hold Down WPL-0088807
...
5
Backer, Oven Door WPL-88548CG
...
6
Screw WPL-707407
...
7
Washer, Steel (1/4 X 9/16) WPL-Y0086729
