product name

Amana SBE22AX (BOM: P1142412N W)

Model: SBE22AX (BOM: P1142412N W)

Save Part Not Listed?
product name

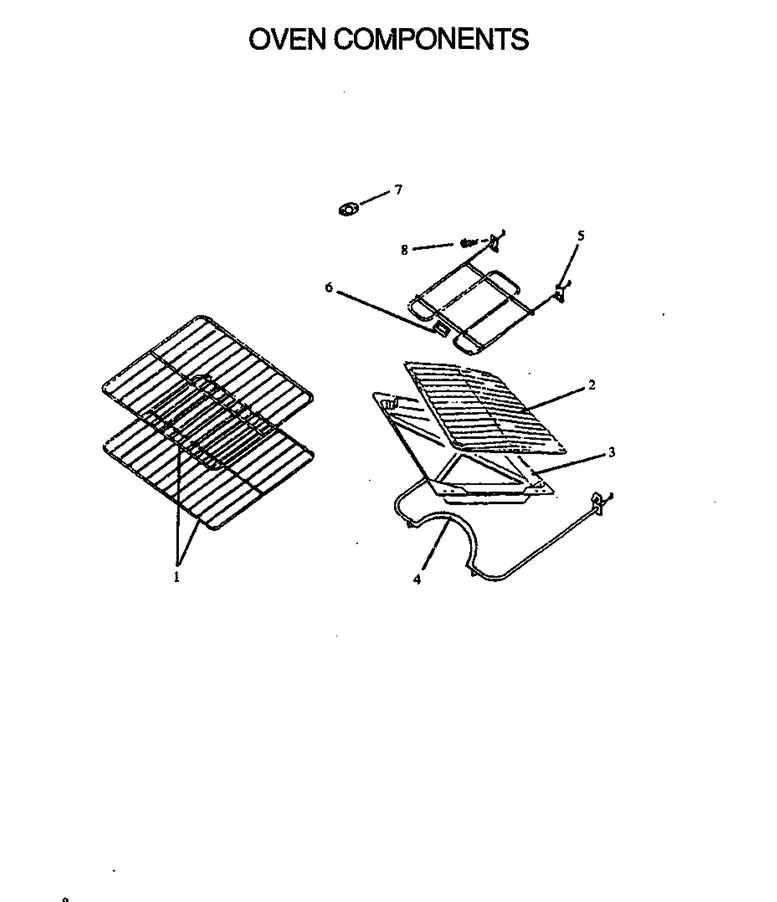

06 - Oven Components

...
...
1
Rack, Oven, 20`` WPL-Y07671000
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Element-Ba WPL-WPY07565600
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357
...
8
Screw WPL-0087709

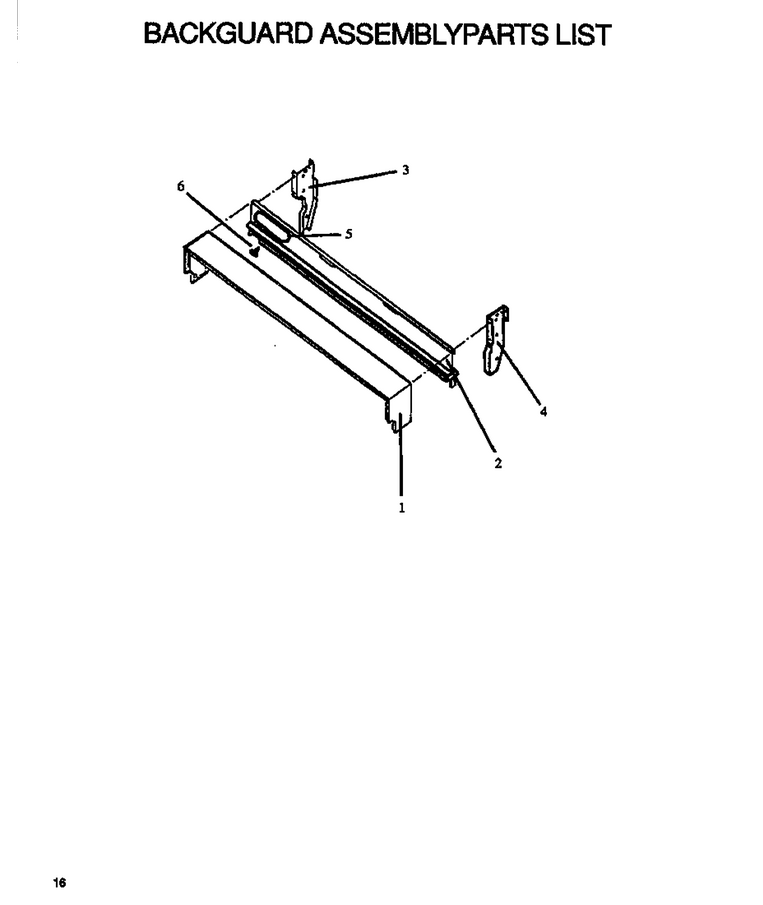

01 - Backguard Assy

...
...
1
Backguard Frame WPL-0057317
...
2
Pnl-Filr,4x20,nonm WPL-R0708230
...
3
Support, Bkgd. (Low, Lh) {j} WPL-0310811
...
4
Support, Bkgd. (Low, Rh) {j} WPL-0310812
...
5
Sunray Label WPL-0310837
...
6
Screw WPL-0310240

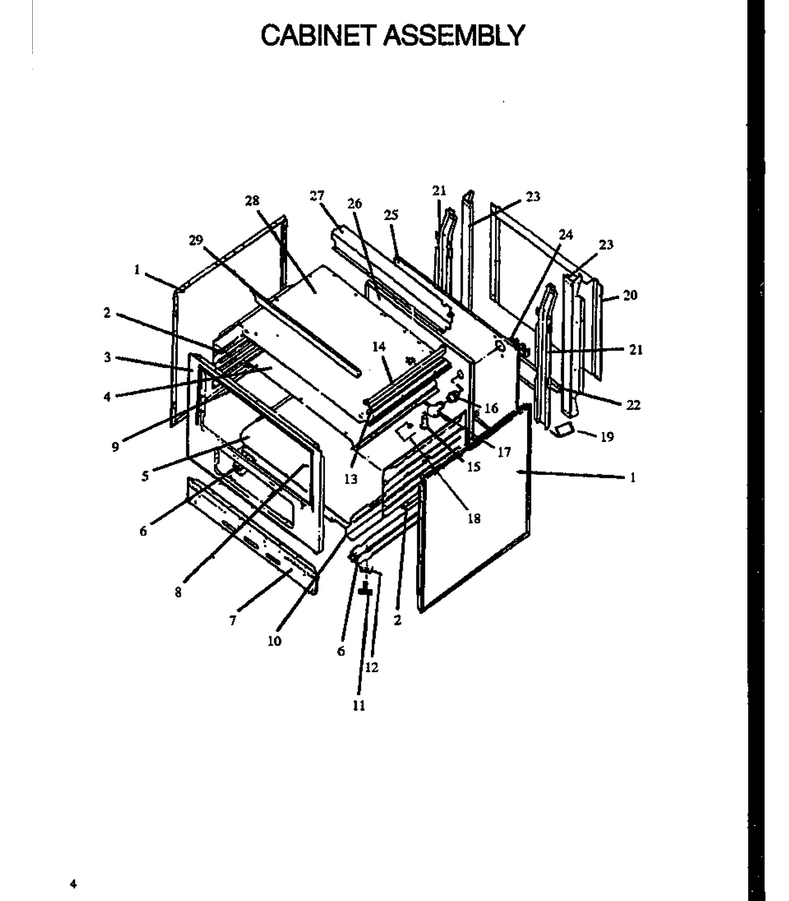

02 - Cabinet Assy

...
...
NI
Insulation, Wrapper WPL-31975801
...
1
Panel,body Side (Al) WPL-313762L
...
2
Liner,oven Side WPL-0311807
...
4
Liner, Oven Top WPL-86924CG
...
5
Liner, Oven Bottom WPL-88586CG
...
6
Rail, Base WPL-0312165
...
7
Panel Base Toe WPL-Y0054694
...
8
Seal, Oven-Sides WPL-Y0056090
...
9
Seal, Oven Door-Top WPL-Y0056494
...
10
Support WPL-Y0057213
...
11
Leg, Leveling WPL-Y0062362
...
12
Snap-In Tee Nut WPL-Y0088571
...
13
Wire Channel Support WPL-Y0088817
...
14
Wire Channel WPL-311010E
...
15
Oven Vent WPL-0088761
...
19
Kit, Anti-Tip WPL-07687600
...
20
Support, Bottom Wire Cover WPL-Y0086754
...
21
Vertical Sup. (J) WPL-0052742
...
22
Wire Cover, Main Back WPL-Y0086752
...
23
Support, Rear, Vertical {j} WPL-0056477
...
24
Block-Term WPL-WP8203546
...
25
Shield, Main Back WPL-0311067
...
26
Liner, Oven Back (16``) WPL-Y06472600E
...
27
Cover, Rear B.b. (20``) WPL-311012E
...
28
Burner Box, Bottom WPL-311000E
...
29
Switch Cover WPL-0086933

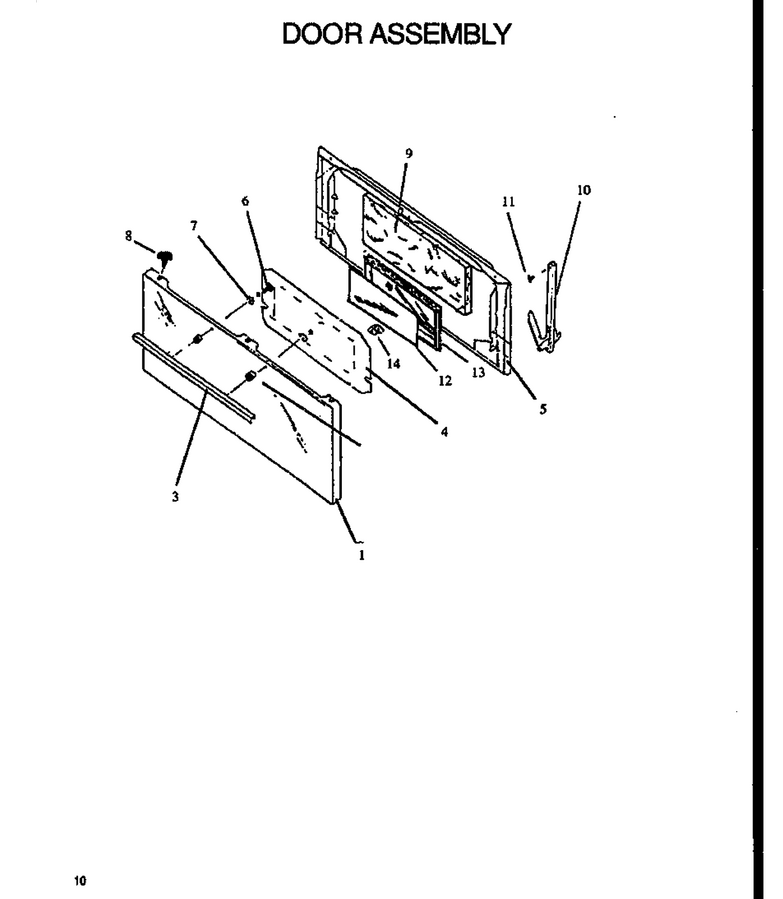

03 - Door Assy

...
...
1
Panel, Oven Door (White) WPL-313754W
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
4
Baffle, Hold Down WPL-0088842
...
5
Backer, Oven Door WPL-54680CG
...
6
Screw, Door Handle WPL-Y0311884
...
8
Screw WPL-WP7101P126-60
...
9
Insulation, Wrapper WPL-31975801
...
10
Hinge- Doo WPL-Y07580401
...
11
Screw WPL-WP4159193

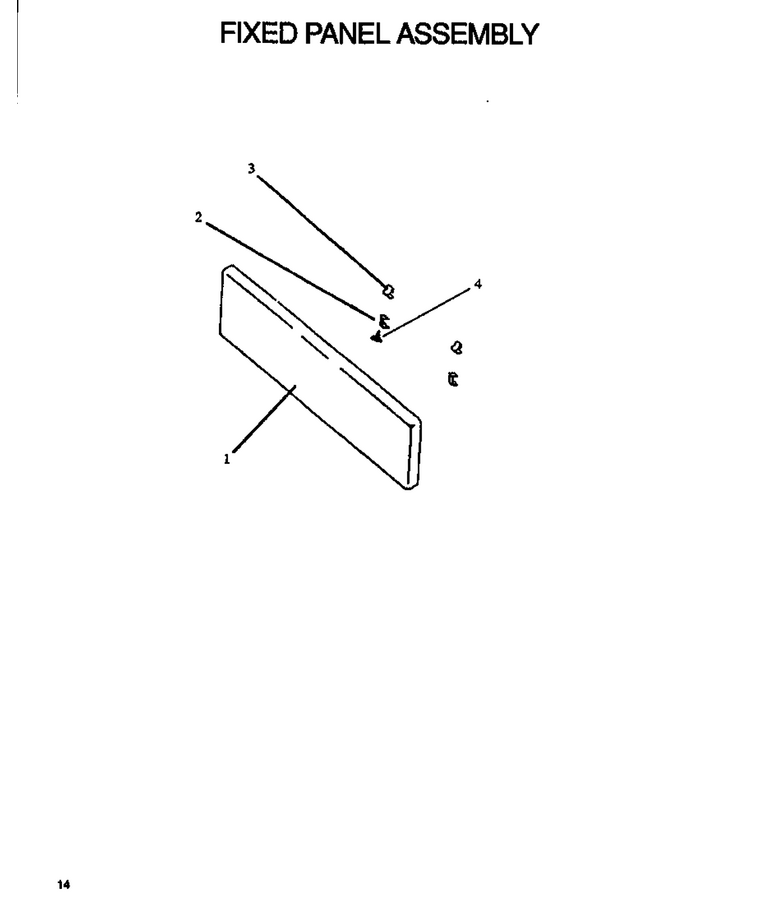

04 - Fixed Panel Assy

...
...
1
Panel, Fixed (Almond) WPL-06538800L
...
2
Clip, Bracket WPL-Y06538700
...
3
Spring Clip WPL-Y0088664
...
4
Screw WPL-WP7101P126-60

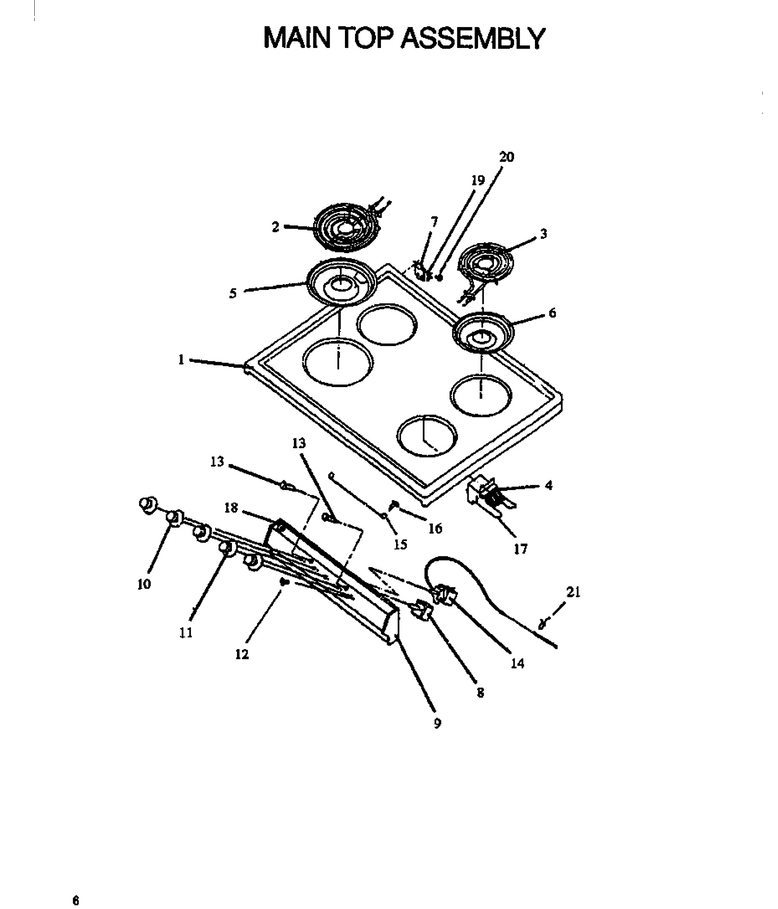

05 - Main Top Assy

...
...
1
Top, 20`` Main Electric (Almond WPL-Y06461007L
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Manifold Panel, 20`` WPL-Y07621921
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
12
Screw, Infinite, Switch Mtg. WPL-0311874
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758
...
15
Support Rod WPL-0087023
...
16
Shoulder Screw WPL-0088779
...
17
Bracket WPL-W10116809
...
19
Nut, Speed, Flat WPL-Y0310032
...
20
Screw No.10x1/2 Blunt WPL-Y0310363
...
21
Clip, Capillary WPL-0088050
