Amana SBE22AAOCP (BOM: SBE22AAOC P)

Model: SBE22AAOCP (BOM: SBE22AAOC P)

Save Part Not Listed?
product name

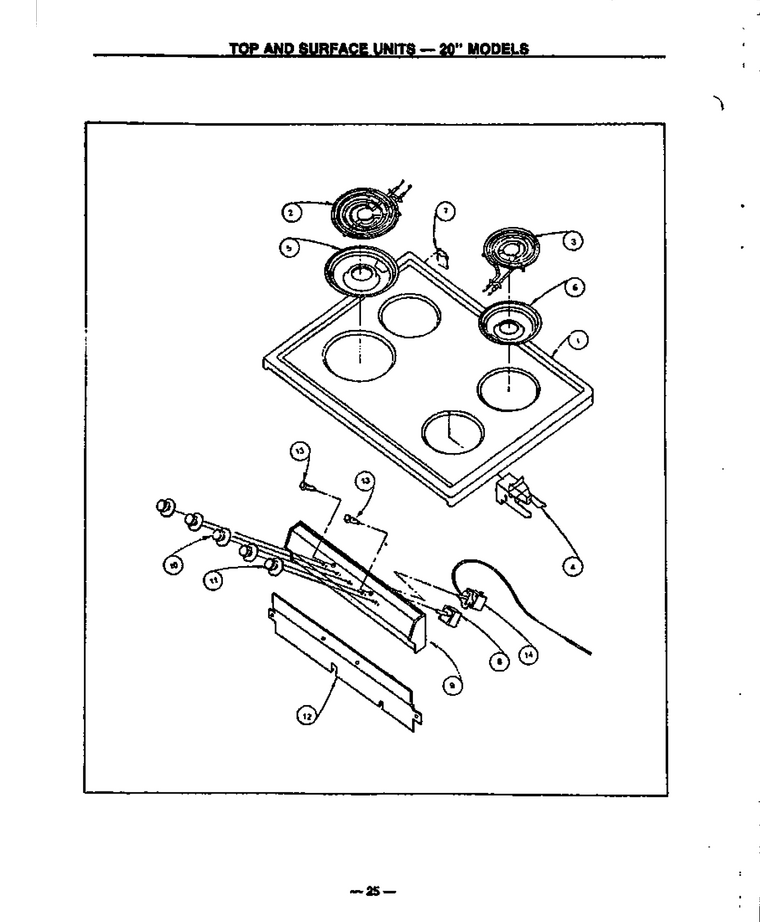

06 - Top And Surface Units-20`` Models

...
...
NI
Screw WPL-0055047
...
1
Top, 20`` Main Electric (Almond WPL-310079L
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Manifold Panel, 20`` WPL-Y0310479
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
12
Switch Cover WPL-86933CG
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758

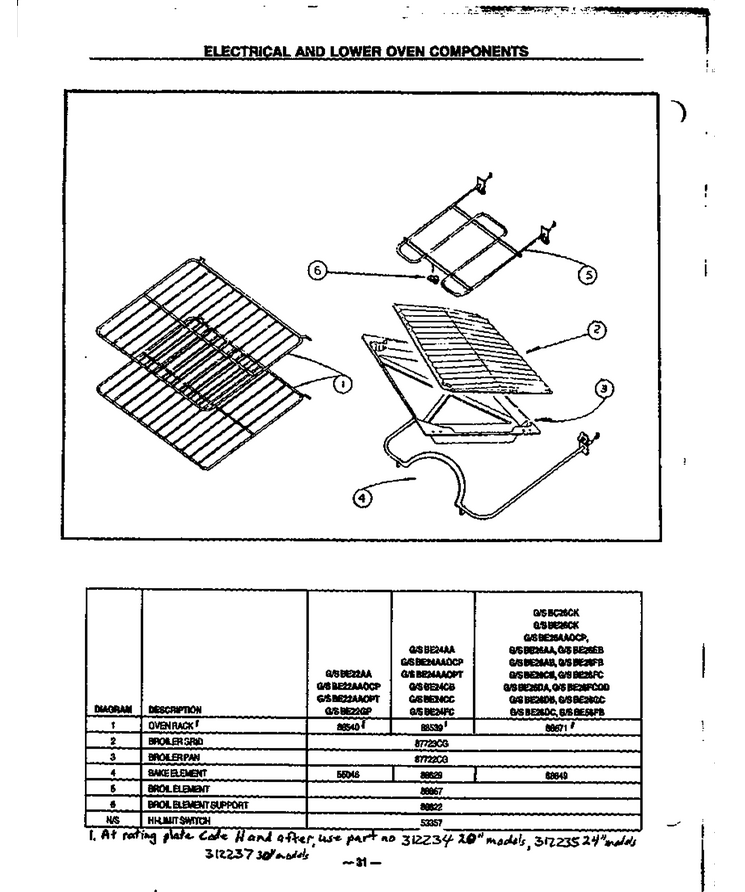

01 - Electrical And Lower Oven Components

...
...
1
Oven Rack WPL-Y0088540
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Element-Ba WPL-WPY07565600

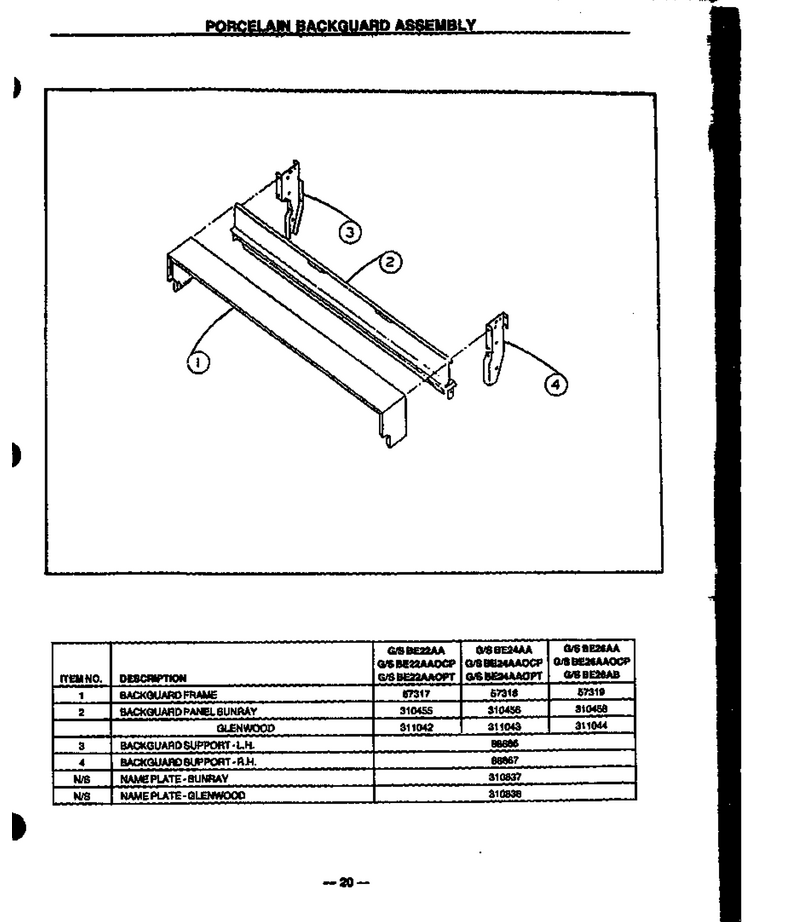

03 - Page 14

...
...
NI
Nameplate, Glenwood WPL-0310838
...
1
Backguard Frame WPL-0057317
...
2
Use R0708230 WPL-0310455
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667

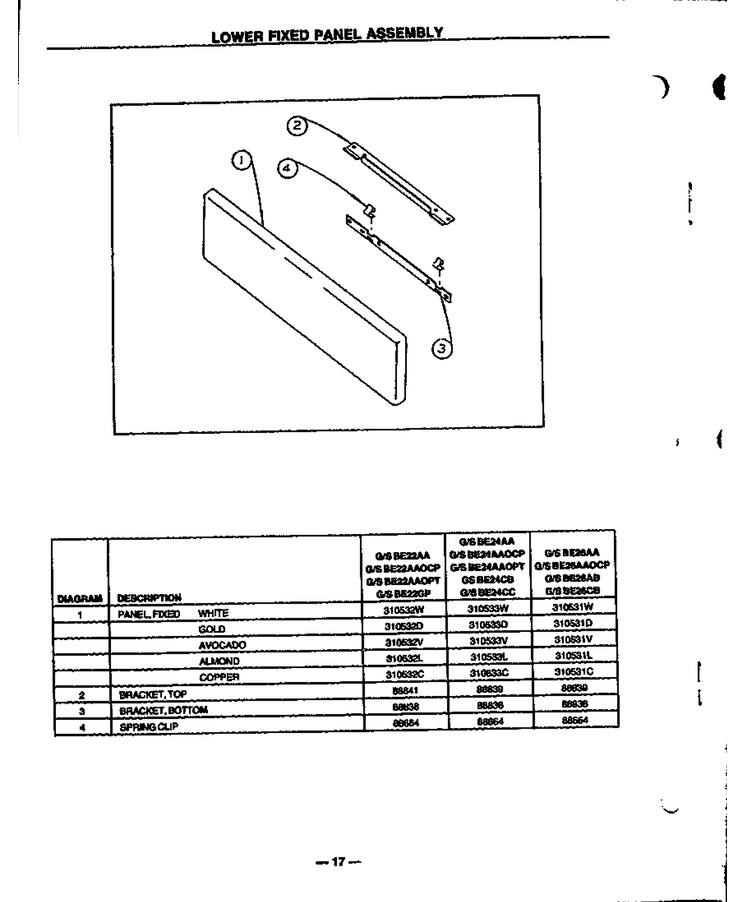

02 - Lower Fixed Panel Assy

...
...
1
Panel Fixed Avocado WPL-310532V
...
2
Bracket, Top WPL-88841
...
3
Bracket, Bottom WPL-88838
...
4
Spring Clip WPL-Y0088664

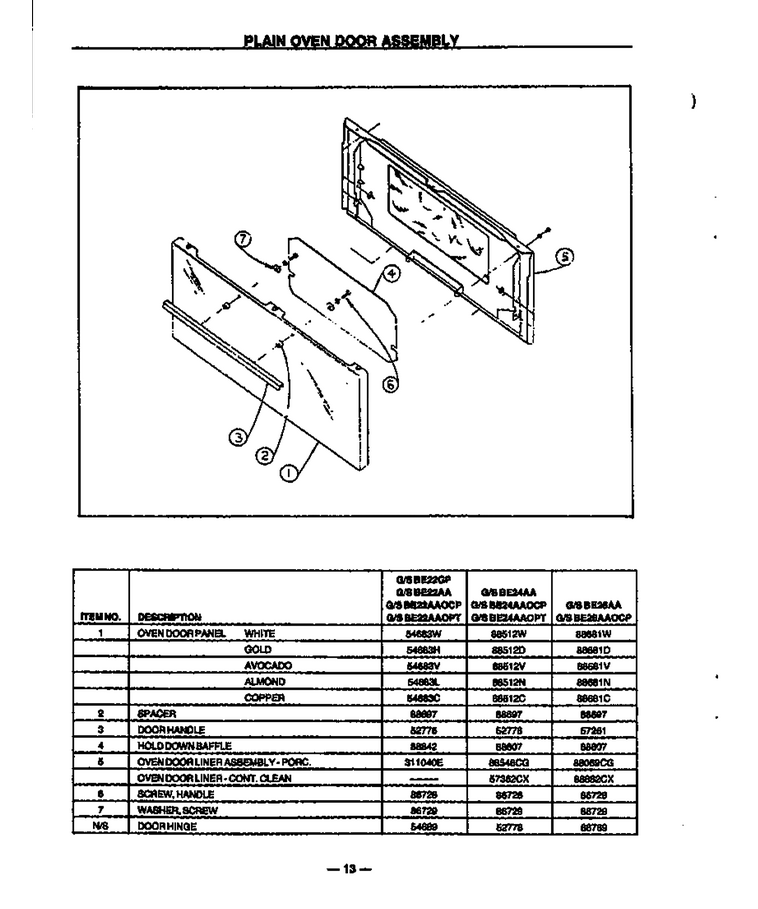

05 - Plain Door Assy

...
...
NI
Door Hinge WPL-Y54689
...
1
Oven Door Panel Almond WPL-54683L
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
4
Baffle, Hold Down WPL-0088842
...
5
Backer, Oven Door WPL-311040E
...
6
Screw WPL-707407
...
7
Washer, Steel (1/4 X 9/16) WPL-Y0086729

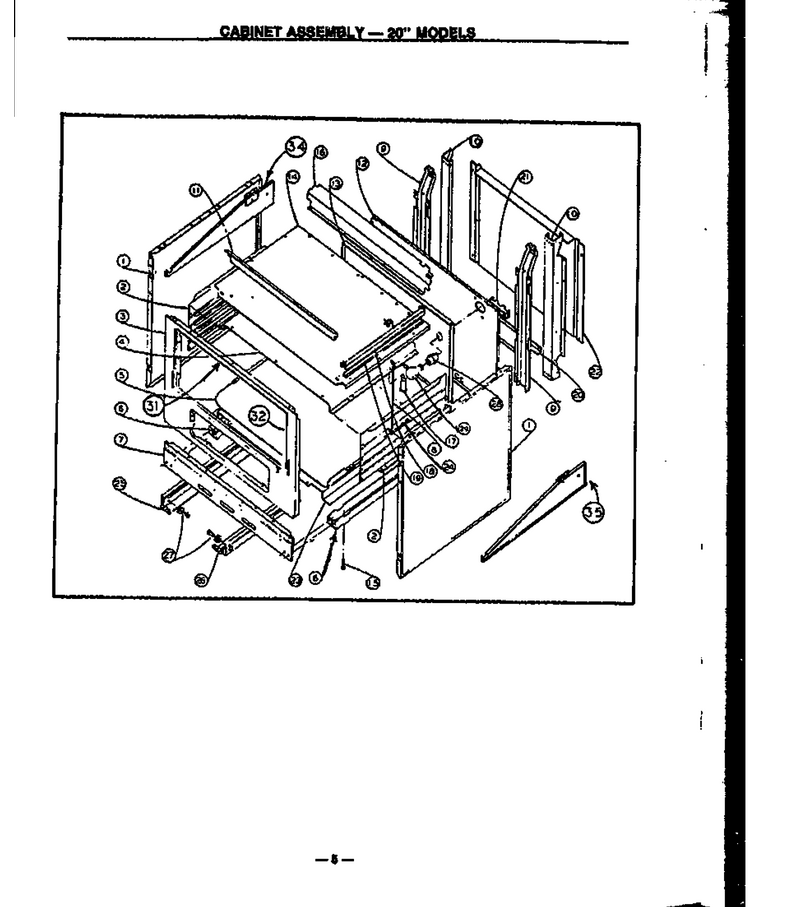

04 - Page 2

...
...
NI
Snap-In Tee Nut WPL-Y0088571
...
1
Body Side Avocado WPL-311003V
...
2
Liner,oven Side WPL-0311807
...
3
Main Front WPL-310077E
...
4
Liner, Oven Top WPL-86924CG
...
5
Liner, Oven Bottom WPL-88586CG
...
6
Rail, Base WPL-0088654
...
7
Panel Base Toe WPL-Y0054694
...
8
Support Rod WPL-0087023
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Switch Cover WPL-86933CG
...
12
Main Back WPL-Y0311045
...
13
Oven Back Liner Porcelain WPL-57215CG
...
14
Burner Box, Bottom WPL-311000E
...
15
Leg, Leveling WPL-Y0062362
...
16
Cover, Rear B.b. (20``) WPL-311012E
...
17
Oven Vent WPL-0088761
...
18
Wire Channel WPL-311011E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire Cover WPL-Y0086754
...
21
Block-Term WPL-WP8203546
...
22
Wire Cover, Main Back WPL-Y0086752
...
23
Support WPL-Y0057213
...
24
Shoulder Screw WPL-0088779
...
31
Seal, Oven Door-Top WPL-Y0056494
...
32
Strap, Seal WPL-56090P
