Amana SBDT520J (BOM: P7845303W W)

Model: SBDT520J (BOM: P7845303W W)

Save Part Not Listed?
product name

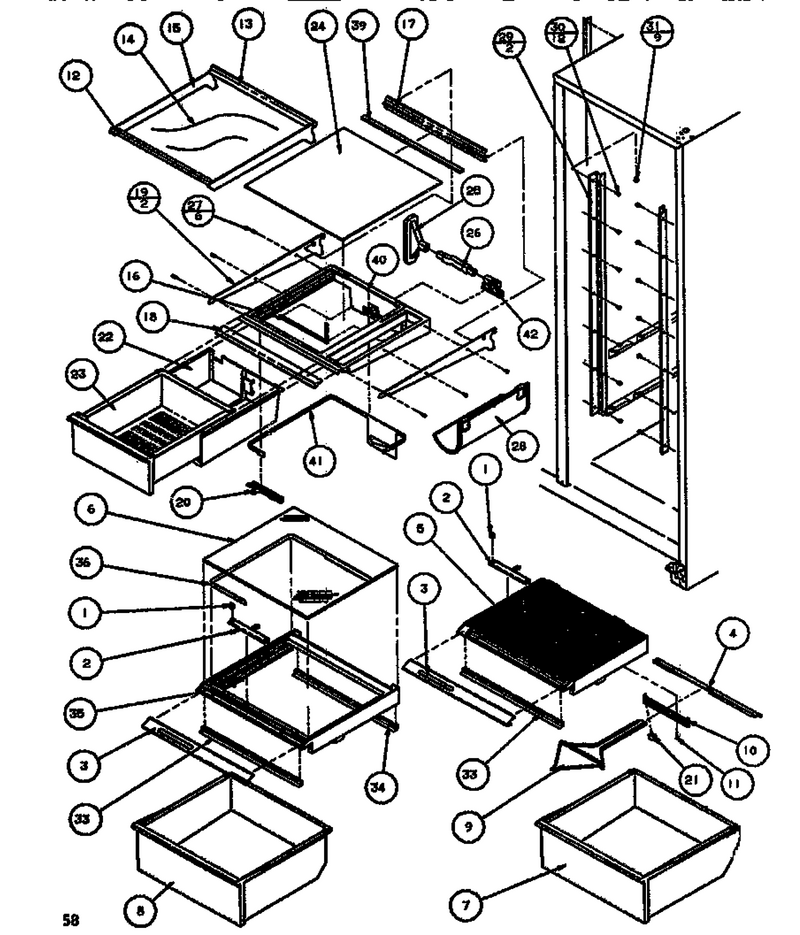

13 - Shelving & Drawers (ref)

...
...
NI
Assy, Crisper Top WPL-R0179123
...
1
Knob, Crisper Control WPL-C8991203
...
2
Slide WPL-D7860603
...
3
Trim WPL-D7616631
...
4
Damper Hum. Cont. WPL-D7764104
...
5
Crisper Frame WPL-D7856902
...
6
Glass Top Crisper WPL-10036007
...
7
Pan-Fruit WPL-D7817212
...
8
Crisper Pa WPL-D7782017
...
9
Slide Crisper Cont. WPL-D7782201
...
10
Support WPL-D7807602
...
11
Screw,tc WPL-M0230017
...
12
Trim WPL-C8913518
...
13
Trim WPL-C8913608
...
14
Glass Shelf WPL-D7421248
...
15
Frame-Cantilever Full Shelf WPL-D7871007
...
16
Gasket WPL-A3030349
...
17
Trim, Rear WPL-C8990405
...
18
Trim WPL-C8913520
...
19
Side Rail WPL-D7862922
...
20
Slide-Mk C WPL-D7859404
...
21
Clip WPL-M0118102
...
22
Sleeve M.k. A WPL-D7817906
...
23
Pan-Meat-W WPL-D7814014
...
24
Glass Shelf, Mk WPL-D7421263
...
25
Grommet, Mk WPL-D7873601
...
26
Xduct M.k. Air WPL-D7869001
...
27
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
28
Rack, Bottle WPL-D7547607
...
29
Ladder Cantilever WPL-D7789805
...
30
Screw (3) WPL-67006425
...
31
Grommet, Screw WPL-M0580007
...
33
Seal, Crisper Front WPL-D7718403
...
34
Seal, Crisper Rear WPL-D7718404
...
35
Frame WPL-D7853203
...
36
Band M.k. Control WPL-D7859604
...
39
Ext. Rear Glass WPL-10043102
...
40
Frame, Mk WPL-D7857004
...
41
Band M.k. Control WPL-D7859502
...
42
Ext. Air Duct WPL-D7869101

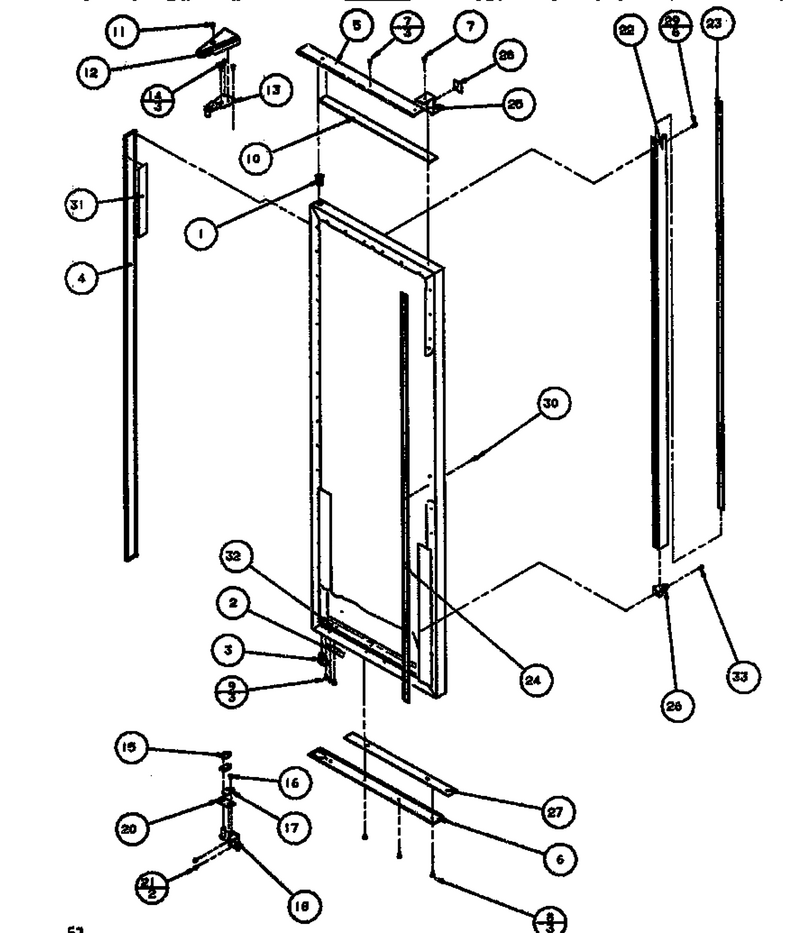

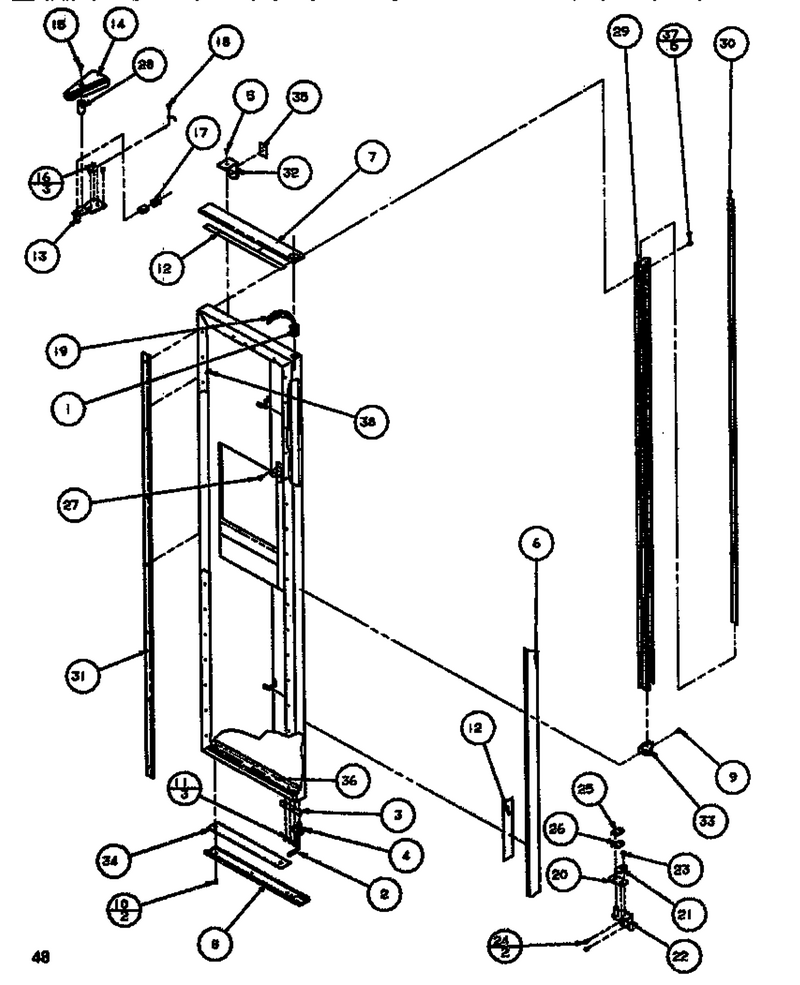

03 - Door/hinge/trim Fz

...
...
Note: Ref. No. 1, Refrigerator Door Pan Doesn`t Include Door Stop Mounting Nut,tap Strip And Handle Supports (ref. Nos. 2, 24 On Previous Page). Order Separat WPL-NOTE:
...
NI
Door Hinge Assy WPL-R0164235
...
1
Bushing- D WPL-WP67004977
...
2
Tube WPL-WPB5705307
...
3
Stop, Door (blk) WPL-12636401B
...
4
Kit,dr Closure WPL-R0181181
...
5
Screw WPL-M0213521
...
6
Trim Vertical WPL-D7830005
...
7
Trim Fr Dr Top WPL-D7830303
...
8
Trim Fr Dr. Bottom WPL-D7830403
...
9
Screw WPL-M0210305
...
10
Screw WPL-WPM0219730
...
11
Screw WPL-WP98165
...
12
Tape, Double Back, Trim Door T WPL-R0195038
...
13
Top Hinge Assy WPL-D7757803
...
14
Cover, Hinge WPL-D7789502
...
15
Screw WPL-M0202325
...
16
Kit, Screw WPL-R9800670
...
17
Connector-6 Pin WPL-B8384101
...
18
Screw WPL-W11214483
...
19
Harness WPL-D7748101
...
20
Kit,btm Hinge Shim WPL-B8386703
...
21
Kit,dr Closure WPL-R0181181
...
22
Hinge Assy WPL-D7757705
...
23
Screw WPL-WPW10068250
...
24
Screw WPL-WP67006715
...
25
Shim, Door Closure WPL-B8387702
...
26
Shim, Door Closure WPL-B8387701
...
27
Screw WPL-WP489399
...
28
Tubing Plastic WPL-A3012530
...
29
D7826705 WPL-D7826704
...
30
Gasket, Handle WPL-D7826801
...
31
Top Strip WPL-D7826901
...
32
Cap Handle WPL-D7828007
...
33
End Cap, Handle WPL-D7828103
...
34
Spacer, Bottom Trim WPL-D7871202
...
35
End Cap, Nameplate WPL-D7853504
...
36
Strip, Trim Top WPL-D7826502
...
37
Screw WPL-M0211005
...
38
Screw WPL-M0242918

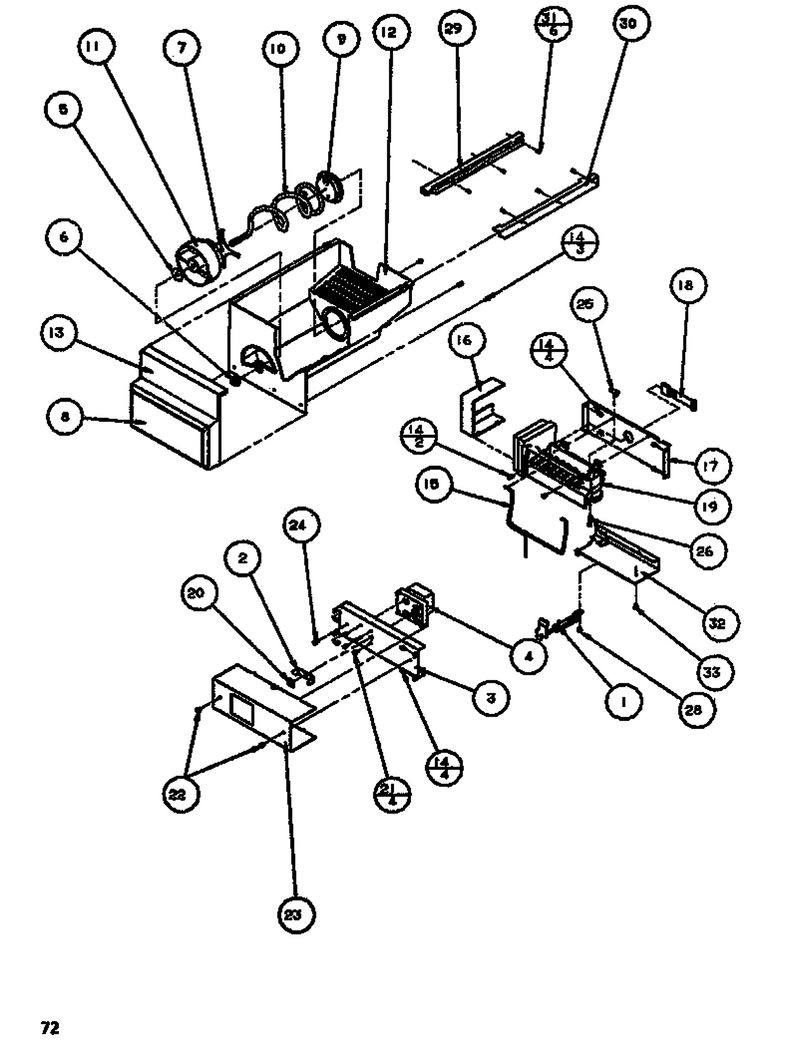

10 - Ice Bucket & Icemaker

...
...
1
I.m. Shut Off Assy WPL-C8980402
...
2
Driver WPL-D7849501
...
3
Support,auger Motor WPL-D7749207
...
4
Motor - Auger WPL-D7847002
...
5
Washer WPL-A1061701
...
6
Nut-Helix WPL-B8385101
...
7
Bar, Breaker WPL-C8964101
...
8
Insert, Bucket WPL-C8975308
...
9
Cap- Helix WPL-WPD7749401
...
10
Helix WPL-D7749501
...
11
Wheel Lift WPL-D7749601
...
12
Bucket, Ice V WPL-D7749704
...
13
Front, Bucket WPL-D7749802
...
14
Screw (3) WPL-67006425
...
15
Arm,ice Maker Shut Off WPL-D7877001
...
16
Cover Im WPL-D7820401
...
18
Harness, Im WPL-D7843601
...
19
Icemaker WPL-WPW10190972
...
20
Nut WPL-M0120501
...
21
Screw WPL-M0202528
...
22
Screw WPL-WP489464
...
23
Cover Auger Motor WPL-D7788807
...
24
Screw WPL-M0253916
...
25
Clip WPL-B5720301
...
26
Clip WPL-WP628379
...
28
Screw WPL-WP98165
...
29
Driver WPL-D7849901
...
30
Glide, Frz. (rt) WPL-67004323
...
31
Screw, Handle WPL-67006529
...
32
Shield Im WPL-D7846201
...
33
Screw WPL-WP90767

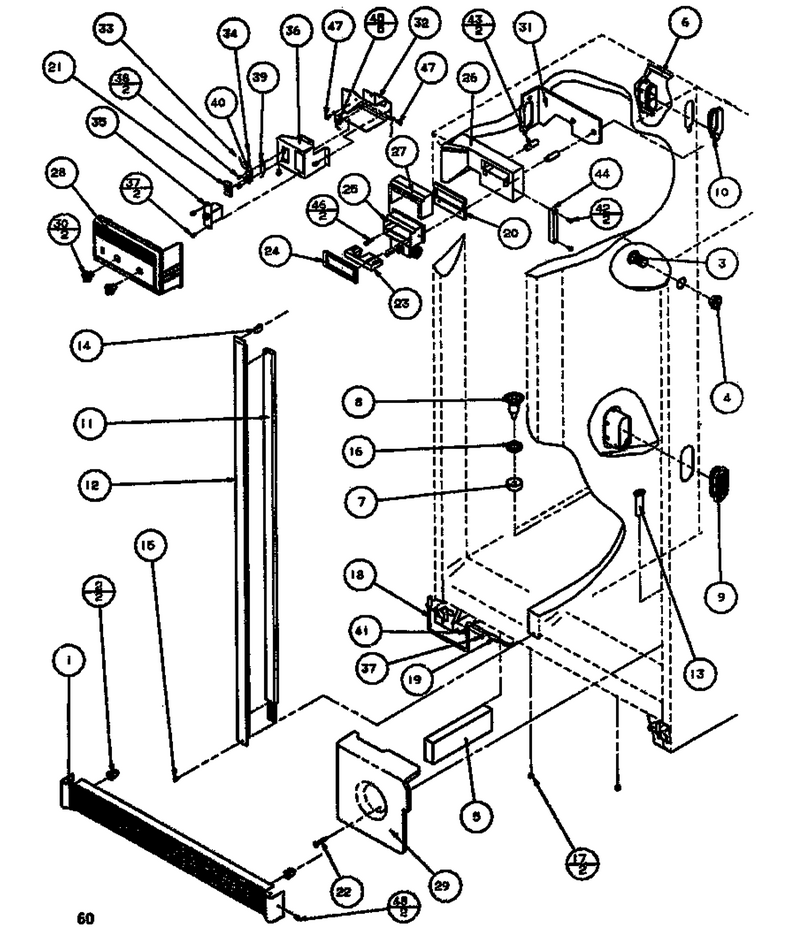

02 - Controls & Cabinet (ref/frz)

...
...
1
Grille, Toe E WPL-D7786706
...
2
Clip WPL-WPM0117303
...
3
Tunnel, Air WPL-A3187703
...
4
Retainer WPL-A3187801
...
5
Insulation WPL-B5629045
...
6
Tube-Plastic WPL-B8372601
...
7
Gasket- Dr WPL-WPB8381501
...
8
Funnel WPL-W10815413
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel, Air Supply WPL-D7785501
...
11
Heater, Mullion WPL-D7838701
...
12
L Vt Mull-Pnt WPL-D7788606
...
13
Grommet WPL-D7793501
...
14
Clip WPL-M0113604
...
15
Screw, Handle (black) WPL-12991101
...
16
Seal- O Ri WPL-WPM0500703
...
17
Grommet, Screw WPL-M0580007
...
18
Tube WPL-WPB5705307
...
19
Fitting WPL-WP4373559
...
20
Gasket, Damper WPL-B8345401
...
21
Collar, Switch WPL-B8391601
...
22
Clip WPL-C6457702
...
23
Insert, Control WPL-C8902601
...
24
Gasket, Damper Front WPL-C8975601
...
25
Control, Damper WPL-D7547407
...
26
D7749902q WPL-D7749902
...
27
Insulation WPL-D7788201
...
28
Cover, Control WPL-D7790310
...
29
Insulation Cut Tank WPL-D7793402
...
30
Kit Knob WPL-D7795806
...
31
Gasket Air Duct WPL-D7819101
...
32
(+) Wiring Fr WPL-D7322401
...
33
Wire Jumper WPL-D7383433
...
34
Wire Jumper WPL-D7383434
...
35
Assy, Control-Fz WPL-D7846101
...
36
Top, Cont. Box WPL-D7868605
...
37
Screw WPL-WP90767
...
38
Screw WPL-M0234003
...
39
Diode WPL-M0305301
...
40
Switch, Heater WPL-M0381902
...
41
Clamp WPL-M0102301
...
42
Screw WPL-WP489474
...
43
Spacer Damper WPL-A3044208
...
44
Clamp WPL-C8977301
...
45
Screw WPL-WP489464
...
46
Screw WPL-M0216539
...
47
Screw,sm WPL-M0233329
...
48
Screw WPL-W10856125

04 - Door/hinge/trim Ref

...
...
1
Bushing, Top WPL-C8965901
...
2
Stop, Door (blk) WPL-12636401B
...
3
Kit,dr Closure WPL-R0181181
...
4
Trim Vertical WPL-D7830005
...
5
Trim, Ref Door Top WPL-D7830103
...
6
Trim, Ref Door Bottom WPL-D7830203
...
7
Screw WPL-M0213521
...
8
Screw WPL-WPM0219730
...
9
Screw WPL-WP98165
...
10
Tape Kit WPL-R0195037
...
11
Screw WPL-M0202325
...
12
Cover, Hinge WPL-D7789502
...
13
Top Hinge Assy WPL-D7757803
...
14
Kit, Screw WPL-R9800670
...
15
Shim, Door Closure WPL-B8387701
...
16
Screw WPL-WPW10068250
...
17
Kit,dr Closure WPL-R0181181
...
18
Hinge Assy Bottom WPL-D7757706
...
20
Kit,btm Hinge Shim WPL-B8386701
...
21
Screw WPL-WP67006715
...
22
D7826705 WPL-D7826704
...
23
Gasket, Handle WPL-D7826801
...
24
Top Strip WPL-D7826901
...
25
End Cap, Handle Top WPL-D7828004
...
26
End Cap Handle Bottom WPL-D7828104
...
27
Spacer, Bottom Trim WPL-D7871201
...
28
Nameplate End Cap WPL-D7853505
...
29
Screw WPL-M0211005
...
30
Screw WPL-M0242918
...
31
Tape, Double Back, Trim Door T WPL-R0195038
...
32
Top Strip WPL-D7826402
...
33
Screw WPL-M0210305

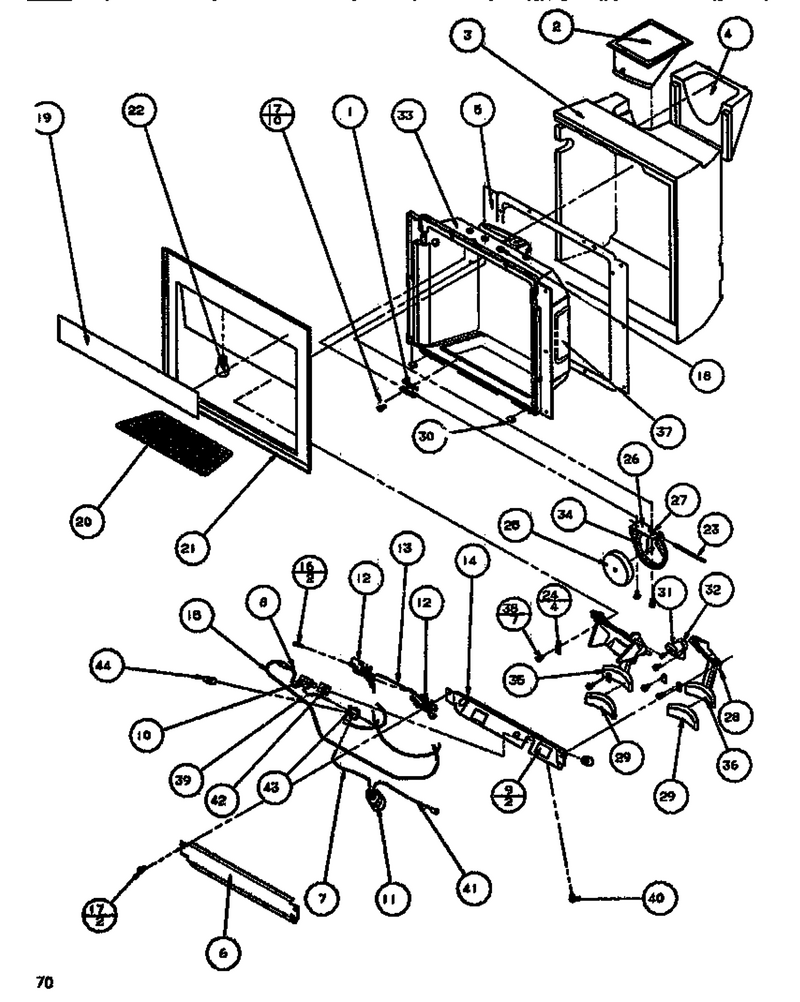

09 - Ice & Water Cavity

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Clip WPL-C8973901
...
2
Ice, Chute WPL-D7750702
...
3
Insul I & W Cavity WPL-D7789601
...
4
Insul I & W Cavity WPL-D7790901
...
5
Gasket Cavity WPL-D7791002
...
6
Cover Elect Brkt WPL-D7795901
...
7
Wire, Jumper WPL-D7383431
...
8
Wire Jumper WPL-D7383432
...
9
Insulation WPL-B8386801
...
10
Switch, Cavity Light WPL-C8988901
...
11
Socket, Light WPL-D7844301
...
12
Kit, Limit Switch WPL-C8972701
...
13
Wire, Jumper WPL-D7383426
...
14
Bracket, Elect. Mtg WPL-D7844701
...
15
Harness, Cavity WPL-D7843401
...
16
Screw WPL-M0234008
...
17
Screw-Sm/hex WPL-12990523
...
18
Retainer, Ring WPL-M0274701
...
19
Thinplate WPL-C8986007
...
20
Grille Sump (black) WPL-D7750602
...
21
Facade Dispenser Black WPL-D7877513
...
22
Bulb-Light WPL-WP61006109
...
23
Pin, Chute Door WPL-A1061501
...
24
Retainer, Ice Arm WPL-A1061601
...
25
Insulation, Chute Door WPL-B8380701
...
26
Brkt-Chute Door WPL-B8380801
...
27
Spring,chute Door WPL-B8380901
...
28
Spring, Return WPL-B8385401
...
29
Pad, Actuating WPL-B8390201
...
30
Clip WPL-W10819546
...
31
Retainer Door Delay WPL-C8972501
...
32
Delay, Door WPL-C8973601
...
33
Cavity, Dispenser WPL-D7750006
...
34
Kit,chute Dr No.3 WPL-D7750101
...
35
Arm-Dispsr WPL-12002642
...
36
Arm,water Actuater WPL-D7750402
...
37
Heater, Cavity WPL-D7838601
...
38
Screw WPL-WP90767
...
39
Wire, Jumper WPL-D7383430
...
40
Screw WPL-M0217225
...
41
Wire, Jumper WPL-D7383429
...
42
Insulation Lt. Serv. WPL-A1069002
...
43
Wire Tie WPL-M0321204
...
44
Sleeve WPL-B5778702

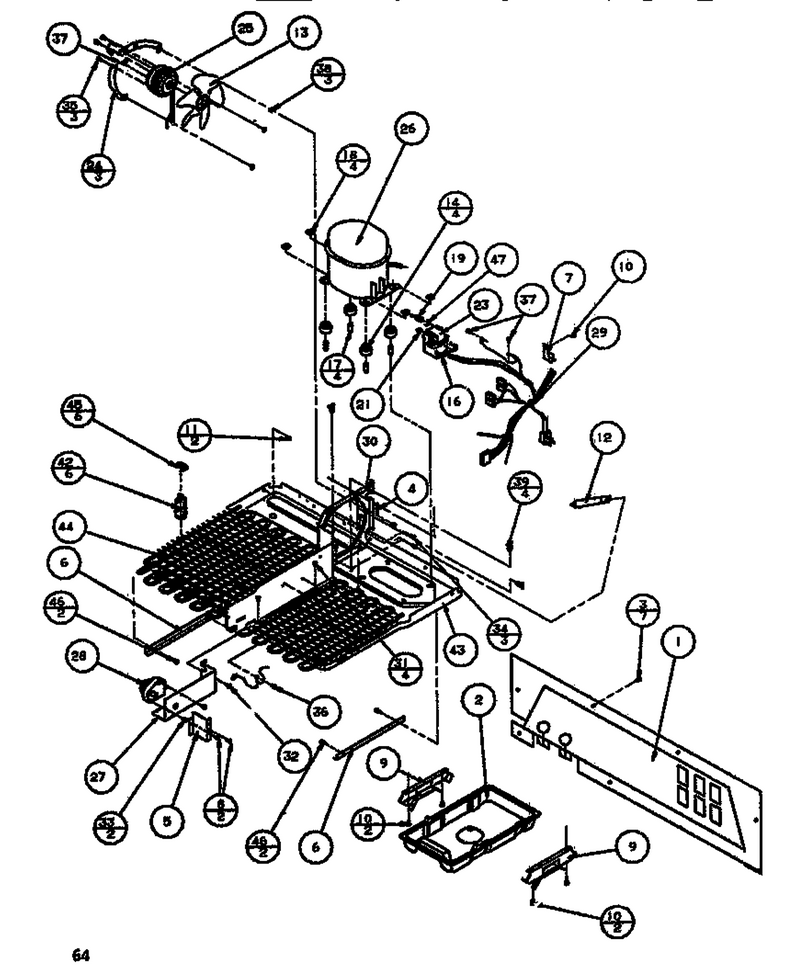

11 - Machine Compartment

...
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw-Sm WPL-M0241118
...
4
Gasket WPL-B5759604
...
5
Bracket, Timer WPL-C8973502
...
6
Support, Mc WPL-C8913701
...
7
Clamp WPL-M0102325
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-D7790501
...
10
Screw WPL-WP489069
...
11
Screw WPL-M0294459
...
12
Drier WPL-WPB2150504
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
16
Strap K WPL-A3041801
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-C3689111
...
21
Relay WPL-C3689205
...
23
Terminal Cover WPL-B0551801
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Condenser WPL-D7846901
...
26
Compressor WPL-D7736206
...
27
Bracket, Timer WPL-D7844201
...
28
Kit- Defro WPL-R0168028
...
29
Harness M.c WPL-D7843001
...
30
Shroud, Condenser Fan WPL-D7844104
...
31
Screw WPL-WP90767
...
32
Screw WPL-WP489464
...
33
Screw WPL-M0218118
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-M0223803
...
36
Screw WPL-WP489399
...
37
Screw WPL-M0253916
...
38
Grommet K WPL-M0500107
...
39
Tie, Wire WPL-M0585401
...
42
Spacer Cond. WPL-B8346301
...
43
Pan, Base WPL-D7748610
...
44
Condenser WPL-D78245O3
...
45
Speednut WPL-M0293703
...
46
Screw WPL-M0211530
...
47
Spring K WPL-C8916701

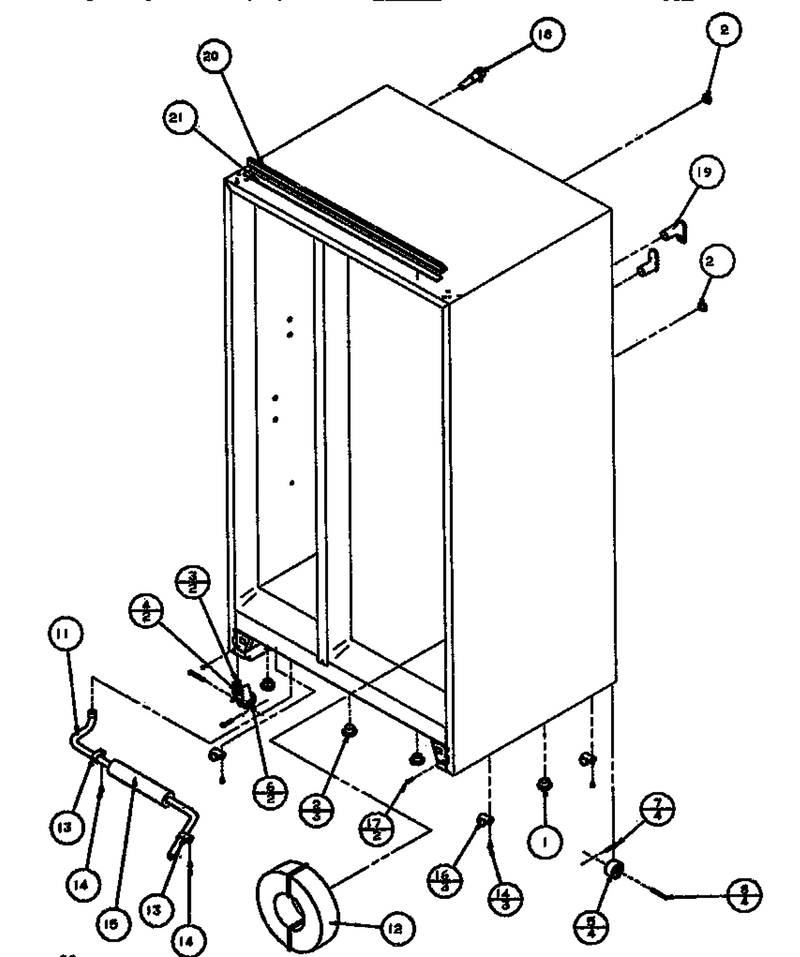

05 - Drain & Rollers

...
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
11
Drain Tube WPL-D7748501
...
12
Tank, Coil Water WPL-D7787801
...
13
Clamp WPL-M0102303
...
14
Screw WPL-WP489069
...
15
Insul Tubing 1=12`` WPL-A0329806
...
16
Clamp WPL-M0102327
...
17
Screw, Mach WPL-M0206313
...
18
Fill Tube WPL-R0182123
...
19
Tunnel, Heat Ex. WPL-C8971902
...
20
Ext Outer Case WPL-D7829302
...
21
Gasket O.c. Ext WPL-D7829702

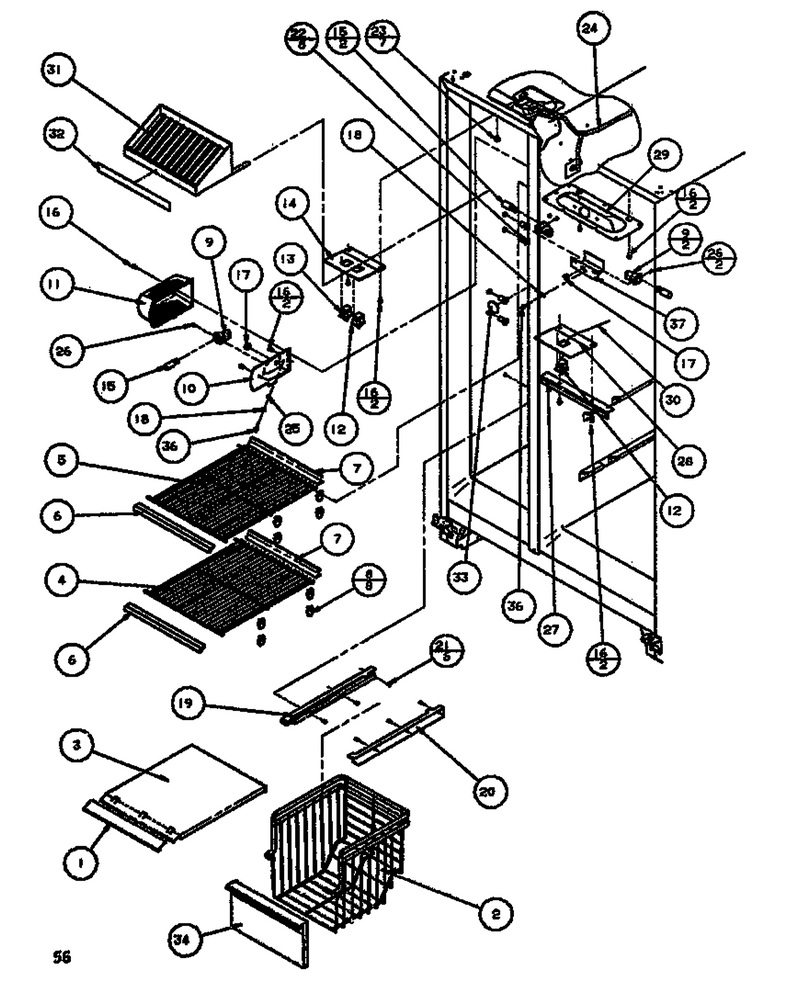

08 - Fz Shelving & Ref Light

...
...
1
Trim WPL-D7616625
...
2
Basket, Frz WPL-D7820802
...
3
Freezer Shelf Pnt WPL-D7781506
...
4
Shelf, Frz WPL-D7788310
...
5
Shelf, Freezer WPL-D7788311
...
6
Trim WPL-C8913519
...
7
Trim WPL-C8913609
...
8
Support- F WPL-WPC8973801
...
9
Socket, Light WPL-D7845103
...
11
Shield, Light WPL-D7786603
...
12
Switch WPL-W11384469
...
13
Switch WPL-C3680309
...
14
Cover Light WPL-D7749001
...
15
Light Bulb WPL-59002071
...
16
Screw (3) WPL-67006425
...
17
Snap Bushing WPL-A4554813
...
18
Terminal Ground A WPL-M0320905
...
19
Driver WPL-D7849901
...
20
Glide, Frz. (rt) WPL-67004323
...
21
Screw, Handle WPL-67006529
...
23
Grommet, Screw WPL-M0580007
...
24
Harness, Outer Lnr. WPL-D7840701
...
25
Lock Washer WPL-M0272803
...
26
Screw WPL-M0217225
...
27
Shield, Light WPL-10014716
...
28
Cover, Light Sw WPL-D7297604
...
29
Housing-Ref Light WPL-D7716409
...
30
Jumper Wire WPL-D7383427
...
32
Insert, Juice Rack WPL-C8986107
...
33
Plug WPL-A3069103
...
34
Front,basket WPL-D7820712
...
36
Rivet WPL-WP210720
...
37
Shield, Socket WPL-D7844801

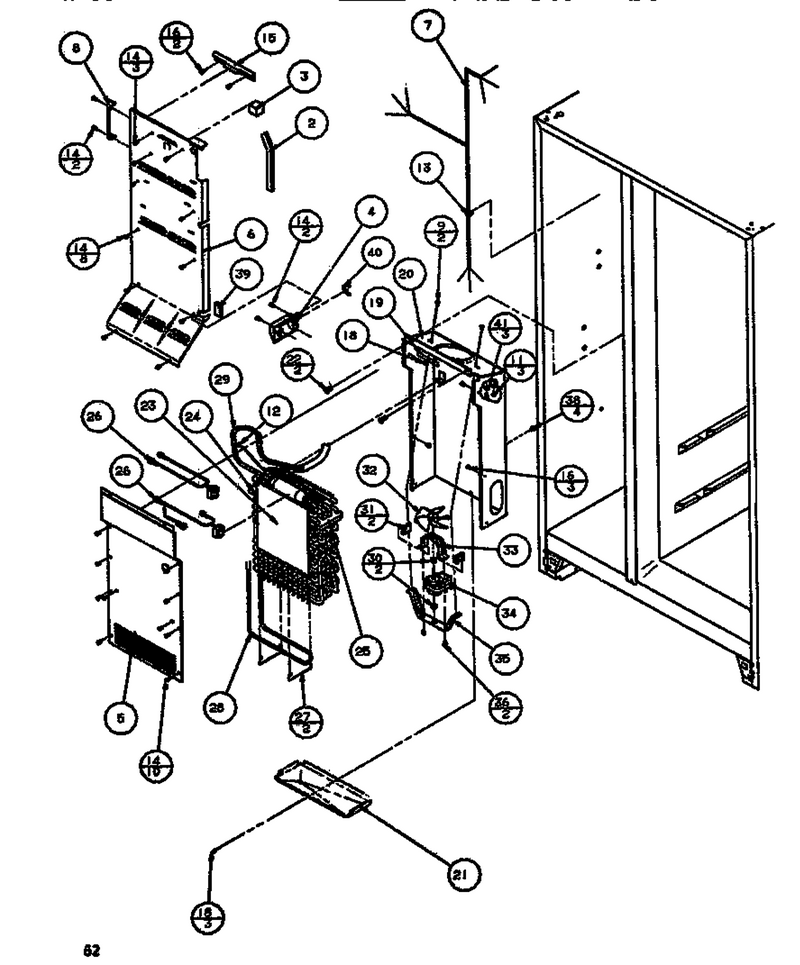

06 - Evap & Air Handling

...
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Cover, M.k Air WPL-D7786901
...
5
Cover Evap WPL-D7865901
...
6
Back, Inner Frz WPL-D7821103
...
7
Harness Inner Lnv. WPL-D7840801
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP489464
...
11
Screw,sm WPL-M0233329
...
12
Tie-Wire WPL-WPW10339879
...
13
Tie Wire WPL-WPM0322202
...
14
Screw (3) WPL-67006425
...
15
Clamp WPL-C8976201
...
16
Screw WPL-WP98165
...
18
Pop Rivet WPL-A4539606
...
19
Gasket, Foam WPL-B5757707
...
20
Shield WPL-D7865802
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Grommet WPL-M0580003
...
23
Gasket, Evap. WPL-B8327901
...
24
Block-Lh Air Coil WPL-B8385501
...
25
Block P M Air Coil WPL-B8385601
...
26
Thermostat WPL-R0161085
...
27
Clip, Evap. Heater WPL-C8983101
...
28
Heater Defrost WPL-D7872805
...
29
Assy,low Side-Thin Wall Evap WPL-R0170031
...
30
Grommet WPL-WP2264462
...
31
Shim WPL-A1047901
...
32
Fan-Evap WPL-C8795501
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WPC8891605
...
35
Bracket, Motor Shroud WPL-D7767701
...
36
Kit, Screw WPL-R9800670
...
38
Grommet A WPL-M0580002
...
40
Gasket, Foam WPL-A3189331
...
41
Lock Washer WPL-M0272803

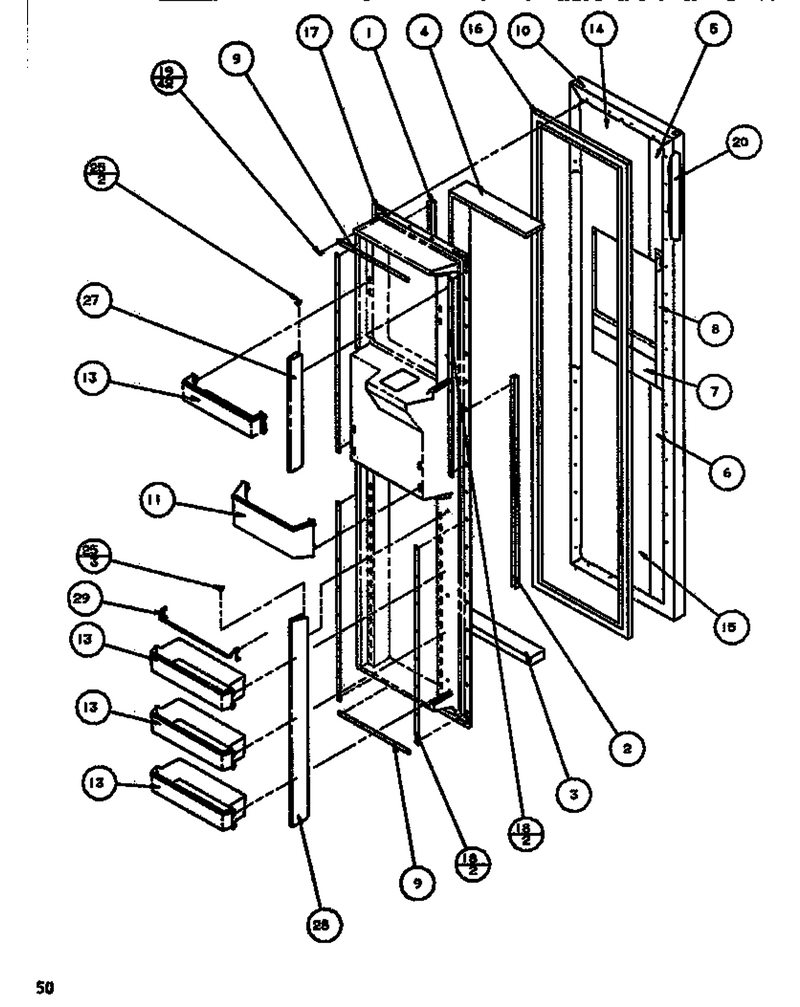

07 - Fz Door

...
...
1
Seal, Door Dike WPL-C8987101
...
2
Seal, Door Dike WPL-C8987103
...
3
Insul. By The Ft. WPL-B0523562
...
4
Insulation, Per Ft. WPL-B0523583
...
5
Insulation WPL-B5629049
...
6
Insulation WPL-B5629050
...
7
Insulation WPL-B5629048
...
8
Insulation WPL-B5629051
...
9
Retainer, Door Liner WPL-C8982801
...
10
Door, Frz. W WPL-D7845721
...
11
Shelf, Frz Dr. Half WPL-D7783504
...
13
Shelf- Frz WPL-D7827316
...
14
Foam Slab Door WPL-D7800406
...
15
Foam Slab Door WPL-D7800407
...
16
Gasket W WPL-WP10359709Q
...
17
Liner I & W Frz Door WPL-D7829402
...
18
Retainer, Door Liner WPL-D7828601
...
19
Screw WPL-WPM0219730
...
20
Tube, Protective WPL-C8964201
...
25
Clip, Door Dike WPL-10063102
...
27
Rem Dike I & W Upper WPL-D7837902
...
28
Removable Dike I & W WPL-D7837904
...
29
Retainer, Package WPL-D7838202

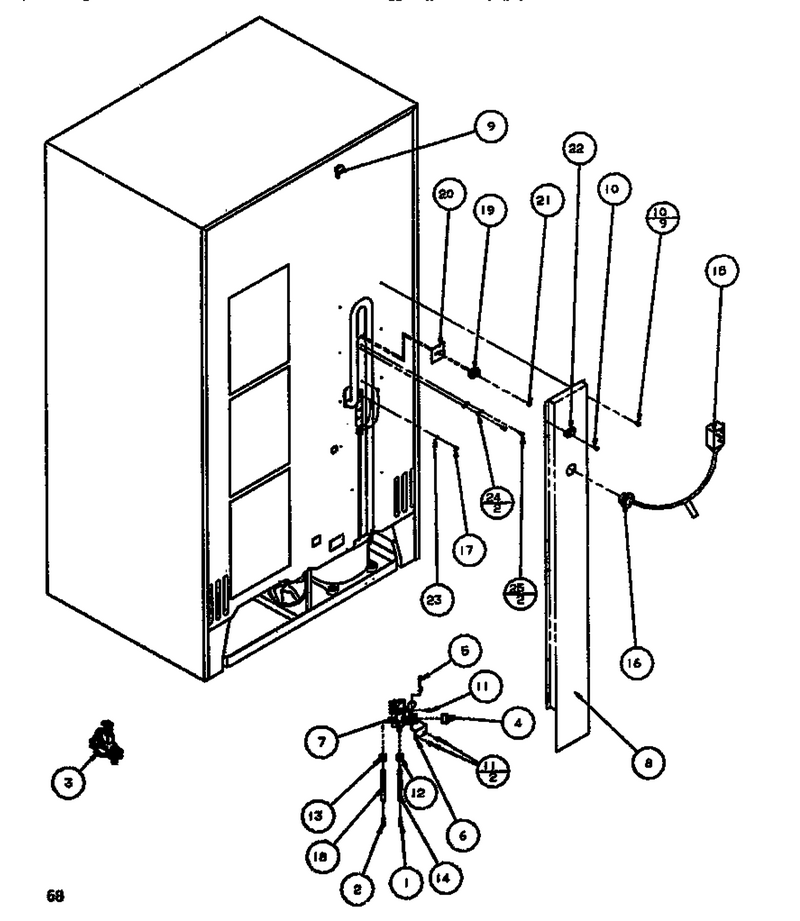

01 - Cabinet Back

...
...
1
Spring WPL-WPA1055105
...
2
Spring K WPL-A1055102
...
3
Saddle Valve WPL-A3034801
...
4
Coupling, Solenoid Valve And H WPL-A3084501
...
5
Clip, Water Valve WPL-10798001
...
6
Bracket WPL-WPD7701602
...
7
Valve, Water (220/240 Vac, 50 WPL-D7827201
...
8
O.c. Back Cover WPL-D7777605
...
9
Clip- Spee WPL-WPM0114003
...
10
Screw WPL-WP90767
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Nut WPL-WP627018
...
13
Nut WPL-8201513
...
14
Tube WPL-WPB5705307
...
15
Cord, Power WPL-B5669027
...
16
Snap Bushing WPL-A4554813
...
17
Screw,sm WPL-M0233329
...
18
Tank, Coil Water WPL-D7787801
...
19
Terminal Block WPL-C8969202
...
20
Insulation WPL-A1068601
...
21
Screw K WPL-M0229005
...
22
Clamp WPL-M0102301
...
23
Lock Washer WPL-M0272803
...
24
Tie, Wire WPL-M0327701
...
25
Screw WPL-M0227520

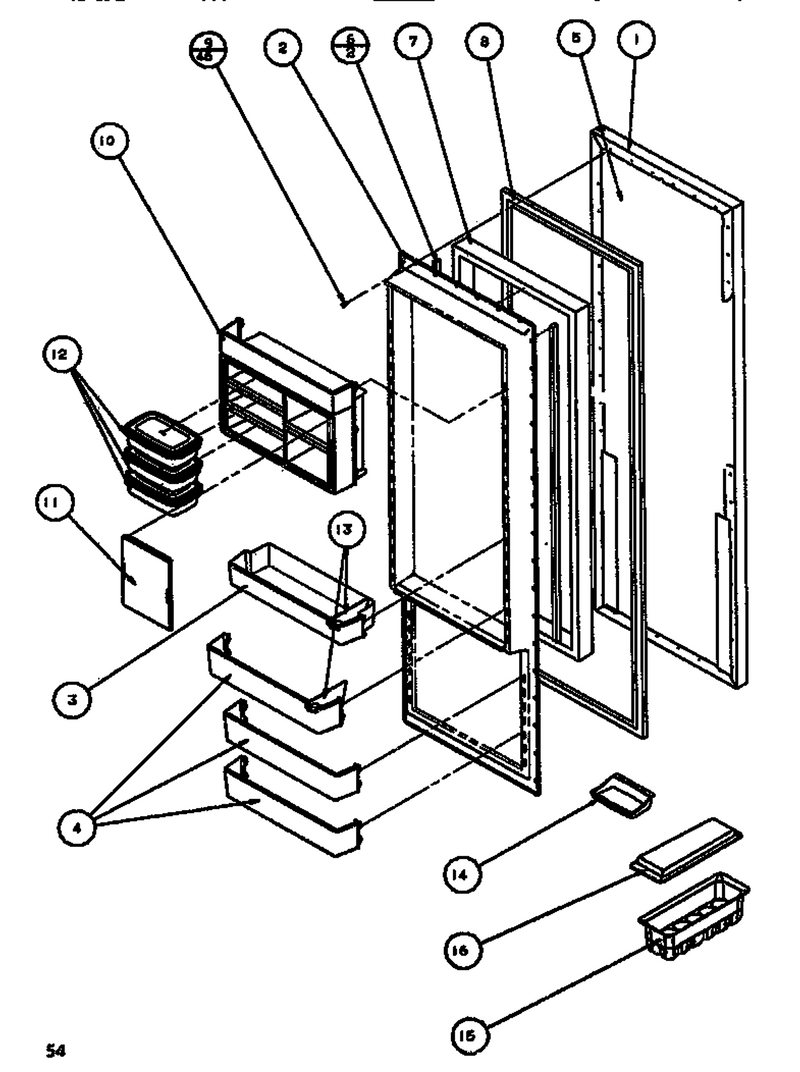

12 - Ref Door

...
...
1
Pan, Ref Door, White WPL-D7845718
...
2
Inner Door, Ref WPL-D7828203
...
3
Bucket- Do WPL-67003696
...
4
Shelf, Ref. Door WPL-D7783404
...
5
Insulation WPL-B0566723
...
6
Seal, Door Dike WPL-C8987104
...
7
Insul. By The Ft. WPL-B0523562
...
8
Gasket-Dr WPL-WP10359708Q
...
9
Screw WPL-WPM0219730
...
10
Module-Dairy WPL-D7781202
...
11
Door Dairy WPL-D7781309
...
12
Container Sec. Ser. WPL-D7806403
...
13
Snugger-Dr Shelf WPL-D7814604
...
14
Butter Tray WPL-D3799802
...
15
Assy,egg Bkt W/ Lid WPL-12460016
...
16
Cover, Egg Bucket WPL-D7805911
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
