Amana SBDE520SW (BOM: P1185201W)

Model: SBDE520SW (BOM: P1185201W)

Save Part Not Listed?
product name

09 - Fz Shelving

...
...
1
Screw WPL-WP90767
...
2
Basket, 11`` Freezer WPL-Y10950501
...
3
Shelf, Sta Freezer WPL-12353306
...
4
Harness, Ref Light WPL-Y10244001
...
5
Plate - Lt Socket WPL-D7845204
...
6
Shield, Light WPL-D7786603
...
7
Switch WPL-W11384469
...
8
Switch-Fan WPL-C8983803
...
9
Cover Light WPL-D7749002
...
10
Light Bulb WPL-59002071
...
11
Screw WPL-M0219546
...
12
Screw WPL-WP90767
...
13
Rail, L. Dbl Shelf WPL-12012901
...
14
Rail- R Double WPL-10991601
...
15
Screw WPL-WP98165
...
16
Grommet, Screw WPL-M0580007
...
17
Harness, Frz Liner WPL-12018501
...
18
Socket, Light WPL-D7845103
...
19
Cover, Light Sw WPL-D7297604
...
20
Housing-Ref Light WPL-D7716408
...
21
Screw WPL-M0217225
...
22
Shelf, Ice Cream WPL-10870802
...
23
Socket Shield WPL-D7844803
...
24
Housing Light WPL-10270202
...
25
Screw (3) WPL-67006425
...
26
Cover, Wire WPL-10250002
...
27
Cover-Light WPL-Y10270101
...
28
Socket, Light WPL-D7845103
...
29
Gasket WPL-A3189337
...
30
Shield, Light WPL-10014716
...
31
Cover, Ref. Light WPL-10493201
...
32
Washer WPL-M0270519
...
33
Screw WPL-WP90767
...
34
Rail, L. Shelf WPL-12012801
...
35
Rail- R Shelf WPL-10991401
...
36
Screw WPL-M0217225
...
37
Basket, 7`` Freezer WPL-Y10950401
...
38
Basket, 3`` Freezer WPL-12011701
...
39
Screw WPL-W10856125
...
40
Snap Bushing WPL-A4554813
...
41
Socket Cover WPL-D7844902
...
42
Pop Rivet WPL-A4539626
...
43
Terminal Ground A WPL-M0320905

11 - Ice Maker

...
...
1
Coupling WPL-WP10114901
...
2
Support,auger Motor WPL-D7749207
...
3
Motor, Auger (230 Vac, 50hz) WPL-10525202
...
4
Screw (3) WPL-67006425
...
5
Arm,ice Maker Shut Off WPL-D7877001
...
6
Cover Im WPL-D7820401
...
7
Shield I M WPL-D7846202
...
8
Harness, Im WPL-D7843601
...
9
Icemaker WPL-WPW10190972
...
10
Nut WPL-WPM0223101
...
11
Gasket-Per Ft WPL-A3030305
...
12
Cover, Auger Mtr WPL-D7788820
...
13
Screw WPL-WPW10139210
...
14
Clip WPL-B5720301
...
15
Lock, Purse WPL-74007369
...
16
Capacitor (420 Vac) WPL-C8931609
...
17
Screw WPL-WP90767
...
18
Gasket WPL-B8386606

04 - Door Hinge And Trim

...
...
1
Cap-Gy Hndl Bot WPL-10871406
...
2
Shim, Top Hinge WPL-B8389007
...
3
Clip-Handle WPL-10875801
...
4
Trim-Ref Dr Top WPL-10494409
...
5
Hinge, Top R (e-Ct) WPL-10495804
...
6
Hinge- Cover Lh Gray WPL-10504217
...
7
Screw WPL-W11214483
...
8
Screw WPL-WP8281196
...
9
Kit, Screw WPL-R9800670
...
10
Exten. W Ref Door WPL-10979101
...
11
Screw, Spextite WPL-M0232330
...
12
Kit- Board WPL-12002770
...
13
Assy, Hinge Pin WPL-10561601
...
14
Lock Washer WPL-M0272803
...
15
Bushing- D WPL-WP67004977
...
16
Stop, Door (blk) WPL-12636401B
...
17
Kit,dr Closure WPL-R0181181
...
18
Closure, Door (ebony) WPL-D7838402
...
19
Harness-Ref Dr Kit WPL-10969204
...
20
Screw WPL-WP98165
...
21
Screw WPL-WP59002061
...
22
Connector-12 Pin WPL-M0335412
...
23
Kit,btm Hinge Shim WPL-10399502
...
24
Assy, Keyboard (gray) WPL-R0150112
...
25
Bottom Hinge-Wh E Ct WPL-10496109
...
26
Screw WPL-WP67006715
...
27
Screw, Lock Brake Mounting WPL-M0220418
...
28
Insert, Stn Handle WPL-10945936
...
29
Support Ref Trim (btm) WPL-10494606
...
30
Screw WPL-WP98165
...
31
Kit, Bot.hinge Shim WPL-10860201
...
32
Shim, Door Closure WPL-B8387702
...
33
Trim, Refrig Door (bottom) WPL-10602603
...
34
Cap-Gy Hndl Top WPL-10871306
...
35
Screw K WPL-M0213517
...
36
Screw WPL-M0213815
...
37
Assy, Ref Handle WPL-10887904
...
38
Gasket-Control WPL-10887802

08 - Fz Door

...
...
1
Insul. By The Ft. WPL-B0523562
...
2
Retainer, Door Liner WPL-C8982801
...
3
Ass`y, Fz Dr Foam WPL-10881203W
...
4
Shelf, Half Frz WPL-10534707
...
5
Shelf, Frz Dr WPL-10525507
...
6
Gasket W WPL-WP10359709Q
...
7
Liner, Frz Dr I/w WPL-10860801
...
8
Retainer, Door Liner WPL-D7828601
...
9
Screw WPL-WPM0219730
...
10
Clip, Door Dike WPL-10063102
...
11
Dike, I & W WPL-10063207
...
12
Insulation Ft. K WPL-B0523563
...
13
Dike, I & W WPL-10063208
...
14
Insul, Batt (ref. Door) WPL-10882201
...
15
Insul, Batt (ref. Door) WPL-10882202
...
16
Retainer, Package WPL-10237602
...
17
Grommet, Screw WPL-10281002

10 - Ice And Water Cavity

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Clip WPL-C8992901
...
2
Chute- Ice WPL-10504103
...
3
Insul., I/w Cavity WPL-10895401
...
4
Insul, Ice Chute WPL-10895501
...
5
Gasket Cavity WPL-D7791003
...
6
Wire Clip WPL-B5667304
...
7
Switch , Light WPL-C8972704
...
8
Wire Jumper WPL-D7383456
...
9
Cover, Elec. Brkt WPL-10131805
...
10
Switch WPL-C8972703
...
11
Socket, Light WPL-D7845103
...
12
Bracket, Socket Mtg WPL-10295701
...
13
Wire, Jumper WPL-D7383452
...
14
Bracket, Elec Mtg WPL-10323305
...
15
Switch, Crushed/cube WPL-10492402
...
16
Screw, T.f. WPL-M0237809
...
17
Screw-Sm/hex WPL-12990523
...
18
Gasket WPL-A3030357
...
19
Insert, Gy Facade WPL-10984614
...
20
Grille, Sump (satin) WPL-D7750608
...
21
Facade, Gy Disp. WPL-10986108
...
22
Bulb-Light WPL-WP61006109
...
23
Pin, Chute Door WPL-A1061501
...
24
Retainer, Ice Arm WPL-A1061601
...
25
Insulation, Chute Door WPL-B8380701
...
26
Brkt-Chute Door WPL-B8380801
...
27
Spring,chute Door WPL-B8380901
...
28
Spring, Return WPL-B8385401
...
29
Cap-Switch Gy WPL-12036404
...
30
Clip WPL-W10819546
...
31
Retainer Door Delay WPL-C8972501
...
32
Delay, Door WPL-C8973601
...
33
Cavity- Di WPL-10876017
...
34
Kit,chute Dr No.3 WPL-10246601
...
35
Arm, Ice Actuator WPL-12102103
...
36
Arm-Wtr. Actuator W WPL-10872103
...
37
Heater, Cavity WPL-10295902
...
38
Screw WPL-WP90767
...
39
Screw WPL-WP489349
...
40
Wire, Jumper WPL-D7383453
...
41
Screw WPL-W11084238
...
42
Cover-Switch WPL-10877104
...
43
Screw WPL-M0217701
...
44
Pad, Actuating WPL-B8390201
...
45
Gasket-Ice Chute WPL-12044501
...
46
Switch, Cavity Light WPL-C8988902
...
47
Insulation,disp Elec Brkt WPL-10419403
...
48
Insul, Batt WPL-10941501

05 - Drain And Rollers

...
...
NI
Snap Bushing WPL-A4554806
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Tube-Drain WPL-12142001
...
10
Reservoir WPL-R0181175
...
11
Clamp WPL-M0102303
...
12
Screw WPL-WP489069
...
13
Kit- Machi WPL-R0000213
...
14
Screw, Mach WPL-M0206313
...
15
Assy, Fill Tube WPL-12023401Q
...
16
Tunnel, Heat Ex. WPL-C8971902
...
17
Tunnel Wire WPL-10187501
...
18
Tunnel Wire WPL-10187601
...
19
Strip, Bot Hinge Tap WPL-10860102
...
20
Insulation, R Foot WPL-10906501
...
21
Insulation, Tube WPL-10851302
...
22
Washer, Nylon WPL-M0274067
...
23
Insulation, L.foot WPL-10906503
...
24
Insul., Oc Bot WPL-10906506
...
25
Baffle-Air WPL-10866401
...
26
Screw WPL-WP98165
...
27
Strip-Rh Bot Hinge WPL-12146601

07 - Fz Door

...
...
1
Handle, Frz Door (stn) WPL-10875737
...
2
Cap-Gy Fz Hndl Bot WPL-10871212
...
3
Insert, Stn Handle WPL-10945940
...
4
Bushing- D WPL-WP67004977
...
5
Stop, Door (blk) WPL-12636401B
...
6
Kit,dr Closure WPL-R0181181
...
7
Shim, Door Closure WPL-B8387701
...
8
Trim, Frz Dr (bottom) Ss WPL-10602503
...
9
Support, Fz Trim WPL-10494604
...
10
Lock Washer WPL-M0272803
...
11
Trim, Vertical WPL-10494506
...
12
Screw WPL-WP98165
...
13
Screw WPL-WP98165
...
14
Hinge, Top L (e-Ct) WPL-10495806
...
15
Cover Hinge WPL-10504218
...
16
Screw WPL-WP8281196
...
17
Kit, Screw WPL-R9800670
...
18
Shim, Top Hinge WPL-B8389007
...
19
Screw WPL-W11214483
...
20
Harness Frz Dr WPL-10969101
...
21
Kit,dr Closure WPL-R0181181
...
22
Kit-Hinge WPL-R9900507
...
23
Kit,btm Hinge Shim WPL-10399501
...
24
Screw WPL-WP67006715
...
25
Screw, Lock Brake Mounting WPL-M0220418
...
26
Tube WPL-WPB5705307
...
27
Screw WPL-WP489399
...
28
Kit, Bot.hinge Shim WPL-10860201
...
29
Cap-Gy Fz Hndl Top WPL-10871112
...
30
Screw K WPL-M0213517
...
31
Screw WPL-M0213815
...
32
Trim-Fz Dr Top WPL-10494208
...
33
Double Backed Tape 6ft Roll WPL-R0195042
...
34
Ext, Fz Dr (wht) WPL-10979201
...
35
Screw, Spextite WPL-M0232330

12 - Machine Compartment

...
...
1
Assy,mc Back WPL-D7788914
...
2
Pan, Drain WPL-10845601
...
3
Screw WPL-WP489464
...
4
H.v. Box Shelf-E Ct WPL-10845302
...
5
Top, Hv Box WPL-10276906
...
6
Clip-Cond. WPL-10874601
...
7
Gasket WPL-A3030302
...
8
Screw WPL-WP90767
...
9
Board, H.v. Pc WPL-10898901
...
10
Screw, Sm WPL-M0211357
...
11
Support-Pc Board WPL-M0585502
...
12
Blade, Fan WPL-B5742602
...
13
Grommet, Compressor WPL-67003493
...
14
Screw WPL-M0234114
...
15
Clamp, Term. Cover WPL-10899501
...
16
Cover-Switch WPL-10877104
...
17
Screw, Shldr WPL-M0221523
...
18
Overload/relay WPL-10899601
...
19
Brkt, Line Filter WPL-B5696109
...
20
Relay WPL-10169902
...
21
Start-Dev WPL-W10848274
...
22
Cover, Terminal WPL-10899701
...
23
Brkt,cond. Mtr WPL-C8982102
...
24
Motor-Condenser WPL-D7846901
...
25
Compressor WPL-W10309997
...
26
Harness, Mc WPL-12007602
...
27
Cond. Fn Shrd WPL-10845505
...
28
Switch, Crushed/cube WPL-10492402
...
29
Insulation, Tube WPL-10851302
...
30
Screw WPL-M0223803
...
31
Screw WPL-WP489128
...
32
Assy, Cond/pan E-Ct WPL-10883408
...
33
Hv Box- E Ct WPL-10277020
...
34
Clamp, Tube WPL-M0108001
...
35
Screw (3) WPL-67006425
...
36
Support, Mc WPL-C8913701
...
37
Screw WPL-M0217224
...
38
Lock Washer WPL-M0272803
...
39
Tie-Wire WPL-WPW10339879

14 - Shelving And Drawers

...
...
NI
Ass`y, Full Glide Shelf WPL-10883302
...
1
Insert, Shelf WPL-12085707
...
2
Slide, Crisper/deli WPL-10852501
...
3
Trim, Crisper Frt WPL-10872201
...
4
Band, Crisper WPL-10882701
...
5
Shelf- Top Crisper WPL-10783101
...
6
Glass-Shelf WPL-Y10370065
...
7
Ladder, Center WPL-D7599003
...
8
Pan,crisper WPL-10783201
...
9
Frame-Crisper WPL-10783001
...
10
Extrn.-Rear Deli WPL-10873801
...
11
Band-Deli WPL-10986402
...
12
Shelf, Split Guide WPL-10809701
...
13
Gasket, Deli WPL-10872701
...
14
Rail, R Blank Side WPL-10809908
...
15
Shelf Full Glide WPL-10809501
...
16
Shelf-Full Gli Out WPL-10809505
...
17
Sleeve,deli WPL-10783902
...
18
Pan,deli WPL-10784101
...
19
Manifold, Deli WPL-10872601
...
20
Frame, Deli WPL-10783701
...
21
Screw WPL-W10856125
...
22
Ladder, Cantilever WPL-D7789809
...
23
Screw WPL-WP90767
...
24
Grommet, Screw WPL-M0580007
...
25
Seal-Crisp Front WPL-10968801
...
26
Brkt, Cont Cover WPL-12414701
...
27
Screw-Sm WPL-M0238636
...
28
Roller, Pan WPL-10481001
...
29
Screw WPL-67006692
...
30
Stop, Shelf WPL-10875101

02 - Controls And Cabinet

...
...
1
Kit, Toe Grille (blk) WPL-10470301
...
2
Clip WPL-WPM0117303
...
3
Gasket, Damper WPL-10383201
...
4
Tunnel, Retainer WPL-10923101
...
5
Snap Bushing WPL-A4554806
...
6
Screw WPL-WP489464
...
7
Screw WPL-M0216539
...
8
Grille-Rtn Air WPL-D7785401
...
9
Tunnel Air Supply WPL-10178001
...
10
Lock Washer WPL-M0272803
...
11
Screw, Sm WPL-M0227217
...
12
Screw WPL-WP489349
...
13
Tube WPL-WPB5705307
...
14
Fitting WPL-WP4373559
...
15
Gasket, Damper WPL-B8345401
...
16
Insert, Control WPL-C8902601
...
17
Damper, Control WPL-10271401
...
18
Duct-Waxed Air WPL-10176604
...
19
Insulation WPL-D7788201
...
20
Cover-Control WPL-10862702
...
21
Cover-Water Tank WPL-10914202
...
22
Gasket, Air Duct WPL-10177901
...
23
Box, Bottom Control WPL-D7822404
...
24
Thermistor-Ref WPL-C8983702
...
25
Top, Cont. Box WPL-D7832805
...
26
Screw WPL-WP90767
...
27
Clamp, Tube WPL-M0108001
...
28
Screw WPL-WP489474
...
29
Spacer Damper WPL-A3044208
...
30
Clamp WPL-C8977301

03 - Crushed Ice Bucket

...
...
NI
Crushr-Mec WPL-WP12740302
...
1
Nut WPL-WPM0223101
...
2
Spacer, Cover WPL-10113901
...
3
Blade, Rotating WPL-10114501
...
4
Washer, Waved WPL-10275101
...
5
Damper, Ice WPL-10275201
...
6
Blade, Static WPL-10114601
...
7
Washer Stepped WPL-10114301
...
8
Pin, Roll WPL-M1200108
...
9
Anchor, Blade WPL-10114101
...
10
Wheel- Crs WPL-WP67002052
...
11
Bar, Crsh Ice Bucket WPL-10113801
...
12
Agitator, Ice WPL-10114401
...
13
Cap- Helix WPL-WPD7749401
...
14
Screw WPL-W11233072
...
15
Bucket- Cr WPL-WP10111905
...
16
Front-Ci Bucket WPL-10870904
...
18
Screw WPL-M0254706
...
19
Front, Ice Crusher WPL-10115001
...
20
Cover, Blade WPL-10114002
...
21
Screw, Tf WPL-M0231704
...
22
Glide, Container (left) WPL-67005375
...
23
Glide, Frz. (rt) WPL-67004323
...
24
Screw, Handle WPL-67006529
...
25
Brkt, Cover Mtg. WPL-10894901

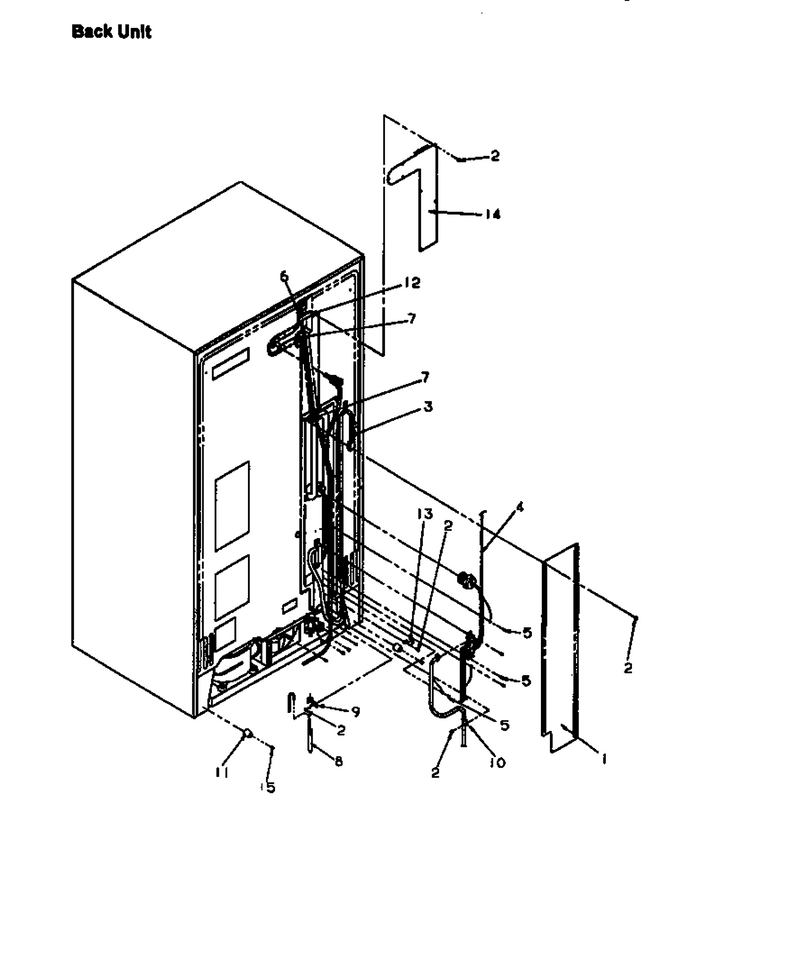

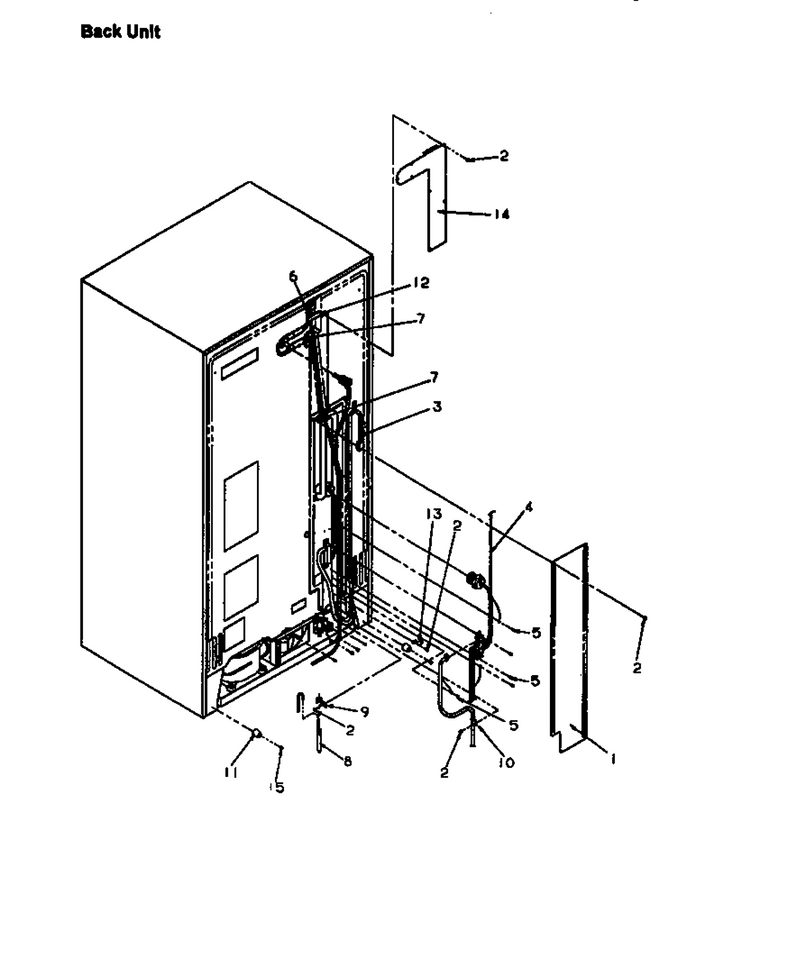

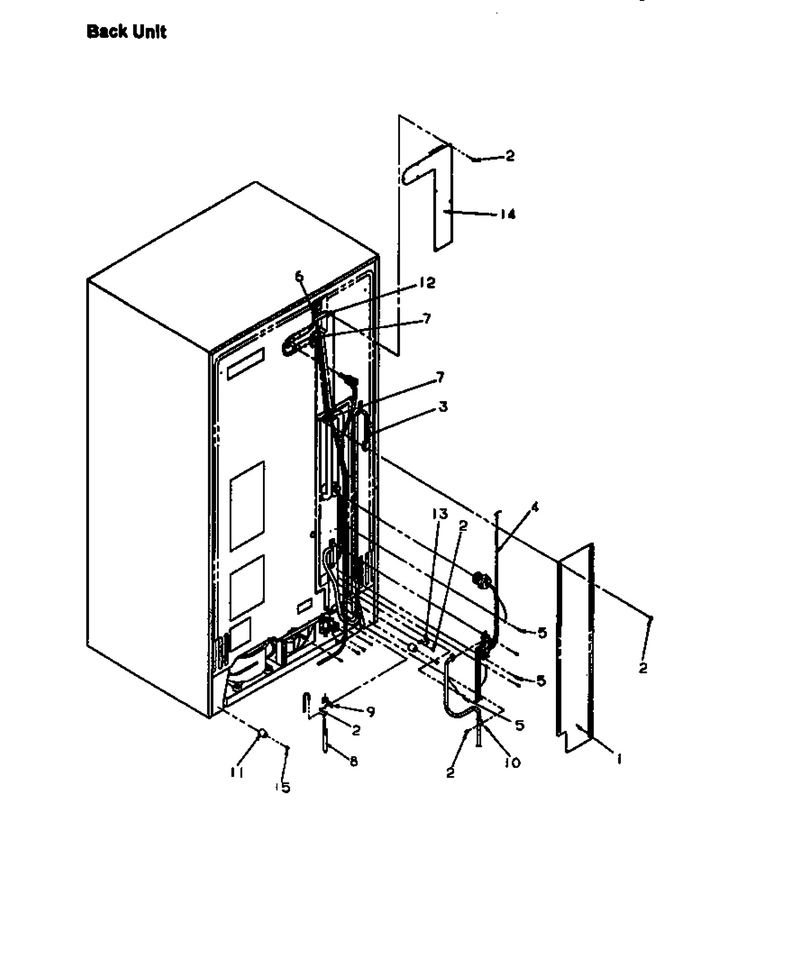

01 - Cabinet Back

...
...
NI
Insert- Pl WPL-WPA3223101
...
1
Spring WPL-WPA1055105
...
2
Spring WPL-WPA1055105
...
3
Coupling WPL-10244902
...
4
Clip, Water Valve WPL-10798001
...
5
Brkt, Water Val. WPL-10496301
...
6
Valve, Water (220/240 Vac, 50 WPL-D7827204
...
7
Cover, O.c.back WPL-10178406
...
8
Clip- Spee WPL-WPM0114003
...
9
Screw, Sm WPL-M0227217
...
10
Screw, 8-32 X 3/8 WPL-681390
...
11
Nut WPL-WP627018
...
12
Nut, Sleeve WPL-M0753003
...
13
Tube WPL-WPB5705307
...
14
Cord, Power WPL-B5669027
...
15
Terminal Block WPL-C8969202
...
16
Reservoir WPL-R0181175
...
17
Screw K WPL-M0229005
...
18
Cover - Wire WPL-10178505
...
19
Clip, Cord WPL-M0104102
...
20
Harness, Wiring WPL-12182601
...
21
Screw WPL-WP489474
...
22
Gasket (ft.) WPL-10839803
...
23
Strain Relief WPL-Y10203701
...
24
Insulation, Term Block WPL-10377602
...
25
Drier WPL-WPB2150504
...
26
Clip, Drier WPL-10547001
...
27
Clamp WPL-B5794201
...
28
Clamp, Tube WPL-M0108001
...
29
Clip WPL-WPM0104106
...
30
Snap Bushing WPL-A4554813
...
31
Lock Washer WPL-M0272803
...
32
Jumper, Pwr Cord WPL-10786301
...
33
Screw, Tf WPL-M0233803
...
34
Screw WPL-WP489399

06 - Evaperator And Air Handler

...
...
1
Gasket WPL-A3189346
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Evap Cover-Pnt WPL-D7865916
...
5
Assy, Frz Back WPL-D7846011
...
6
Harness-Ref Liner WPL-10962601
...
7
Cover, Supply Air WPL-D7838302
...
8
Screw WPL-WP90767
...
9
Gasket WPL-A3189346
...
10
Thermostat WPL-R0161085
...
11
Tie-Wire WPL-WPW10339879
...
12
Tie Wire WPL-WPM0322202
...
13
Screw (3) WPL-67006425
...
14
Grille, Control WPL-10164808
...
15
Ext. Fill Tube WPL-A3127412
...
16
Rivet WPL-10098801
...
17
Gasket WPL-B8386603
...
18
Evap. Shield WPL-D7865812
...
19
Drip Tray Pnt. WPL-D7850202
...
20
Grommet WPL-M0580003
...
21
Block, Air Coil (left) WPL-10629601
...
22
Block, Air Coil (right) WPL-10629001
...
23
Thermostat WPL-R0161090
...
24
Clip WPL-W11673433
...
25
Heater- Ev WPL-WP10428406
...
26
Assy,low Side WPL-R0170057
...
27
Grommet WPL-WP2264462
...
28
Shim WPL-A1047901
...
29
Fan-Evap WPL-C8795501
...
30
Brkt Evap Fan WPL-C8881301
...
31
Motor-Evap WPL-WP10513804
...
32
Brkt, Mtr Shroud WPL-D7767705
...
33
Screw WPL-WP90767
...
34
Grommet A WPL-M0580002
...
35
Control-Air WPL-10164702
...
36
Thermistor WPL-WPW10331672
...
37
Clip, Air Tunnel WPL-10426801
...
38
Clip, Evap WPL-10527401
...
39
Clip, Evaporator WPL-10623003
...
40
Support WPL-M0560005
...
41
Gasket WPL-A3030321

13 - Ref Door

...
...
1
Insul., Batt WPL-B0523590
...
2
Clip-Tubular WPL-10165101
...
3
Cover,p.c. Board WPL-D7832904
...
4
Bin-Cntlvr WPL-WP10520405
...
5
Shelf- Doo WPL-67003701
...
6
Clip, Retainer WPL-10202001
...
7
Insul. Batt. WPL-10271101
...
8
Trim, Vertical WPL-10494505
...
9
Liner-Ref Dr WPL-10861502
...
10
Assy Ref Dr Foam WPL-10898201W
...
11
Tunnel-Air WPL-12033201
...
12
Gasket-Dr WPL-WP10359708Q
...
13
Snugger, Shelf WPL-10169004
...
14
Grommet, Screw WPL-10281002
...
15
Screw WPL-WPM0219730
...
16
Screw WPL-M0232804
...
17
Insulation, Batt Frz. Dr. WPL-B0523593
...
18
Frame-Chiller WPL-10519004
...
19
Door, Chiller WPL-10519208
...
20
Bin-Cntlvr WPL-WP10520405
...
21
Tray, Butter WPL-10310901
...
22
Lid, Utility WPL-10436404
...
23
Container WPL-WP10423131
...
24
Bucket-Beverage WPL-10883901
...
25
Shelf, Dairy WPL-10883801
...
26
Insulation Batt WPL-B5629063
...
27
Track, Dairy Dr WPL-10884001
...
28
Track, Dairy Dr WPL-10884002
...
29
Washer Lock WPL-M0272802
...
30
Glide-Igloo Door WPL-10162101
...
31
Door-Dairy WPL-10883701
...
32
Insulation Batt WPL-B5612028
...
33
Insulation, Batt WPL-B5629064
...
34
Insulation, Batt WPL-B5629065
...
35
Tray, Egg WPL-10436504
...
36
Double Backed Tape 6ft Roll WPL-R0195042
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
