Amana SBDE520K (BOM: P1109903W W)

Model: SBDE520K (BOM: P1109903W W)

Save Part Not Listed?
product name

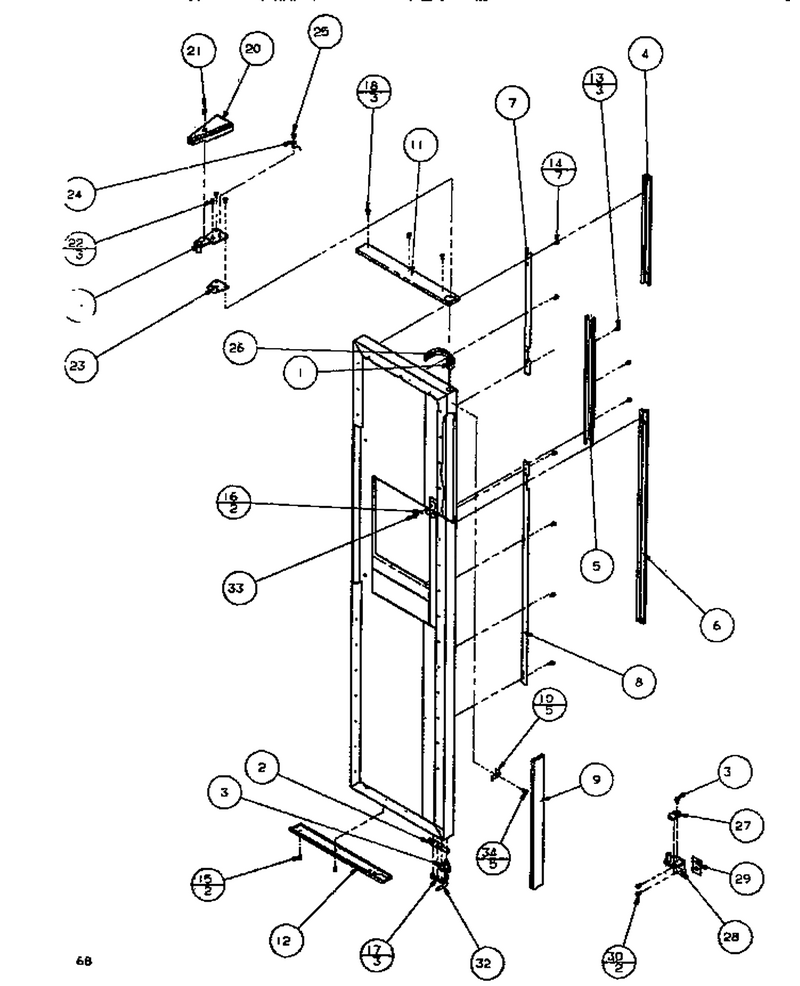

05 - Door/hinge/trim Fz

...
...
1
Bushing- D WPL-WP67004977
...
2
Stop- Sati WPL-C8972408
...
3
Kit,dr Closure WPL-R0181181
...
4
Trim W Fz Dr. Up WPL-D7852110
...
5
Trim Center Frz (w) WPL-D7854003
...
6
Trim, Fz, Door Lw L WPL-D7792711
...
7
Retainer, Trim WPL-D7793002
...
8
Retainer, Trim WPL-D7793102
...
9
Trim Vertical WPL-10274201
...
10
Clip, Trim WPL-10274101
...
11
Trim Fz Door Top WPL-10272001
...
12
Trim-Fz Door Bot. WPL-10271901
...
13
Screw-Sm/hex WPL-12990523
...
14
Screw WPL-M0213815
...
15
Screw WPL-WP489349
...
16
Lock Washer WPL-M0272803
...
17
Screw WPL-WP98165
...
18
Screw WPL-W11245710
...
19
Top Hinge-E Ct WPL-12077313
...
20
Cover Hinge L WPL-10126404
...
21
Screw WPL-WP8281196
...
22
Kit, Screw WPL-R9800670
...
23
Shim, Top Hinge WPL-B8389007
...
24
Lock Washer WPL-M0272803
...
25
Screw WPL-W11214483
...
26
Harness, Frz Dr WPL-10295603
...
27
Kit,dr Closure WPL-R0181181
...
28
Bottom Hinge, Frz WPL-10163601
...
29
Kit,btm Hinge Shim WPL-10399501
...
30
Screw WPL-WP67006715
...
31
Screw WPL-WP489128
...
32
Tube WPL-WPB5705307
...
33
Screw WPL-WP489399
...
34
Screw WPL-WP489349

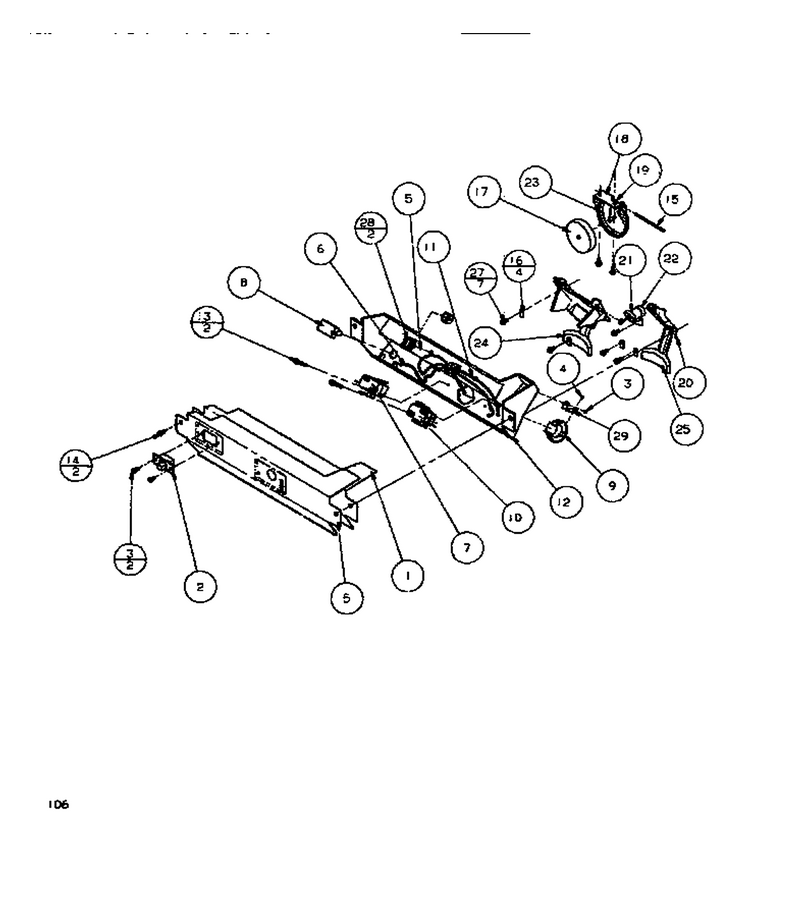

12 - Ice & Water Cavity (cont.)

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Insulation,disp Elec Brkt WPL-10419403
...
2
Switch, Crushed/cube WPL-10492402
...
3
Screw WPL-M0234003
...
4
Screw WPL-WP489349
...
5
Cover, Elec. Brkt WPL-10131805
...
6
Wire Jumper WPL-D7383456
...
7
Switch , Light WPL-C8972704
...
8
Switch, Cavity Light WPL-C8988902
...
9
Socket, Light WPL-D7845103
...
10
Switch WPL-C8972703
...
11
Wire, Jumper WPL-D7383452
...
12
Bracket, Elec Mtg WPL-10323303
...
13
Screw, T.f. WPL-M0237809
...
14
Screw-Sm/hex WPL-12990523
...
15
Pin, Chute Door WPL-A1061501
...
16
Retainer, Ice Arm WPL-A1061601
...
17
Insulation, Chute Door WPL-B8380701
...
18
Brkt-Chute Door WPL-B8380801
...
19
Spring,chute Door WPL-B8380901
...
20
Spring, Return WPL-B8385401
...
21
Retainer Door Delay WPL-C8972501
...
22
Delay, Door WPL-C8973601
...
23
Kit,chute Dr No.3 WPL-10246601
...
24
Arm, Ice Actr. L WPL-D7750306
...
25
Arm-Dispsr WPL-12002642
...
26
Pad, Actuating WPL-B8390201
...
27
Screw WPL-WP90767
...
28
Wire Clip WPL-B5667304
...
29
Bracket, Socket Mtg WPL-10295701

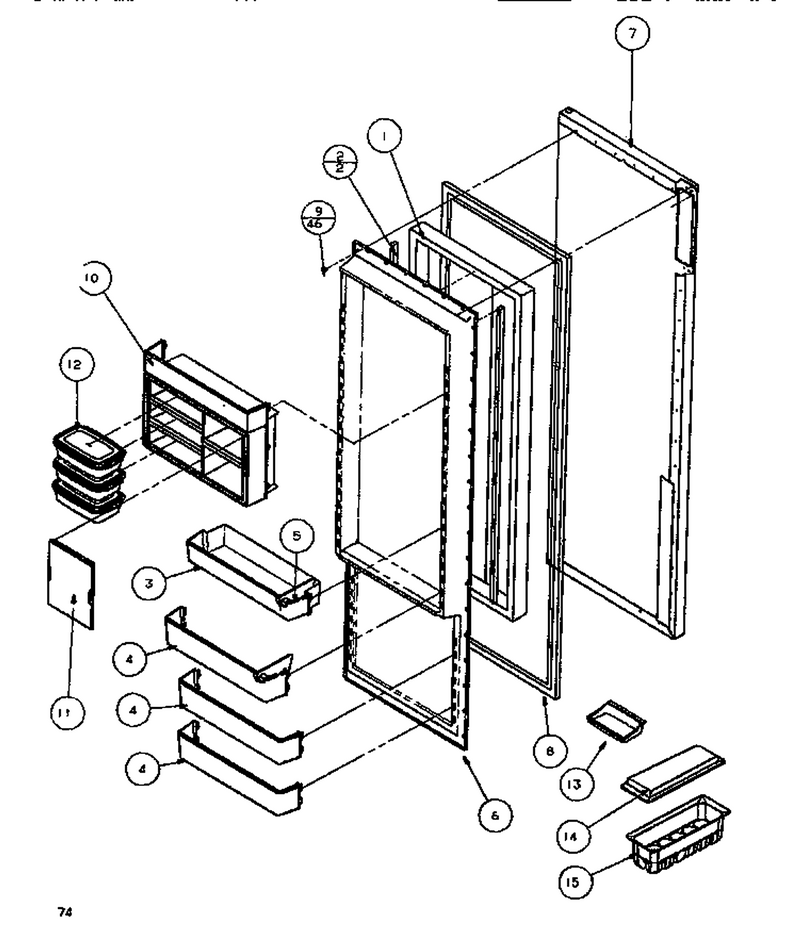

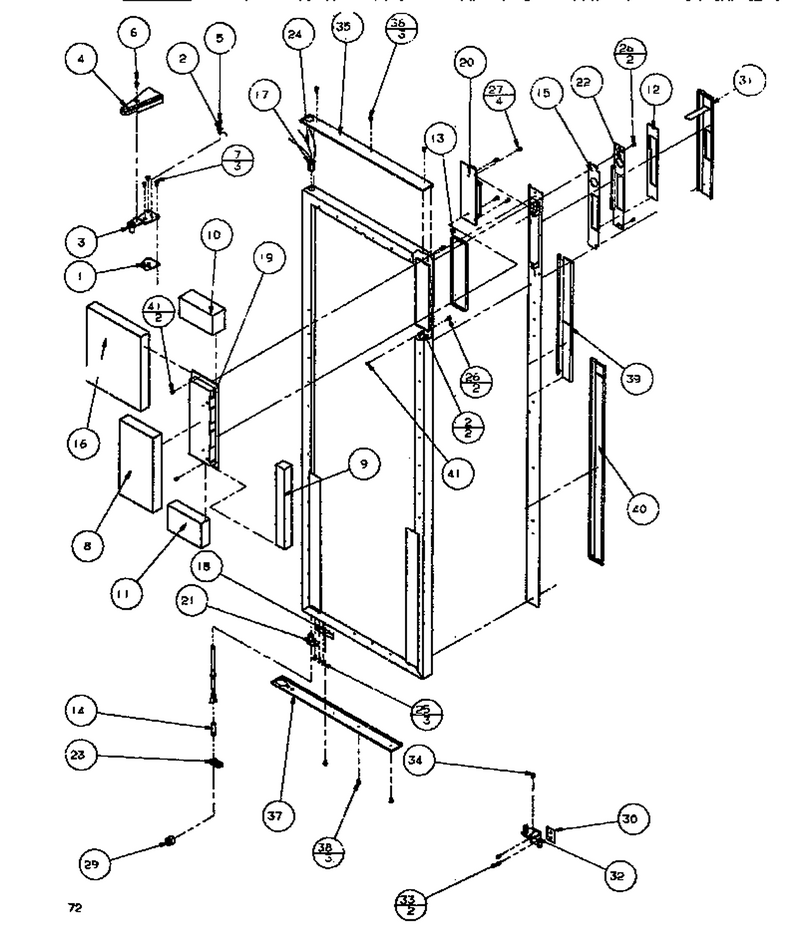

06 - Door/hinge/trim Ref

...
...
1
Shim, Top Hinge WPL-B8389007
...
2
Lock Washer WPL-M0272803
...
3
Top Hinge-E Ct WPL-12077313
...
4
Cover, Hinge R W WPL-10126403
...
5
Screw WPL-W11214483
...
6
Screw WPL-WP8281196
...
7
Kit, Screw WPL-R9800670
...
8
Insulation Batt WPL-B5612028
...
9
Insulation Per Ft. WPL-B0523584
...
10
Insulation WPL-B5629047
...
11
Insulation WPL-10270903
...
12
Gasket Trim WPL-B8390401
...
13
Gasket Retainer K WPL-B8390501
...
14
Assy, Hinge Pin WPL-10561601
...
15
Gasket, Bracket WPL-10519901
...
16
Insulation WPL-10270906
...
17
Bushing- D WPL-WP67004977
...
18
Stop- Sati WPL-C8972408
...
19
Cover, P.c. Board WPL-D7832903
...
20
Board, L.v. Pc WPL-10613401
...
21
Closure, Door (wht) WPL-12113401
...
22
Bracket Trim WPL-D7833501
...
23
Closure, Door (wht) WPL-12113301
...
24
Harness Ref WPL-10030302
...
25
Screw WPL-WP98165
...
26
Screw WPL-M0230727
...
27
Screw WPL-WP59002061
...
29
Connector WPL-M0335408
...
30
Kit,btm Hinge Shim WPL-10399501
...
31
Assy Trim Upper Keyboard Almon WPL-D7834217
...
32
Bottom Hinge Assembly, Brown WPL-10163603
...
33
Screw WPL-WP67006715
...
34
Screw WPL-WP489128
...
35
Trim-Ref Door Top WPL-10271801
...
36
Screw WPL-W11245710
...
37
Trim-Ref Door Bot WPL-10271701
...
38
Screw WPL-WP489349
...
39
Trim L Fz Dr Ctr WPL-D7853807
...
40
Trim Ref Door Lw L WPL-D7792811

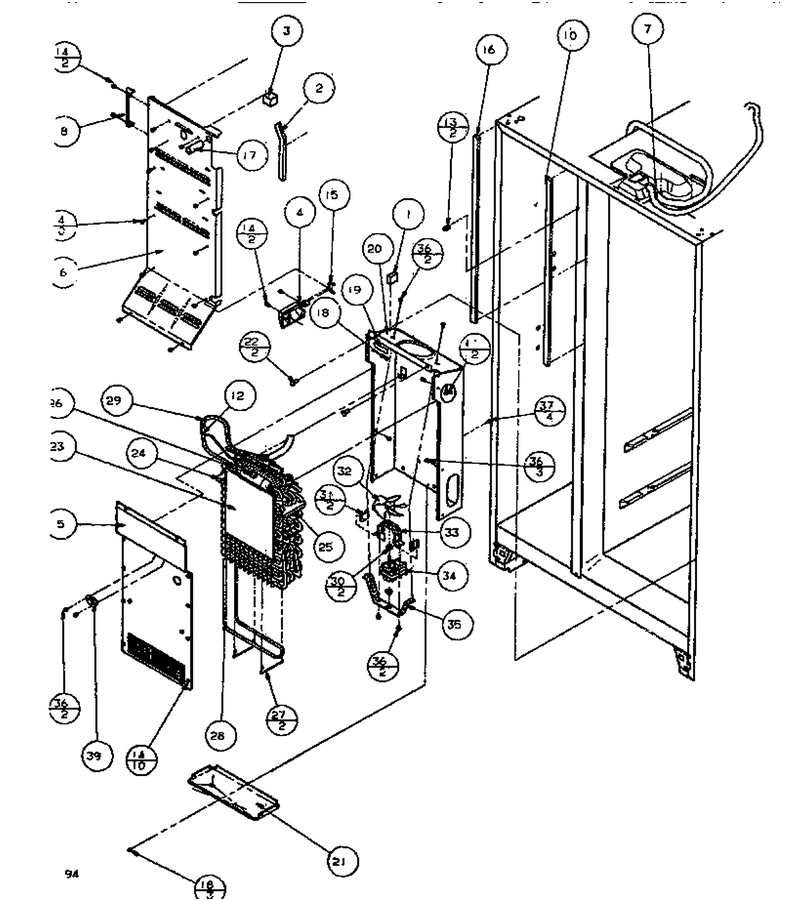

08 - Evap & Air Handling

...
...
NI
Insulation, Term WPL-M0327901
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Cover, M.k Air WPL-D7786901
...
5
Cover Evaporator WPL-D7865908
...
6
Assy, Fz Back WPL-D7846004Q
...
7
Harness Ref Liner WPL-10295201
...
8
Cover, Supply Air WPL-D7838302
...
10
Gasket WPL-A3189346
...
11
Screw WPL-WP489399
...
12
Tie-Wire WPL-WPW10339879
...
13
Tie Wire WPL-WPM0322202
...
14
Screw (3) WPL-67006425
...
15
Gasket Foam WPL-A3189340
...
16
Gasket WPL-A3189346
...
17
Ext. Fill Tube WPL-A3127412
...
18
Rivet WPL-10098801
...
19
Gasket, Foam WPL-B5757707
...
20
Evaporator Shield WPL-D7865804
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Grommet WPL-M0580003
...
23
Gasket, Evap. WPL-B8327901
...
24
Block-Lh Air Coil WPL-B8385502
...
25
Block P M Air Coil WPL-B8385601
...
26
Thermostat WPL-R0161090
...
27
Clip, Evap. Heater WPL-C8983101
...
28
Heater Defrost WPL-D7872805
...
29
Assy,low Side-Thin Wall Evap WPL-R0170041
...
30
Grommet WPL-WP2264462
...
31
Shim WPL-A1047901
...
32
Fan-Evap WPL-C8795501
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WP10513804
...
35
Bracket-Motor/shroud WPL-D7767703
...
36
Screw WPL-WP12990527
...
37
Grommet A WPL-M0580002
...
39
Thermistor WPL-WPW10331672

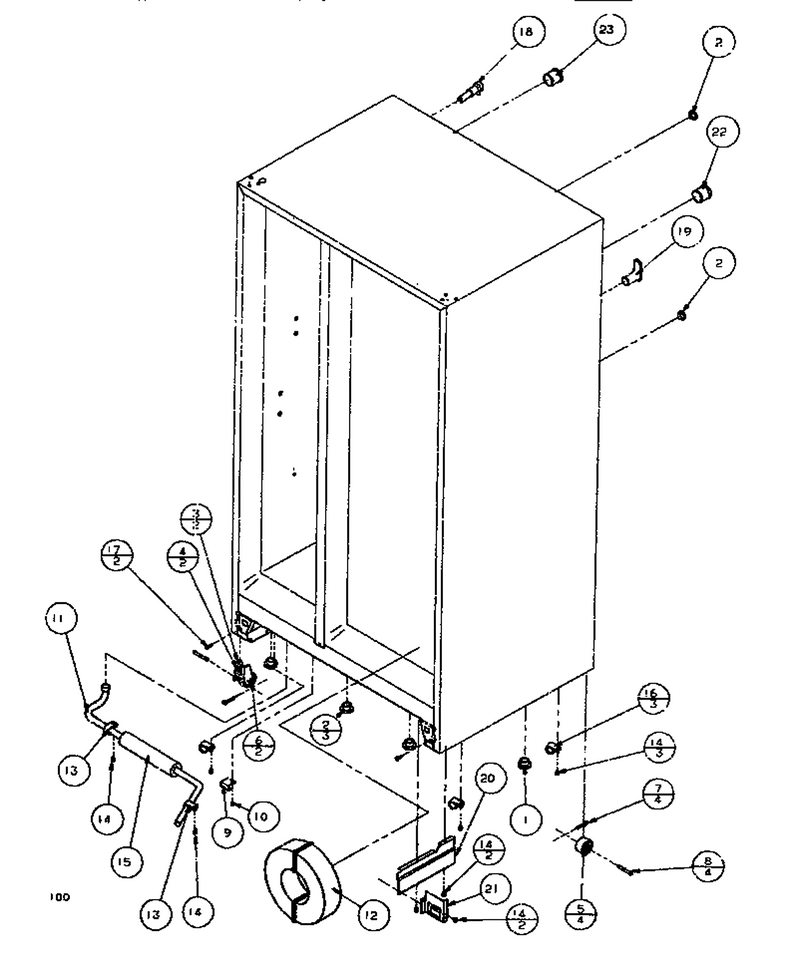

07 - Drain & Rollers

...
...
NI
Assy, Roller Bracket WPL-12452602Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Bracket, Retainer WPL-10477201
...
10
Screw WPL-WP12990527
...
11
Tube-Drain WPL-10393001
...
12
Tank, Coil Water WPL-D7787801
...
13
Clamp WPL-M0102303
...
14
Screw WPL-WP489069
...
15
Insulation, Tube WPL-10851302
...
16
Clamp WPL-WP488366
...
17
Screw, Mach WPL-M0206313
...
18
Assy, Fill Tube WPL-12023401Q
...
19
Tunnel, Heat Ex. WPL-C8971902
...
20
Shield Elect Box WPL-10248101
...
21
End Plate Shield WPL-10045701
...
22
Tunnel Wire WPL-10187501
...
23
Tunnel Wire WPL-10187601

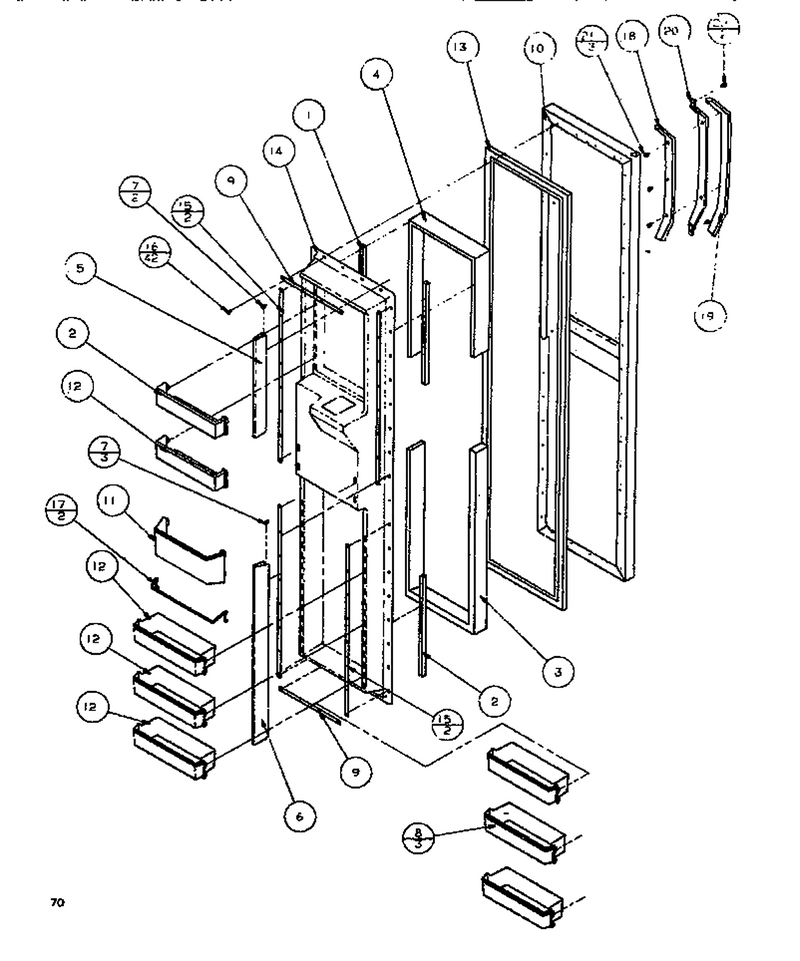

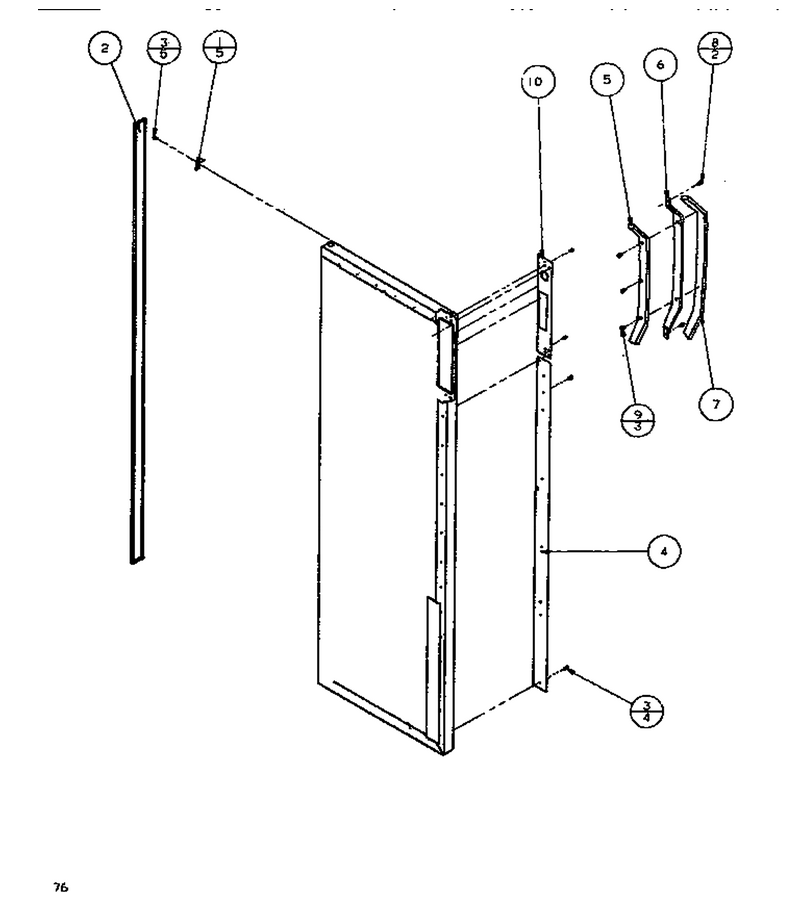

09 - Fz Door

...
...
1
Seal, Door Dike WPL-C8987101
...
2
Seal, Door Dike WPL-C8987103
...
3
Insul. By The Ft. WPL-B0523562
...
4
Insulation, Per Ft. WPL-B0523583
...
5
Rem Dike I & W Upper WPL-10063202
...
6
Removable Dike I & W WPL-10063204
...
7
Clip, Door Dike WPL-10063102
...
9
Retainer, Door Liner WPL-C8982801
...
10
Fz Dr Foamed As Cfc11 WPL-10300503WQ
...
11
Shelf, Frz Dr. Half WPL-D7783507
...
12
Shelf- Frz WPL-D7827316
...
13
Gasket W WPL-WP10359709Q
...
14
Liner I & W Freezer WPL-D7829403
...
15
Retainer, Door Liner WPL-D7828601
...
16
Screw WPL-WPM0219730
...
17
Retainer WPL-10175702
...
18
Pad, Handle Inner (alm) WPL-D7863004
...
19
Pad, Handle Outer (alm) WPL-D7863104
...
20
Handle Door WPL-D7826605
...
21
Screw WPL-M0215116
...
22
Kit, Screw WPL-R9800670

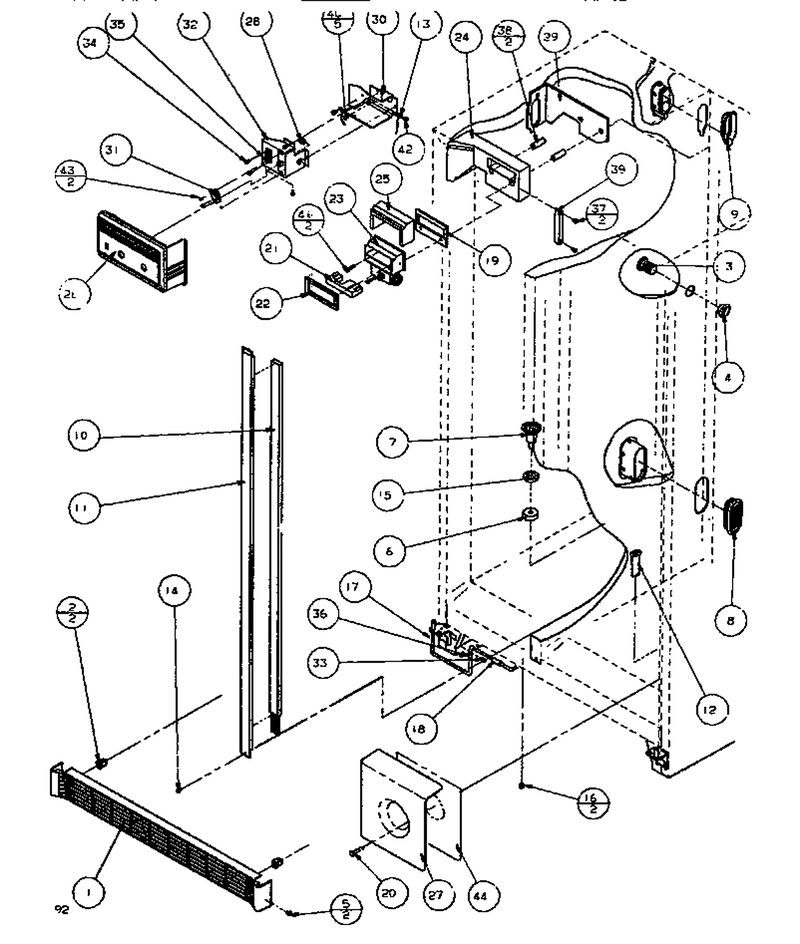

02 - Controls & Cabinet (ref/frz)

...
...
1
Grille Toe W WPL-D7786708
...
2
Clip WPL-WPM0117303
...
3
Tunnel, Air WPL-A3187703
...
4
Retainer WPL-A3187801
...
5
Screw WPL-M0217225
...
6
Gasket- Dr WPL-WPB8381501
...
7
Funnel WPL-W10815413
...
8
Grille-Rtn Air WPL-D7785401
...
9
Tunnel Air Supply WPL-10178001
...
10
Heater, Mullion WPL-D7838701
...
11
L Vt Mull-Pnt WPL-D7788606
...
12
Grommet WPL-D7793501
...
13
Lock Washer WPL-M0272803
...
14
Screw, Handle (black) WPL-12991101
...
15
Seal- O Ri WPL-WPM0500703
...
16
Grommet, Screw WPL-M0580007
...
17
Tube WPL-WPB5705307
...
18
Fitting WPL-WP4373559
...
19
Gasket, Damper WPL-B8345401
...
20
Clip K WPL-C6457701
...
21
Insert, Control WPL-C8902601
...
22
Gasket, Damper WPL-10383201
...
23
Damper, Control WPL-10271401
...
24
Duct-Waxed Air WPL-10176604
...
25
Insulation WPL-D7788201
...
26
Cover, Control WPL-D7790321
...
27
Cover, Tank WPL-D7879301
...
28
Snap Bushing WPL-A4554806
...
29
Gasket, Air Duct WPL-10177901
...
30
Box, Bottom Control WPL-D7822404
...
31
Thermistor-Ref WPL-C8983702
...
32
Box Control Top WPL-D7832802
...
33
Screw WPL-WP90767
...
34
Screw WPL-M0234003
...
35
Switch WPL-10279201
...
36
Clamp WPL-M0102301
...
37
Screw WPL-WP489474
...
38
Spacer Damper WPL-A3044208
...
39
Clamp WPL-C8977301
...
40
Screw WPL-WP489464
...
41
Screw WPL-M0216539
...
42
Screw WPL-WP489399
...
43
Screw WPL-WP489349
...
44
Insulation Cut Tank WPL-D7793402

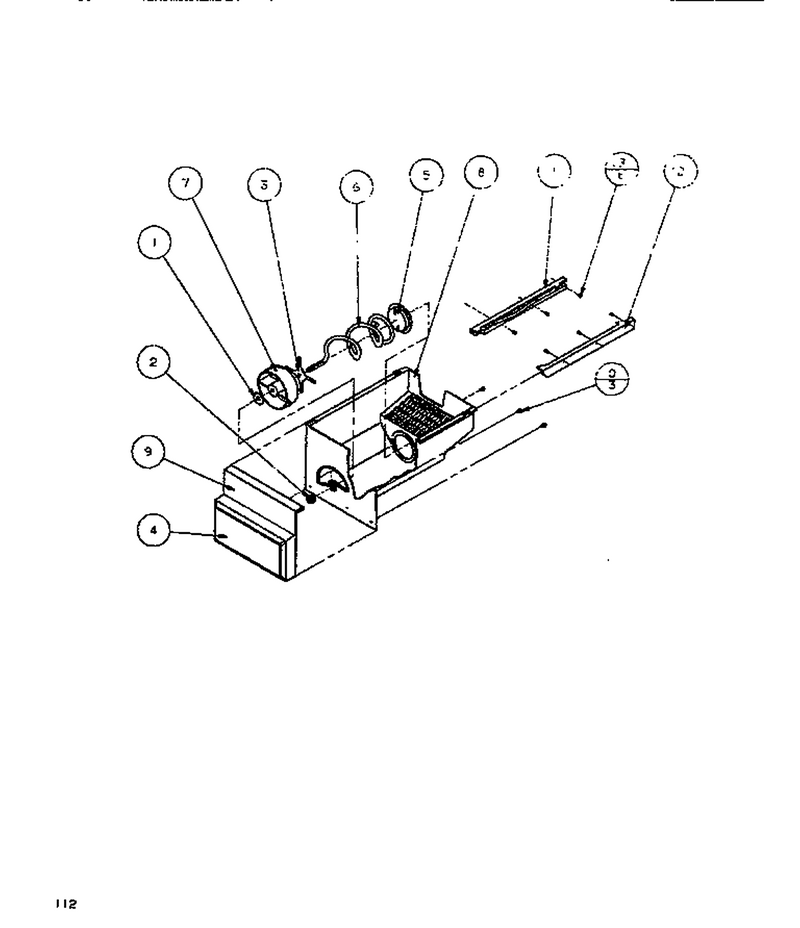

04 - Crushed Ice Bucket (cont.)

...
...
1
Washer WPL-A1061701
...
2
Nut-Helix WPL-B8385101
...
3
Bar, Breaker WPL-C8964101
...
4
Insert, Bucket Fz WPL-C8975320
...
5
Cap- Helix WPL-WPD7749401
...
6
Helix WPL-D7749501
...
7
Wheel Lift WPL-D7749601
...
8
Bucket, Ice V WPL-D7749707
...
9
Front, Bucket WPL-D7749802
...
10
Screw (3) WPL-67006425
...
11
Glide, Container (left) WPL-67005375
...
12
Glide, Frz. (rt) WPL-67004323
...
13
Screw, Glides WPL-M0243529

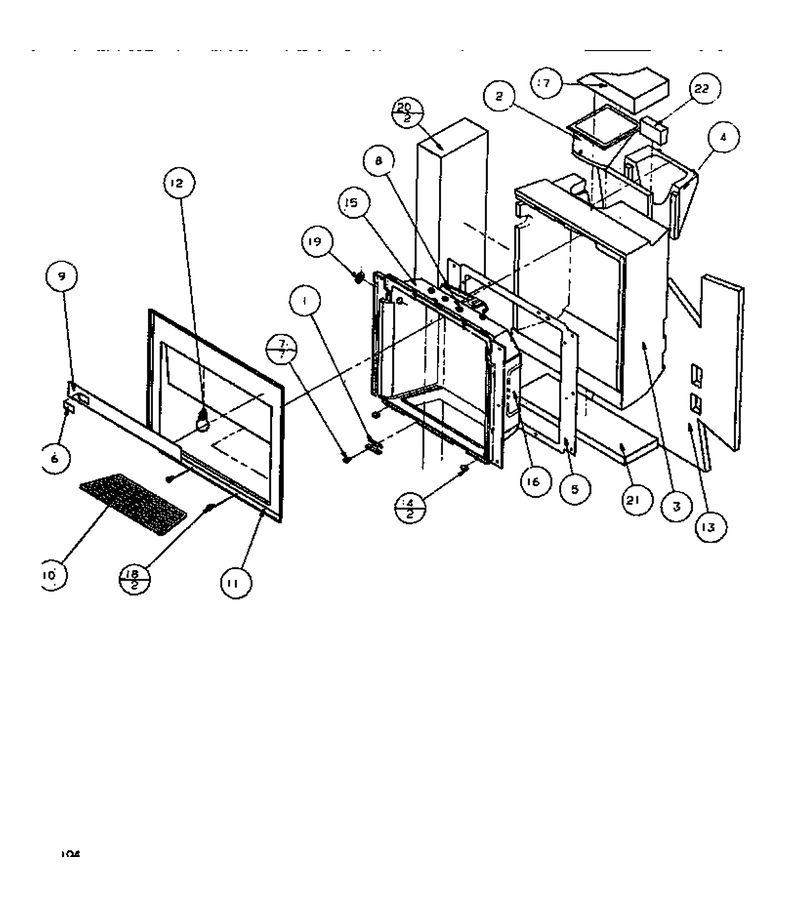

11 - Ice & Water Cavity

...
...
1
Clip WPL-C8992901
...
2
Ice, Chute WPL-D7750702
...
3
Insulation I & W Cav. WPL-D7789602
...
4
Insul I & W Cavity WPL-D7790901
...
5
Gasket-Cav WPL-D7791004
...
7
Screw-Sm/hex WPL-12990523
...
8
Retainer, Ring WPL-M0274701
...
9
Membrane Facade W WPL-D7842224
...
10
Grille, Sump L WPL-D7750605
...
11
Facade, Dispenser Almond WPL-D7877538
...
12
Bulb-Light WPL-WP61006109
...
13
Insulation Batt WPL-10220201
...
14
Clip WPL-W10819546
...
15
Cavity-Dispenser, Almond WPL-D7750014
...
16
Heater, Cavity WPL-10295902
...
17
Insulation Batt WPL-B5629053
...
18
Screw K WPL-M0219614
...
19
Plug Button WPL-M0311401
...
20
Insulation Batt WPL-10270904
...
21
Insulation Batt WPL-B5629054
...
22
Insulation Batt WPL-B5629058

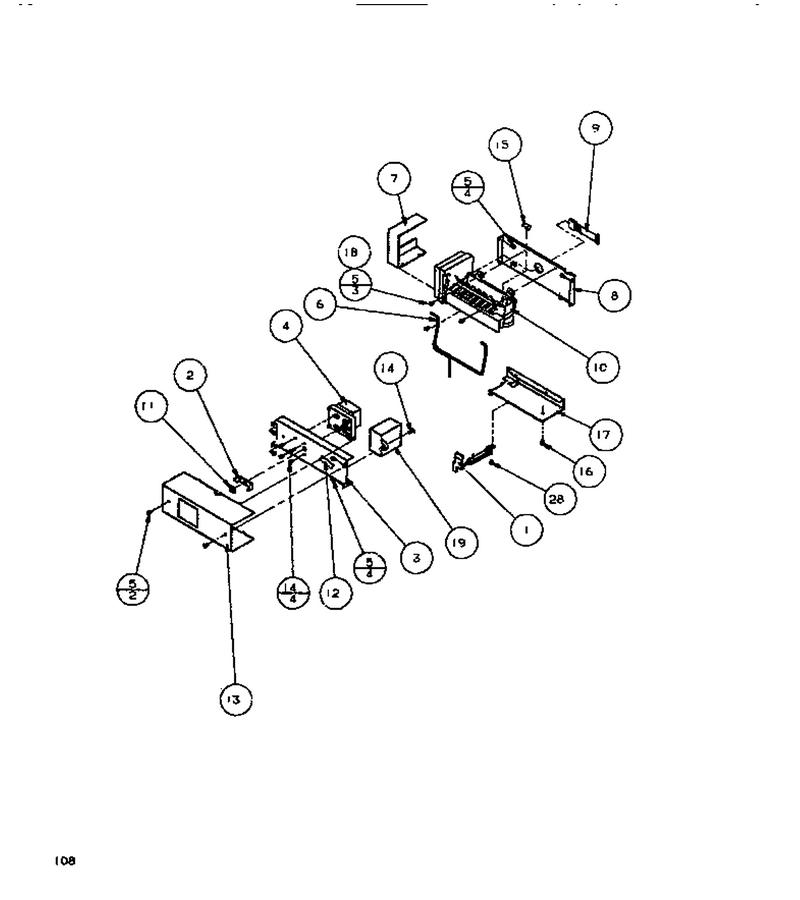

13 - Icemaker

...
...
NI
Tie-Wire WPL-WPW10339879
...
1
I.m. Shut Off Assy WPL-C8980402
...
2
Coupling WPL-WP10114901
...
3
Support,auger Motor WPL-D7749207
...
4
Motor - Auger WPL-D7847002
...
5
Screw (3) WPL-67006425
...
6
Arm,ice Maker Shut Off WPL-D7877001
...
7
Cover Im WPL-D7820401
...
8
Support-Im WPL-D7821004
...
9
Harness, Im WPL-D7843601
...
10
Icemaker WPL-WPW10190972
...
11
Nut WPL-M0120501
...
12
Gasket-Per Ft WPL-A3030305
...
13
Cover Auger Motor WPL-D7788813
...
14
Screw WPL-WPW10139210
...
15
Clip WPL-B5720301
...
16
Screw WPL-WP90767
...
17
Shield I M WPL-D7846202
...
18
Screw WPL-WP98165

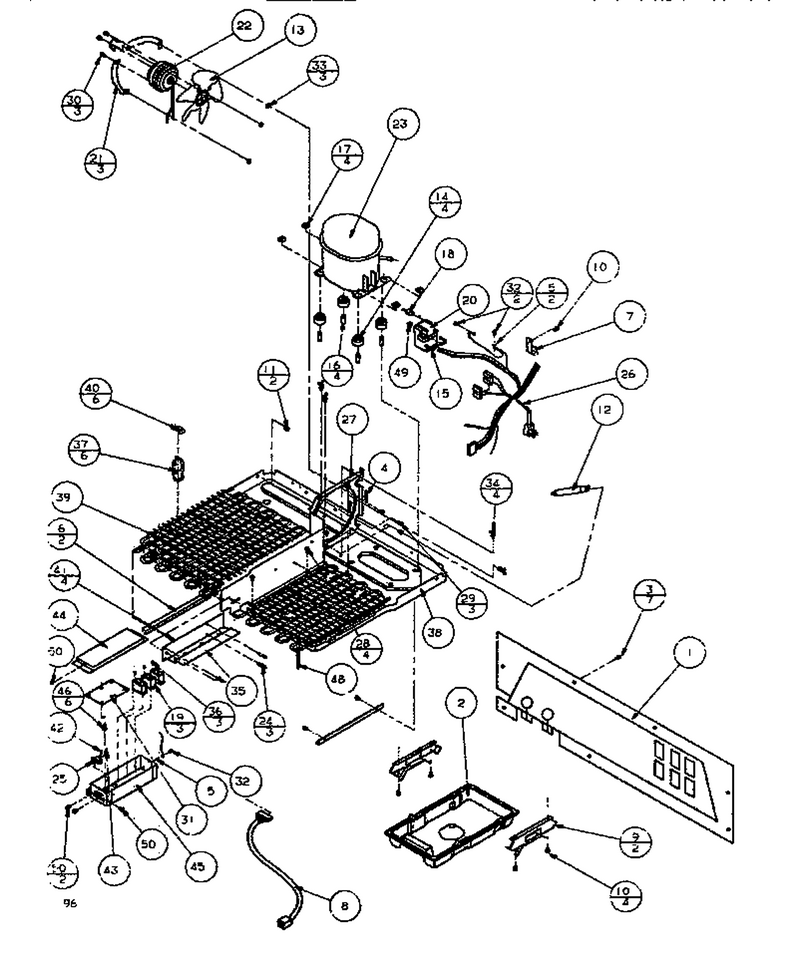

17 - Tecumseh Compressor

...
...
NI
Spring K WPL-C8916701
...
1
Assy,mc Back WPL-D7788914
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Lock Washer WPL-M0272803
...
6
Support, Mc WPL-C8913701
...
7
Clamp WPL-M0102325
...
8
Harness WPL-D7874001
...
9
Support Drain Pan WPL-D7790501
...
10
Screw, S.m., Support, Drain Pa WPL-M022016
...
11
Screw, Sm WPL-M0211357
...
12
Drier WPL-WPB2150504
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
15
Strap K WPL-A3041801
...
16
Pin, Comp. Mtg. WPL-B8384901
...
17
Clip, Comp. Mtg WPL-B8385001
...
18
Overload WPL-C3689111
...
19
Relay WPL-10169902
...
20
Terminal Cover WPL-B0551801
...
21
Bracket, Cond Motor WPL-C8982101
...
22
Motor-Condenser WPL-D7846901
...
23
Compressor WPL-D7736206
...
24
Rivet-Pop WPL-59002054
...
25
Switch WPL-10279201
...
26
Harness-M.c. WPL-10372901
...
27
Shroud-Condenser Fan WPL-D7844112
...
28
Screw WPL-WP12990527
...
29
Screw Shoulder WPL-M0238833
...
30
Screw WPL-M0223803
...
31
P.c. Board WPL-10169801
...
32
Screw, 8-32 X 3/8 WPL-681390
...
33
Grommet K WPL-M0500107
...
34
Tie, Wire WPL-M0585401
...
35
Bracket H.v Box WPL-10277101
...
36
Screw WPL-M0234114
...
37
Spacer Cond. WPL-B8346301
...
38
Pan, Base WPL-D7748610
...
39
Condenser WPL-D7824504
...
40
Speednut WPL-M0293703
...
41
Screw WPL-M0211530
...
42
Wire-Jumper WPL-D7383448
...
43
Wire-Jumper WPL-D7383449
...
44
Top, Hv Box WPL-10276906
...
45
Hv Box- E Ct WPL-10277020
...
46
Support-Pc Board WPL-M0585502
...
48
Tie-Wire WPL-WPW10339879
...
49
Relay WPL-C3689205
...
50
Screw WPL-WP90767

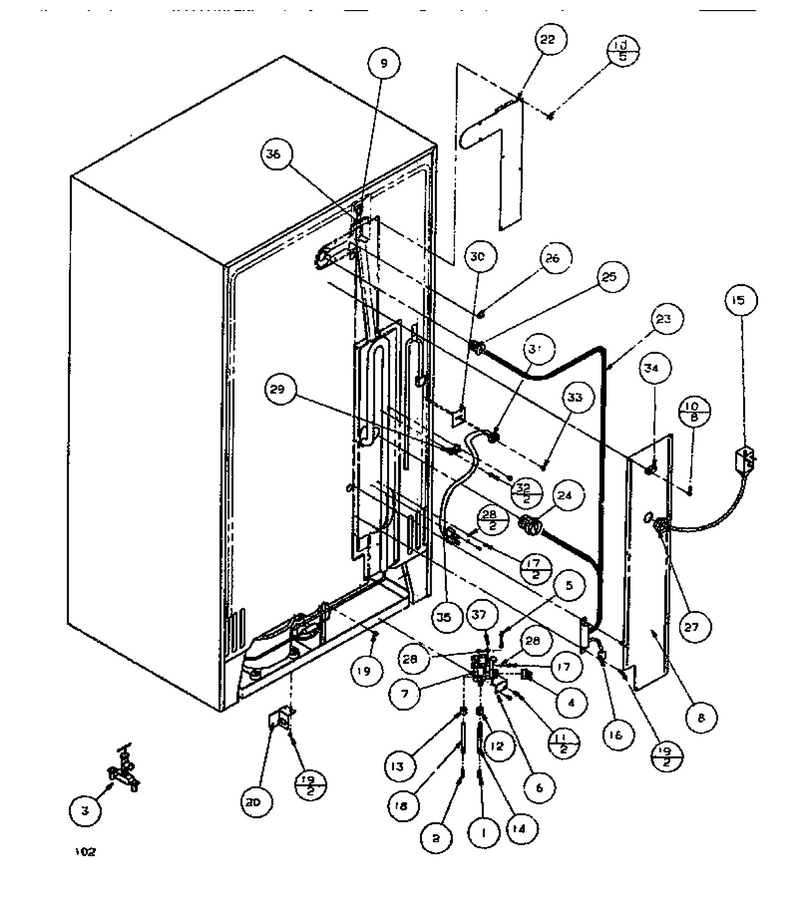

01 - Cabinet Back

...
...
NI
Tie-Wire WPL-WPW10339879
...
1
Spring WPL-WPA1055105
...
2
Spring K WPL-A1055102
...
3
Valve, Saddle(6mm) WPL-R0000016
...
4
Coupling WPL-10244902
...
5
Clip, Water Valve WPL-10798001
...
6
Bracket WPL-WPD7701602
...
7
Valve, Water (220/240 Vac, 50 WPL-D7827201
...
8
Cover, O.c.back WPL-10178406
...
9
Clip- Spee WPL-WPM0114003
...
10
Screw WPL-WP489069
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Nut WPL-WP627018
...
13
Nut WPL-8201513
...
14
Tube WPL-WPB5705307
...
15
Cord, Power WPL-B5669027
...
16
Clip, Cord WPL-M0104102
...
17
Screw WPL-WP489399
...
18
Tank, Coil Water WPL-D7787801
...
19
Screw WPL-WP489069
...
20
Bracket Plug WPL-C8983501
...
22
Cover - Wire WPL-10178505
...
23
Harness Cab. WPL-10387701
...
24
Grommet Wire WPL-10178702
...
25
Grommet Wire WPL-10178802
...
26
Clip WPL-WPM0104106
...
27
Snap Bushing WPL-A4554813
...
28
Lock Washer WPL-M0272803
...
29
Strain Relief WPL-Y10203701
...
30
Insulation WPL-A1068601
...
31
Terminal Block WPL-C8969202
...
32
Screw WPL-WP489474
...
33
Screw K WPL-M0229005
...
34
Clamp WPL-M0102301
...
35
Jumper Powercord WPL-10387801
...
36
Gasket (ft.) WPL-10839803
...
37
Screw WPL-M0253504

15 - Ref Door (cont.)

...
...
1
Clip, Trim WPL-10274101
...
2
Trim Vertical WPL-10274201
...
3
Screw WPL-WP489349
...
4
Ref Trim Retainer WPL-10189804
...
5
Pad, Handle Inner (alm) WPL-D7863004
...
6
Handle Door WPL-D7826605
...
7
Pad, Handle Outer (alm) WPL-D7863104
...
8
Kit, Screw WPL-R9800670
...
9
Screw WPL-M0215116

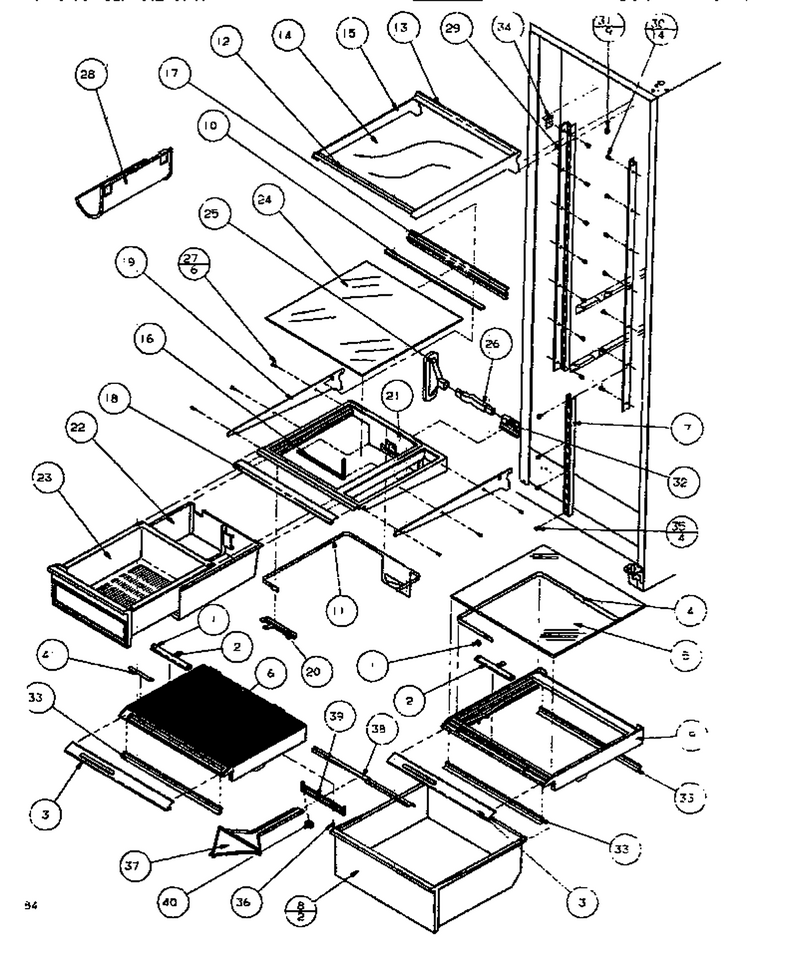

16 - Shelving & Drawers (ref)

...
...
NI
Crisper Top Assembly, Lower WPL-10278801
...
1
Knob, Crisper Control WPL-10038401
...
2
Slide WPL-D7860603
...
3
Trim, Crisper Top Fz WPL-D7616679
...
4
Band M.k. Control WPL-D7859604
...
5
Glass Top Crisper WPL-10036007
...
6
Top Crisper WPL-D7856904
...
7
Ladder, Center WPL-D7599003
...
8
Crisper Pa WPL-D7782017
...
9
Frame WPL-D7853203
...
10
Ext. Rear Glass WPL-10043102
...
11
Band M.k. Control WPL-D7859504
...
12
Trim WPL-C8913518
...
13
Trim WPL-C8913608
...
14
Glass Shelf WPL-10036008
...
15
Frame-Cantilever Full Shelf WPL-D7871007
...
16
Gasket WPL-A3030353
...
17
Trim, Rear WPL-C8990405
...
18
Trim WPL-C8913520
...
19
Side Rail WPL-D7862960
...
20
Slide-Mk C WPL-D7859404
...
21
Frame, Mk WPL-D7857004
...
22
Sleeve M.k. A WPL-D7817906
...
23
Pan-Meat-W WPL-D7814014
...
24
Glass Shelf M K WPL-10036009
...
25
Grommet, Mk WPL-D7873601
...
26
Xduct M.k. Air WPL-D7869001
...
27
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
28
Rack Bottle V WPL-D7547615
...
29
Ladder Cantilever WPL-D7789805
...
30
Screw WPL-WP90767
...
31
Grommet, Screw WPL-M0580007
...
32
Ext. Air Duct WPL-D7869101
...
33
Seal, Crisper Rear WPL-D7718404
...
34
Brkt, Cont Cover WPL-12414701
...
35
Screw-Sm WPL-M0238636
...
36
Screw,tc WPL-M0230017
...
37
Slide, Arm Crisper Control WPL-D7782205
...
38
Damper, Humidity Control WPL-D7764106
...
39
Support, Slide WPL-D7807603
...
40
Clip WPL-M0118102
...
41
Insert-Crisper Top WPL-10151001

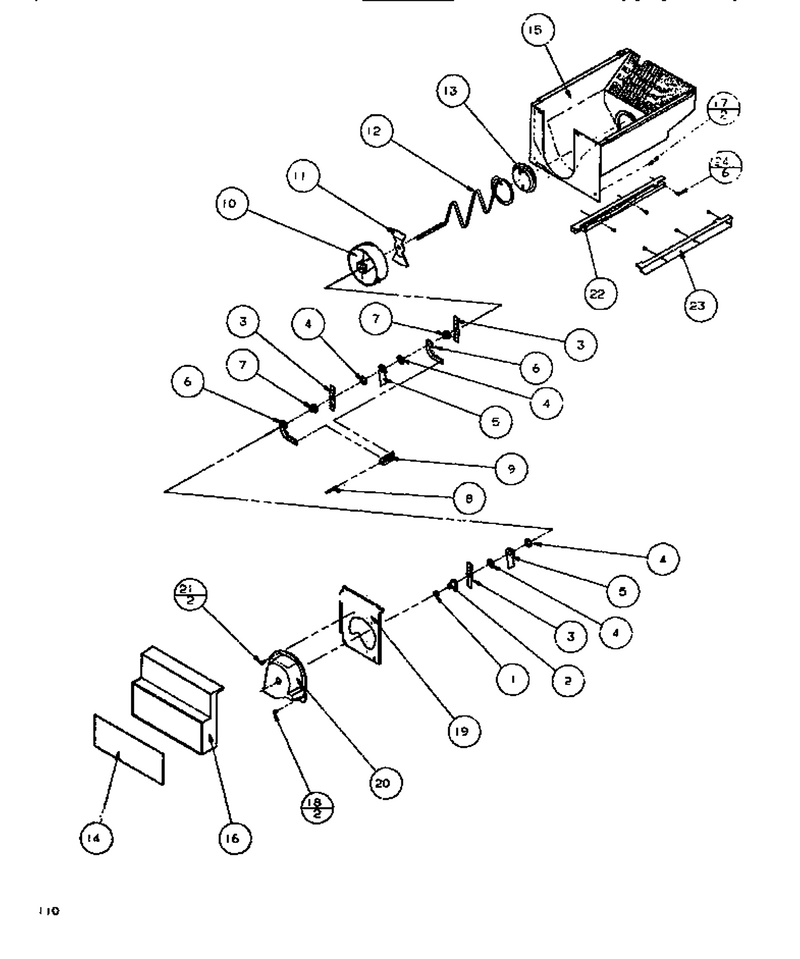

03 - Crushed Ice Bucket

...
...
NI
Crushr-Mec WPL-WP12740302
...
1
Nut WPL-WPM0223101
...
2
Spacer, Cover WPL-10113901
...
3
Blade, Rotating WPL-10114501
...
4
Washer, Waved WPL-10275101
...
5
Damper, Ice WPL-10275201
...
6
Blade, Static WPL-10114601
...
7
Washer Stepped WPL-10114301
...
8
Pin, Roll WPL-M1200108
...
9
Anchor, Blade WPL-10114101
...
10
Wheel- Crs WPL-WP67002052
...
11
Bar, Crsh Ice Bucket WPL-10113801
...
12
Agitator, Ice WPL-10114401
...
13
Cap- Helix WPL-WPD7749401
...
14
Insert, Bucket Fz WPL-C8975320
...
15
Bucket- Cr WPL-WP10111905
...
16
Front-Crsh Ice Brkt WPL-10112001
...
17
Screw (3) WPL-67006425
...
18
Screw WPL-WP3388228
...
19
Front, Ice Crusher WPL-10115001
...
20
Cover, Blade WPL-10114002
...
21
Screw, Tf WPL-M0231704
...
22
Glide, Container (left) WPL-67005375
...
23
Glide, Frz. (rt) WPL-67004323
...
24
Screw, Handle WPL-67006529

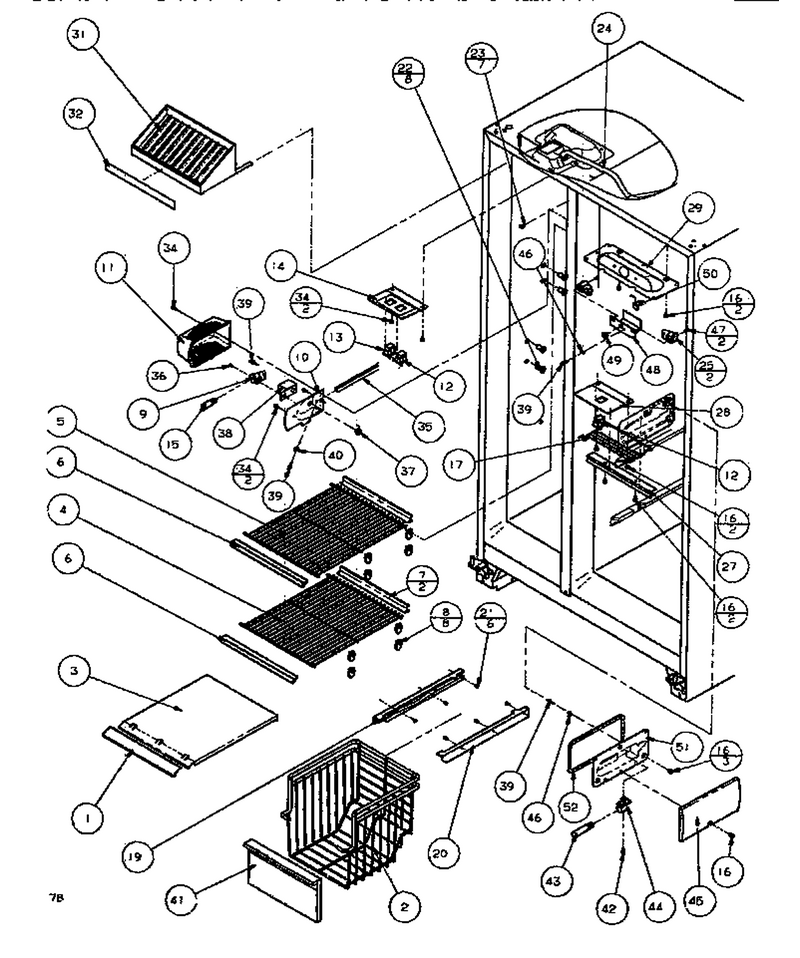

10 - Fz Shelving & Ref Light

...
...
1
Trim Fz Shelf WPL-D7616648
...
2
Basket, Frz WPL-D7820802
...
3
Freezer Shelf Pnt WPL-D7781506
...
4
Shelf, Frz WPL-D7788310
...
5
Shelf, Freezer WPL-D7788311
...
6
Trim WPL-C8913519
...
7
Trim WPL-C8913609
...
8
Support- F WPL-WPC8973801
...
9
Socket, Light WPL-D7845103
...
10
Plate - Lt Socket WPL-D7845204
...
11
Shield, Light WPL-D7786603
...
12
Switch, Mc Light WPL-C8983804
...
13
Switch-Fan WPL-C8983803
...
14
Cover Light WPL-D7749002
...
15
Light Bulb WPL-59002071
...
16
Screw (3) WPL-67006425
...
19
Glide-Fz, L.h. WPL-10282301
...
20
Glide-Fz, R.h. WPL-10282302
...
21
Screw, Handle WPL-67006529
...
22
Plug, Frz Shelf Support WPL-C8973701
...
23
Grommet, Screw WPL-M0580007
...
24
Harness Fz Liner WPL-10295302
...
25
Socket, Light WPL-D7845103
...
27
Shield, Light WPL-10014716
...
28
Cover, Light Sw WPL-D7297604
...
29
Housing-Ref Light WPL-D7716405
...
31
Rack, Juice V WPL-D7839701
...
32
Insert, Juice Rack WPL-C8986107
...
34
Screw (3) WPL-67006425
...
35
Cover, Wire WPL-10250002
...
36
Screw WPL-M0217225
...
37
Snap Bushing WPL-A4554813
...
38
Socket Cover WPL-D7844902
...
39
Pop Rivet WPL-A4539626
...
40
Terminal Ground A WPL-M0320905
...
41
Front,basket WPL-D7820712
...
42
Screw WPL-M0217225
...
43
Light Bulb WPL-59002071
...
44
Socket, Light WPL-D7845103
...
45
Cover-Light WPL-Y10270101
...
46
Terminal Ground A WPL-M0320905
...
47
Screw WPL-M0217225
...
48
Socket Shield WPL-D7844802
...
49
Snap Bushing WPL-A4554813
...
50
Harness, Ref Light WPL-Y10244001
...
51
Housing Light WPL-10270202
...
52
Gasket WPL-A3189337

14 - Ref Door

...
...
1
Insul. By The Ft. WPL-B0523562
...
2
Seal, Door Dike WPL-C8987104
...
3
Bucket- Do WPL-67003696
...
4
Shelf, Ref. Door WPL-D7783408
...
5
Snugger-Dr Shelf WPL-D7814606
...
6
Xinner Door Liner Ref WPL-D7828703
...
7
Ref Dr Fomd As Cfc 11 WPL-10300302LQ
...
8
Gasket-Dr WPL-WP10359708Q
...
9
Screw WPL-WPM0219730
...
10
Module-Dairy WPL-D7781202
...
11
Door Dairy WPL-D7781313
...
12
Container Sec. Ser. WPL-D7806405
...
13
Tray, Butter WPL-10310901
...
14
Cover, Egg Bucket WPL-D7805911
...
15
Assy,egg Bkt W/ Lid WPL-12460016
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
