Amana SBD20H (BOM: P7836031W W)

Model: SBD20H (BOM: P7836031W W)

Save Part Not Listed?
product name

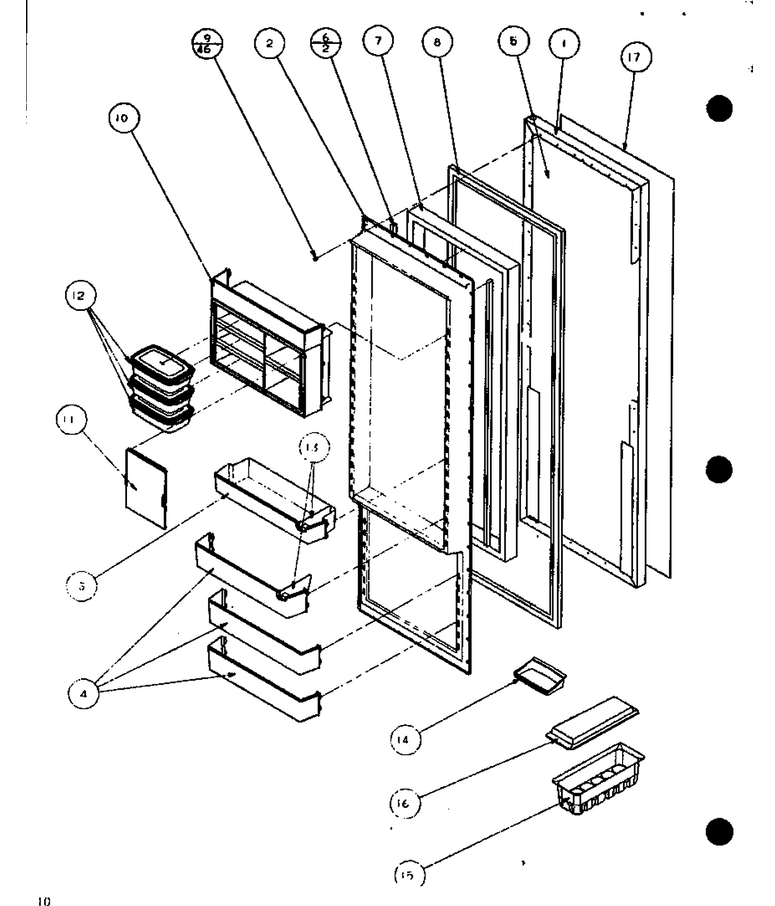

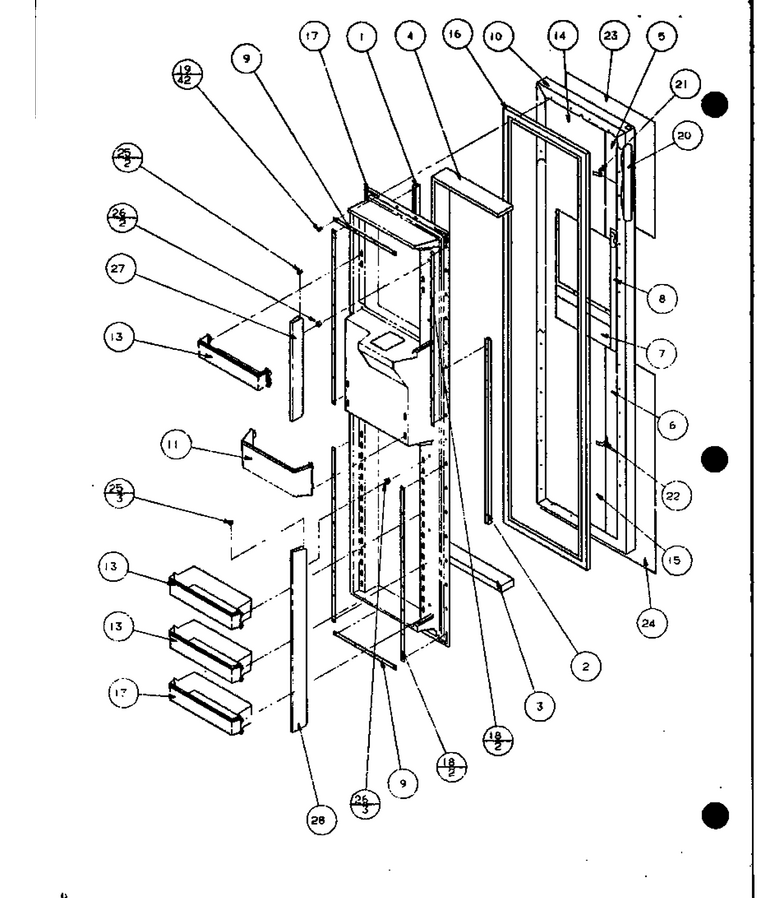

14 - Ref Door

...
...
1
Dr Pan, Ref, W WPL-D7834034
...
2
Inner Door, Ref WPL-D7828203
...
3
Bucket- Do WPL-67003696
...
4
Shelf, Ref. Door WPL-D7783404
...
5
Insulation WPL-B0566723
...
6
Seal, Door Dike WPL-C8987104
...
7
Insul. By The Ft. WPL-B0523562
...
8
Gasket-Dr WPL-WP10359708Q
...
9
Screw WPL-WPM0219730
...
10
Module-Dairy WPL-D7781202
...
11
Door Dairy WPL-D7781308
...
12
Container Sec. Ser. WPL-D7806403
...
13
Snugger-Dr Shelf WPL-D7814604
...
14
Butter Tray WPL-D3799802
...
15
Assy,egg Bkt W/ Lid WPL-12460016
...
16
Cover, Egg Bucket WPL-D7805911

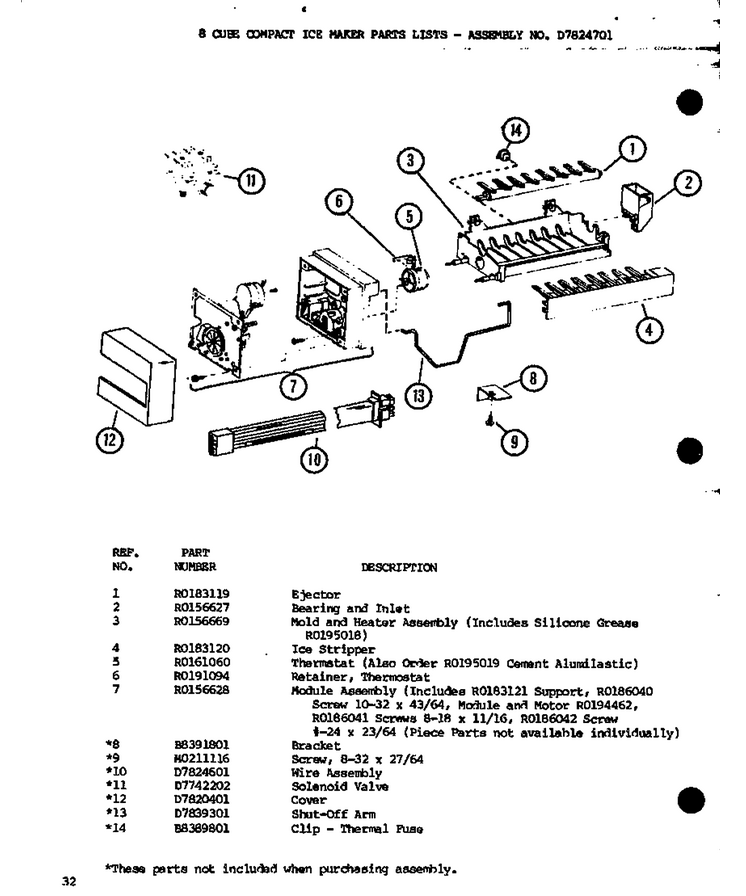

01 - 8 Cube Compact Ice Maker

...
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Ice Maker Assy. WPL-D7824706Q
...
4
Arm-Stripr WPL-WP2182124
...
5
Bimetl-Def WPL-WP627985
...
6
Clip WPL-WP2315522
...
7
Ice Maker Assy. WPL-D7824706Q
...
8
Bracket, I/m WPL-B8391802
...
9
Screw WPL-WP90767
...
10
Harness WPL-D7824601
...
11
Valve-Inlt WPL-WPW10245167
...
12
Cover Im WPL-D7820401
...
13
Arm,ice Maker Shut Off WPL-D7839301
...
14
Clip WPL-WP628379

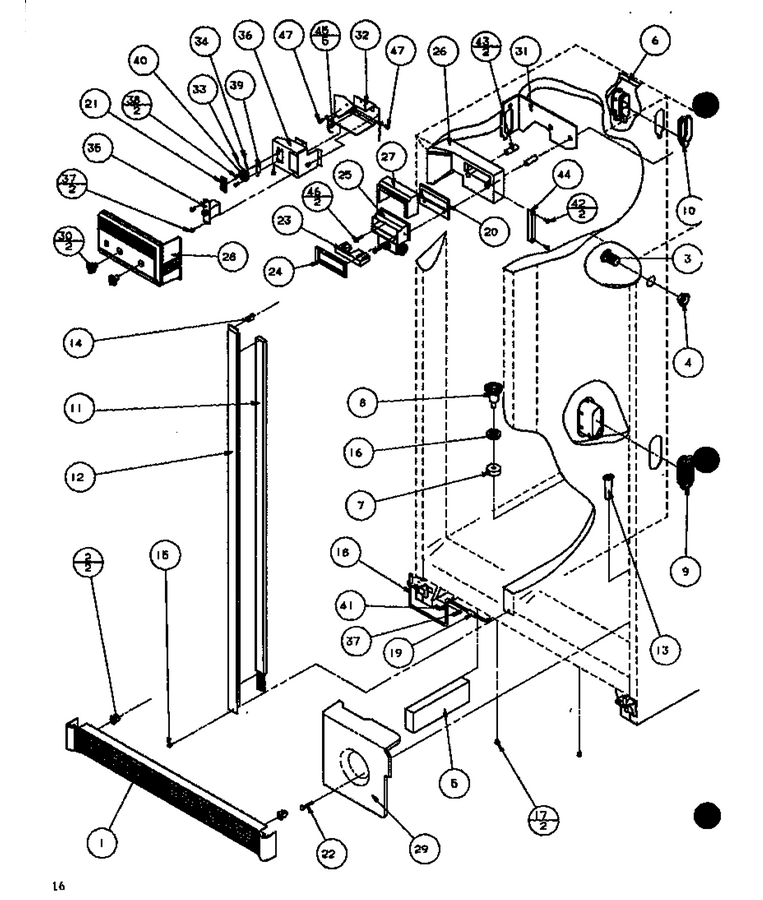

12 - Ref

...
...
1
Grille, Toe Black WPL-D7786702
...
2
Clip WPL-WPM0117303
...
3
Tunnel, Air WPL-A3187703
...
4
Retainer WPL-A3187801
...
5
Insulation WPL-B5629045
...
6
Tube-Plastic WPL-B8372601
...
7
Gasket- Dr WPL-WPB8381501
...
8
Funnel WPL-W10815413
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel, Air Supply WPL-D7785501
...
11
Heater, Mullion WPL-D7837501
...
12
Vertical, Mullion WPL-D7788605
...
13
Grommet WPL-D7793501
...
14
Clip WPL-M0113604
...
15
Screw, Handle (black) WPL-12991101
...
16
Seal- O Ri WPL-WPM0500703
...
17
Grommet, Screw WPL-M0586201
...
18
Tube WPL-WPB5705307
...
19
Fitting WPL-WP4373559
...
20
Gasket, Damper WPL-B8345401
...
21
Collar, Switch WPL-B8391601
...
22
Clip WPL-C6457702
...
23
Insert, Control WPL-C8902601
...
24
Gasket, Damper Front WPL-C8975601
...
25
Control, Damper WPL-D7547406
...
26
D7749902q WPL-D7749902
...
27
Insulation WPL-D7788201
...
28
Cover, Control WPL-D7790306
...
29
Insulation Cut Tank WPL-D7793402
...
30
Kit Knob WPL-D7795806
...
31
Gasket Air Duct WPL-D7819101
...
32
Box, Control Btm WPL-D7822406
...
33
Wire Jumper WPL-A3221103
...
34
Wire Jumper WPL-A3221104
...
35
Assy, Control-Fz WPL-R0161092
...
36
Box, Control Top WPL-D7789301
...
37
Screw WPL-WP90767
...
38
Screw WPL-W11084238
...
39
Diode WPL-M0305301
...
40
Switch, Heater WPL-M0342601
...
41
Clamp WPL-M0102301
...
42
Screw WPL-WP489474
...
43
Spacer Damper WPL-A3044208
...
44
Clamp WPL-C8977301
...
45
Screw WPL-WP489464
...
46
Screw WPL-M0216539
...
47
Screw WPL-WP489399

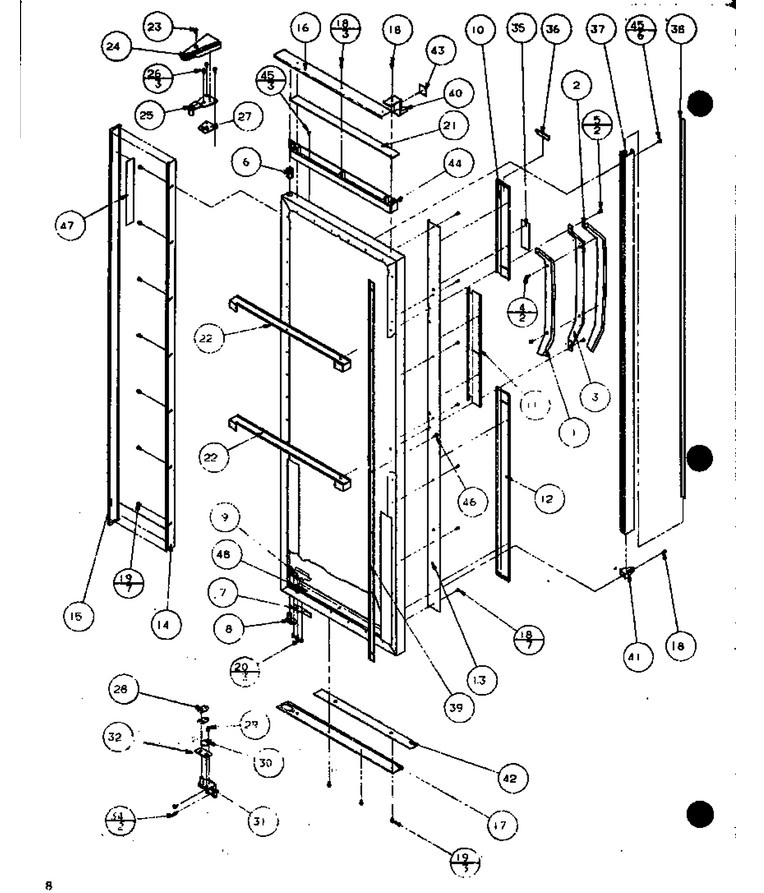

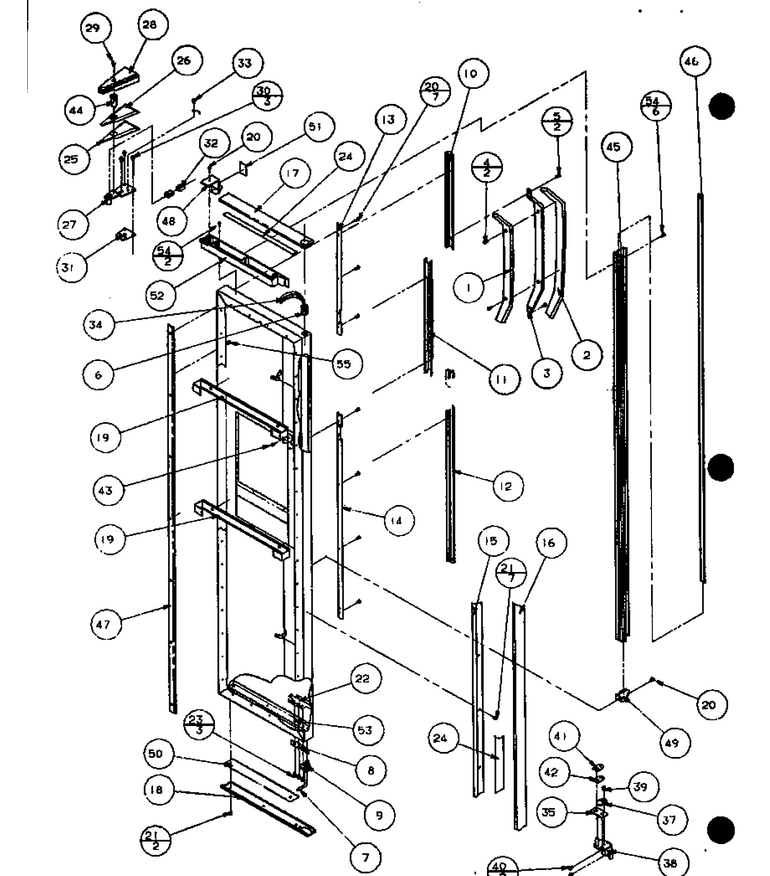

13 - Ref Door

...
...
6
Bushing, Top WPL-C8965901
...
7
Stop, Door (blk) WPL-12636401B
...
8
Kit,dr Closure WPL-R0181181
...
15
Trim WPL-D7830002
...
16
Trim WPL-D7830102
...
17
Trim WPL-D7830202
...
18
Screw WPL-M0213815
...
19
Screw WPL-W11233072
...
20
Screw WPL-WPM0219730
...
23
Screw WPL-M0202325
...
24
Cover, Hinge WPL-D7870701
...
25
Top Hinge Assy WPL-D7855701
...
26
Kit, Screw WPL-R9800670
...
27
Shim, Top Hinge WPL-B8389007
...
28
Shim, Door Closure WPL-B8387702
...
29
Screw WPL-WPW10068250
...
30
Kit,dr Closure WPL-R0181181
...
31
Hinge Assy Bottom WPL-D7757704
...
32
Kit,btm Hinge Shim WPL-B8386701
...
34
Screw WPL-WP67006715
...
37
Handle WPL-D7826703
...
38
Insert Handle WPL-D7826802
...
39
Top Strip WPL-D7826901
...
40
Cap Handle WPL-D7828002
...
41
End Cap. Handle WPL-D7828102
...
42
Spacer, Bottom Trim WPL-D7853401
...
43
Nameplate, End Cap WPL-D7853503
...
44
Spacer-Door WPL-D7855501
...
45
Screw-Sm/hex WPL-12990523
...
46
Screw WPL-M0242918
...
47
Tape, Double Back, Trim Door T WPL-R0195038
...
48
Top Strip WPL-D7826402

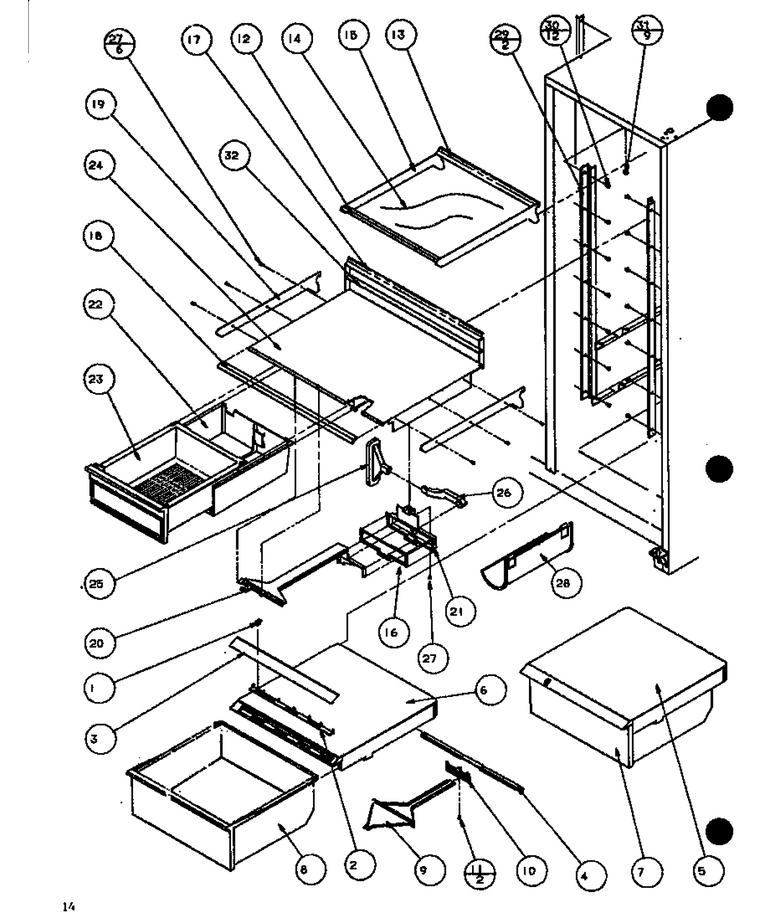

15 - Ref Shelving And Drawers

...
...
NI
Crisper Top Assy WPL-R0179111
...
1
Knob Humidity A-K WPL-C8908301
...
2
Slide Humidity WPL-D7587705
...
3
Trim WPL-D7616624
...
4
Damper Humidity WPL-D7764101
...
5
Crisper Top WPL-D7781901
...
6
Net-Top Crisper WPL-D7813601
...
7
Pan-Fruit WPL-D7817212
...
8
Crisper Pa WPL-D7782017
...
9
Slide Crisper Cont. WPL-D7782201
...
10
Support WPL-D7807601
...
11
Screw,tc WPL-M0230017
...
12
Trim WPL-C8913518
...
13
Trim WPL-C8913608
...
14
Glass Shelf WPL-D7421248
...
15
Frame Cont Shelf WPL-D7788405
...
16
Gasket-Per Ft WPL-A3030305
...
17
Trim WPL-C8831813
...
18
Trim WPL-C8913520
...
19
Side Rail WPL-D7600044
...
20
Slide M.k. Control WPL-D7818001
...
21
Housing M.k. Slide WPL-D7698003
...
22
Sleeve M.k. A WPL-D7817906
...
23
Pan-Meat-W WPL-D7814014
...
24
Top Meat Keeper WPL-D7817801
...
25
Grommet, Mk WPL-D7788001
...
26
Duct, M.k. Air WPL-D7788101
...
27
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
28
Rack, Bottle WPL-D7547607
...
29
Ladder Cantilever WPL-D7789805
...
30
Screw (3) WPL-67006425
...
31
Grommet, Screw WPL-M0586201
...
32
Tape Per Roll WPL-M0275163

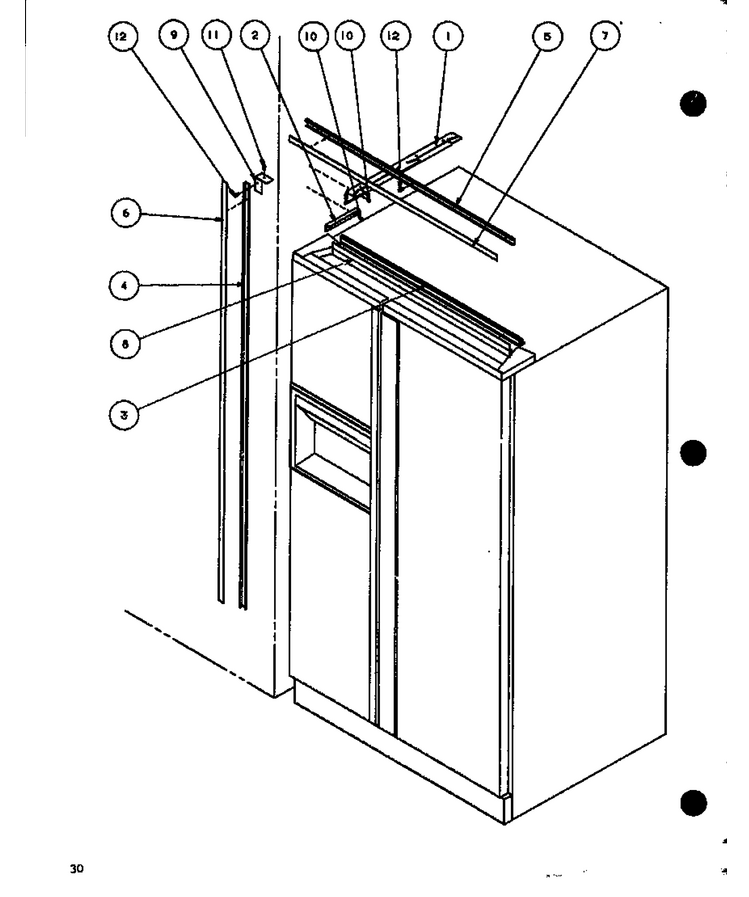

02 - Bi7 Trim Kit

...
...
NI
Installation, Instructions WPL-A1068501
...
1
Cabinet Bracket WPL-D7827002
...
2
Cabinet Bracket WPL-C8982602
...
3
Ext Outer Case WPL-D7829301
...
4
Frame, Cab. L.h WPL-D7861002
...
5
Frame Cab Top WPL-D7861003
...
6
Gasket, Frame Side WPL-D7861101
...
7
Gasket, Frame Top WPL-D7861102
...
8
Sleeve, Panel WPL-D7856701
...
9
Gusset-Bezel WPL-A3049001
...
10
Screw WPL-W11233072
...
11
Screw WPL-M0202514
...
12
Screw WPL-M0211519

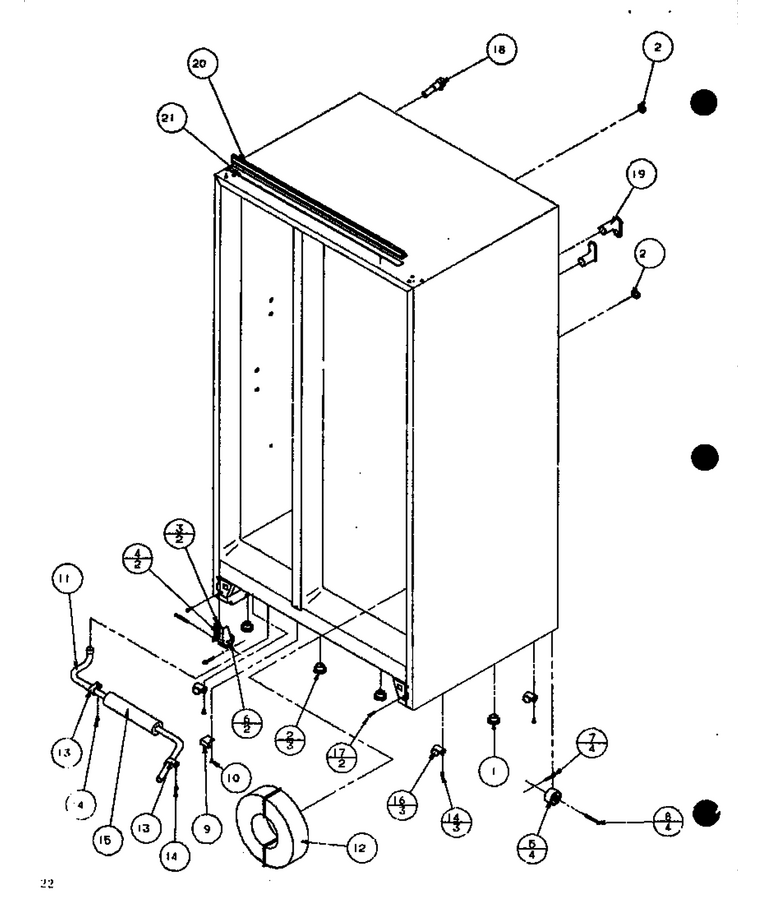

04 - Drain And Rollers

...
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Bracket, Retainer WPL-C8985801
...
10
Screw WPL-M0211530
...
11
Drain Tube WPL-D7748501
...
12
Tank, Coil Water WPL-D7787801
...
13
Clamp WPL-M0102303
...
14
Screw WPL-WP489069
...
15
Insul Tubing 1=12`` WPL-A0329806
...
16
Clamp WPL-M0102327
...
17
Screw, Mach WPL-M0206313
...
18
Fill Tube WPL-R0182123
...
19
Tunnel, Heat Ex. WPL-C8971902
...
20
Ext Outer Case WPL-D7829302
...
21
Gasket O.c. Ext WPL-D7829702

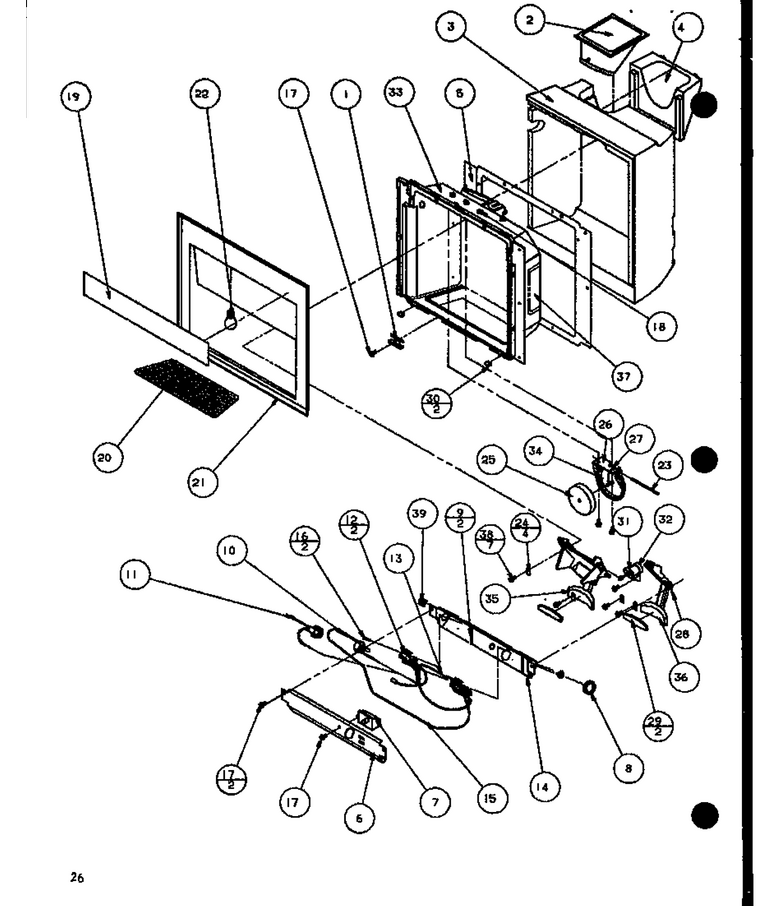

09 - Ice And Water Cavity

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Clip WPL-C8973901
...
2
Ice, Chute WPL-D7750702
...
3
Insul I & W Cavity WPL-D7789601
...
4
Insul I & W Cavity WPL-D7790901
...
5
Gasket Cavity WPL-D7791002
...
6
Cover WPL-D7795902
...
7
Switch Photo Sensitive WPL-D7854101
...
8
Nut WPL-B8382701
...
9
Insulation WPL-B8386801
...
10
Switch, Light I & W WPL-C8967502
...
11
Socket Light I & W WPL-C8967602
...
12
Kit, Limit Switch WPL-C8972701
...
13
Jumper Wire WPL-D7726580
...
14
Bracket, Elect. Mtg WPL-D7750501
...
15
Harness WPL-D7797201
...
16
Screw WPL-M0234008
...
17
Screw-Sm/hex WPL-12990523
...
18
Retainer, Ring WPL-M0274701
...
19
Membrane, Facade WPL-D7842204
...
20
Grille Sump (black) WPL-D7750602
...
21
Facade Dispenser WPL-D7751010
...
22
Bulb-Light WPL-W10857122
...
23
Pin, Chute Door WPL-A1061501
...
24
Retainer, Ice Arm WPL-A1061601
...
25
Insulation, Chute Door WPL-B8380701
...
26
Brkt-Chute Door WPL-B8380801
...
27
Spring,chute Door WPL-B8380901
...
28
Spring, Return WPL-B8385401
...
30
Clip WPL-W10819546
...
31
Retainer Door Delay WPL-C8972501
...
32
Delay, Door WPL-C8973601
...
34
Kit,chute Dr No.3 WPL-D7750101
...
35
Arm-Dispsr WPL-12002642
...
36
Arm,water Actuater WPL-D7750401
...
37
Heater, Cavity WPL-D7762701
...
38
Screw WPL-WP90767
...
39
Clip, Ground WPL-B5733302

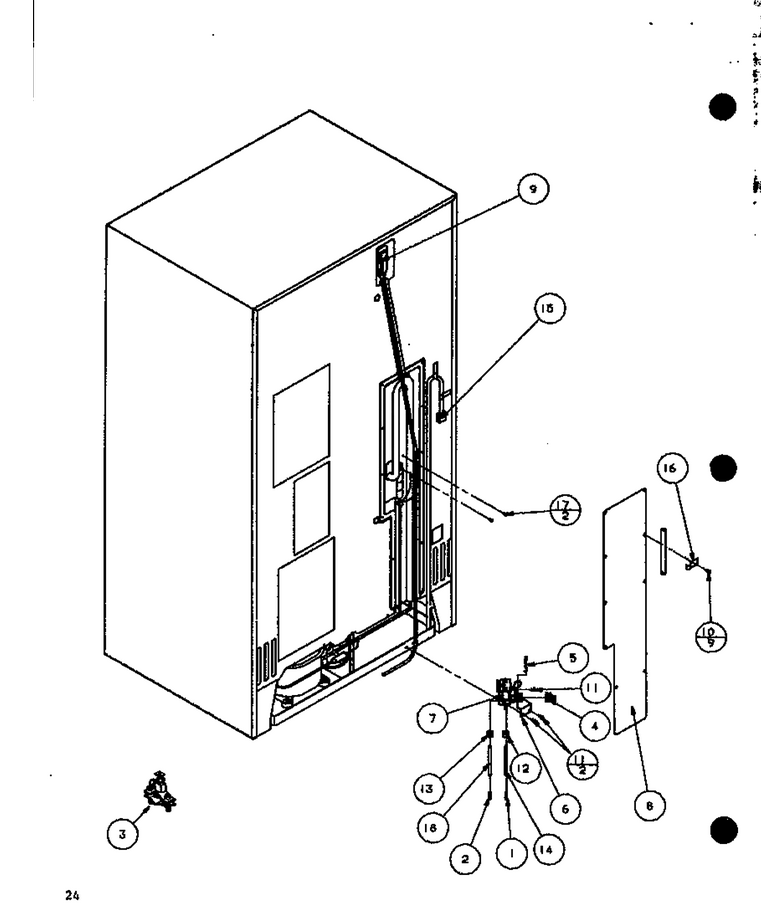

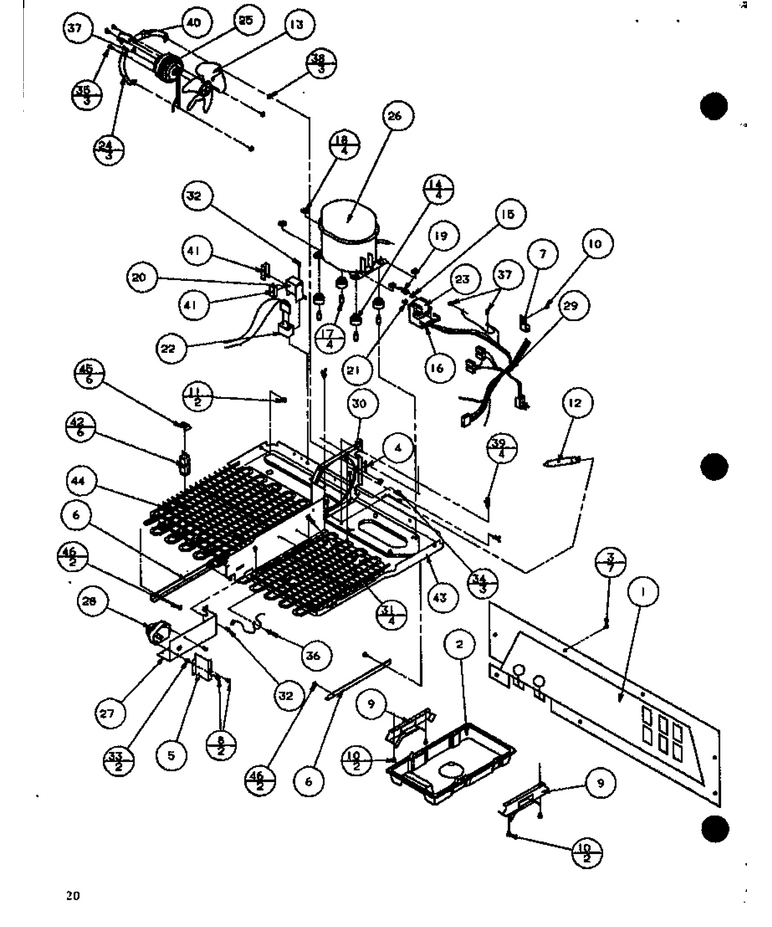

11 - Machine Compartment

...
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw-Sm WPL-M0241118
...
4
Gasket WPL-B5759604
...
5
Bracket, Timer WPL-C8973502
...
6
Support M.c. WPL-D7835501
...
7
Clamp WPL-M0102325
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-D7790501
...
10
Screw WPL-WP489069
...
11
Screw WPL-M0294459
...
12
Drier WPL-WPB2150504
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
15
Spring, Overload WPL-B8358301
...
16
Bale Strap WPL-YB8358601
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-C8906203
...
20
Shield, Capacitor WPL-10266402
...
21
Relay WPL-2154436
...
22
Capacitor WPL-WPW10662129
...
23
Term Cover WPL-C8960801
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-C3667101H
...
27
Bracket, Timer WPL-D7844201
...
28
Timer-Def WPL-R0131577
...
29
Harness M.c. WPL-D7866801
...
30
Shroud, Condenser Fan WPL-D7844104
...
31
Screw WPL-WP90767
...
32
Screw WPL-WP489464
...
33
Screw WPL-M0218118
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-M0223803
...
36
Screw WPL-WP489399
...
37
Screw WPL-M0253916
...
38
Grommet K WPL-M0500107
...
39
Tie, Wire WPL-M0585401
...
40
Tie-Wire WPL-WPW10339879
...
41
Grommet Per In. WPL-A3261703
...
42
Spacer Cond. WPL-B8346301
...
43
Base Pan WPL-D7748602
...
44
Condenser WPL-D7824504
...
45
Speednut WPL-M0293703
...
46
Screw WPL-M0211530

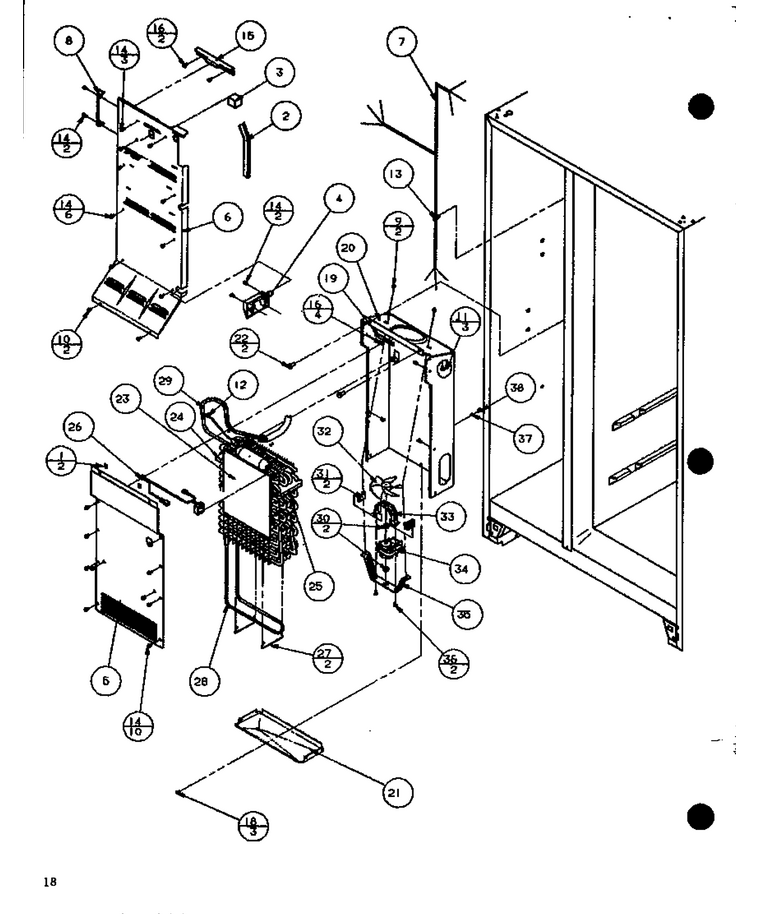

05 - Evap And Air Handling

...
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Cover, M.k. Air WPL-D7786902
...
5
Cover Evaporator WPL-D7789201
...
6
Back, Inner Frz WPL-D7821103
...
7
Harness M.c. WPL-D7841501
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP489464
...
10
Screw WPL-M0226960
...
11
Screw WPL-WP489399
...
12
Tie-Wire WPL-WPW10339879
...
14
Screw (3) WPL-67006425
...
15
Clamp WPL-C8976201
...
16
Screw WPL-WP98165
...
18
Pop Rivet WPL-A4539606
...
19
Gasket, Foam WPL-B5757707
...
20
Evap. Shield WPL-D7850302
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Nut-Well WPL-M0292002
...
23
Gasket, Evap. WPL-B8327901
...
24
Block-Lh Air Coil WPL-B8385501
...
25
Block P M Air Coil WPL-B8385601
...
27
Clip, Evap. Heater WPL-C8983101
...
28
Heater, Defrost WPL-D7824801
...
29
Assy,low Side-Thin Wall Evap WPL-R0170031
...
30
Grommet WPL-WP2264462
...
31
Shim WPL-A1047901
...
32
Fan-Evap WPL-C8795501
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WPC8891605
...
35
Bracket, Motor Shroud WPL-D7767701
...
36
Kit, Screw WPL-R9800670
...
37
Grommet WPL-M0580003
...
38
O- Ring WPL-M0500903

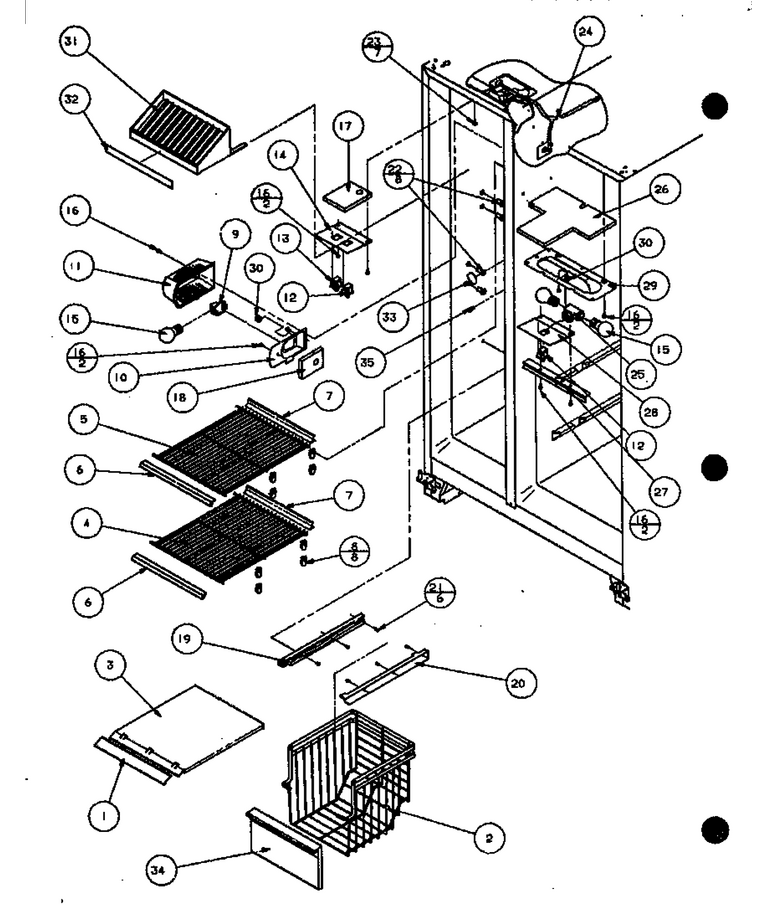

08 - Fz Shelving And Ref Light

...
...
1
Trim WPL-D7616625
...
2
Basket, Frz WPL-D7820802
...
3
Freezer Shelf Pnt WPL-D7781506
...
6
Trim WPL-C8913519
...
7
Trim WPL-C8913609
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-D7714407
...
10
Plate Lt. Socket WPL-D7753501
...
11
Shield, Light WPL-D7786603
...
12
Switch WPL-W11384469
...
13
Switch WPL-C3680306
...
14
Cover Light WPL-D7749001
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
Barrier Frz. WPL-C8976401
...
18
Barrier, Frz Side WPL-C8974501
...
19
Glide, Frezer. L.h. WPL-D7839901
...
20
Glide, Fz, R.h. WPL-D7839902
...
21
Screw, Handle WPL-67006529
...
22
Plug, Frz Shelf Support WPL-C8973701
...
23
Grommet, Screw WPL-M0586201
...
24
Harness WPL-D7759301
...
25
Socket, Dual Lamp WPL-D7808601
...
26
Insulation WPL-C8778301
...
27
Shield, Light WPL-10014716
...
28
Cover, Light Sw WPL-D7297604
...
29
Housing-Ref Light WPL-D7716409
...
30
Clip, Ground WPL-B5733302
...
31
Rack, Juice V WPL-D7839701
...
32
Insert, Juice Rack WPL-C8986105
...
33
Plug WPL-A3069103
...
34
Front,basket WPL-D7820712
...
35
Tie Wire WPL-WPM0322202

06 - Fz Door

...
...
NI
Freezer Door Harness WPL-R0164236
...
5
Screw WPL-WP3400094
...
6
Bushing- D WPL-WP67004977
...
7
Tube WPL-WPB5705307
...
8
Stop, Door (blk) WPL-12636401B
...
9
Kit,dr Closure WPL-R0181181
...
15
Strip, Trim Top WPL-D7826502
...
16
Trim WPL-D7830003
...
17
Trim WPL-D7830302
...
18
Trim WPL-D7830402
...
20
Screw WPL-M0213815
...
21
Screw WPL-W11233072
...
23
Screw WPL-WPM0219730
...
24
Tape, Double Back, Trim Door T WPL-R0195038
...
27
Hinge Assy, Top WPL-D7855702
...
28
Cover, Hinge WPL-D7870702
...
29
Screw WPL-M0202325
...
30
Kit, Screw WPL-R9800670
...
31
Shim, Top Hinge WPL-B8389007
...
32
Connector-6 Pin WPL-B8384101
...
33
Screw WPL-W11214483
...
34
Harness WPL-D7748101
...
35
Kit,btm Hinge Shim WPL-B8386701
...
37
Kit,dr Closure WPL-R0181181
...
38
Hinge Assy WPL-D7757705
...
39
Screw WPL-WPW10068250
...
40
Screw WPL-WP67006715
...
41
Shim, Door Closure WPL-B8387702
...
42
Shim, Door Closure WPL-B8387701
...
43
Screw WPL-WP489399
...
44
Tubing Plastic WPL-A3012530
...
45
Handle WPL-D7826703
...
46
Insert Handle WPL-D7826802
...
47
Top Strip WPL-D7826901
...
48
Cap, Handle WPL-D7828001
...
49
End Cap, Handle Bottom WPL-D7828101
...
50
Spacer, Bottom Trim WPL-D7871202
...
51
Nameplate End Cap WPL-D7853501
...
52
Spacer-Door WPL-D7855601
...
53
Strip, Trim Top WPL-D7826502
...
54
Screw-Sm/hex WPL-12990523
...
55
Screw WPL-M0242918

07 - Fz Door

...
...
1
Seal, Door Dike WPL-C8987101
...
2
Seal, Door Dike WPL-C8987103
...
3
Insul. By The Ft. WPL-B0523562
...
4
Insulation, Per Ft. WPL-B0523583
...
5
Insulation WPL-B5629049
...
6
Insulation WPL-B5629050
...
7
Insulation WPL-B5629048
...
8
Insulation WPL-B5629051
...
9
Retainer, Door Liner WPL-C8982801
...
10
Door Frz W WPL-D7834038WQ
...
11
Shelf, Frz Dr. Half WPL-D7783504
...
13
Shelf- Frz WPL-D7827316
...
14
Foam Slab Door WPL-D7800406
...
15
Foam Slab Door WPL-D7800407
...
16
Gasket W WPL-WP10359709Q
...
17
Liner I & W Frz Door WPL-D7829402
...
18
Retainer, Door Liner WPL-D7828601
...
19
Screw WPL-WPM0219730
...
20
Tube, Protective WPL-C8964201
...
25
Clip, Door Dike WPL-10063102
...
26
Clip Door Dike WPL-C8986802
...
27
Rem Dike I & W Upper WPL-D7837902
...
28
Removable Dike I & W WPL-D7837904

03 - Cabinet Back

...
...
1
Spring WPL-WPA1055105
...
2
Spring K WPL-A1055102
...
3
Saddle Valve WPL-A3034801
...
4
Coupling, Solenoid Valve And H WPL-A3084501
...
5
Clip, Water Valve WPL-10798001
...
6
Bracket WPL-WPD7701602
...
7
Valve-Inlt WPL-WPW10245167
...
8
Cover, O.c.back WPL-10178406
...
9
Clip- Spee WPL-WPM0114003
...
10
Screw WPL-WP90767
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Nut WPL-WP627018
...
13
Nut WPL-8201513
...
14
Tube WPL-WPB5705307
...
15
Power Cord WPL-B0157154
...
16
Clamp WPL-M0103901
...
17
Screw WPL-WP489399
...
18
Tank, Coil Water WPL-D7787801

10 - Ice Bucket And Ice Maker

...
...
1
I.m. Shut Off Assy WPL-C8980402
...
2
Driver WPL-D7849501
...
3
Support,auger Motor WPL-D7749207
...
4
Motor-Auger WPL-D7749302
...
5
Washer WPL-A1061701
...
6
Nut-Helix WPL-B8385101
...
7
Bar, Breaker WPL-C8964101
...
8
Insert, Bucket Front WPL-C8975307
...
9
Cap- Helix WPL-WPD7749401
...
10
Helix WPL-D7749501
...
11
Wheel Lift WPL-D7749601
...
12
Bucket, Ice V WPL-D7749704
...
13
Front, Bucket WPL-D7749802
...
14
Screw (3) WPL-67006425
...
15
Arm,ice Maker Shut Off WPL-D7839301
...
16
Cover Im WPL-D7820401
...
18
Harness WPL-D7824601
...
19
Ice Maker Assy. WPL-D7824706Q
...
20
Nut WPL-M0120501
...
21
Screw WPL-M0202528
...
22
Screw WPL-WP489464
...
23
Cover Auger Motor WPL-D7788802
...
24
Screw WPL-M0253916
...
25
Clip WPL-B5720301
...
26
Clip WPL-WP628379
...
27
Bracket, I/m WPL-B8391802
...
28
Screw WPL-WP98165
...
29
Driver WPL-D7849901
...
30
Glide, Frz. (rt) WPL-67004323
...
31
Screw, Handle WPL-67006529
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
