Amana SBC24FX5 (BOM: P1142295N L)

Model: SBC24FX5 (BOM: P1142295N L)

Save Part Not Listed?
product name

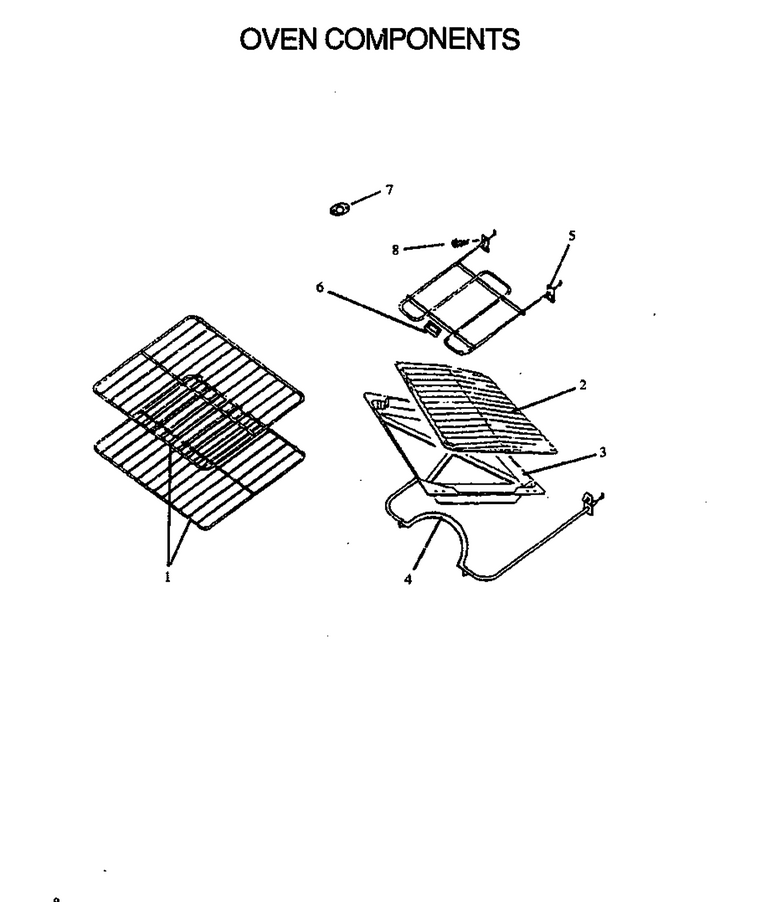

05 - Oven Components

...
...
1
Oven Rack, 24`` WPL-Y0312235
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Bake Eleme WPL-WPY07409802
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357
...
8
Screw WPL-0087709

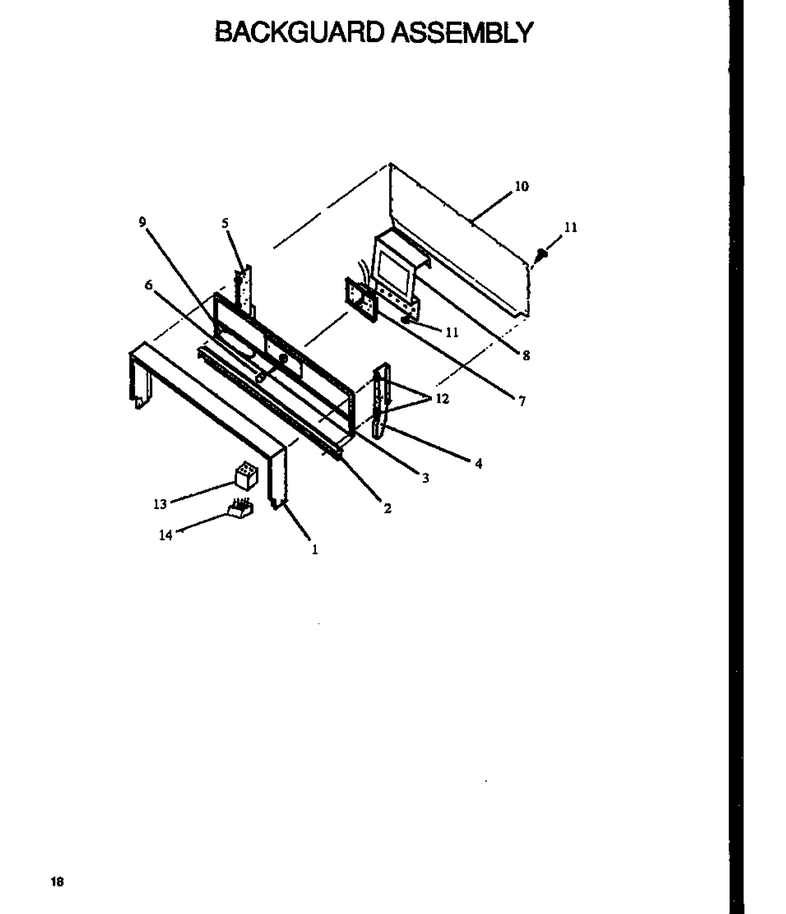

01 - Backguard Assy

...
...
NI
Pin Terminal, Female WPL-Y0067689
...
1
Frame, Backguard 8`` WPL-Y0310469
...
2
Base-Bkgd,24``w/holes WPL-Y02330026B
...
3
Glass, Backguard, 8`` WPL-Y0310504
...
4
Backguard Support-Rh WPL-Y0311038
...
5
Backguard Support-L.h. WPL-Y0311039
...
6
Knob, Clock WPL-Y0055020
...
7
Clock, 240/50 WPL-Y0310464
...
8
Clock Bracket WPL-Y0311034
...
9
Label, Sunray WPL-0310497
...
10
Wire Cover, 8`` WPL-Y0310451
...
11
Screw No.10 X 5/16 WPL-0310234
...
12
Bumper WPL-0310037
...
13
Pin, Connector WPL-M0335315
...
14
Connector WPL-M0335314

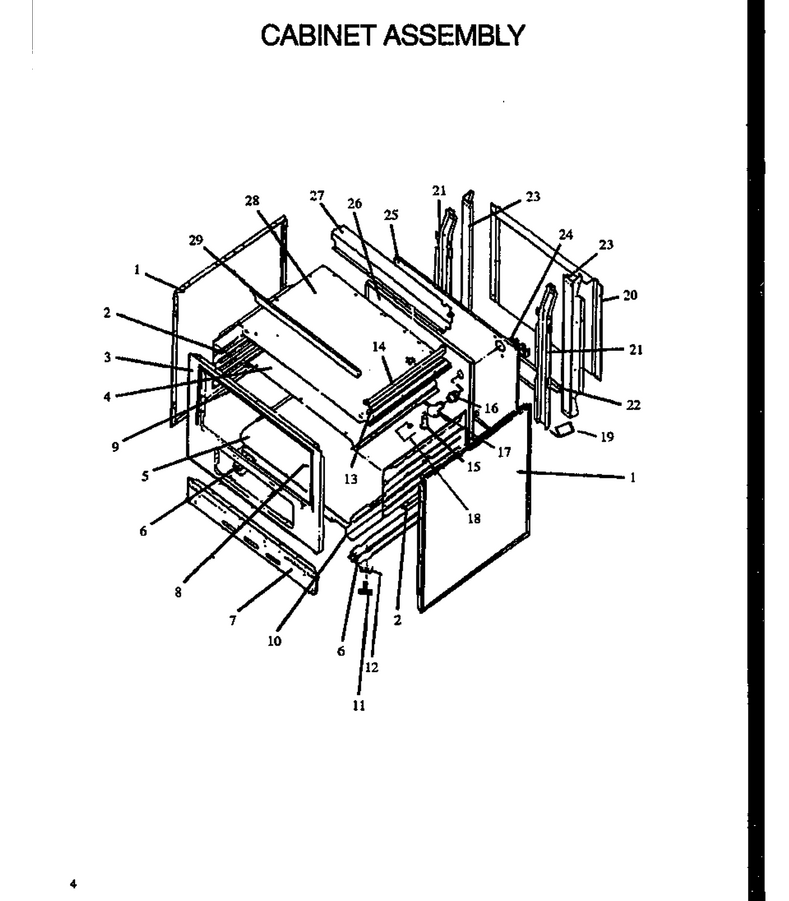

02 - Cabinet Assy

...
...
NI
Insulation, Wrapper WPL-31975801
...
1
Panel,body Side (Al) WPL-313762L
...
2
Liner,oven Side WPL-0311807
...
4
Oven Top Liner, Electric WPL-0088894
...
5
Oven Bottom (24``) (Enam) WPL-310689E
...
6
Rail, Base WPL-0312165
...
7
Panel, Base Toe 24`` WPL-Y0054693
...
8
Seal, Oven-Sides WPL-Y0056090
...
9
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
10
Support WPL-Y0057214
...
11
Leg, Leveling WPL-Y0062362
...
12
Snap-In Tee Nut WPL-Y0088571
...
13
Wire Channel Support WPL-Y0088817
...
14
Channel, Wire Route WPL-88816CG
...
15
Oven Vent WPL-0088761
...
16
Socket, Oven Light WPL-Y0316385
...
17
Bulb, Light(240) WPL-Y0088910
...
18
Cage, Oven Light WPL-Y0088635
...
19
Kit, Anti-Tip WPL-07687600
...
20
Support, Bottom Wire Cover WPL-Y0086753
...
21
Vertical Sup. (J) WPL-0052742
...
22
Wire Cover, Main Back WPL-Y0086751
...
23
Support, Rear, Vertical {j} WPL-0056477
...
24
Block-Term WPL-WP8203546
...
25
Back, Main Electric 24`` WPL-Y06478201
...
26
Liner, Oven Rack WPL-Y06469500E
...
27
Cover, Rear B.b. (24``) WPL-Y06409834
...
28
Burner Box 24`` WPL-86737CG
...
29
Cover Switch WPL-0086934

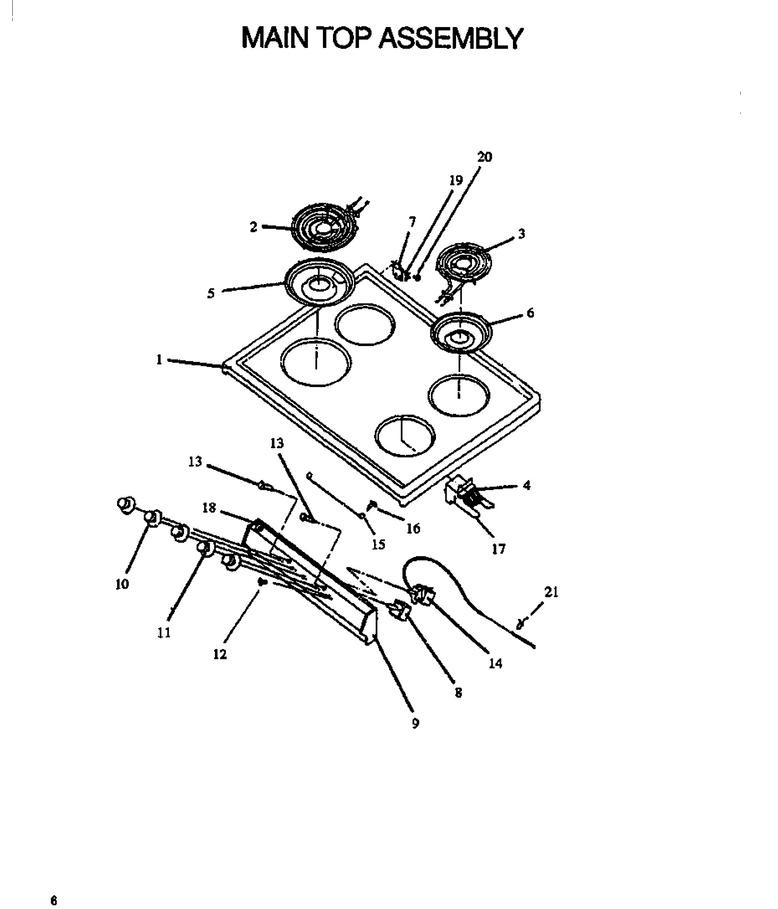

04 - Main Top Assy

...
...
1
Top, 24`` Main Electric (Almond WPL-Y06461009L
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Panel, Manifold (24``) WPL-Y07621927F
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
12
Screw, Infinite, Switch Mtg. WPL-0311874
...
13
Light, Pilot WPL-0088640
...
14
Thermostat WPL-Y0310230
...
15
Support Rod WPL-0087023
...
16
Shoulder Screw WPL-0088779
...
17
Bracket WPL-W10116809
...
18
Switch, Light WPL-0088350
...
19
Nut, Speed, Flat WPL-Y0310032
...
20
Screw No.10x1/2 Blunt WPL-Y0310363
...
21
Clip, Capillary WPL-0088050

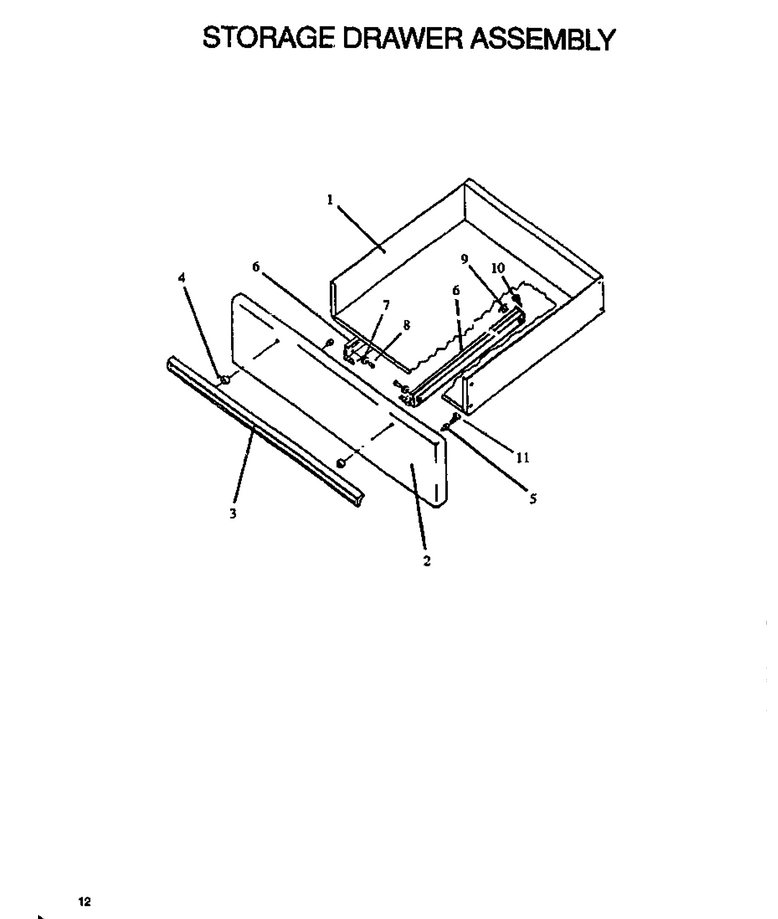

06 - Storage Door Assy

...
...
1
Storage Drawer WPL-0310536
...
2
Panel Storage Drawer (White) 2 WPL-313757W
...
3
Oven Door Handle, 18`` WPL-Y0088812
...
4
Handle Spacer, Plastic (J) WPL-Y0310818
...
5
Bumper-Rubber 1/4`` WPL-Y02068200
...
6
Track, Lower L.h. WPL-0310522
...
9
Glide, Drawer (Wht) WPL-Y07674900
...
10
Screw WPL-WP7101P126-60
...
11
Screw, Door Handle WPL-Y0311884

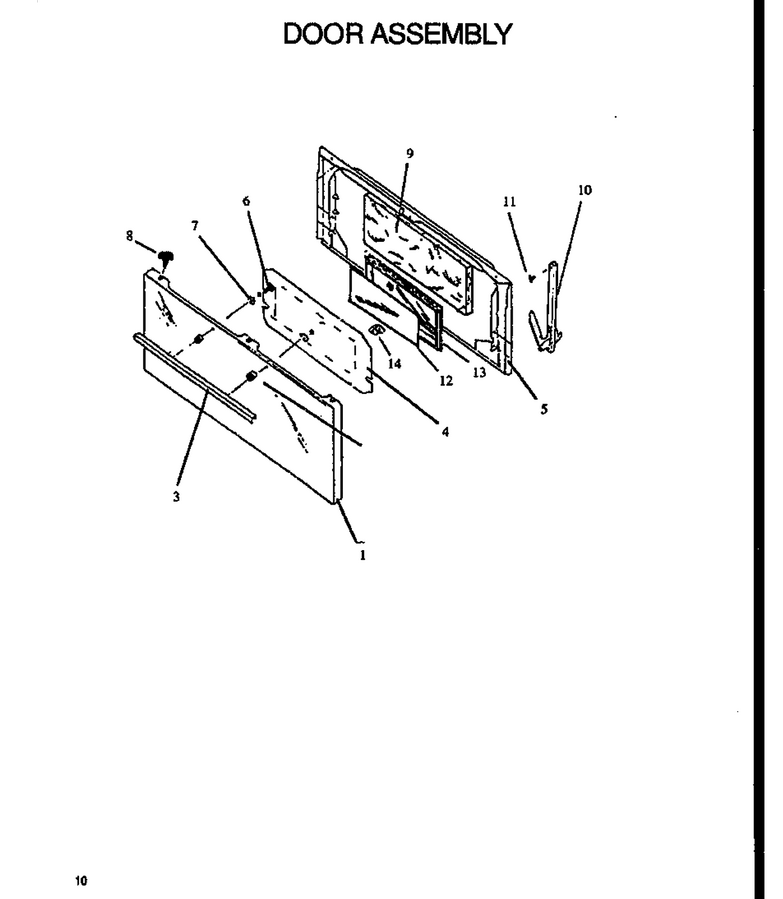

03 - Door Assy

...
...
1
Panel Oven Door WPL-312819W
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Oven Door Handle, 18`` WPL-Y0088812
...
4
Baffle Door Backer WPL-0312824
...
5
Backer, Oven Door WPL-312820E
...
6
Screw, Door Handle WPL-Y0311884
...
8
Screw WPL-WP7101P126-60
...
9
Insulation, Wrapper WPL-31975801
...
10
Hinge, Oven Door WPL-Y07489700
...
11
Screw WPL-WP4159193
...
12
Glass-Window,ov Dr WPL-Y03024402
...
13
Window, Oven Door (2) Pane WPL-Y07729700
...
14
Bracket Window WPL-Y0312823
