Amana SAND-700.A (BOM: SAND-700. A)

Model: SAND-700.A (BOM: SAND-700. A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

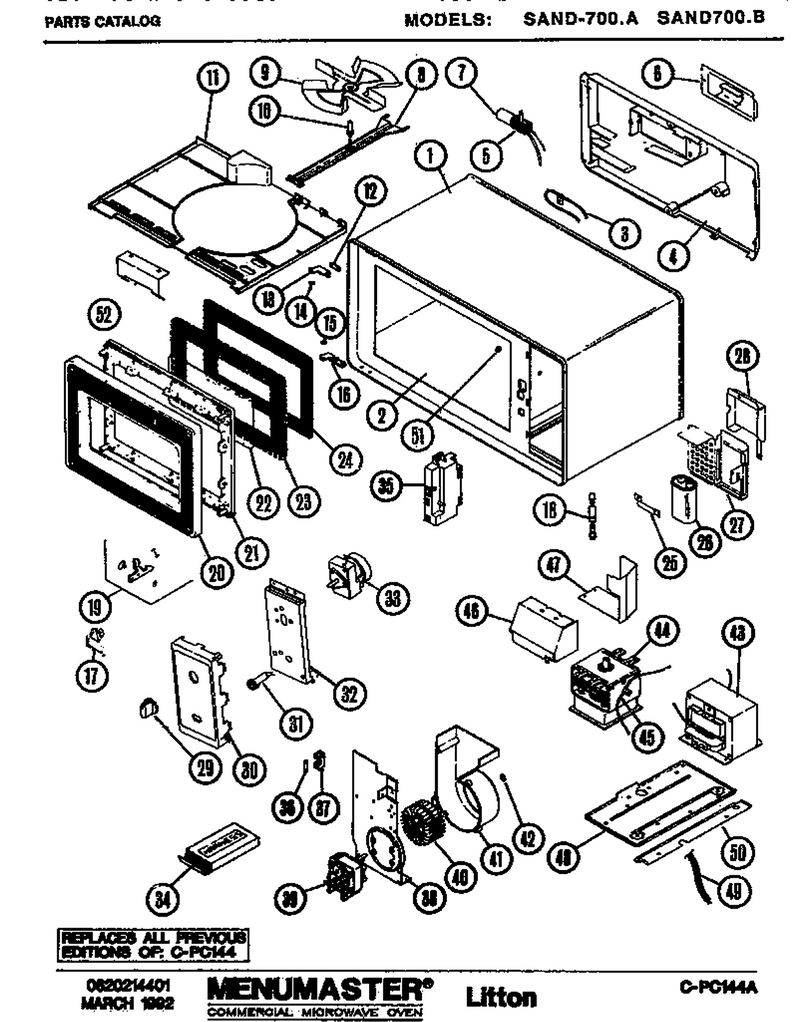

01 - Page 1

...
...
NI
Torx Driver, T-20 (M95d23) WPL-M95D23
...
1
Assy, Cavity M77d180 WPL-4002004601
...
2
Shelf Kit WPL-M50D45
...
3
Sensor, Cavity Kit WPL-M4D131
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP90767
...
7
Light Bulb WPL-44865P01
...
8
Plastic Fastener WPL-5524122001
...
9
Kit-Insert & Blade Stirrer WPL-R0130737
...
10
Ball WPL-38321P01
...
11
Stirrer Cover M45d50 WPL-3010017901
...
12
Plate Nut WPL-45010P01
...
13
Brkt Top WPL-45009P01
...
14
Nylon Flat Washer WPL-40370P01
...
15
Nylon Flat Washer WPL-40370P01
...
16
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
17
Screw WPL-WP8533976
...
18
Kit, Diode WPL-M3D71
...
19
Door Hook Kit WPL-R0163249
...
20
Shadow Box WPL-M51D108
...
21
Door Filler Kit WPL-M55D29
...
22
Outer Window Kit WPL-M51D107
...
23
Door Plate,inner WPL-R0163246
...
24
Window, Inner WPL-10785101
...
25
Strap, Capacitor WPL-10822101
...
26
Capacitor Kit WPL-M10D113
...
27
Capacitor Cover WPL-M20D258
...
28
Screw WPL-WP90767
...
29
Knob, Timer WPL-M6D332
...
30
Inlay, Dec Panel WPL-M7X74
...
31
Lamp-Indicator M9d120 WPL-1341004275
...
32
Mounting Plate M7x65 WPL-3000030001
...
33
Timer Kit WPL-M30D91
...
34
Wiring Harness WPL-M27D499
...
35
Interlock Switch Module WPL-M14D305
...
36
Fuse WPL-WPM0805102
...
37
Ia Screw WPL-M1D329
...
38
Blower Bracket Kit WPL-M20D324
...
39
Nut WPL-WP488130
...
40
Blower Whe WPL-3010008801
...
41
Blower Housing Kit WPL-M65D330
...
42
Retainer WPL-M1D892
...
43
No.10 T X 3/8`` Screw WPL-M1D479
...
44
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
45
Sensor Magnetron Kit WPL-M4D101
...
46
Front Air Duct WPL-3000004301
...
47
Rear Air Duct 1400utc WPL-45766P01
...
48
Access Panel WPL-M53D84
...
49
Nut WPL-WP488130
...
50
Rivet-Pop WPL-A4539638
...
51
Cavity Plug (10) WPL-M1D755
...
52
.20 Dia Push Rivet Polypropyle WPL-5850613001
