Amana SA2075.A02 (BOM: SA2075.A0 2)

Model: SA2075.A02 (BOM: SA2075.A0 2)

Save Part Not Listed?
product name

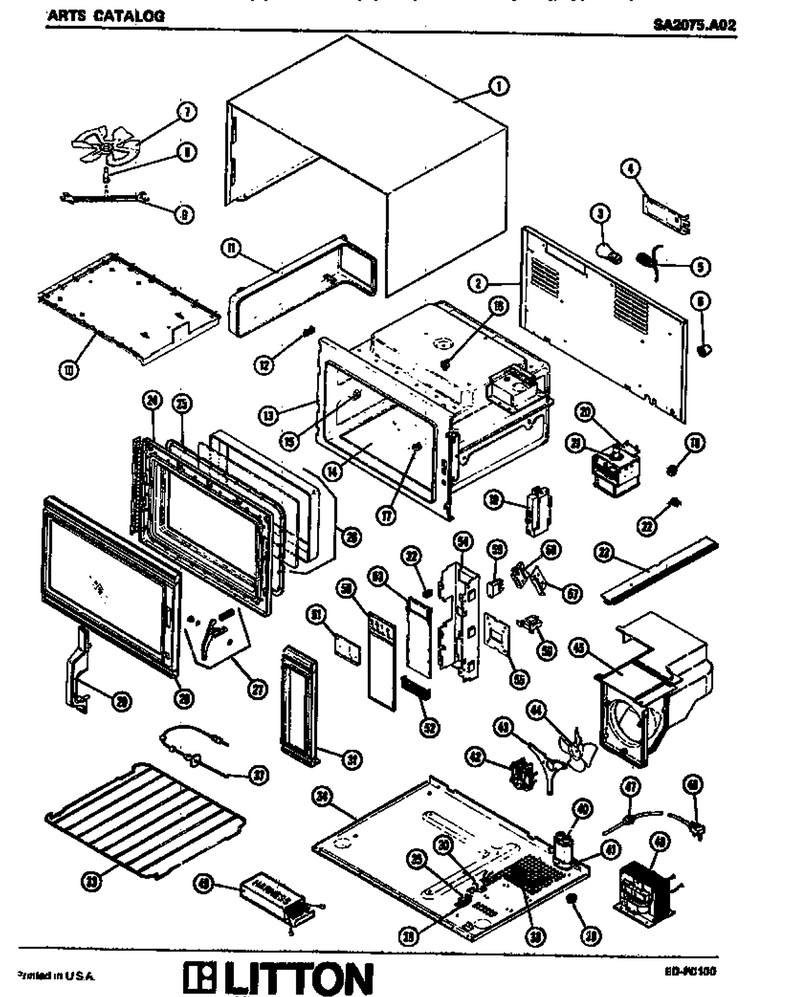

01 - Page 1

...
...
NI
Paint-Blac WPL-R0197056
...
1
Screw WPL-WP90767
...
2
Screw WPL-WP90767
...
3
Lamp, Cavity WPL-M9D54
...
4
Cover Lamp WPL-M7D309
...
5
Screw (25) WPL-M1D356
...
6
Foot, Outer Case WPL-C8960601
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Insert Stirrer Kit WPL-M2D571
...
9
Support-Stir WPL-M20D236
...
10
Poly Button WPL-M1D832
...
11
Screw Plastc (25) WPL-M1D897
...
12
Sensor Magnetron Kit WPL-M4D101
...
13
Cavity Assy WPL-M77D132
...
14
Adhesive WPL-W10841140
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
3/8 Int Tooth Lockwasher WPL-M1D598
...
17
Support Rack WPL-B8371001
...
18
Toroid (Arc Suppressor) WPL-44780P01
...
19
Screw WPL-WPW10001160
...
20
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
21
Gasket-Rf WPL-M2D296
...
22
Screw Thrm WPL-M1D666
...
23
Screw WPL-WP90767
...
24
Inner Door-Brown WPL-M70D127
...
25
Gasket-R.f. WPL-38874P01
...
26
Cap Inner Door Assy Kit WPL-M55D23
...
27
Kit, Latch Hook WPL-M2D739
...
28
Screw Frame WPL-41327P01
...
29
Handle Asy WPL-M11D79
...
30
Screw WPL-WPW10068250
...
31
No.8 Ab X 3/8`` Screw WPL-M1D900
...
32
Speed Clip WPL-41657P01
...
33
Rack (White) Kit WPL-M67D32
...
34
Base WPL-M79D102
...
35
Fuse, 10 Amp WPL-M0805106
...
36
Ia Screw WPL-M1D329
...
37
Probe-Temp WPL-45584P01
...
38
Nut WPL-WP488130
...
39
Foot WPL-M2D179
...
40
Capacitor-Doubler WPL-10366913
...
41
Bracket WPL-10825501
...
42
Nut K WPL-M0282005
...
43
Screw (25) WPL-M1D903
...
44
Fan Blade WPL-M35D40
...
45
Screw Plastc (25) WPL-M1D897
...
46
Power Cord WPL-M26D32
...
47
Bush, Strain Relf (10) WPL-M2D586
...
48
H.v. Xfmr WPL-M60D134
...
49
Wire Harness WPL-M27D361
...
50
Mem Tch Pnl Sa2075 WPL-M7D856
...
51
Display Window WPL-M2D684
...
52
Not Available WPL-M8D253
...
53
Elect Crkt Bd WPL-M32R33
...
54
Cont Pnl Hsg WPL-M7D703
...
55
Screw WPL-WP90767
...
56
Screw WPL-WP90767
...
57
Screw WPL-WP90767
...
58
Screw (25) WPL-M1D590
...
59
Relay WPL-38806P01
