product name

Amana SA1475.002 (BOM: SA1475.00 2)

Model: SA1475.002 (BOM: SA1475.00 2)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

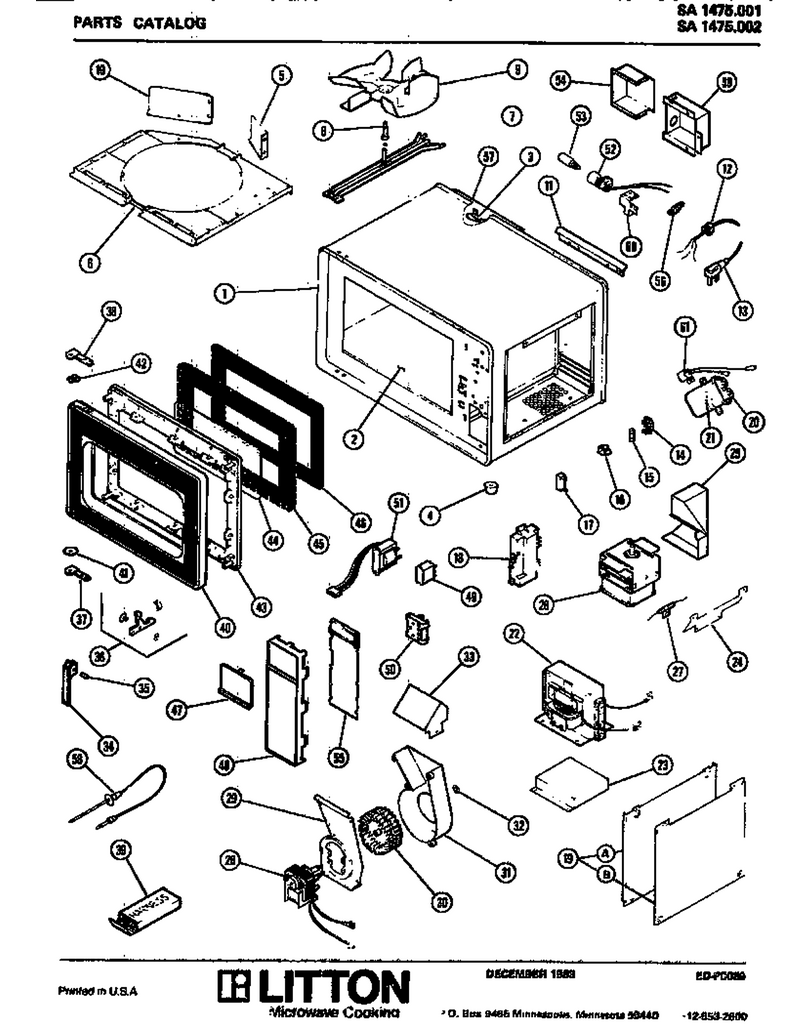

01 - Page 1

...
...
NI
Gray T/u Paint WPL-M13D38
...
1
Bushing WPL-M2D578
...
2
Shelf W/sealant Kit WPL-M50D39
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Molded Foot(4per Pkg.) WPL-M2D547
...
5
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
6
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
7
Plastic Fastener WPL-5524122001
...
8
Insert Stirrer Kit WPL-M2D571
...
9
Blade, Stirrer WPL-10826002Q
...
10
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
11
Channel, Wire WPL-10826901
...
12
Bush, Strain Relf (10) WPL-M2D586
...
13
No.8-32 Hex Nut Jw (25) WPL-M1D84
...
14
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
15
Fusex WPL-44163P01
...
16
Cable Clip WPL-M2D580
...
17
Lock Washer WPL-M0272803
...
18
Screw WPL-WPW10001160
...
19
No.8 Ab X 1/2`` Screw WPL-M1D886
...
20
Capacitor 1.60mf Kit WPL-M10D88
...
21
Screw WPL-WP90767
...
22
Transformer WPL-M60D108
...
23
Support, Transformer Mtg. WPL-M20D212
...
24
Screw WPL-WP90767
...
25
Screw WPL-WP90767
...
26
Screw-Frame Mtg (25) WPL-M1D585
...
27
Sensor Magnetron Kit WPL-M4D101
...
28
Blower Motor WPL-M12D80
...
29
Screw WPL-WP90767
...
30
Wheel Blower M35d37 WPL-45146P01
...
31
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
32
Retainer WPL-M1D892
...
33
Blower Hsg Duct WPL-M65D264
...
34
Inlay Handlex WPL-M7D565
...
35
Groove Pin WPL-M2D577
...
36
Door Hook Kit WPL-M2D625
...
37
Bracket, Hinge Upper WPL-M8D249
...
38
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
39
Harness Package WPL-M27D323
...
40
Outer Door Asy Kit WPL-M70D90
...
41
Nylon Flat Washer WPL-40370P01
...
42
No.10 Wave Washer WPL-M2D583
...
43
Door Filler Kit WPL-M55D18
...
44
Outer Window Assy. Kit WPL-M51D53
...
45
Inner Door Kit WPL-M70D83
...
46
Window, Inner Door WPL-10785001
...
47
Display Window WPL-M2D631
...
48
Touch Pnl Assy Kit WPL-M7D642
...
49
Nut WPL-WP488130
...
50
Screw (25) WPL-M1D590
...
51
Transformer L.v. Kit WPL-M60D109
...
52
Screw WPL-WP90767
...
53
Light Bulb WPL-59002071
...
54
Screw WPL-WP90767
...
55
No.6 Thread Forming Screw WPL-M1D627
...
56
3/8 Int Tooth Lockwasher WPL-M1D598
...
57
Exhaust Baffle WPL-M65D269
...
58
Probe-Temp WPL-45584P01
...
59
Screw WPL-WP90767
...
60
Screw WPL-WP90767
...
61
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
