Amana SA1475.000 (BOM: SA1475.00 0)

Model: SA1475.000 (BOM: SA1475.00 0)

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Crow-Foot Driver WPL-M95D21
...
1
Bushing WPL-M2D578
...
2
Adhesive WPL-W10841140
...
3
Fuse- Ther WPL-59001951
...
4
Molded Foot(4per Pkg.) WPL-M2D233
...
5
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
6
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
7
Plastic Fastener WPL-5524122001
...
8
Insert Stirrer Kit WPL-M2D571
...
9
Blade, Stirrer WPL-10826002Q
...
10
Deflector WPL-40365P01
...
11
Channel, Wire WPL-10826901
...
12
Bush, Strain Relf (10) WPL-M2D586
...
13
Ia Screw8-32 (25) WPL-M1D368
...
14
Ia Screw WPL-M1D329
...
15
Fusex WPL-44163P01
...
16
Cable Clip WPL-M2D580
...
17
Kit, Diode WPL-M3D71
...
18
Switch, Interlock WPL-M14D253
...
19
Pnl Access Side WPL-M53D49
...
20
Capacitor 1.60mf Kit WPL-M10D89
...
21
Screw WPL-WP90767
...
22
Transformer WPL-M60D108
...
23
Bolt Xfmer (10) WPL-M1D889
...
24
Screw WPL-WP90767
...
25
Screw WPL-WP90767
...
26
Gasket-Rf WPL-M2D296
...
27
Screw WPL-WPW10001160
...
28
Screw WPL-WP90767
...
29
Wheel Blower M35d37 WPL-45146P01
...
30
Blwr Hsg M65d293 WPL-42553P01
...
31
Retainer WPL-M1D892
...
32
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
33
Inlay Handlex WPL-M7D565
...
34
Groove Pin WPL-M2D577
...
35
Door Hook Kit WPL-M2D582
...
36
Bracket, Hinge Upper WPL-M8D249
...
37
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
38
H.v. Lead Kit WPL-M5D350
...
39
Outer Door Asy Kit WPL-M70D71
...
40
Nylon Flat Washer WPL-40370P01
...
41
No.10 Wave Washer WPL-M2D583
...
42
Door Filler WPL-M55D16
...
43
No.8 Ab X 1/2`` Screw WPL-M1D886
...
44
Display Window WPL-M2D592
...
45
Touch Panel Assembly WPL-M7D586
...
46
Screw WPL-M0202325
...
47
Int`l Lst Iv WPL-4070001101
...
48
Not Available WPL-M2D262
...
49
Screw WPL-WP90767
...
50
Light Bulb WPL-59002071
...
51
Screw WPL-WP90767
...
52
Elect Crkt Bd WPL-M32R33
...
53
3/8 Int Tooth Lockwasher WPL-M1D598
...
54
Rivet-Pop WPL-59002054
...
55
Probe-Temp WPL-45584P01
...
56
Screw WPL-WP90767
...
57
Screw WPL-WP90767
...
58
Line Filter Kit WPL-M10D90

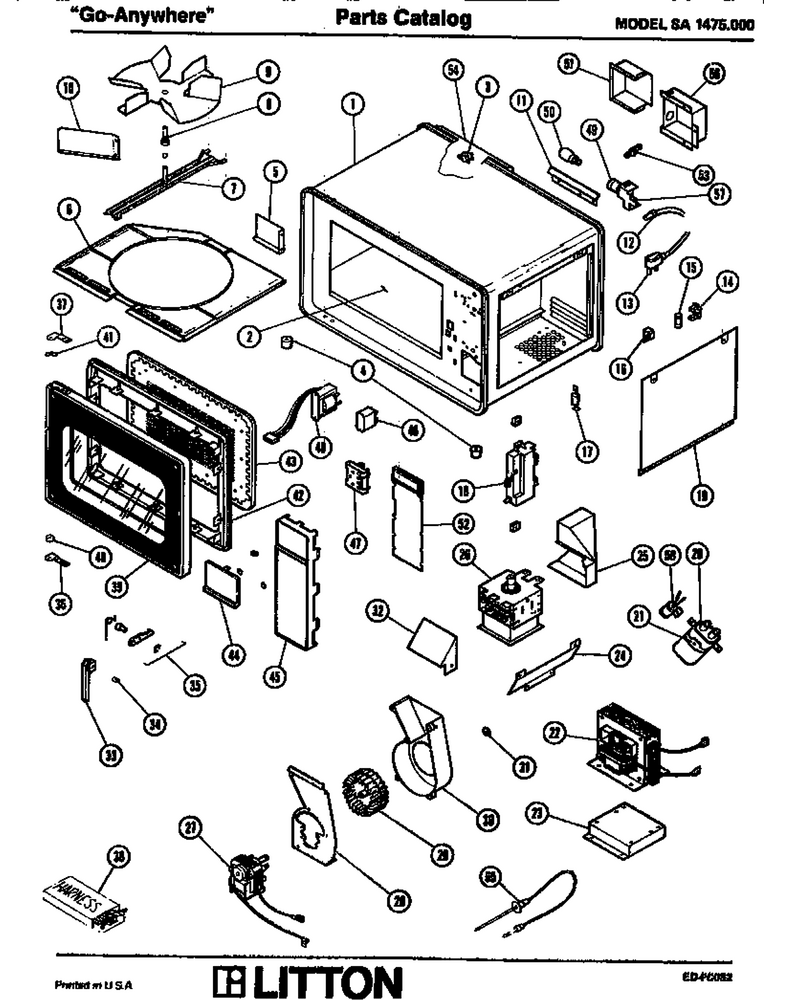

Schematic Image Zoomed
