Amana SA1435.002 (BOM: SA1435.00 2)

Model: SA1435.002 (BOM: SA1435.00 2)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

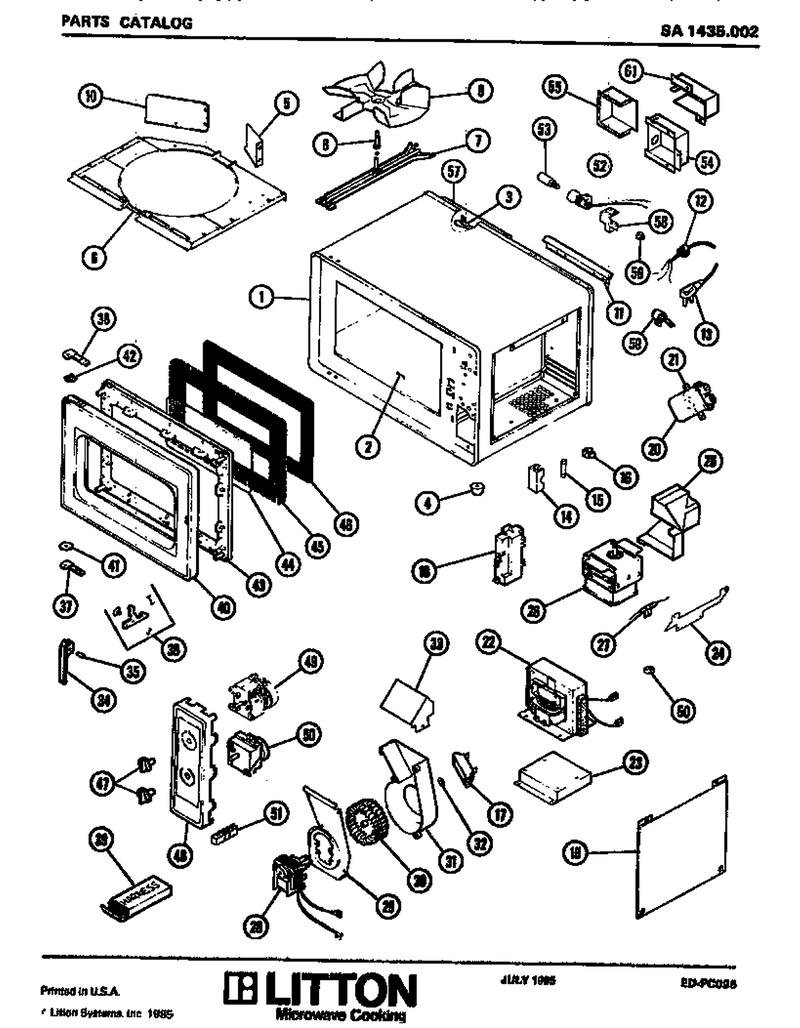

01 - Page 1

...
...
NI
Gray T/u Paint WPL-M13D38
...
1
Bushing WPL-A3293502
...
2
Shelf W/sealant Kit WPL-M50D39
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
.156 Dia Pop Rivet Alum (25) WPL-M1D891
...
5
Deflector WPL-M65D265
...
6
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
7
Plastic Fastener WPL-5524122001
...
8
Insert Stirrer Kit WPL-M2D571
...
9
Blade, Stirrer WPL-10826002Q
...
10
Deflector WPL-40365P01
...
11
Channel, Wire WPL-10826901
...
12
Washer (25) WPL-M1D586
...
13
No.8 Spring Lockwasher (25) WPL-M1D57
...
14
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
15
Fuse, 10 Amp WPL-M0805106
...
16
Cable Clip WPL-M2D580
...
17
Hv Rect 12kv 750max WPL-1330000301
...
18
U-Clip WPL-M2D575
...
19
Access Pnl WPL-M53D51
...
20
Capacitor-Doubler WPL-10366913
...
21
Bracket WPL-10825501
...
22
No.10 T X 3/8`` Screw WPL-M1D479
...
23
No.10 T X 3/8`` Screw WPL-M1D479
...
24
Support-Mag WPL-M8D247
...
25
Duct Cavity WPL-M65D301
...
26
Barrier- Foil Tape WPL-92011P01
...
27
Sensor Magnetron Kit WPL-M4D101
...
28
Screw WPL-WPW10001160
...
29
Blower Bracket Kit WPL-M20D210
...
30
Wheel Blower M35d37 WPL-45146P01
...
31
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
32
Retainer WPL-M1D892
...
33
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
34
Inlay Handlex WPL-M7D565
...
35
Groove Pin WPL-M2D577
...
36
Door Hook Kit WPL-M2D625
...
37
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
38
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
39
H.v. Lead Kit WPL-M5D350
...
40
Inner Door-Brown WPL-M70D127
...
41
Nylon Flat Washer WPL-40370P01
...
42
No.10 Wave Washer WPL-M2D583
...
43
Door Filler Kit WPL-M55D18
...
44
Outer Window Assy. Kit WPL-M51D53
...
45
No.8 Ab X 3/8`` Screw WPL-M1D906
...
46
Window, Inner Door WPL-10785001
...
47
Knob WPL-M6D307
...
48
Not Available WPL-M7D811
...
49
Screw Thrm WPL-M1D666
...
50
Pct Timerx WPL-30001P02
...
51
Nut WPL-WP488130
...
52
Socket, Lamp WPL-2042100201
...
53
Light Bulb WPL-59002071
...
54
Screw WPL-WP90767
...
55
Screw WPL-WP90767
...
56
Cavity Plug (10) WPL-M1D755
...
57
Exhaust Baffle WPL-M65D269
...
58
Screw WPL-WP90767
...
59
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
60
Toroid (Arc Suppressor) WPL-44780P01
...
61
Cover-Rear Vent WPL-10830201
