Amana RTP306UL (BOM: P1131404N L)

Model: RTP306UL (BOM: P1131404N L)

Save Part Not Listed?
product name

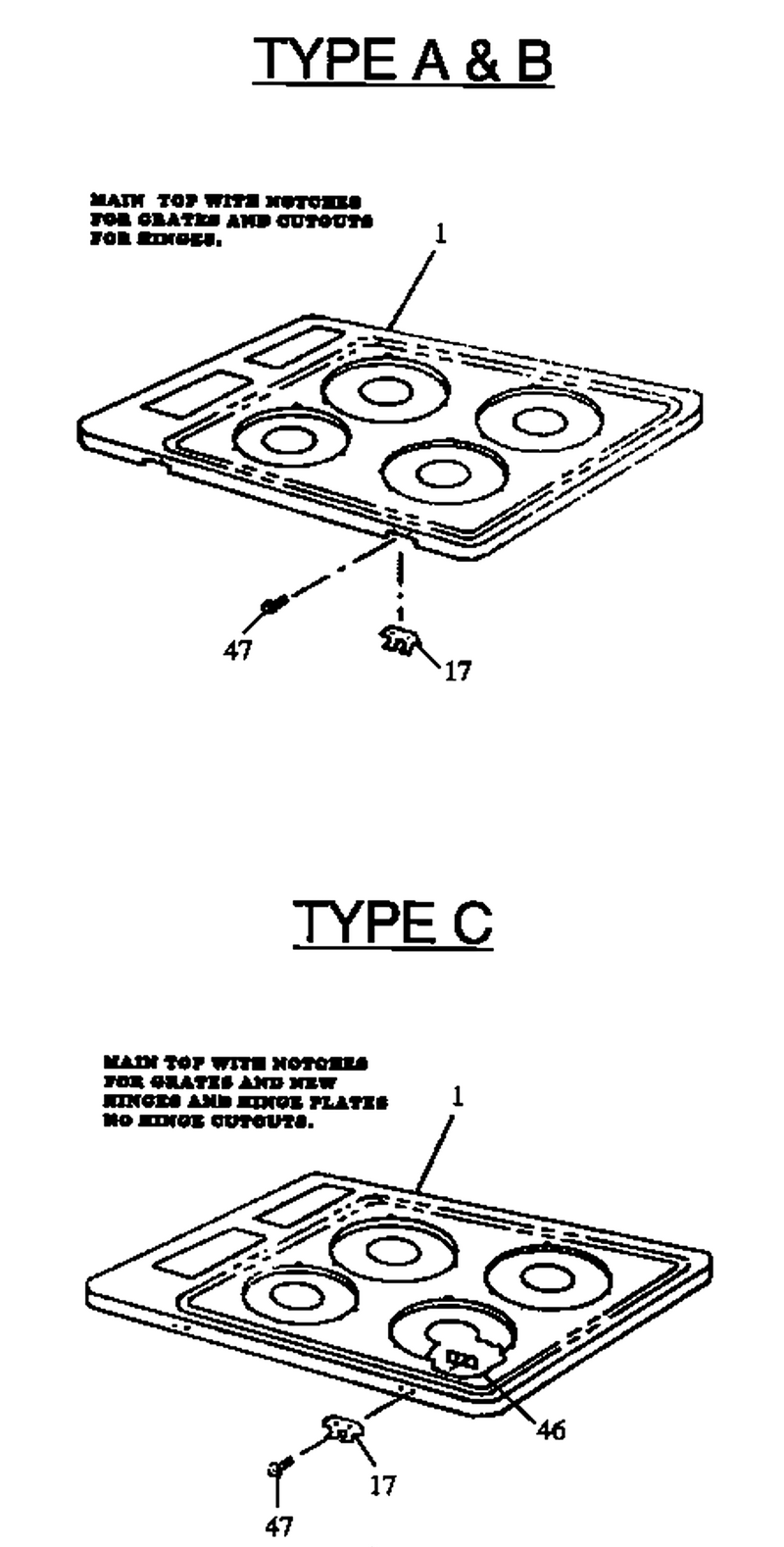

03 - Main Top

...
...
1
Kit, Main Top, Snow White WPL-087782F

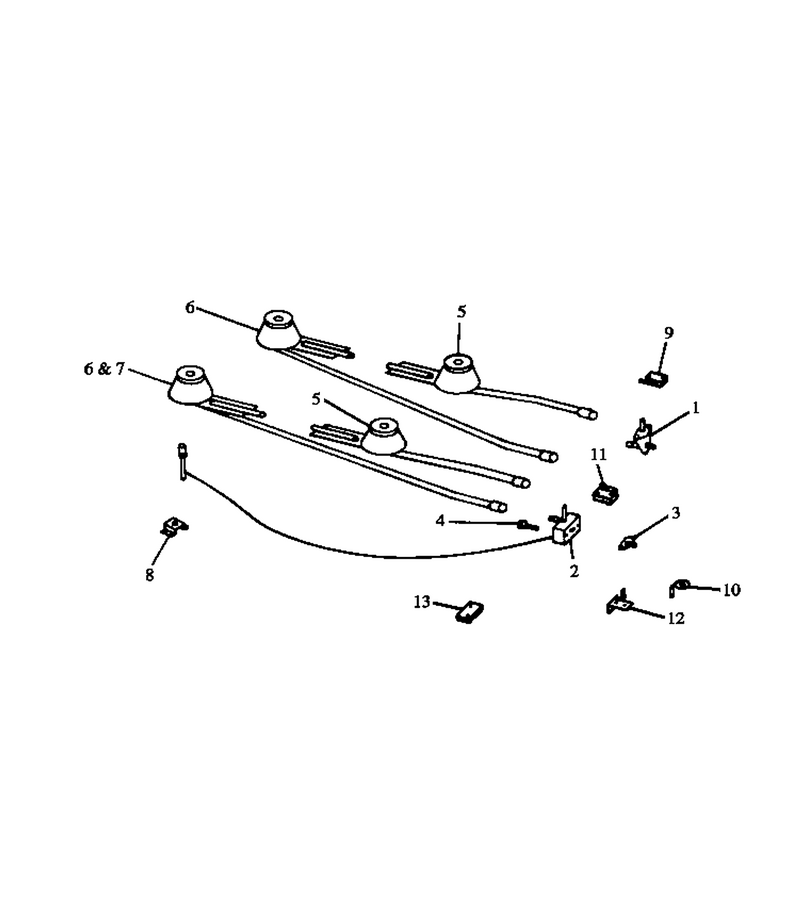

01 - Burner

...
...
1
Valve, Top Burner WPL-0308907
...
5
Burner Assy, R.f. & R.r. WPL-0073127
...
6
Assy, Burner Lf-Lr WPL-Y0308532
...
9
Switch, Top Brnr Actuator WPL-Y0067335

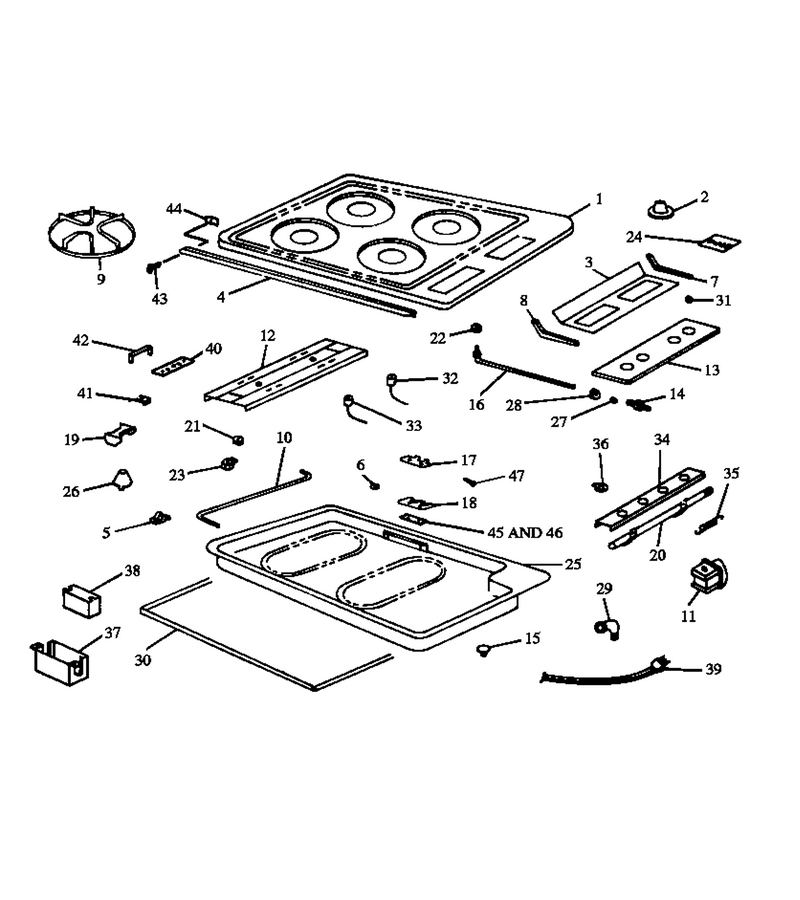

02 - Main Body

...
...
NI
Screw WPL-Y0071911
...
2
Knob, Top Burner WPL-Y0069657
...
3
Control Panel WPL-0069967
...
4
Handle, Main Top WPL-0073116
...
5
Clip, Support Rod WPL-0073104
...
6
Flat Washer WPL-Y0073119
...
7
End Cap, Control Panel WPL-0073108
...
8
End Cap, Control Panel WPL-0073109
...
9
Grate, Top Burner WPL-305814B
...
10
Support Rod WPL-0073132
...
11
Pressure Regulator WPL-Y0069636
...
12
Support, Burner WPL-308589CG
...
13
Glass, Control Panel WPL-Y0069650
...
15
Rubber Bumper WPL-0073120
...
17
Sub 64588 Hinge Wing WPL-0073130
...
18
Higne, Fixed-Main Top, Type C WPL-0064589
...
20
Manifold WPL-Y0303085
...
21
Nut, Hex WPL-0077079
...
24
Nameplate WPL-0073111
...
25
Burner Box WPL-69639CG
...
29
Elbow WPL-0073084
...
30
Shield, Bottom WPL-Y0077031
...
31
Nut WPL-0072658
...
32
Electrode (Rear) WPL-4157608
...
33
Electrode (Rear) WPL-4157608
...
34
Actuator WPL-Y0069653
...
35
Spring WPL-Y0070919
...
36
Cam, Spark Ign, Rtp 306, 307 WPL-Y0069666
...
37
Box, Electrical Parts WPL-0062734
...
38
Module, Spark WPL-1430322
...
39
Cord, Power Supply WPL-Y0316704
...
40
Top Burner Mtg Bracket WPL-Y0069665
...
41
Wire Clamp, Insulated WPL-Y0074685
...
42
Grounding Bracket WPL-Y0062755
...
43
Screw 6-32x1/2``ph Pn Hd WPL-Y0078419
...
44
Spee Nut Mount Brack To Frame WPL-0097909
...
45
Nut WPL-M0282009
...
46
Hinge Plate WPL-Y0064587
...
47
Screw 6-32x1/2``ph Pn Hd WPL-Y0078419
