Amana RTP302UL (BOM: P1131402N L)

Model: RTP302UL (BOM: P1131402N L)

Save Part Not Listed?
product name

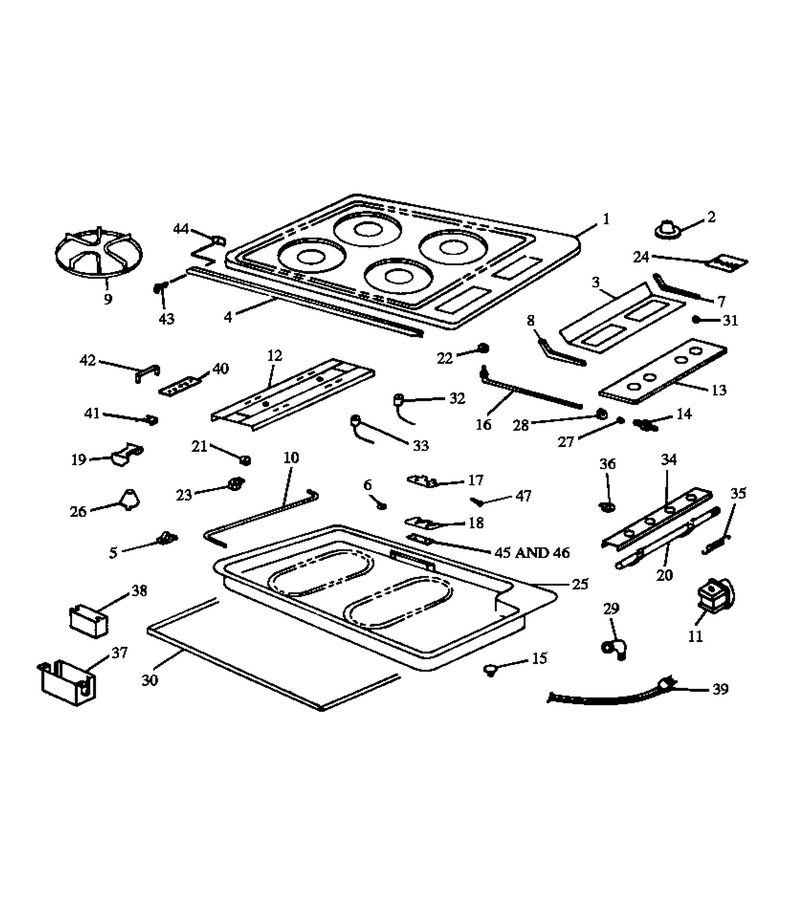

02 - Main Body

...
...
NI
Screw WPL-Y0071911
...
2
Knob, Top Burner WPL-Y0073103
...
6
Flat Washer WPL-Y0073119
...
9
Grate, Top Burner WPL-305814B
...
11
Pressure Regulator WPL-Y0069636
...
12
Burner Support WPL-Y0073133
...
13
Control Panel WPL-0069971
...
14
Filter Assembly WPL-Y0076499
...
16
Sub 312896, Kit Pilot Tube WPL-0076159
...
17
Hinge Wing, Type C WPL-0064588
...
18
Higne, Fixed-Main Top, Type C WPL-0064589
...
19
Pilot Shield WPL-0073122
...
20
Manifold WPL-Y0073123
...
22
Nut WPL-WP488130
...
24
Nameplate WPL-0073111
...
25
Burner Box WPL-69639CG
...
26
Top Pilot Lighter Cup WPL-Y0020069
...
27
1/8`` Sleeve WPL-Y0096789
...
28
1/8`` Compression Nut WPL-Y0097930
...
29
Elbow WPL-0073084
...
30
Shield, Bottom WPL-Y0077031
...
45
Nut WPL-M0282009
...
46
Hinge Plate WPL-Y0064587
...
47
Screw WPL-0071798

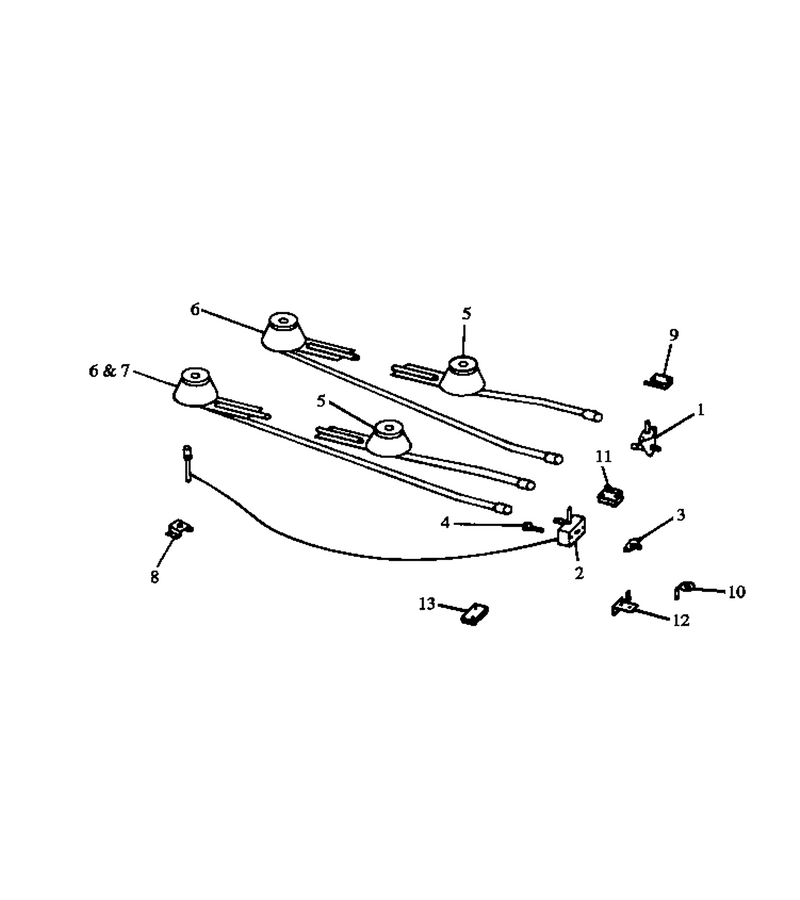

01 - Burner

...
...
1
Valve, Top Burner WPL-0308907
...
5
Burner Assy, R.f. & R.r. WPL-0073127
...
6
Assy, Burner Lf-Lr WPL-Y0308532

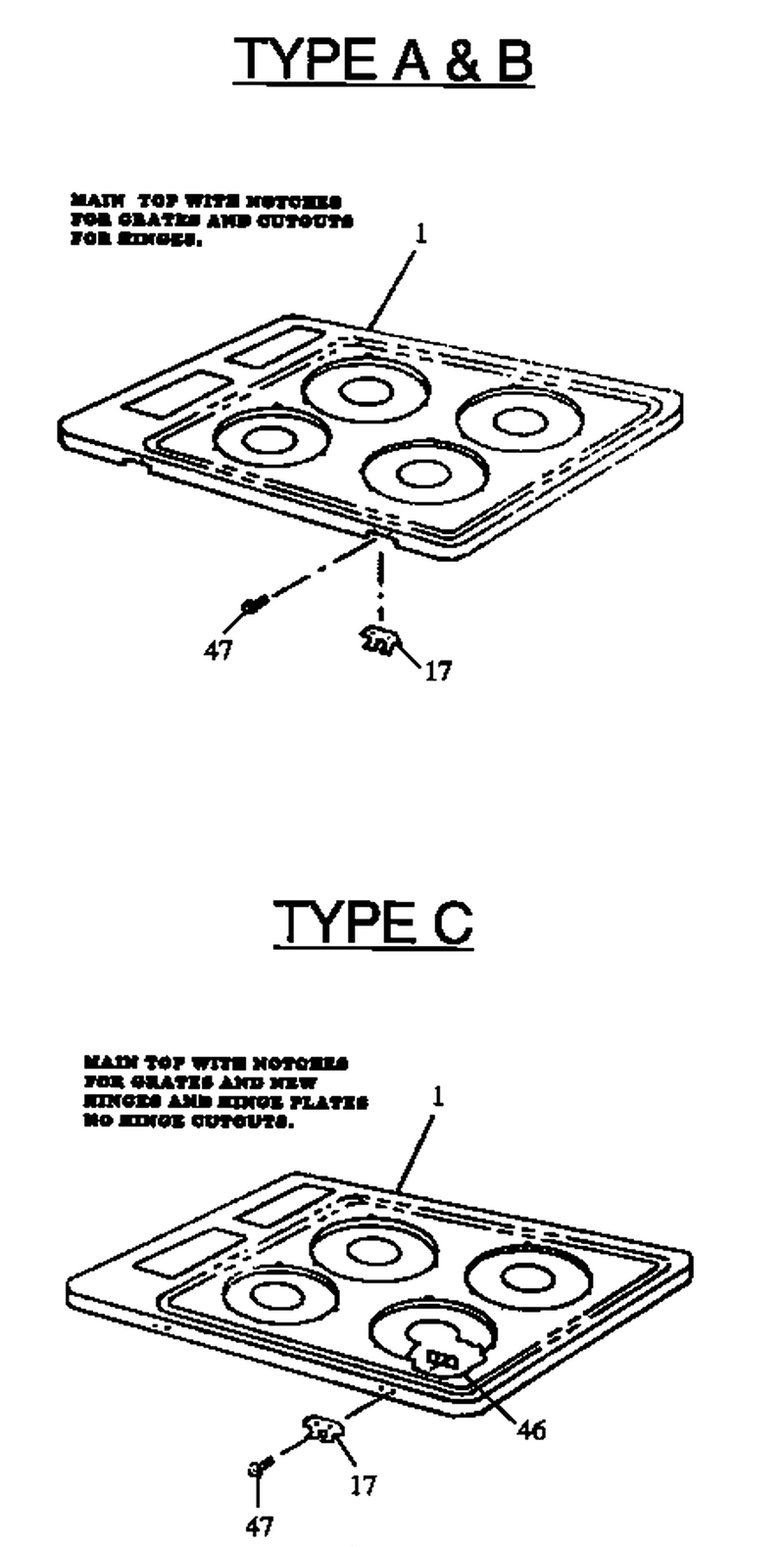

03 - Main Top

...
...
1
Main Top, Dark Copper WPL-Y064586C
