Amana RTP302

Model: RTP302

Save Part Not Listed?
product name

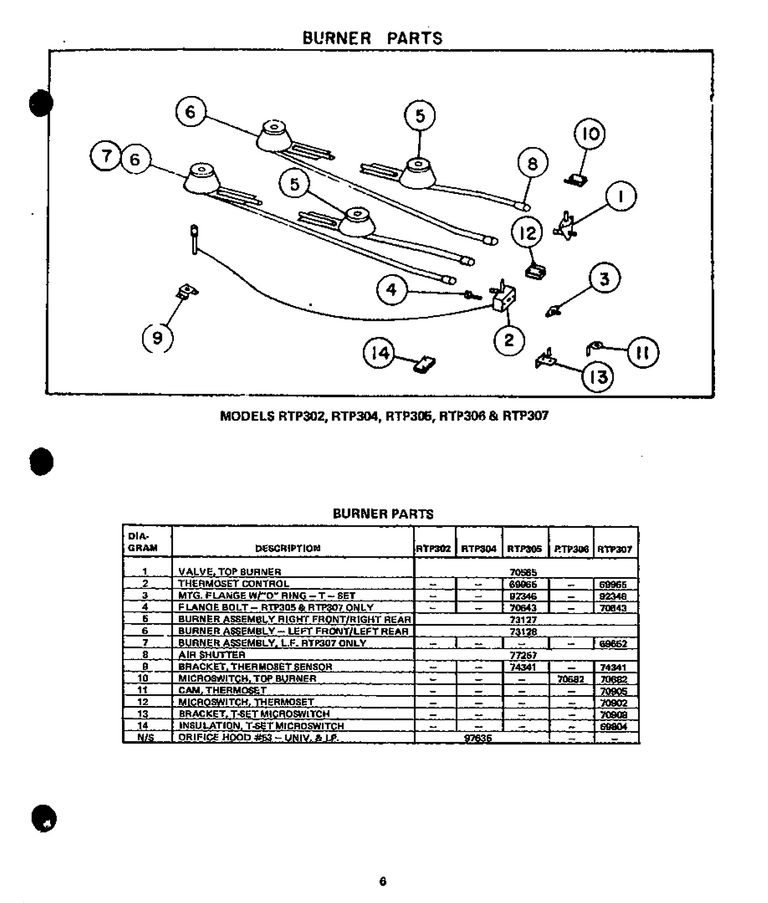

01 - Burner Parts

...
...
NI
Hood Orif Nbr 53 WPL-0097635
...
1
Valve, Top Burner WPL-70565
...
5
Insulation WPL-73127
...
6
Shield WPL-73128
...
8
Air Shutter WPL-77257

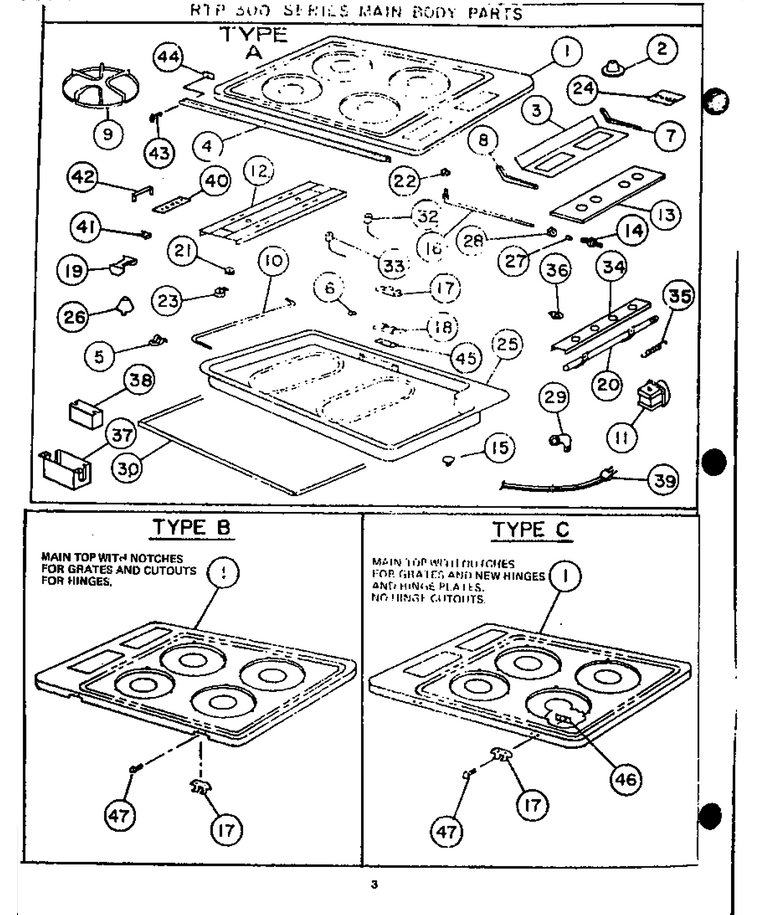

02 - Page 1

...
...
NI
Hex Nut, End Cap WPL-72658
...
1
Main Top Kit WPL-98894D
...
2
Insulation WPL-73103
...
6
Washer WPL-73119
...
9
Grate - After Serial Number 40 WPL-Y65514
...
11
Pressure Regulator - Univ. Gas WPL-73928
...
12
Vent WPL-73133
...
13
Glass, Control Panel WPL-69971
...
14
Valve, Top Pilot W/ Filter WPL-76499
...
16
Top Pilot W/tubing WPL-76159
...
17
Sub 42463 WPL-73130
...
18
Shield WPL-73129
...
19
Clock WPL-73122
...
20
Control Panel WPL-73123
...
21
Filter WPL-77079
...
22
Nut WPL-WP488130
...
24
Shield WPL-73111
...
25
Thermostat WPL-73126
...
26
Lighter Cup Cone WPL-20069
...
27
1/8`` Sleeve WPL-Y0096789
...
28
1/8`` Compression Nut WPL-Y0097930
...
29
Glass Door WPL-73084
...
30
Fastener WPL-77031
...
45
Plate, Hinge Mtg. WPL-30994
...
46
Hinge Plate - Main Top, Type C WPL-64587
...
47
Screw, Tap Type No. 6 X 1/4``, WPL-Y71798
