Amana RTG650UD (BOM: P1131487N D)

Model: RTG650UD (BOM: P1131487N D)

Save Part Not Listed?
product name

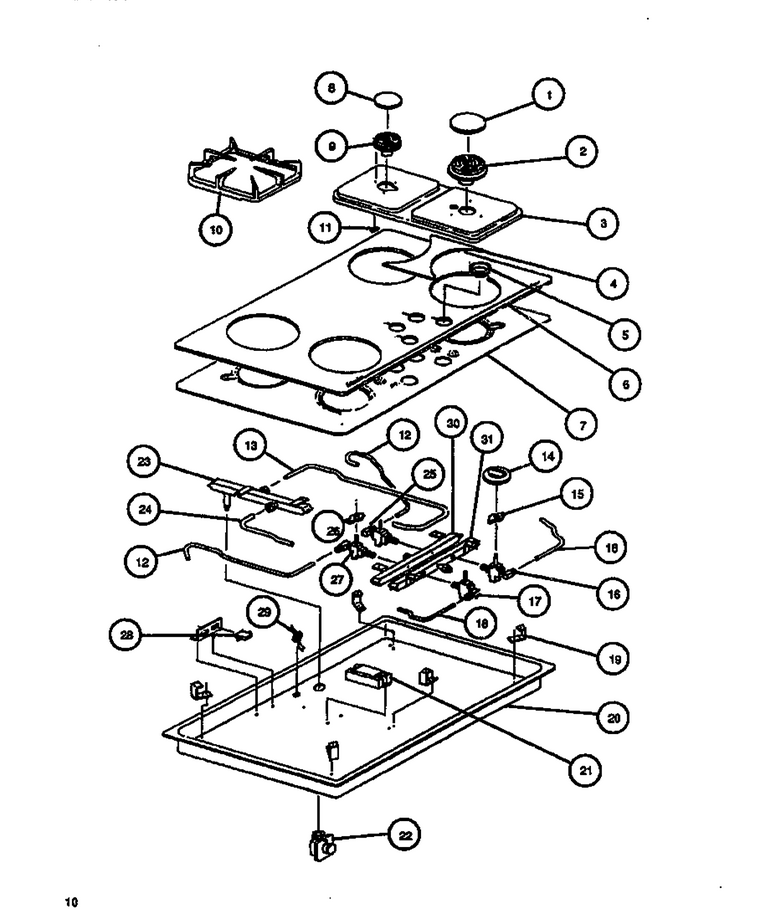

01 - Page 4

...
...
NI
Screw 1/4-20-4`` 590 595 WPL-Y0041836
...
1
Cap, Burner (Large) WPL-314638B
...
2
Burner Body Assy Large WPL-Y0304908
...
3
Burner Bowl Black WPL-303751B
...
4
Insulation Glass WPL-0304841
...
5
Nylon Drip Guard Black WPL-0303432
...
6
Kit- Main WPL-R0707568
...
7
Plate Glass Support (36) WPL-Y0304835
...
8
Cap, Burner (Small) WPL-314637B
...
9
Burner Body Assy Small WPL-0304909
...
10
Grate Top Burner WPL-305478B
...
11
Clip, Tinnerman WPL-Y0304999
...
12
Tubing Rear Burners WPL-Y0305259
...
13
Tubing WPL-Y0305072
...
14
Knob Gas Valve WPL-0304843
...
15
Spark Switch WPL-Y0304121
...
16
Valve Rf WPL-0304939
...
17
Valve Lf WPL-Y0304940
...
18
Tubing, Front Burners WPL-Y0305261
...
19
Spacer Bracket WPL-0305244
...
20
Bottom 36`` Burn. Box WPL-Y0305358
...
21
Spark Module Reignition WPL-Y0302244
...
22
Regulator WPL-Y0304611
...
23
Manifold Inlet WPL-0304922
...
24
Tubing Inlet To Rear Man WPL-0304926
...
25
Valve Rr WPL-Y0304937
...
26
Spark Switch WPL-Y0302242
...
27
Valve Lr WPL-Y0304938
...
28
Term Hous 1m-5m-10m WPL-0042107
...
29
Cord Set WPL-0303585
...
30
Manifold, Rear Valves WPL-0305372
...
31
Manifold, Front Valves WPL-0305374
