Amana RTG650-UWW (BOM: RTG6500UW W)

Model: RTG650-UWW (BOM: RTG6500UW W)

Save Part Not Listed?
product name

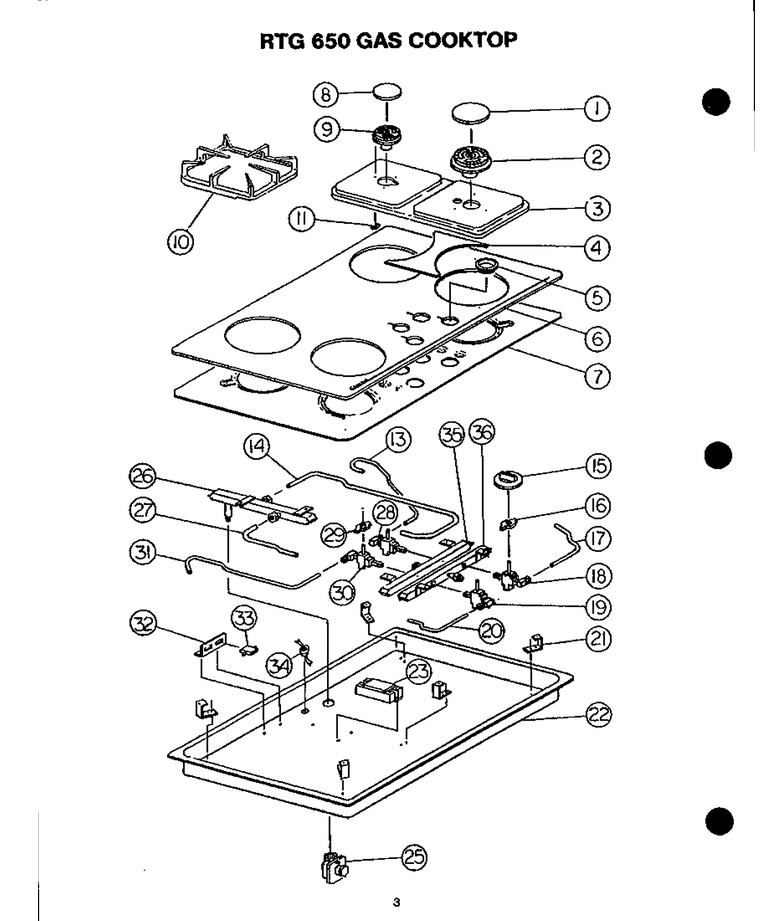

01 - Page 2

...
...
NI
Screw WPL-WP8281227
...
1
Cap, Burner (Large) WPL-314638T
...
2
Burner Body Assy Large WPL-Y0304908
...
3
Burner Bowl White WPL-303751W
...
4
Insulation Glass WPL-Y0304044
...
5
Nylon Drip Guard White WPL-0303433
...
6
Glass Top 36`` White WPL-Y0303561
...
7
Support Plate 36`` Glass WPL-Y0303593
...
8
Cap,burner (Small) WPL-303534T
...
9
Burner Body Assy Small WPL-0303514
...
10
Grate, Top Burner WPL-305478Y
...
11
Clip, Tinnerman WPL-Y0304999
...
13
Kit,5/16`` Gas Tubing/fittings WPL-Y0303594
...
14
Tubing Inlet To Front WPL-Y0303520
...
15
Knob Gas Valve WPL-Y0303743
...
16
Spark Switch WPL-Y0304121
...
17
Tubing Valve To Rf Burner WPL-0303596
...
18
Valve Rf WPL-Y0303979
...
19
Valve Lf WPL-0303978
...
20
Tubing Valve To Lf Burner WPL-Y0303597
...
21
Mounting Bracket Support Plate WPL-Y0303833
...
22
Burner Box 36`` WPL-Y0303590
...
23
Spark Module Reignition WPL-Y0302244
...
25
Regulator WPL-Y0304611
...
26
Manifold Inlet WPL-0303555
...
27
Tubing, Inlet To Rear Manifold WPL-0303521
...
28
Valve Rr WPL-Y0303552
...
29
Spark Switch WPL-Y0302242
...
30
Valve Lr WPL-Y0303551
...
31
Kit,5/16`` Gas Tubing/fittings WPL-Y0303595
...
32
Disconnect Bkt Littom Combo WPL-Y0040876
...
33
Term Hous 1m-5m-10m WPL-0042107
...
34
Cord Set WPL-0303585
...
35
Manifold Rear Valves WPL-Y0303556
...
36
Manifold Front Valve WPL-Y0304923
