product name

Amana RTG650 (BOM: P1131476N D)

Model: RTG650 (BOM: P1131476N D)

Save Part Not Listed?
product name

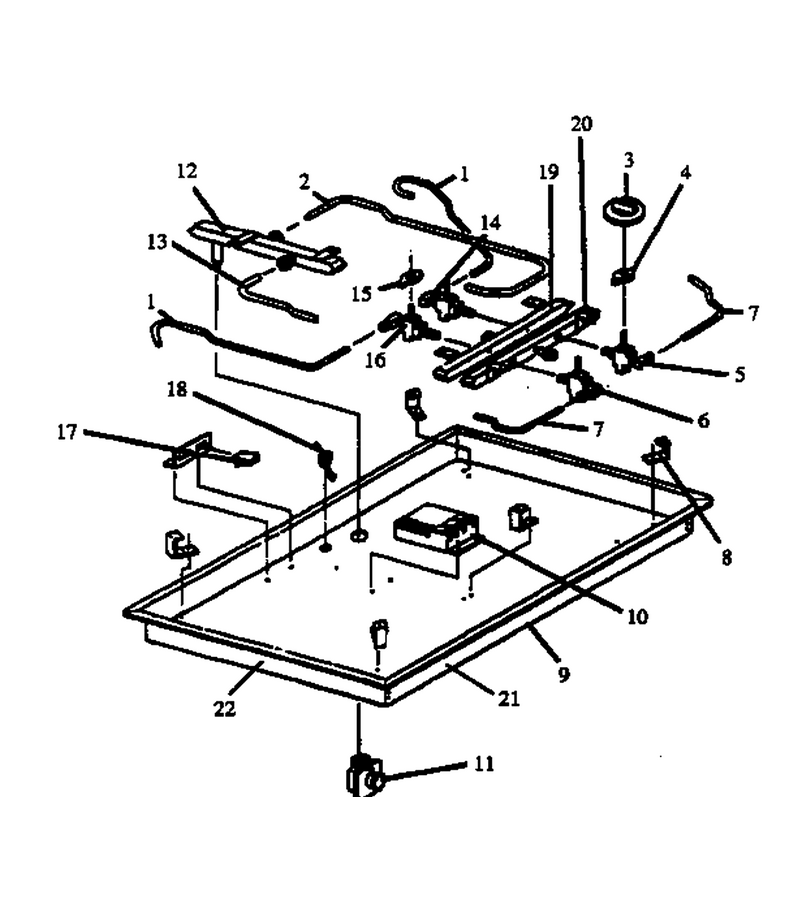

02 - Page 8

...
...
NI
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
1
Kit,5/16`` Gas Tubing/fittings WPL-Y0303594
...
2
Tubing Inlet To Front WPL-Y0303520
...
3
Knob Gas Valve WPL-0303744
...
4
Spark Switch WPL-Y0304121
...
5
Valve Rf WPL-Y0303979
...
6
Valve Lf WPL-0303978
...
7
Tubing Valve To Lf Burner WPL-Y0303597
...
8
Mounting Bracket Support Plate WPL-Y0303833
...
9
Burner Box 36`` WPL-Y0303590
...
10
Spark Module Reignition WPL-Y0302244
...
11
Regulator WPL-Y0304611
...
12
Manifold Inlet WPL-0303555
...
13
Tubing, Inlet To Rear Manifold WPL-0303521
...
14
Valve Rr WPL-Y0303552
...
15
Spark Switch WPL-Y0302242
...
16
Valve Lr WPL-Y0303551
...
17
Term Hous 1m-5m-10m WPL-0042107
...
18
Cord Set WPL-0303585
...
19
Manifold Rear Valves WPL-Y0303556
...
20
Manifold Front Valve WPL-Y0304923

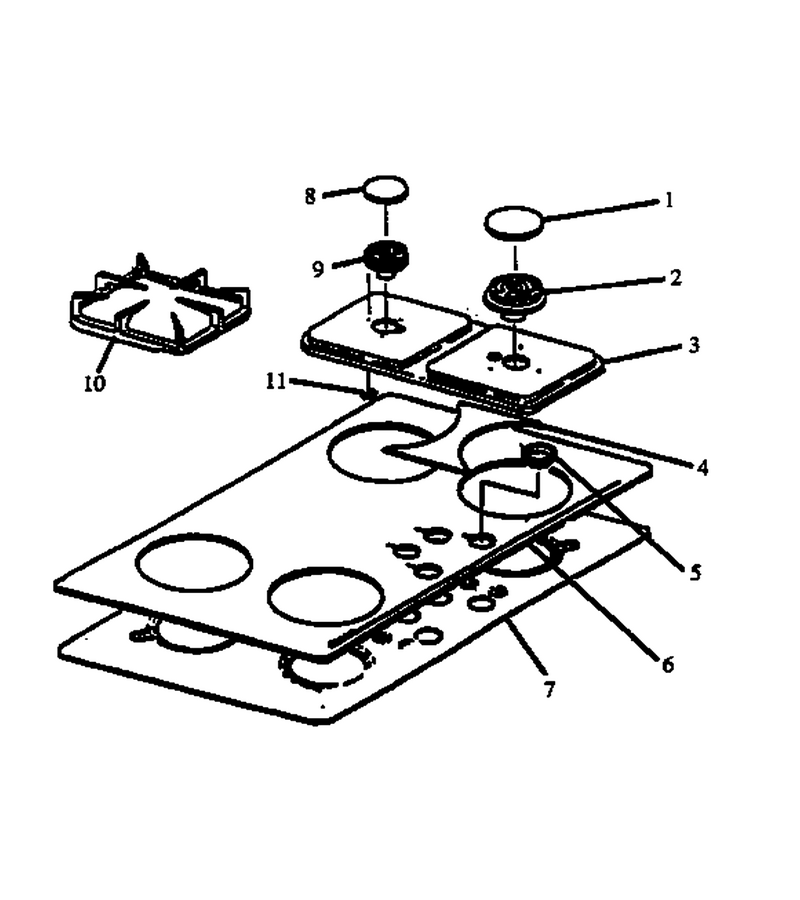

01 - Page 7

...
...
NI
Elctr-Kit WPL-WP3185804
...
1
Cap, Burner (Large) WPL-314638B
...
2
Burner Body Assy Large WPL-Y0304908
...
3
Burner Bowl Black WPL-303751B
...
4
Insulation Glass WPL-0304841
...
5
Nylon Drip Guard Black WPL-0303432
...
6
Glass Top WPL-0303563
...
7
Plate, Glass Support WPL-Y0305203
...
8
Cap, Burner (Small) WPL-314637B
...
9
Burner Body Assy Small WPL-0304909
...
10
Grate Top Burner WPL-305478B
...
11
Spee Nut Mount Brack To Frame WPL-0097909
