Amana RTG350UD (BOM: P1131475N D)

Model: RTG350UD (BOM: P1131475N D)

Save Part Not Listed?
product name

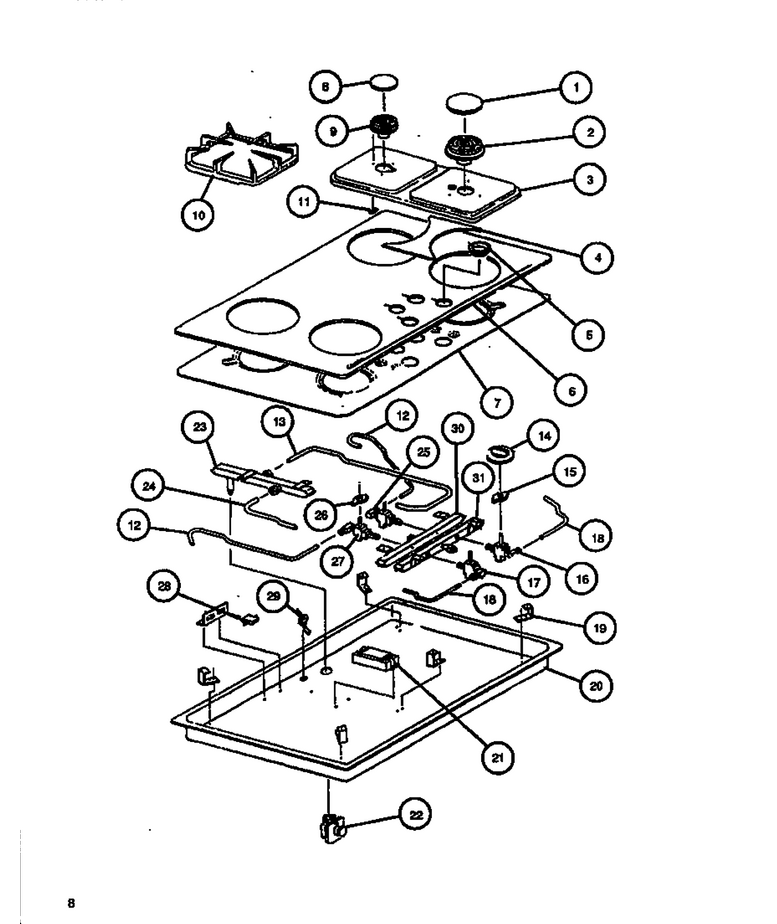

01 - Page 3

...
...
NI
Orifice Spud Lp Lge Burner WPL-Y0303984
...
1
Cap, Burner (Large) WPL-314638B
...
2
Burner Body Assy Large WPL-Y0304908
...
3
Burner Bowl Black WPL-303751B
...
4
Insulation Glass WPL-0304841
...
5
Nylon Drip Guard Black WPL-0303432
...
6
Glass Top 30`` Black WPL-Y0304851
...
7
Plate Glass Support (30) WPL-0304836
...
8
Cap, Burner (Small) WPL-314637B
...
9
Burner Body Assy Small WPL-0304909
...
10
Grate Top Burner WPL-305478B
...
11
Clip, Tinnerman WPL-Y0304999
...
12
Tubing Rear Burners WPL-0305258
...
13
Tubing WPL-Y0305072
...
14
Knob Gas Valve WPL-0304843
...
15
Spark Switch WPL-Y0304121
...
16
Valve Rf WPL-0304939
...
17
Valve Lf WPL-Y0304940
...
18
Tubing, Front Burners WPL-0305260
...
19
Spacer Bracket WPL-0305244
...
20
Burner Box Bottom 30`` WPL-Y0305356
...
21
Spark Module Reignition WPL-Y0302244
...
22
Regulator WPL-Y0304611
...
23
Manifold Inlet WPL-0304922
...
24
Tubing, Inlet To Rear Mani. WPL-Y0305063
...
25
Valve Rr WPL-Y0304937
...
26
Spark Switch WPL-Y0302242
...
27
Valve Lr WPL-Y0304938
...
28
Term Hous 1m-5m-10m WPL-0042107
...
29
Cord Set WPL-0303585
...
30
Manifold, Rear Valves WPL-0305372
...
31
Manifold, Front Valves WPL-0305374
