product name

Amana RTG350 (BOM: P1131475N W)

Model: RTG350 (BOM: P1131475N W)

Save Part Not Listed?
product name

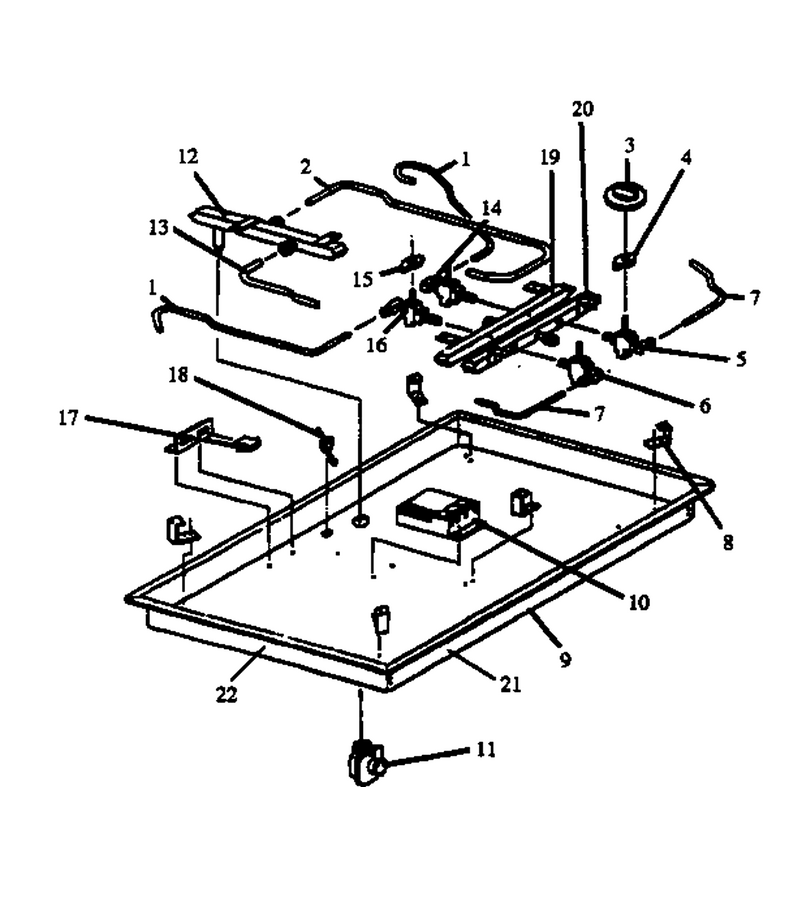

02 - Page 6

...
...
NI
Screw No.8-18x3/8 Hex Hd. WPL-0305423
...
1
Kit,5/16`` Gas Tubing/fittings WPL-Y0303516
...
2
Tubing Inlet To Front WPL-Y0303520
...
3
Knob Gas Valve WPL-Y0303743
...
4
Spark Switch WPL-Y0304121
...
5
Valve Rf WPL-Y0303979
...
6
Valve Lf WPL-0303978
...
7
Tubing Valve To Rf Burner WPL-Y0303518
...
8
Mounting Bracket Support Plate WPL-Y0303834
...
9
Burner Box 30`` WPL-Y0303738
...
10
Spark Module Reignition WPL-Y0302244
...
11
Regulator WPL-Y0304611
...
12
Manifold Inlet WPL-0303555
...
13
Tubing, Inlet To Rear Manifold WPL-0303521
...
14
Valve Rr WPL-Y0303552
...
15
Spark Switch WPL-Y0302242
...
16
Valve Lr WPL-Y0303551
...
17
Term Hous 1m-5m-10m WPL-0042107
...
18
Cord Set WPL-0303585
...
19
Manifold Rear Valves WPL-Y0303556
...
20
Manifold Front Valve WPL-Y0304923

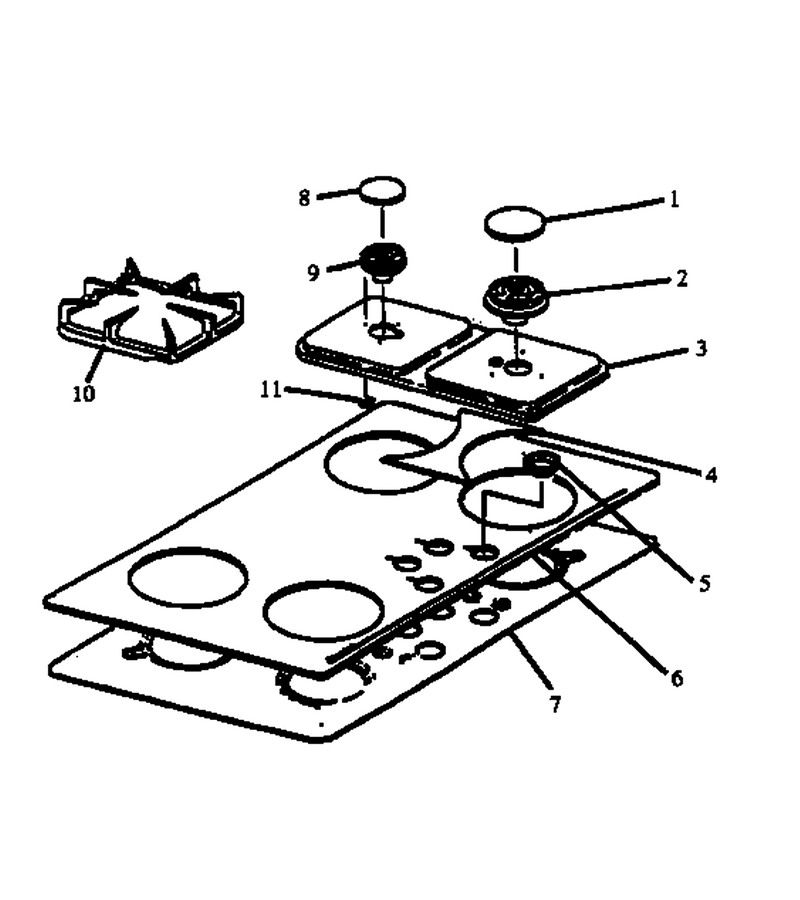

01 - Page 5

...
...
NI
Screw WPL-WP8281227
...
1
Cap, Burner (Large) WPL-314638T
...
2
Burner Body Assy Large WPL-Y0304908
...
3
Burner Bowl White WPL-303751W
...
4
Insulation Glass WPL-0304841
...
5
Nylon Drip Guard White WPL-0303433
...
6
Glass Top (White) WPL-0303560
...
7
Support Plate, 30``, Glass WPL-Y0303509
...
8
Cap,burner (Small) WPL-303534T
...
9
Burner Body Assy Small WPL-0304909
...
10
Grate, Top Burner WPL-305478Y
...
11
Spee Nut Mount Brack To Frame WPL-0097909
