Amana RST382UK (BOM: P1141228N K)

Model: RST382UK (BOM: P1141228N K)

Save Part Not Listed?
product name

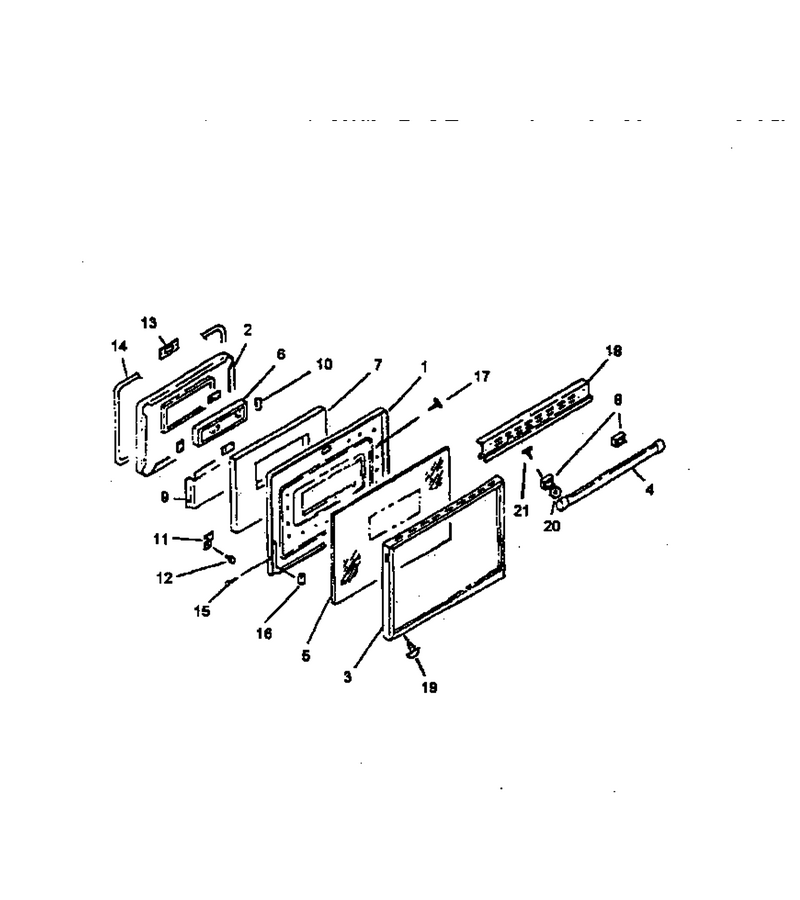

05 - Oven Door

...
...
1
Door Backer, Electric (Cg) WPL-302725E
...
2
Pad, Ov Dr W/window WPL-314693CG
...
3
Frame, Glass Door (Black) WPL-306538B
...
4
Handle, Door WPL-0304491
...
5
Glass, Oven Door WPL-314510B
...
6
Window Assy WPL-0304831
...
7
Insulation,door-Sub Backer WPL-0062614
...
8
Standoff, Door Handle WPL-0300980
...
9
Heat Baffle, Glass (Black) WPL-306449B
...
10
Retainer, Door Glass WPL-Y0052629
...
11
Support Bracket, Glass WPL-Y0062439
...
12
Bumper, Oven Door WPL-Y0063661
...
13
Latch Plate WPL-Y0052039
...
14
Gasket, Oven Dr 82`` WPL-Y0300432
...
15
Rivet, Pop WPL-Y0302648
...
16
Bumper, Rubber WPL-Y0060247
...
17
Screw WPL-W11245710
...
18
Kit, Dr Hndl/trim (Black) WPL-Y0300723
...
19
Screw WPL-W11245710
...
20
Nut WPL-WP488130
...
21
Screw, Square WPL-0059574

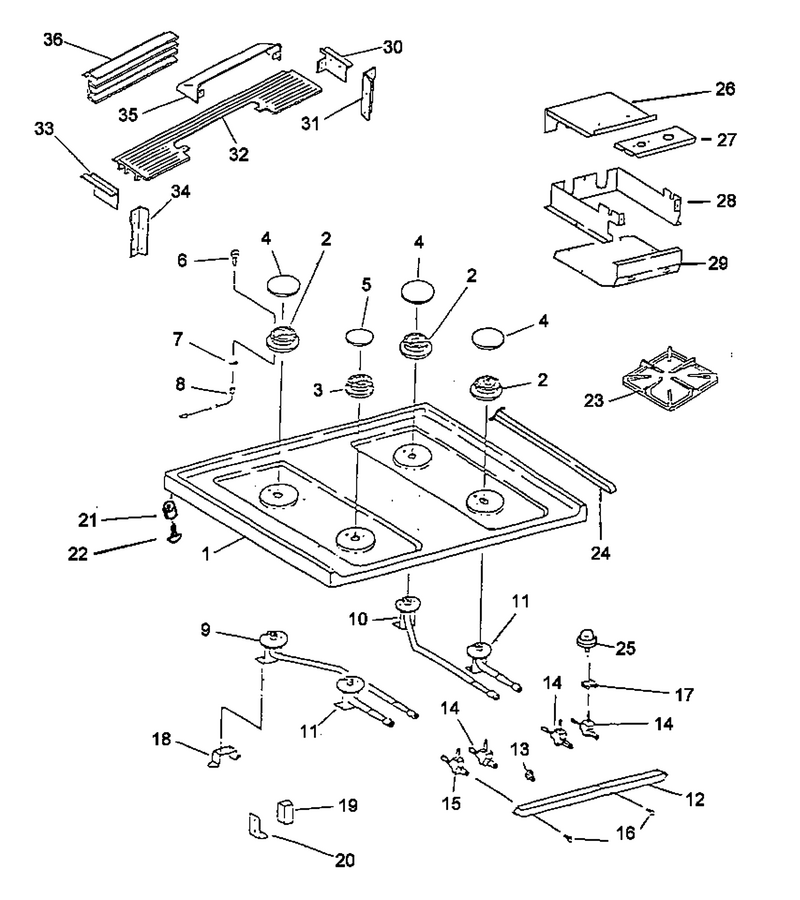

07 - Sealed Burner

...
...
NI
Screw WPL-8169479
...
1
Main Top Chrome WPL-304484K
...
2
Burner, 4`` WPL-Y0303558
...
3
Assy Burne WPL-Y0306105
...
4
Cap, Burner (Large) WPL-314638B
...
5
Cap, Burner (Small) WPL-314637B
...
6
Elctr-Kit WPL-WP3185804
...
7
Clip, Electrode WPL-Y0304365
...
8
Wire Jumper Assy 20`` WPL-Y0304358
...
9
Venturi Assy Lr Sealed Burner WPL-Y0304363
...
10
Venturi Assy Rr Sealed Burner WPL-Y0304362
...
11
Venturi Assy Front Sealed Burn WPL-Y0304364
...
12
Manifold Pipe, Tapped W/bracke WPL-0303248
...
13
Fitting 1/4 Npt X 3/8 Comp WPL-Y0303219
...
14
Valve 9khi Med Adj Low WPL-0304568
...
15
Valve 7khi Med Adj Low WPL-Y0304569
...
16
Screw WPL-W10491986
...
17
Switch-Lic WPL-WPY0300521
...
18
Bracket, Ventrui Mtg WPL-Y0304783
...
19
Spark Module WPL-Y0302477
...
20
Bracket, Mounting WPL-0302290
...
21
Spacer, Nylon (.14``) WPL-Y0062445
...
22
Screw WPL-W11245710
...
23
Grate-Brnr WPL-WP314647B
...
25
Knob, Top Burner (Blk) WPL-Y0300705
...
26
Plenum, Top WPL-Y0303187
...
27
Plenum, Wrapper R.h. WPL-Y0303208
...
28
Wrapper Rh Side WPL-0303210
...
29
Plenum, Bottom WPL-Y0303186

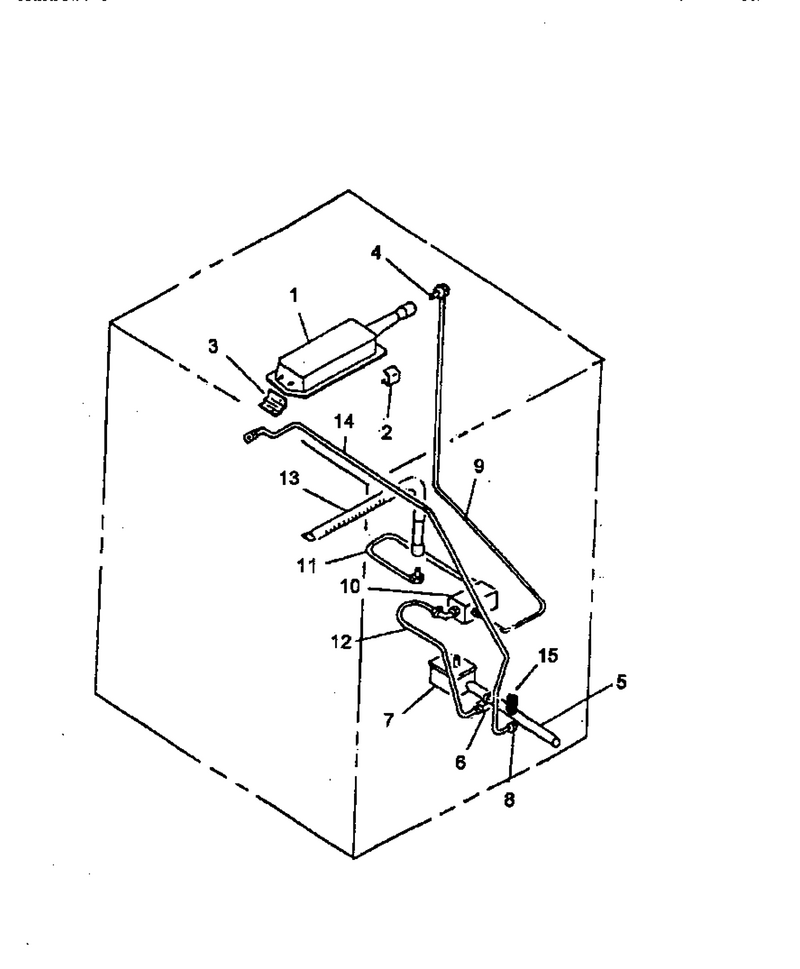

04 - Gas Components

...
...
1
Assy, Br. Burner WPL-Y0060691
...
2
Bracket Ignitor Mtg WPL-Y0303112
...
3
Bracket, Mtg. Br. Support WPL-Y0060687
...
4
Orifice Spud, Nat. Gas No.50 WPL-Y0063060
...
5
Inlet Pipe WPL-0303247
...
6
Valve, Shut-Off WPL-Y0301361
...
7
Regulator-5``/10`` Side Inlet WPL-Y0063684
...
8
Fitting 1/4 Npt X 3/8 Comp WPL-Y0303219
...
9
Kit, Orifice,tubing,brkt WPL-R0710295
...
10
Valve, Gas WPL-Y0300664
...
11
Tubing, Oven Burner WPL-Y0300685
...
12
Tubing, Inlet To Gas Valve WPL-Y0300684
...
13
Oven Burner WPL-Y0063709
...
14
Tubing, Inlet To Manifold WPL-31771904
...
15
Pipe Plug 1/8-27 Npt WPL-0042415

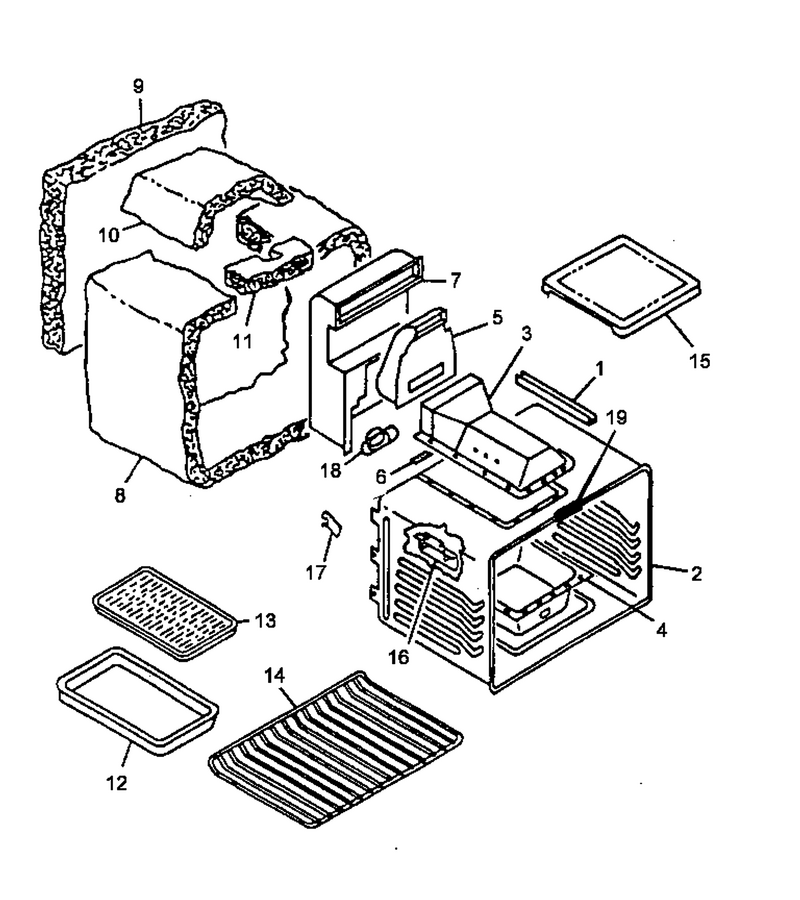

06 - Oven Interior

...
...
NI
Screw WPL-W11245710
...
1
Channel, Broil Burner WPL-Y0304019
...
3
Oven Shell (Gas W/lt) WPL-31821701CG
...
4
Assy, Broil Chamber WPL-Y0304632
...
5
Assy, Inner Flue WPL-0303463
...
6
Gasket, Oven Back WPL-0062754
...
7
Dilution Flue WPL-304578B
...
8
Insulation, Wrapper WPL-31975801
...
9
Insulation, Wrapper WPL-31975801
...
10
Insulation, Wrapper WPL-31975801
...
11
Insulation, Wrapper WPL-31975801
...
12
Procelain Broiler (Pan And Grid) WPL-4396923
...
13
Procelain Broiler (Pan And Grid) WPL-4396923
...
14
Rack-Oven WPL-WP314763J
...
15
Oven Bottom WPL-58625CG
...
17
Bracket, Oven Cavity WPL-Y0058852
...
18
Bracket, Broil Orifice WPL-Y0303111
...
19
Chip Cover WPL-0300278

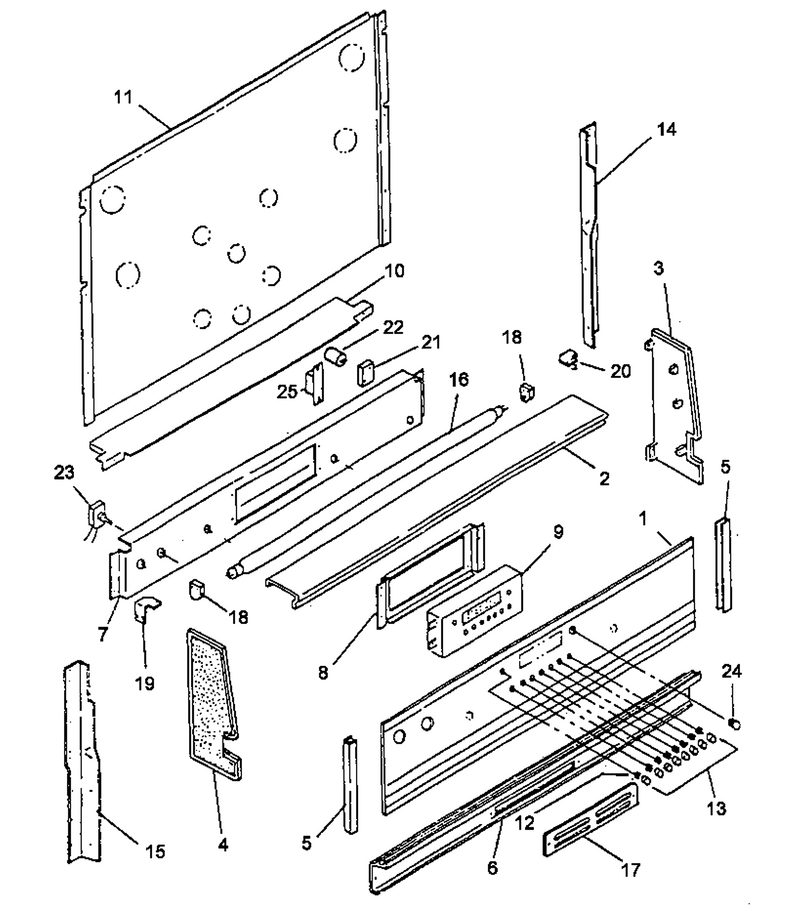

01 - Backguard--See Notes For Specific Models

...
...
1
Backguard Glass WPL-0300460
...
2
Trim Top- Bkgd WPL-Y0302431
...
3
End Cap, Rh WPL-Y0302983
...
4
End Cap, Lh WPL-Y0302982
...
5
Channel, Glass (Black) WPL-0059768
...
6
Trim, Backguard, White WPL-Y0302452
...
7
Control Panel Backguard WPL-Y0302291
...
8
Bracket, Clock Mtg. WPL-0301753
...
9
Control, Erc WPL-Y0308481
...
10
Shield WPL-301161B
...
11
Rear Backguard & Cover Plate WPL-0302252
...
12
Bushing, Clock WPL-Y0301481
...
13
Knob, Set Button 1/2`` Diam. WPL-Y0301393
...
14
Support, Bkgd (Rh) WPL-0304124
...
15
Support Backguard Lh WPL-Y0304123
...
16
Lamp- Flou WPL-WPY0067945
...
17
Trim Vent, Chrome WPL-300725K
...
18
Light Socket WPL-Y0071924
...
19
Bracket, Lamp Socket, L.h. WPL-0061241
...
20
Bracket, Lamp Socket, R.h. WPL-0061242
...
21
Socket, Starter WPL-0071964
...
22
Starter, Flourescent WPL-0071920
...
23
Kit, Light Switch WPL-0300778
...
24
Knob, Clock (Blk) WPL-Y0300704
...
25
Ballast WPL-Y0071869

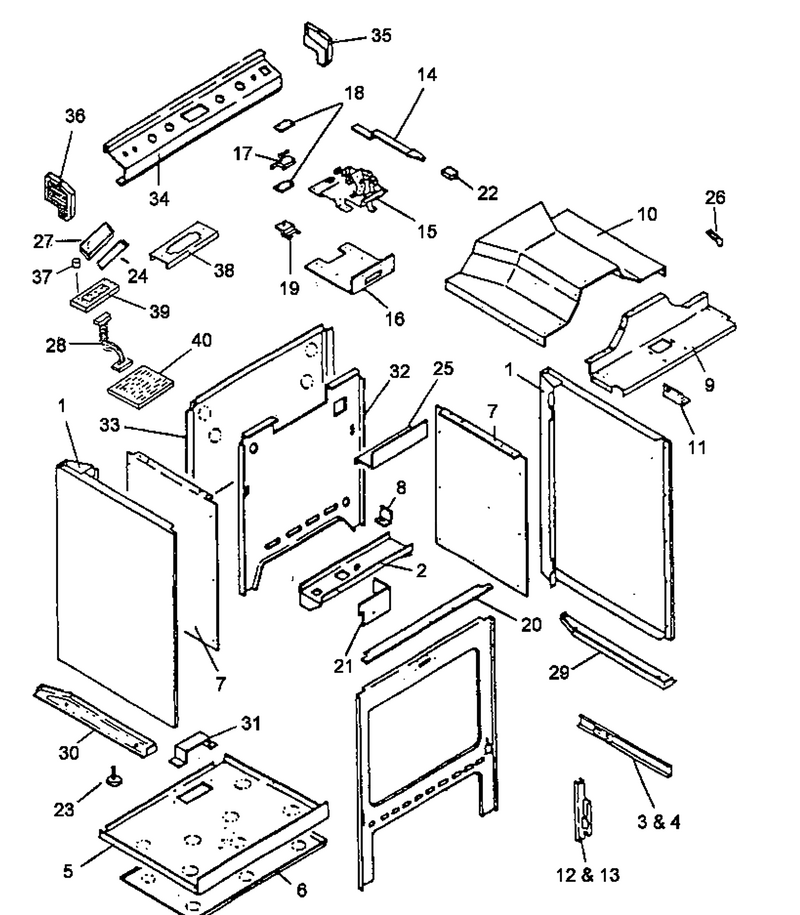

02 - Cabinet

...
...
NI
Screw 4-40x1 WPL-Y0092365
...
1
Panel, Side (Blk) WPL-31825102B
...
2
Shelf, Gas Valve WPL-0058890
...
3
Track, Storage Drawer-L.h. WPL-Y0300474
...
4
Track, Storage Drawer-R.h. WPL-0300475
...
5
Insul, Ret.-Bottom WPL-Y0308317
...
6
Shield, Heat WPL-Y0315146
...
7
Retainer, Insulation (Side) WPL-0304282
...
8
Bracket, Gas Valve WPL-0053182
...
9
Retainer Insulation WPL-Y0303571
...
10
Insulation Retainer Top X WPL-Y0303570
...
11
Bracket, Mounting WPL-0302290
...
12
Kit, Door Hinge (Lh-Hs) WPL-Y0066952
...
13
Hinge-Door WPL-R0706011
...
14
Handle, Door Latch (Blk) WPL-303040B
...
15
Latch Assembly WPL-Y0063733
...
16
Bracket, Latch Mtg. WPL-Y0058918
...
17
Switch- La WPL-77001254
...
18
Insulation, Esm WPL-Y0091523
...
19
Bracket, Switch WPL-Y0302316
...
20
Filler, Front Frame WPL-302380B
...
21
Cover, Electrical WPL-Y0058916
...
22
Knob, Latch Handle (Blk) WPL-0302300
...
23
Leg, Leveling WPL-Y0300585
...
25
Cover, Elec. Wires WPL-Y0058834
...
26
Clip WPL-0061336
...
29
Btm Brace Lvl WPL-303578G
...
30
Brace, Leveling Leg (Lt) WPL-31854501
...
31
Cover, Ig/bake Burner WPL-Y0302498
...
32
Retainer, Rear Insulation WPL-Y0304003
...
33
Cover Plate, Rear WPL-Y0300026
...
34
Control Panel WPL-0303241
...
35
End Cap, Control Panel, Rh WPL-0302985
...
36
End Cap, Control Panel, Lh WPL-0302984
...
40
P.c. Board, Power Supply WPL-Y0300807

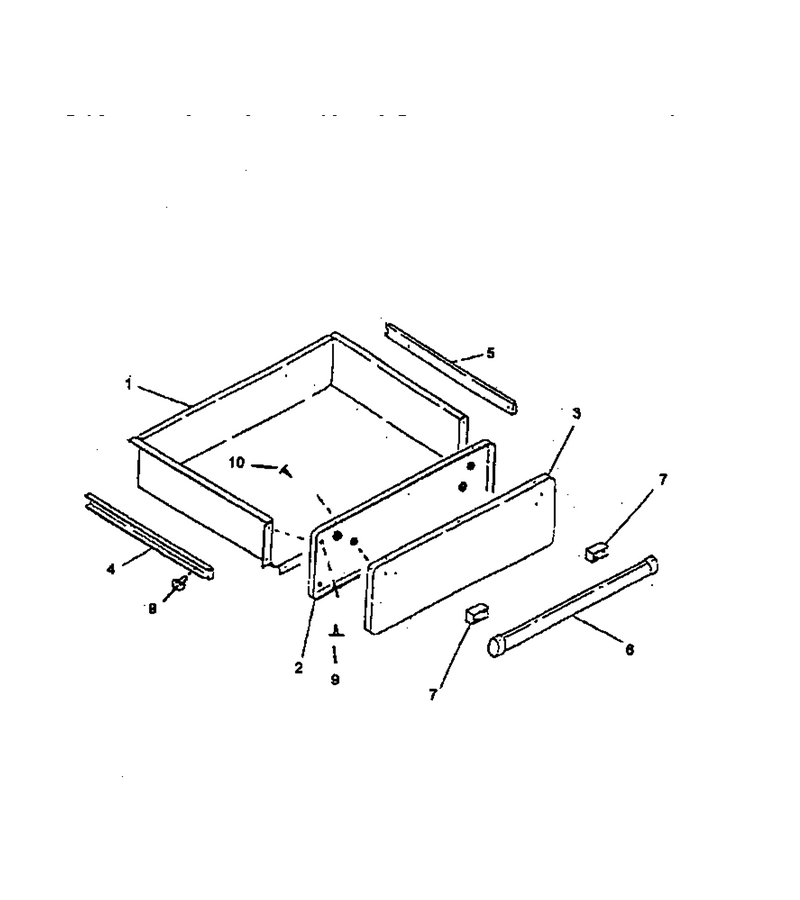

08 - Storage Drawer

...
...
1
Wrapper, Stor Drawer WPL-306519W
...
2
Liner Drawer (Blk) WPL-Y058921B
...
3
Panel, Drawer WPL-314503B
...
4
Runner, Storage Door, L.h. WPL-Y0300476
...
5
Runner, Storage Door R.h. WPL-0300477
...
6
Handle, Door WPL-0304491
...
7
Standoff, Door Handle WPL-0300980
...
8
Rivet, Pop WPL-Y0076357
...
9
Screw WPL-W11245710
...
10
Screw, 8-32 X 1 1/2 WPL-0301258

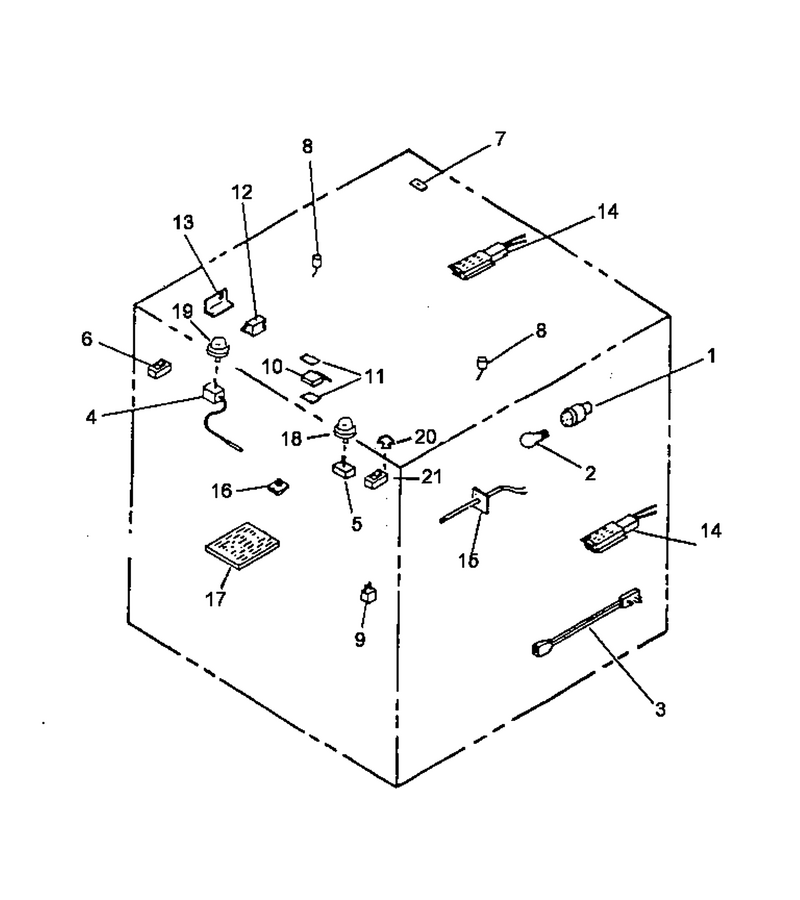

03 - Electric Components

...
...
NI
Shield, Ignitor WPL-0063780
...
1
Light- Ove WPL-WP74011278
...
2
Light Bulb WPL-8009
...
3
Supply Cord WPL-Y0063518
...
7
Clip, Electrode WPL-Y0304365
...
8
Elctr-Kit WPL-WP3185804
...
9
Male Loading Plug WPL-Y0068333
...
10
Switch- La WPL-77001254
...
11
Insulation, Esm WPL-Y0091523
...
12
Spark Module WPL-Y0302477
...
13
Bracket WPL-0300231
...
14
Kit, Ignitor WPL-786324
...
15
Sensor, Erc WPL-Y0300769
...
16
Switch-Lic WPL-WPY0300521
