Amana RST359

Model: RST359

Save Part Not Listed?
product name

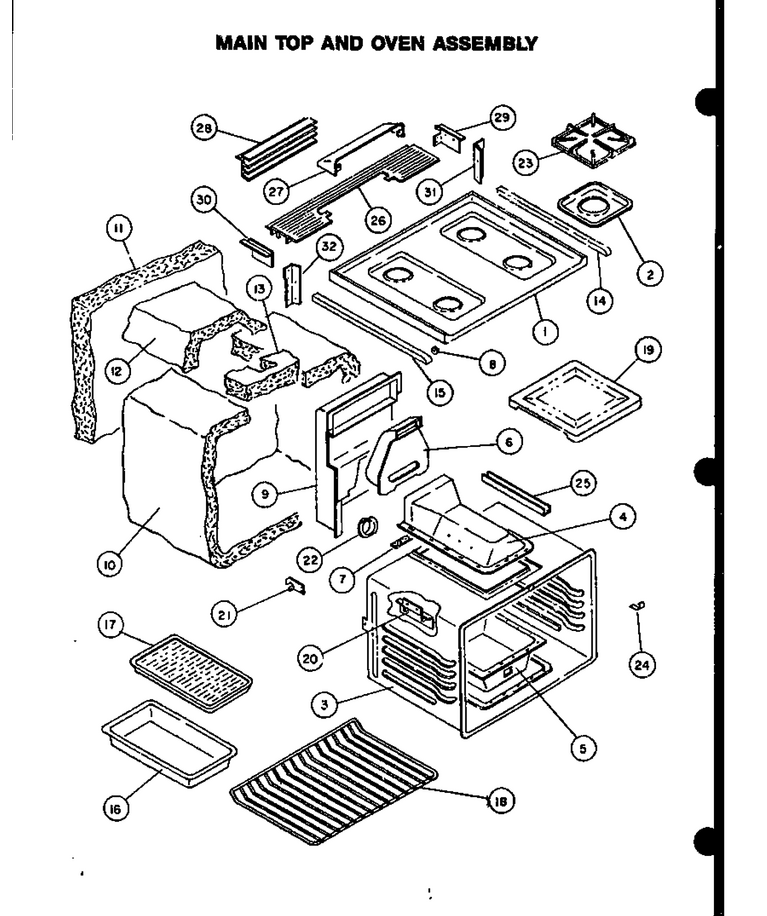

06 - Page 1

...
...
1
Main Top, Almond WPL-301358L
...
3
Oven Liner WPL-300810E
...
4
Chamber, Broiler WPL-Y0062892
...
5
Burner Box, Lower WPL-Y0063802
...
6
Flue WPL-0062770
...
7
Gasket, Oven Back WPL-0062754
...
8
Spacer, Nylon (.14``) WPL-Y0062445
...
9
Flue, Dilution WPL-0063552
...
10
Insulation, Wrapper WPL-31975801
...
11
Insulation, Wrapper WPL-31975801
...
12
Insulation, Wrapper WPL-31975801
...
13
Insulation, Wrapper WPL-31975801
...
16
Sub 11161cg, Broiler Pan WPL-Y0011161
...
17
Procelain Broiler (Pan And Grid) WPL-4396923
...
18
Rack-Oven WPL-WP314763J
...
19
Oven Bottom WPL-58625CG
...
20
Shield, Thermostat Bulb WPL-0062792
...
21
Bracket, Oven Cavity WPL-Y0058852
...
22
Cup, Duct WPL-Y0062799
...
23
Grate-Brnr WPL-WP314647B
...
24
Chip Cover WPL-0300278
...
25
Channel, Br. Brnr. WPL-Y0063775

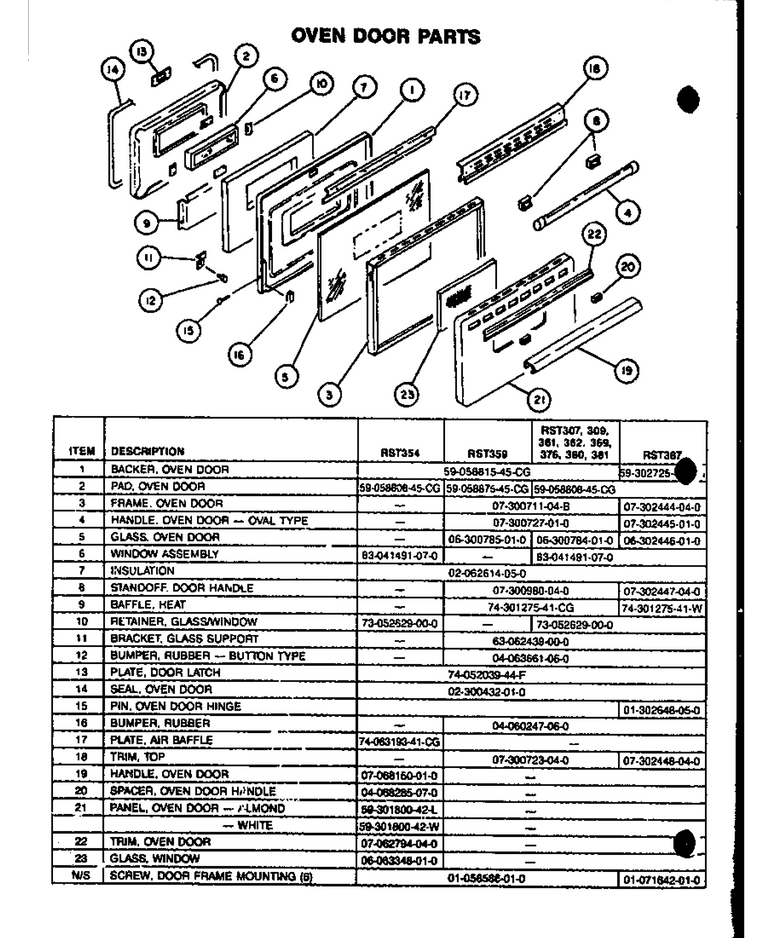

05 - Oven Door Parts

...
...
NI
Screw WPL-W10856125
...
1
Backer, Oven Door WPL-W10124803
...
2
Pad, Oven Door WPL-W10124804
...
3
Frame, Glass Door (Black) WPL-306538B
...
4
Handle, Door WPL-0300727
...
5
Panel, Door Glass WPL-Y0300785
...
7
Insulation,door-Sub Backer WPL-0062614
...
8
Standoff, Door Handle WPL-0300980
...
9
See Note Baffle, Heat WPL-Y00000000
...
11
Support Bracket, Glass WPL-Y0062439
...
12
Bumper, Oven Door WPL-Y0063661
...
13
Latch Plate WPL-Y0052039
...
14
Gasket, Oven Dr 82`` WPL-Y0300432
...
16
Bumper, Rubber WPL-Y0060247
...
18
Kit, Dr Hndl/trim (Black) WPL-Y0300723

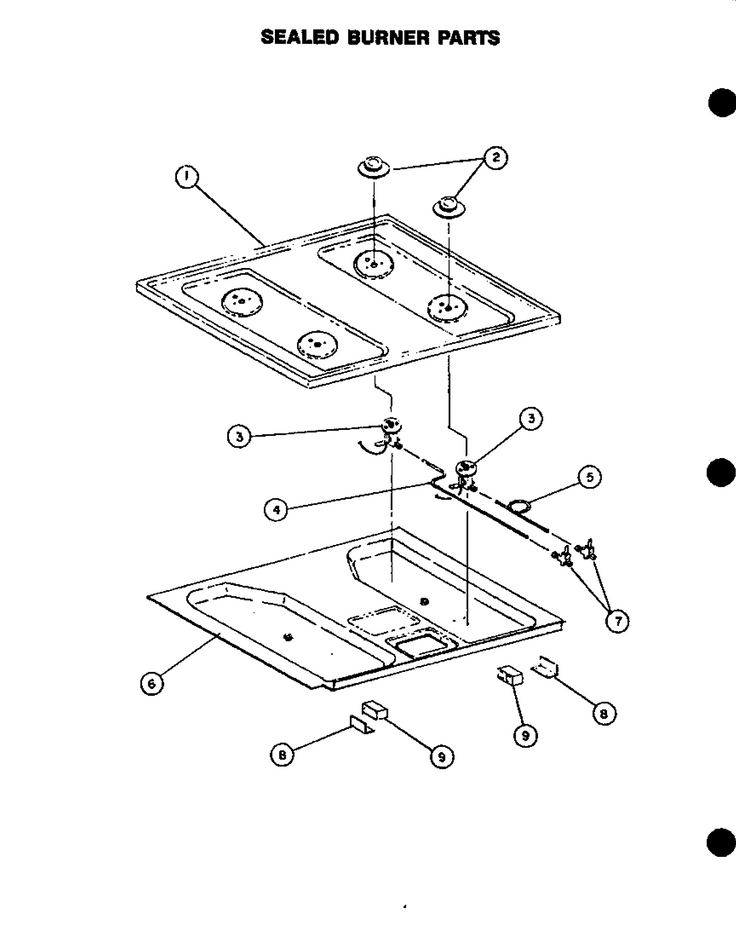

07 - Sealed Burner Parts

...
...
NI
Cover Plate Latch WPL-0062840
...
2
Cap-Burnr WPL-WPY0307210
...
3
Venturi Assy WPL-0302507
...
4
Tubing, 20``-5/16`` WPL-Y0302505
...
5
Tubing, Valve To Front Burner WPL-0302622
...
6
Burner Box WPL-302510E
...
7
Valve , Top Burner WPL-0302508
...
8
Brkt, Spark Module WPL-0302378
...
9
Spark Module WPL-Y0302477

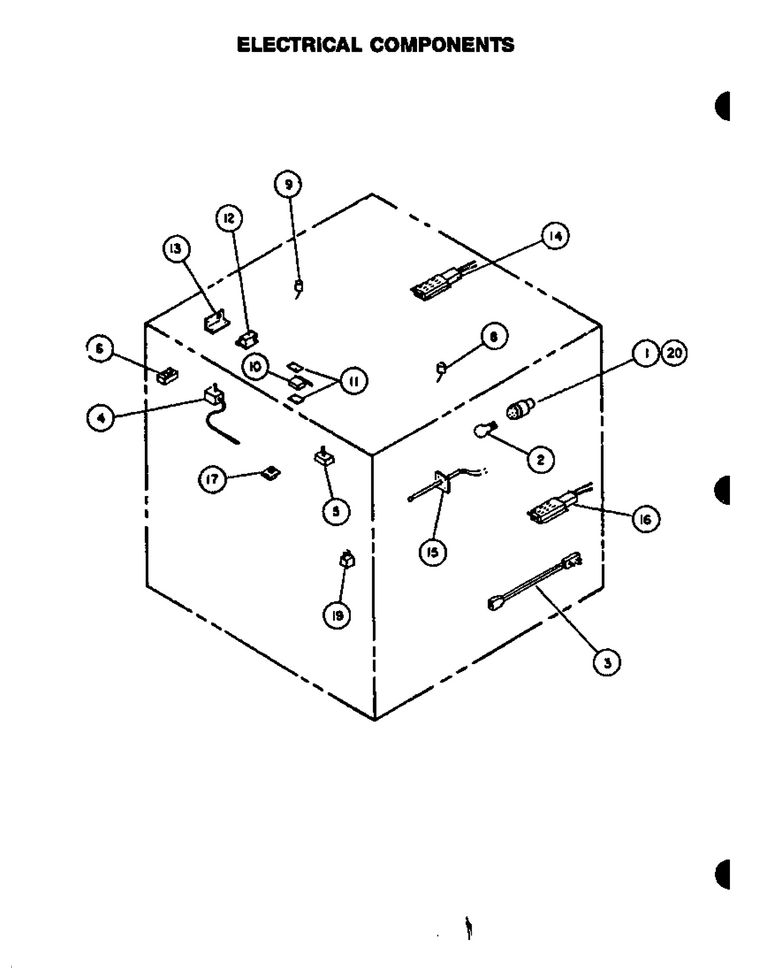

02 - Electric Components

...
...
3
Supply Cord WPL-Y0063518
...
4
Oven Thermostat, Push To Turn WPL-Y0303060
...
5
Switch, Selector WPL-Y0300901
...
8
Electrode (Rear) WPL-4157608
...
9
Electrode (Rear) WPL-4157608
...
10
Switch, Clean Circuit WPL-Y0065780
...
11
Insulation, Esm WPL-Y0091523
...
12
Electrode (Rear) WPL-4157608
...
13
Bracket WPL-0300231
...
14
Kit, Ignitor WPL-786324
...
16
Kit, Ignitor WPL-786324
...
17
Switch-Lic WPL-WPY0300521
...
19
Male Loading Plug WPL-Y0068333

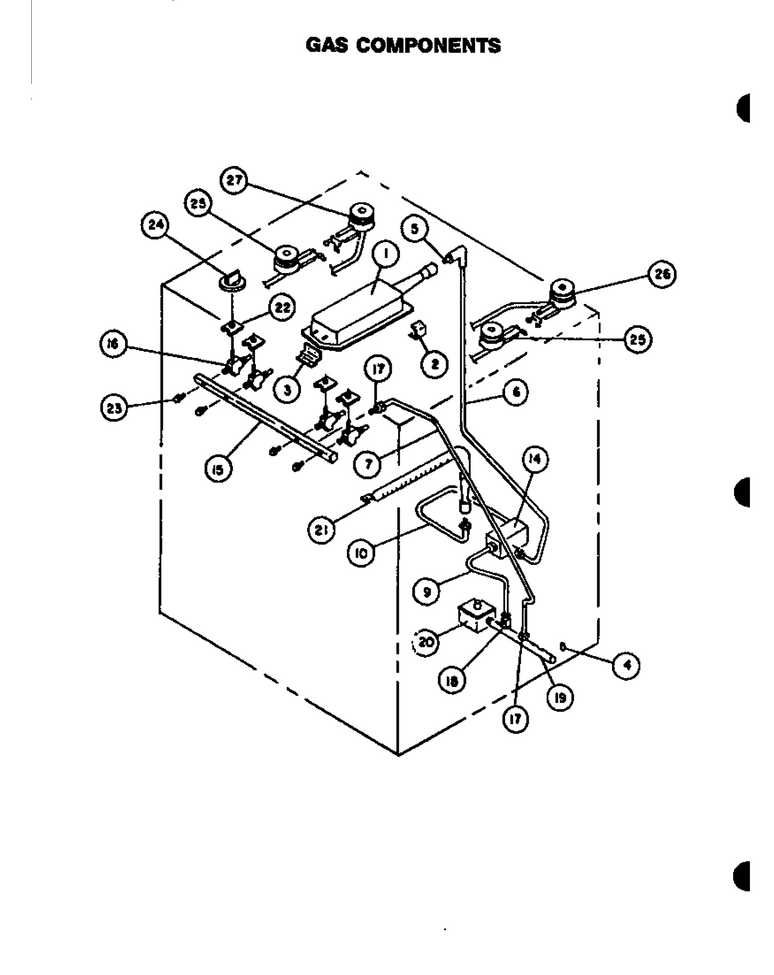

03 - Gas Components

...
...
NI
Tubing, Inlet To Manifold, Lef WPL-0302509
...
16
Valve , Top Burner WPL-0302508

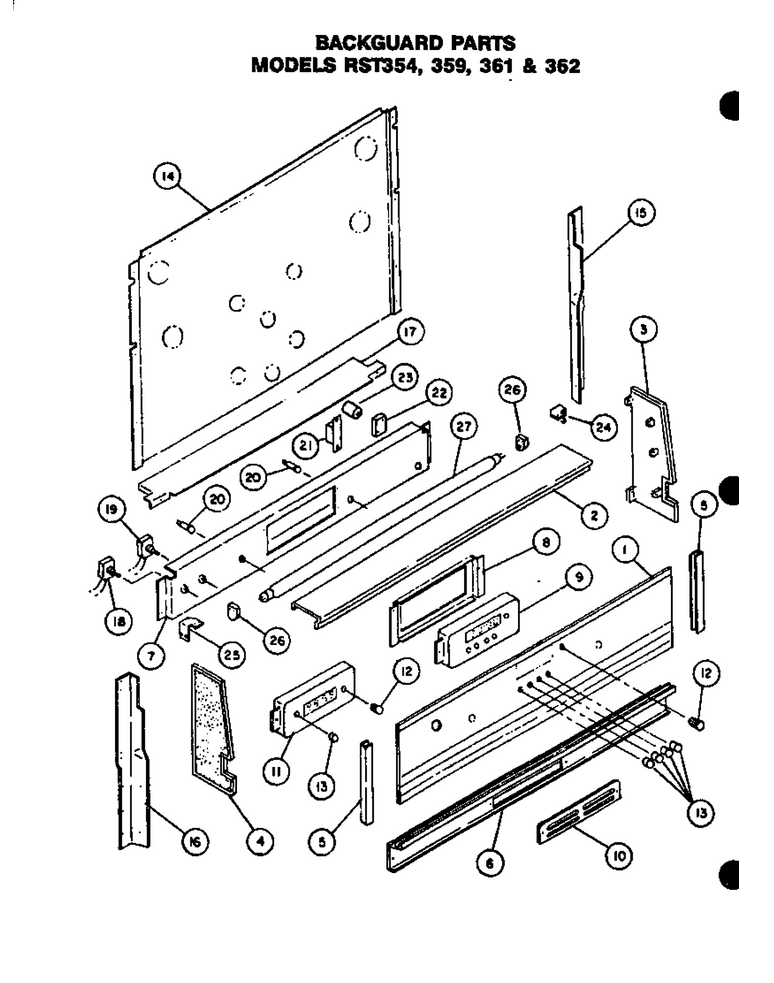

01 - Backguard Parts

...
...
NI
Screw WPL-WPY706189
...
1
Backguard Glass WPL-0300457
...
2
Top Trim, Backguard WPL-Y0300470
...
3
End Cap, Rh WPL-Y0302983
...
4
End Cap, Rh WPL-Y0302983
...
5
Channel, Glass (Black) WPL-0059768
...
6
Trim, Lower Backguard WPL-300770W
...
7
Panel, Bkgd Heat WPL-0301521
...
8
Bracket, Clock Mtg. WPL-0301753
...
9
Clock, Electronic WPL-Y0302106
...
10
Trim, Vent WPL-300725B
...
12
Knob, Clock WPL-0300702
...
13
Sub 302045, Set Button Knob WPL-0300703
...
14
Rear Backguard & Cover Plate WPL-0058909
...
15
Support, Backguard Rt WPL-Y0058920
...
16
Support Backguard Lh WPL-Y0304123
...
17
Heat Shield, Backguard WPL-0058894
...
20
Indicator Light WPL-0060747

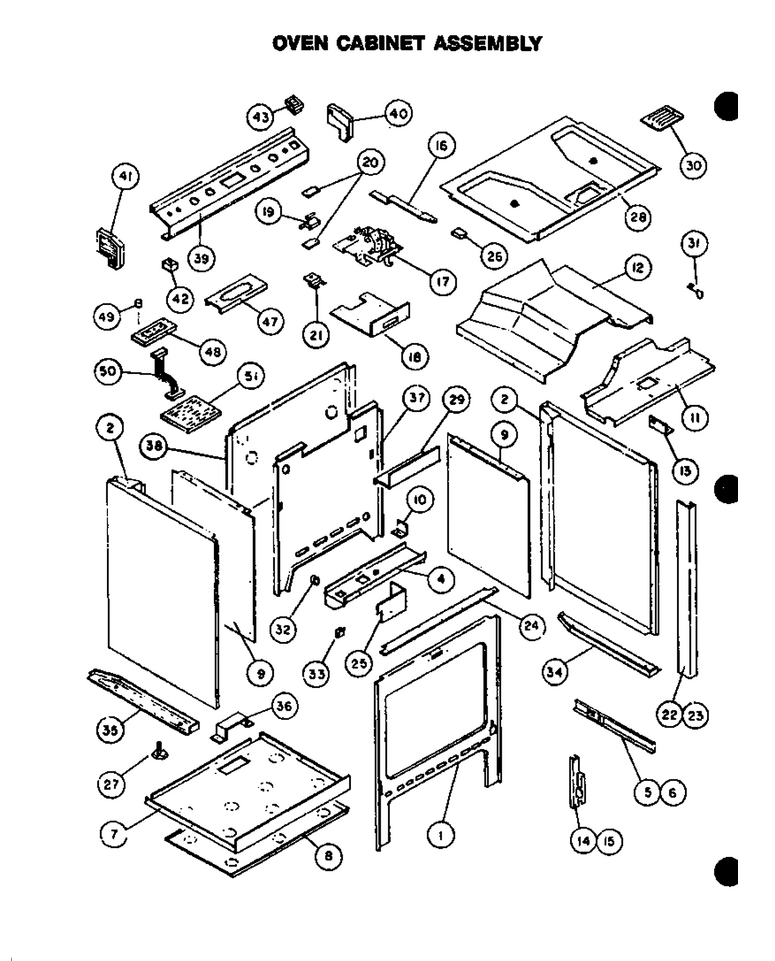

04 - Oven Cabinet Assy

...
...
NI
Tape, Seal 1=1ft WPL-0069187
...
1
See Note Front Frame WPL-Y00000000
...
2
Panel, Side (Wht) WPL-31825104W
...
4
Shelf, Gas Valve WPL-0058890
...
5
Track, Storage Drawer-R.h. WPL-0300475
...
6
Track, Storage Drawer-L.h. WPL-Y0300474
...
7
Insul, Ret.-Bottom WPL-Y0308317
...
8
Shield, Heat WPL-Y0315146
...
9
Insulation Retainer, Side WPL-Y0058999
...
10
Bracket, Gas Valve WPL-0053182
...
11
Insulation Retainer, Top Frnt. WPL-Y0300626
...
12
Insulation Retainer, Top WPL-Y0300627
...
13
Bracket WPL-0300231
...
14
Hinge-Door WPL-R0706011
...
15
Kit, Door Hinge(Lh-Hs) WPL-Y0066953
...
16
Latch Arm WPL-301127B
...
17
Latch Assembly WPL-Y0063733
...
18
Bracket, Latch Mtg. WPL-Y0058918
...
19
Switch, Clean Circuit WPL-Y0065780
...
20
Insulation, Esm WPL-Y0091523
...
21
Bracket, Switch Mounting WPL-Y0068091
...
24
Filler, Front Frame WPL-302380B
...
25
Cover, Electrical WPL-Y0058916
...
26
Knob, Latch WPL-0300734
...
27
Leg, Leveling WPL-Y0300585
...
29
Cover, Elec. Wires WPL-Y0058834
...
30
Cover Plate Latch WPL-0062840
...
31
Clamp, Wire-Insulate WPL-Y0068513
...
32
Snap Bushing WPL-Y0042659
...
33
Cable, Clip Esm WPL-Y0091587
...
34
Brace, Leveling Leg (Lt) WPL-31854501
...
35
Brace, Leveling Leg (Lt) WPL-31854501
...
36
Cover, Ig/bake Burner WPL-Y0302498
...
37
Retainer, Rear Insulation WPL-Y0058994
...
39
Panel, Control WPL-0303240
...
40
End Cap, Control Panel, Lh WPL-0302984
...
41
End Cap, Control Panel, Lh WPL-0302984

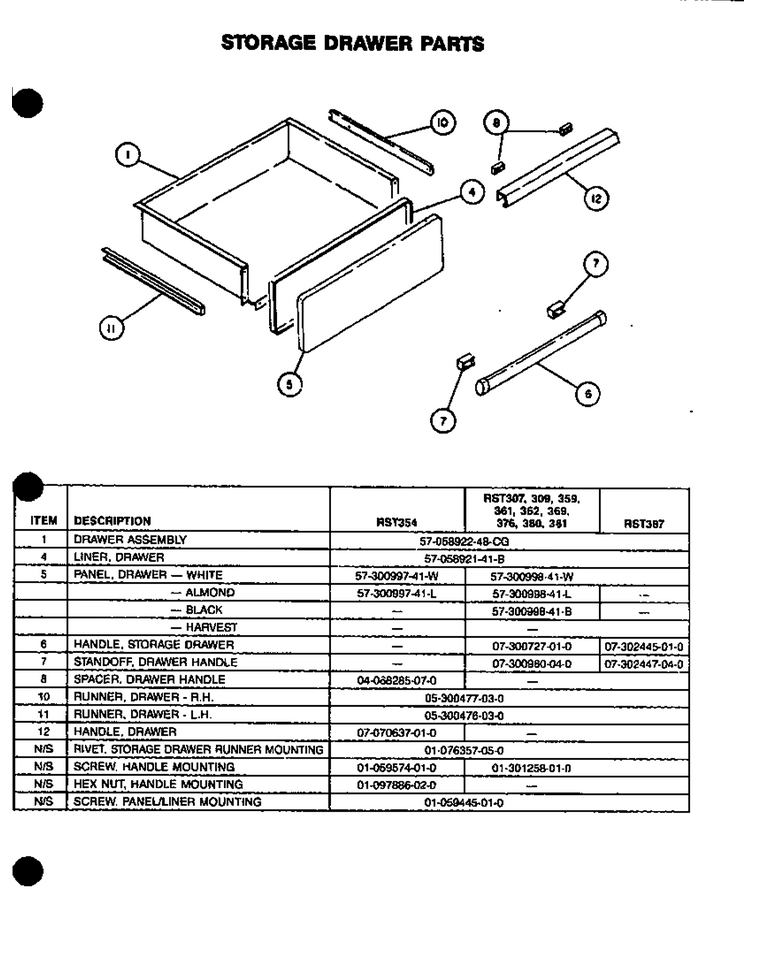

08 - Storage Drawer Parts

...
...
NI
Screw WPL-W11245710
...
1
Wrapper, Stor Drawer WPL-306519W
...
4
Liner Drawer (Blk) WPL-Y058921B
...
5
Panel, Drawer WPL-300998W
...
6
Handle, Door WPL-0300727
...
7
Standoff, Door Handle WPL-0300980
...
10
Runner, Storage Door R.h. WPL-0300477
...
11
Runner, Storage Door, L.h. WPL-Y0300476
