Amana RSS361

Model: RSS361

Save Part Not Listed?
product name

03 - Gas Components

...
...
1
Glass, Control Panel WPL-0060749
...
2
Trim, Top, Backguard WPL-0060623
...
3
End Cap, Bkgd.-R.h. WPL-0301002
...
4
End Cap, Bkgd.- L.h. WPL-0301001
...
5
Channel, Glass (Black) WPL-0059768
...
6
Trim, Lower WPL-0061800
...
7
Backguard, Control Panel WPL-Y0060850
...
8
Knob, Clock WPL-Y0060730
...
9
Button, Timer WPL-0060731
...
10
Support, Backguard Rt WPL-Y0058920
...
11
Indicator Light WPL-Y0071820
...
12
Timer, Electronic WPL-Y0300934
...
13
Bracket, Lamp Socket, R.h. WPL-0061242
...
14
Bracket, Lamp Socket, L.h. WPL-0061241
...
15
Light Socket WPL-Y0071924
...
16
Lamp- Flou WPL-WPY0067945
...
17
Ballast WPL-Y0071869
...
18
Heat Shield, Backguard WPL-0058894
...
19
Rear Backguard & Cover Plate WPL-0058909
...
20
Socket, Starter WPL-0071964
...
21
Starter, Flourescent WPL-0071920

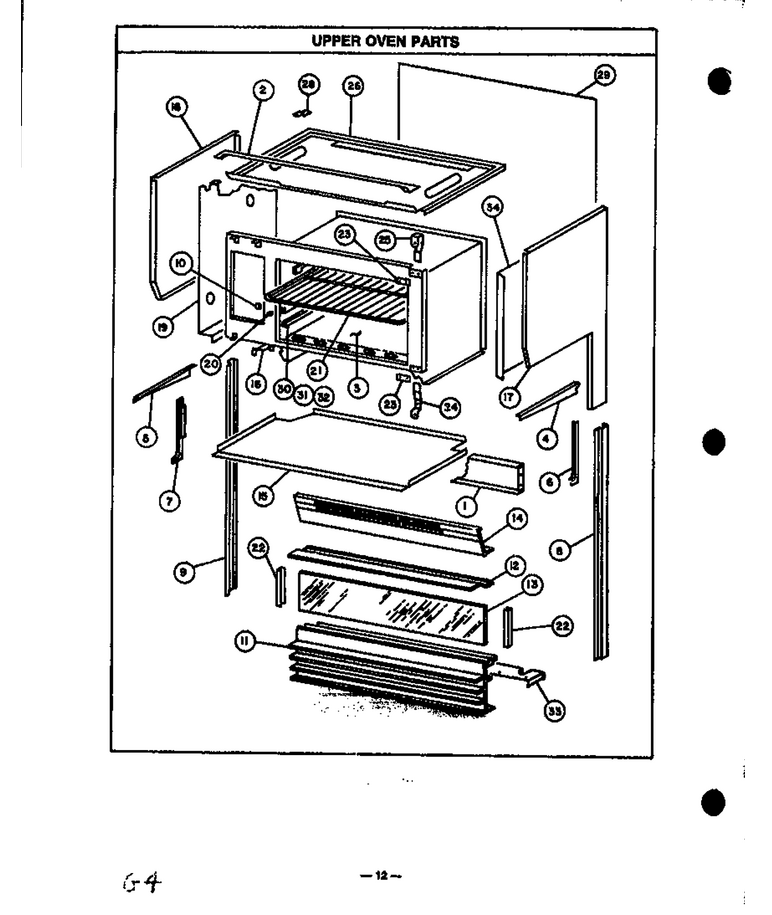

10 - Upper Oven Parts

...
...
Rss361 Upper Oven Parts - Note 1 - On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering WPL-NOTE:
...
NI
Main Body WPL-W10124601
...
1
Panel, Surface Light WPL-0071064
...
2
Flue Trim WPL-Y0094406
...
3
Oven Bottom WPL-0078002
...
4
Trim Strip, R.h. Side WPL-0071972
...
5
Trim Strip, L.h. Side WPL-Y0071973
...
6
Trim Support WPL-Y0091477
...
7
Trim Support WPL-Y0091478
...
8
Support, Cntl Panel, R.h. WPL-0071096
...
9
Support, Cntl Panel, L.h. WPL-Y0071095
...
10
Plate, Door Strike WPL-0075826
...
11
Sub 61802 Trim, Lower, Splash WPL-0063166
...
12
Rear Trim WPL-0071971
...
13
Glass, Splashplate WPL-0071968
...
14
Trim, Lower Decorative WPL-0063165
...
15
Jacket Bottom WPL-0071317
...
16
Door Guide WPL-0094204
...
17
Jacket End-R.h., Avocado WPL-W10126551
...
18
Jacket End-L.h., Avocado WPL-W10124640
...
19
Sub 60714, Retainer, Insul. WPL-Y0094391
...
20
Strike, Door, Upper Oven WPL-Y0078034
...
21
Oven Rack, Upper WPL-Y0078001
...
22
Trim, Glass WPL-Y0071954
...
23
Cover Plate Front Frame WPL-0093625
...
24
Hinge, Bottom WPL-Y0094356
...
25
Hinge, Top WPL-Y0094357
...
26
Jacket Top, Rsd WPL-0074091
...
28
Receptacle Cover WPL-Y0073060
...
29
Cover, Rear WPL-Y0062464
...
30
Sub 78003cg, Side Panel, Rh WPL-0078003
...
31
Side Panel WPL-0078175
...
32
Panel, Back WPL-0078172
...
33
Shield, Heat WPL-0062423
...
34
Retainer, Insulation WPL-Y0062256

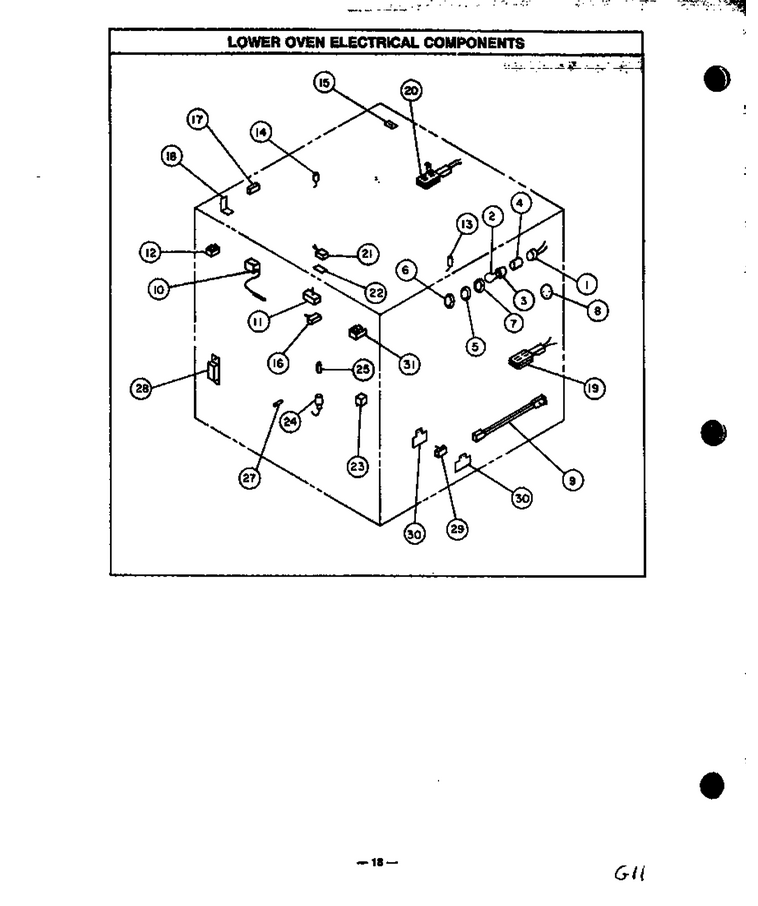

05 - Lower Oven Electrical Components

...
...
Rss398 Upper Oven Parts - Note 1 - On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering WPL-NOTE:
...
1
Male Loading Plug WPL-Y0068333
...
2
Light Bulb WPL-8009
...
3
Sub 62081, Housing, Ov.lite WPL-0064695
...
4
Retainer, Insul Ov. Lite WPL-0062366
...
5
Lens, Oven Light WPL-Y0064875
...
6
Retainer, Oven Light Lens WPL-0063764
...
7
Gasket, Oven Light WPL-0063763
...
9
Supply Cord WPL-Y0063518
...
10
Thermostat, Oven WPL-Y0061503
...
11
Switch, Selector WPL-4179076
...
12
Switch, Rocker WPL-Y0063997
...
13
Electrode (Rear) WPL-4157608
...
14
Electrode (Rear) WPL-4157608
...
15
Clip WPL-WPY0070927
...
16
Switch, Top Brnr Actuator WPL-Y0067335
...
17
Spark Module WPL-Y0066564
...
18
Bracket, Spark Module Mtg. WPL-Y0065458
...
19
Kit, Ignitor WPL-786324
...
20
Kit, Ignitor WPL-786324
...
21
Switch WPL-0079659
...
22
Insulation, Esm WPL-Y0091523
...
23
Male Loading Plug WPL-Y0068333
...
24
Holder, Fuse WPL-24001433
...
25
Fuse, 5 Amp WPL-Y0072211
...
31
Switch, Rocker WPL-Y0063997

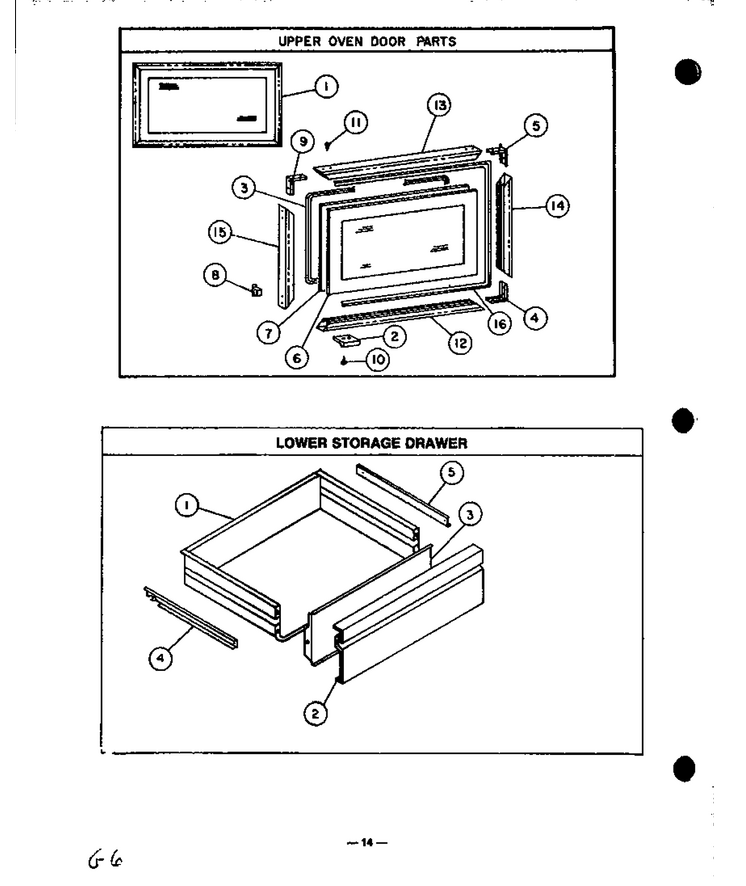

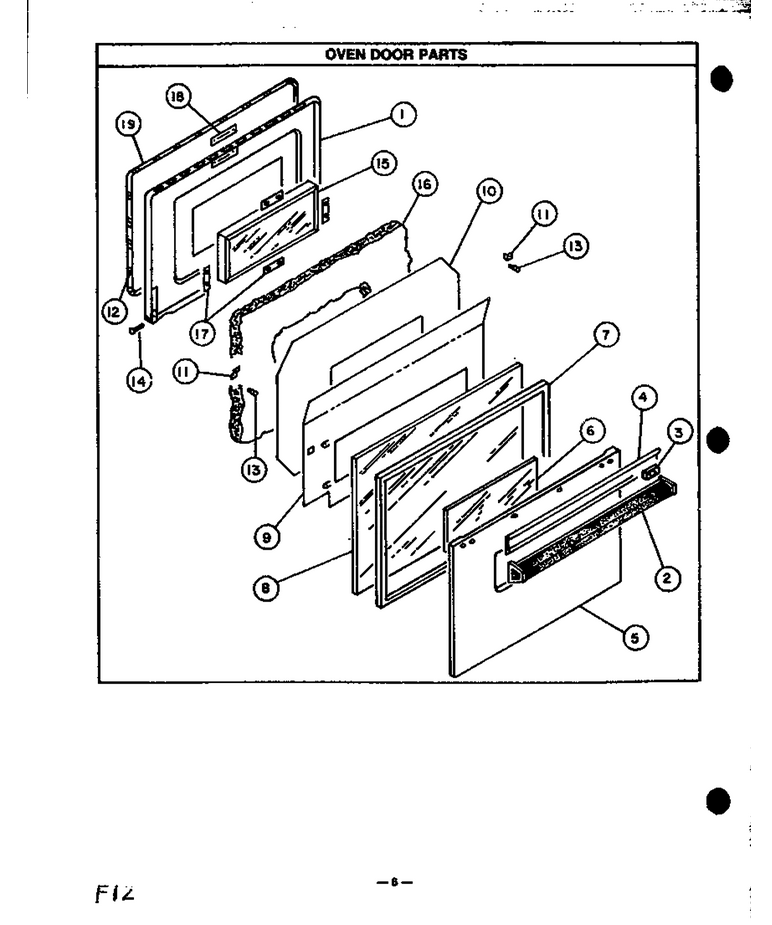

07 - Oven Door Parts

...
...
Rss353 Upper Oven Parts - Note 1 - On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering WPL-NOTE:
...
1
Sub 63517y, Door Backer WPL-0063517
...
2
Handle, Door WPL-0068150
...
3
Spacer Door Handle WPL-Y0079978
...
7
Frame, Door, Black WPL-0063804
...
8
Panel, Black Glass WPL-Y0063650
...
9
Plate, Air Baffle WPL-0063193
...
10
Plate, Insulation WPL-Y0063656
...
11
Support Bracket, Glass WPL-Y0062439
...
12
Clip, Tinnerman WPL-0068429
...
13
Bumper, Oven Door WPL-Y0063661
...
14
Rivet WPL-0091632
...
15
Window Assy WPL-0041491
...
16
Insulation WPL-Y2068301050
...
17
Retainer, Door Glass WPL-Y0052629
...
18
Latch Plate WPL-Y0052039
...
19
Dr. Gasket WPL-0071637

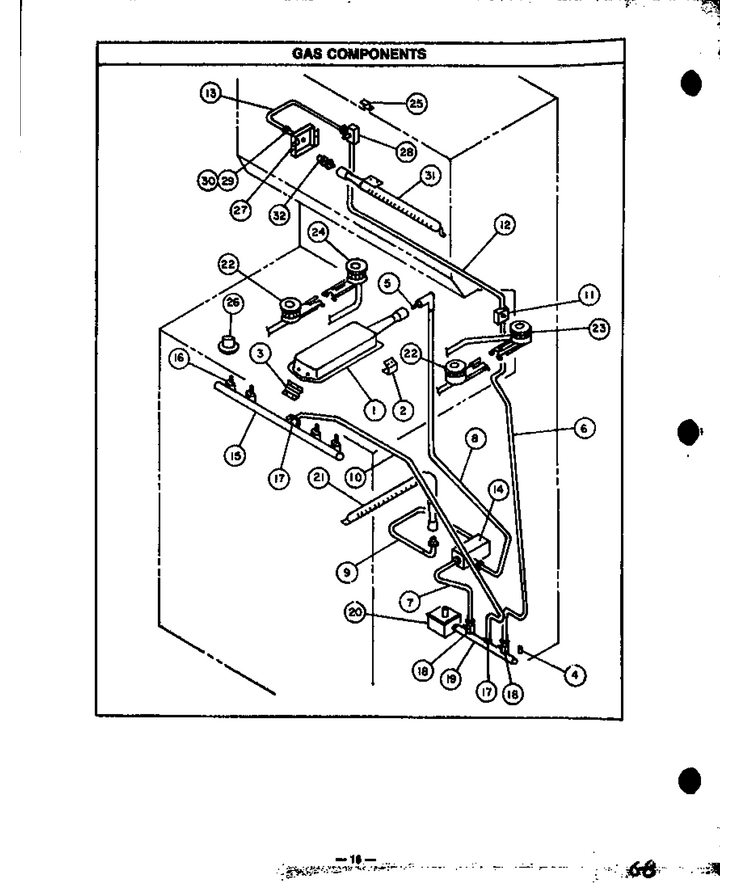

02 - Gas Components

...
...
Rss380 Upper Oven Parts - Note 1 - On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering WPL-NOTE:
...
1
Burner, Ultra Ray Broiler WPL-W10126549
...
2
Bracket, Ignitor WPL-0063785
...
3
Bracket, Burner Mtg. WPL-W10125045
...
4
Pipe Plug 1/8-27 Npt WPL-0042415
...
5
Orifice Spud, Nat. Gas No.50 WPL-Y0063060
...
7
Tubing, 3/8`` Od, 10 Ft. WPL-Y0062742
...
8
Assy., Orifice And Tubing WPL-0062434
...
9
Assy., Hood And Tubing WPL-0062433
...
10
Tubing, Inlet To Manifold WPL-0062798
...
14
Valve, Gas WPL-Y0063143
...
15
Manifold Pipe WPL-0062751
...
16
Valve, Top Burner WPL-0063672
...
17
Fitting, Compression WPL-0062760
...
18
Valve, Shut-Off WPL-Y0062749
...
19
Inlet WPL-0062762
...
20
Regulator-5``/10`` Side Inlet WPL-Y0063684
...
21
Oven Burner WPL-Y0063709
...
22
Top Burner Front WPL-Y0063147
...
23
Top Burner Rr WPL-Y0063146
...
24
Top Burner Lr WPL-Y0063145
...
26
Knob, Selector Assy WPL-0060181
...
29
3/8`` Compression Nut WPL-Y0092580
...
30
3/8`` Compression Sleeve WPL-Y0092579

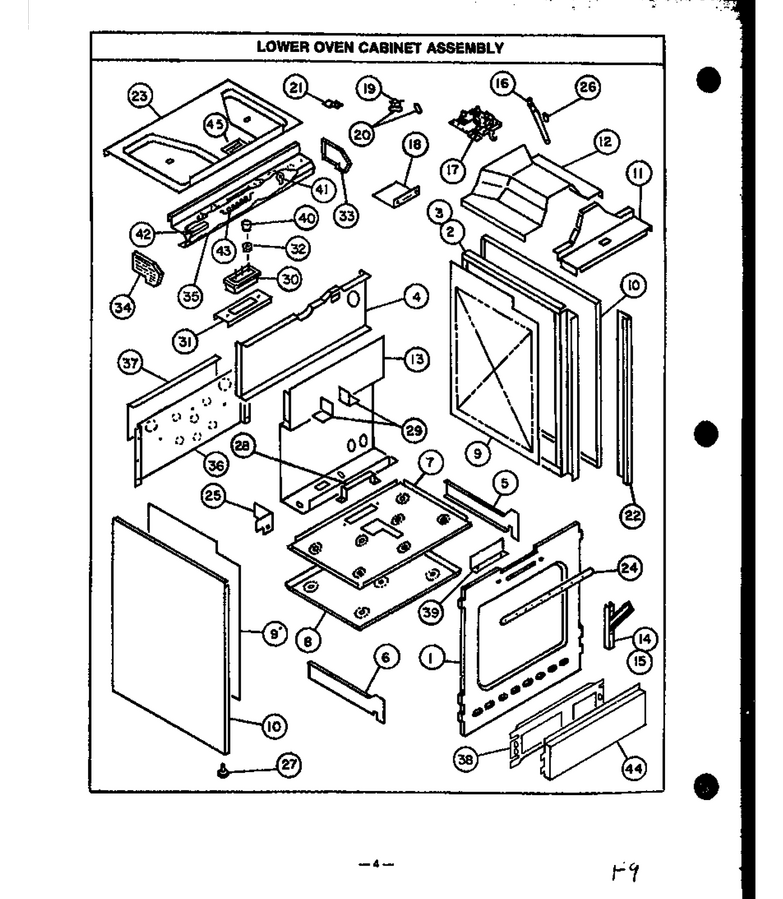

04 - Lower Oven Cabinet Assy

...
...
Rss352 Upper Oven Parts - Note 1 - On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering WPL-NOTE:
...
2
Side Frame - R.h. WPL-W10124817
...
3
Sub 61230cg, Frame Side Panel WPL-0061127
...
4
Sup. Brkt., Oven Shell WPL-W10125042
...
5
Drawer Track, Rh. WPL-0061252
...
6
Track, Storage Drawer, Lh WPL-0061253
...
7
Retainer, Bottom Insul. WPL-Y0063768
...
8
Shield, Heat WPL-Y0315146
...
9
Retainer, Insulation WPL-0062876
...
10
Panel, Main End - R.h. - Almon WPL-W10124846
...
11
Retainer, Insul. WPL-Y0062793
...
12
Retainer, Top Insul. WPL-0062791
...
13
Rear Panel, Lower WPL-Y0061816
...
14
Hinge-Door WPL-R0706011
...
15
Kit, Door Hinge(Lh-Hs) WPL-Y0066953
...
16
Latch Arm (Chrome) WPL-Y0063141
...
17
Latch Assembly WPL-Y0063733
...
18
Bracket, Latch Mounting WPL-0068101
...
19
Switch, Clean Circuit WPL-Y0065780
...
20
Insulation, Esm WPL-Y0091523
...
21
Bracket, Switch Mounting WPL-Y0068091
...
22
Trim, Side Panel WPL-0062957
...
23
Burner Box WPL-301599E
...
24
Sub 62750cg, Filler Front Fram WPL-0062750
...
25
Cover Plate WPL-Y0062710
...
26
Knob, Latch - Black WPL-Y0067844
...
27
Leg, Leveling WPL-Y0062362
...
28
Cover, Br. Brnr. Ign. WPL-0063767
...
29
Bracket, Gas Valve WPL-0063758
...
33
End Cap, Rh (Chrome) WPL-0063192
...
34
End Cap, Lh (Chrome) WPL-0063191
...
35
Control Panel WPL-0060186
...
41
Cam WPL-0066639
...
42
Actuator, Bar WPL-0063794
...
43
Spring WPL-Y0070919
...
45
Cover Plate Latch WPL-0062840

06 - Lower Storage Drawer

...
...
Rss369 Upper Oven Parts - Note 1 - On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering WPL-NOTE:
...
1
Drawer Assembly WPL-0061234
...
2
Panel, Drawer L WPL-063702L
...
3
Sub 57441cg, Drawer Panel WPL-0061930
...
4
Drawer Track Rh WPL-0061255
...
5
Sub 300031, Drawer Track Lh WPL-0061254

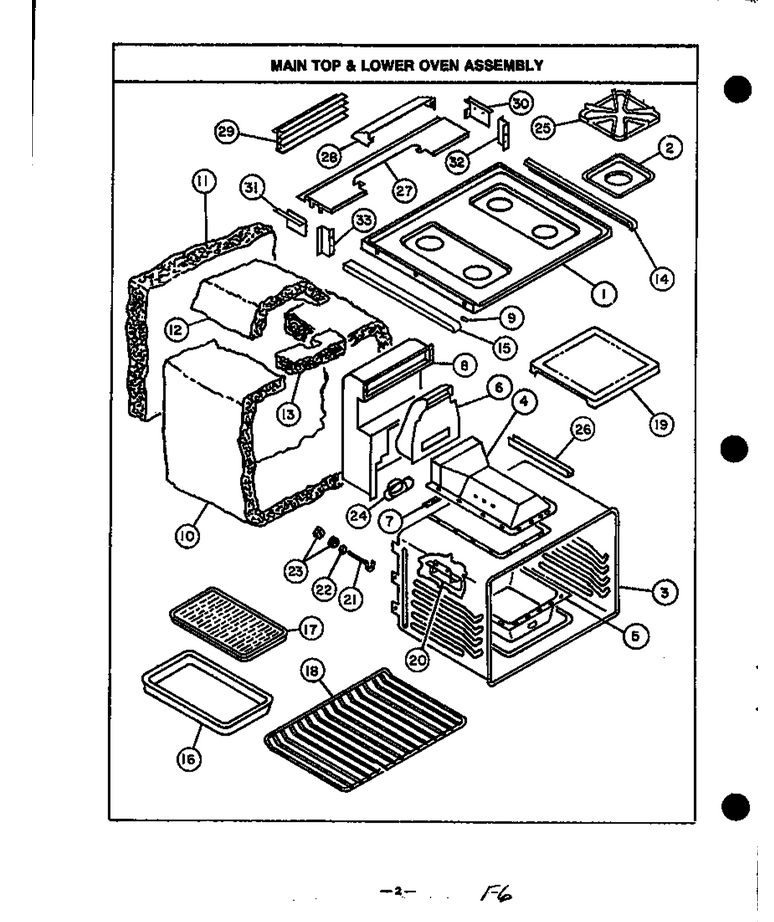

08 - Page 1

...
...
Rss307 Upper Oven Parts - Note 1 - On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering WPL-NOTE:
...
1
Maintop, Harvest WPL-W10124578
...
3
Oven Shell WPL-Y063647X
...
4
Chamber, Broiler WPL-Y0062892
...
5
Burner Box, Lower WPL-Y0063802
...
6
Flue WPL-0062770
...
7
Gasket, Oven Back WPL-0062754
...
8
Flue, Dilution WPL-0063552
...
9
Spacer, Nylon (.14``) WPL-Y0062445
...
10
Insulation, Wrapper WPL-31975801
...
11
Insulation, Wrapper WPL-31975801
...
12
Insulation, Wrapper WPL-31975801
...
13
Insulation, Wrapper WPL-31975801
...
16
Sub 11161cg, Broiler Pan WPL-Y0011161
...
17
Procelain Broiler (Pan And Grid) WPL-4396923
...
18
Rack-Oven WPL-WP314763J
...
19
Oven Bottom WPL-58625CG
...
20
Shield, Thermostat Bulb WPL-0062792
...
21
Hook Bolt WPL-Y0091536
...
22
Washer WPL-Y0071876
...
23
Sub 41847, Hex Nut WPL-0071881
...
24
Cup, Duct WPL-Y0062799
...
25
Grate-Brnr WPL-WP314647B
...
26
Channel, Br. Brnr. WPL-Y0063775

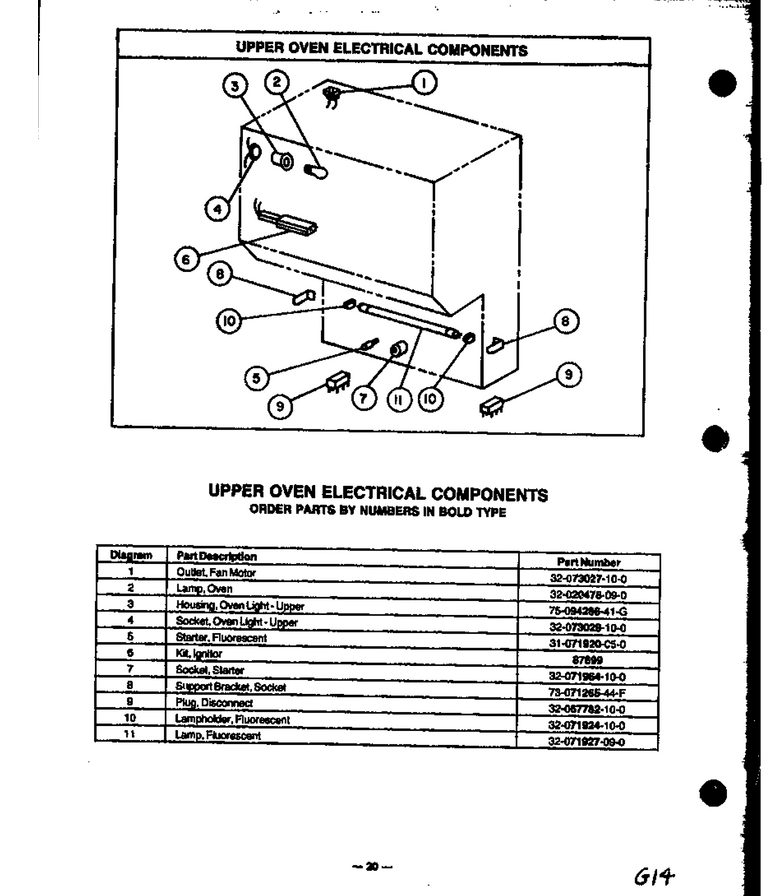

09 - Upper Oven Electrical Components

...
...
Rss399 Upper Oven Parts - Note 1 - On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering WPL-NOTE:
...
1
Receptacle WPL-0073027
...
2
Light Bulb WPL-8009
...
3
Housing, Oven Light WPL-0094286
...
4
Sub 90264,kit Light Socket WPL-0073028
...
5
Starter, Flourescent WPL-0071920
...
6
Kit, Ignitor WPL-786324
...
7
Socket, Starter WPL-0071964
...
8
Bracket, Socket, Fl. Lite WPL-Y0071265
...
9
Plug, 9 Pin, Male WPL-0067782
...
10
Light Socket WPL-Y0071924
...
11
Lamp-Fluor WPL-WP95292

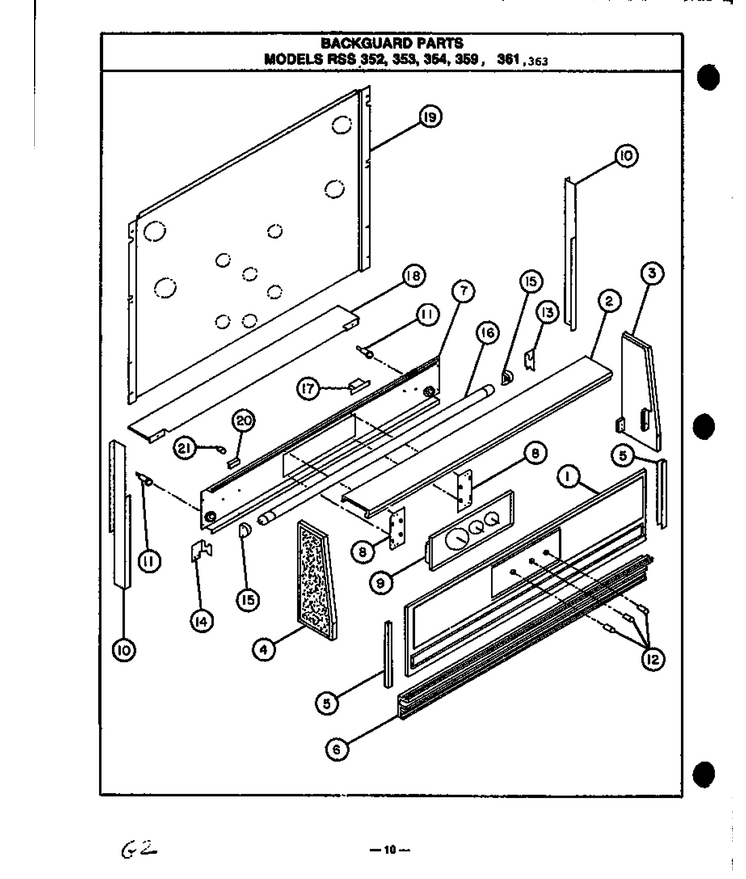

01 - Backguard Parts Models Rss 352

...
...
Rss363 Upper Oven Parts - Note: On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering WPL-NOTE:
...
1
Glass, Backguard WPL-0060199
...
2
Trim, Top, Backguard WPL-0060623
...
3
Sub 301002, End Cap Bkgd. R.h. WPL-0060696
...
4
End Cap, Bkgd L.h. WPL-Y0060695
...
5
Channel, Glass WPL-0063575
...
18
Heat Sheild Backguard WPL-Y0060069
...
19
Rear Cover Plate WPL-Y0062790
...
20
Socket, Starter WPL-0071964
...
21
Starter, Flourescent WPL-0071920
