Amana RSK3700UWW (BOM: P1141253W W)

Model: RSK3700UWW (BOM: P1141253W W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

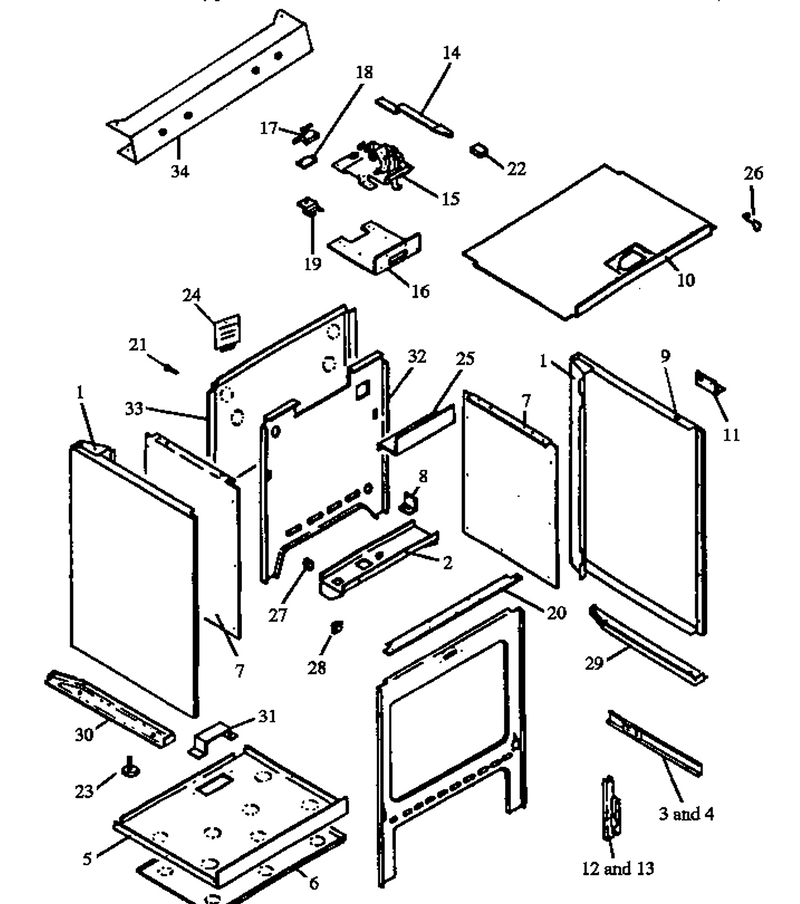

02 - Cabinet Assy

...
...
NI
Screw No.10-32 X .375 WPL-Y0300830
...
1
Panel, Side (Wht) WPL-31825104W
...
2
Shelf, Gas Valve WPL-0306588
...
3
Track, Storage Dwr Lh WPL-Y0314662
...
4
Track, Storage Dwr Rh WPL-0306403
...
5
Insul, Ret.-Bottom WPL-Y0308317
...
6
Shield, Heat WPL-Y0315146
...
7
Retainer, Insulation (Side) WPL-0304282
...
8
Bracket, Gas Valve WPL-0053182
...
9
Spacer, Nylon (.14``) WPL-Y0062445
...
10
Retainer, Top Insulation WPL-Y0306083
...
11
Bracket, Spark Module WPL-0304971
...
12
Hinge-Door WPL-R0706011
...
13
Kit, Door Hinge (Lh-Hs) WPL-Y0066952
...
14
Latch Arm WPL-303039W
...
15
Latch Assembly WPL-Y0063733
...
16
Bracket, Latch Mtg. WPL-Y0058918
...
17
Switch- La WPL-77001254
...
18
Insulation, Esm WPL-Y0091523
...
19
Bracket, Switch WPL-Y0302316
...
20
Filler, Front Frame WPL-Y0315148
...
21
Screw WPL-W11245710
...
22
Knob, Door Latch Lt Gray WPL-Y0300044
...
23
Leg, Leveling WPL-Y0300585
...
24
Plate, Access WPL-31757201
...
25
Cover, Electrical WPL-Y0306827
...
26
Clip WPL-0061336
...
27
Snap Bushing WPL-Y0042659
...
28
Cable, Clip Esm WPL-Y0091587
...
29
Brace, Leveling Leg (Lt) WPL-31854501
...
30
Brace, Leveling Leg (Lt) WPL-31854501
...
31
Cover, Ig/bake Burner WPL-Y0302498
...
32
Insul, Ret-Rear WPL-Y0306082
...
33
Cover Plate, Rear WPL-Y0306791
...
34
Panel, Manifold(White) WPL-306176W

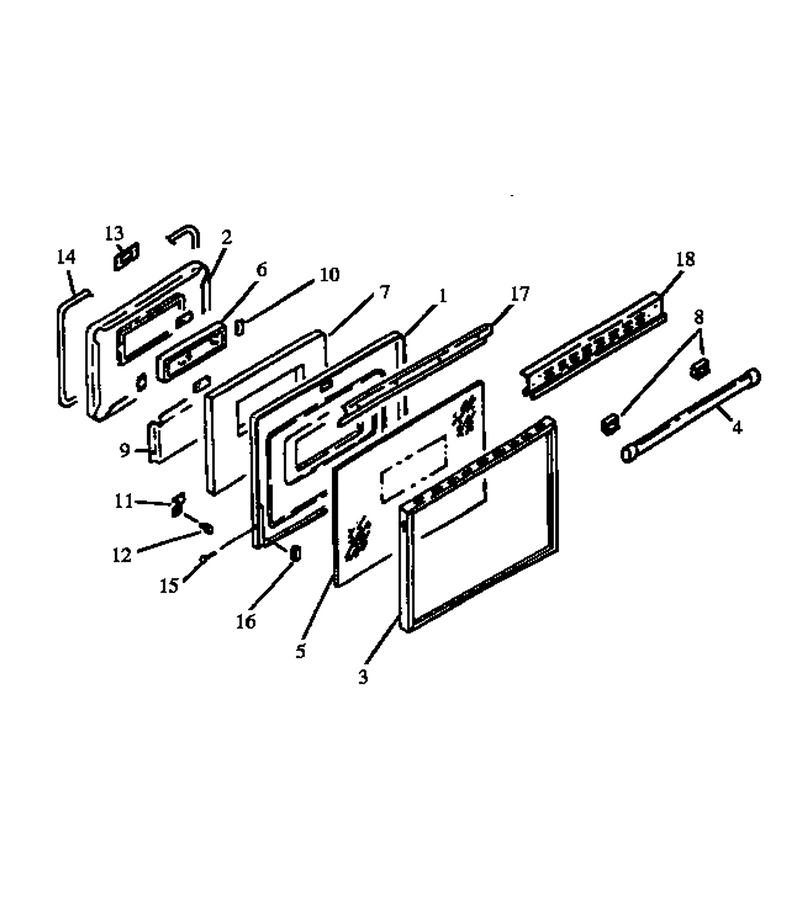

06 - Oven Door Assy

...
...
NI
Support, Door Glass WPL-Y0307910
...
1
Door Backer, Electric (Cg) WPL-302725E
...
2
Pad, Ov Dr W/window WPL-314693CG
...
3
Frame, Glass Door (White) WPL-306538W
...
4
Door Handle (Lt Gray) WPL-0304492
...
5
Glass, Oven Door, White WPL-Y0302446
...
6
Window Assy WPL-0304831
...
7
Insulation,door-Sub Backer WPL-0062614
...
8
Stand-Off, Door Handle WPL-306445W
...
9
Heat Baffle, Glass (Black) WPL-306449B
...
10
Retainer, Door Glass WPL-Y0052629
...
11
Support Bracket, Glass WPL-Y0062439
...
12
Bumper, Oven Door WPL-Y0063661
...
13
Latch Plate WPL-Y0052039
...
14
Gasket, Oven Dr 82`` WPL-Y0300432
...
15
Rivet, Pop WPL-Y0302648
...
16
Bumper, Rubber WPL-Y0060247
...
17
Back, Heat Baffle (Black) WPL-306450B
...
18
Trim, Door Top (White) WPL-306447W

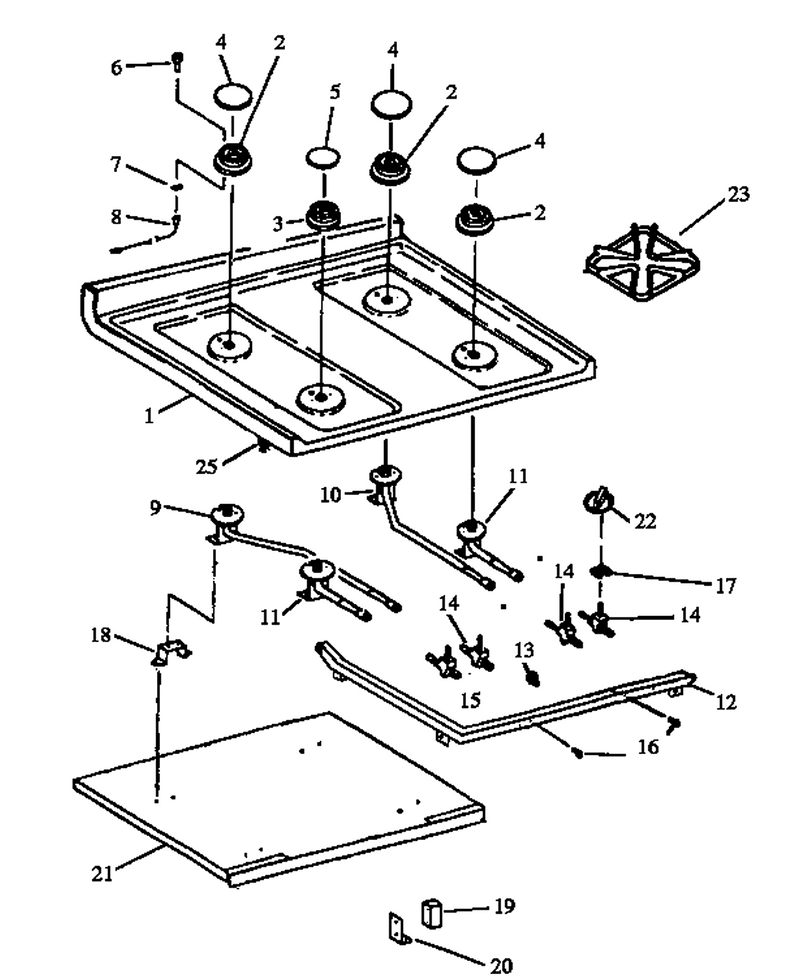

07 - Sealed Burner Parts

...
...
NI
Screw WPL-W11245710
...
1
Maintop-White WPL-306075W
...
2
Burner, 4`` Die Cast WPL-Y0306069
...
3
Burner 3`` Die Cast WPL-Y0306073
...
4
Burner Cap, Large (Gray) WPL-305818Y
...
5
Cap, Burner (Small) WPL-314637Y
...
6
Elctr-Kit WPL-WP3185804
...
7
Clip, Electrode WPL-Y07714200
...
8
Wire Jumper Assy 20`` WPL-Y0304358
...
9
Assy, Venturi-Lr WPL-0306160
...
10
Assy, Venturi-Rr WPL-Y0314736
...
11
Venturi Assy WPL-Y0306161
...
12
Assy, Manifold Pipe WPL-0306166
...
13
Elbow, 1/4 Npt X 3/8 C WPL-Y0301864
...
14
Valve 9k WPL-Y0306164
...
15
Valve 7k WPL-Y0306165
...
16
Screw WPL-W10491986
...
17
Switch, Ignition WPL-Y0306826
...
18
Brkt, Venturi Mtg WPL-0306149
...
19
Kit,spark Module(Service) WPL-Y0305451
...
20
Bracket, Spark Module WPL-0304971
...
21
Retainer, Top Insulation WPL-Y0306083
...
22
Knob, Top Burner (Gray) WPL-306170W
...
23
Grate, Top Burner WPL-306151Y
...
25
Screw, Stud WPL-31750709

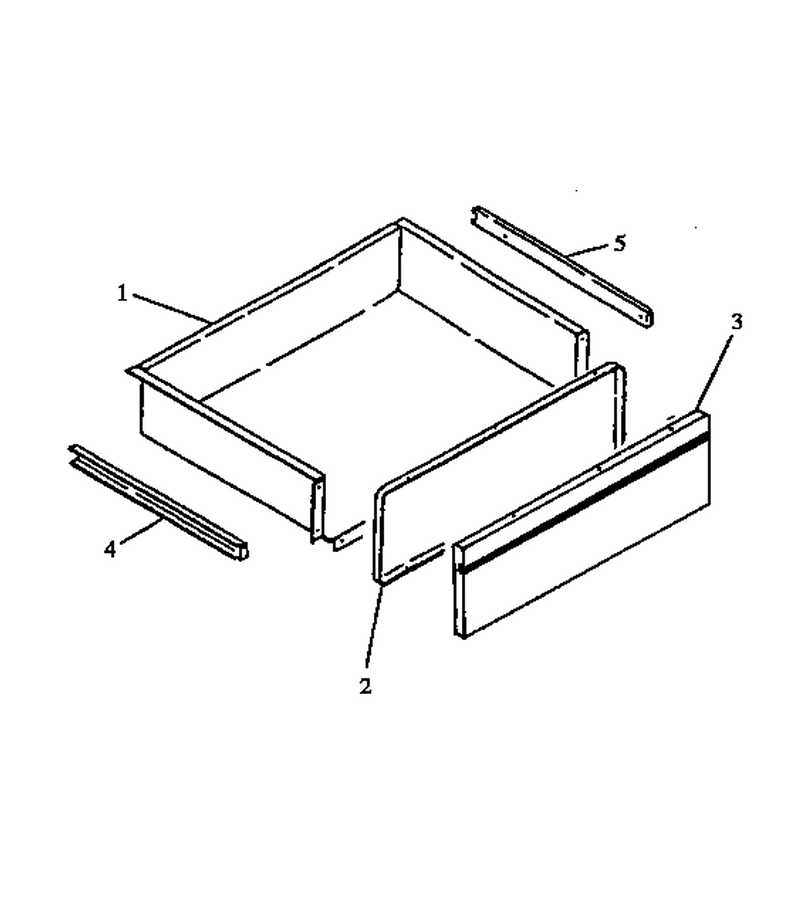

08 - Storage Drawer Assy

...
...
NI
Screw WPL-W11245710
...
1
Drawer, Storage (Blk) WPL-306084B
...
2
Liner Store Drawer WPL-306086G
...
3
Panel, Drawer Formed WPL-306085W
...
4
Runner Storage Dwr-Lh WPL-0306404
...
5
Runner Storage Dwr-Rh WPL-Y0314665

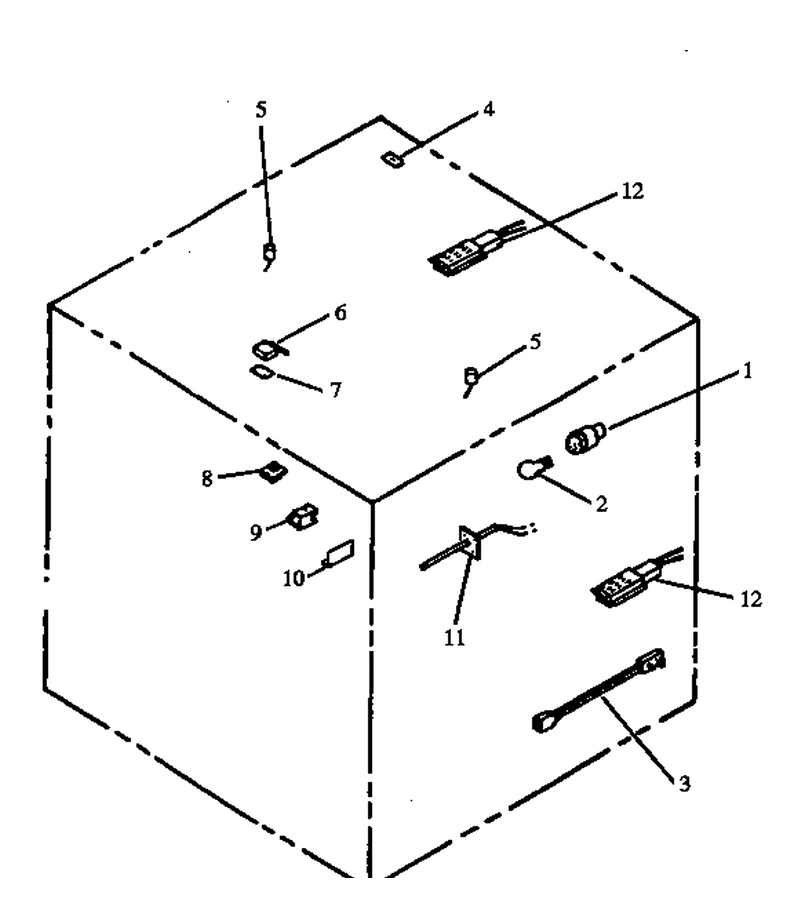

03 - Electric Components

...
...
NI
Bracket, Igniter Mounting WPL-31957101
...
1
Light- Ove WPL-WP74011278
...
2
Light Bulb WPL-8009
...
3
Power Cord WPL-Y0306654
...
4
Clip, Electrode WPL-Y0304365
...
5
Elctr-Kit WPL-WP3185804
...
6
Switch- La WPL-77001254
...
7
Insulation, Esm WPL-Y0091523
...
8
Switch, Ignition WPL-Y0306826
...
9
Kit,spark Module(Service) WPL-Y0305451
...
10
Bracket, Spark Module WPL-0304971
...
11
Sensor, Erc WPL-Y0300769
...
12
Kit, Ignitor WPL-786324

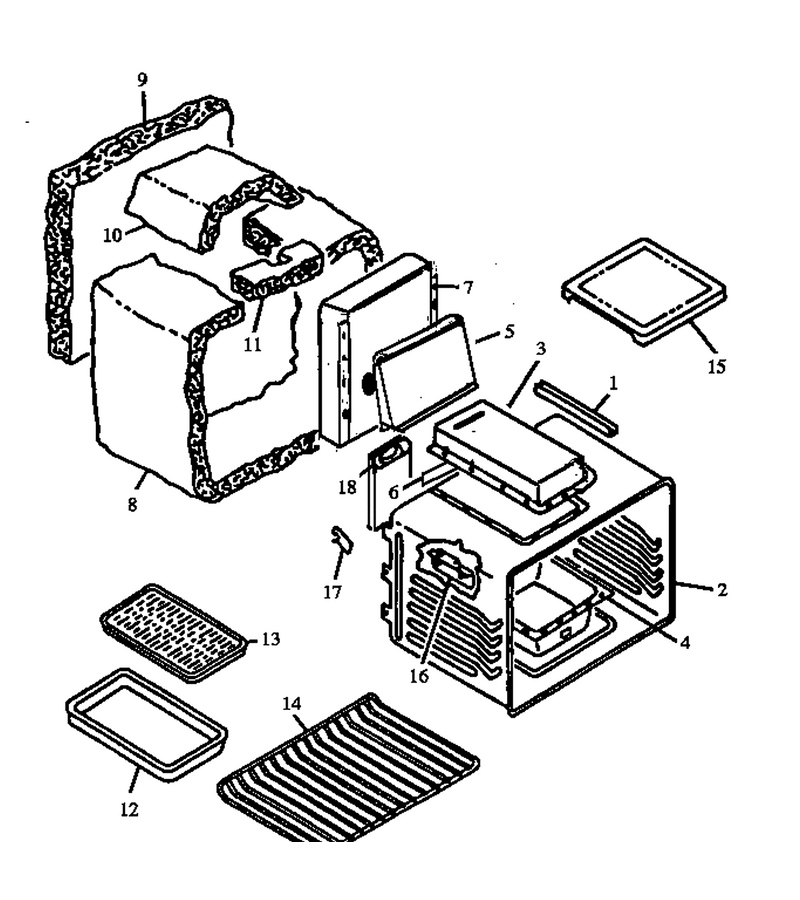

05 - Oven Assy

...
...
NI
Screw WPL-W11245710
...
1
Channel, Broil Burner WPL-Y0304019
...
2
Oven Shell (Gas W/lt) WPL-31821701CG
...
3
Weldm`t, Broil Chamber WPL-0306651
...
4
Burner Box, Lower WPL-Y0063802
...
5
Flue WPL-306456E
...
6
Chip Cover, Oven Back WPL-0306653
...
7
Flue, Dilution WPL-306158B
...
8
Insulation, Wrapper WPL-31975801
...
9
Insulation, Wrapper WPL-31975801
...
10
Insulation, Wrapper WPL-31975801
...
11
Insulation, Wrapper WPL-31975801
...
12
Procelain Broiler (Pan And Grid) WPL-4396923
...
13
Procelain Broiler (Pan And Grid) WPL-4396923
...
14
Rack-Oven WPL-WP314763J
...
15
Oven Bottom WPL-58625CG
...
17
Bracket, Oven Cavity WPL-Y0058852
...
18
Weld, Air Duct Broil Burner WPL-0306366

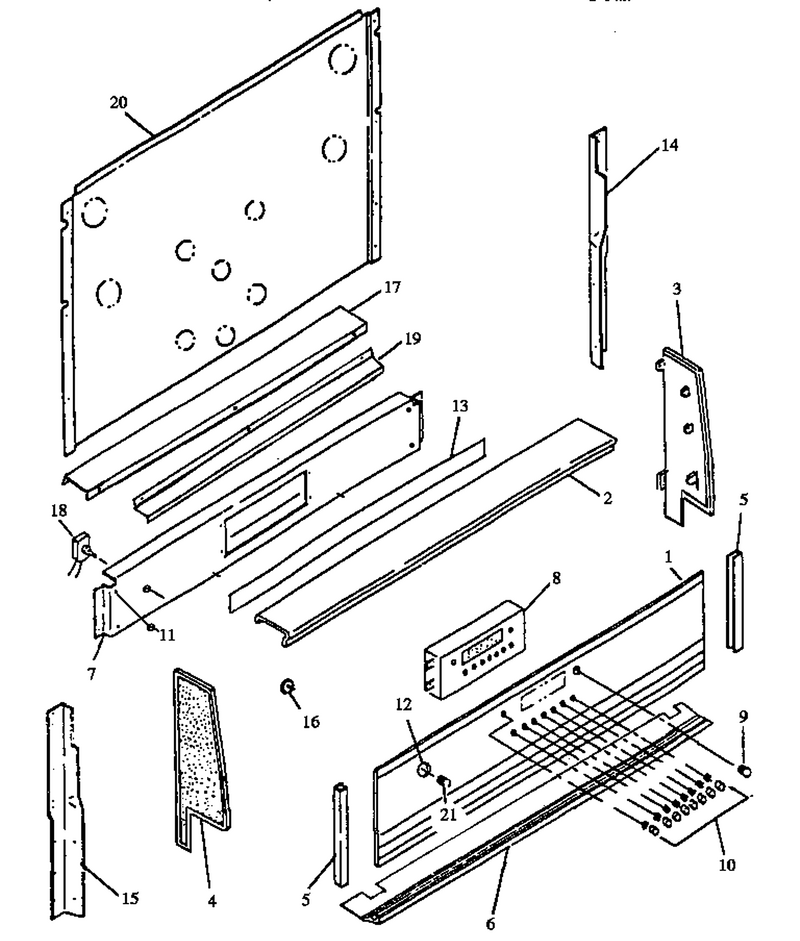

01 - Backguard Parts

...
...
NI
Screw WPL-W11245710
...
1
Glass, Bkgrd WPL-306351W
...
2
Top Trim Backguard WPL-305296W
...
3
End Cap, Backguard R.h. WPL-0306397
...
4
End Cap, Backguard L.h. WPL-Y0306396
...
5
Channel Glass (Wht) WPL-Y0305322
...
6
Trim, Lower Bkgrd (White) WPL-306130W
...
7
Bkgrd, Control Panel WPL-0306828
...
8
Erc Iii (Gas) WPL-0307783
...
9
Knob, Clock (Gray) WPL-308385T
...
10
Button- Er WPL-308945T
...
11
Bumper, Oven Door WPL-Y0063661
...
12
Bezel Panel Switch (Lt. Gray) WPL-0305320
...
13
Srtip, Filler WPL-302063E
...
14
Support, Bkgd (Rh) WPL-0306590
...
15
Support, Bkgd (Lh) WPL-0306589
...
16
Clip, Speed WPL-0306040
...
17
Retainer, Bkgrd Glass WPL-305034W
...
18
Kit, Light Switch WPL-306824B
...
19
Bracket, Retainer WPL-0305033
...
20
Cover Plate, Rear WPL-Y0306791
...
21
Cap, Oven Light Sw (Gray) WPL-0306650

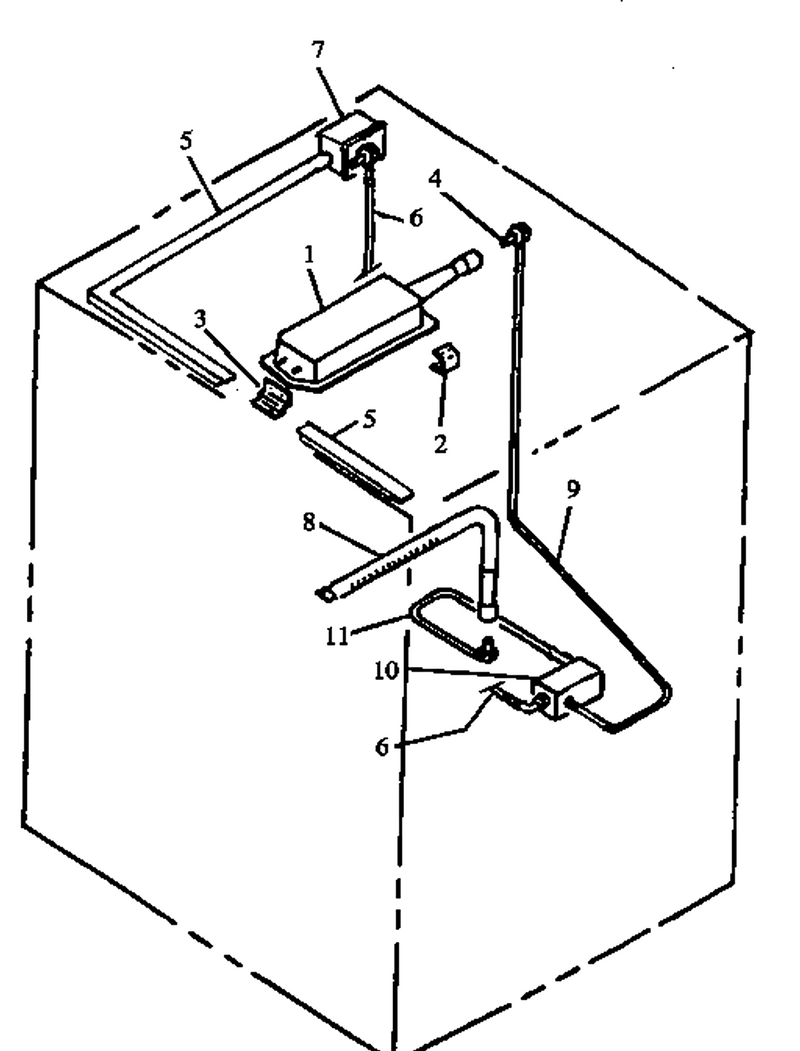

04 - Gas Components

...
...
NI
Fitting, 1/8``x 3/8`` WPL-Y0301263
...
1
Assy, Br. Burner WPL-Y0060691
...
2
Bracket Ignitor Mtg WPL-Y0303112
...
3
Bracket, Mtg. Br. Support WPL-Y0060687
...
4
Orifice, No.58 Lp WPL-31864901
...
5
Assy, Manifold Pipe WPL-0306166
...
6
Tubing, Regulator To Valve WPL-0307044
...
7
Regulator, Pressure WPL-0306168
...
8
Oven Burner WPL-Y0063709
...
9
Assy, Orifice & Tubing WPL-Y0306593
...
10
Valve, Gas, Dual WPL-Y0306429
...
11
Assy, Hood & Tubing WPL-0306594
