Amana RSF320OUL (BOM: P1141271N)

Model: RSF320OUL (BOM: P1141271N)

Save Part Not Listed?
product name

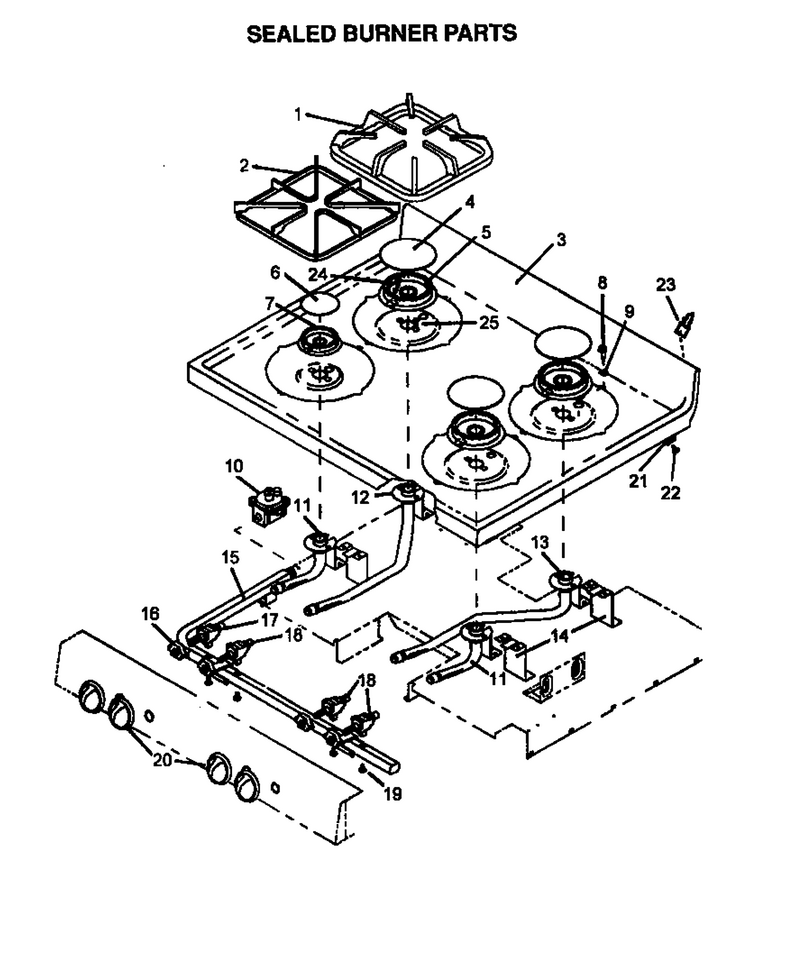

08 - Sealed Burner Parts

...
...
2
Grate, Top Burner (Black) WPL-309584B
...
3
Maintop-Almond WPL-306075L
...
4
Cap, Burner (Large) WPL-314638B
...
5
Burner, 4`` Die Cast WPL-Y0307339
...
6
Cap, Burner (Small) WPL-314637B
...
7
Burner 3`` Die Cast WPL-Y0306073
...
8
Elctr-Kit WPL-WP3185804
...
9
Clip, Electrode WPL-Y07714200
...
10
Regulator, Pressure WPL-Y0308866
...
11
Venturi Assy WPL-Y0306161
...
12
Assy, Venturi-Lr WPL-0306160
...
13
Assy, Venturi-Rr WPL-Y0314736
...
14
Brkt, Venturi Mtg WPL-0306149
...
15
Pipe Manifold WPL-0307175
...
16
Switch, Gas Valve WPL-0309904
...
17
Valve, Top Burner WPL-0309593
...
18
Valve, Top Burner WPL-0309592
...
19
Screw WPL-W10491986
...
20
Knob, Top Burner WPL-309563B
...
21
Spacer, Nylon (.14``) WPL-Y0062445
...
22
Metal Screw 6x3/8 Phil Pan Hd WPL-Y0092374
...
23
Screw, Stud WPL-31750709
...
24
Screw Cabinet Trim WPL-Y0041813
...
25
Screw WPL-8169479

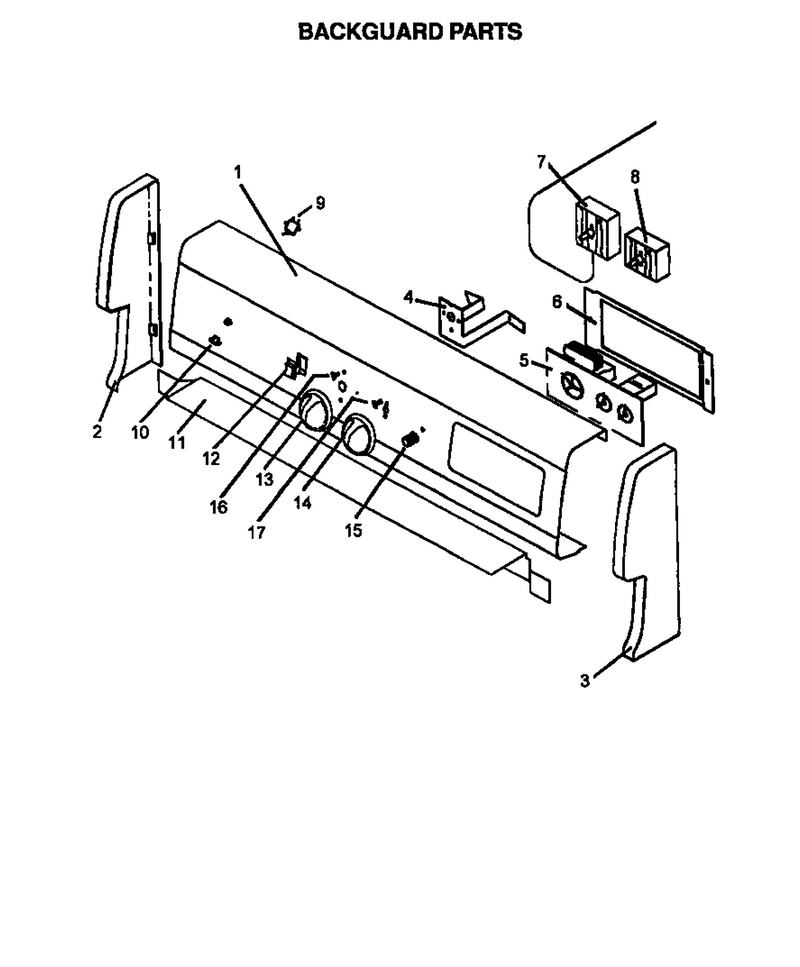

01 - Backguard Parts

...
...
NI
Insulation, Wrapper WPL-31975801
...
1
Panel, Bkgd (Black) WPL-309574B
...
2
End Cap, L.h. (Black) WPL-309576B
...
3
End Cap, R.h. (Black) WPL-309577B
...
4
Brace, Backguard WPL-Y0309905
...
5
Clock Analog WPL-Y0314718
...
6
Brkt, Clock Mtg WPL-0309582
...
7
Oven Thermostat, Push To Turn WPL-Y0303055
...
8
Switch, Selector WPL-Y0309809
...
9
Light-Ind WPL-WP903115
...
10
Lens, Indic. Light WPL-Y0309581
...
11
Retainer, Insul Bkgd WPL-314196B
...
13
Knob, Thermostat WPL-309579B
...
14
Knob, Selector WPL-309580B
...
15
Knob- Cloc WPL-Y07715600
...
16
Screw, No.3-32 X.187 Pan Hd Ph WPL-31750302
...
17
Screw WPL-WP3400882

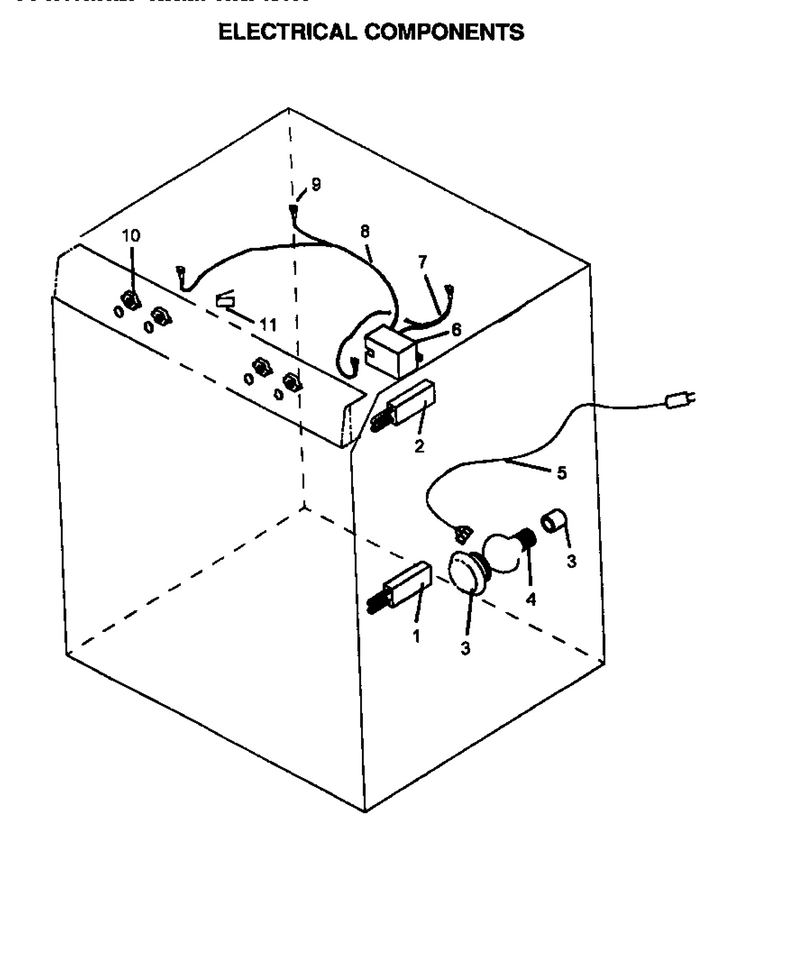

03 - Electrical Components

...
...
NI
U-Clip, Safe Edge WPL-31750803
...
1
Kit, Ignitor WPL-786324
...
2
Assy, Svc Ignitor WPL-Y0309143
...
5
Power Cord WPL-Y0306654
...
6
Kit,spark Module(Service) WPL-Y0305451
...
7
Harness,ign Wire 20`` WPL-Y0307394
...
8
Harness,ign Wire 31`` WPL-Y0307393
...
9
Elctr-Kit WPL-WP3185804
...
10
Switch, Gas Valve WPL-0309904
...
11
Switch- La WPL-77001254

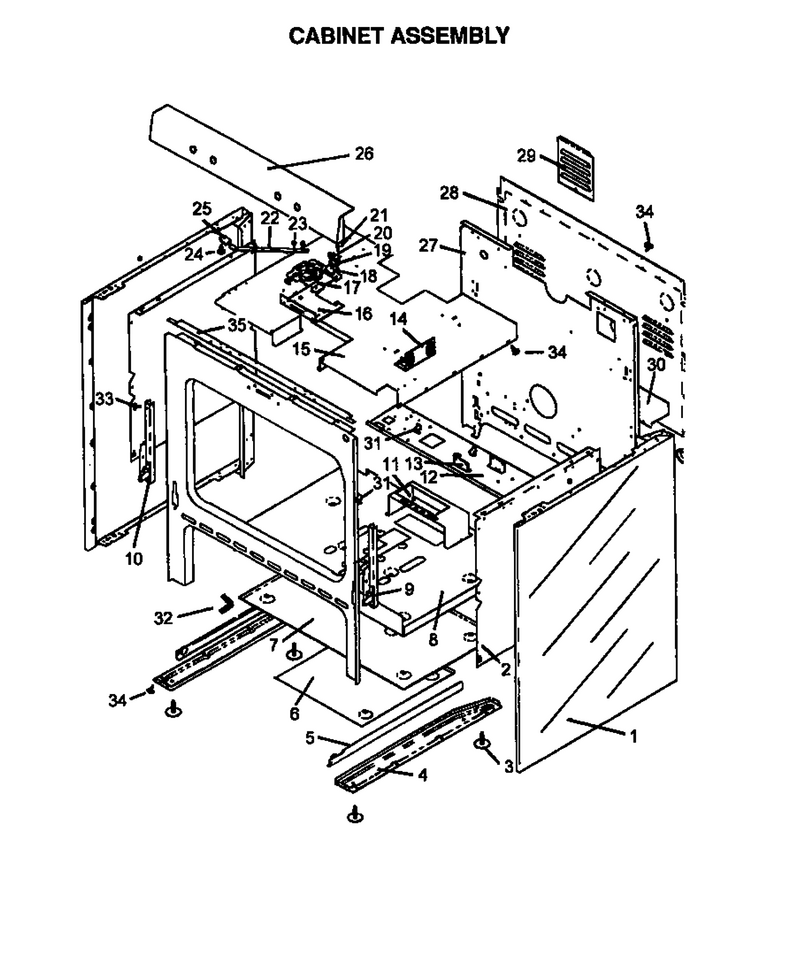

02 - Cabinet Assy

...
...
1
Panel, Side (Wht) WPL-31825104W
...
2
Retainer, Insulation (Side) WPL-0304282
...
3
Leg, Leveling WPL-Y0307594
...
4
Btm Brace Lvl WPL-303578G
...
5
Track, Storage Dwr Rh WPL-0306403
...
6
Shield WPL-0059596
...
7
Shield, Heat WPL-Y0315146
...
8
Insul, Ret.-Bottom WPL-Y0308317
...
9
Hinge-Door WPL-R0706011
...
10
Hinge-Door WPL-R0706010
...
11
Cover, Ig/bake Burner WPL-Y0302498
...
12
Shelf, Gas Valve WPL-0307065
...
13
Bracket, Gas Valve WPL-0053182
...
14
Bracket, Spark Module WPL-0304971
...
15
Retainer, Top Insul. WPL-0309444
...
16
Bracket, Latch Mtg. WPL-Y0058918
...
17
Latch Assembly WPL-Y0063733
...
18
Bracket, Switch WPL-Y0302316
...
19
Insulation, Esm WPL-Y0091523
...
20
Switch- La WPL-77001254
...
21
Screw, Tt 23 4-40 X 5/8 WPL-Y0065664
...
22
Handle, Door Latch (Blk) WPL-303040B
...
23
Screw Latch Arm Mounting WPL-Y0078780
...
24
Screw 6-32 X 3/8 WPL-Y0066765
...
25
Knob, Latch Handle (Blk) WPL-0302300
...
26
Panel, Manifold (Black) WPL-306175B
...
27
Insul, Ret-Rear WPL-Y0306082
...
28
Cover Plate, Rear WPL-Y0306791
...
29
Plate, Access WPL-31757201
...
30
Cover, Electrical WPL-Y0306827
...
31
Cable, Clip Esm WPL-Y0091587
...
32
Anti-Tip Pack WPL-31970801
...
33
Screw No.10-32 X .375 WPL-Y0300830
...
34
Screw WPL-W11245710
...
35
Filler, Front Frame WPL-Y0315148

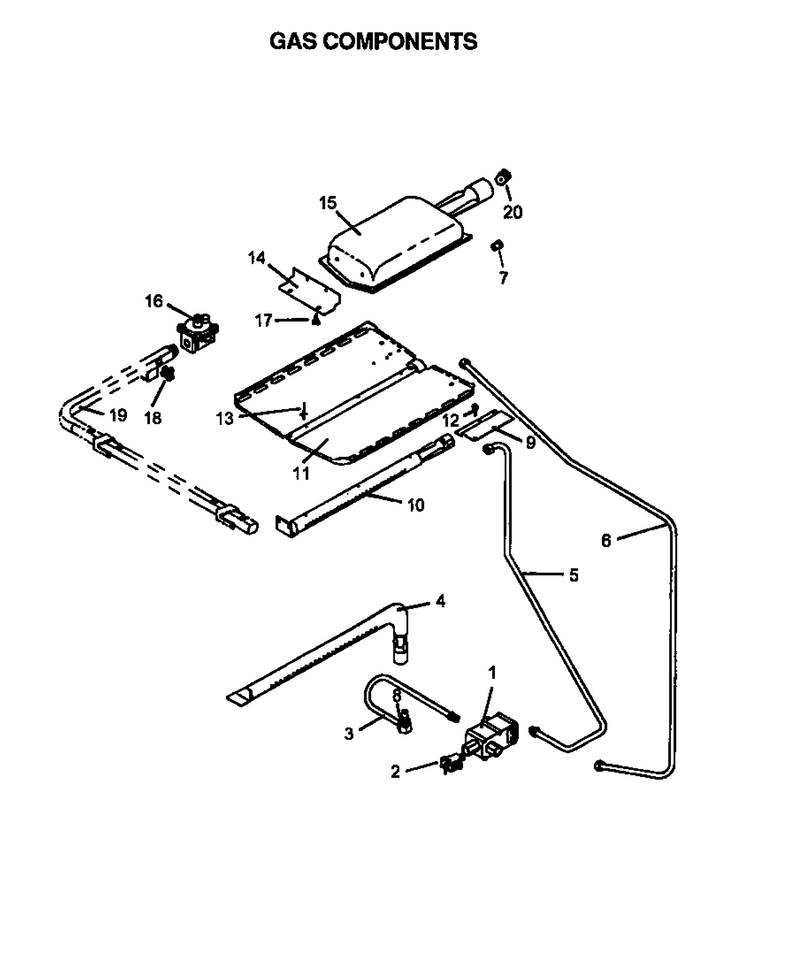

04 - Gas Components

...
...
1
Valve, Gas, Dual WPL-Y0306429
...
2
Valve, Shutoff WPL-0306428
...
3
Assy, Hood & Tubing WPL-0306594
...
4
Oven Burner WPL-Y0063709
...
5
Tubing, Gas WPL-0302058
...
6
Tubing, Manifold/valve WPL-0314143
...
7
Hood, Orifice WPL-0314467
...
8
Nut, Pal 3/4-16 X 1.062 WPL-Y0097871
...
9
Shield, Broiler Ignitor WPL-Y0314225
...
10
Broil Burner WPL-0300070
...
11
Reflector, Broil WPL-Y0054043
...
12
Screw WPL-WP489128
...
13
Rivet, Pop WPL-Y0097822
...
16
Regulator, Pressure WPL-Y0308866
...
18
Fitting, 1/8``x 3/8`` WPL-Y0301263
...
19
Pipe Manifold WPL-0307175
...
20
Orifice, Broil Burner WPL-Y0314452

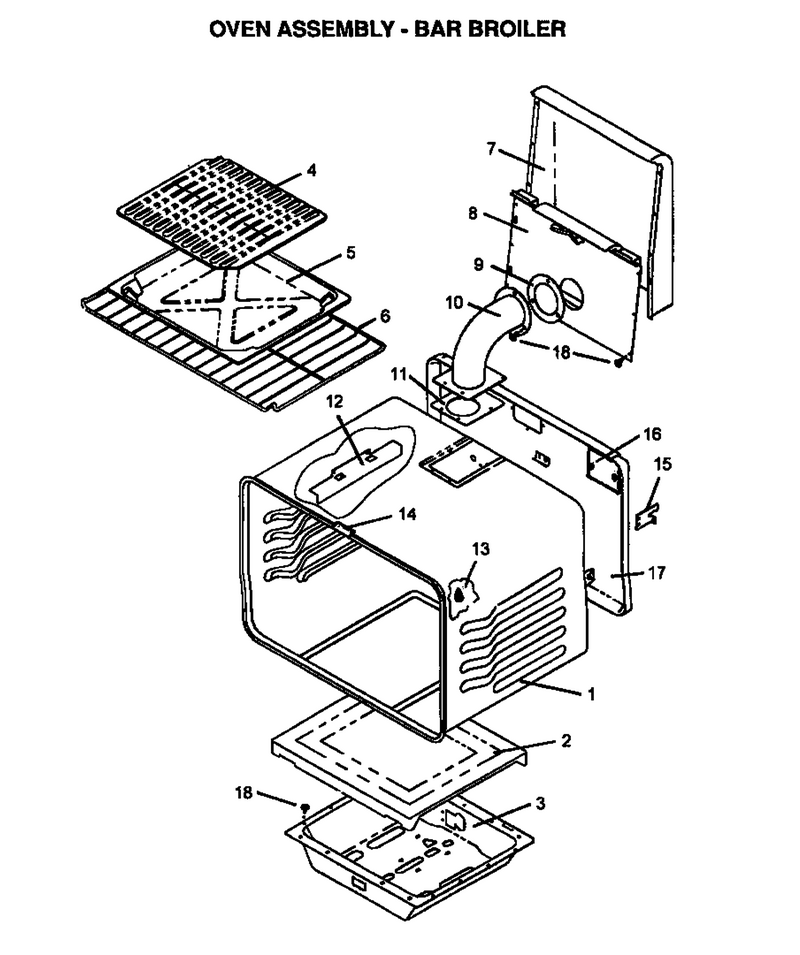

05 - Oven Assy - Bar Broiler

...
...
NI
Insulation, Wrapper WPL-31975801
...
1
Shell, Oven (Gas) WPL-302933CG
...
2
Oven Bottom WPL-58625CG
...
3
Burner Box, Lower WPL-Y0063802
...
4
Grid, Broiler WPL-88723CG
...
5
Pan, Broiler WPL-87722CG
...
6
Rack-Oven WPL-WP314763J
...
7
Flue, Dilution WPL-306158B
...
8
Assy, Flue WPL-309567CG
...
9
Vent Flue Gasket WPL-Y0309724
...
10
Tube, Air Vent WPL-0309594
...
11
Vent Gasket WPL-0309725
...
12
Shield, Thermostat Bulb WPL-0062792
...
13
Probe Recept. Cover Stainless WPL-Y0040848
...
14
Cover, Chip WPL-Y0315022
...
15
Bracket, Oven Cavity WPL-Y0058852
...
16
Cover, Plate WPL-Y0308357
...
18
Screw WPL-W11245710

07 - Oven Door Assy

...
...
4
Standoff, Door Handle WPL-306444B
...
5
Screw, 8-32 X 1.88`` WPL-Y0306448

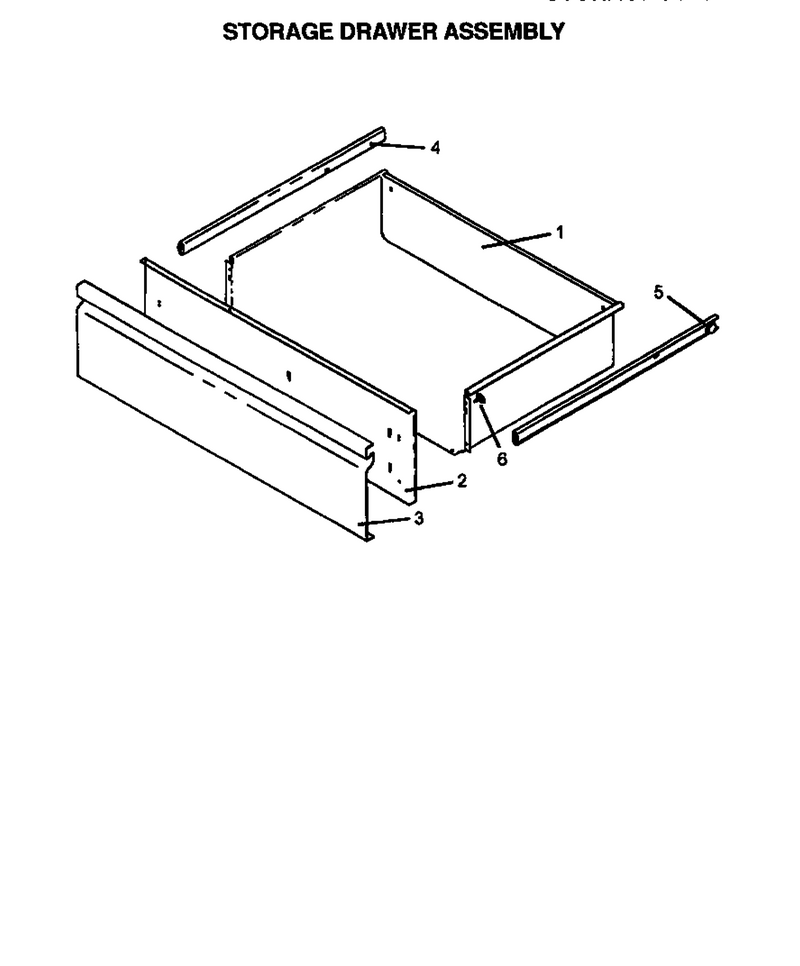

09 - Storage Drawer Assy

...
...
1
Drawer, Storage (Blk) WPL-306084B
...
2
Liner Store Drawer WPL-306086G
...
3
Panel, Drawer Formed WPL-306085W
...
4
Runner Storage Dwr-Lh WPL-0306404
...
5
Runner Storage Dwr-Rh WPL-Y0314665
...
6
Screw WPL-W11245710

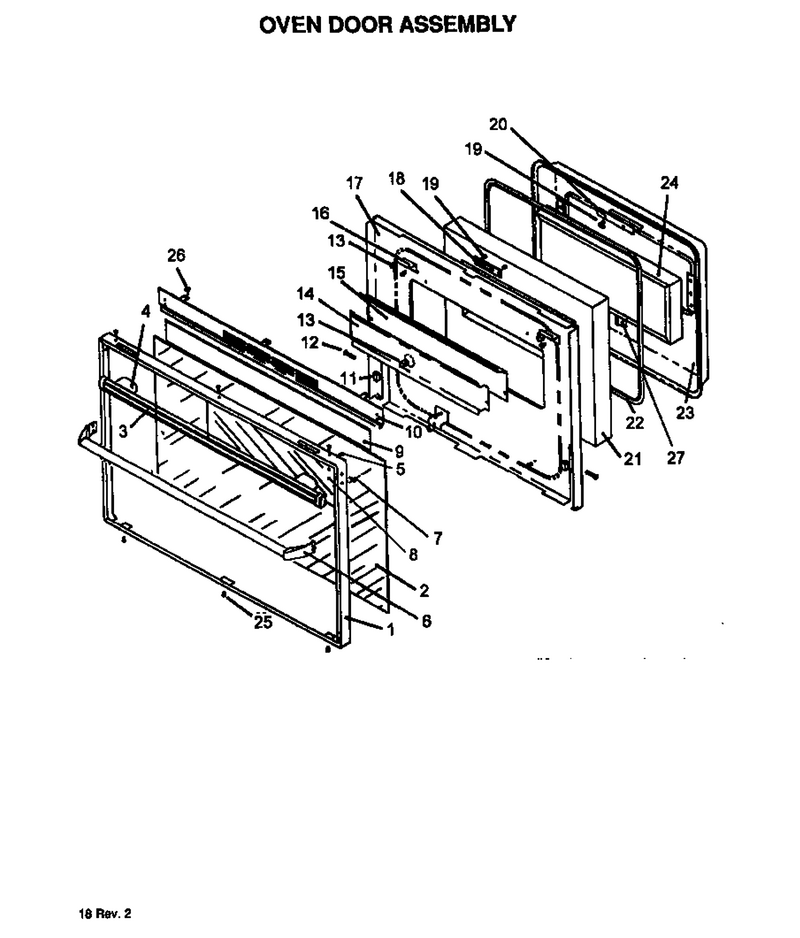

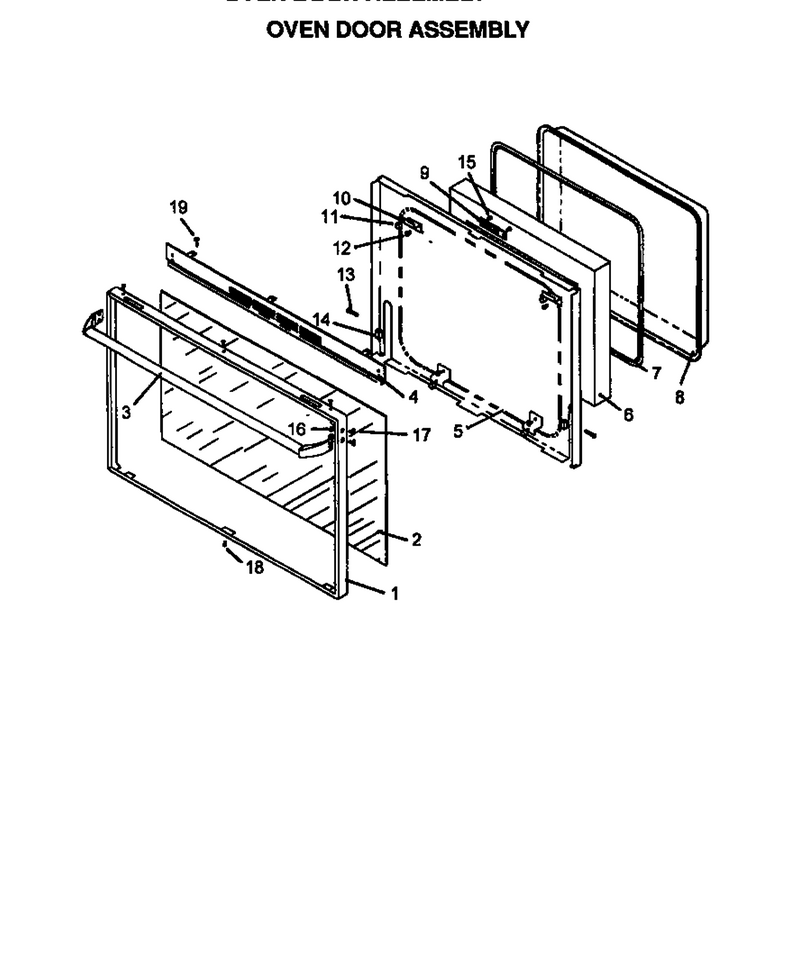

06 - Oven Door Assy

...
...
1
Frame, Glass Door (Black) WPL-306543B
...
2
Panel, Door Glass WPL-Y0300785
...
3
Handle, Oven Door WPL-309769B
...
4
Trim, Oven Door Top (Rlack) WPL-306544B
...
5
Door Backer, Electric (Cg) WPL-302725E
...
6
Insulation, Wrapper WPL-31975801
...
7
Gasket, Oven Dr 82`` WPL-Y0300432
...
8
Oven Door Pad W/o Window WPL-314692CG
...
9
Latch Plate WPL-Y0052039
...
10
Support Bracket, Glass WPL-Y0062439
...
11
Bumper, Oven Door WPL-Y0063661
...
12
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
13
Rivet, Pop WPL-Y0302648
...
14
Bumper, Rubber WPL-Y0060247
...
15
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
16
Nut WPL-WP488130
...
17
Screw, Door Handle WPL-0302206
...
18
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
19
Screw WPL-W11245710
